Lodge JR in Yacanto, Córdoba, Argentina
1 February 2025
Architecture: Arq. Paul Dragicevic
Location: Yacanto, Córdoba, Argentina
Photos by Gonzalo Viramonte
Lodge JR, Yacanto, Argentina

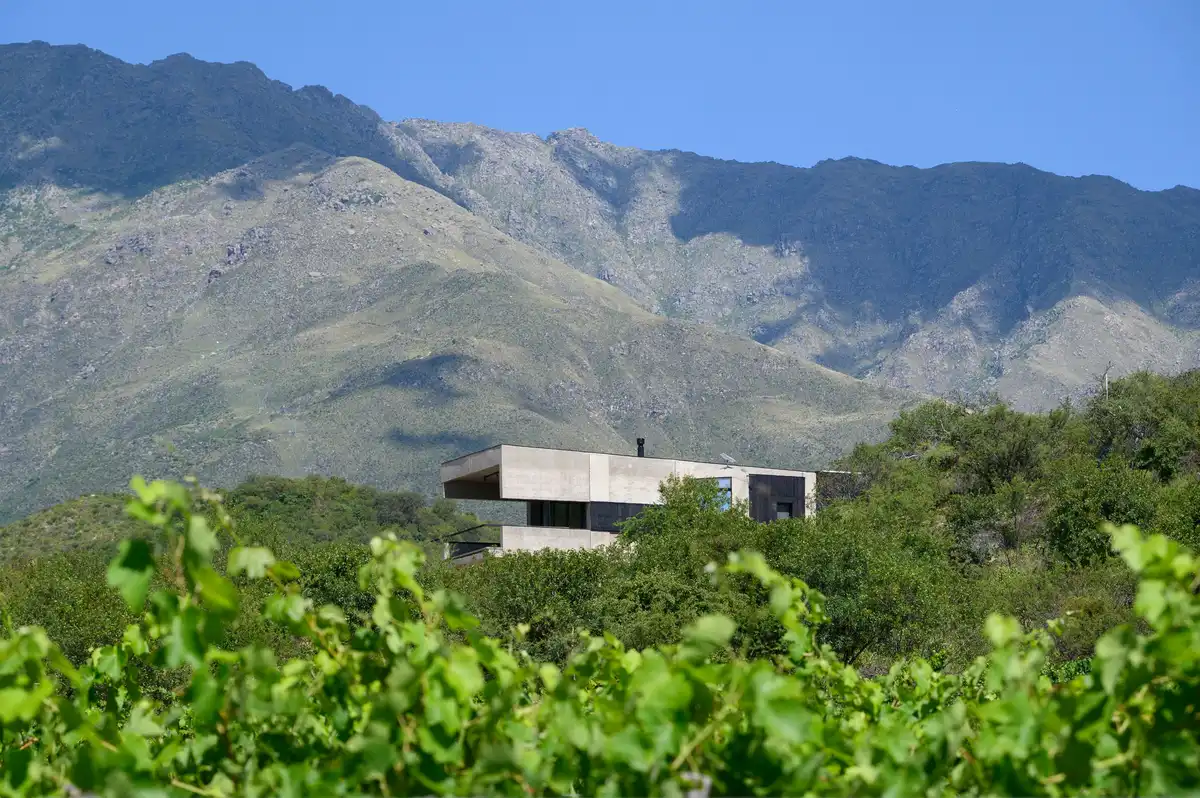

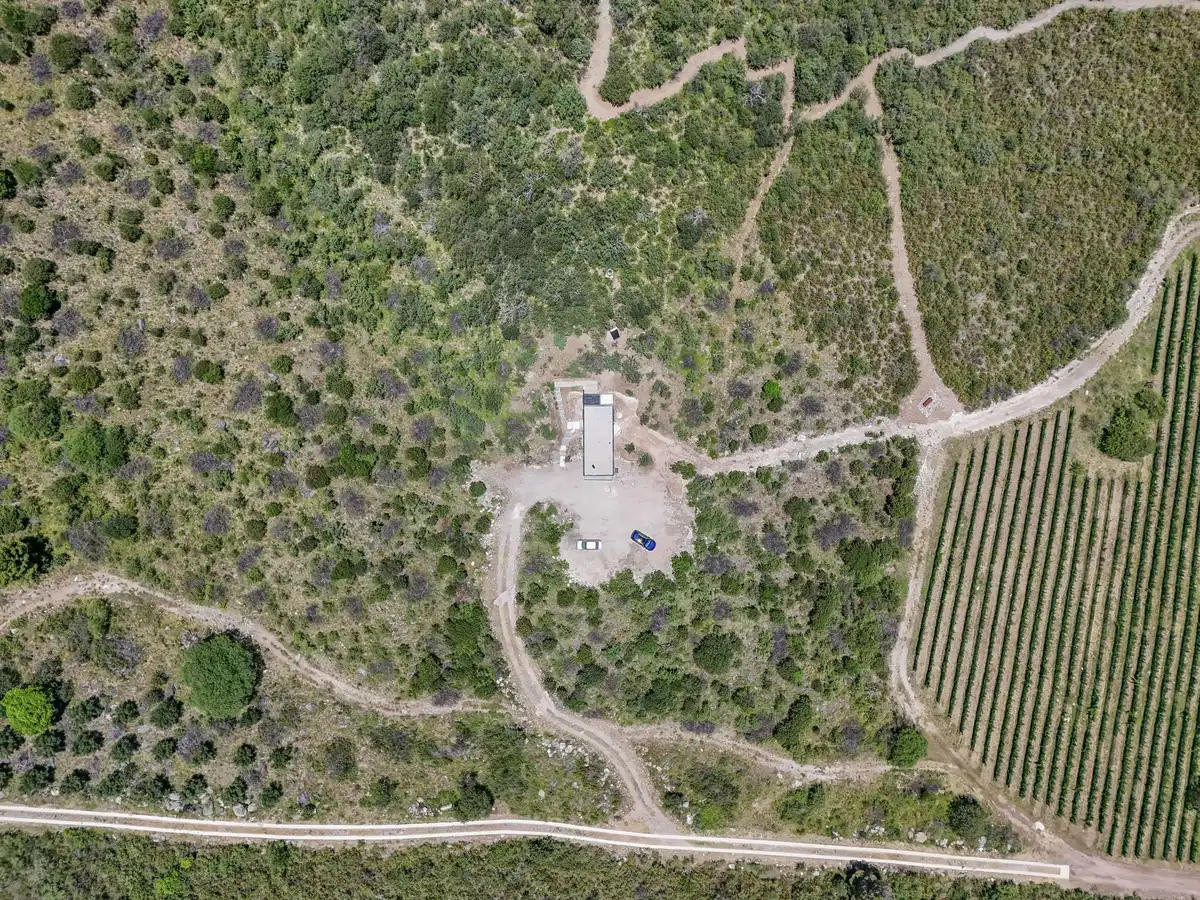

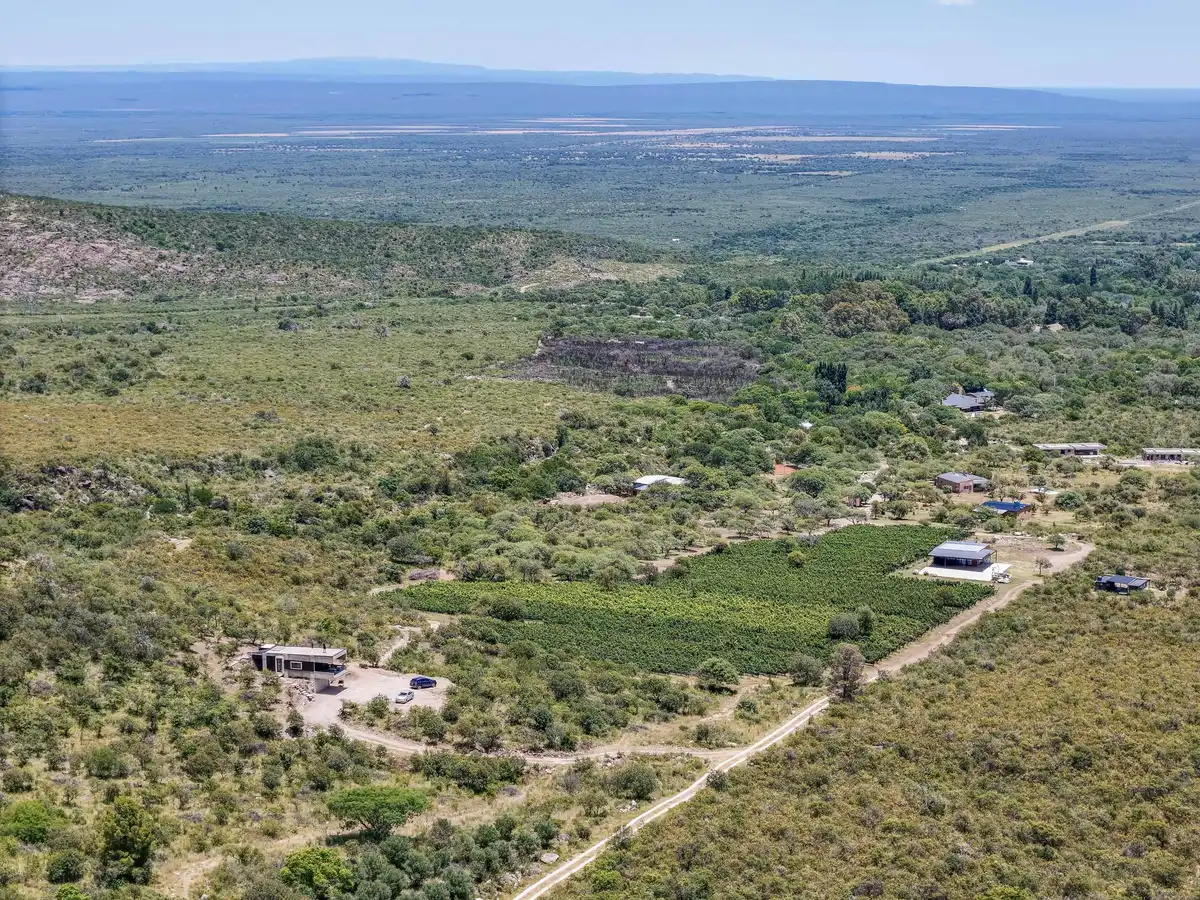

The Lodge JR, which was designed to accommodate couples, is located within a Finca in Yacanto, in the Traslasierra area, province of Córdoba. In a place where the beauty of the natural landscape surrounds everything: to the East rises the mountain range of the Sierras Grandes, crowned by the Champaqui hill, to the West the distant Sierras Chicas de San Luis, within the same terrain a succession of vineyards, with a panoramic view of the beautiful town of San Javier, with its church and its lights, a clean night sky and a sublime sunset.
Making the most of each of these visual experiences was the organizing axis of the program, as dialoguing and interacting with this environment from architecture was the true challenge of the project.

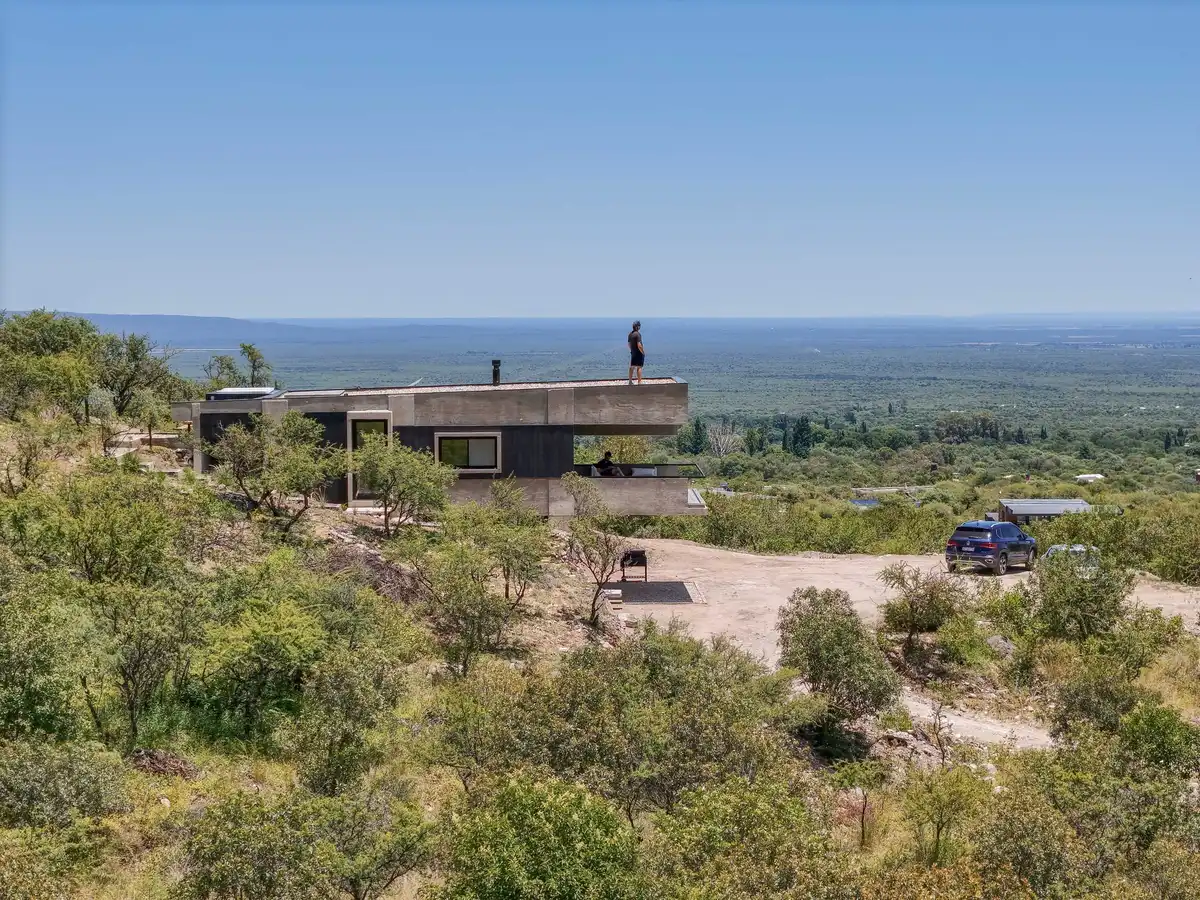

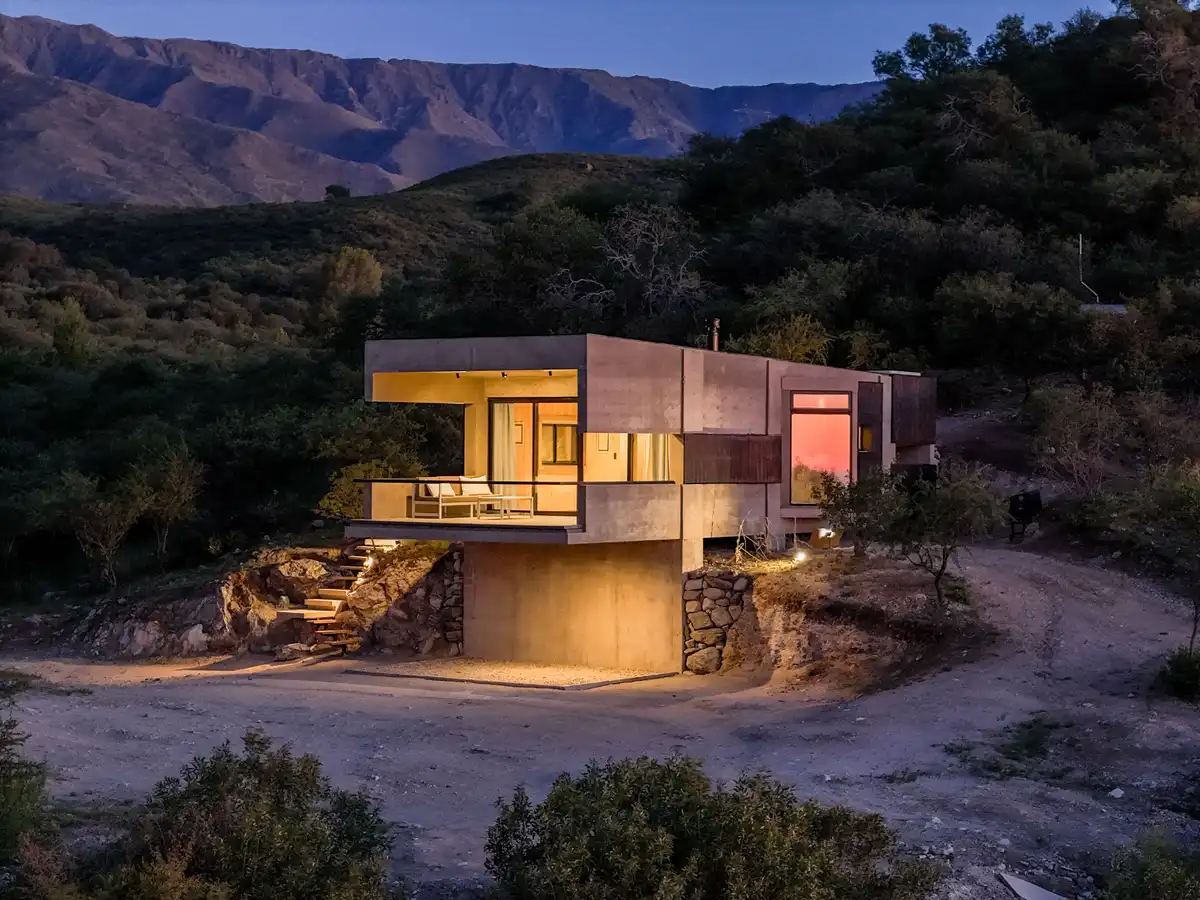

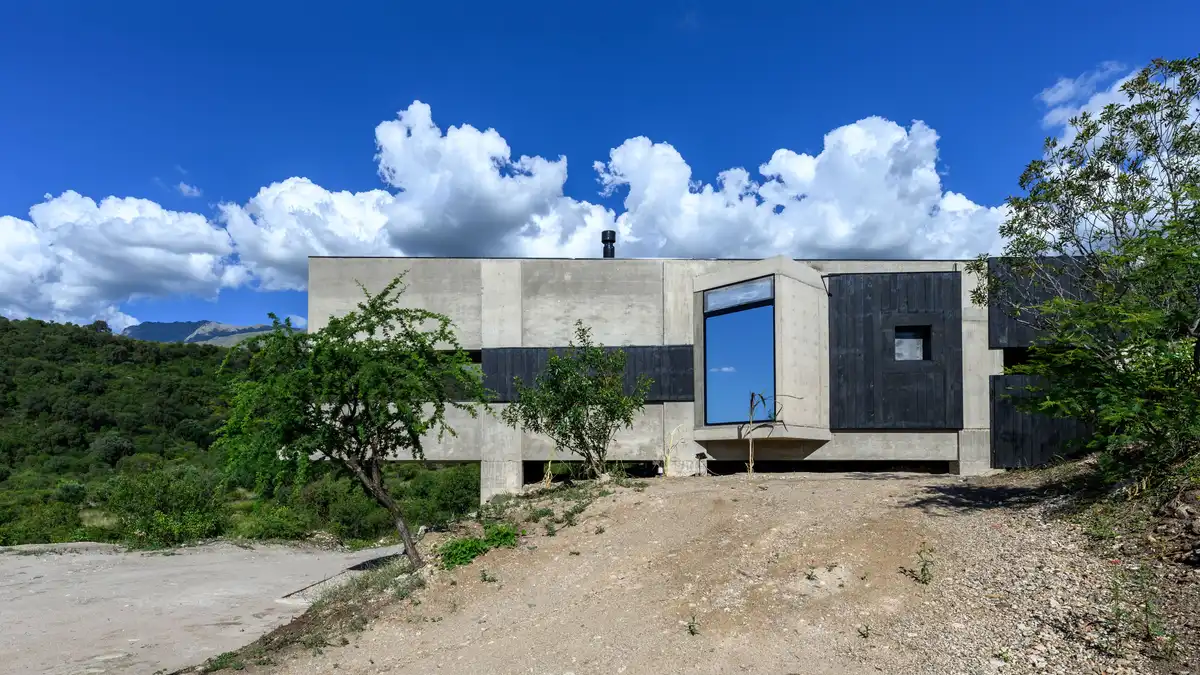

The building mass is made up of a rectangular concrete structure that is positioned perpendicular to the rocky and steep slope of the land, buried at its southern end and rising more than four meters at its northern end.

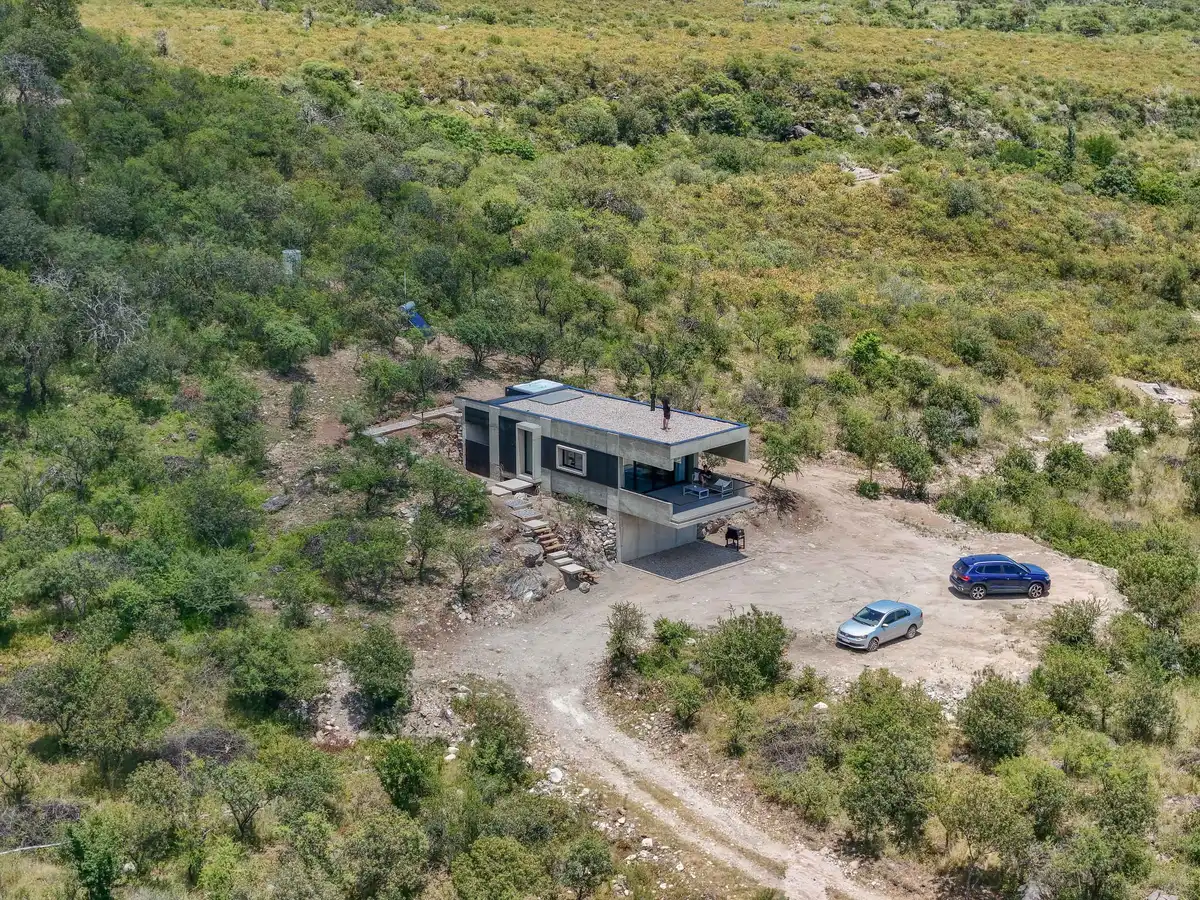

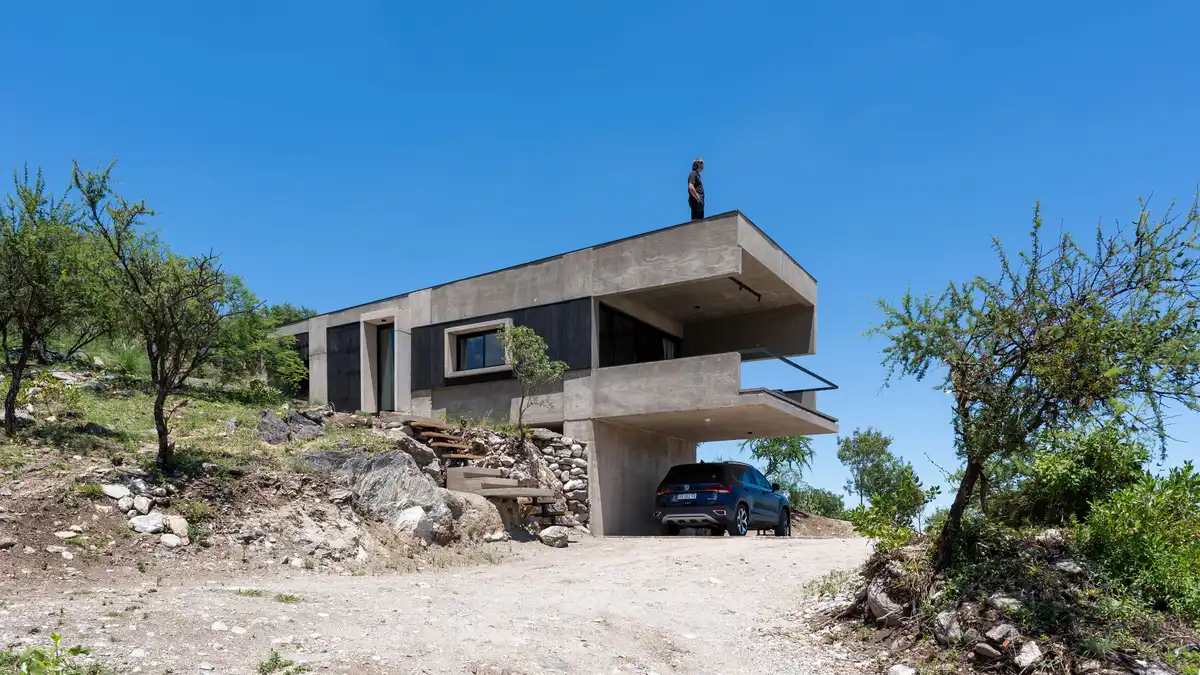

With this decision, it was possible to generate three levels of use: the lower one that functions as a semi-covered parking lot, the central covered one that develops the housing program and a third level as a fifth facade that houses a jacuzzi, a solarium and a viewpoint superior.

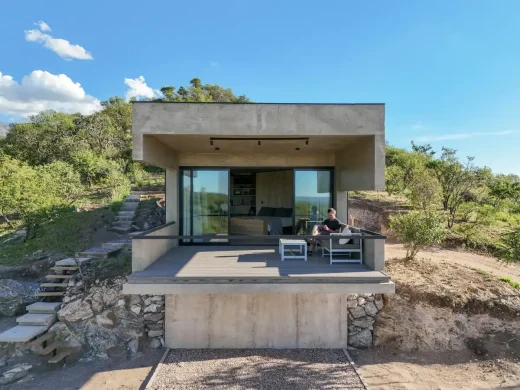

These levels are connected to each other through a succession of exterior steps that accompany the natural topography. This implementation decision also allowed us to take advantage of the benefits of the North orientation, achieving a completely shaded gallery-balcony in summer and with significant sunlight in winter. At the same time, its entry into the other end protects the house from the icy south winds.

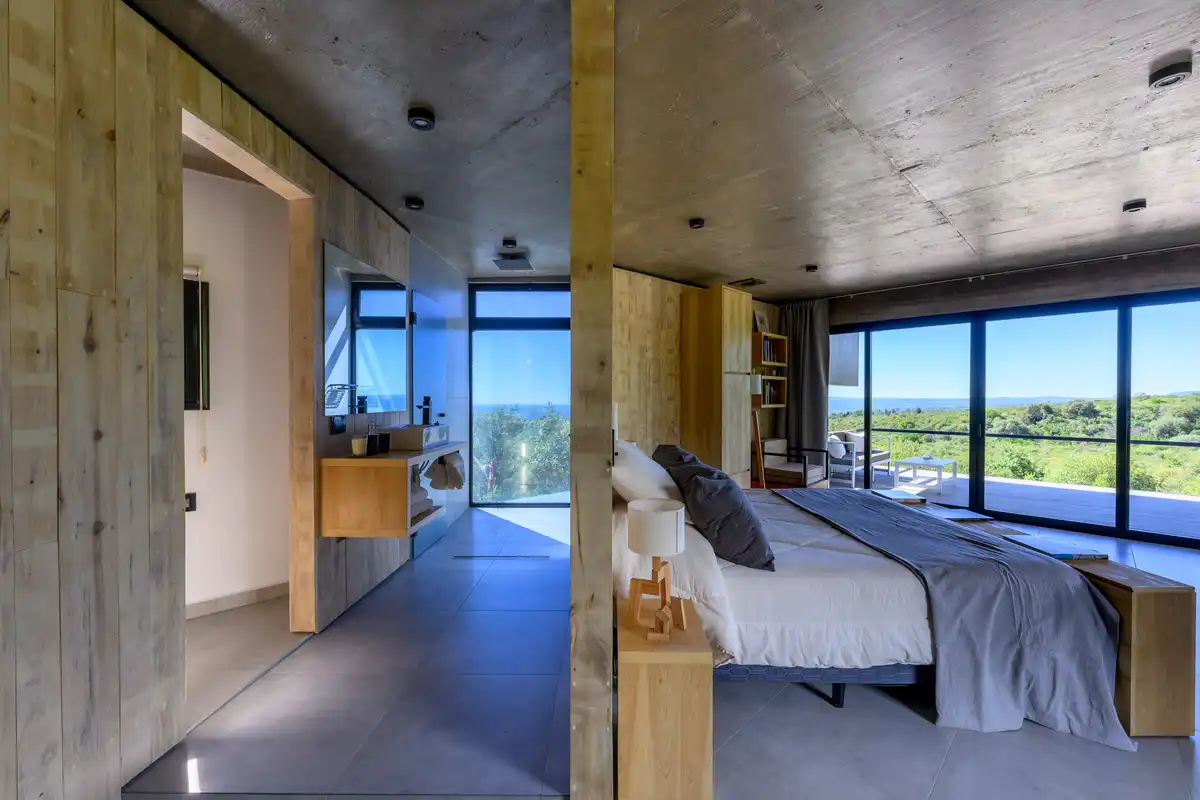

Exposed concrete, in addition to allowing this sought-after spatial plasticity, also perfectly solves another of the objectives imposed a priori, which was to achieve a very low-maintenance building. The burnt wooden boards and the coating of loose pebbles in parking lots, steps and terrace also meet this condition and complete all the materiality exposed to the outside. The interior walls were completely covered with poplar boards, giving greater warmth and insulation to the contained space.

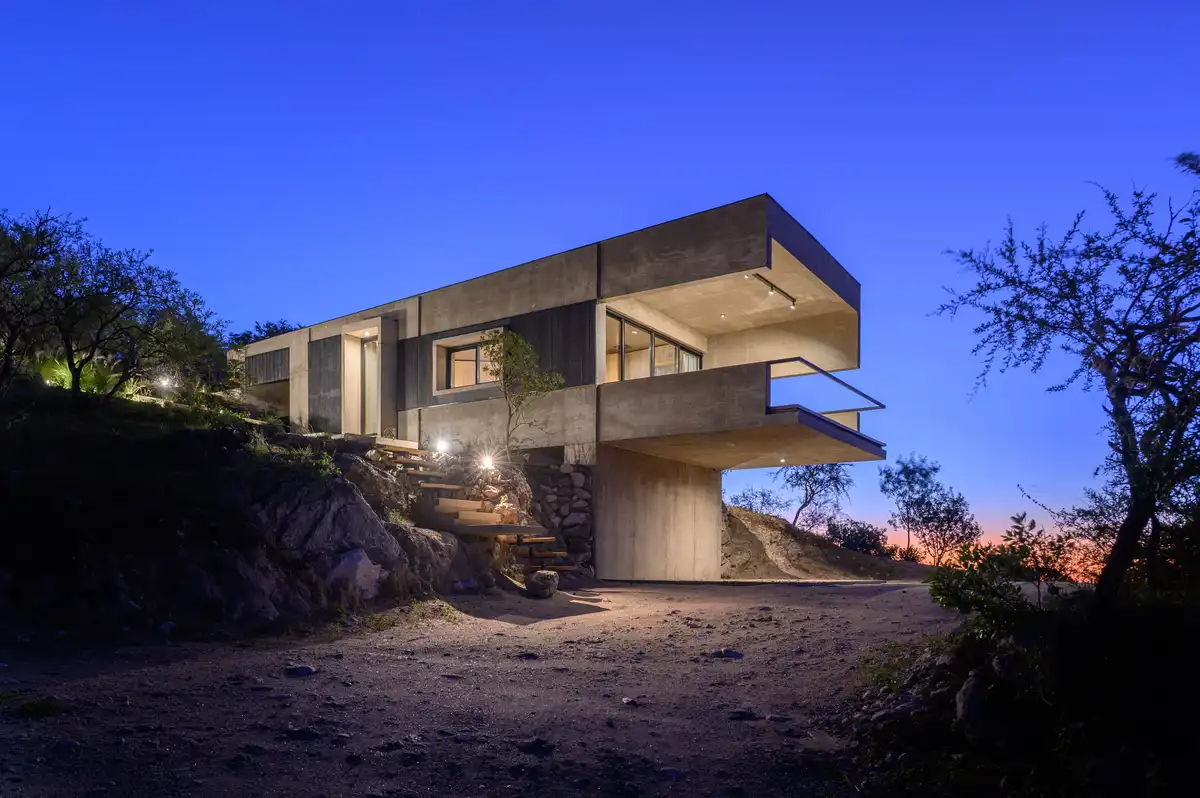

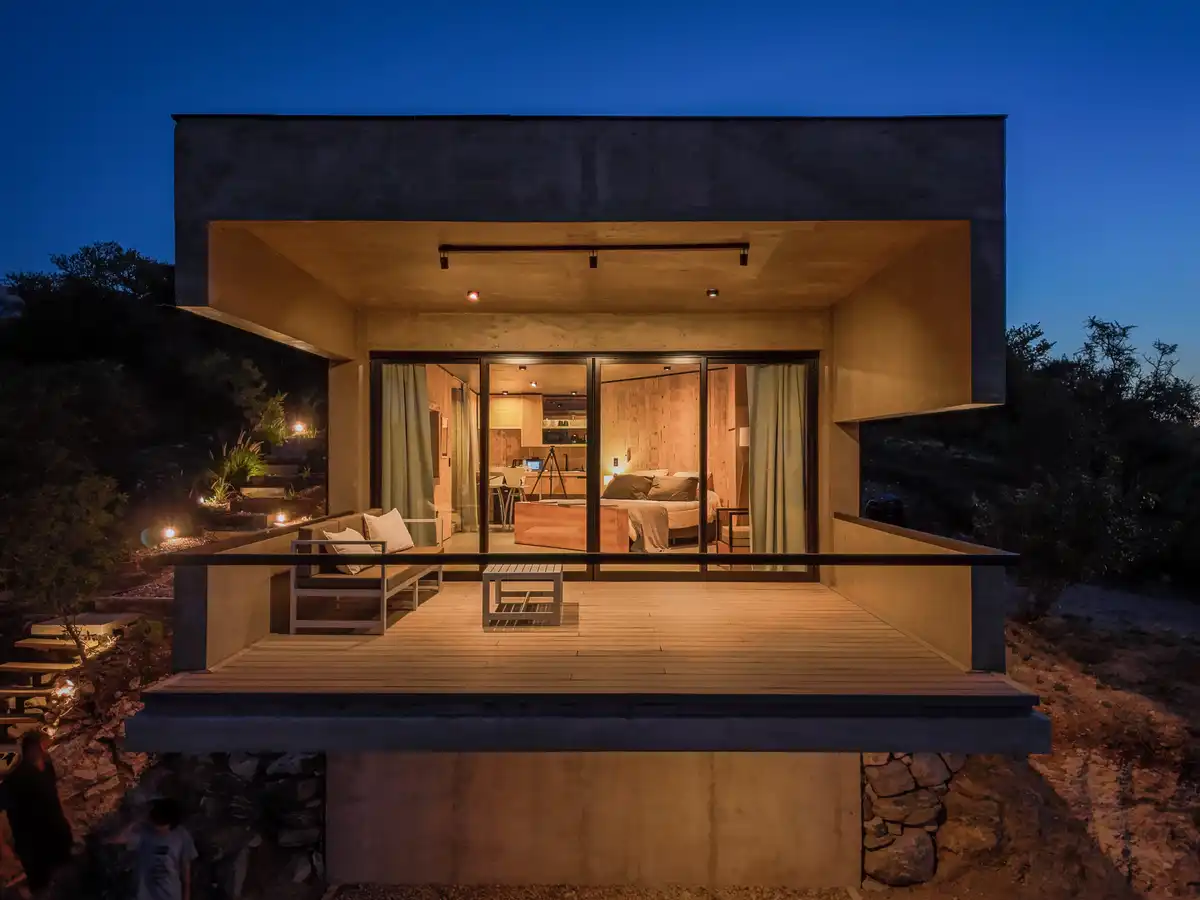

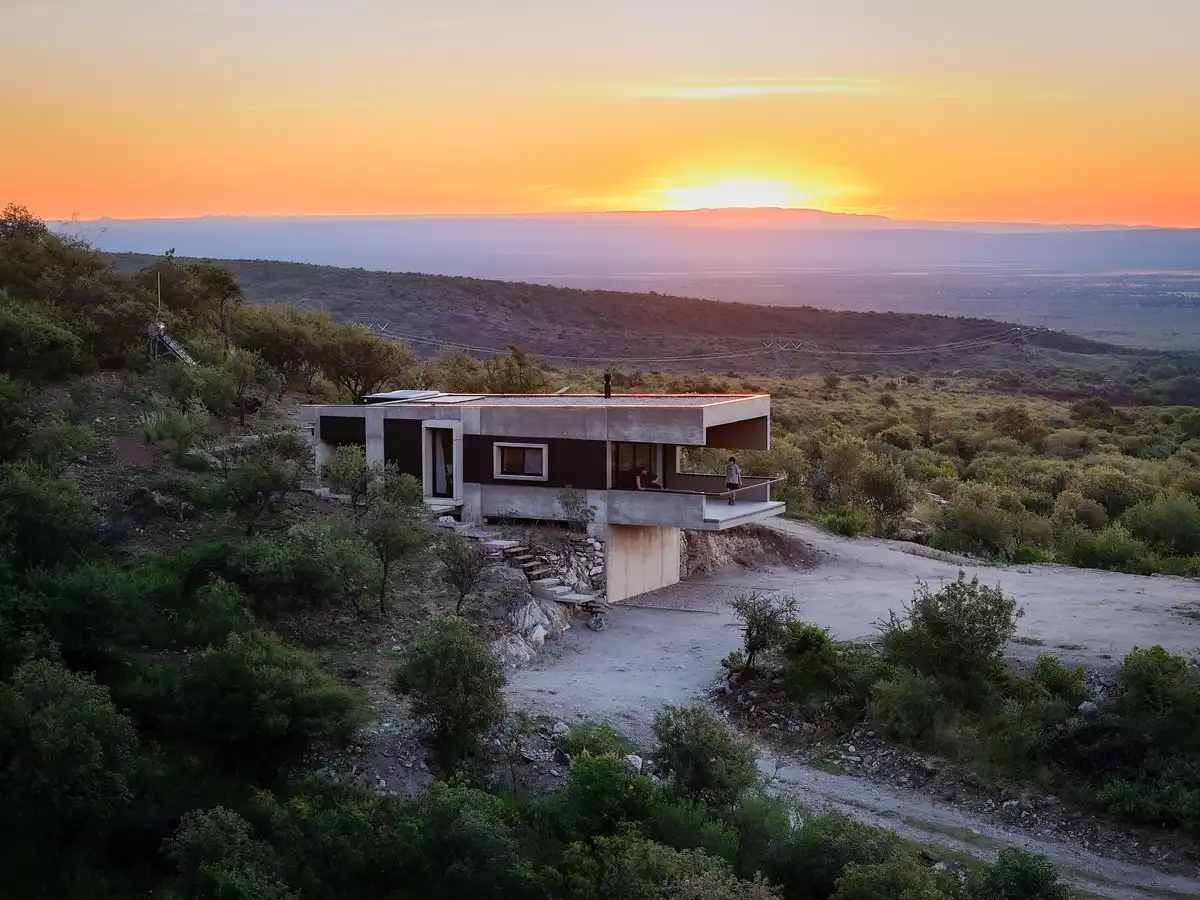

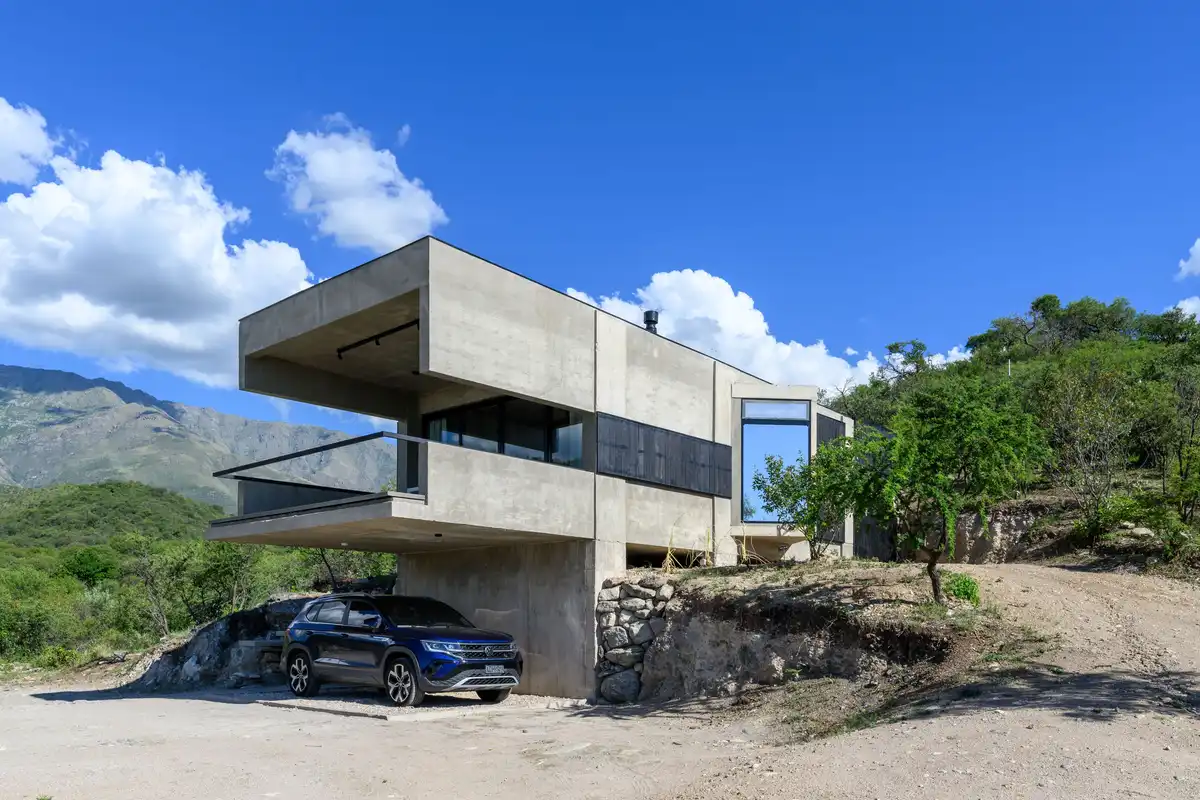

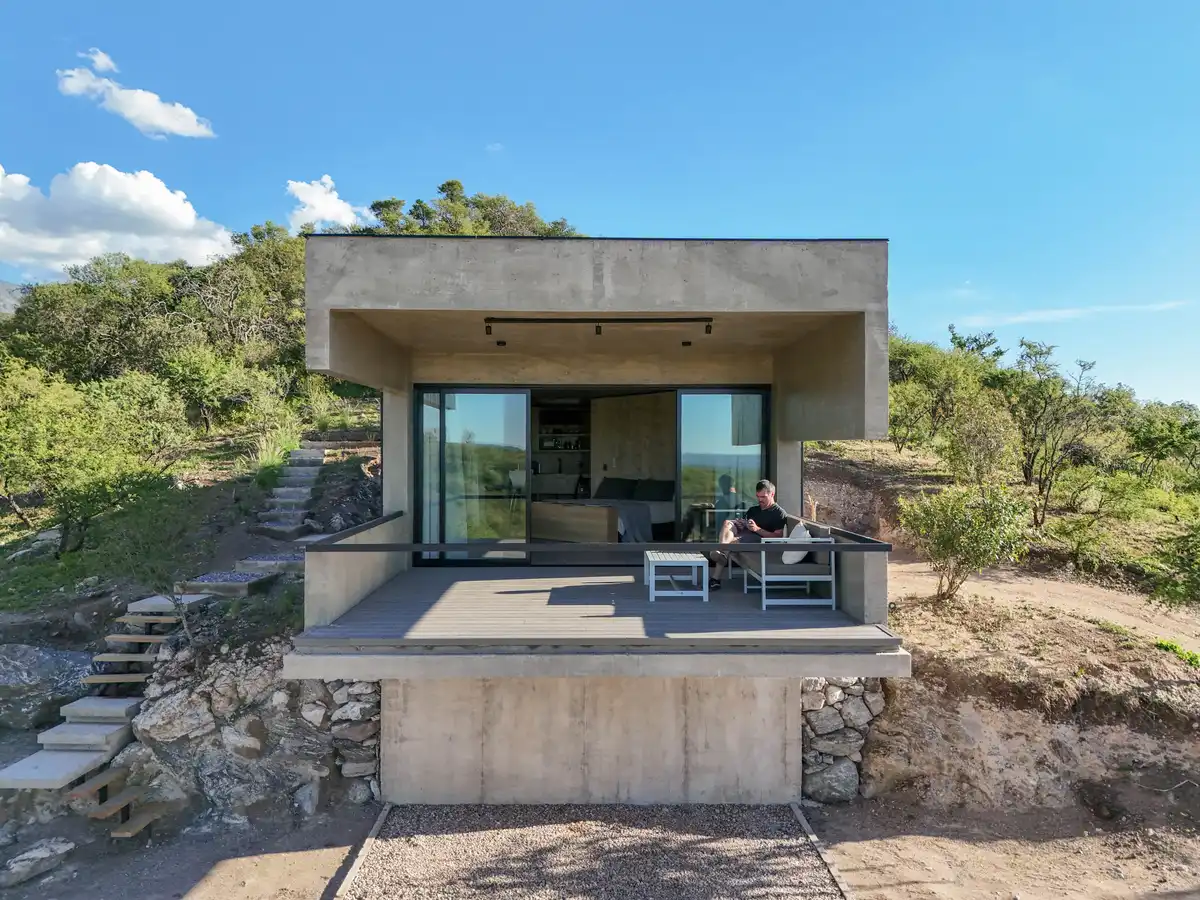

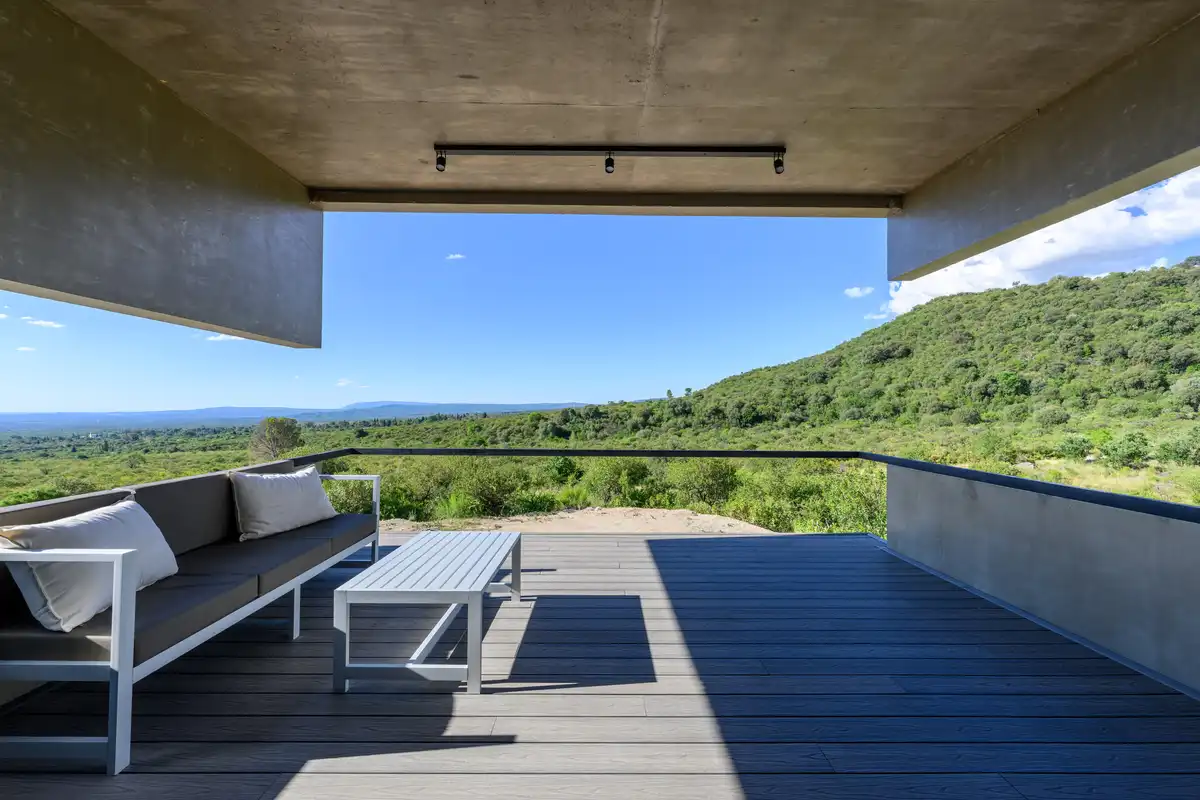

To enable the extensive cantilever at the north end, the side beams on both slabs that define the gallery-balcony space required having a high cant. These were used as railings on the lower beams and inverted as sunshades on the upper ones, towards the West more accentuated for greater solar protection but without losing the imposing sunset. At the same time, they are the ones that frame both side views, outlining their own unique landscape, one where natural beauty merges with the particularity of the built artifice.
From the starry open sky viewpoint on the terrace to the panoramic view of the distant mountains from the shower, each space and each moment had its own look projected.
Portugues:
O Lodge, projetado para acomodar casais, está localizado em uma fazenda em Yacanto, na região de Traslasierra, província de Córdoba. Num lugar onde a beleza da paisagem natural envolve tudo: a Leste ergue-se a cordilheira das Serras Grandes, coroada pelo morro Champaqui, a Oeste as distantes Serras Chicas de San Luis, no mesmo terreno uma sucessão de vinhas , com uma vista panorâmica da bela cidade de San Javier, com sua igreja e suas luzes, um céu noturno limpo e um pôr do sol sublime. Aproveitar cada uma dessas experiências visuais foi o eixo organizador do programa, pois dialogar e interagir com esse ambiente da arquitetura foi o verdadeiro desafio do projeto.
O conjunto edificado é constituído por uma estrutura rectangular de betão posicionada perpendicularmente à encosta rochosa e íngreme do terreno, enterrada no seu extremo sul e elevando-se mais de quatro metros no seu extremo norte. Com esta decisão foi possível gerar três níveis de utilização: o inferior que funciona como estacionamento semi-coberto, o central coberto que desenvolve o programa habitacional e um terceiro nível como quinta fachada que alberga um jacuzzi, um solário e um miradouro superior. Estes níveis estão ligados entre si através de uma sucessão de degraus exteriores que acompanham a topografia natural. Esta decisão de implementação permitiu-nos também aproveitar os benefícios da orientação Norte, conseguindo uma galeria-varanda totalmente sombreada no verão e com significativa insolação no inverno. Ao mesmo tempo, a sua entrada pelo outro extremo protege a casa dos ventos gelados do sul.
O concreto aparente, além de permitir essa almejada plasticidade espacial, também resolve perfeitamente outro dos objetivos impostos a priori, que era conseguir uma construção de baixíssima manutenção. degraus e terraço também cumprem esta condição e completam toda a materialidade exposta ao exterior. As paredes interiores foram totalmente revestidas com tábuas de choupo, conferindo maior calor e isolamento ao espaço contido.
Para viabilizar o extenso balanço do extremo norte, as vigas laterais de ambas as lajes que definem o espaço galeria-varanda necessitaram de uma inclinação elevada. Estas foram utilizadas como gradeamento nas vigas inferiores e invertidas como guarda-sóis nas superiores, a poente mais acentuadas para maior protecção solar mas sem perder o imponente pôr-do-sol. Ao mesmo tempo, são eles que enquadram ambas as vistas laterais, delineando uma paisagem própria e única, onde a beleza natural se funde com a particularidade do artifício construído. Do mirante estrelado a céu aberto no terraço até a vista panorâmica das montanhas distantes do chuveiro, cada espaço e cada momento tiveram seu próprio visual projetado.
Lodge JR in Yacanto, Cordoba, Argentina – Property Information
Architecture Office: Arq. Paul Dragicevic – https://www.instagram.com/arqpauldragicevic/
Project Name: Lodge JR
Contact Email:[email protected]
Office Country: Argentina
Completion Year: 2025
Built Area: 70 sqm
Location: Yacanto, Córdoba, Argentina.
Clients: Finca La Juliana / https://lajuliana.com.ar
Engineering: INGCOR
Landscaping: Amalia Funes
Photography Credits: Arch. Gonzalo Viramonte
Instagram Photographer: @gonzaloviramonte
Photographer E-mail: [email protected]
Website Photographer: @gonzaloviramonte
Lodge JR, Cordoba, Argentina images / information received 010225 from Gonzalo Viramonte
Location: Yacanto, Córdoba, Argentina, South America.
