GV House in Vinylos and the Arcs, Catalonia

9 May 2023

Architecture: Alventosa Morell Arquitectes

Location: Vinylos and the Arcs, Catalonia, Northeast Spain

GV House Vinylos and the Arcs Catalonia

Photos by Adrià Goula

GV House, Catalonia

The GV House project is located in a new development area for detached houses very close to the costa daurada, near the Mediterranean Sea. This urbanisation has nothing special as it follows the criteria of all recent planning in Catalonia where the primary objective is the economic performance of land exploitation.

GV House Vinylos and the Arcs Catalonia

As a consequence, in order to be able to sell the largest number of plots, the resulting lots are very small compared to the buildability allowed by the regulations. This fact is crucial, since what ends up are neighborhoods where oversized buildings predominate: constructions that use the buildability and maximum height, very close to each other and with gardens without natural light due to the shadow generated by the house itself or the neighbours.

GV House Catalonia Spain

The basic idea of neighbourhoods created from the Garden House concept ends up being perverted and the outdoor space linked to housing becomes residual, useless to its purpose.

GV House Catalonia

In this project we were able to work with two plots in order to solve the entire program of customer needs on a single floor instead of the neighbouring constructions of PB+1. This fact has allowed us to integrate the outside space into the project by designing a permanently sunny garden and, together with the building, generate a calm and comfortable microclimate isolated from its immediate surroundings.

GV House Catalonia

The project consists of two buildings that delimit the garden. The main house is located on the north side and we have designed a construction that includes a large porch for vehicles and a small complementary apartment in the south.

GV House Vinylos and the Arcs Catalonia

GV House Vinylos and the Arcs Catalonia

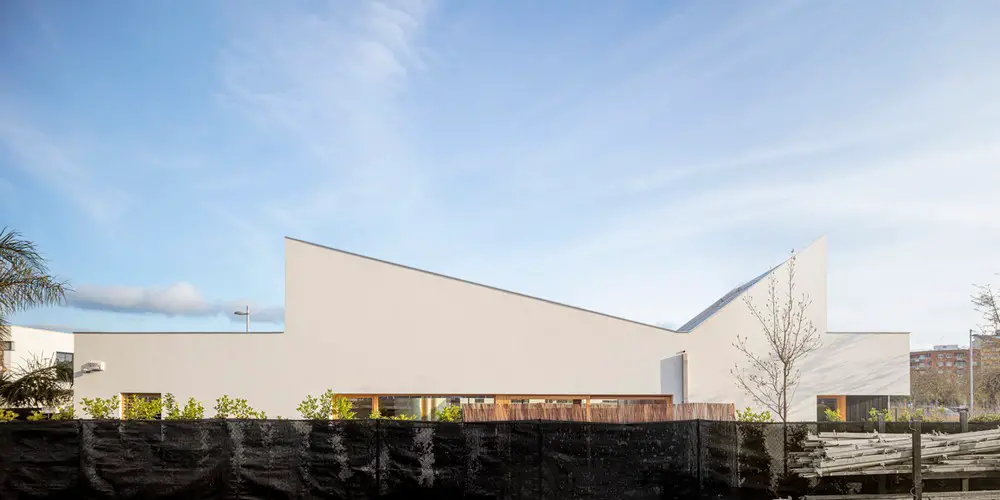

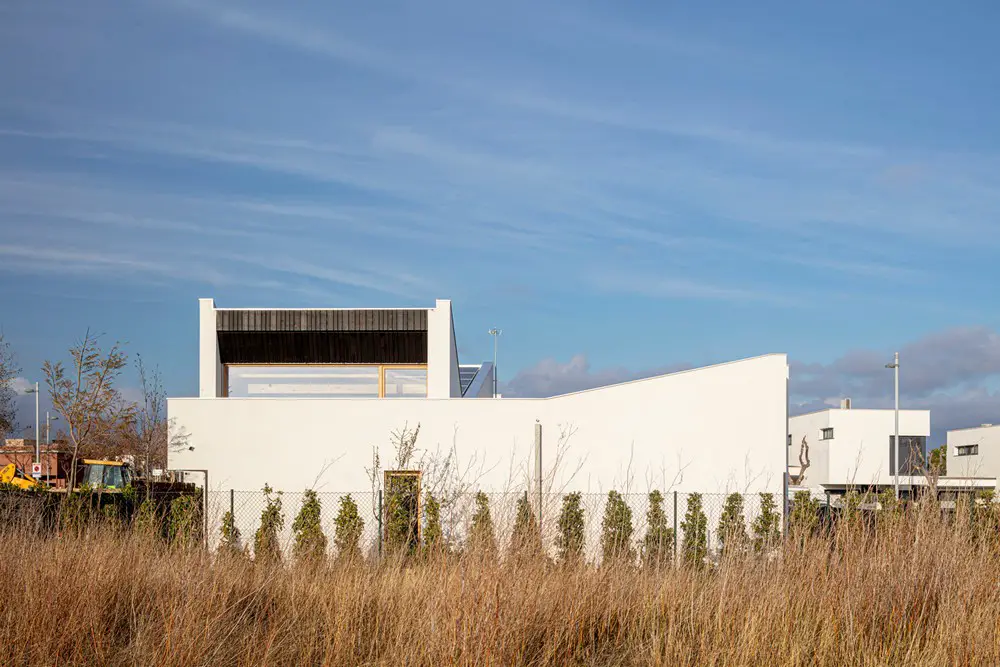

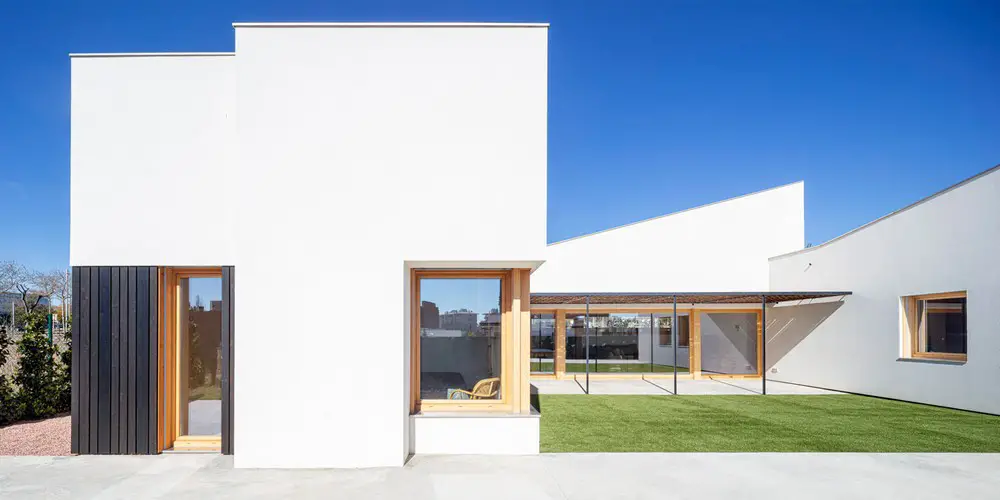

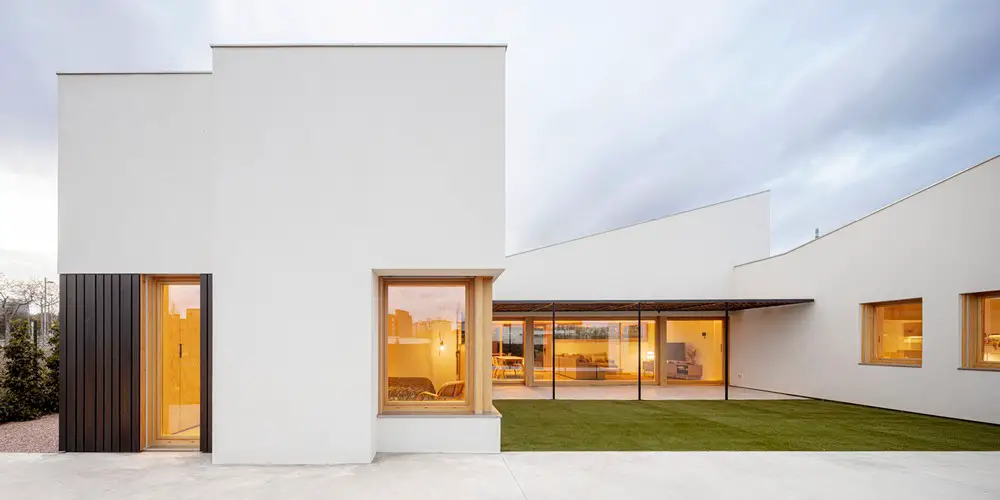

The construction was planned in two phases; the main house was built first. This building has a “U” shape, generating a very massive and intimate facade to the neighbours and very open space to the south in order to connect the garden and the future construction.

GV House Catalonia Spain

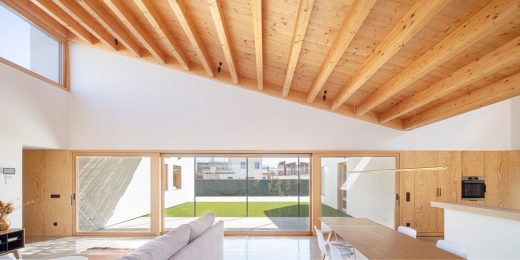

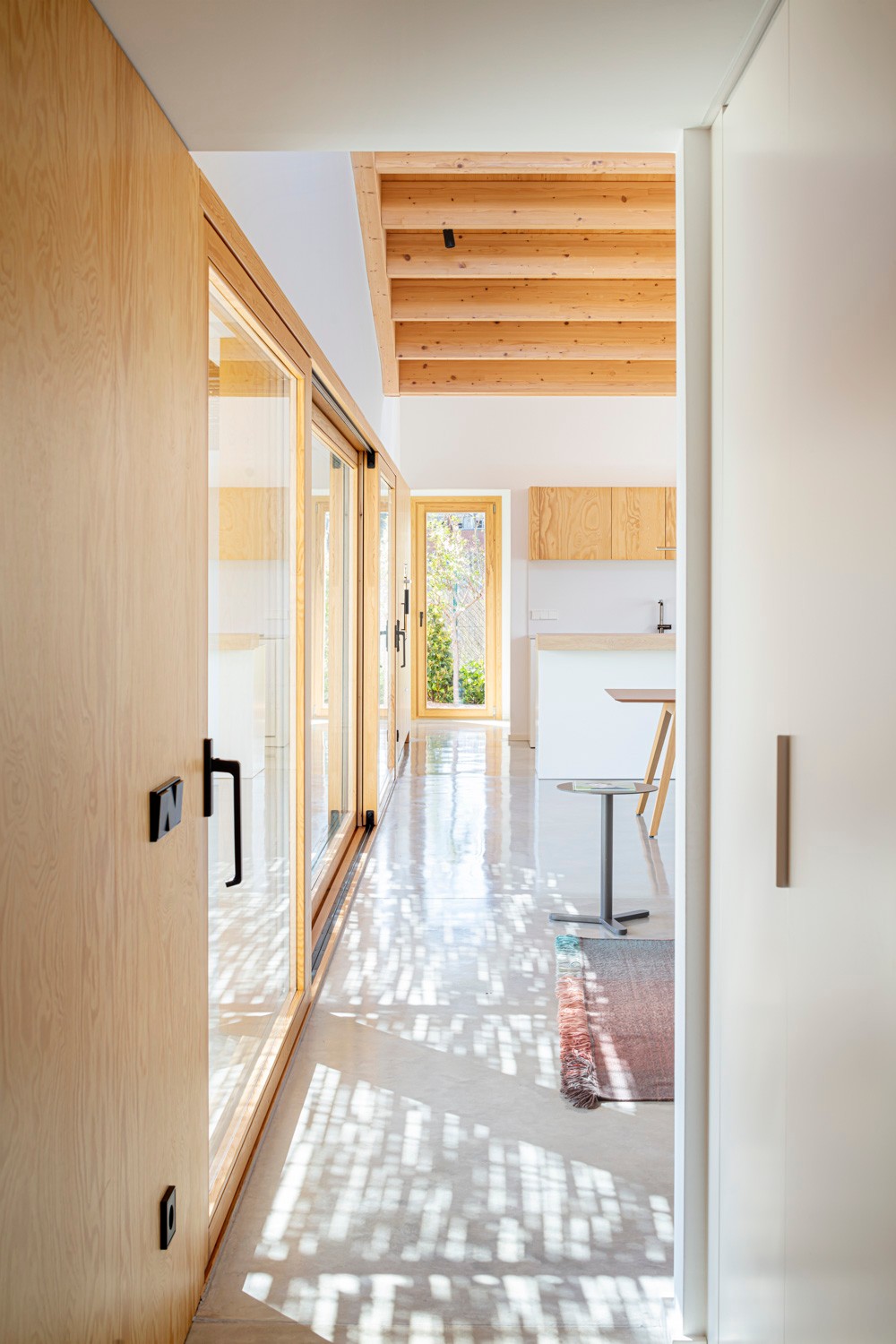

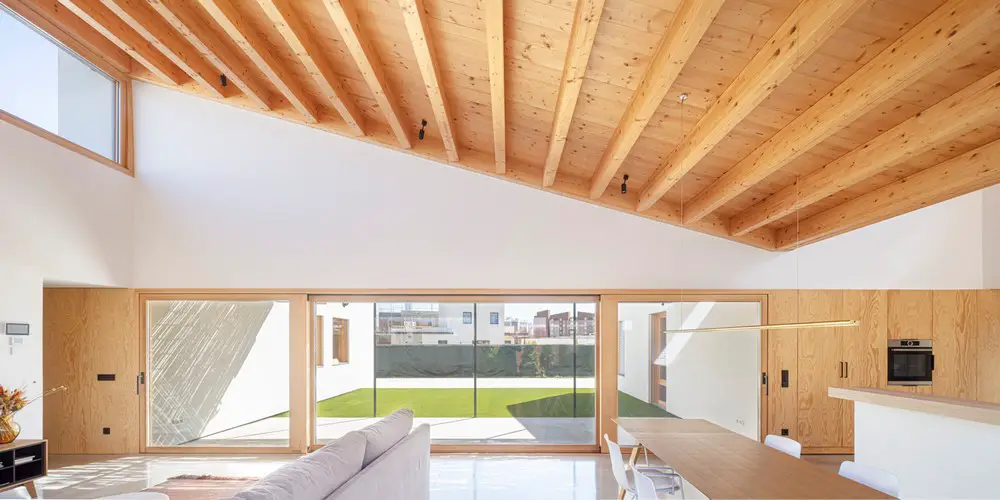

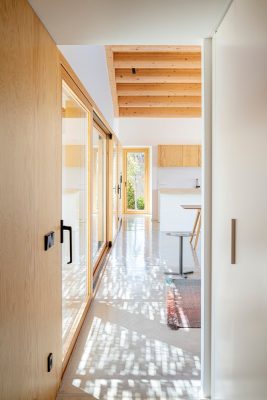

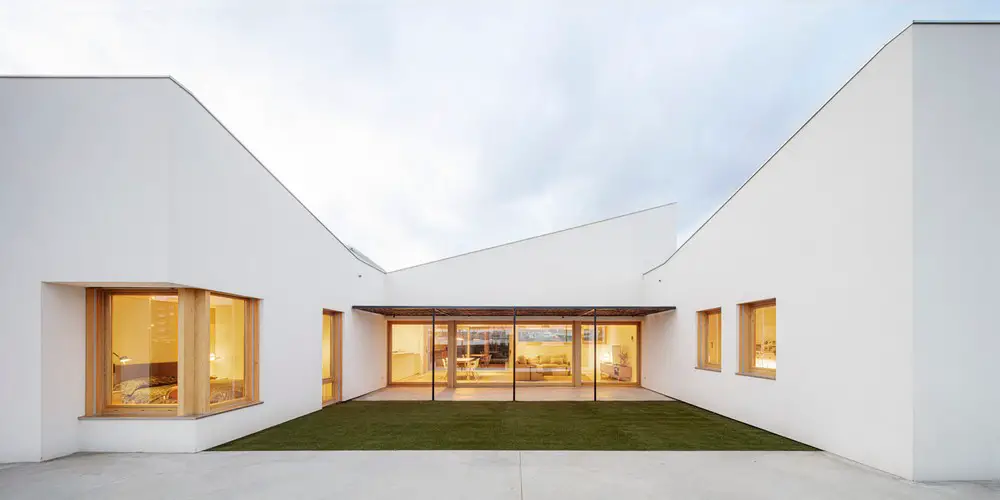

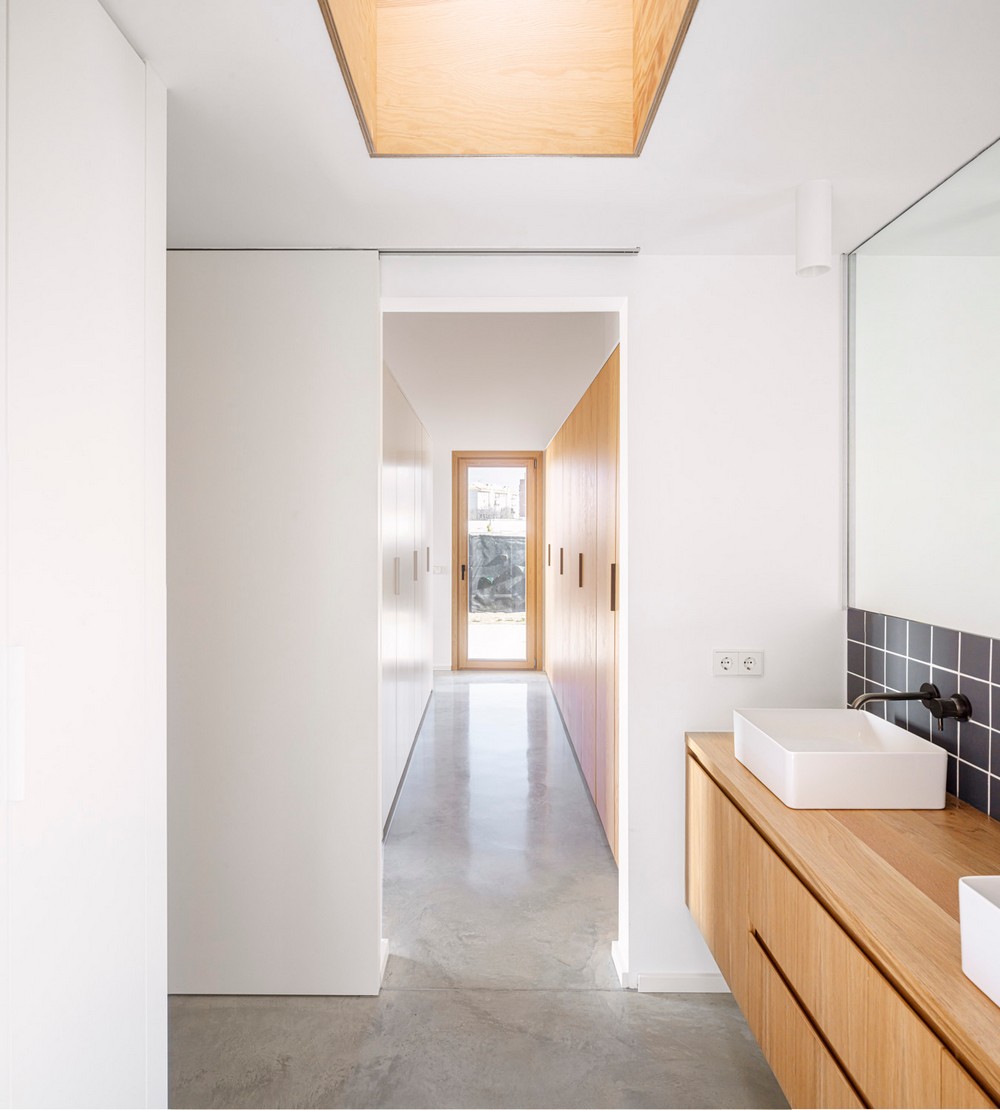

In terms of organization, the “U” shape also allows us to separate the two lateral wings where we place the bedrooms. Parents in the west wing and the children in the east. The day space, where we find the kitchen, the living room and the dining room, links the two side wings. It is a daytime space designed to respect the desire of the family to enjoy the radiation/sunlight during all hours of the day and during all days of the year. At the same time, it also aims to be an extension of the outdoor space, the garden. For these reasons, we created a cover, a butterfly roof, which folds and generate skylights to the east and west, while to the north and south we open the space with large openings down to the ground in order to eliminate the boundaries between the interior and the exterior.

GV House Vinylos and the Arcs

Regarding the reduction of CO2 emissions linked to the construction and useful life of this home, the following strategies have been used.

GV House Vinylos and the Arcs GV House Catalonia

Bioclimatic strategies and useful life of the building:

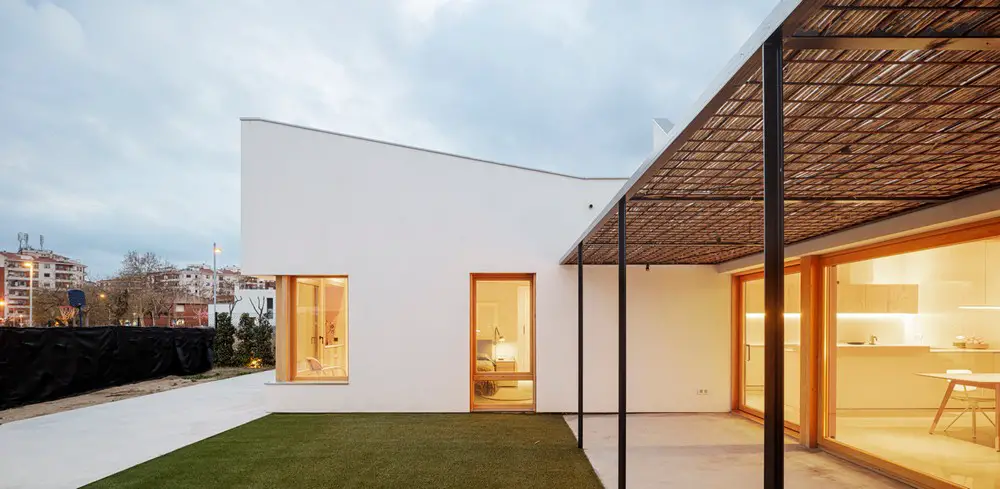

• South-facing solar capture with built-in solar protection systems (porch and adjustable blinds).
• Thermal inertia through ceramic brick structure and continuous concrete pavement. Thermal mass is an indispensable element in order to reduce the temperature in warm and humid climates close to the sea.
• High thermal performance envelope: Façade finished with SATE U=0.24 W/m2K and wooden frame cover U=0.16 W/m2K.
• Controlled cross ventilation.
• Energy production system from photovoltaic panels integrated into the roof.
Strategies for reducing the ecological footprint:

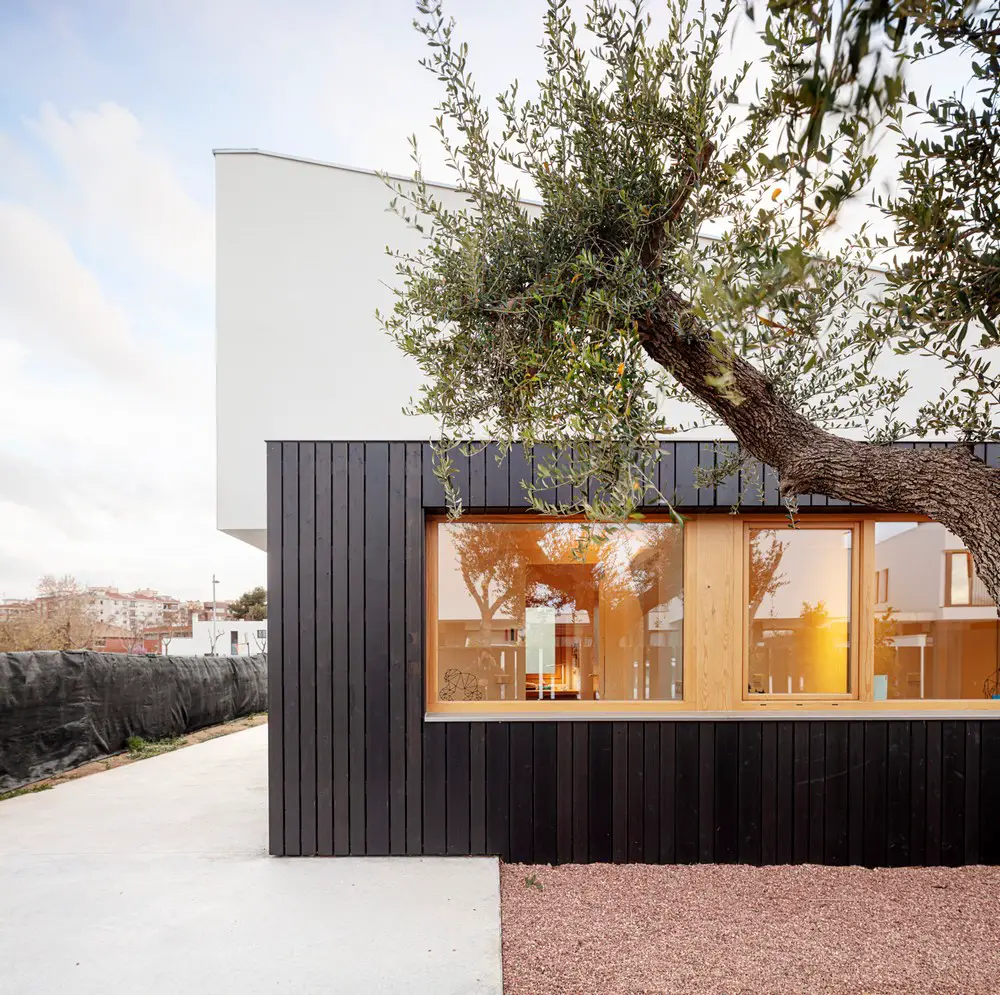

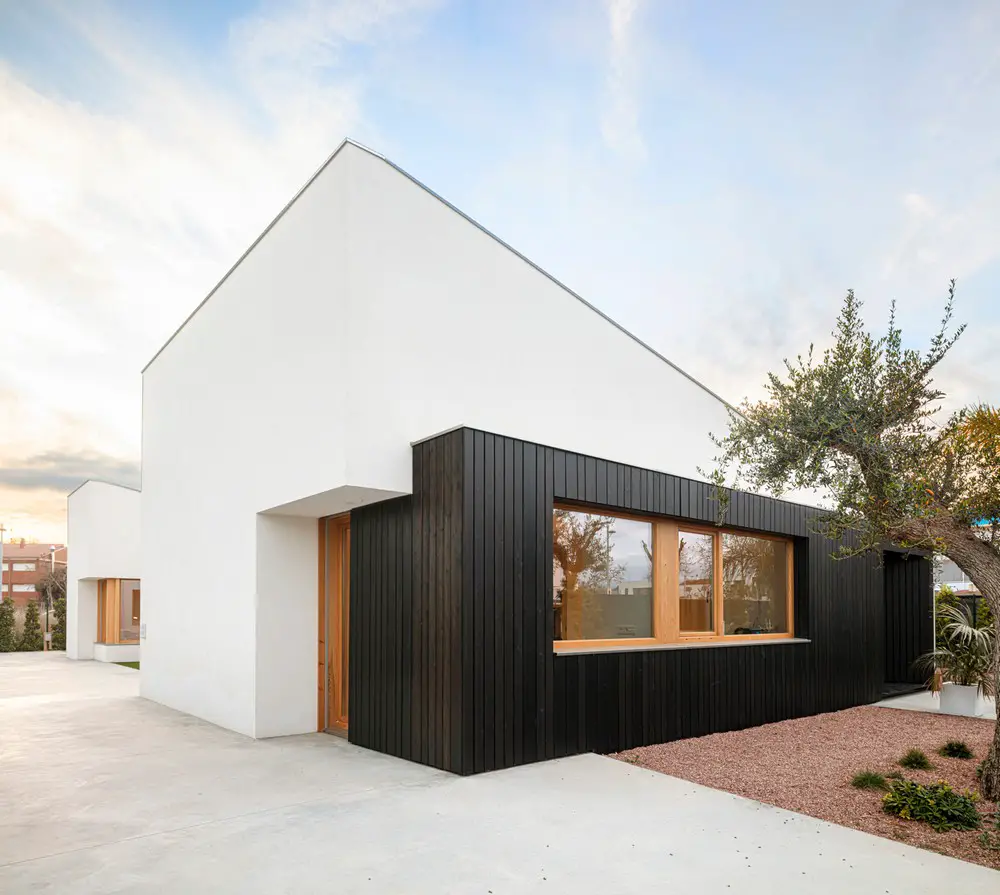

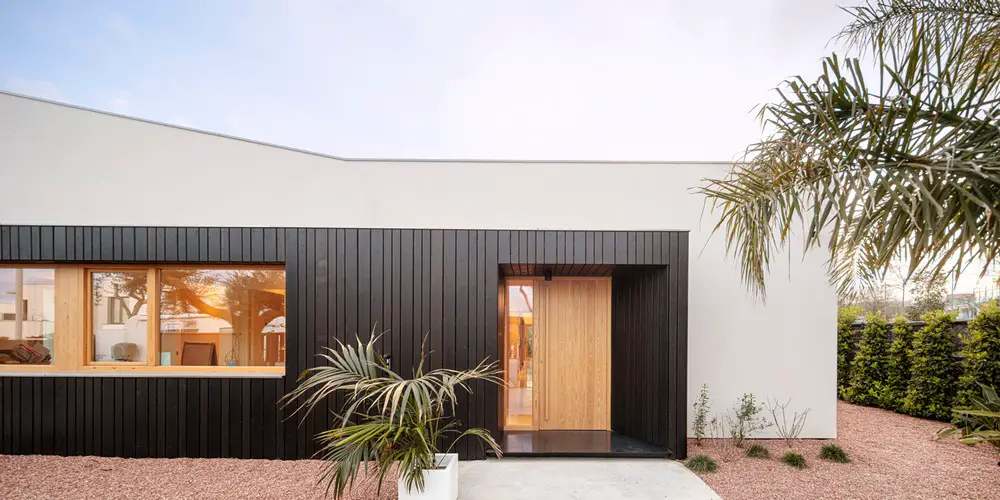

• Wood as the main element in roofing, windows, interior linings and facade finishes.
• Walls made from ceramic pieces fired with biomass.

All these strategies have allowed us to design a home with low energy demand. This thermal comfort together with the interior-exterior relationship of the house, the continuous natural light and the intimacy generated in the face of disproportionate neighbouring constructions have made us possible to create a comfortable home for a everyday pleasant leaving.

GV House Catalonia Spain

GV House in Vinylos and the Arcs, Catalonia, Spain – Building Information

Office Architecture: Alventosa Morell Arquitectes – https://www.alventosamorell.com/

Project name: Casa GV / GV house
Social media: @alventosamorell
Contact email: [email protected]
Studio location: Barcelona

Construction completion year: 2022
Constructed area: 218,50 sqm
Location: Vinyols i els Arcs, Catalunya.
Program of needs: Habitatge unifamiliar / Vivienda unifamiliar / single-family housing.

Architects in charge: Marc Alventosa + Xavier Morell
E-mail architects in charge: [email protected]

GV House Vinylos and the Arcs

Photography: Adrià Goula – https://www.adriagoula.com/
E-mail photographer: [email protected]

GV House, Vinylos and the Arcs, Catalonia images / information received 090523

Location: Vinylos and the Arcs, Girona, Catalunya, Northeast Spain

Girona Buildings

Contemporary Girona Architectural Designs

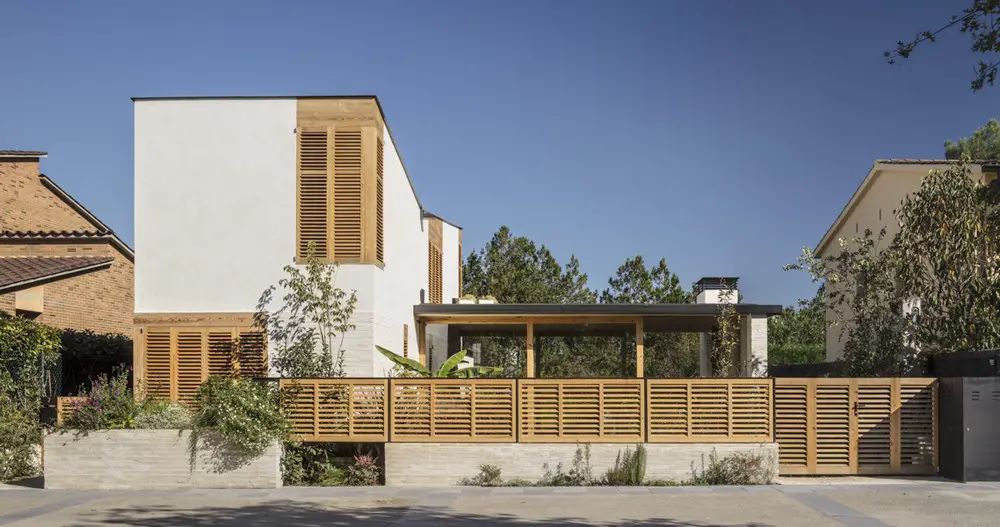

Casa Nostra, Bordils
Architect: Bernat Llauradó Auquer – tallerdarquitectura
Casa Nostra Bordils Spain
photograph : Adrià Goula
Casa Nostra in Bordils, Girona Home

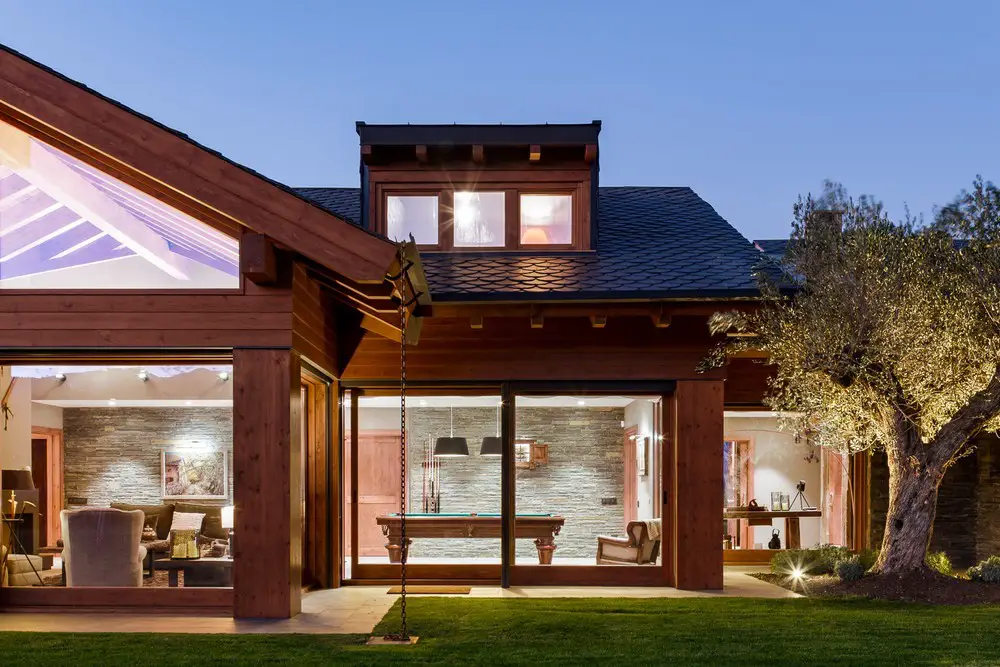

GB House, Das, county of la Cerdanya
Architect: Andrés Arenas Ylla
GB House in Girona Spain
photo © Simon Garcia – arqfoto.com
GB House in Girona

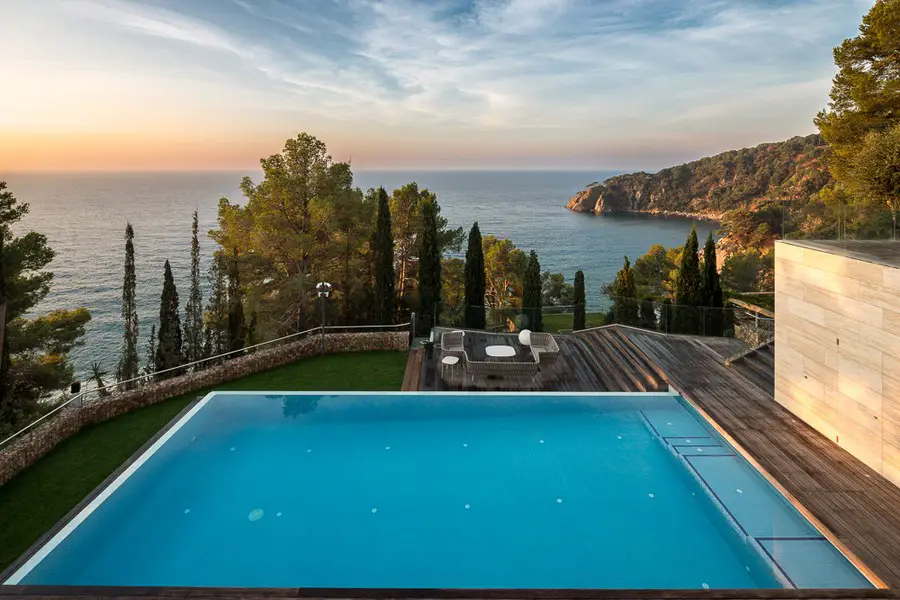

Llorell House, Tossa de Mar, Costa Brava
Design: DOSARQUITECTES
Llorell House
picture © Simon Garcia – arqfoto.com
Llorell House in Costa Brava, Girona Property

Ullastret, Girona – Medieval Town Paving

Rose House

House in La Garrotxa, Country Residence in Girona

House in Girona, Alemanys 5

OAC Girona Offices

Spanish Buildings

Contemporary Spanish Architectural Projects

Spanish Architectural Designs – chronological list

Spanish Architectural News on e-architect

Spanish Architectural Practices

Contemporary Spanish Properties

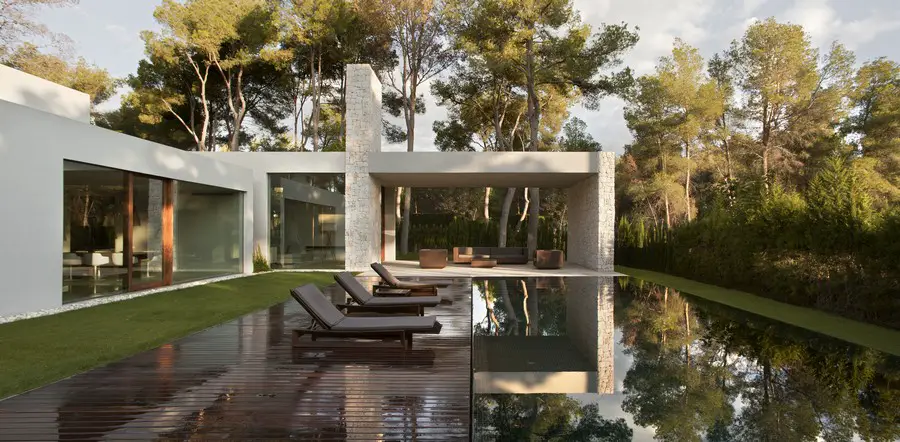

‘House in the Forest’ – Casa El Bosque, Chiva, Valencia, Spain
