Crumlin Children’s Hospital, Dublin
Irish Healthcare Building – DuPont Tyvek FireCurb news
13 May 2013
A project by Clancy Construction with MOLA Architecture, in conjunction with KMD Architecture
Our Lady’s Children’s Hospital, Crumlin – OLCHC Building in Dublin
DuPont™ Tyvek® FireCurb™ breakthrough technology contributes to safety, protection and sustainability of Crumlin Children’s Hospital, in Crumlin, Dublin 12, Ireland

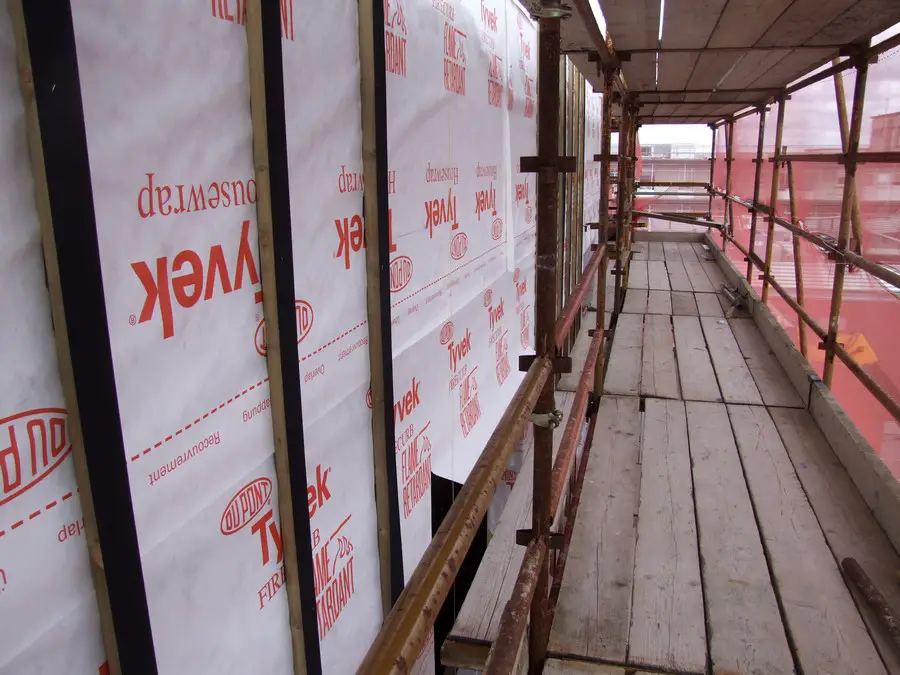

The new DuPont™ Tyvek® FireCurb™ Housewrap breather membranes with flame retardant performance have been installed to the stair core of the new intensive care unit of Crumlin Children’s Hospital, Dublin 12, Republic of Ireland:
photo : DuPont™ Tyvek® FireCurb™, all rights reserved

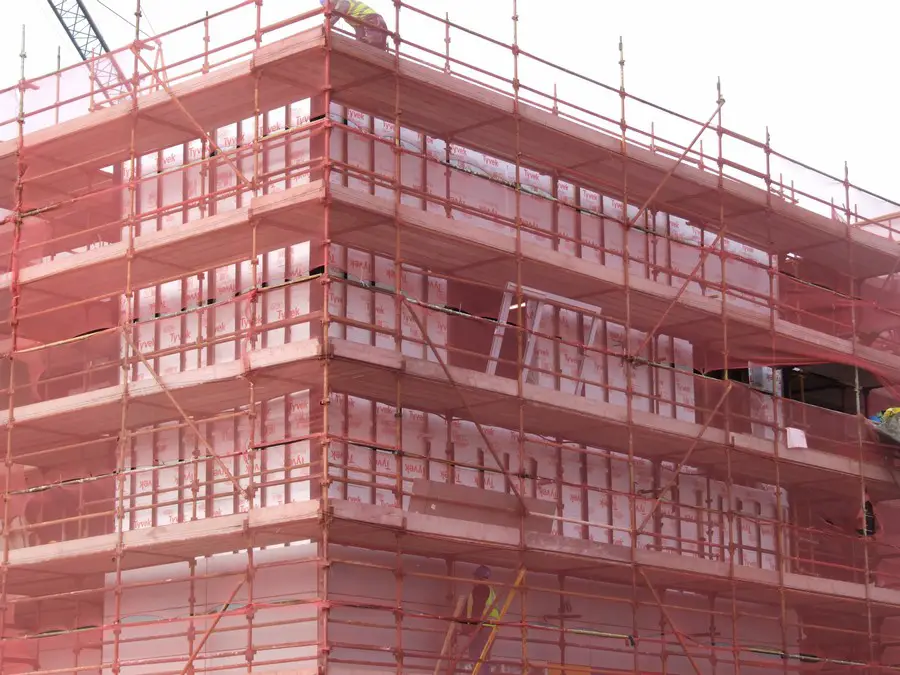

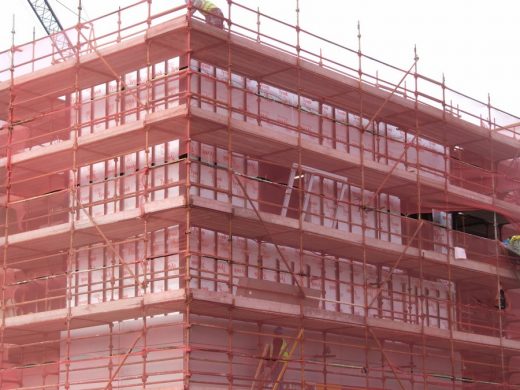

May 2013 – Advanced protection for greater thermal efficiency, fire safety and comfort has been specified for an extension to a children’s hospital in Dublin, in the form of two hi-tech membranes from DuPont Building Innovations. The € 3.5 million design and build project by Clancy Construction with MOLA Architecture, in conjunction with KMD Architecture, adds a new 1500 square metre structure to the hospital, housing a 25 bedroom Cardiology intensive care unit, and is built to the highest specifications for safety and sustainability.
The new DuPont™ Tyvek® FireCurb® Housewrap flame retardant breather membrane and DuPont™ AirGuard® Reflective AVCL vapour control layer feature significantly in the new timber frame construction for Our Lady’s Children’s Hospital, located in Crumlin, Dublin 12, Republic of Ireland.
DuPont™ AirGuard® Reflective, a high performance metallised air and vapour control layer, has been specified to the interior of the building envelope as a significantly cost-saving and easy to install solution to optimal airtightness and improved thermal performance, designed to achieve the required U-values.
Furthermore, 225 square metres of DuPont™ Tyvek® FireCurb® Housewrap breather membrane has been installed to the stair core of the structure. The patented new technology incorporated in this membrane has the potential to save lives and reduce costly fire damage, while providing an environmentally-friendly breakthrough solution that delivers a hi-tech breather membrane for building at a competitive cost.
Adding superior flame retardant performance (up to Class B). to the renowned properties of DuPont™ Tyvek®, such as reliable long-term weather protection, effective vapour diffusion, greater energy efficiency and interior comfort, DuPont™ Tyvek® FireCurb® Housewrap potentially limits or stops the spread of fire through the external envelope using an innovative technology to reduce the flammability of polymer based substrates.
DuPont™ Tyvek® FireCurb™ has a fire rating of class B-s1,d0 according to EN13501-1.
This solution does not involve the use of any halogens, rather it employs a phosphorous containing agent to promote the formation of a ‘char’ layer at the surface when it is in contact with an ignition source. This thin layer of carbonized polymer is highly resistant to burning and forms a barrier, slowing the release of flammable materials into the flame.
Starved of fuel, the flame spreads over the membrane more slowly or not at all. The flame retardant flexible building membranes based on DuPont™ Tyvek® FireCurb™ technology also produce less smoke when the membrane does burn; another advantage for both firefighters and people attempting to flee a burning building.
Cliff Murphy, Site Manager at Clancy Construction comments, “DuPont™ Tyvek® FireCurb™ Housewrap was chosen to meet the building regulations in regards to the spread of fire and was the only product on the market to meet all of our needs. I found the product easier to work with than any of the current alternatives on the UK & Irish markets and would highly recommend it. What’s more the superiority of the product combined with ease of installation, availability of stock and the technical support from DuPont makes me inclined to use DuPont™ Tyvek® products where appropriate on all projects going forward.”

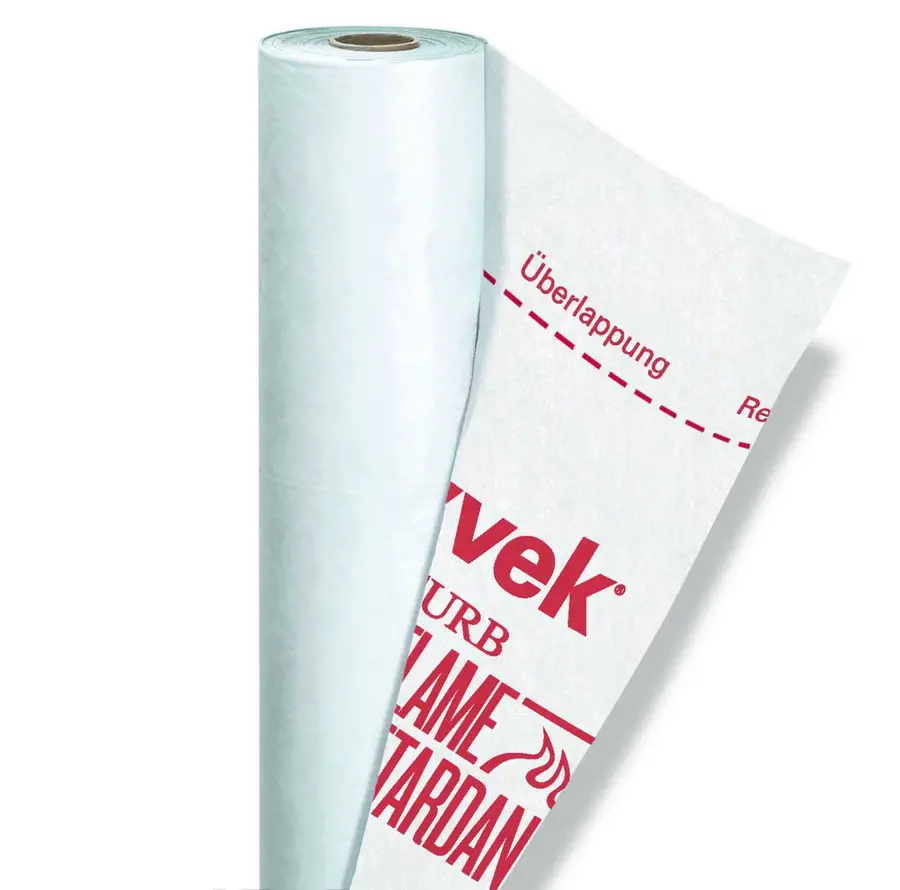

Breather membranes with flame retardant performance based on DuPont™ Tyvek® FireCurb™ technology are now available in Europe are suitable for applications in high rise buildings for ventilated façades and for wall membranes in timber frame constructions:
photo : DuPont™ Tyvek® FireCurb™, all rights reserved
To learn more about DuPont™ Tyvek® FireCurb™ technology, visit www.FlameRetardant.tyvek.com
About DuPont™ Tyvek® (www.construction.tyvek.com) – Invented by DuPont research and development laboratories in the late ‘60s as a premium material for personal protection and packaging, DuPont™ Tyvek® is manufactured using a unique, proprietary technology, and has, over time been discovered and developed as ideally suited to a variety of further applications and markets. Around 1990, it was first adopted as a breather and water proof membrane for roofs and walls for building construction in certain countries in Europe.
Between 1990 and 1995, it was introduced to the Nordic Countries (Scandinavia), Switzerland, Germany and then to the United Kingdom. Today, DuPont™ Tyvek® is marketed in 35 countries in the Europe Middle East and Africa region, in addition to the USA, Canada and many other countries in the other regions. In 2005, the entire range of DuPont™ Tyvek® membranes achieved CE certification, the first to do so in the building membrane market.
About DuPont™ AirGuard® Reflective – DuPont™ AirGuard® Reflective is a metallised vapour control layer which is 100% airtight and protects against moisture penetration from the interior into the building envelope. With high reflectivity and very low emissivity DuPont™ AirGuard® Reflective also helps to prevent radiant heat loss.
DuPont™ AirGuard® Reflective works together with other membranes such as DuPont™ Tyvek® to create an air-tight building envelope, minimising internal thermal losses and helping to create a more comfortable interior environments, while offering energy savings of up to 15% . Although sophisticated in terms of technology, DuPont™ AirGuard® Reflective is lightweight and simple to install and suitable for either new build or renovation projects.
About DuPont Building Innovations – DuPont™ Tyvek® and DuPont™ AirGuard® are products of DuPont Building Innovations. From innovative energy-saving systems to beautiful and long-lasting surfacing solutions, the extensive offering of DuPont Building Innovations delivers safety, durability, beauty and energy efficiency, providing a major contribution to the modern built environment – across the spectrum of building and architecture, roads, bridges and other infrastructure and also to landscaping and gardens, as well as to the preservation or the renovation of contemporary and historical constructions.
The main products and brands managed by DuPont Building Innovations are DuPont™ Corian® (www.corian.com), DuPont™ Tyvek® and DuPont™ AirGuard® (www.construction.tyvek.com), DuPont™ Energain® (www.energain.co.uk), DuPont™ Typar® (www.typargeo.com) and DuPont™ Plantex® (www.plantexpro.dupont.com).
About DuPont – DuPont (NYSE: DD; www.dupont.com) has been bringing world-class science and engineering to the global marketplace in the form of innovative products, materials, and services since 1802. The company believes that by collaborating with customers, governments, non-governmental organizations, and thought leaders we can help find solutions to such global challenges as providing enough healthy food for people everywhere, decreasing dependence on fossil fuels, and protecting life and the environment.
Crumlin Children’s Hospital Dublin – DuPont™ Tyvek® FireCurb™ images / information received 130513
Address: Our Lady’s Children’s Hospital, Crumlin – OLCHC, Cooley Rd, Crumlin, Dublin 12, Ireland
Phone: +353 1 409 6100
