Rio 2016 Deodoro Cluster

Concept designs of the Rio 2016 winning bid (20 venues), Rio de Janeiro
2009/10
Design: BCMF Arquitetos

DEODORO CLUSTER

Deodoro Arena – Fencing
Rio Olympic Park

In the Deodoro Cluster, BCMF Arquitetos were responsible for the design of the X-Park (XPR), a “Radical Sports Park” including the Olympic BMX Center (BMX), Olympic Whitewater Stadium: Canoe / Kayak Slalom (CAN), and the Olympic Mountain Bike Park (MBK).

The National Sports Shooting Center (NSC), the National Equestrian Center (NEC) and the National Center of Modern Pentathlon (MNP)_ all of which had already been designed by us for the Pan-American Games of Rio 2007 according to Olympic standards_ needed basically adjustments and complements, including the design a new Fencing facility, the Deodoro Arena (MNP) and some temporary structures.

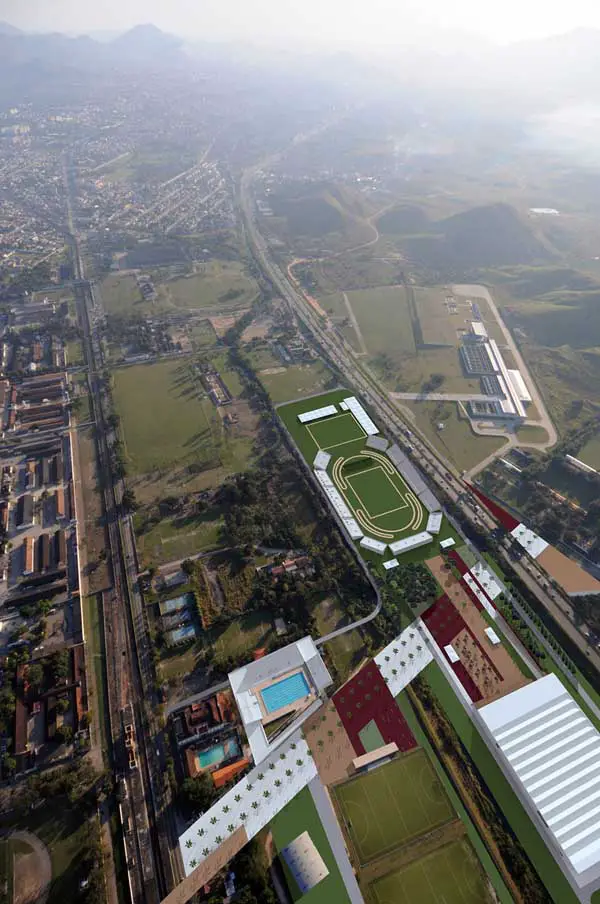

Deodoro Modern Pentathlon Park
Rio Olympic Park Brazil

Deodoro Modern Pentathlon and Shooting
Rio Olympic Park Brazil

The X-Park (XPR) is a new attraction for the Deodoro Sports Complex (DSC), coupled with a new sports club that will meet the demands of the local suburban community (Bangu, Realengo, Vila Militar). Set on the back of the Shooting Center (NSC), the X-Park was designed according to the hilly topography and its existing vegetation, merging into the local natural landscape.

X-Park – Canoe/Kayak (Slalom)
Rio Olympic Park Brazil

X-Park – Cycling
Rio Olympic Park Brazil

A series of hills and valleys defined the organization and layout of the X-Park complex, which has its facilities connected by landscaped paths treated according to its surroundings. The Mountain Bike (MBK) circuit track has been mapped out according to the contour of the land curves and its woods, and will have its route completed with the planting of local and exotic species.

The Canoe / Kayak Slalom (CAN) is also deployed between a set of hills, with its “whitewater” course splicing with an artificial lake. The Mountain Bike Park (MBK) has part of its grandstands settled on the slopes of an extended excavation, minimizing the impact of permanent built structures, being complemented by temporary structures resting freely on the ground.

The X-Park (XPR) is linked to the Shooting Center (NSC) by a path that extends all the way through the site, crossing under the Avenida Brazil and continuing to the “boulevard” of the Modern Pentathlon (MNP). The Deodoro Arena (MNP) will host the Fencing competitions during the Games and will turn into a multi-functional Gymnasium after the Games, integrated to the Military facilities.

Its design follows the language and principles of our Deodoro projects for the Pan-American Games. The other facilities (grandstands and tents) are temporary, while and existing pool and the new equestrian field will remain part of the legacy of Training Center.

X-Park – Cycling (Mountain Bike)
Rio Olympic Park

The Deodoro Sports Complex was designed by us for the Rio 2007 Pan-American Games considering that a similar competition venue and program would be applied to a future Olympic Games (2016), including in the same cluster the Shooting, Equestrian, Archery, Hockey and Modern Pentathlon facilities, being also permanent training areas for all major national, regional and international shooting competitions.

Therefore, the National Sports Shooting Center (NSC), the National Equestrian Center (NEC) and the swimming pool of the National Center of Modern Pentathlon (MNP) already meet international standards, and will need minor adjustments and complements.

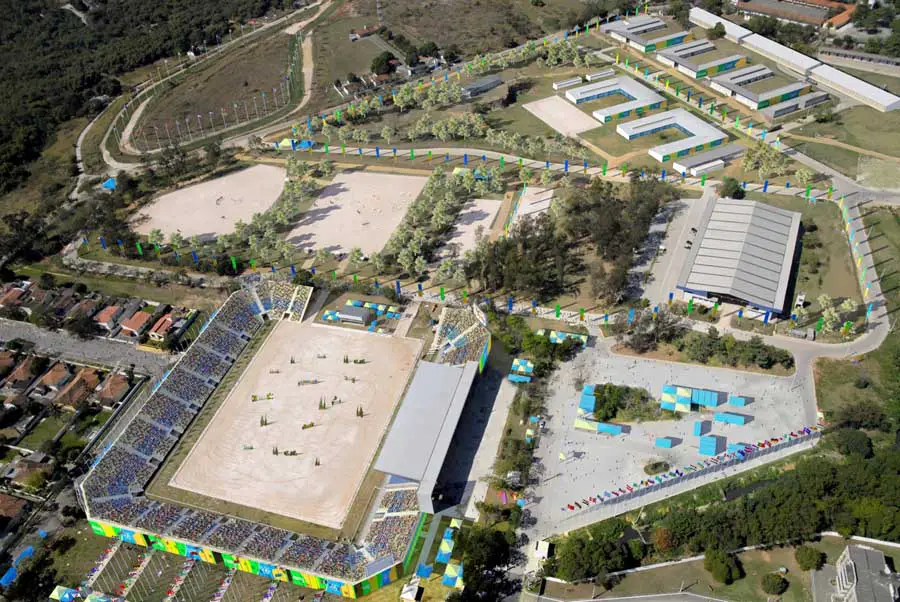

National Equestrian Center
Rio Olympic Park

The cluster is already an important legacy, which has successfully triggered the renewal and further development of this important vector of the city. The project deals with the complex issues of a unique suburban context comprising of a military neighborhood, a densely populated favela, a rough industrial area and a vast wild landscape all mixed together.

With its new atractions and improvements, the new Deodoro Sports Complex will be definitely a formidable world-legacy of high-performance sports for this region, forming a cluster with great potential for catalyzing a general revitalization of a significant suburban area of the city.

Bruno Campos
BCMF ARQUITETOS, Rio de Janeiro 2009

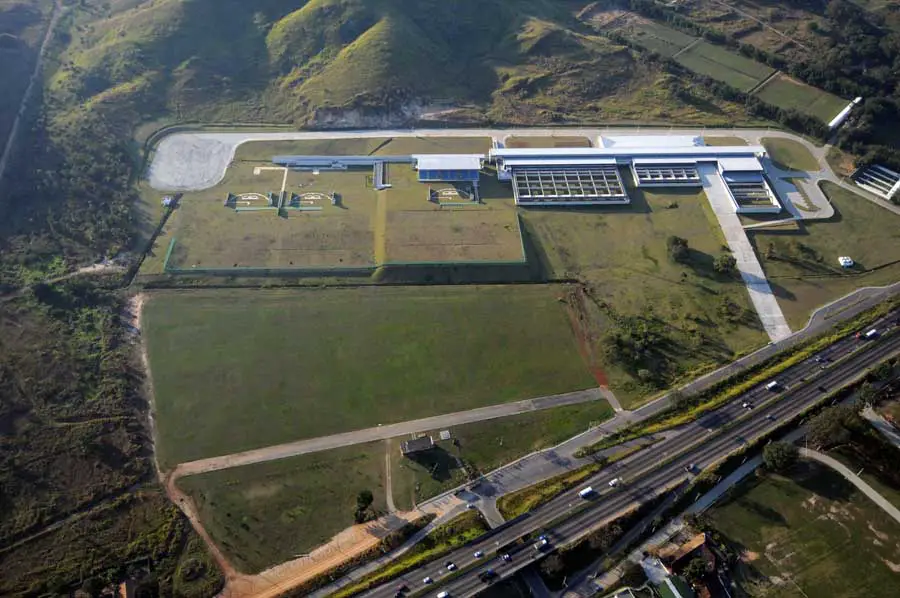

Deodoro Shooting Center
Deodoro Shooting Center

Deodoro Equestrian Center
Deodoro Equestrian Center
