Gawthorne’s Hut in Mudgee, NSW

29 Nov 2021

Design: Cameron Anderson Architects

Location: Mudgee, NSW, Australia

Gawthorne's Hut Mudgee New South Wales

Photos by Martin Mischkulnig

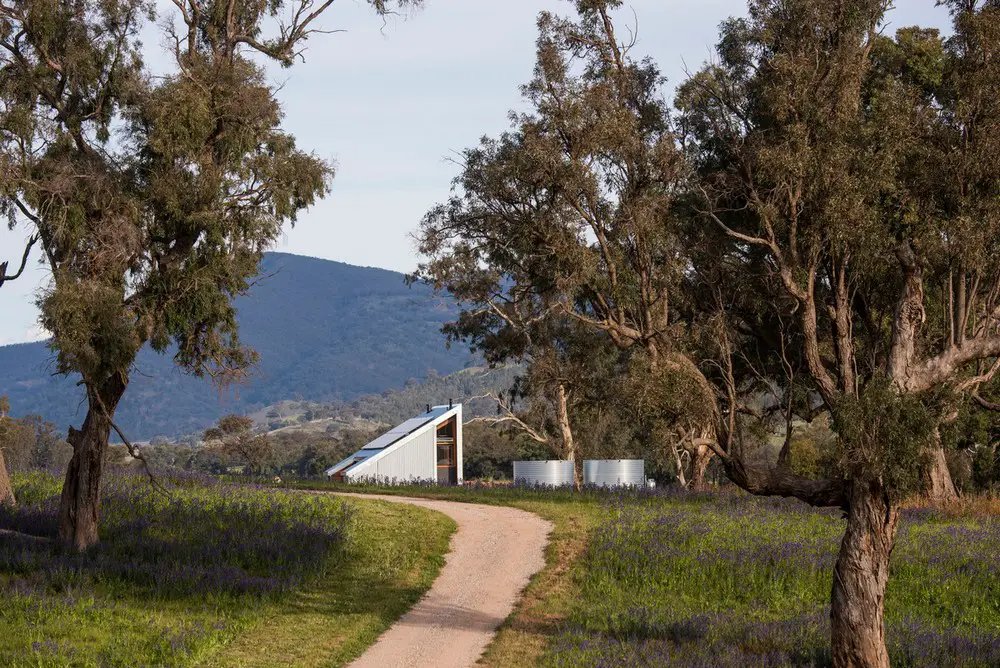

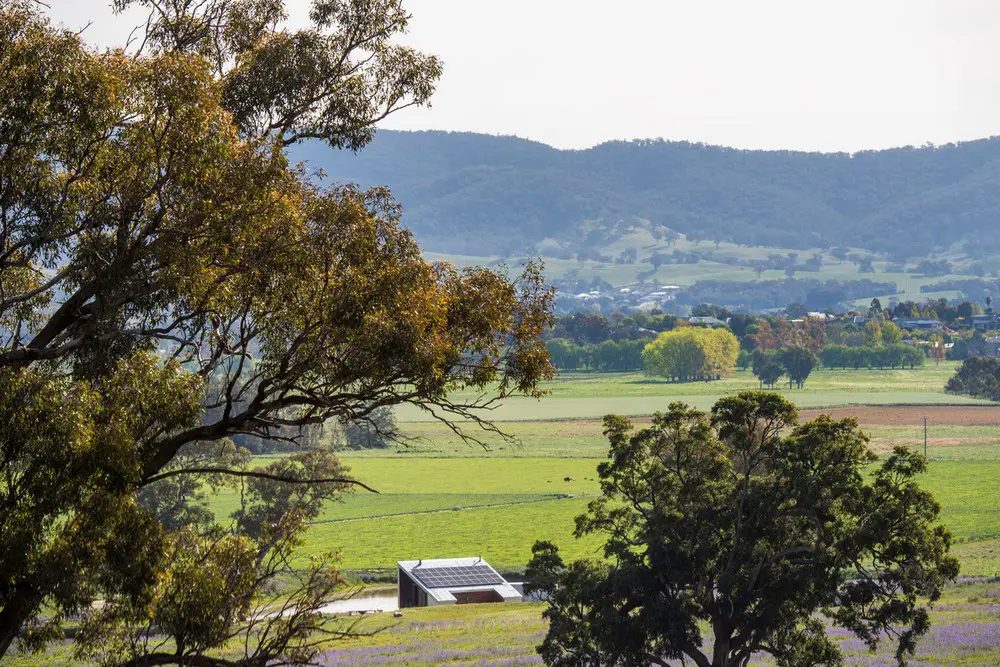

Gawthorne’s Hut is a luxury, 2 person, off grid, tourism experience within a working rural property 10 minutes from the centre of Mudgee. The project intends to create a unique and sustainable tourism experience that responds directly to the history and context of the property.

Gawthorne's Hut Mudgee NSW

Gawthorne’s Hut

The angled galvanised clad shell and rich timber lined interior reference the predominant rural vernacular of hay sheds and outbuildings and in particular the existing hay shed that was destroyed by a storm in 2017.

Gawthorne's Hut Mudgee New South Wales

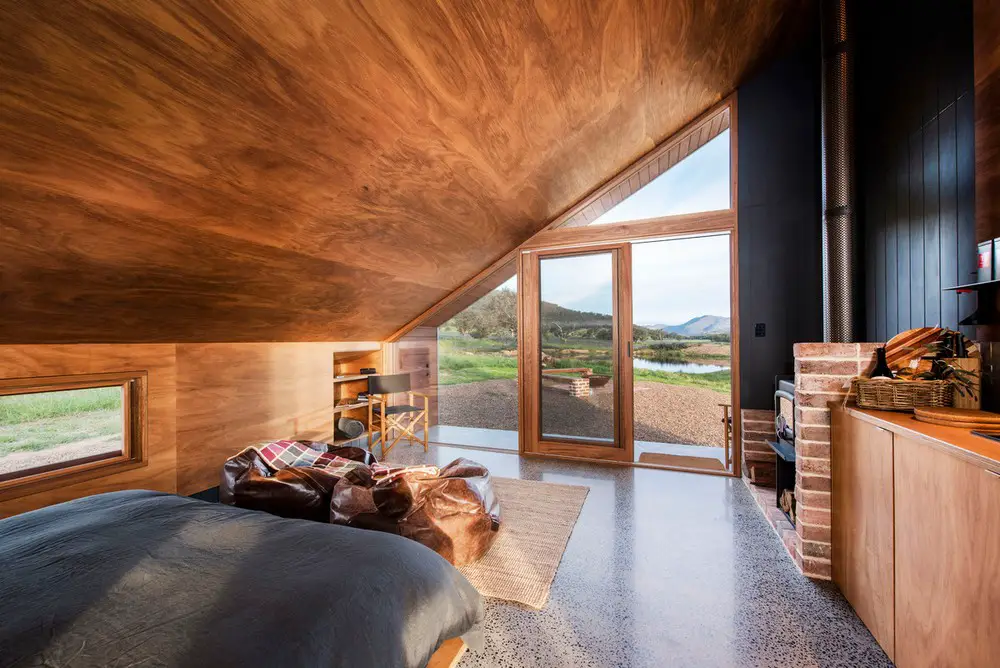

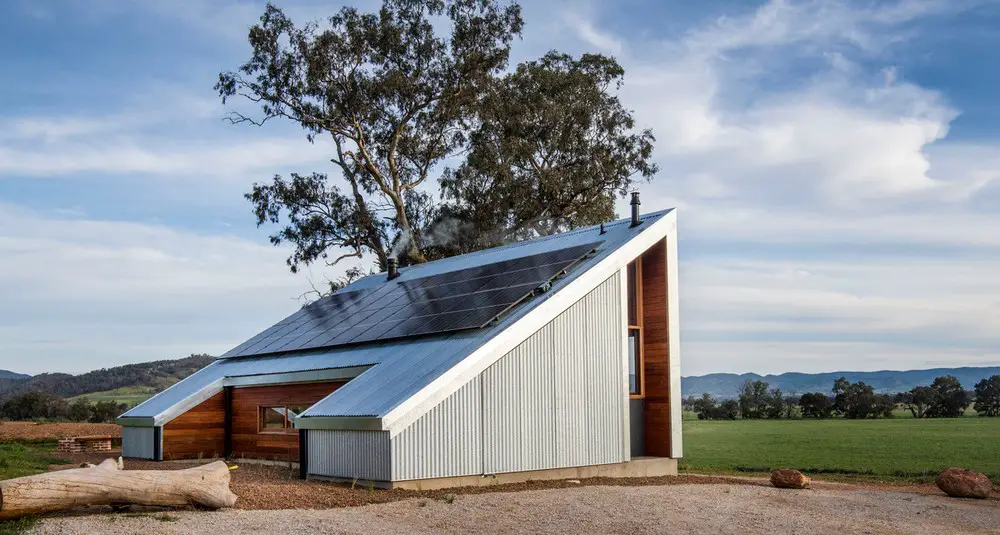

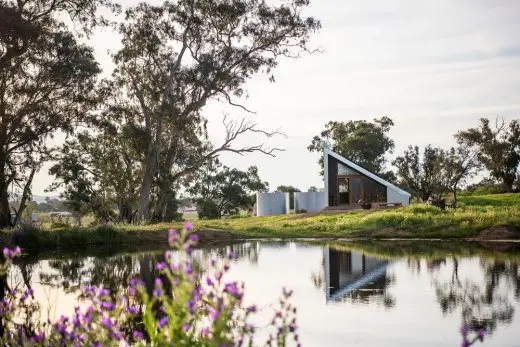

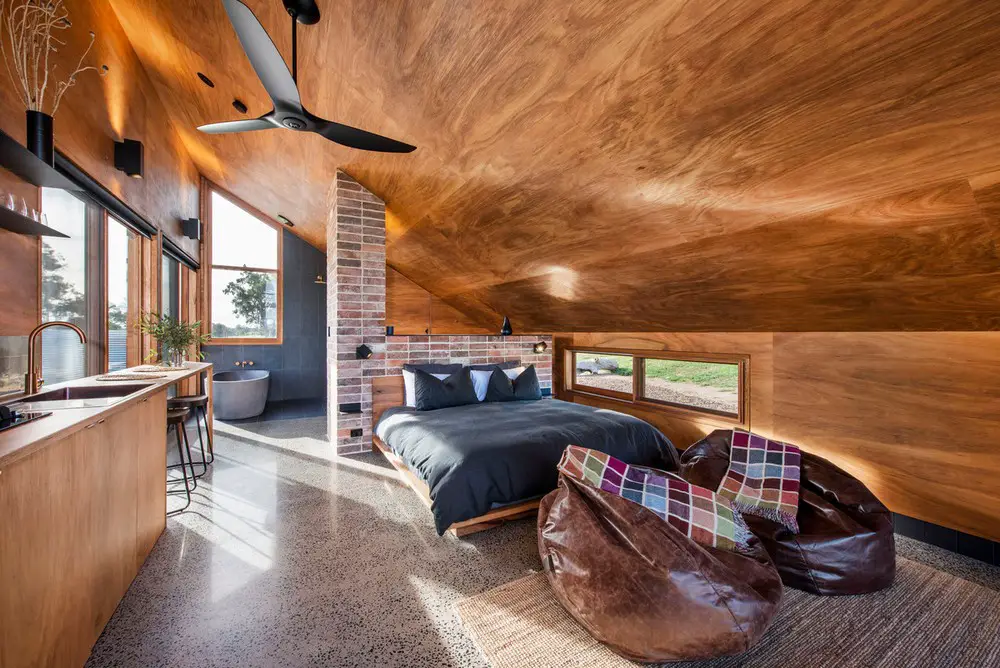

The angled roof form of galvanised steel is both a reference to the relic of the existing shed and also the client’s desire to accommodate the solar array on the building. The solar array meant the need to maximise the Northern roof area. The angled form is emphasised internally through a blackbutt lined ceiling which also frames the valley views to the East.

Gawthorne's Hut Mudgee NSW

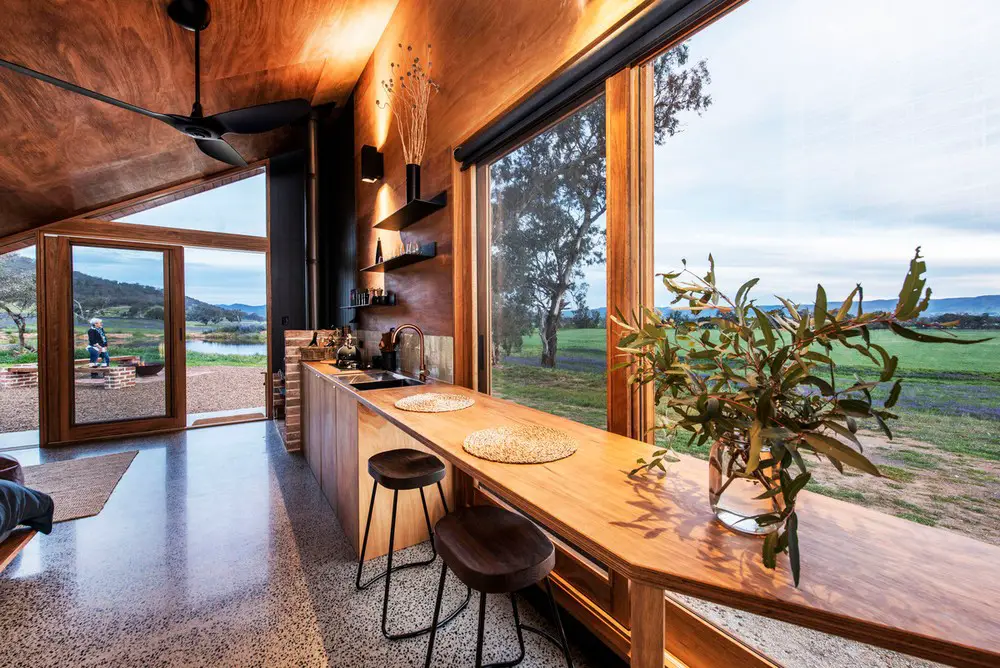

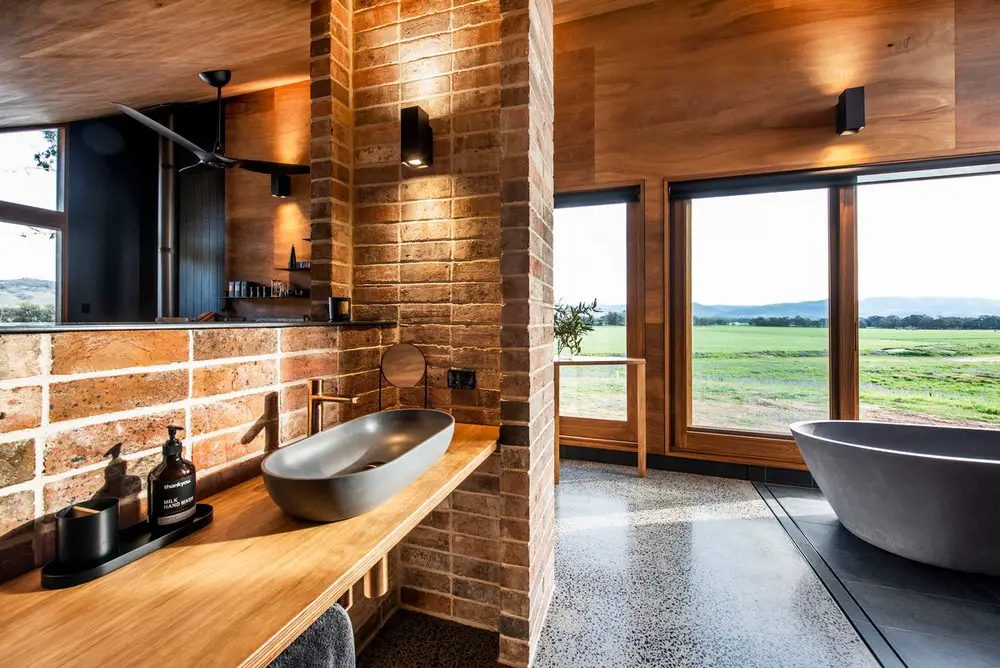

The Micro floor plan of 40 sqm internal area is maximised through the use of an open floor plan and minimal joinery, the only enclosed area being the WC. A low height brick wall provides a small degree of separation to the bathroom functions.

Gawthorne's Hut Mudgee NSW

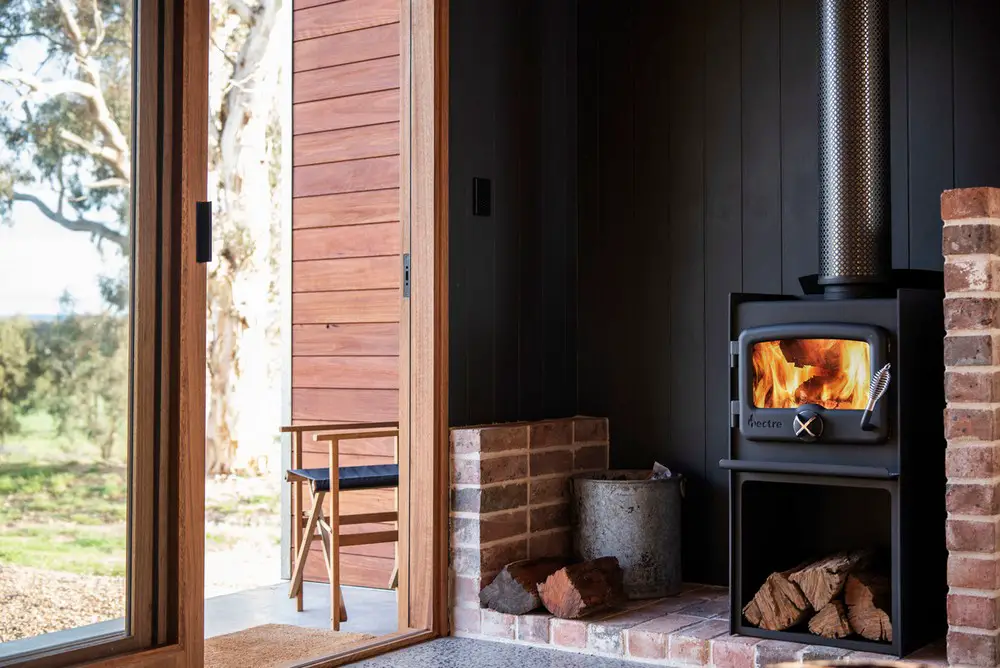

The recycled bricks have been meticulously repurposed from the only surviving part of the original cottage on the property, the fireplace. Like many rural properties throughout NSW the only sign of a previous building is the defiant existing chimney still standing strong after all around it has been destroyed.

Gawthorne's Hut Mudgee New South Wales

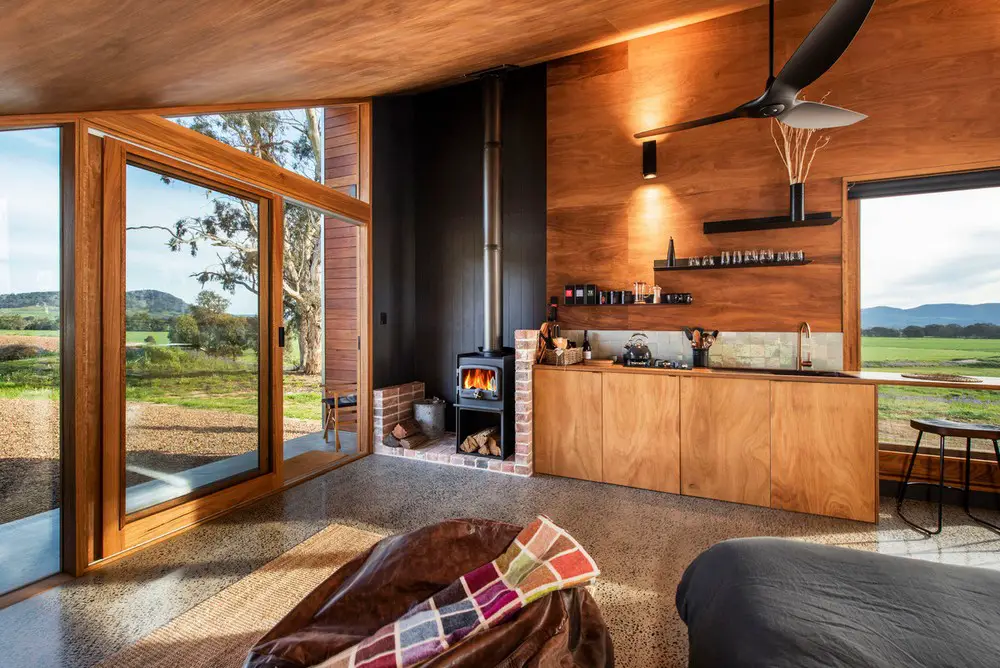

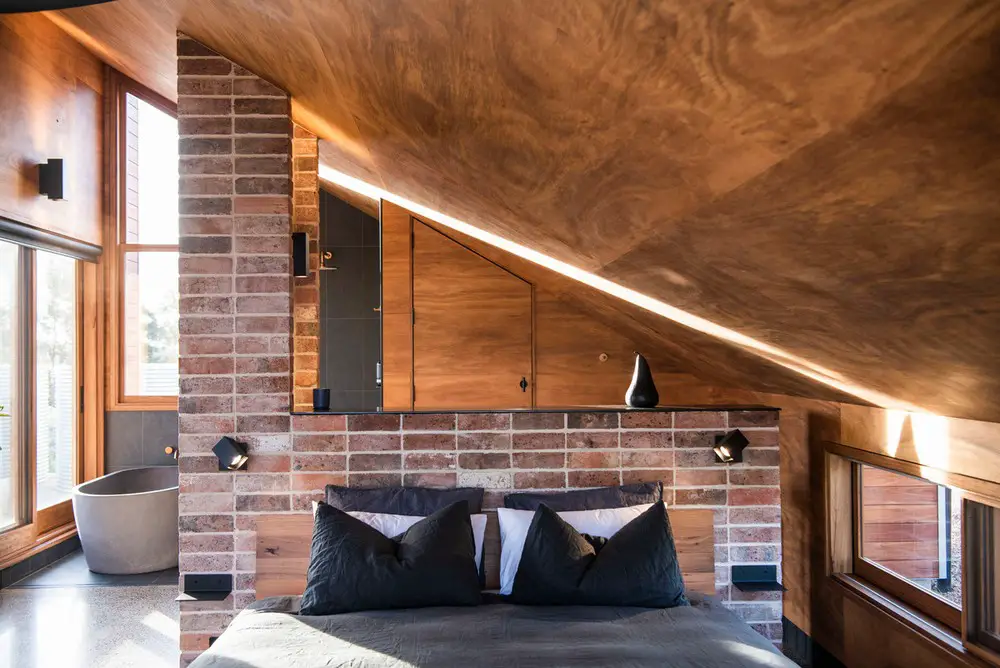

The recycled brick wall within the space is a tongue in cheek reference to the existing chimney while also allowing services to come down from the ceiling and provide a degree of separation to the bathroom. The stack bond coursing emphasises the fact that the bricks are no longer load bearing. Gawthorne’s Hut is named after the historical owner of the property Benjamin Gawthorne, the recycled bricks coming from the remains of the original cottage.

Gawthorne's Hut Mudgee New South Wales

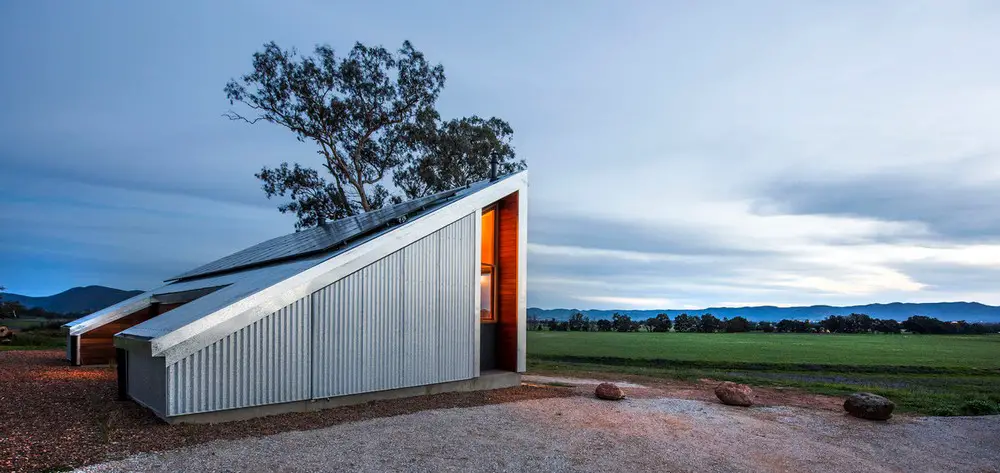

Critical to the project is the concealment of the services so as to not detract from the picturesque rural setting and visitor experience. Great effort has been taken to conceal services out of sight with large galvanised clad door to the Western façade opening to reveal storage, solar batteries and inverter, electrical board and a gas hot water unit. The location of services here also provides a heavy buffer to the Western sun. The project also achieves a BAL 12.5 bushfire rating.

Gawthorne's Hut Mudgee New South Wales

The property demonstrates to guests the opportunities of building smaller footprints and incorporating sustainable design elements.

Gawthorne's Hut Mudgee New South Wales

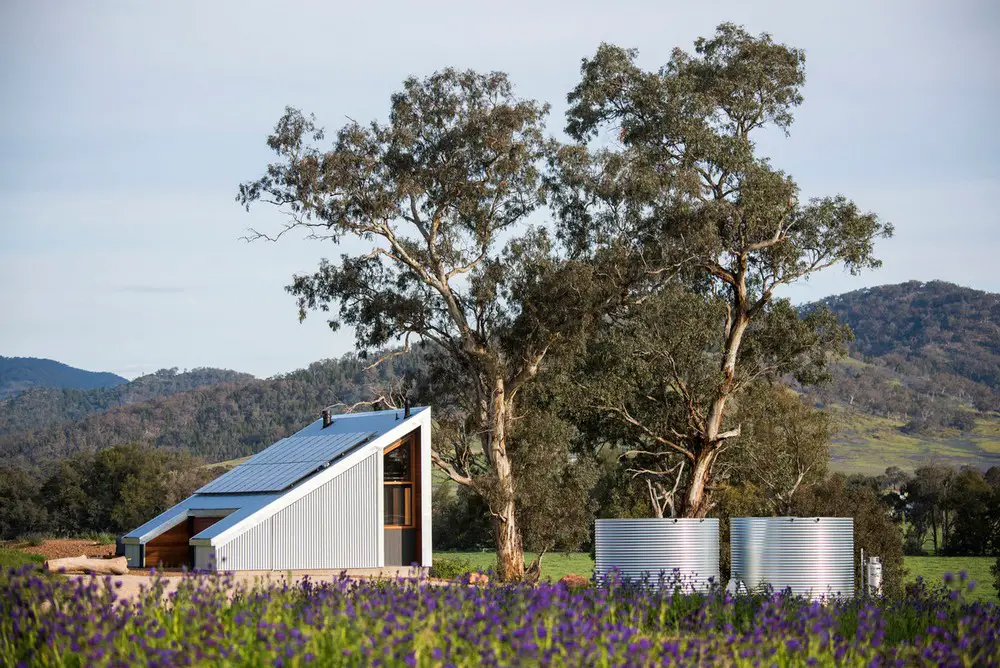

Critical to this project are a 6.6kw off grid solar system and 12kw battery storage, 40,000 Litres of rain water storage, Double glazed blackbutt windows and doors, thermal mass via a polished concrete slab, gas hot water, efficient bathroom fixtures and passive solar shading via the Western buffer created by the services enclosure. Stage 2 will see the addition of shading to western and southern glazing however the client is looking to assess the thermal performance over 12 months first before completing the works.

Gawthorne's Hut Mudgee New South Wales

What was the brief?
To create a unique, small self sufficient tourism experience for two people on a working rural property that draws from the site’s contest.

Gawthornes Hut Mudgee New South Wales

Who are the clients and what’s interesting about them?
Our clients are Rick and Steph Gordon of Wilgowrah. Rick and Steph procured this building in the middle of a long drought, looking to diversify traditional farming income in a sustainable way, without disrupting their current farming practices.

Gawthornes Hut Mudgee NSW

What are the sustainability features?
100% off grid building
6.6kw solar system with 12kw of battery storage
Rainwater collection and reuse
Double glazed Blackbutt windows and doors
high levels in insulation in roof and walls
Concrete slab and masonry for thermal mass
Recycled brickwork is reused
Low VOC internal finishes for timber
Off cuts of internal linings recycled for joinery
Low water use fittings and fixtures
Gas Instantaneous hot water
Solar Shading to Western façade via placement of services

Gawthornes Hut Mudgee NSW

Small Project Award – 2021 Australian Institute of Architects NSW Country Division Architecture Awards
Airbnb Host Awards – Best Unique Stay Australia 2021

Gawthornes Hut Mudgee NSW

Gawthornes Hut Mudgee NSW

Gawthorne’s Hut in Mudgee, New South Wales – Building Information

Design: Cameron Anderson Architects

Builder: Callander Constructions
Structural Engineer: Barnson PL and Blacklab Solar

Project size: 40 sqm
Project Budget: $252000
Completion date: 2020
Building levels: 1

Gawthornes Hut Mudgee NSW

Photography: Martin Mischkulnig

Gawthorne’s Hut in Mudgee, NSW, Australia images / information received 291121 from Cameron Anderson Architects
