Grosvenor Place in Sydney

Tower Facade, Australia – design by Harry Seidler & Associates

4 May 2017

Grosvenor Place

Architect : Harry Seidler & Associates

Location: Sydney, New South Wales (NSW), Australia

Grosvenor Place

Grosvenor Place

AR-MA worked with ARC Roofing and Craftmetals to design, fabricate, and install the stainless steel façade system for architects Harry Seidler and Associates’ recent plaza redevelopment of Grosvenor Place.

Grosvenor Place

Grosvenor Place

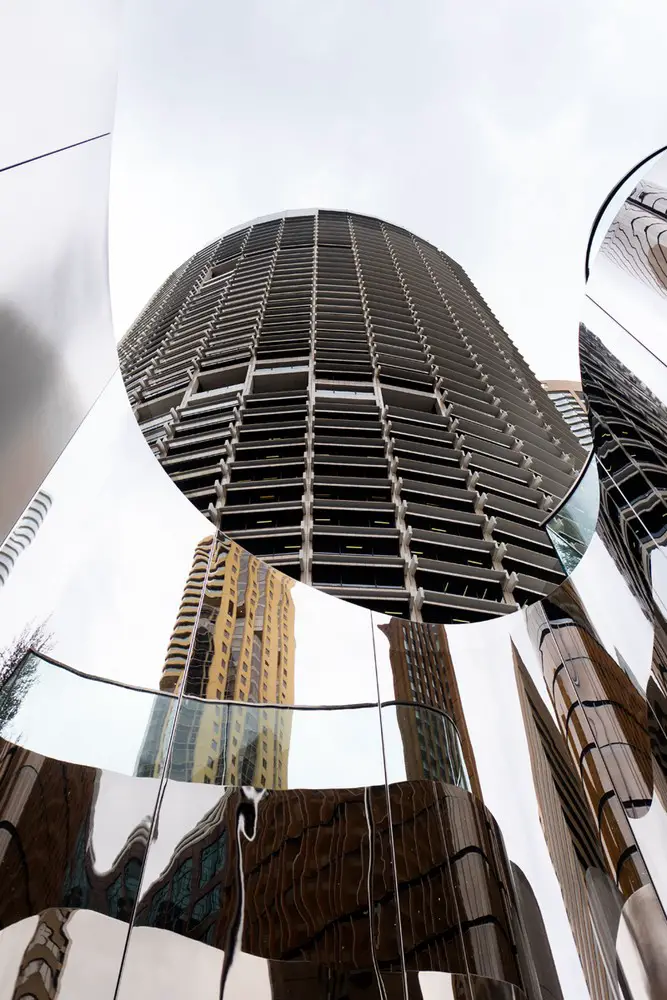

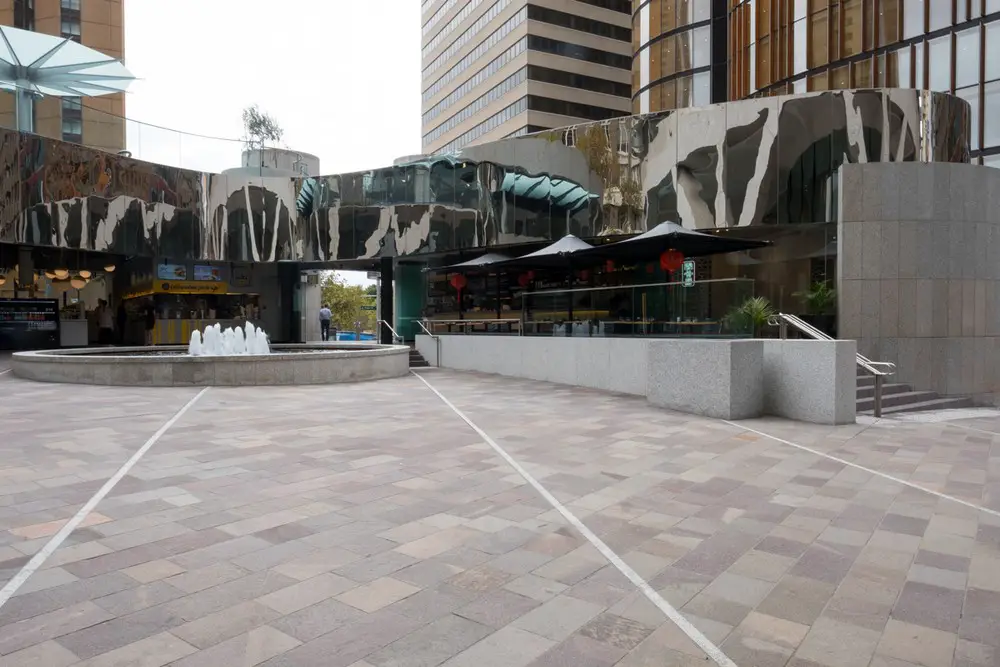

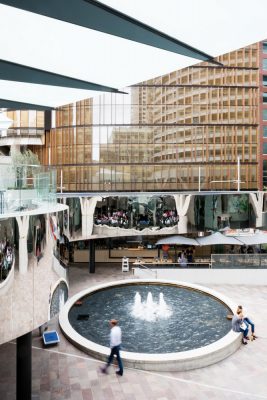

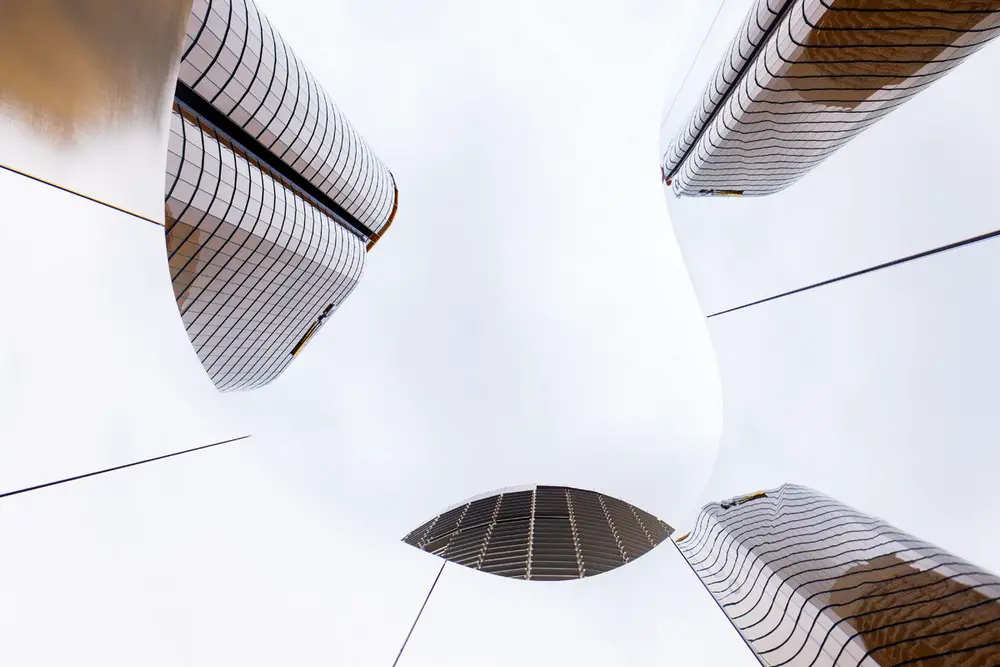

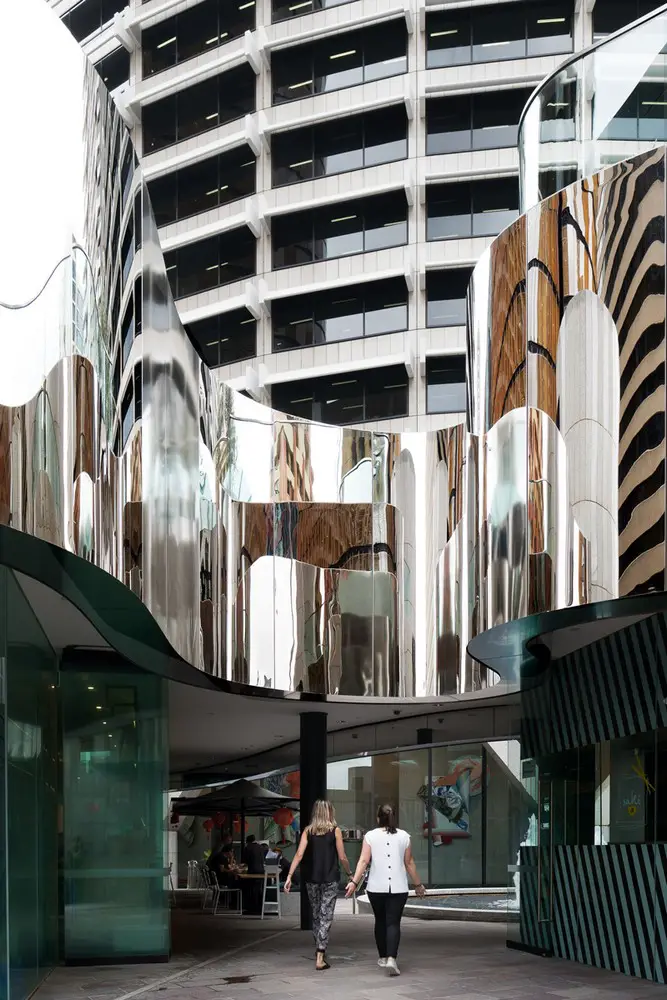

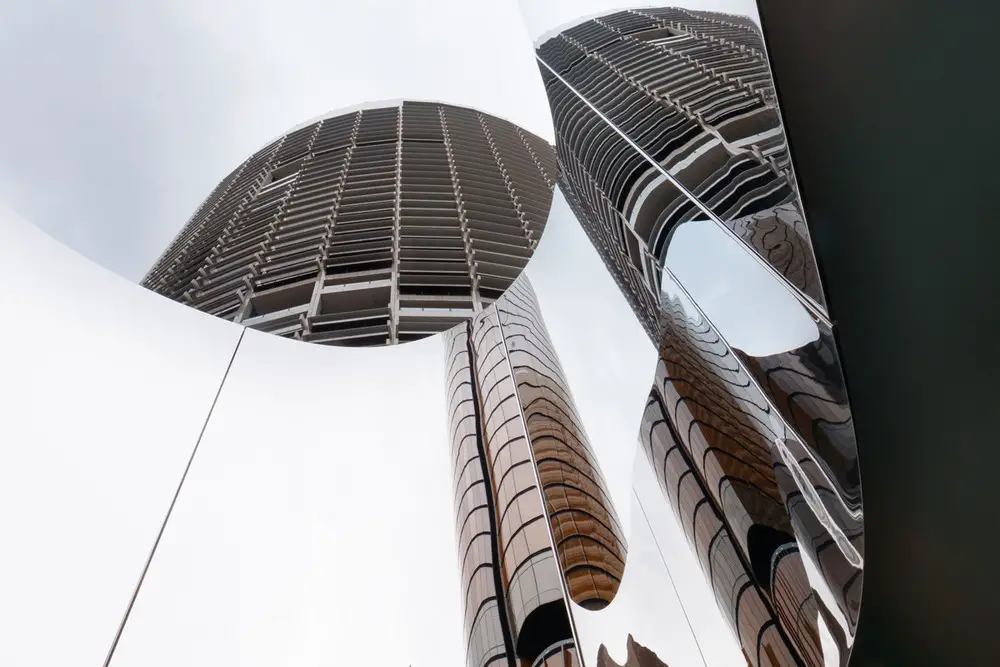

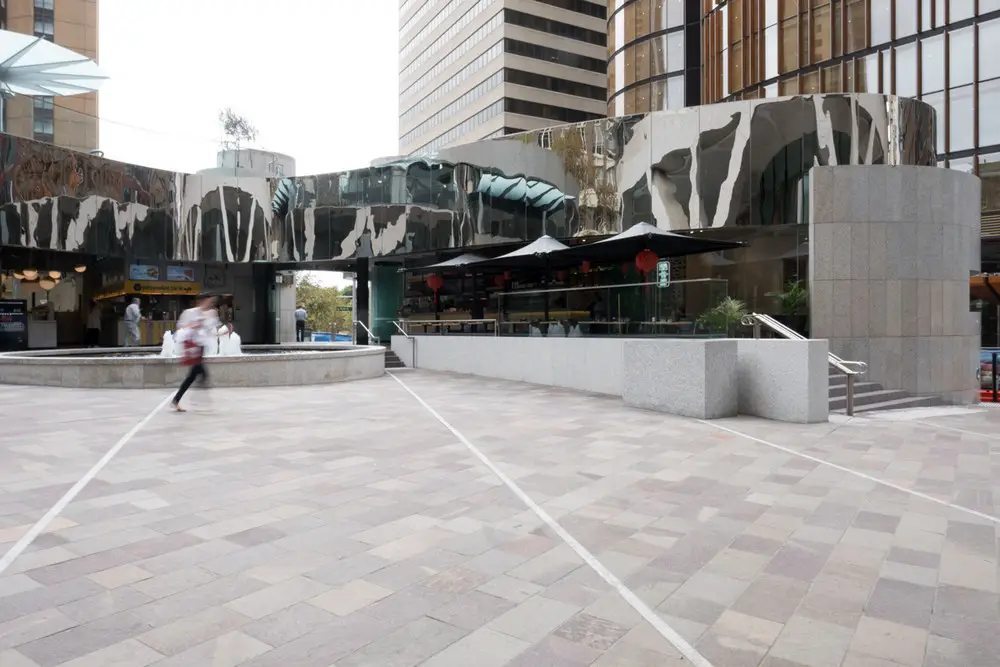

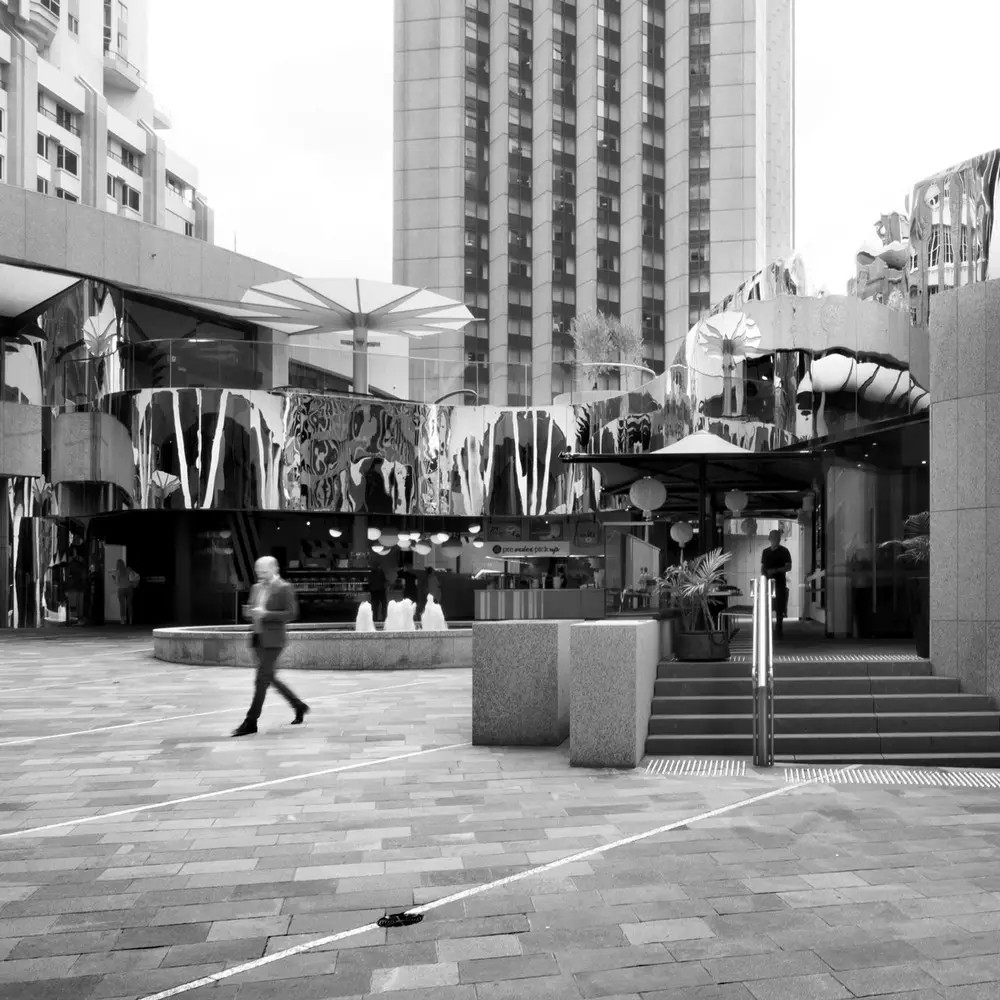

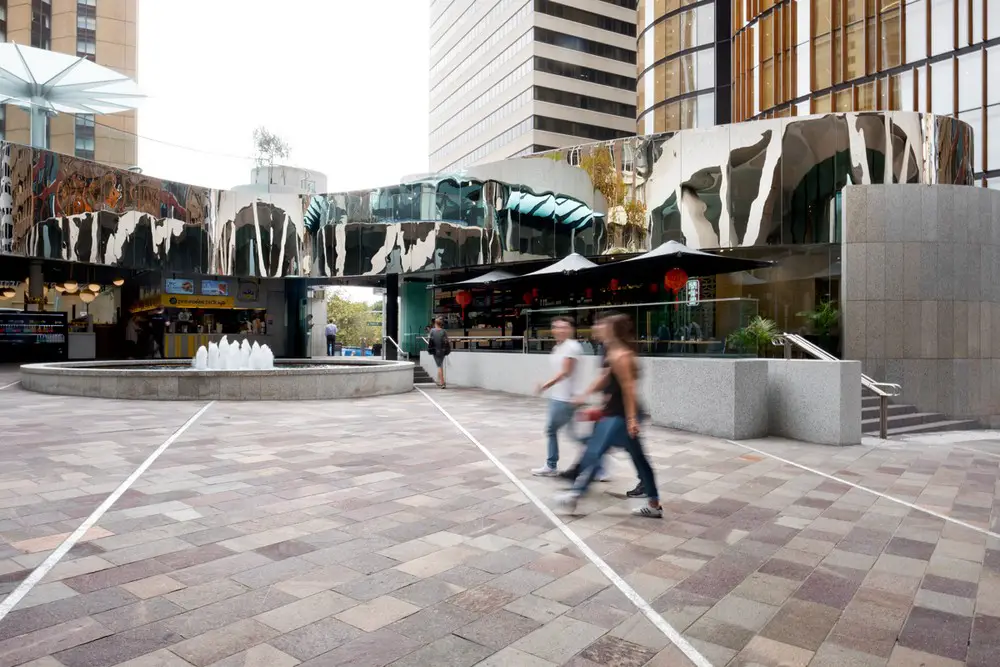

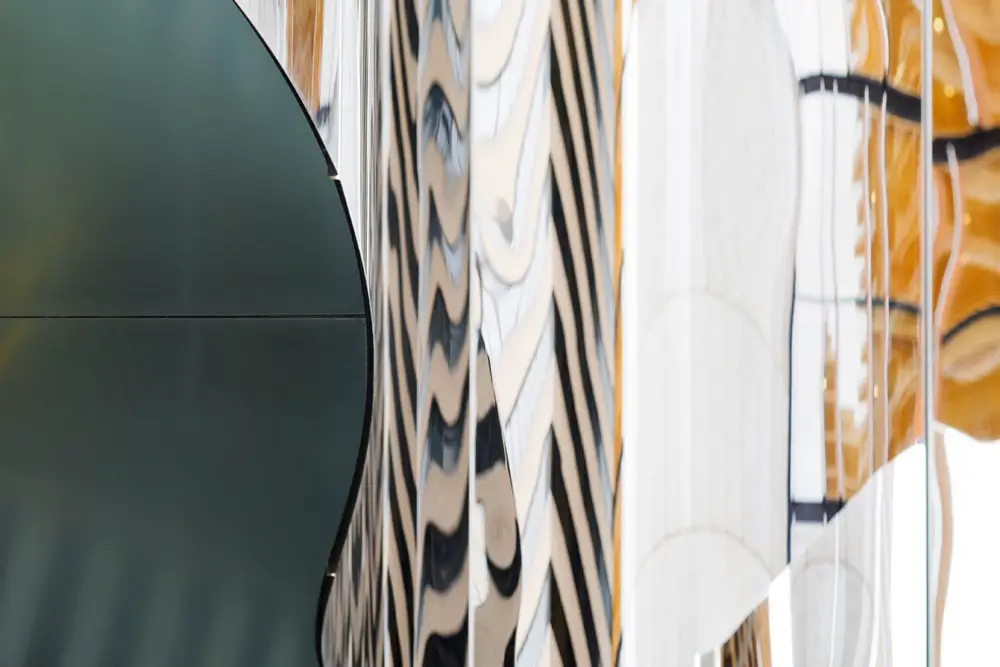

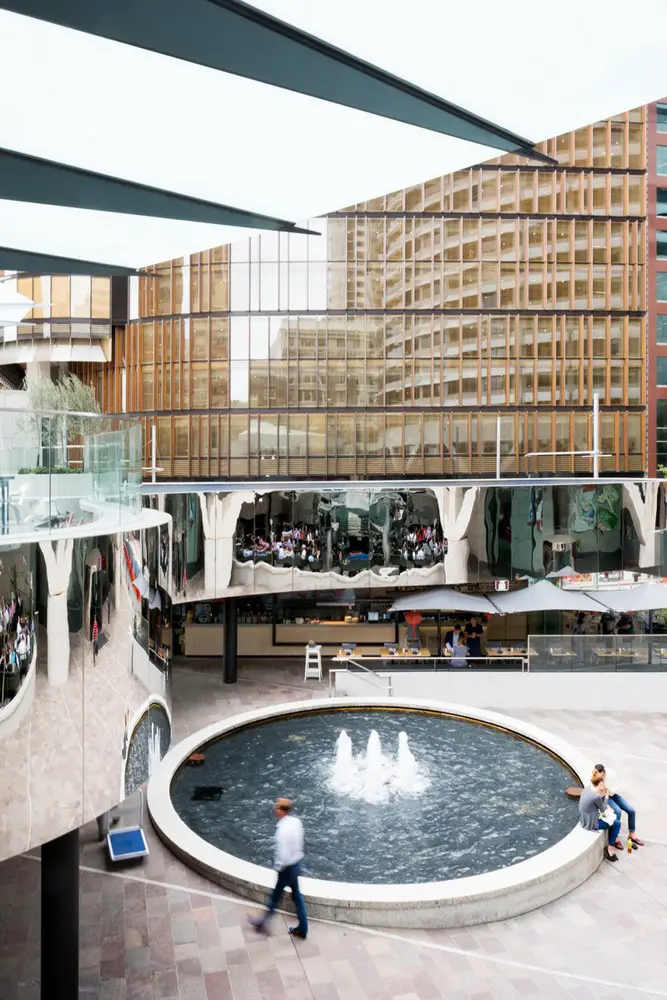

The façade, which sweeps the expanse of the new development at 225 George Street, reflects the surrounding high rise buildings in its mirror surfaces, providing a marker for Seidler’s iconic building at street level.

Grosvenor Place Grosvenor Place

AR-MA was engaged by ARC Roofing as part of a façade team responsible for providing design resolution and buildability advice to match the ambitious architectural intent. Working with specialist fabricators and installers, AR-MA was able to reach a technically robust and visually stunning outcome, satisfying both aesthetic and construction concerns.

Grosvenor Place

Throughout the design, AR-MA maintained a fabrication-based parametric model integrating relevant architectural and material constraints. This model was kept up to date with design changes, and used to provide feedback in regards to visual and financial concerns. developed from a 3D point cloud survey of the as-built concrete. Fabrication files for all 152 panels were output directly from this model, aided by construction documentation drafted in a conventional manner. Each unique stainless steel composite panel was tagged and tracked through various manufacturing processes with multiple contractors, ultimately being assembled for site installation.

Grosvenor Place

Grosvenor Place

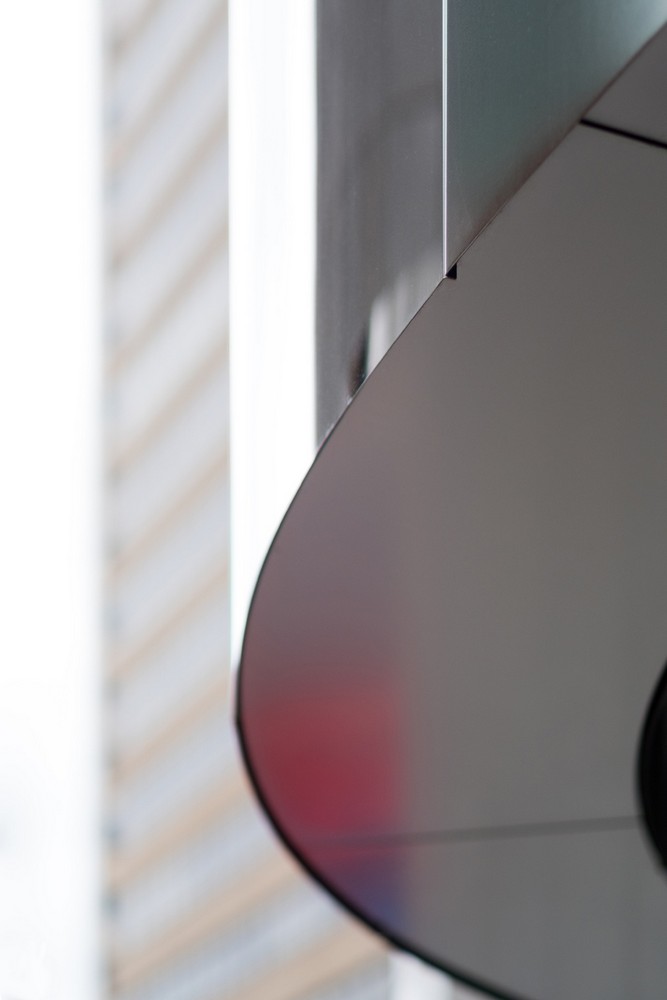

AR-MA’s consultancy services included designing the façade system to as-built concrete, employing a 3D point cloud survey to accurately manage the relationship between the façade panels and the concrete behind. Anticipating a large tolerance in the as-built concrete, the façade system was detailed with adjustable bracketry to allow for discrepancy between the curve of the concrete and the desired set-out of the façade. This allowed AR-MA to maintain a high level of accuracy where required, compensating for tight concrete design tolerances with intelligent sub-structure design.

Grosvenor Place

AR-MA’s proficiency allowed Harry Seidler and Associates to realise an iconic project in Sydney’s centre, adding to the already rich work of the late Seidler at Grosvenor Place.

Grosvenor Place Grosvenor Place

Grosvenor Place in Sydney – Building Information

Architect: Harry Seidler & Associates
Contractor: Built
Fabrication consultant: AR-MA
Fabrication panels: Craftmetals
Facade subcontractor: ARC Roofing
Design Team: Robert Beson, Gabriele Ulacco, Tony Ho, Harry Stitt
Project size: 250 sqm
Completion date: 2016

Grosvenor Place

Photo Credits: AR-MA

Grosvenor Place in Sydney images / information received 040517

Website: AR-MA

Location: Sydney, Australia
