Schaerer Housing

Location: Erlenbach, Switzerland

Design: Christ & Gantenbein

Schaerer Residential Building

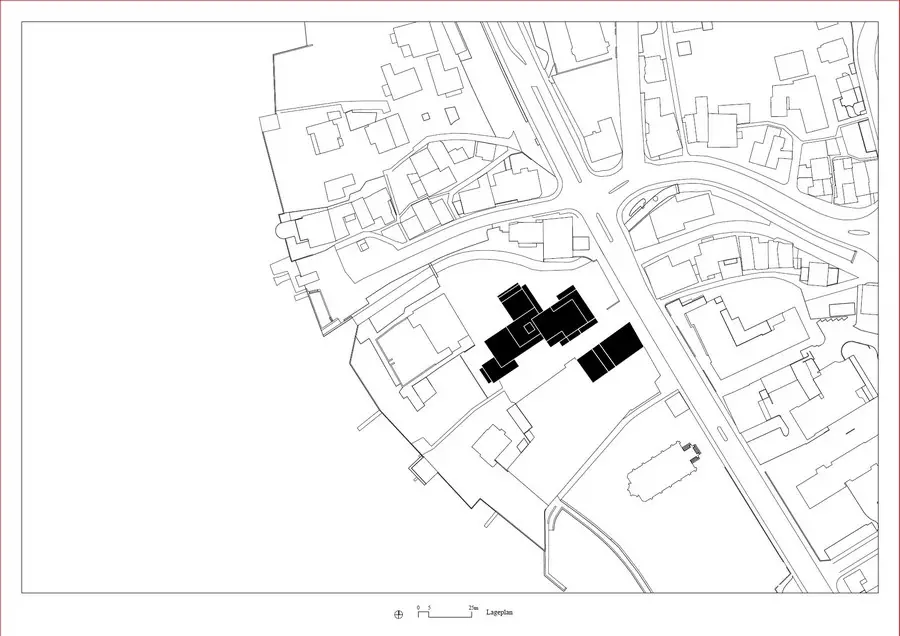

In the centre of Erlenbach, a town on the edge of Lake Zurich, a new housing building has been constructed on the premises of the Schärer Erlenbach company. The former factory, where machines for the textile industry were produced and which used to be so important for the region, has also received a new front building.

Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland

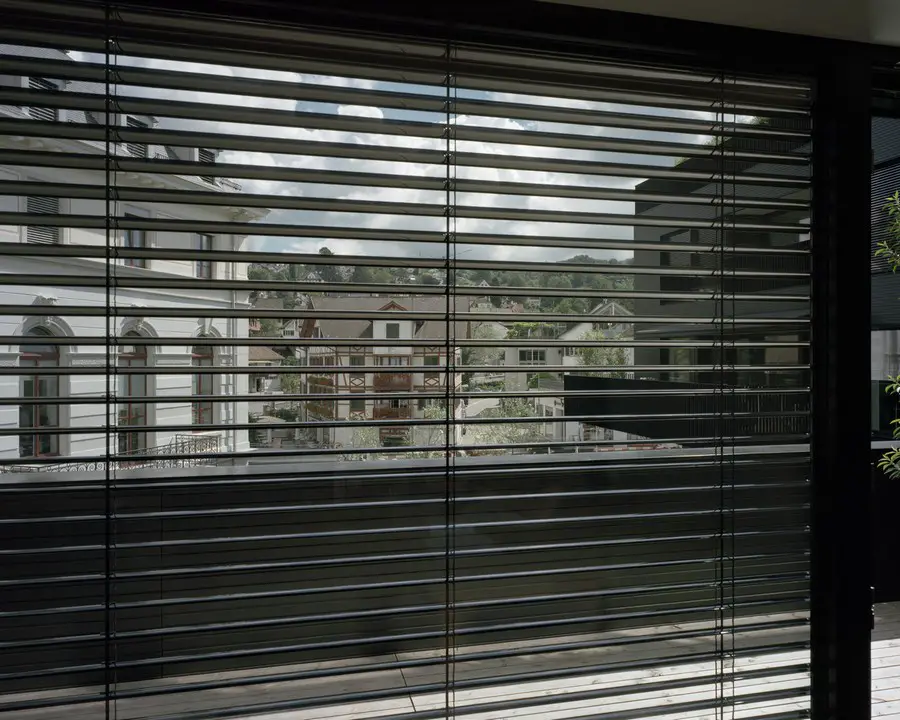

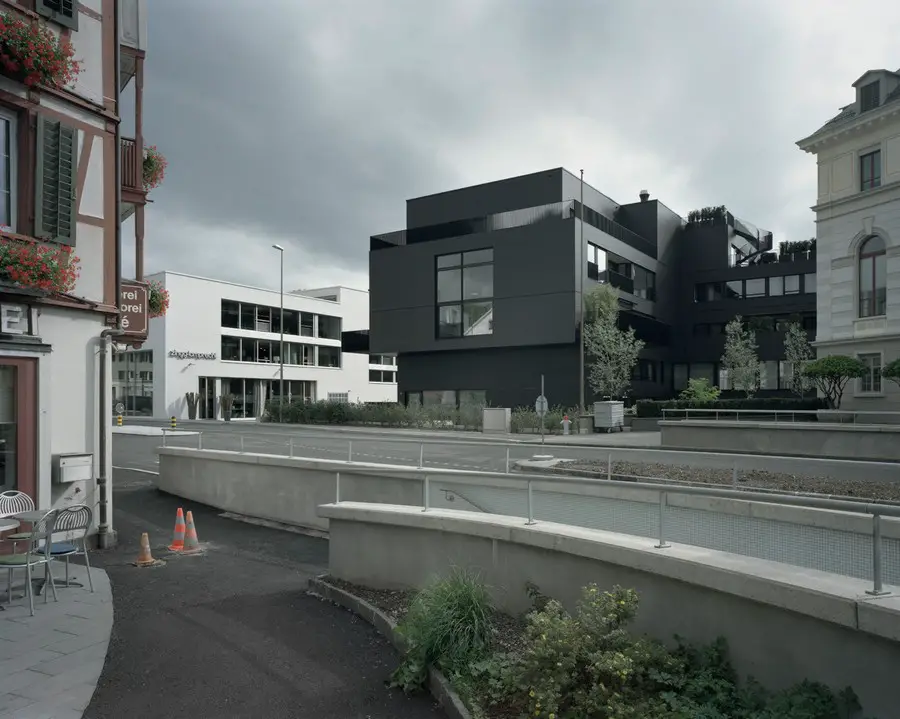

photos : Walter Mair

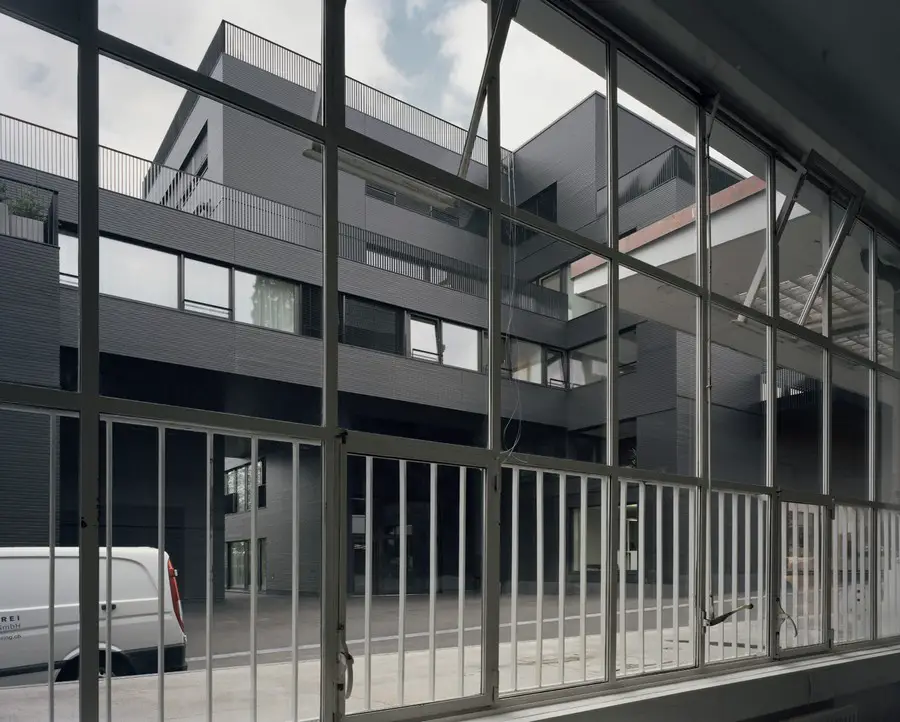

The factory building and the housing building communicate with each other through their architecture and their materials. The former industrial building with its horizontal ribbon glazing uses a classical modern language. This language is also employed in the front building. It gives a new face to the factory, with a big window looking out to Seestrasse.

Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland
photos : Walter Mair

The housing building is related to the factory building in terms of scale, the composition of the facade and the large banks of windows. But concerning their materials and colours they differ distinctly from each other.

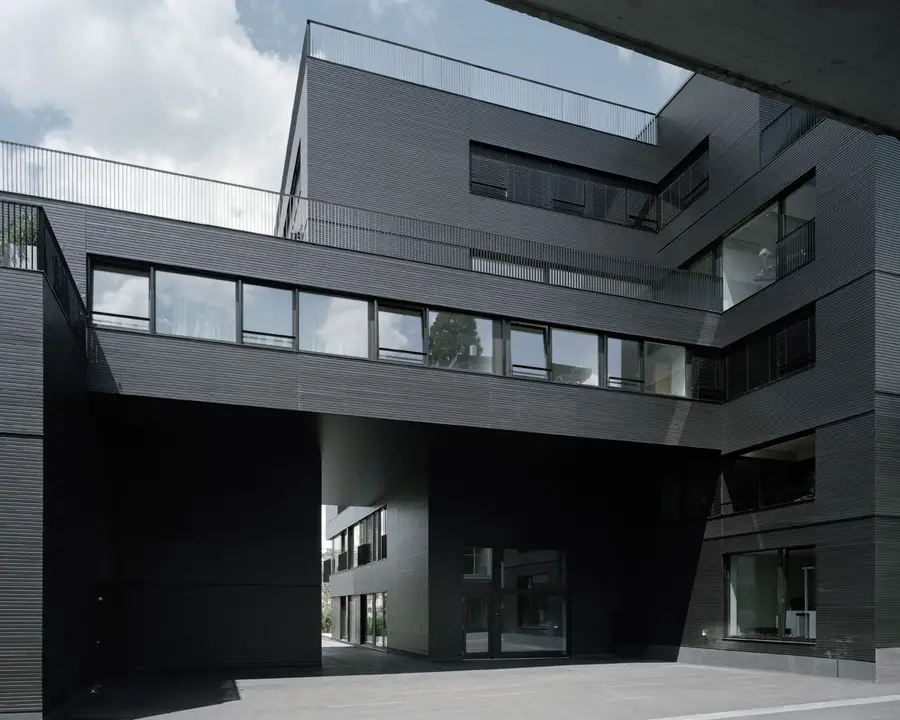

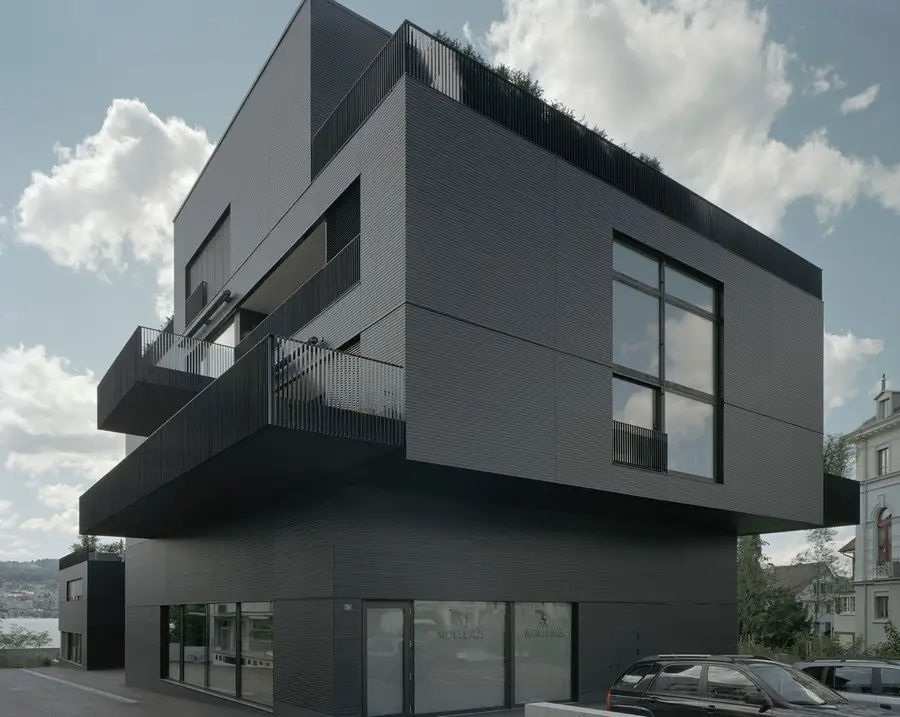

Thereby the colour gives hints to the respective use of the building: the old plastered factory building that accommodates several small businesses and workshops and the new front building present themselves visibly to the public in white brick, whereas the five-storey housing building with its anthracite- coloured wood facade is elegantly withdrawn – during the design process the famous black-and-white pictures of woodconstruction pioneer Konrad Wachsmann played an important role. An overall urban setting is created by the commercial activity along Seestrasse and in the factory building.

Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland
images from architect

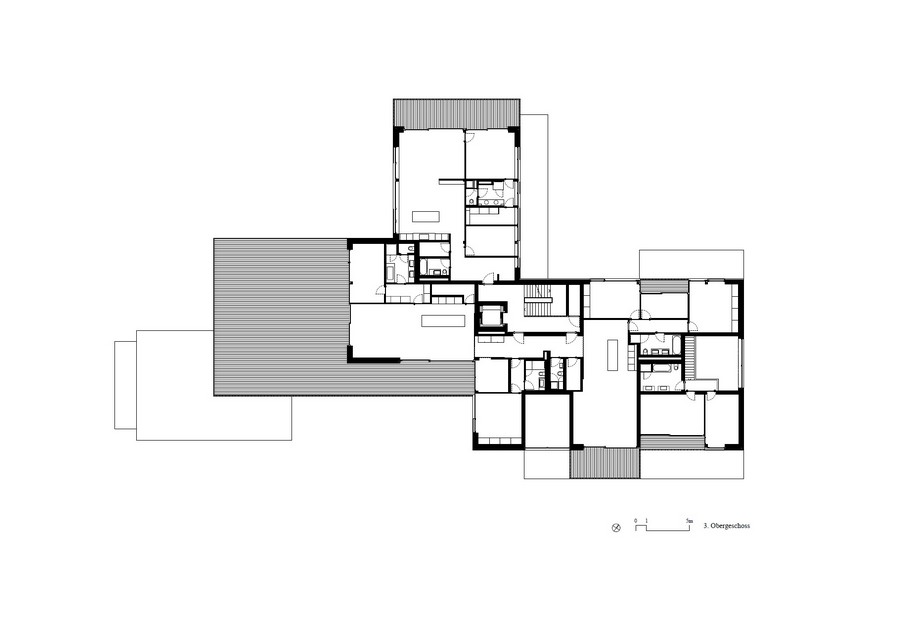

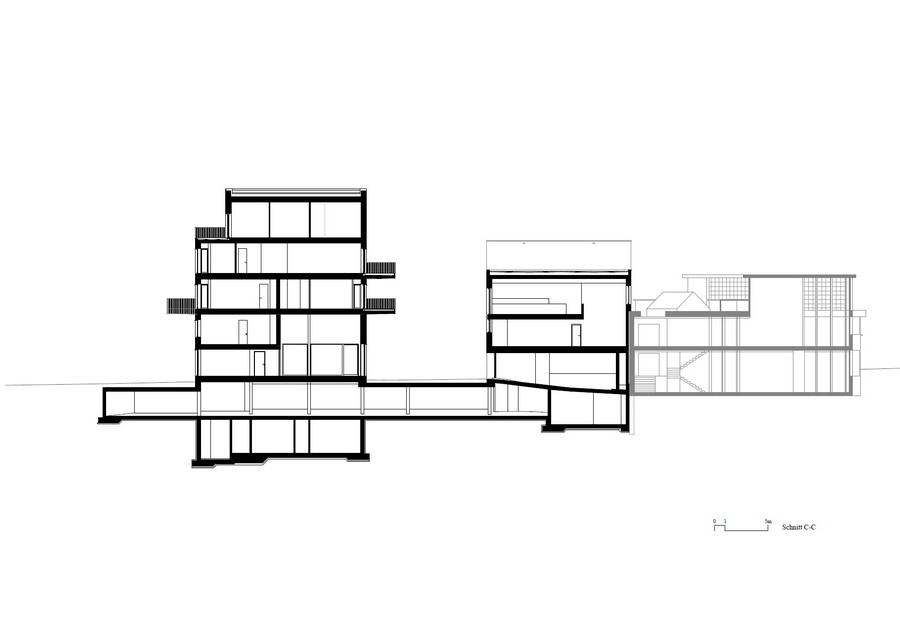

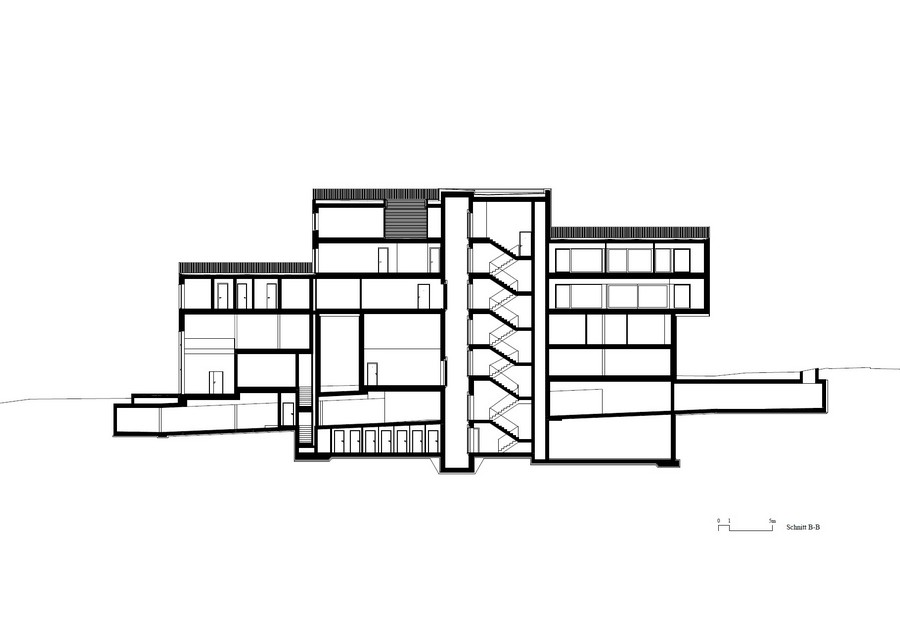

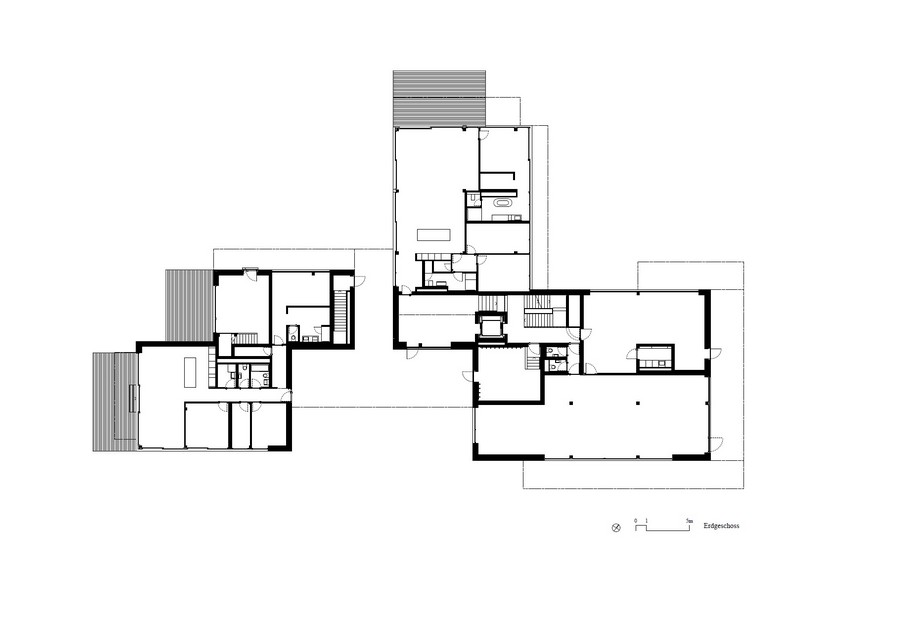

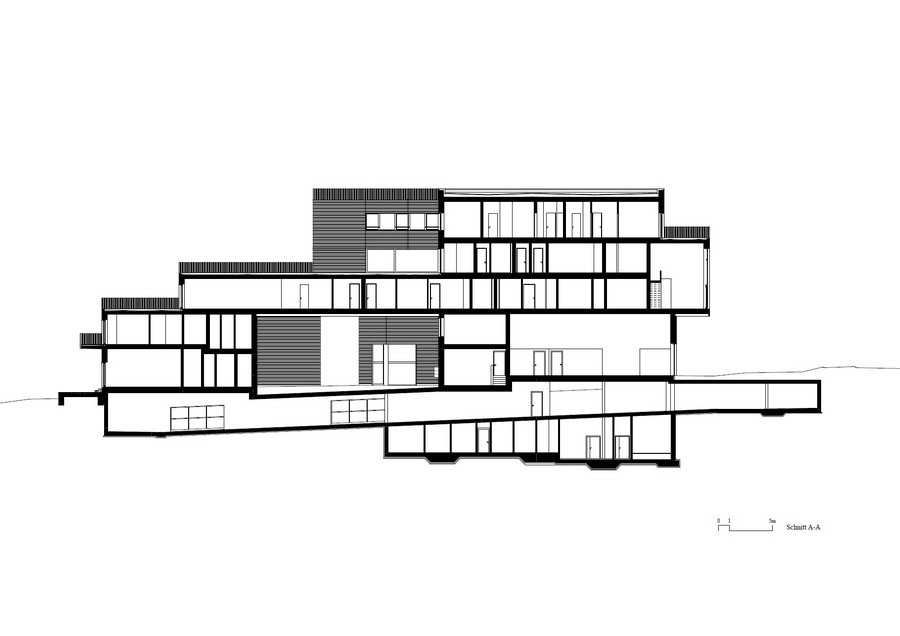

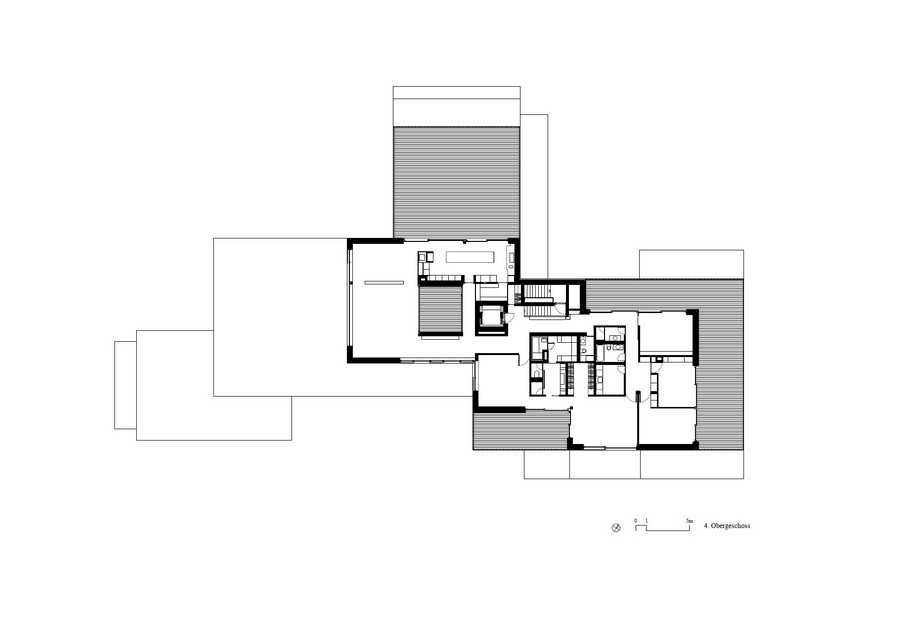

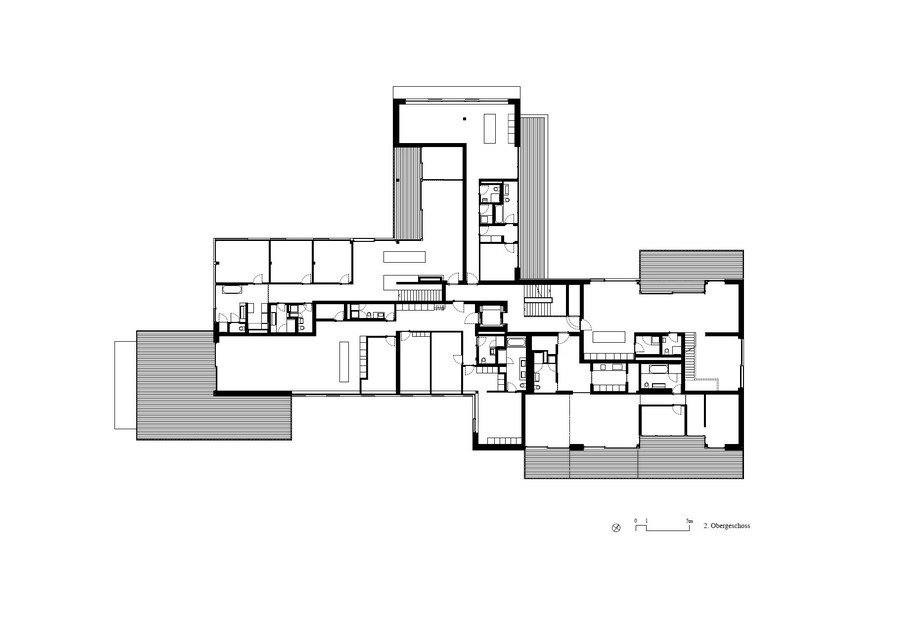

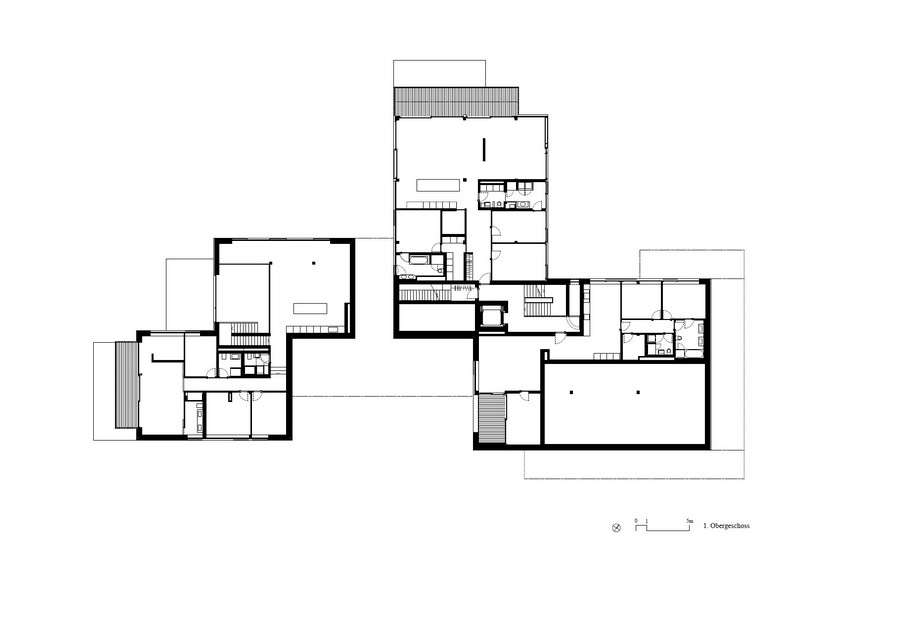

The structure of the housing building reacts to the surroundings, to the location’s quality of light, view and space with individual floor plans for each apartment, from compact to elongated, from winding to sprawled out and to maisonettes. None of the 13 apartments is alike and thanks to the graded stacking of volumes there are manifold views into all directions and generous terraces on every floor.

Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland
images from architect

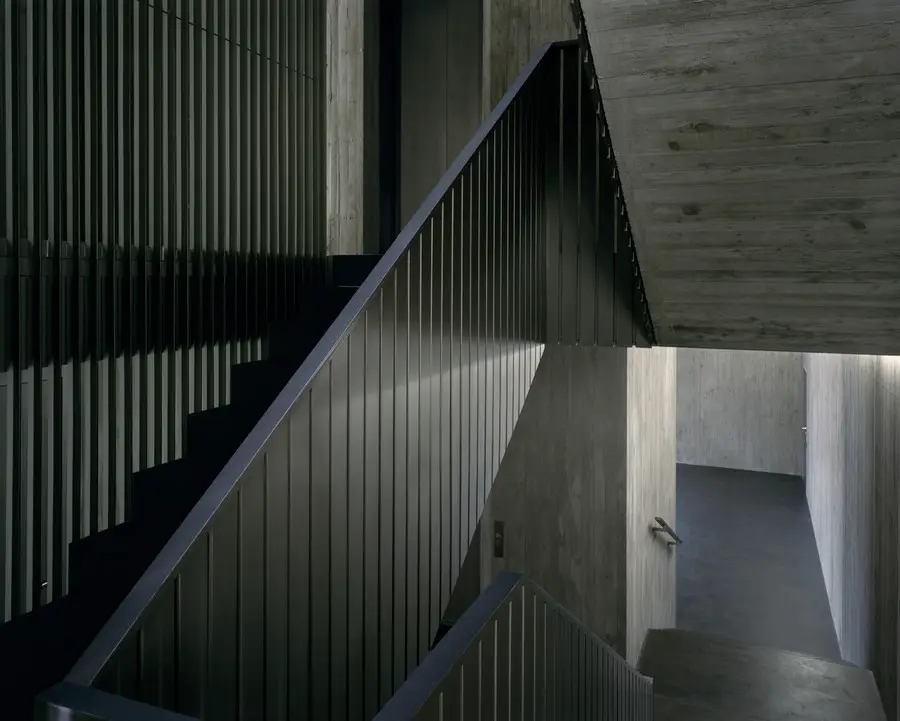

“From an architectural point of view the new house is the result of a crossover-strategy. Elements of industrial origin like the raw concrete inside and the large-sized window banks in the dark surface of the facade are combined with luxurious housing elements like the extensive terraces.

Depending on the point of view the building has reminiscence of a pragmatically constructed, industrial type of architecture or of a huge villa with virtuosic, three-dimensional wings. In this context the architecture of Mallet-Stevens might come to one’s mind. The oscillation between very different images coins the scenario for the whole project. In some way the complete urban situation can be read from this exciting ambivalence.

Erlenbach and the “Gold Coast”, the possibly most privileged suburbia of Europe, are shaped by an ambiguous identity: the relics of an agricultural and industrial past that are superimposed by housing architecture striving after luxury. As architects we are confronted with the task of giving this very specific, almost fathomless reality an authentic and sustainable shape. The Erlenbach project is to be considered as a contribution in this effect.” Emanuel Christ

Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland Schaerer Residential Building Switzerland
images from architect

Schaerer Housing – Building Information

Site: 4,105 m2
Building area: 842 m2 (housing), 401.5 m2 (front bldg)
Gross floor space: 4,162 m2 (housing), 1,133.5 m2 (front bldg), 8,715 m2 (total incl. underground parking)
Net floor ratio: 2,833 m2 (housing), 695 m2 (front bldg), 6,554 m2 (total incl. underground parking)
Building volume: 15,396 m3 (housing), 4,412 m3 (front bldg), 31,130 m3 (total incl. underground parking)
Client: Schärer Erlenbach AG
Architects: Christ & Gantenbein, Basel – Emanuel Christ, Christoph Gantenbein
Design team: Mona Farag (associate), Laura Schneider, Sven Richter (project management), Petra Jossen, Thomas Gläss, Christoph Bedall

Construction team: Mona Farag (associate), Sven Richter (project management), Andrea Steegmüller, Christina Wendler, Mathias Pfalz, Thomas Gläss, Mirco Juon, Patrick Reuter, Gabriel Abt
Construction management: b+p Baurealisation AG, Zurich
Structural framework: Ernst Basler + Partner AG, Zurich
Building services: HPS Energieconsulting AG, Küsnacht; Patrick Gerber Haustechnik GmbH, Volketswil
Electrical planning: Herzog Kull Group, Schlieren
Transport planning: Zwicker + Schmid, Zurich
Facade/fire safety: Makiol Wiederkehr, Beinwil am See
Building physics/acoustics: Bakus Bauphysik & Akustik GmbH, Zurich
Landscaping: Kuhn Truninger Landschaftsarchiteken, Zurich

Schaerer Residential Building images / information from Christ & Gantenbein, Basel
