Romanian House, Residential Building Romania, Free Form Architecture

House in Romania : Free Form Buildings

Romanian Residence, Cioboteni – design by Portik Adorján Architects

21 May 2012

Family House in Romania

Free Form Buildings 01

Design: Portik Adorján

Location: Cioboteni, Romania

Project Description

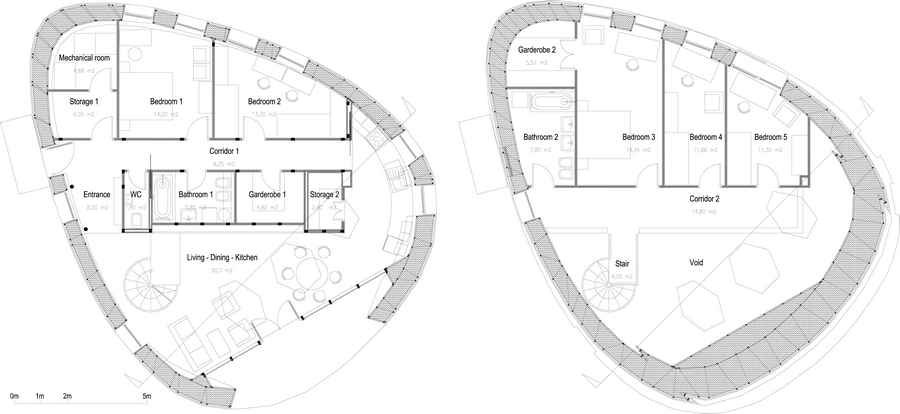

The building is designed for a five member family. It contains – next by the living area – five bedrooms and two bathrooms. The internal spaces are arranged in the living area in a high ground-floor, the bedrooms and the service areas on two levels. The garage and an external storage forms a separate volume.

This project is the first application of the „Free Form Buildings” construction system.

The significant parameters are:

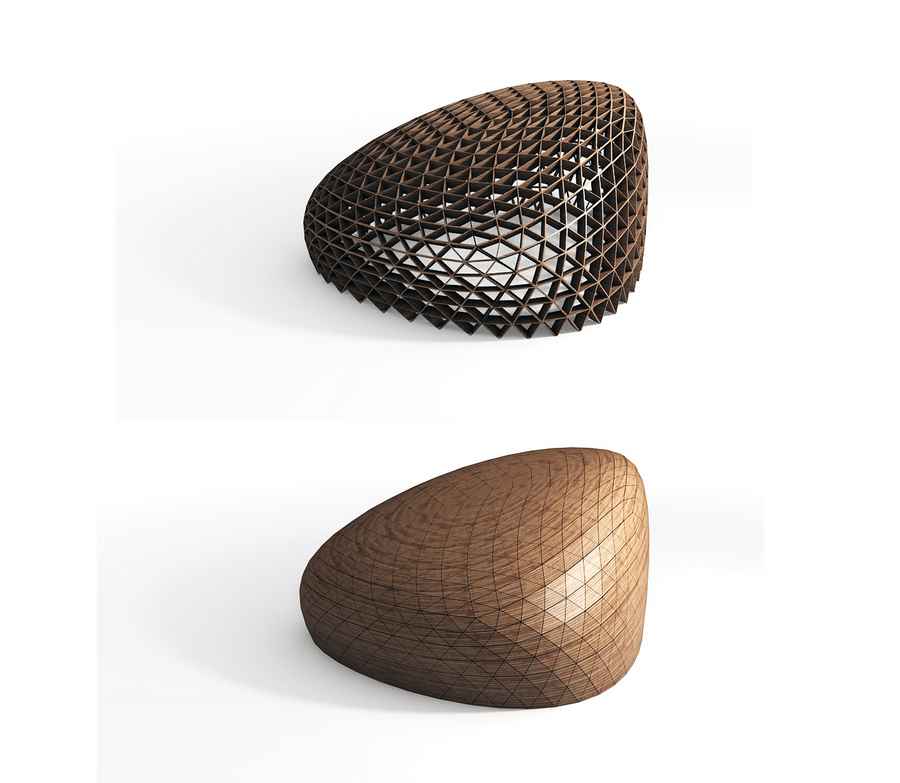

– patent nr. and tite: P 1000399, Polyhedral surfaced, celled, space dividing structure;
– by the method we are able to build multi curved structures;
– components: oriented standard board (OSB) panels, wood slats;
– the internal cells are fulfilled with thermal insulation;
– the structure works as the thermic shell of the building;

images from architects

The external coverings of the shell – for the current application- are wooden boarding and zinc membranes, as well other covering materialls are appliable. The application of this construction system – next by the low cost of the building- facilitates the energy consumption of the use of the building.

The project is corresponding the passive house requirements of 15 kWh/m² per year, with a full width of the external wall of 55cm, in a medium of +6 annual degree C. The heating is supplied by air to air heat recovery and ground heat exchanger ventilation.

images from architects

Family House in Romania – Building Information

Title: Free Form Buildings 01 – Family House
Location: Cioboteni, Romania
Client: Szász István, Dobos Emese
Area: 320 m2
Function: Single-family house
Design stage: Under authorisation
Design team: Portik Adorján, Rajnai Csaba, Fasching Ferenc Ferdinánd, Gömöri Csaba, Sariri-Baffia Enikő, Benécs József

House in Romania images / information from Portik Adorján

Location: Cioboteni, Romania
