Casa Tejona in Lima: Peru Residence

Contemporary Peruvian Residence, South America design by Arq. Martin Dulanto Sangalli

9 Oct 2022

Design: Arq. Martin Dulanto Sangalli

Location: lot 1, block D3, La Quebrada de Cieneguilla condominium, district of Cieneguilla, Lima, Peru

Casa Tejona in Lima Contemporary Peru Residence

Photos: Renzo Rebagliati

Casa Tejona, Peru

The project will be built on a 1,035.99 m2 plot of land located in lot 1, block D3 of the La Quebrada de Cieneguilla condominium, in the district of Cieneguilla, Province of Lima and Department of Lima.

Casa Tejona in Lima Contemporary Peru Casa Tejona in Lima Contemporary Peru

Project Conception
The Casa Tejona project is conceived with the premise of minimizing its impact on the environment, seeking to link all its spaces with the surrounding nature. It seeks to generate the atmosphere of a temporary temple taken over by vegetation. A temple that worships life, as the daily activities of those who live there take place. And finally, a specific treatment has been sought for each area of the architectural program, which results in a specific and different character for each of the parts.

Casa Tejona in Lima Contemporary Peru Residence

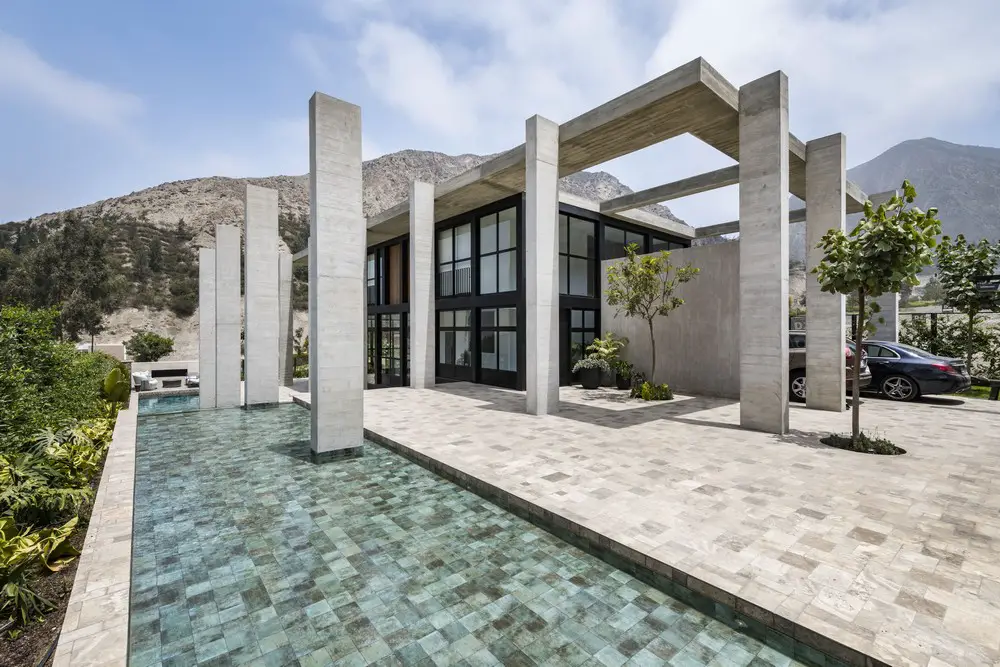

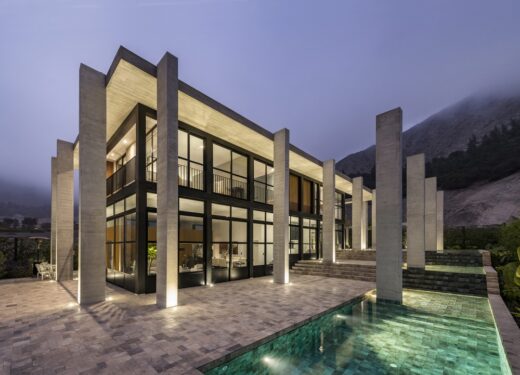

The project itself is a reinforced concrete exoskeleton. Which is nothing more than a double-height table supported by a peptide ambulatory around it. That inside it contains a large reticulated and glazed box. Box that contains the main spaces of the program and allows to contemplate the exterior. And this, in turn, contains other loose boxes inside, with an opaque character, for containing the most intimate and private programs.

Casa Tejona in Lima Peru

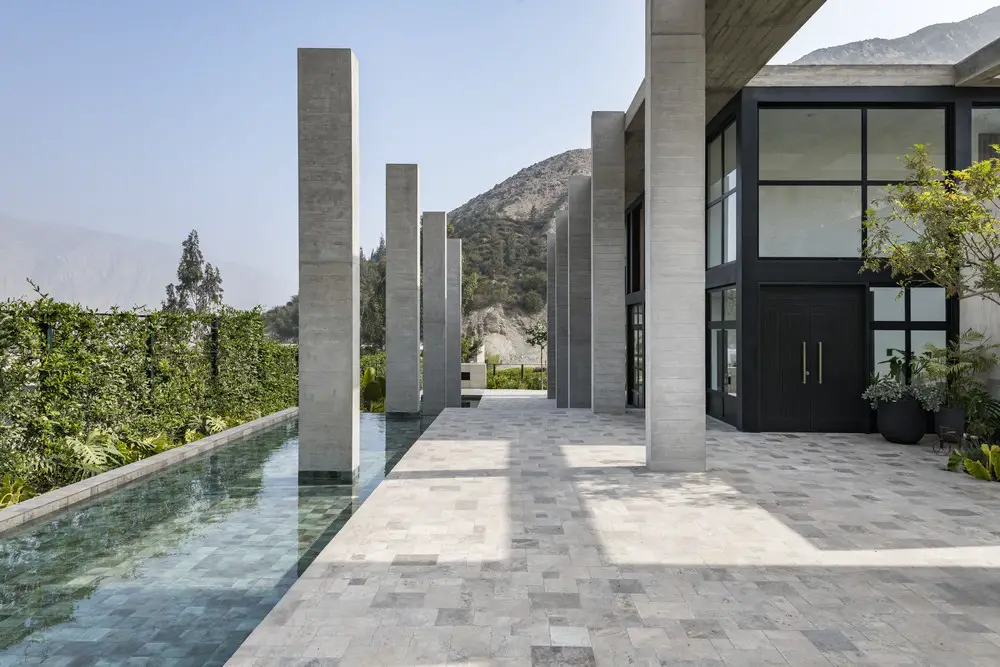

The exoskeleton supports the house at a structural level, creates a pre-filter between inside and outside, and is an interstitial and transitional space. A link between nature and architecture. As well as, an eave prior to the glazed facades of the box that lies inside.

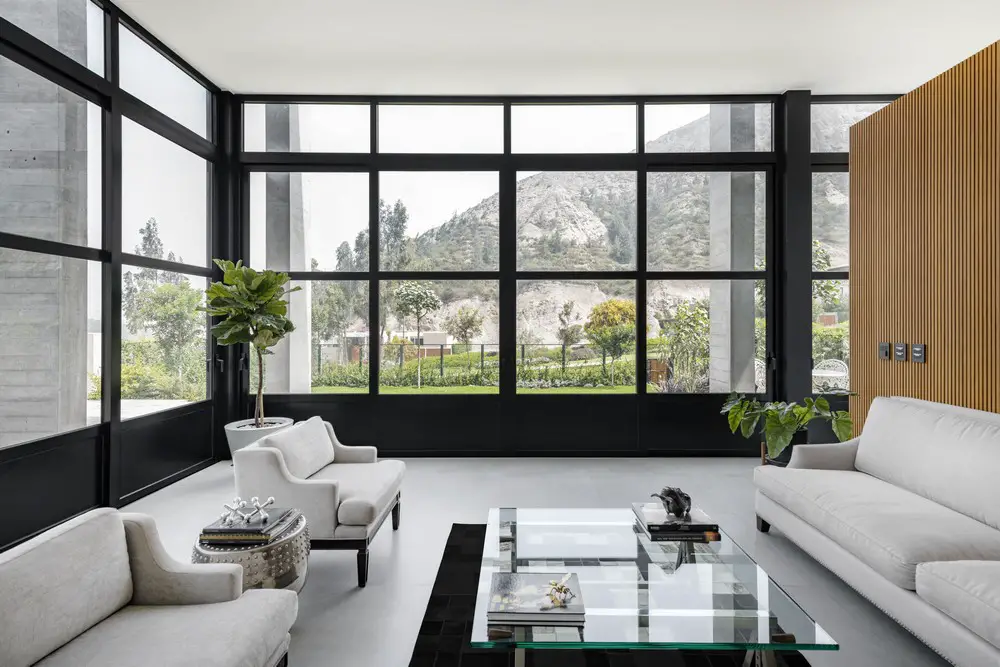

The glazed box contains the served spaces that want to enjoy the view to the outside. In turn, these spaces are protected from the elements by the same crystals. Enclosures that can be opened or closed as needed.

Casa Tejona Lima

The opaque boxes, smaller and distributed within the glass parallelepiped, contain the server spaces. Boxes strategically distributed between the spaces served and that in contrast to these, present a more closed character, and with coatings extracted from nature.

The project has the following environments:
1. Basement: Staircase that goes up to the first level, service corridor, skylight, storage room and service bathroom. In addition, at this level there are cisterns (domestic and irrigation water), and a machine room.

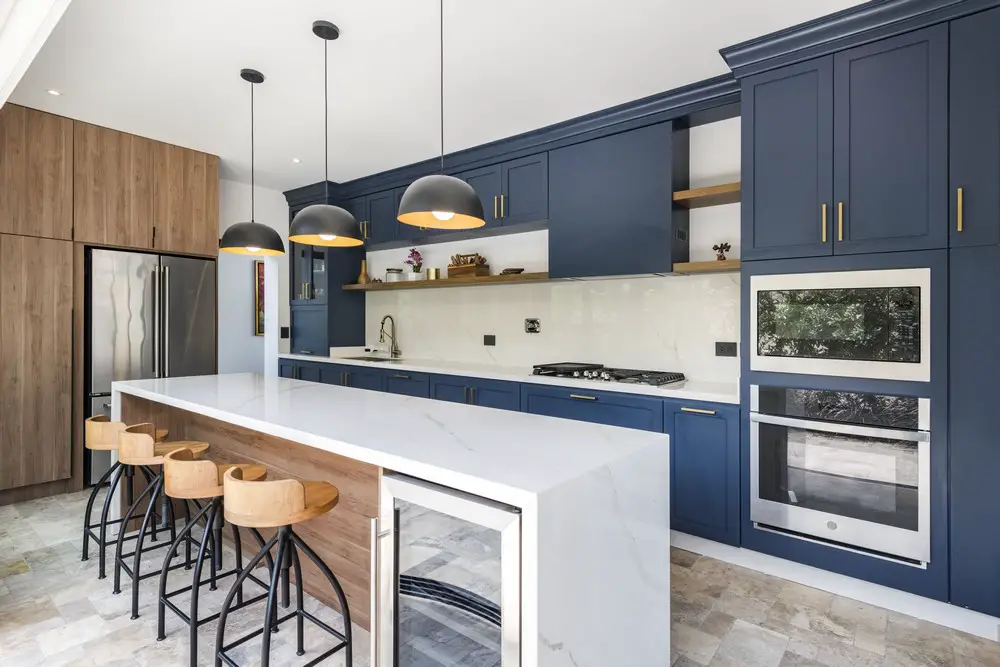

2. First level floor: Entrance, parking, storage, hall, corridor, staircase that goes up to the second level, study, guest bathroom, games room with closet and guest bathroom, living room, dining room, kitchen, patio 1, patio 2, patio 3, pool and terrace.

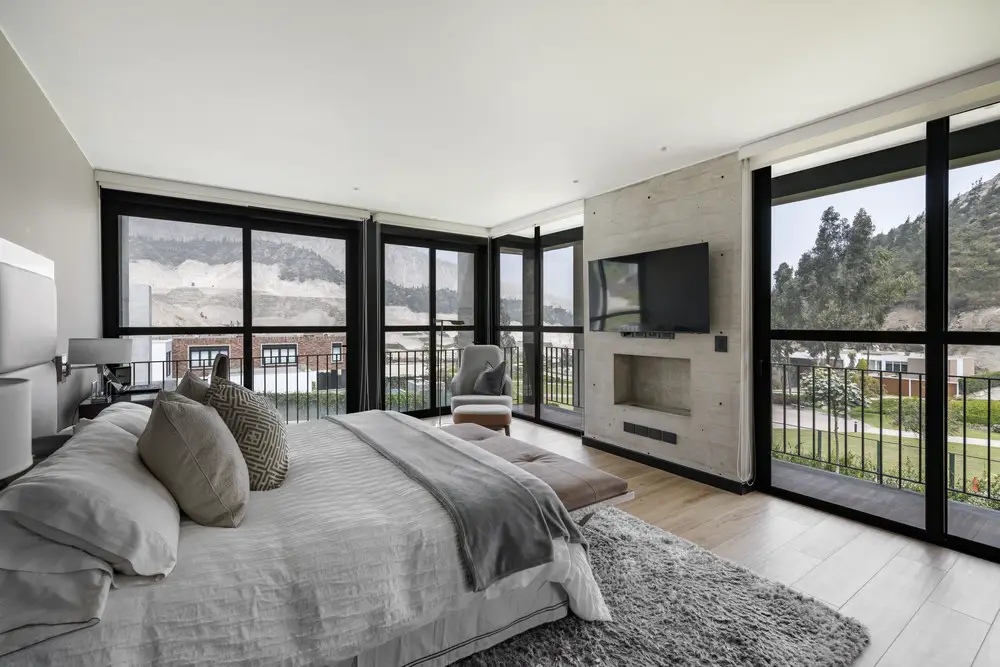

3. Second level floor: Staircase coming from the first level, master bedroom with 2 walk in closets and main bathroom, bedroom 1 with closet and bathroom 1, bedroom 2 with closet and bathroom 2 and living room.

Casa Tejona in Lima Peru

Location

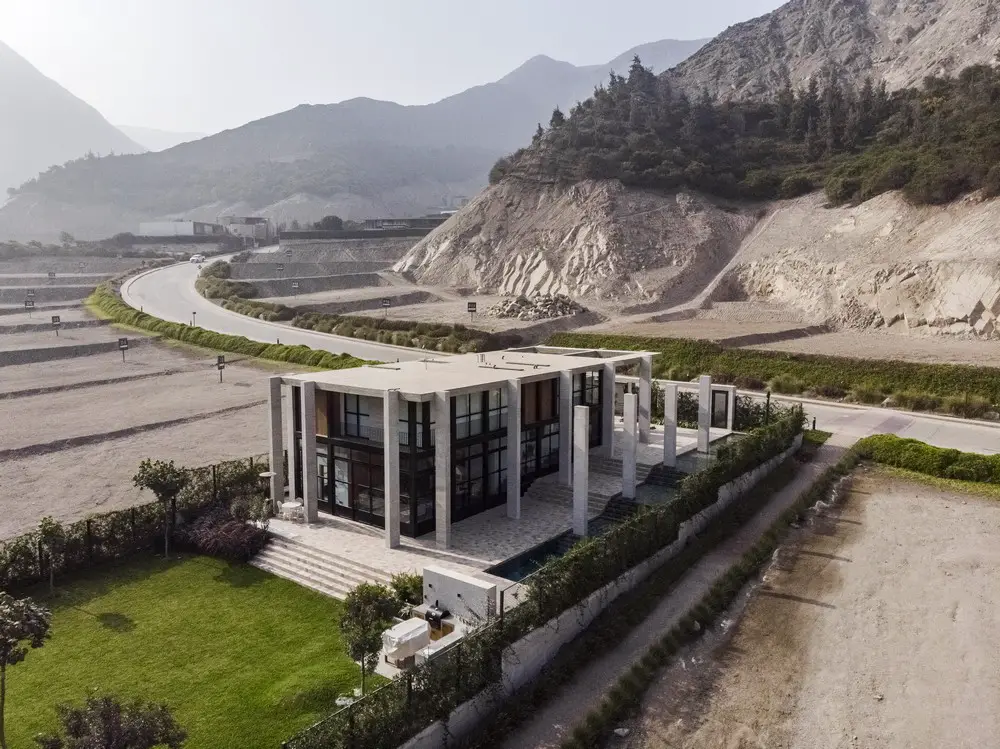

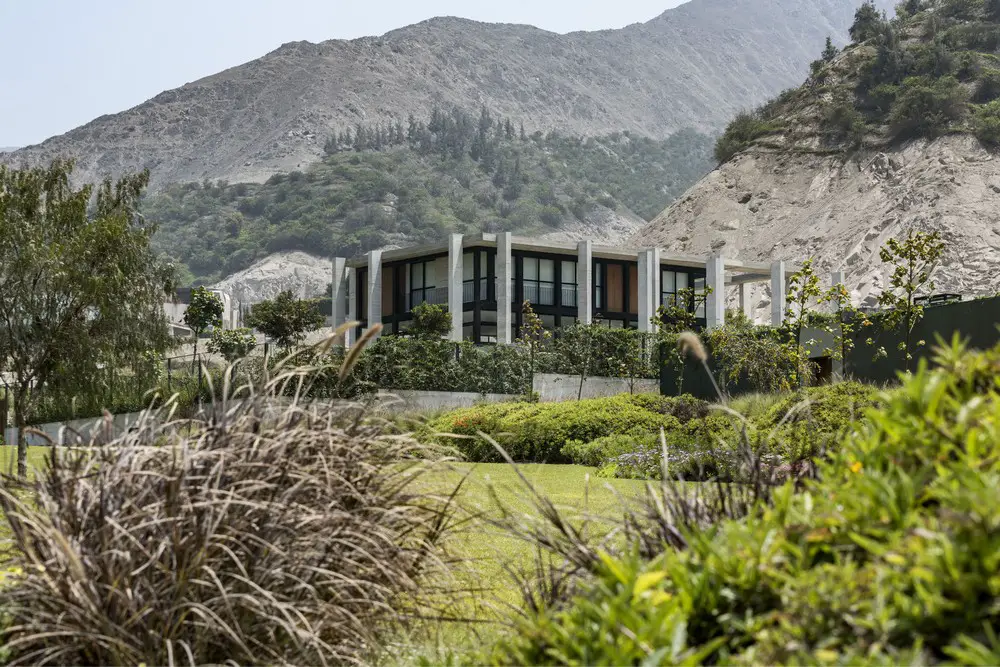

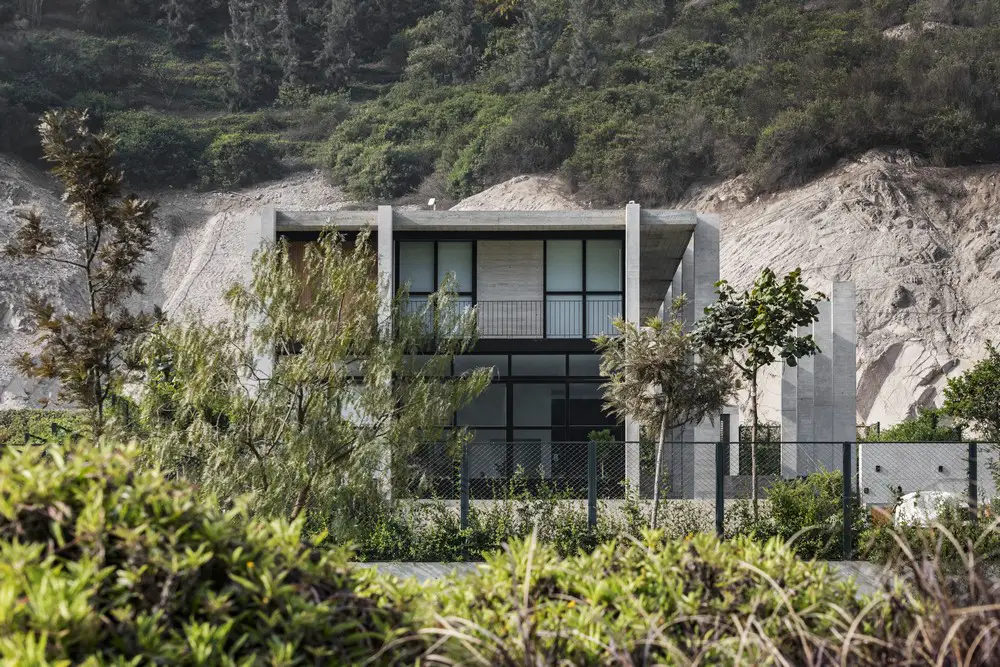

This project is located respecting the natural topographic section of the land. For this, 4 platforms have been designed. In 3 of which the house perches. The house since its entry is perceived in a lower height than it really has. But as one advances and descends, until the lower platform, which is a large garden, where it is intended to have a landscape treatment of unevenness and trees, the first level of the house gains height from floor to ceiling, making the area social, which perches on the penultimate platform and looks directly at the aforementioned garden, has a height and a half with respect to the other spaces.

Casa Tejona in Lima Peru

It should be noted that the terraced location of the project, by following the natural section of the lot, does not alter or harm its connection with the adjoining lots. No containment of more than 1.20 m in height, nor large fills or embankments, which obstruct the development of possible neighboring projects, are generated.

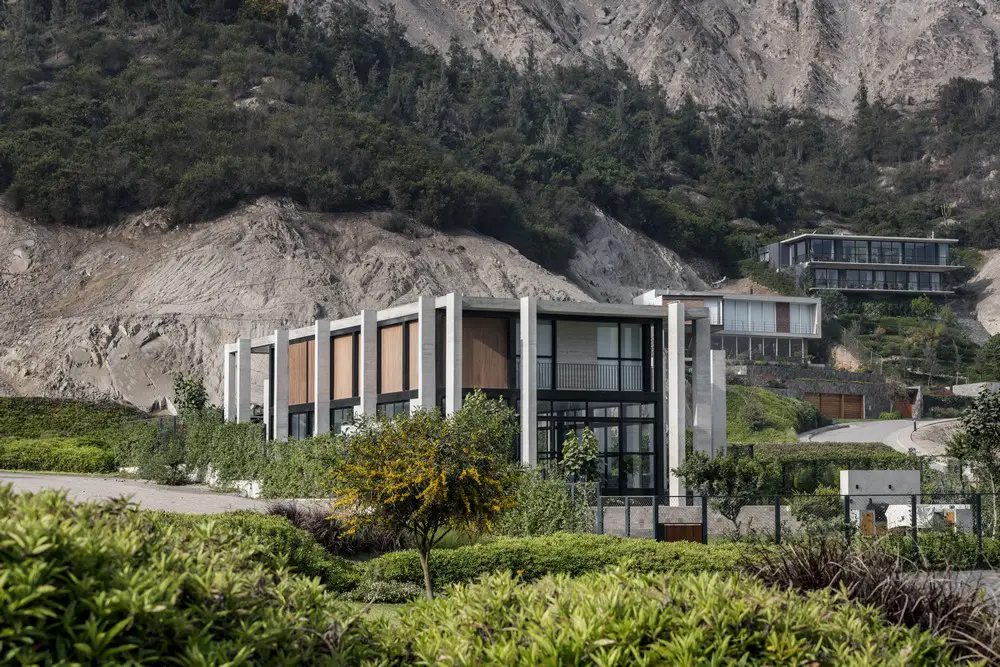

The side facade of the house that is after the withdrawal of 2.50 ml required in the regulations on the second level is completely closed to the neighbor and there is no record of its lot.

Casa Tejona in Lima Peru

Facades

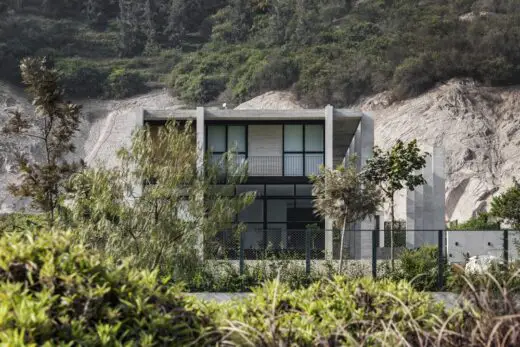

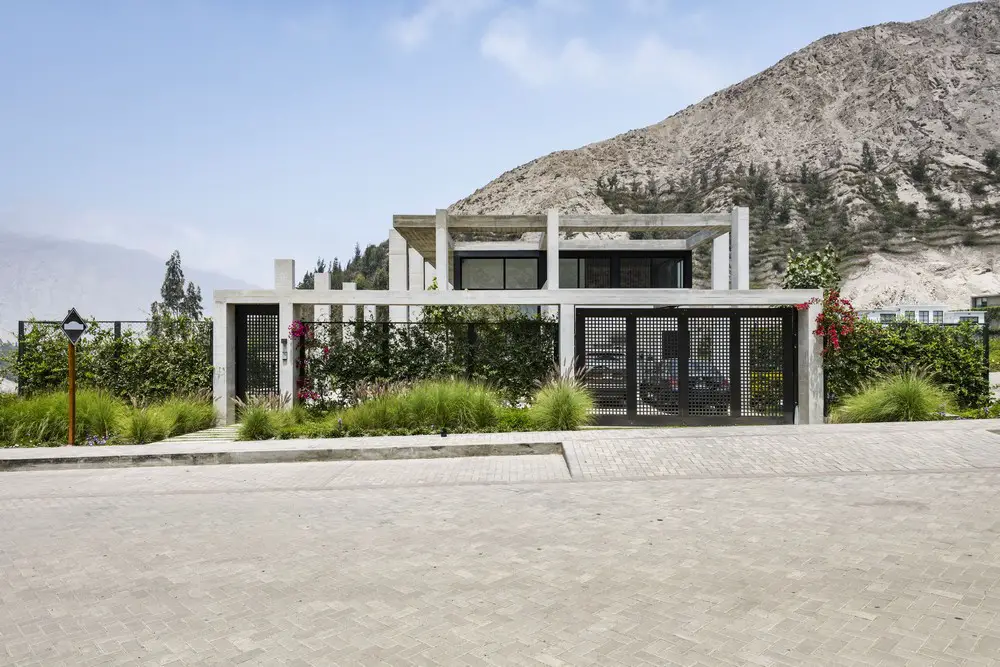

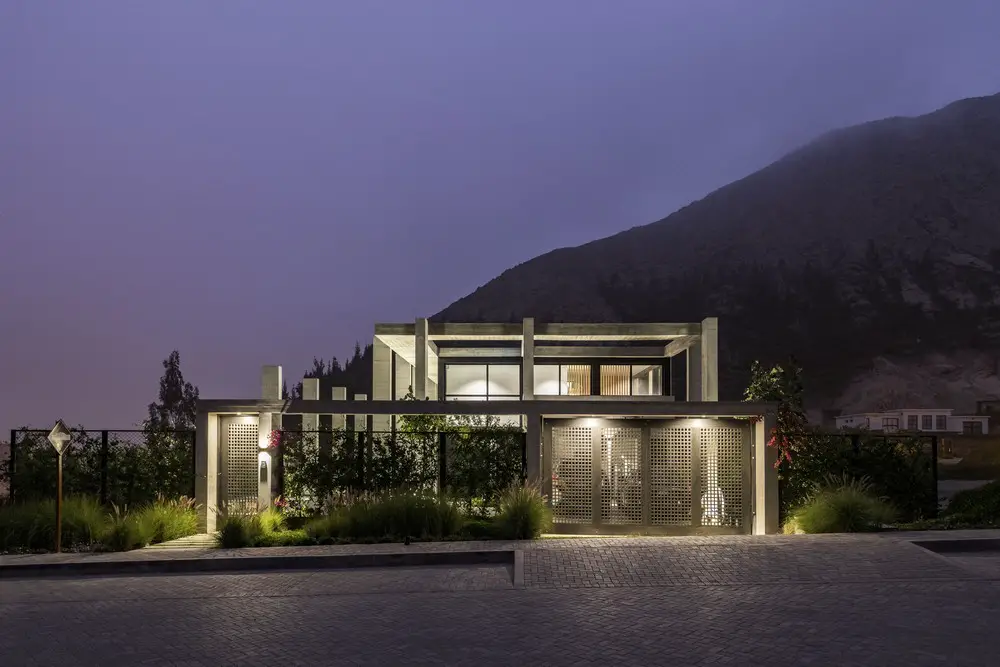

From the lot to the condominium: It is a sober facade, which respects what is designated in the La Quebrada Condominium regulations. It has in more than 60%, live fence. Which is made up of a stone-plated low wall and a galvanized iron fence finished in green, with climbing plants that cover it. The other 40% are two doors, the pedestrian entrance and the vehicular entrance. Both are galvanized iron lattice bars finished in dark gray from the color palette allowed by the condominium.

Casa Tejona in Lima Peru

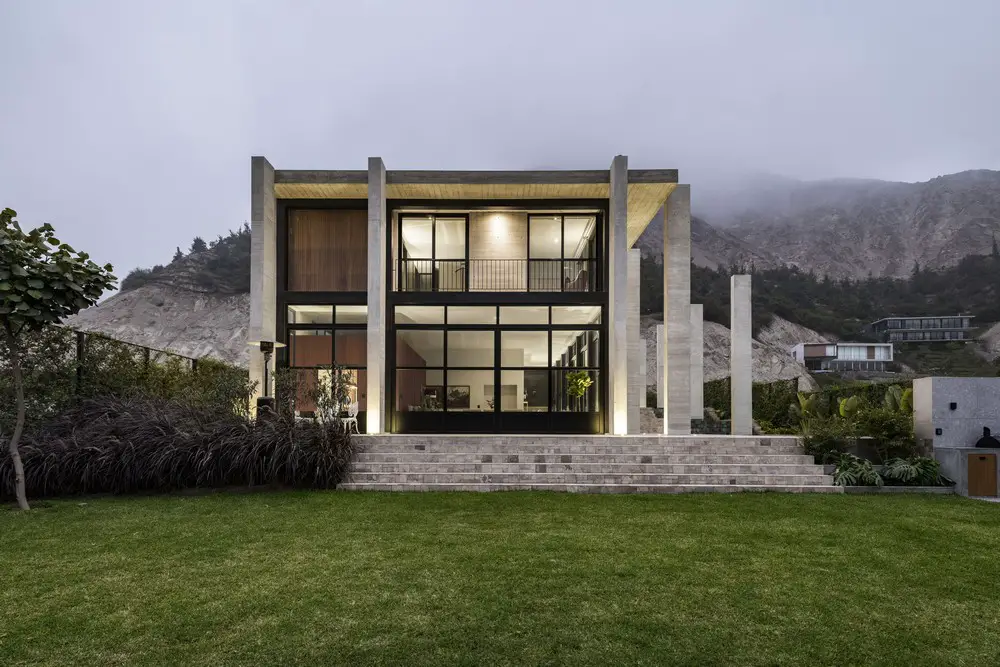

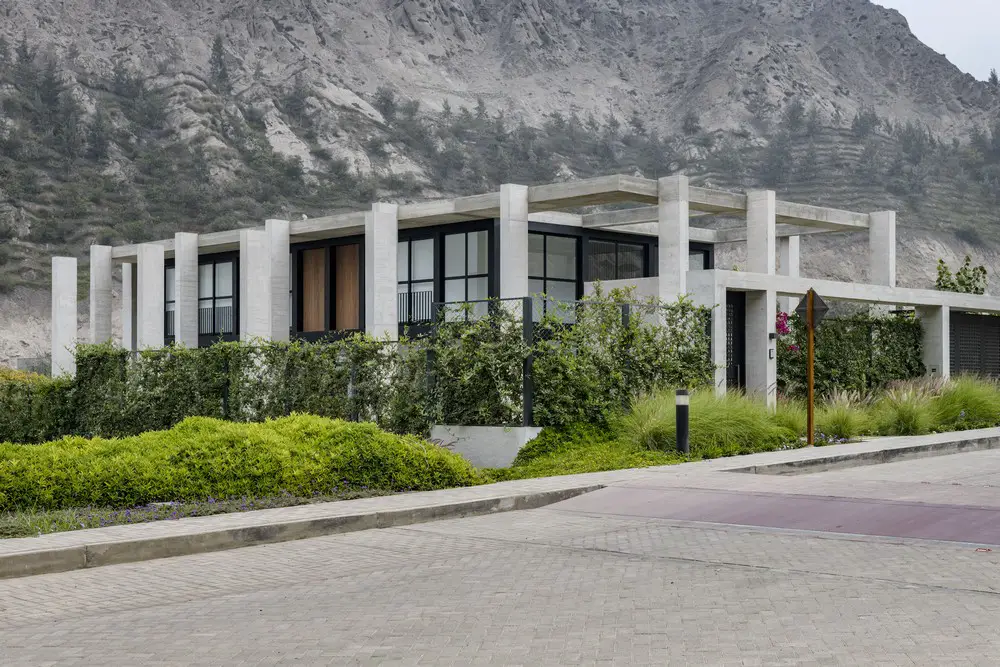

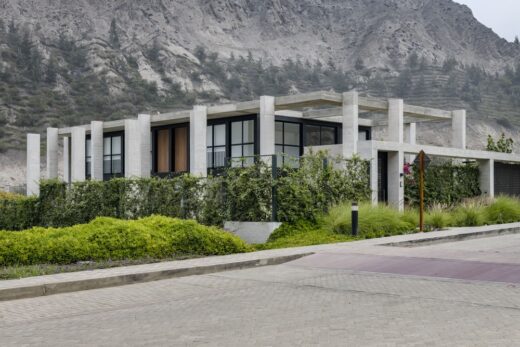

Of the building: Towards its four fronts, the house itself has a colonnade that circumscribes a large roof. This in the project has been referred to as the exoskeleton. In a second instance there is a large painted box that makes up the two levels of the house. The enclosures of this reticulated box are either glazed (with a view of the interior garden of the project), or wooden tongue-and-groove (they prevent registration of the neighboring property).

Withdrawals
The project complies with all the withdrawals stipulated by the regulations of the La Quebrada Condominium. Towards the front, 3.00 ml have been left, and the construction on the sides does not touch the minimum withdrawals of 2.50 ml. On the other hand, the second level of the building has no record of the adjoining lot.

Casa Tejona in Lima Contemporary Peru Residence

Finishes
In the basement of the house, there are the following finishes. A) Faced concrete walls. B) Walls plastered and painted white. C) Ceramic veneered walls to be defined.

On the first level of the house, the interior walls have 4 different finishes: A) Plasterboard and painted. B) Faced concrete. C) Covered in wood and D) Covered in Ashlar.

Casa Tejona in Lima Contemporary Peru Residence

In the second level
The exterior partitions and windows are made of tempered, transparent and colorless glass. The railings are made of painted galvanized iron. All windows and partitions have black anodized aluminum carpentry. The interior doors are against placadas and painted or against placadas and veneered in wood.
The floors on the first level, inside the delimitation of the aforementioned glass box, are made of ashlar. While the exterior floors are cement tiles. On the second level, the floors of all rooms are covered in ashlar.

Casa Tejona in Lima Contemporary Peru

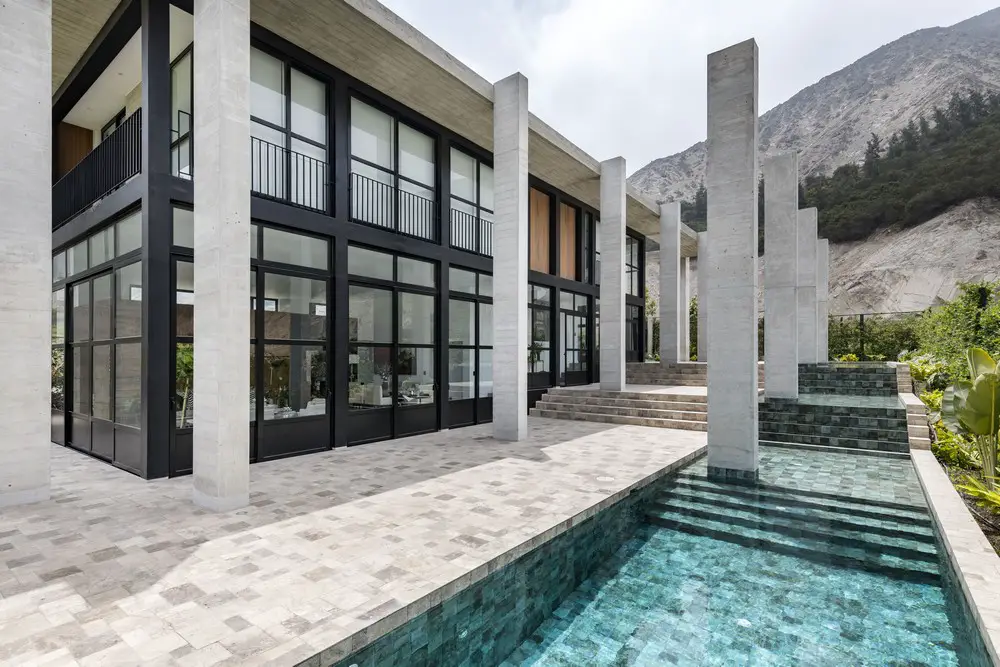

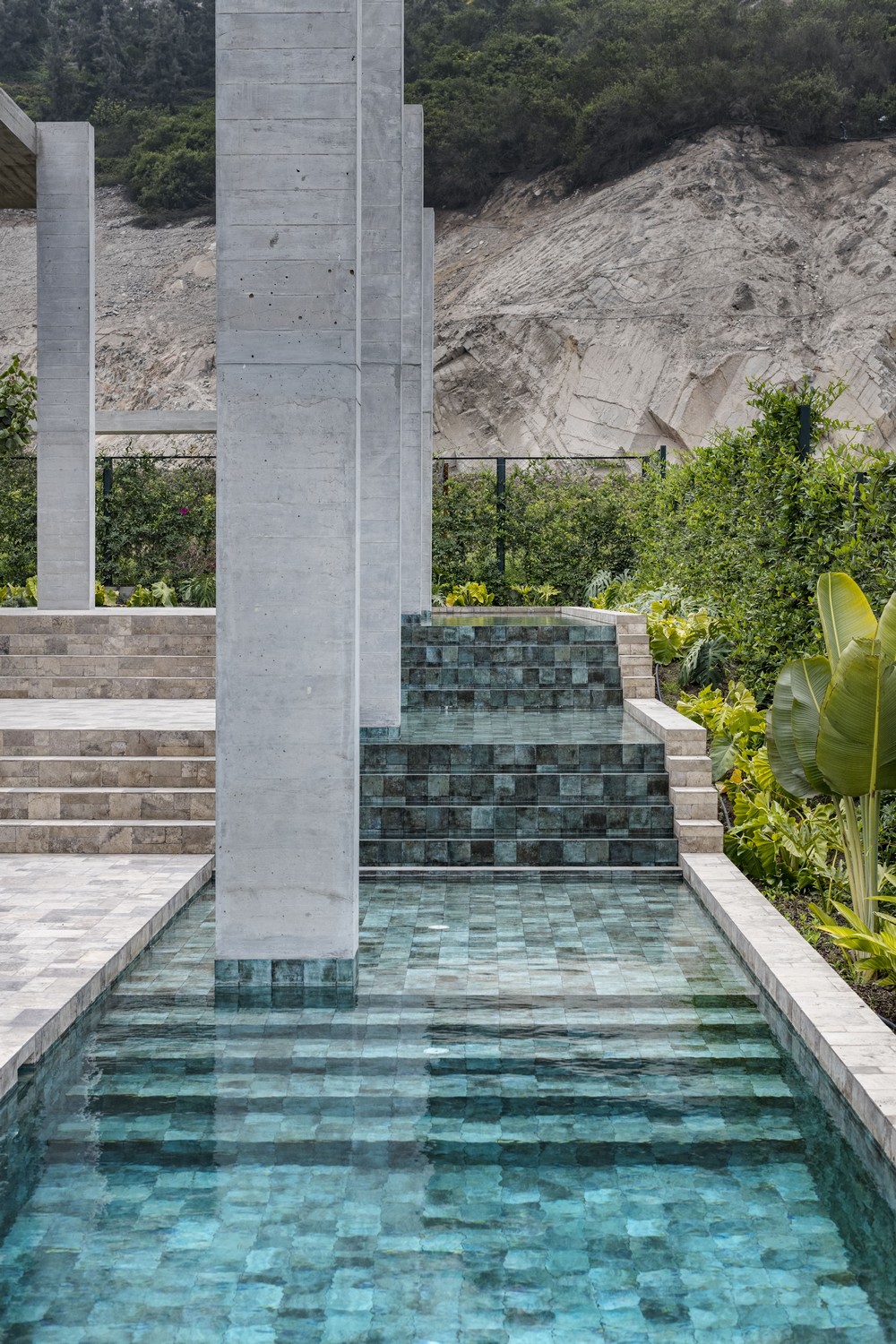

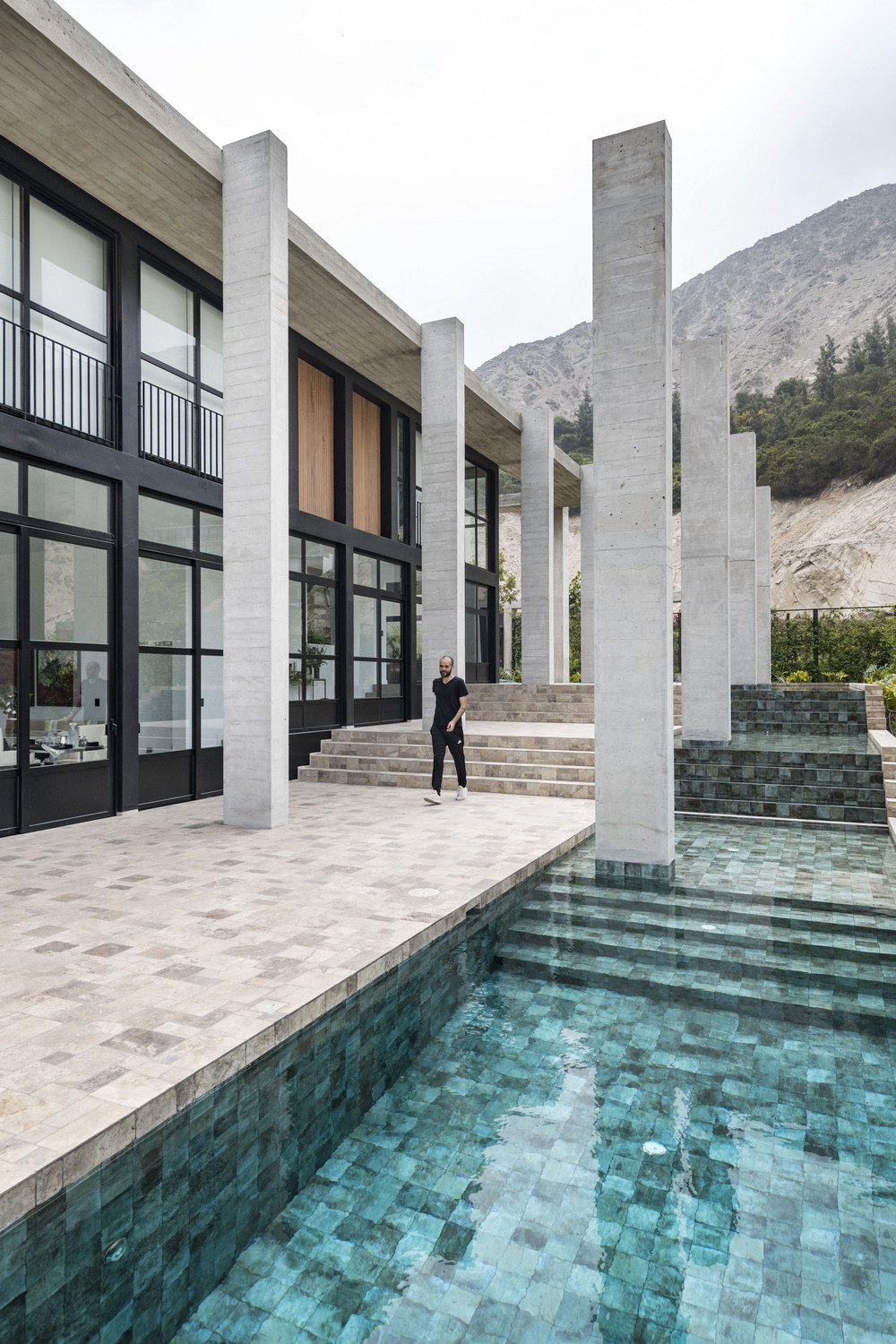

The pool is lined with pepelmas.
It is worth mentioning that the concrete columns and beams that make up the aforementioned “glazed box” are painted.
The electrical installations are built-in type, as well as telephones, intercoms and Cable TV. No elevated tank required.

Casa Tejona in Lima Contemporary Peru Residence

Ventilation and lighting of specific environments
a. Bath Service
This environment is illuminated and ventilated through a 20 cm high window. that goes to the full width of this space, that is, 2.00 ML. This window overlooks the skylight. Space that does not have a roof and that allows the bathroom to meet the regulated ventilation and lighting needs.

b. Guest bathroom
The guest bathroom is artificially lighted and ventilated. Thanks to a mechanical extractor built into the wall and connected to a piped path that goes through the floor, it reaches the outside, it is ventilated. This extractor injects the air, precisely to the passage between the building and the adjoining lot, in the withdrawal required by the regulations of the La Quebrada Condominium.

c. Bedroom bathrooms
This point refers to all those bathrooms inside the bedrooms of the house. Those that are ventilated and illuminated through the light ceiling that covers them. As can be seen in the cuts, the bathrooms have concrete joists that are offset from the ceiling level and allow the bathrooms to be ventilated from the lateral void they leave. And they illuminate the environments through the blued tempered glass cover with 3M UV protection sheet, which is on top.

d. Study and game room on the first level
These two environments are illuminated and ventilated through openings that allow air to circulate and capture sunlight during the day in the space between them and the end of the exoskeleton mentioned above.

Casa Tejona in Lima Contemporary Peru

Construction System
Reinforced concrete plates were combined with porticos (beams and columns) of reinforced concrete and brick walls. The structures of this project were developed by engineer Jorge Avendaño.

Casa Tejona in Lima Contemporary Peru

Casa Tejona in Lima, Peru – Property Information

Architect: Martin Dulanto Sangalli

Project Manager: Miguel Gutierrez
Collaborators: Micaela Elliot, Adriana Olivares, Luis Navarrete
Location: La Quebrada Condominium, Cieneguilla. Lima – Peru.
Structural Engineer: Jorge Avendaño.
Interior Designer: Giselle Sersen
Lot area: 1035. 99 sqm
Basement roofed area: 47.88 sqm
Rooftop area first level: 132.54 sqm
Rooftop area second level 169.07 sqm
Free Area: 903.45 sqm (87.21%)
Year of construction: 2022

Casa Tejona Lima

Photographs: Renzo Rebagliati
