High-speed Train Station Laval Footbridge, Mayenne building images, French architecture

Train Station Footbridge in Laval, Mayenne

ZAC Laval à Grande Vitesse Development, France design by Dietmar Feichtinger Architectes

Design: Dietmar Feichtinger Architectes (DFA)

Location: Laval, Mayenne department, western France

New footbridge over the high-speed train station in Laval, France

Train Station Footbridge in Laval, Mayenne by Dietmar Feichtinger Architectes

Photos by David Boureau

20 Sep 2019

Footbridge over high-speed train station in Laval, Mayenne

With the opening of the new high-speed rail and its various urban planning functions, the ZAC “Laval à Grande Vitesse” from the station area, is making an economic pole of the city and its metropolitan area.

Train Station Footbridge in Laval, Mayenne by Dietmar Feichtinger Architectes

The new pedestrian and cyclist bridge was conceived as an open promenade between the different districts, which, above all, better connects the districts behind the station. It is more than just a crossing of the tracks, but rather becomes an urban link in the city of scale of the district in Laval, Mayenne.

New footbridge over the high-speed train station in Laval, France

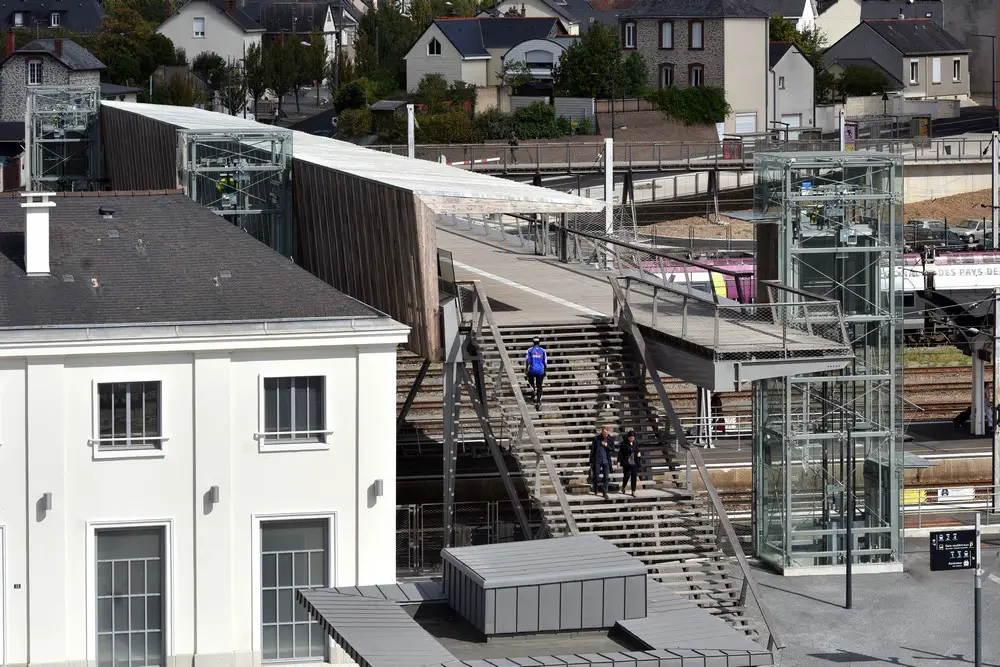

At the same time, the PEM bridge is comfortable for travelers crossing the tracks under their protective shell…. to the west and offers a wide-open view of the city, completely open in the east. This open eastern side connect effortlessly by ramps under the roof of the bus station. It extends at the same time as a viewing platform over the station square. In addition, it acts as a signpost to the northern districts and the ZAC.

Train Station Footbridge in Laval, Mayenne by Dietmar Feichtinger Architectes

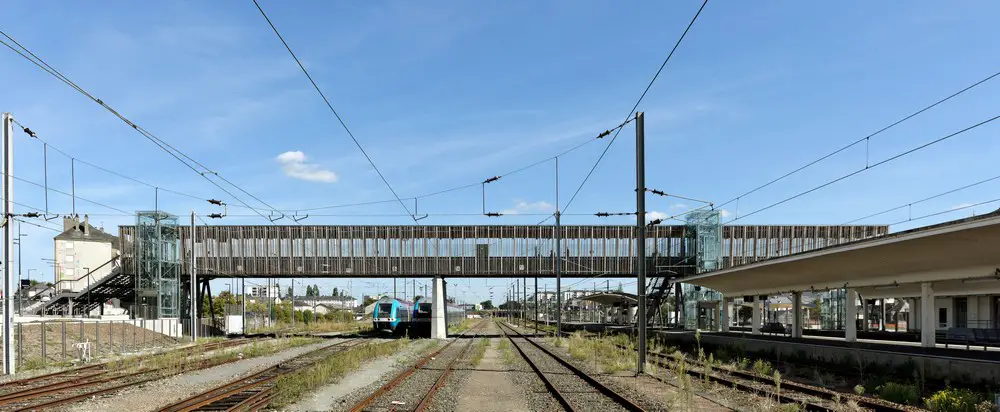

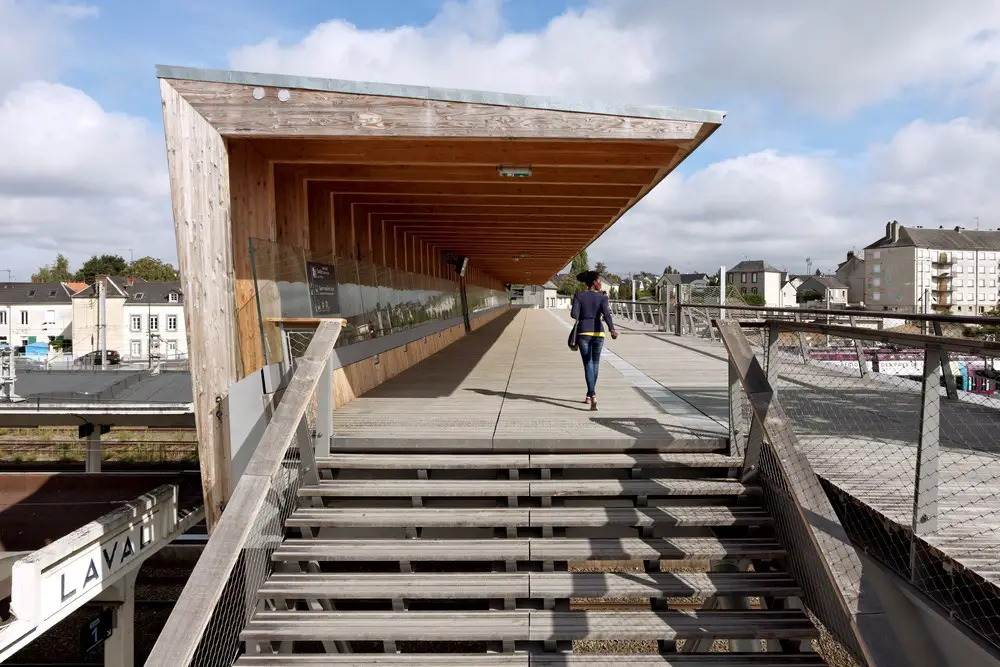

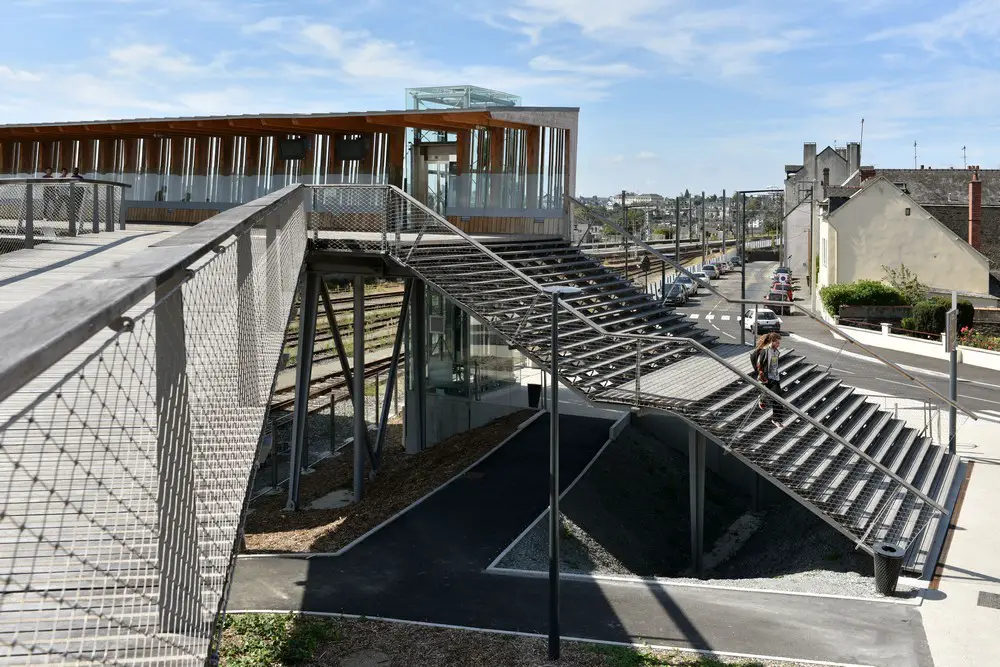

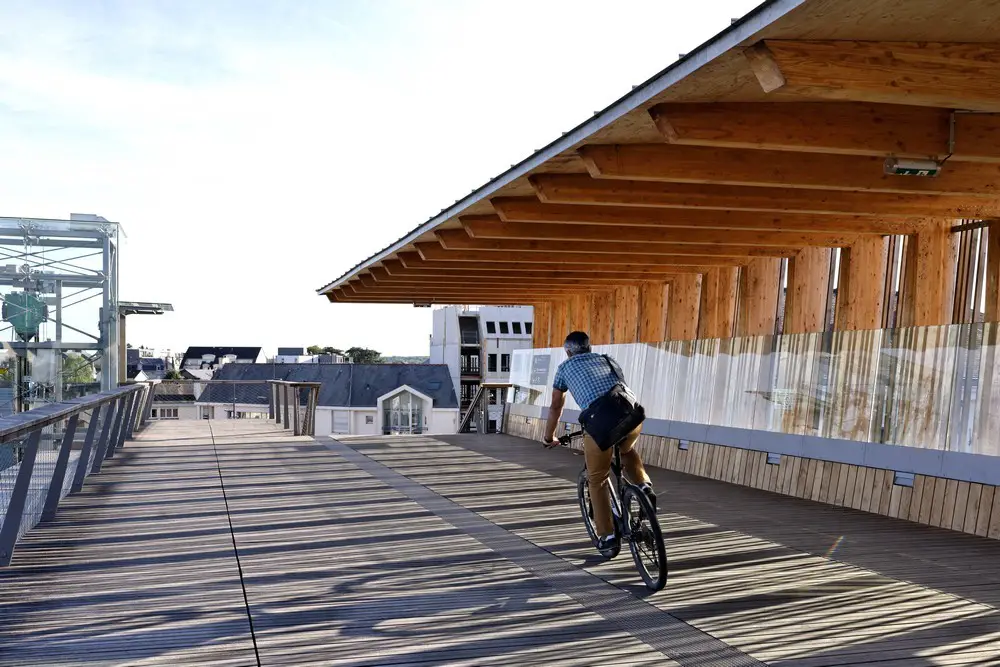

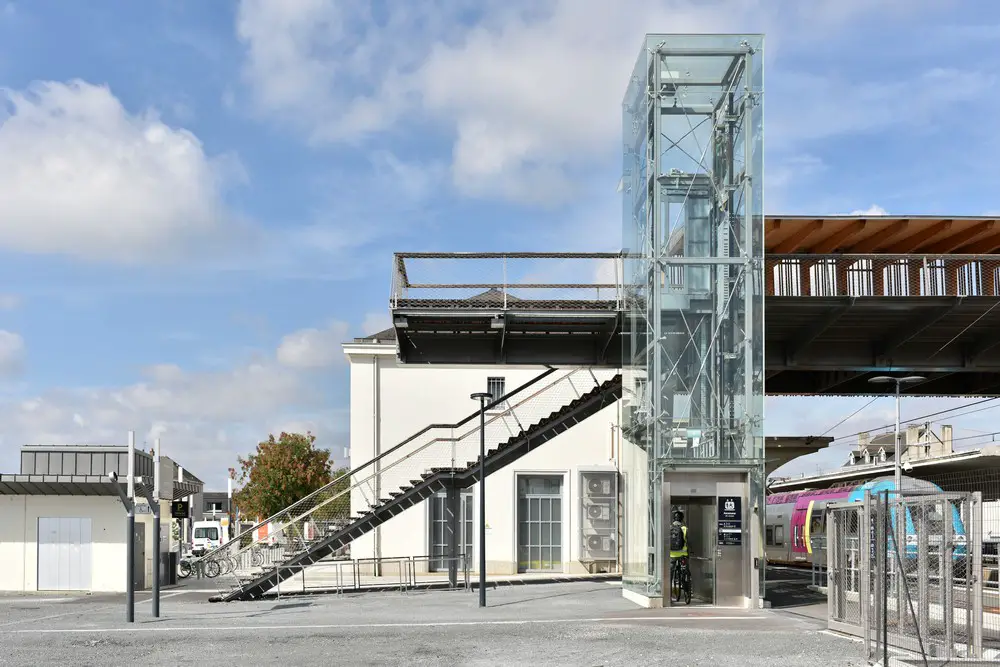

The main structure is made of two steel caissons connected by T-beams every 2,3 meters. The bridge extends 95 meters with a width of 8 meters. It is accessed by 3 elevators, 3 stairs and a ramp. It is also equipped with a solid oak wood floor. The roofing on the western side is made of pine and zinc plates supported by a series of half frames.

Train Station Footbridge in Laval, Mayenne by Dietmar Feichtinger Architectes

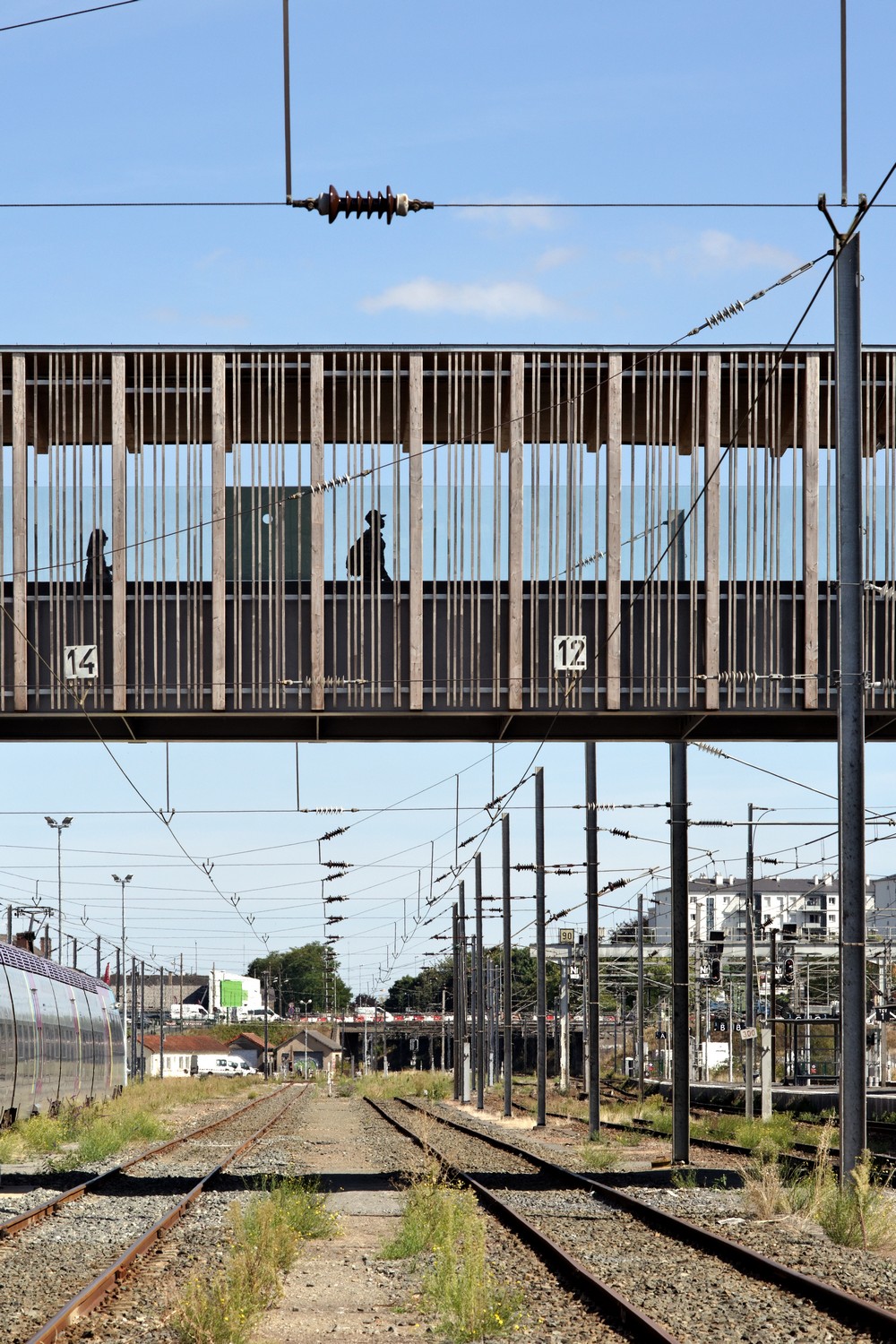

The west façade consists of a massive wall element that is continued by a 1.80 meter high glazing, behind which a sunshade of wooden slats is installed while the bridge ends in the eastern part with a simple transparent guardrail.

Train Station Footbridge in Laval, Mayenne by Dietmar Feichtinger Architectes

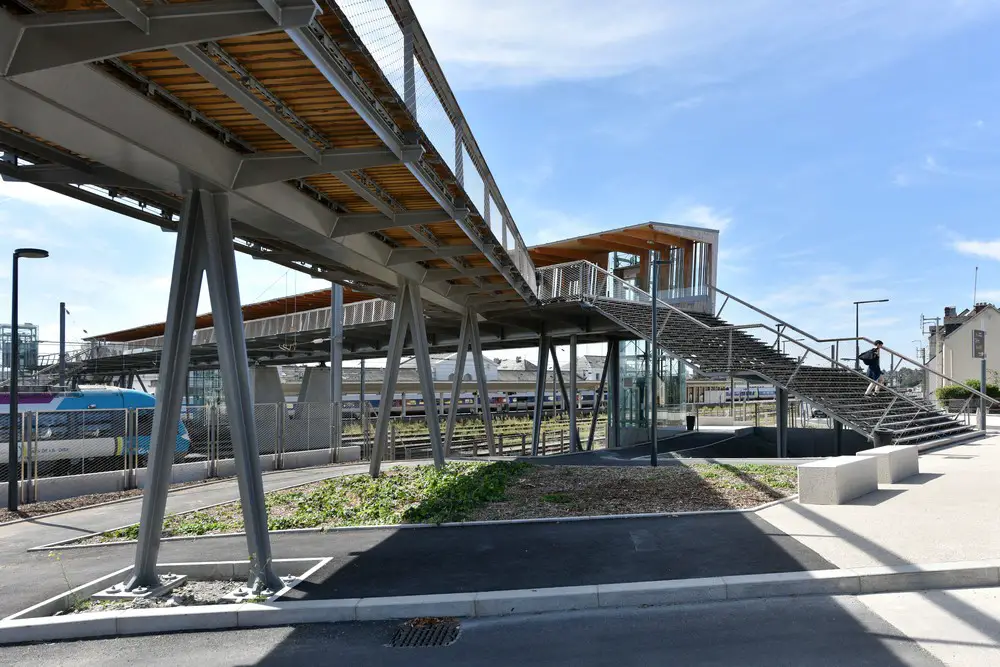

A steel coffered ceiling turns the underside of the bridge into an eye-catching rhythmic façade seen from the platform.

New footbridge over the high-speed train station in Laval, France

The finesse of the bridge lies in the contrast between the completely open eastern façade, which opens up to the city and thus makes a close connection with it, and the semi-open west facade, which directs to the east.

New footbridge over the high-speed train station in Laval, France

When choosing the materials and light sources, particular attention was paid to sustainability. The power consumption is optimized not only by long-lasting light sources with a very good performance but also by dimming the lights.

New footbridge over the high-speed train station in Laval, France

Dietmar Feichtinger Architectes

Photographs: David Boureau

Train Station Footbridge in Laval, Mayenne images / information from Dietmar Feichtinger Architectes

Location: Laval, Mayenne, west France, western Europe.

New Buildings in France

French Architectural Projects

French Architecture Design – chronological list

French Architecture News

French Architect Offices – design firm listings

Another French architectural design Dietmar Feichtinger Architectes on e-architect:

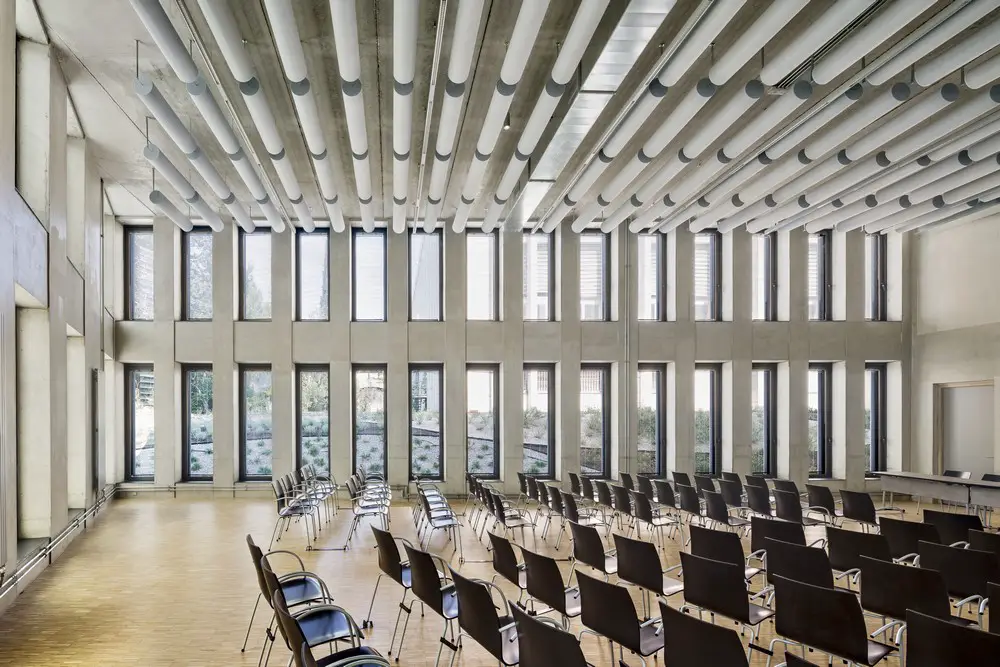

Université de Provence à Aix-en-Provence – Nature instead of Technology, France
Aix University
photograph : Sergio Grazia
Université de Provence à Aix-en-Provence

Les Platanes – 18 housing units for travellers in Saint-Genis-Laval
Design: Jacky Suchail Architectes
Les Platanes – Housing in Saint-Genis-Laval

French Architect

Railway Train Station Buildings

Railway Stations

French Railway Train Station Buildings

Gare de Belfort-Montbéliard TGV
Design: AREP Architects
Gare de Belfort-Montbéliard TGV: Belfort Train Station, France

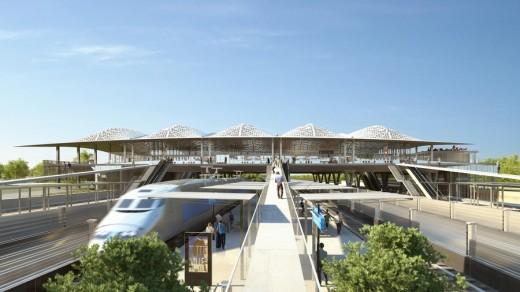

Montpellier New TGV Station
