Liège Guillemins TGV Station
TGV Railway Station
LIÈGE-GUILLEMINS TGV STATION
Date built: 2009
Design: Santiago Calatrava
The city of Liège is now a major node in the European high-speed rail network, which links England, France, Belgium, and Germany. When the city’s existing station had to be replaced, as unsuitable for the demands of high-speed rail travel, Euro Liège TGV issued a request for proposals from European architects. Santiago Calatrava received the commission to design the new Liège-Guillemins station, largely because of his vast experience in the field, in projects such as the Lyon-Satolas air-rail link and the Oriente station in Lisbon.
Calatrava conceived the station as a link between two distinct areas of the city of Liège, which previously had been separated by the railroad tracks. On the north side of the site is a rundown urban area, laid out in a typical 19th century scheme.
On the south side, on the slopes of the Cointe Hill, is a less dense, landscaped residential area. Calatrava’s design bridges these two areas with a 200 m (656 ft) passenger terminal, built symmetrically about a northwest-southeast axis. The arched roof of the terminal building extends over the five platforms for another 145 m (476 ft).

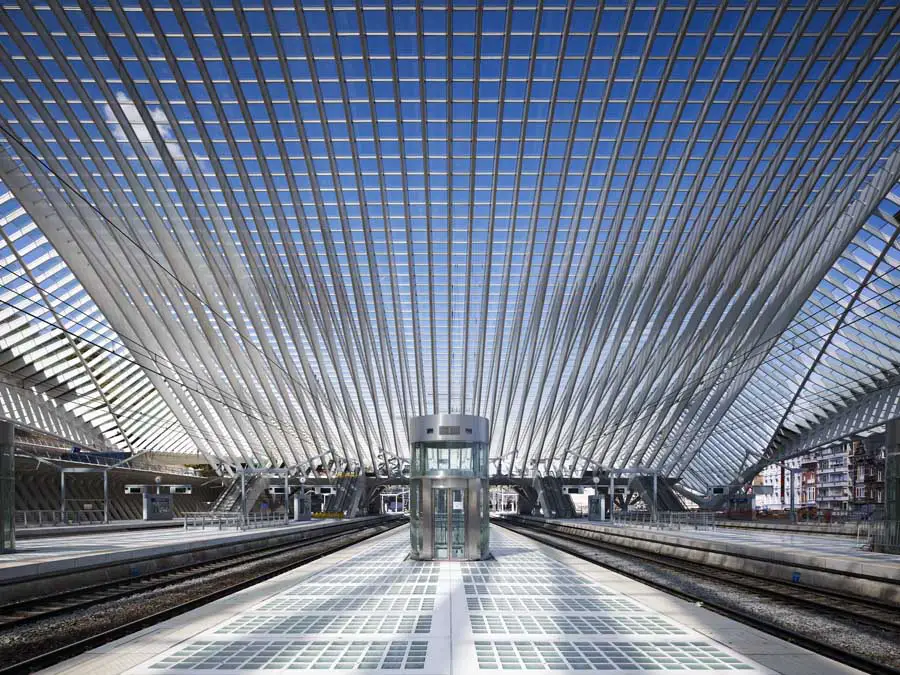

photo : www.palladium.de, Barbara Burg/Oliver Schuh
The station is three levels high on the urban (north) side, stacking an access footbridge and a level of rail platforms. At the level of the Place de la Gare (under the platform), a strip of commercial units helps to reinforce the streetscape. These units include the Passenger Hall on the main axis, with the ticketing area on the left and a bar-restaurant on the right. On the hill (south) side are five levels: three levels of parking, a vehicular access deck linked with the access footbridge, and a raised pedestrian walkway.
Transparency is achieved by means of the monumental vault, constructed of glass and steel, which allows for a sense of interpenetration between the station and the city. The pedestrian bridges and a walkway under the tracks allow for fluid communication between the two sides of the station. Particular attention is paid to the architectural detailing of these transitional spaces.
The project has no facade in the traditional sense, since the interaction between interior and exterior is seamless. The monumental roof becomes, in effect, the project’s facade. To an observer on the hill, the roof reveals something of the inner organization of the station. To an observer within the station, the structural arches of the roof frame the views to the outside. From any vantage point, the sensation of transparency prevails.
Because the metal frame of the station must be put in place without disrupting train service, a technique normally employed in bridge construction is being used. The principal frames are assembled in an area away from the trains, located at the proposed Place de la Gare. At night, the frames are pushed in groups of six onto the principal supports. Once the principal roofs are in place, the two canopies can be assembled in position and glazed.

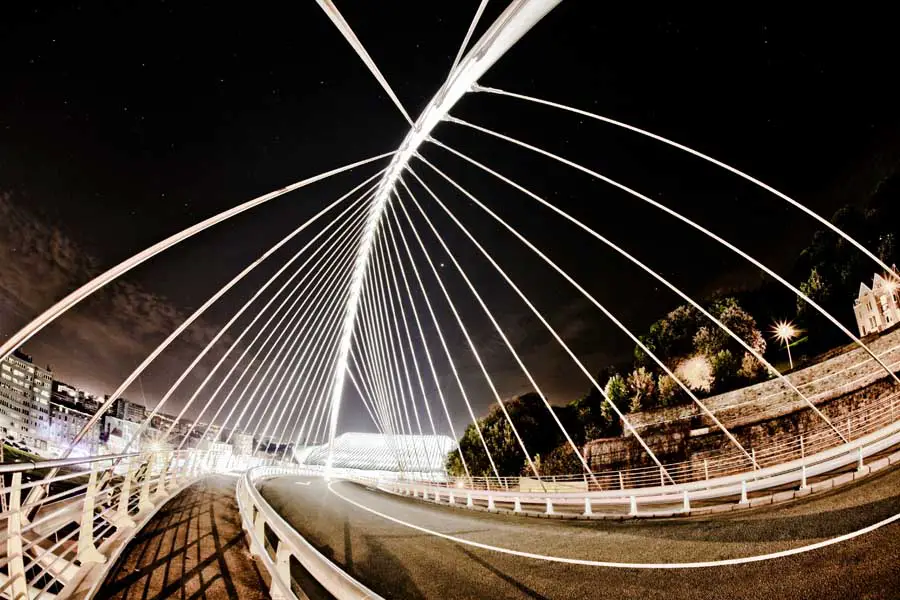

Liège bridge by Santiago Calatrava:

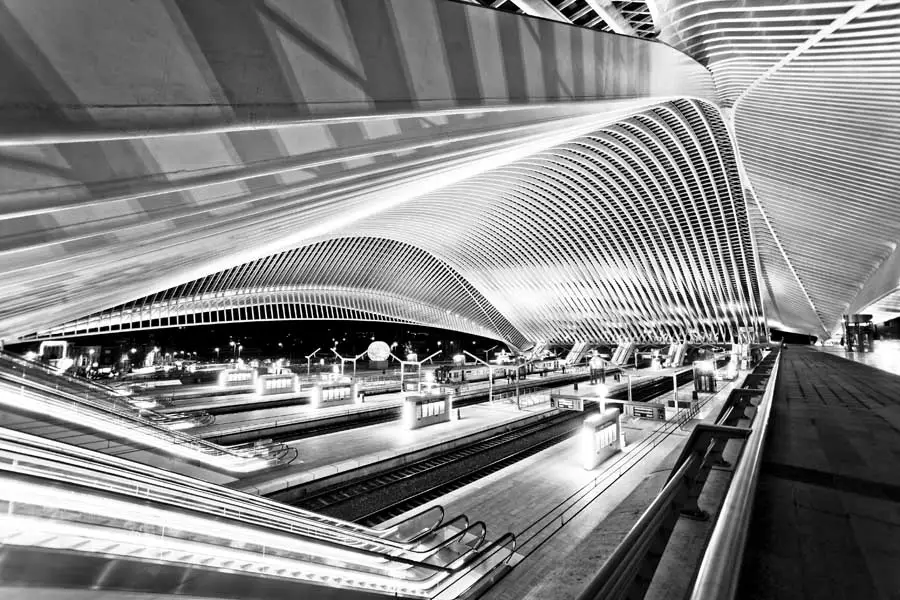

photo : Tim Freh, Belgium
Liege-Guillemins TGV Railway Station – Building Information
Architect: Santiago Calatrava
Client: SNCB Holding, Infrabel and Euro Liège TGV
Location: Liège, Belgium
Start of Construction: 1996
Opening: Sep 18, 2009
Function: Train Station
Materials: Concrete, steel and glass. Floor: Blue limestone.
Construction Area: 49.000 sqm (including roads)
Overall Length: 488 m
Total Length of Steel Work Built: 410 m
Total Width of Steel Work Built: 160 m
Maximum Distance Between Supports: 158 m
Total Area of Glass Roof: 33. 000 sqm
Liege Quillemins TGV Station : background on the design of this Belgian railway building
Liege-Guillemins TGV Railway Station – Building Information received 290909
Location: Guillemins, liege, Belgium, western Europe
Architecture in Liège
Liège Architectural Designs – selection:

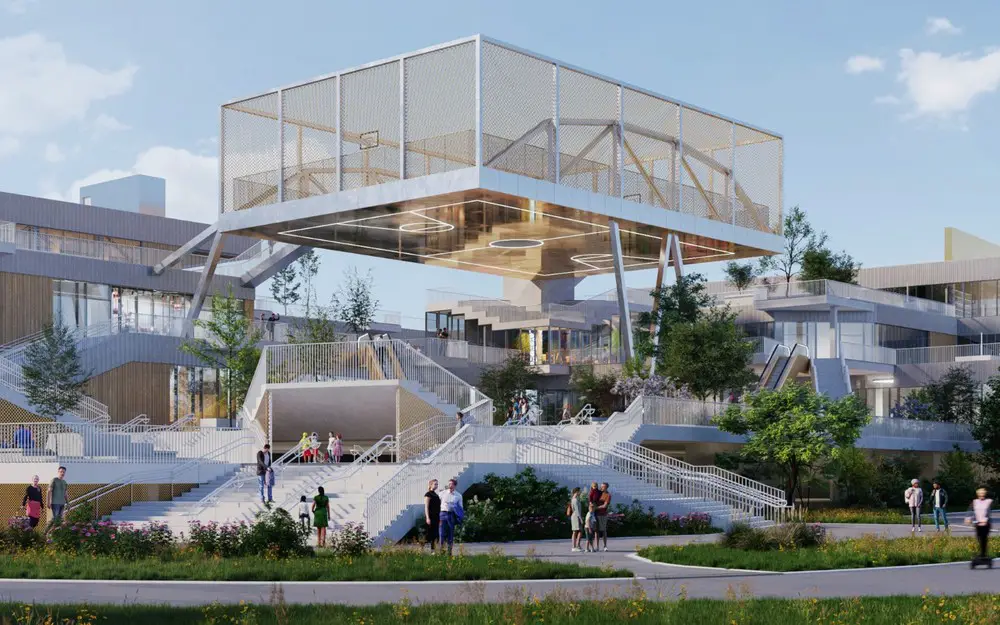

Belle-île, province of Liège, Wallonia
Architects: JDS Architects
image courtesy of architects practice
Belle-île Shopping Center Building

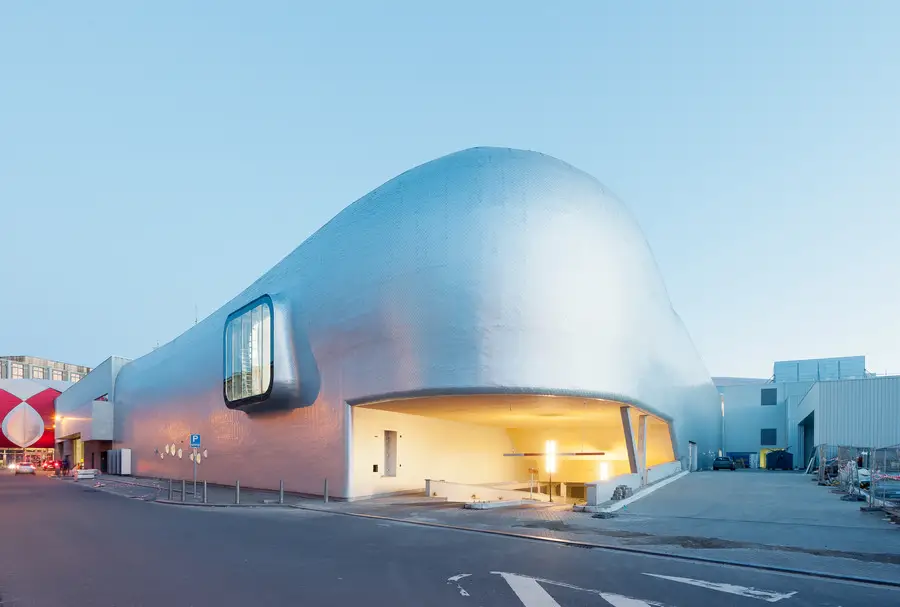

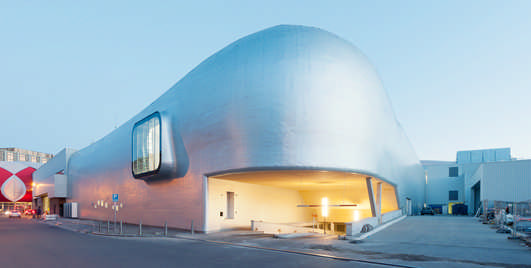

Liège Ice Rink Arena
Design: L’Escaut – Weinand (Momentary Association)
photo © Marc Detiffe
Ice Rink Liège

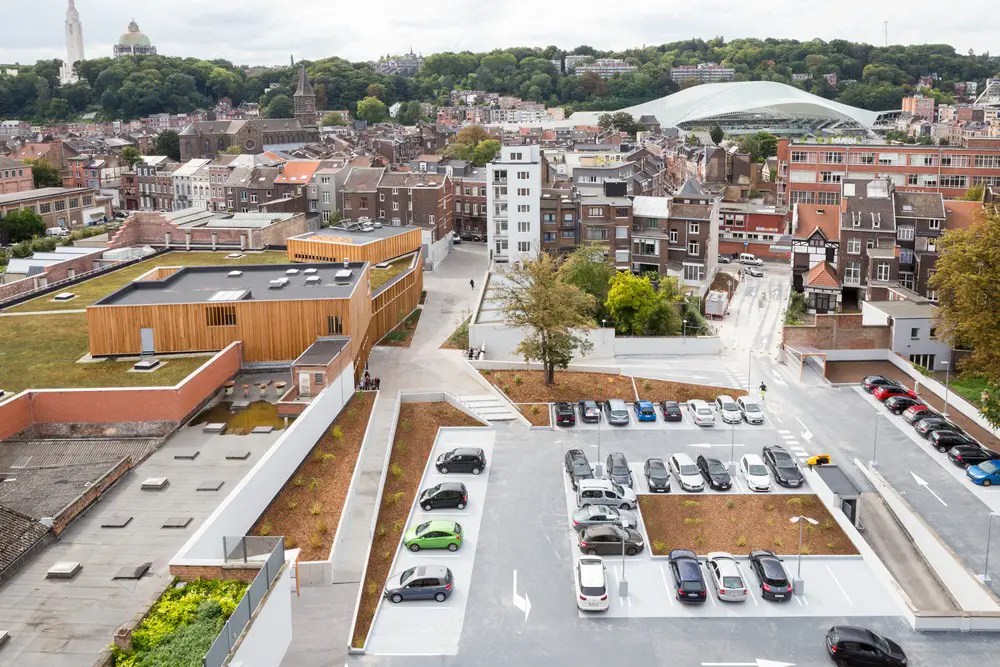

Quai de Rome – New Sustainable Wooden Supermarket in Liège
