Flemington Racecourse, Melbourne

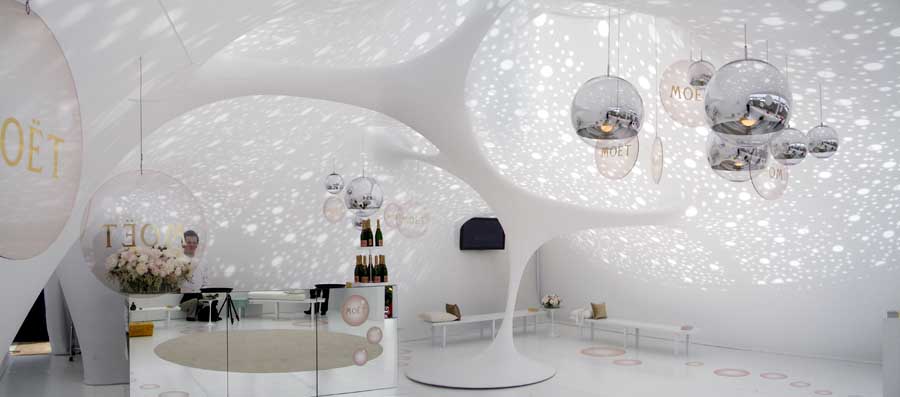

Moët & Chandon Marquee Interior in Victoria design by PTW Architects, Australia

5 Dec 2008

Date built: 2005

Design: PTW Architects – Chris Bosse [associate architect at PTW] and Amanda Henderson [Gloss Creative]

Location: Flemington Racecourse, Melbourne, Australia

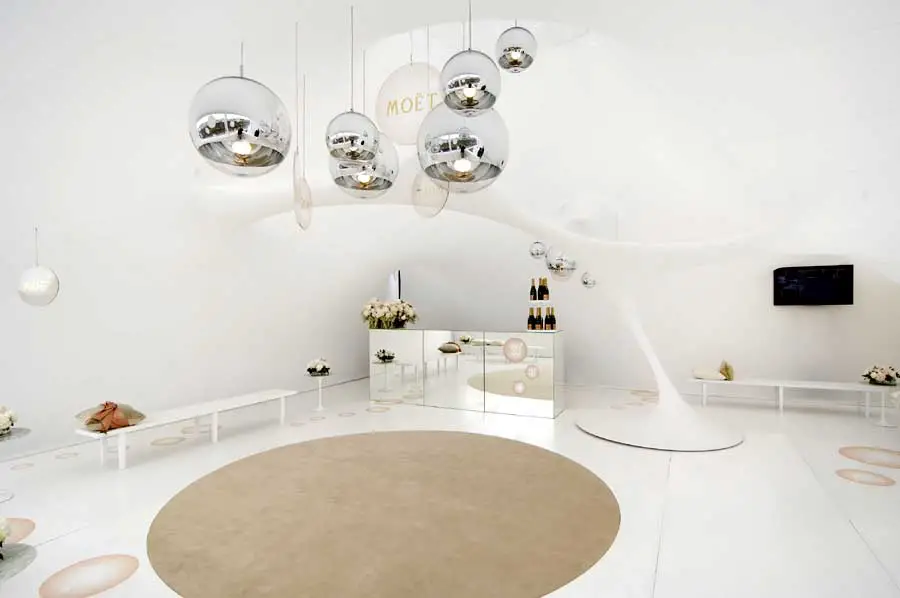

Flemington Racecourse, Melbourne Marquee
image courtesy of architects practice

Photos by Dianna Snape and others

Flemington Racecourse Melbourne

Client: Moët & Chandon

PTW Architects has designed the Moët & Chandon Marquee for the Melbourne Cup Carnival in 2005. Again PTW has used the latest digital technologies from concept to realisation of the design, to create a sparkling and surreal atmosphere in the name of the “bubble-ism”.

Through the use of daylight and a tensioned Lycra material that is digitally patterned and custom-tailored for the space, a 10 by 10 off-the-shelf marquee is transformed into a space that the press describes as an “avant-garde environment not of this earth”.

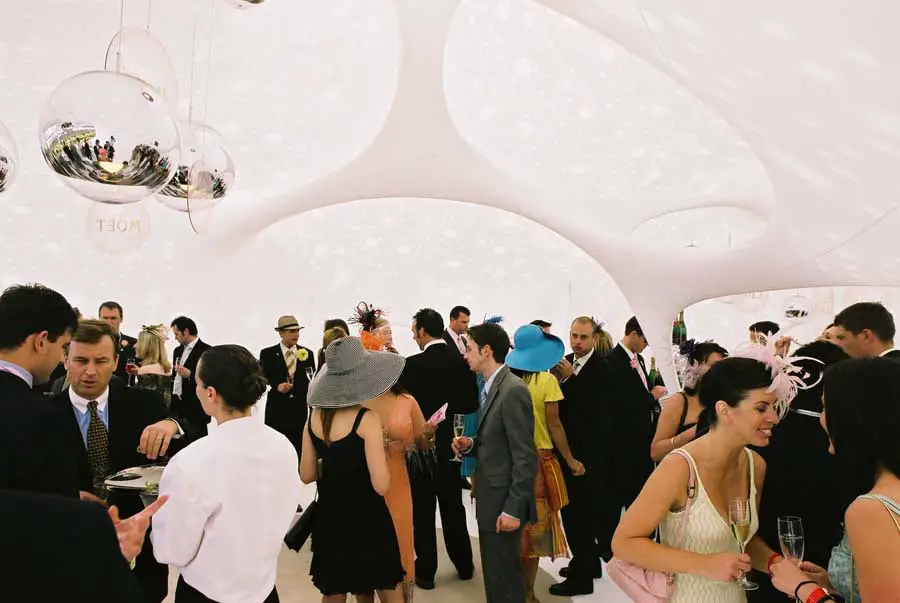

Flemington Racecourse Moët & Chandon Marquee Flemington Racecourse Melbourne
Moët & Chandon Marquee images : PTW Architects

Melbourne Building photos + information from PTW

Espace Lumiere, Space made out of Light
Introduction

Chris Bosse designed the MOET Chandon Marquee for the Melbourne Cup 2005, the biggest annual horse racing event in Australia, together with Amanda Henderson from Gloss Creative.

The Architects used latest digital technologies from concept-sketch to realization, to create a sparkling and surreal atmosphere in the name of the “Bubble-ism”.

Through the use of daylight and a tensioned Taiyo-Lycra material that is digitally patterned and custom-tailored for the space, a 10×10 “off the shelf” marquee was transformed into a space that the press describes as an “avant-garde environment not of this earth”

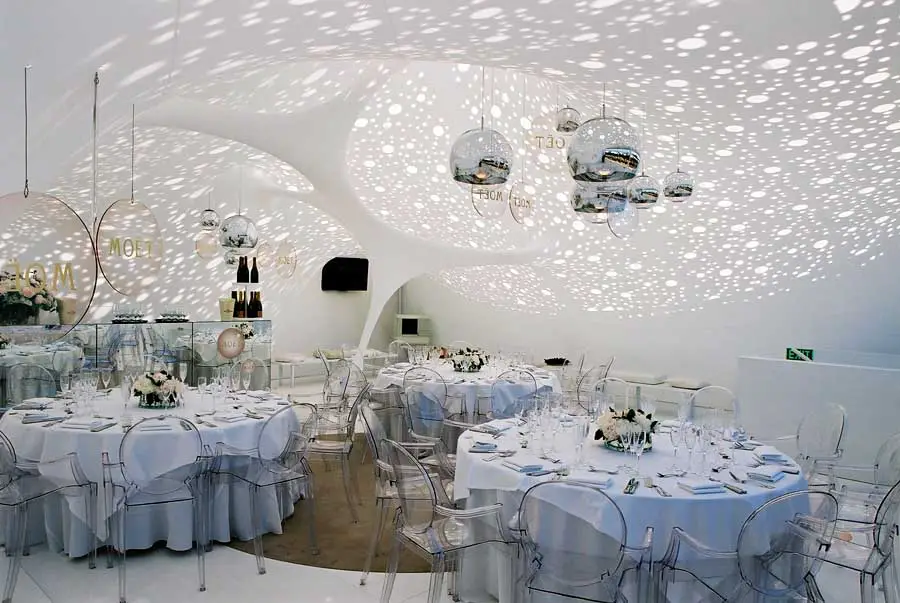

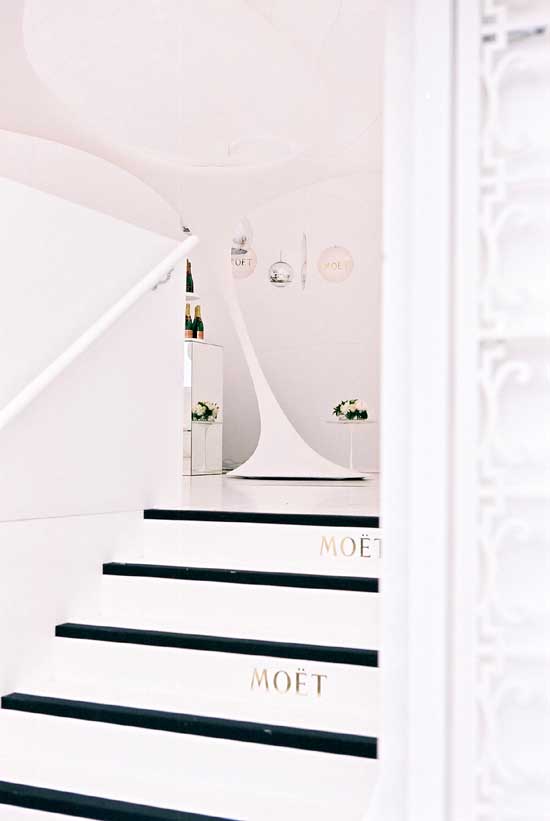

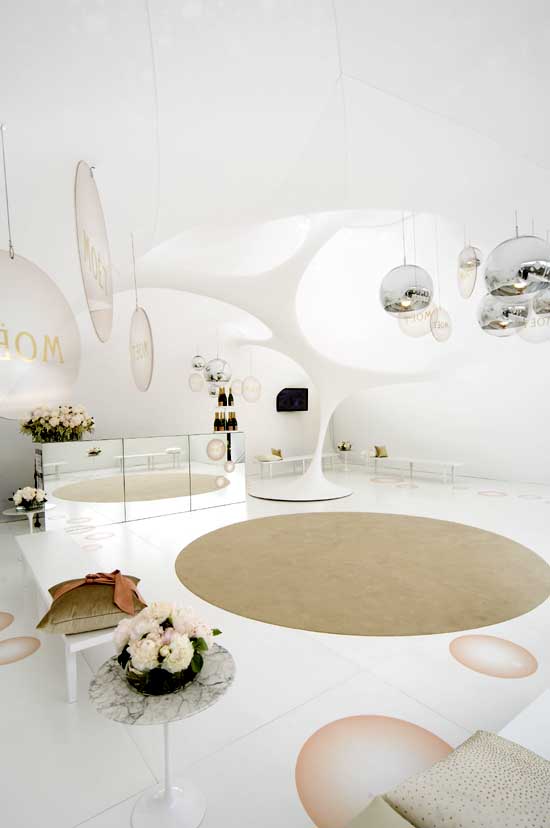

Moët & Chandon Marquee Moët & Chandon Marquee Moët & Chandon Marquee Melbourne Moët & Chandon Marquee Flemington Racecourse
Moët & Chandon Marquee images from LAVA, architects

Structure and Space

The project renounces on the application of a structure in the traditional sense. Instead, the space is filled with a 3-dimensional lightweight-sculpture, solely based on minimal surface tension, freely stretching between wall and ceiling and floor.

Building Materials

Specially treated Lycra and daylight

Innovation and Digital Workflow

The product shows a new way of digital workflow, enabling the generation of space out of a lightweight material in an extremely short time. The computer-model, based on the simulation of complexity in naturally evolving systems, feeds directly into a production-line of sail-making-software and digital manufacturing.

Transport and Sustainability

The pavilion (weight: 35 kg) is transportable in a sports-bag to any place in the world; can be assembled in less than one hour, and is fully reusable.

While appearing solid, the structure is soft and flexible and creates highly unusual spaces which come to life with projection and lighting. Projects of any scale and purpose can be realized in a short amount of time.

Minimal Surfaces

(-any surface that has a mean curvature of zero. – for a given boundary a minimal surface cannot be changed without increasing the area of the surface-) .

The lightweight-fabric-construction of the pavilion follows the lines and surface-tension of soap films, stretching between ground and sky.

These natural curves of bubbles are translated into an organic 3-dimensional space.

Since the early seventies, with Frei Otto`s soap-bubble experiments for the Munich Olympic Stadium, naturally evolving systems haven’t lost their fascination in the field of new building typologies and structures.

Derived from Nature / Design by Optimization

The shape of the pavilion is not explicitly “designed”, it is rather the result of the most efficient subdivision of three-dimensional space, found in nature, such as organic cells, mineral crystals and the natural formation of soap bubbles . This concept was achieved with a flexible material that follows the forces of gravity, tension and growth, similar to a spider web or a coral reef.

Light

By partially letting sunlight penetrate “through” the fabric structure, the pavilion comes to life as a ephemeral and surreal bubble experience.

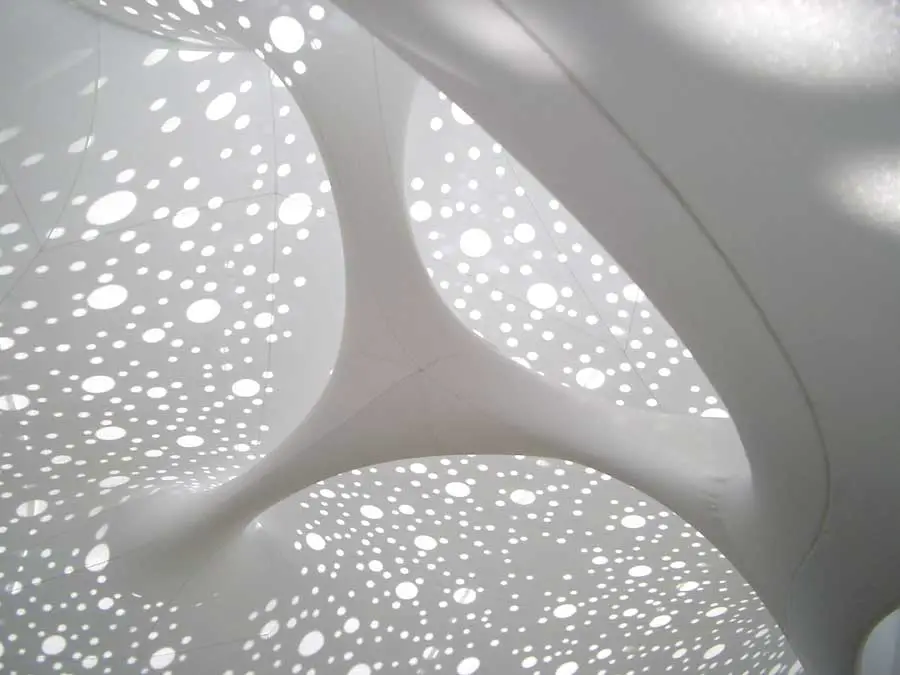

The perforated ceiling filters natural light and directs it onto and through the Lycra fabric, creating the depth and translucency of the space, the ephemeral quality.

The light changes constantly during the day with moving clouds and changing atmospheric conditions.

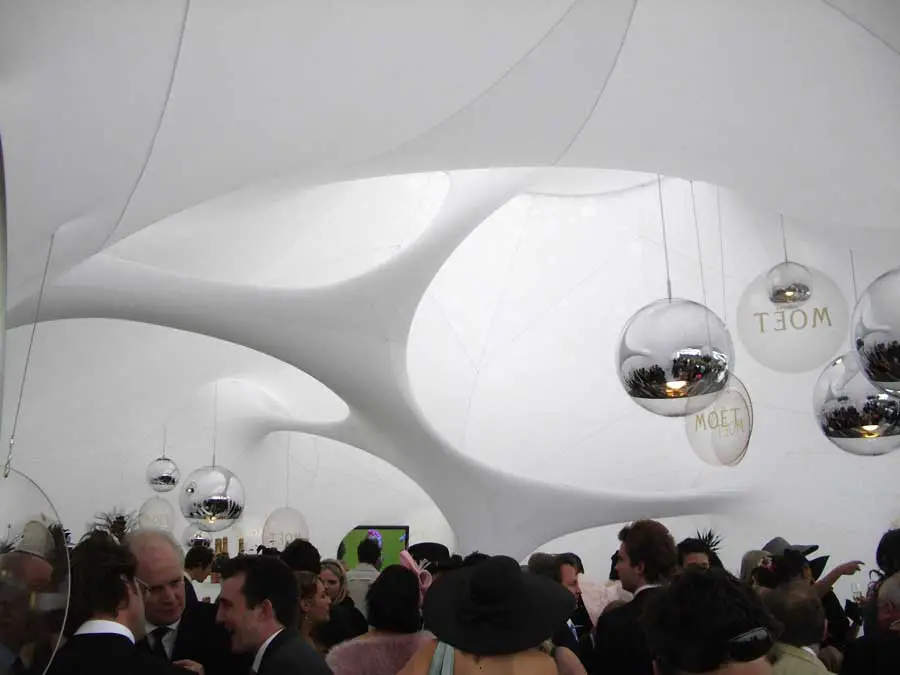

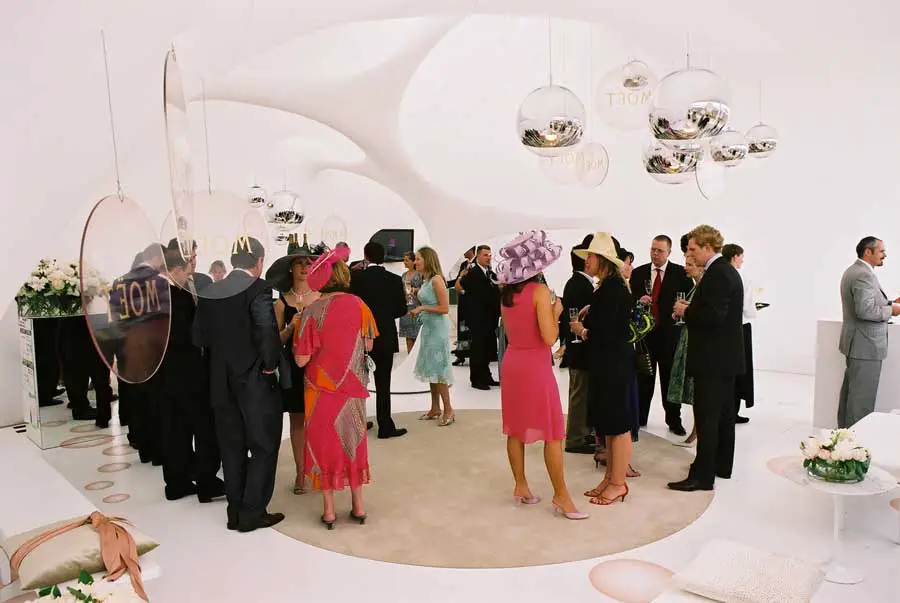

Flemington Racecourse Flemington Racecourse Flemington Racecourse
Moët & Chandon Marquee images : PTW Architects

Flemington Racecourse Melbourne Marquee – Building Information

Project title : MOËT Marquee / Espace lumiere
Client: Moët & Chandon Australia
Location: Spring racing Carnival, VRC, Melbourne, Australia
Completion: Nov 2005

Project architect: Chris Bosse
Styling + project management: Amanda Henderson / creative director Gloss Creative, Melbourne, Australia
Soft furnishings: Cameron Comer / Comer & King, Melbourne, Australia
Image and concept graphics: Round, Melbourne, Australia
Membrane, engineering and patterning: Taiyo Membrane Corporation, a division of the Taiyo Kogyo Group

Photographs: Dianna Snape and others

Flemington Racecourse Marquee Melbourne design : PTW

Location: Flemington Racecourse, Melbourne, Victoria, Australia
