Playscraper Tennis Tower design
3 Dec 2020
Playscraper Tennis Tower building design
Design: CRA-Carlo Ratti Associati and Italo Rota
Playscraper: Eight Tennis Courts On Top Of Each Other
International design and innovation office CRA-Carlo Ratti Associati with Italo Rota has unveiled the design for Playscraper – a Tennis Tower which features multiple courts stacked on top of one another. The project was developed for RCS Sport, the sport and media branch of the leading European multimedia publishing group RCS MediaGroup. CRA worked on the design as part of a larger team of engineers and technical consultants. The design is made possible by an innovative construction technology based on a lightweight stainless-steel sandwich structure, developed by the company Broad Sustainable Building (BSB).

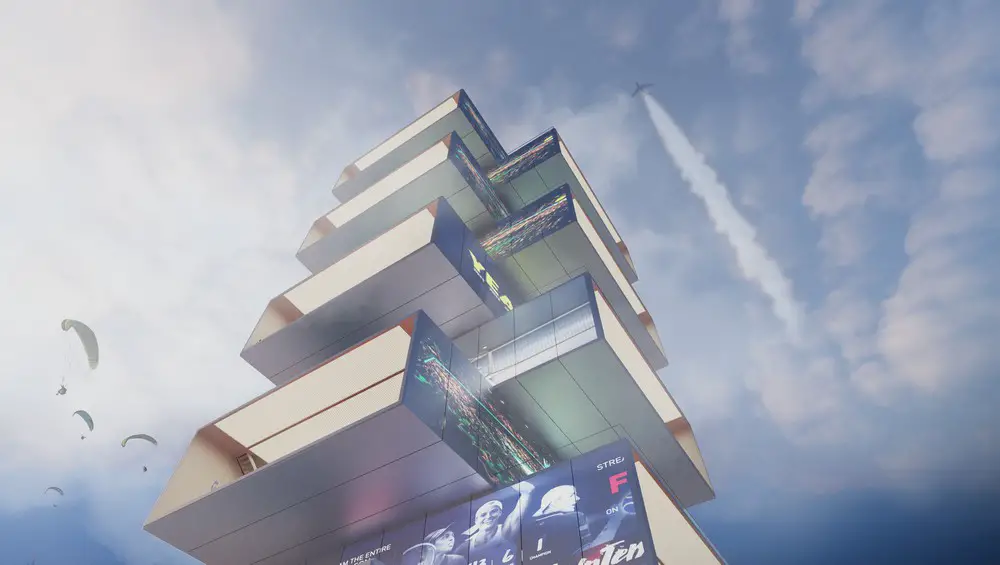

The 90-meter (300-foot) high Tennis Tower consists of eight courts, totaling 5,500 square meters (60,000 square feet) of playing space. The courts are layered vertically rather than horizontally, using BSB’s B-Core slab structure, a solution inspired by the outer shell of a spacecraft. This technology made international headlines in the past, as it allowed for the safe deployment of prefabricated construction units in record time.
“This project would not just create a new icon for sports lovers,” says architect and engineer Carlo Ratti, founder of CRA and director of the MIT Senseable City Lab. “It also experiments with a new type of public space, extending vertically instead of horizontally. The tower is easy to install and dismantle and can be easily moved. This flexible approach fits the circular nature of today’s sports competitions, which move from location to location throughout the year.”

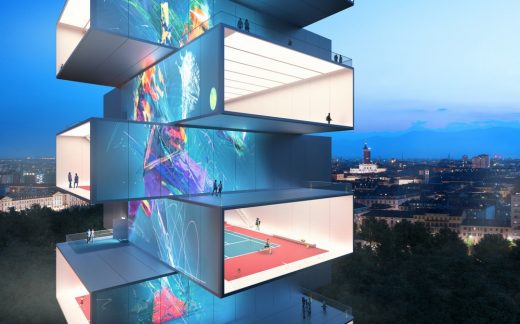

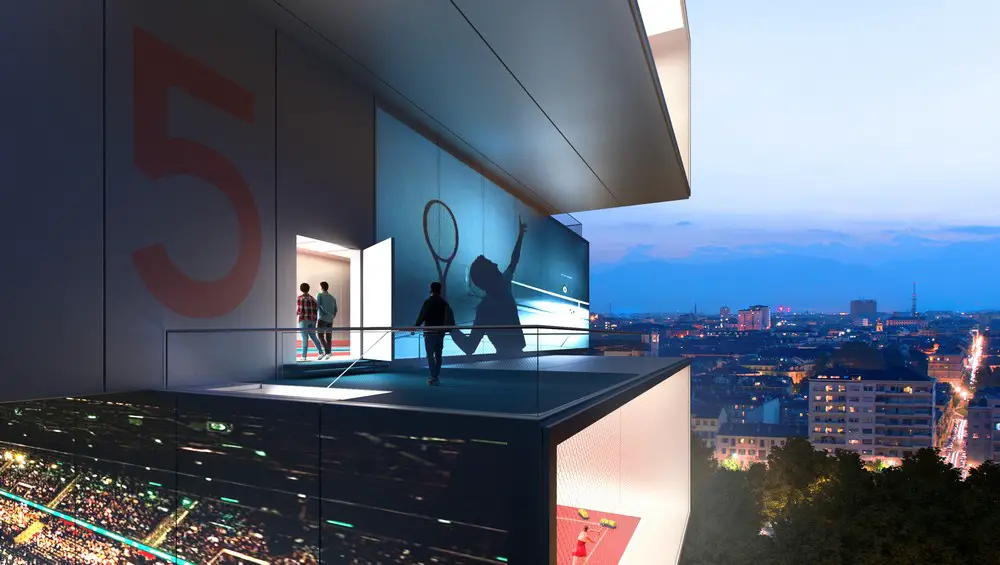

The Tennis Tower contains eight sandwich structures piled on top of the other, each containing a stand-alone tennis court. The narrow sides of each “box” feature transparent walls offering panoramic views. The two long sides incorporate an electronic facade that can stream sports matches and other digital content. In this way, the tower’s unique design engages not just the players on the court, but those in the surrounding area who can view the action on its wide screens.
Several recent projects by CRA explore the use of unconventional materials in architecture. The newly-inaugurated MEET Digital Arts Center in Milan is centered around a “vertical plaza” whose stairwell was digitally fabricated using an innovative laser-cut steel sandwich. CRA also experimented with mycelium, the root of mushrooms, as a compostable construction element, most notably with the Circular Garden installation produced in conjunction with energy company Eni at Milan Design Week 2019. Also in Italy’s financial capital, CRA used nature itself as a building block with VITAE, a scientific research center featuring a 200-meter long urban vineyard. VITAE was developed for Covivio and is scheduled to open in 2022.
Playscraper Tennis Tower Design – Building Information
Playscraper Tennis Tower
Status: Concept Design
Architectural Design: CRA-Carlo Ratti Associati
Creative Consultancy: Italo Rota
CRA Design Team: Carlo Ratti, Antonio Atripaldi (Project Manager), Ina Sefgjini, Chiara Borghi, Aurora Maggio
Renderings by CRA: Gary di Silvio
RCS Sport (Lead), RCS Media Group, RCS Sport &Events, CRA-Carlo Ratti Associati, EY Advisory, GAe
Engineering, Leading Law, Kratesis, Nugo, Recchi Engineering, Systematica, Paolo Verri.
Construction material: Broad Sustainable Building
Playscraper Tennis Tower building building images / information received 031220 from CRA-Carlo Ratti Associati
Location: Milano, Italy
