Mortuary Building in Japan design by Amaury de Cocquéau

17 Aug 2012

Japanese Mortuary Buildings

Design: Amaury de Cocquéau

Japanese Mortuary Design

Master thesis in Architecture, on exchange at the Kyushu University in Japan

Mortuary in Japan
image from designer

Name: Amaury de Cocquéau

University: Hogeschool voor Wetenschape & Kunst Sint Lucas, Ghent, Belgium


Tree-burial within city centers

Setting the problem: Japan has an extremely high number of elderly and the busy urbanization of the after war years created a substantial problem of where to locate the deceased, and how to correctly deal with them. Also, due to Japan’s capitalistically oriented society, mortuary rites changed into expensive, over-standardized events, unworthy of the emotionally charged moment.

Japanese Mortuary Design Japanese Mortuary Design Buildings Tree Burial Buildings in Japan Mortuary in Japan Building

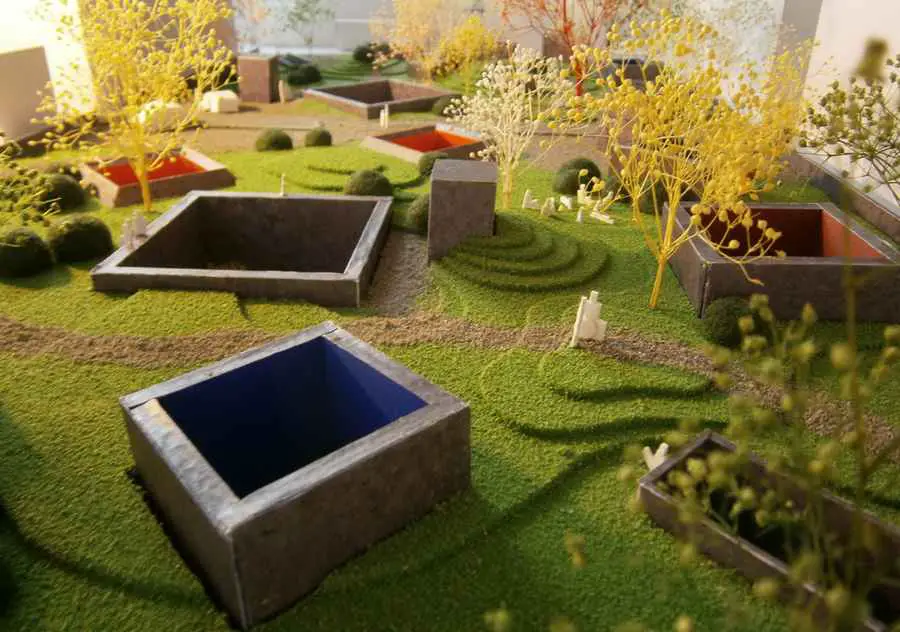

images from designer

Matters death-related are in a crisis, indicating a cry for change. The idea developed here is a change in social view of the subject, namely from an unknown, disturbing and negatively co-notated entity (the grave: inspiring fright, apprehension and ultimately indifference) to one well-acquainted, familiar and positively co-notated (the tree: inspiring rest, regeneration and fruit of thought).

Today’s stone grave cemeteries, the businesslike funeral offices, the non-committal and often poorly designed crematories and the deserted temples create a barrier between living and dead. No care has been taken of the representation of death, making its oblivion easy and its neglect general.

For the first time in history, the people concerned participated in attempting to create changes. They came up with alternatives to the cultural norm of the family stone-graves and to the funeral industry’s impositions. This work holds that the tree-burial offers the most efficient and ecologically sustainable alternative, solving many issues beyond the grave-crisis itself. The tree-burial uses the cremated remains to grow vegetation.

The overall idea is to reintegrate the deceased within the cities, their former presence now embodied by the trees, in an effort to counter the issues of space for, and distance to, the burial locations – as well as eco-issues caused by urbanization. Environmentally, the goal is to replace the large, useless, enclosed stone-cemeteries by green, open hubs, and so create an agreeable coexistence of the living and the deceased.

Japanese Mortuary Design Japanese Mortuary Design Japanese Mortuary Design Buildings Tree Burial Buildings in Japan

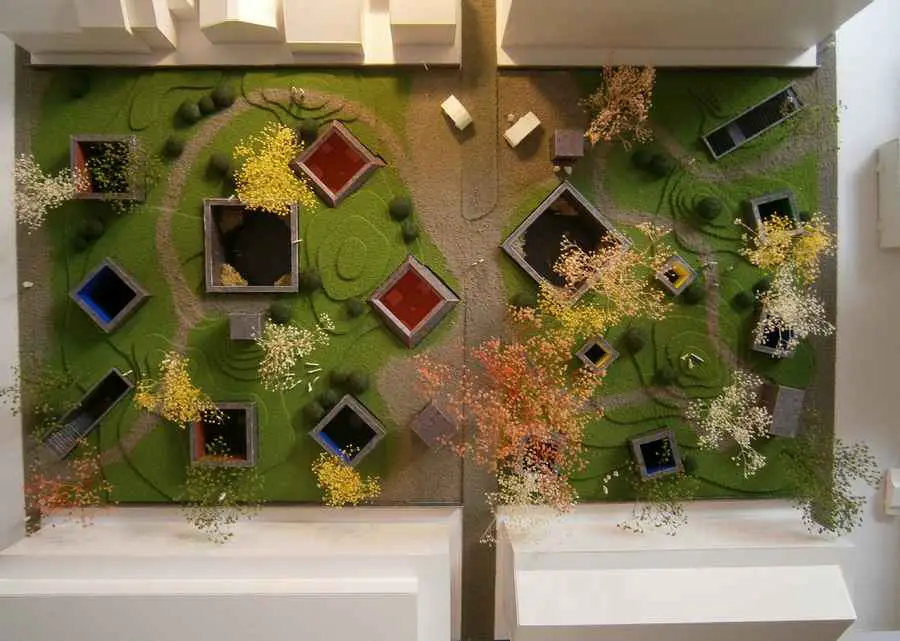

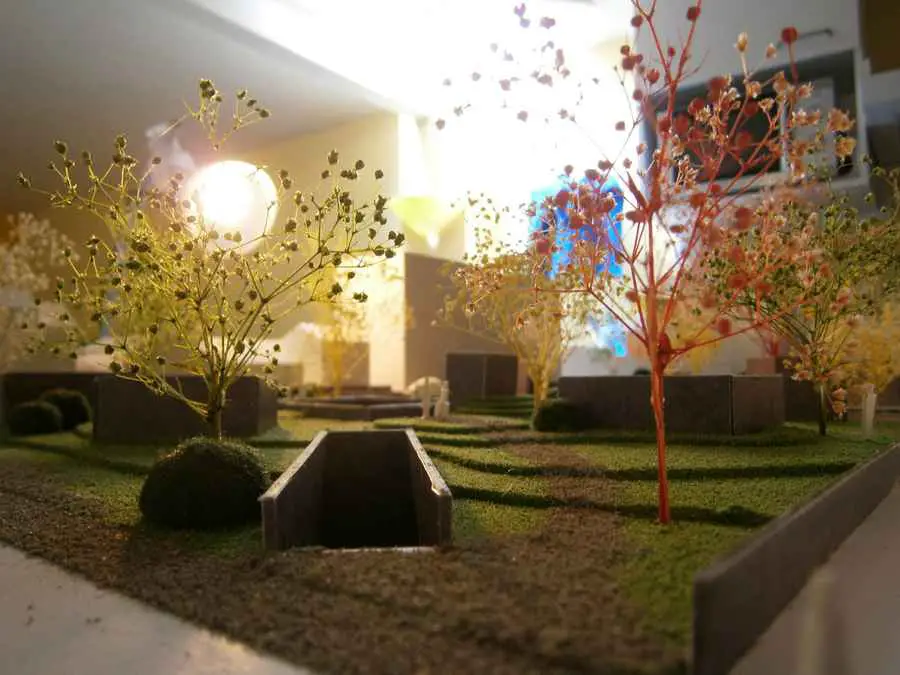

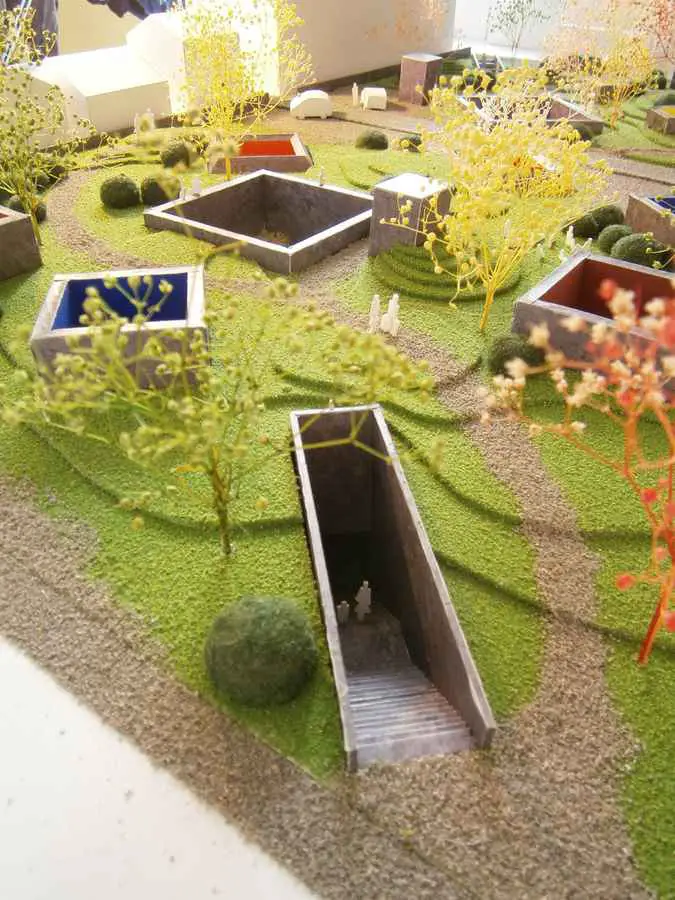

images from designer

To do so, this proposal provides a set of indications to achieve these results pragmatically. Reusing vacancies, appearing due to the drastic expected shrinkage of the Japanese population, to implement the tree-burial is the most important. Besides this it is important to have mortuary facilities on a walking/cycling distance from everyone’s residence.

The paradigm could be applied to all cities in Japan, or even to other cities in the world that are or will have to deal with like issues. To demonstrate its efficiency, this project is further on implemented to the city of Fukuoka, Kyushu, Japan.

Japanese Mortuary Design Buildings
image from designer

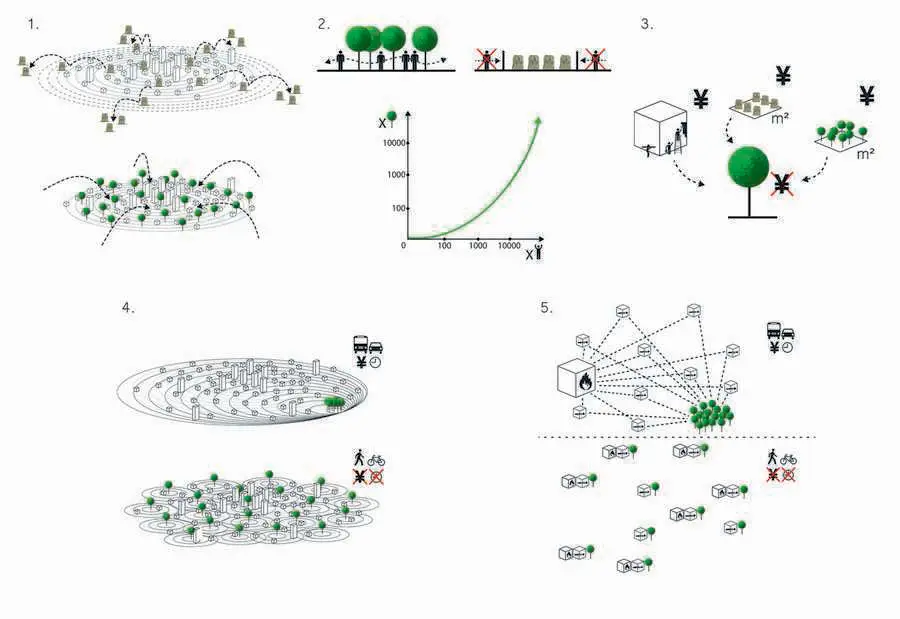

1. Implementing the tree-burial within city centers – ever increasing distances to burial plots
2. Cemeteries as green social hubs – enclosed stone-cemeteries; the deceased will again be attributed a useful role in society.
3. Investment for cities: divided by 3. No maintenance cost of the vacancies, no need to buy up new land for green or burial extensions.
4. Centralized – decentralized. The advantage of a decentralized urban strategy: have the facilities near the residences.
5. Joining the different mortuary facilities (Crematory, Funeral hall and tree-burial grounds) to generate easier access and usage.

Site surface: 3246m²
Height: varies; -7m ~ 3,3m
Program: tree-burial cemetery/park, crematory, funeral hall.

Japanese cities are congested. The number of empty spaces will increase due to the expected shrinkage of the population figures. An underground architecture offers the possibility to double the useful amount of space (1,2), open up the cities, and offer a peaceful environment at large from the city’s chaos (4).

Tree Burial Buildings in Japan
image from designer

(3) Due to its underground position, people will only be in contact with the span and the trees: these will be the symbols reminding them of their deceased. The smooth, angle-less shape accentuates the focus to the top, that is: the sky and trees.

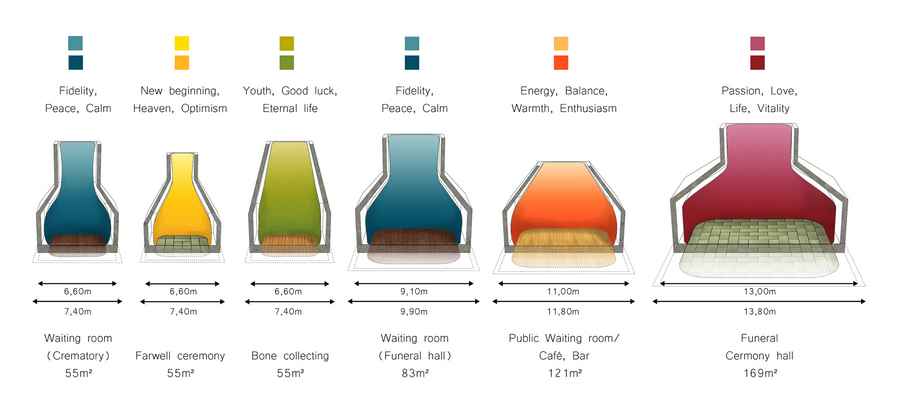

The building tries to offer intimacy and coziness, but simultaneously emphasizes the earnest of the moment, responding to the people’s emotions. The use of strong, meaningful colors has the purpose to elicit the visitor’s sentiments. The colors have been chosen to suit their function. The interiors have been kept down to essentials. This to create as little distraction as possible and to leave room for a possibly necessary flexibility.

Mortuary in Japan Building Japanese Mortuary Design
images from designer

It is of great importance to create different circulation systems. One dealing with public affairs; another one with the private ones (4). People foreign to the ongoing rite, but willing to while away some free time (for instance to have a drink in the bar), can enter the building and exit it again without noticing they are in a mortuary facility. If you are involved, you are unlikely to be disturbed by strangers and intimacy fitting the occasion is guaranteed.

There is a further difference between the functional and circulation areas. As mentioned, the colorful, lit spaces are meant to allow for and guide mourning and reminiscence. In contrast to these, the circulation throughway has been kept dark-colored, suggesting dignity. While moving from one function to another, the emotional charge is stressed.

Japanese Mortuary Design Buildings
image from designer

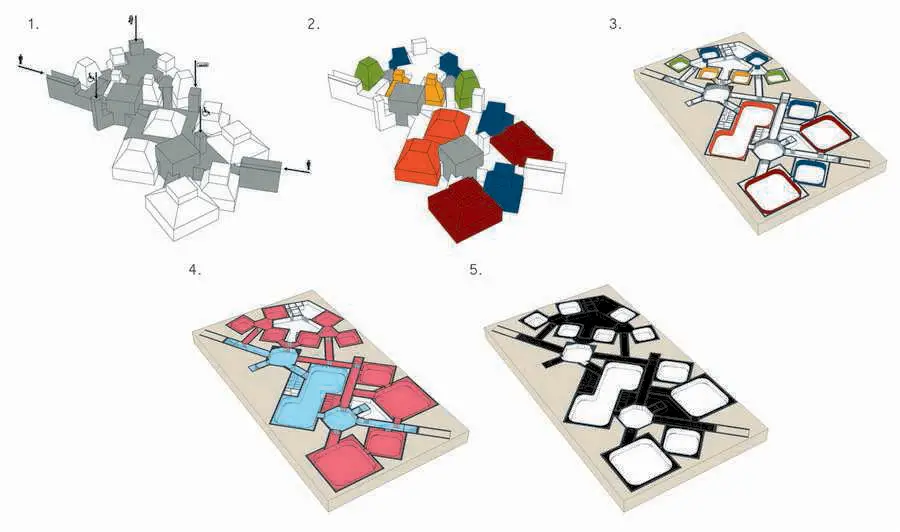

1. Accesses
2. Relation of functions
3. Perspective section on -550cm
4. Red: private circulation, blue: public circulation
5. Contrasting circulation and functions

The complex plan was designed with this in mind: In Japan, the view prevails that it is never good to walk directly to a target point. This, the Japanese believe, brings on bad luck. The length of the circulation path is also intended to accentuate the contrast between the different mortuary functions and the circulation as such.

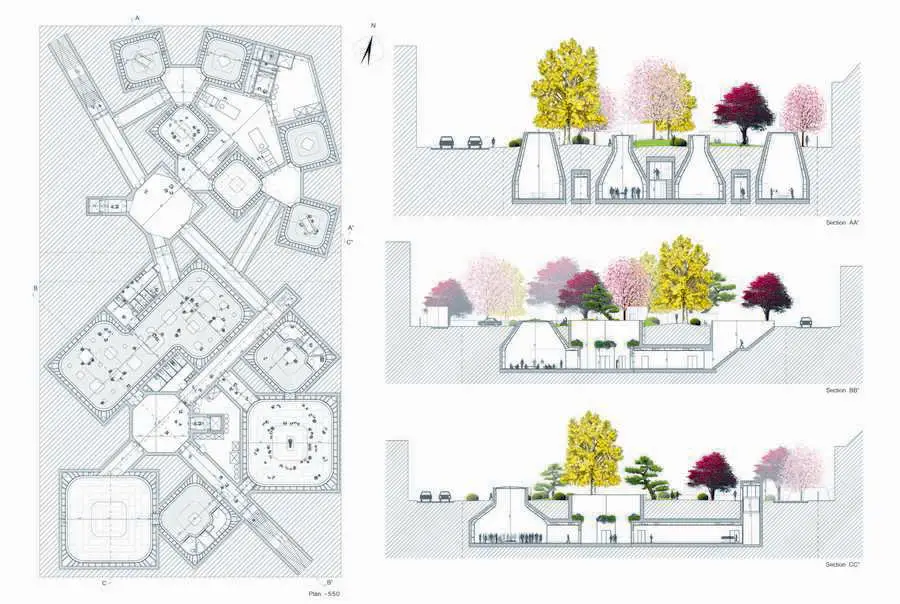

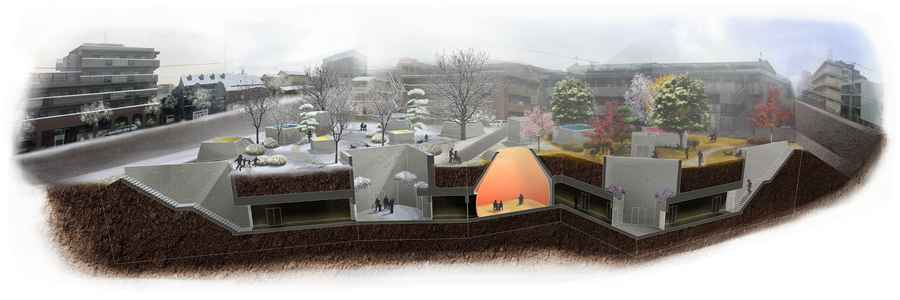

The floor of the building is situated 7 meters below the ground. The openings above the functions are all closed off to protect from climatic circumstances, but the strong visual contact is very much present. The trees direct the play of light inside, aiming at constant contact between the deceased and the bereaved.

Tree Burial Buildings in Japan
image from designer

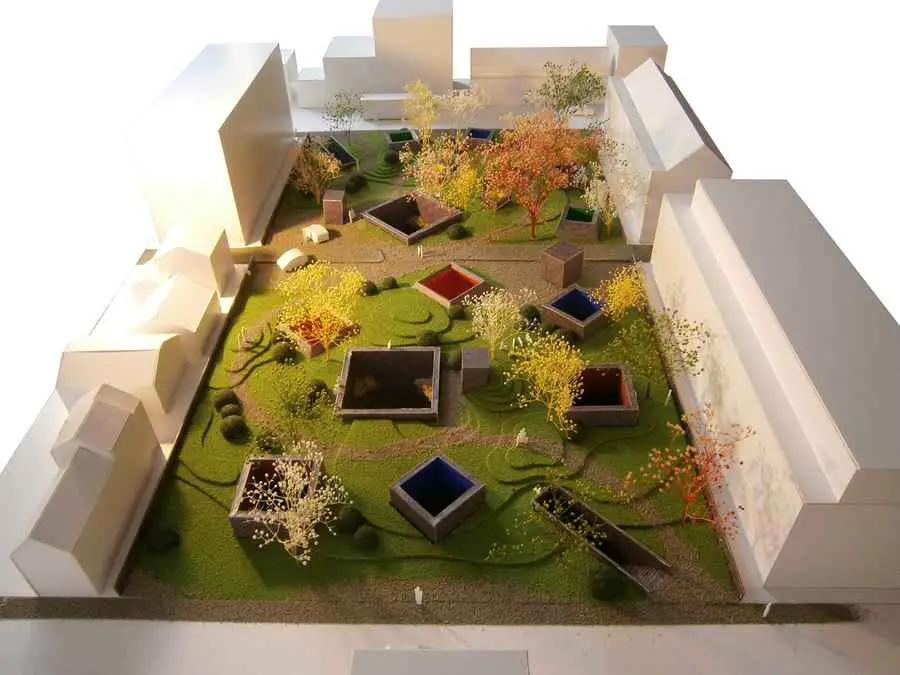

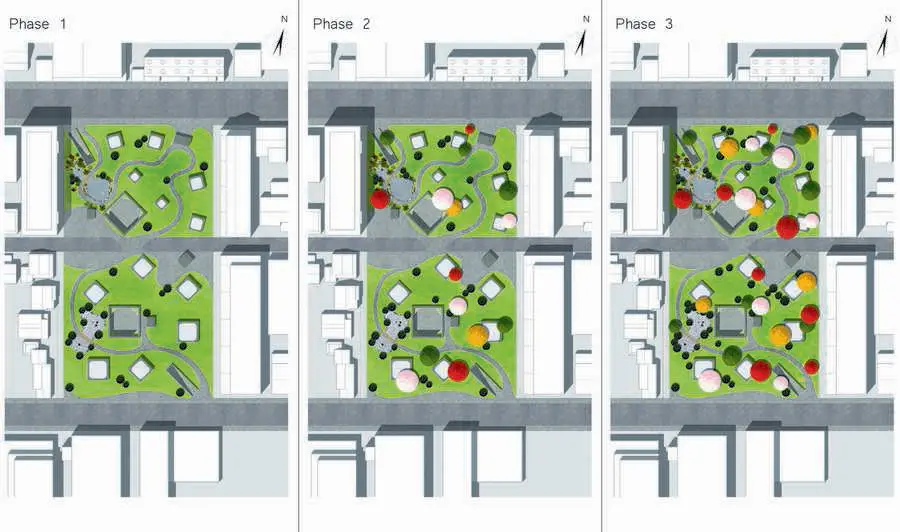

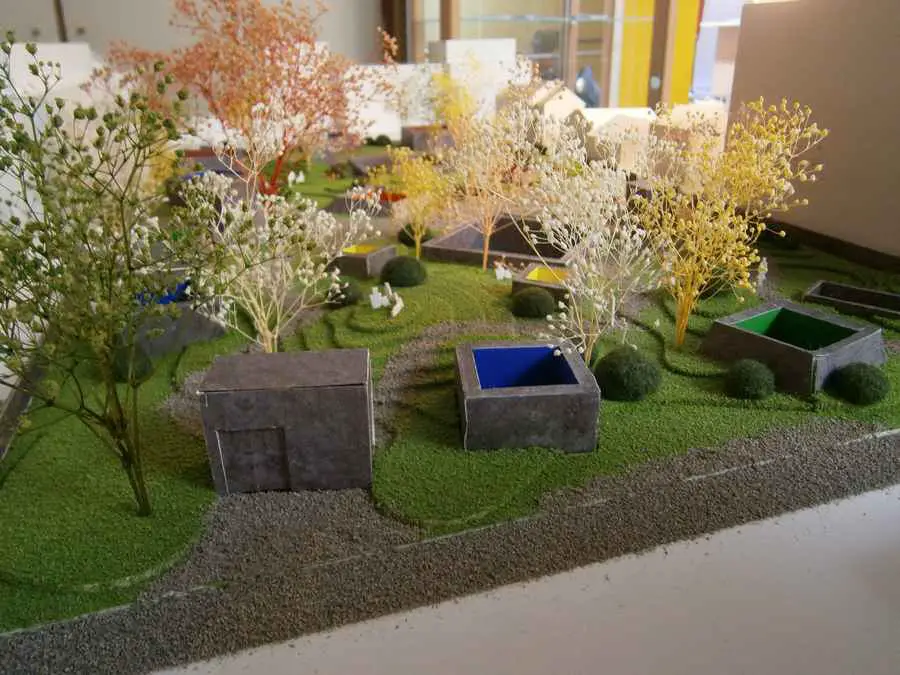

The fact that the deceased are embodied by trees will create a public, park-like space. This dynamic hub will evolve from a ‘bald’ park to a denser one over a certain period. This creates a constant revival and movement of the public space.

Mortuary in Japan Building
image from designer

Now, the deceased have as much of an active presence within society as they are ever likely to have. Their descendants can be proud of them. Death is there, it is terrible, but on our planet there is nothing we can do about it, so, for the sake of dead and living alike: let’s accept it – no more, no less.

Japanese Mortuary Building images / information from Amaury de Cocquéau
