Gymnasium of the Louis de Cormontaigne High School, Metz

Architects: agence ENGASSER & associés

Location: Metz, France

Gymnasium Building of the Louis de Cormontaigne High School

Gymnasium of the Louis de Cormontaigne High School in Metz

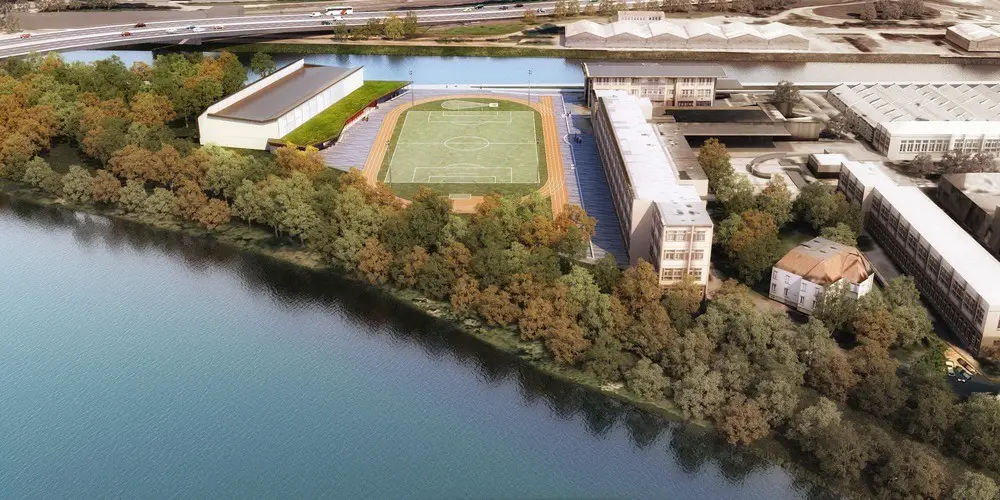

Louis de Cormontaigne’s new gymnasium is located on the tip of the island between the Moselle River on one side and the canal on the other, a bow-shaped structure across from the day school and the motorway, the location’s major acoustic challenge. The building reproduces the orientation of the high school building and is perpendicular to the canal.

Gymnasium of the Louis de Cormontaigne High School in Metz

Photos: Mathieu Ducros

It has also been designed according to the input of light with broad openings in Reglit glass on the north-by-northeast side to offer unified, ideal natural light. The south-by-southwest side has been designed as very opaque, like a mask—a large acoustic shield to counter the motorway noise.

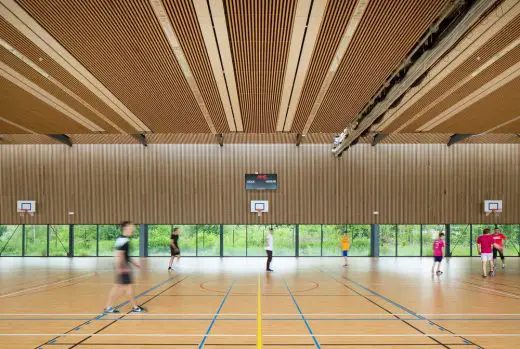

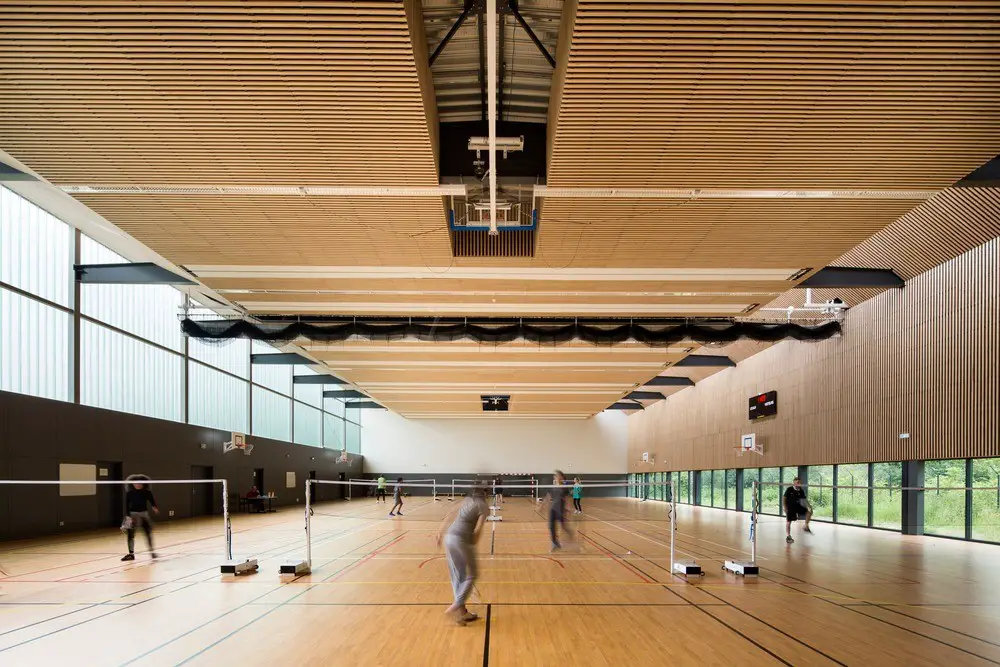

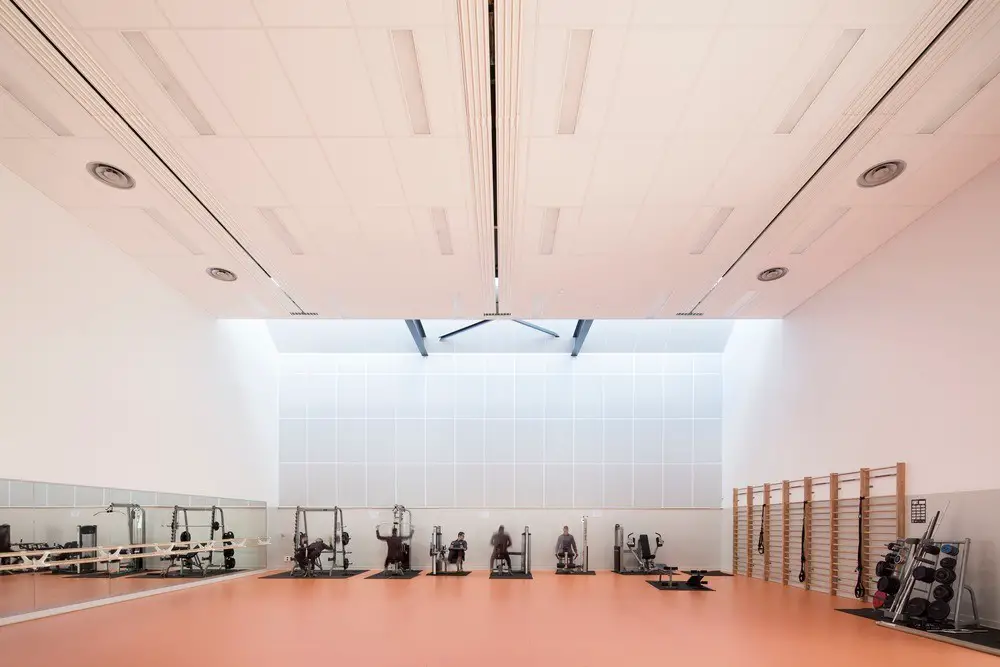

Work on the volumes and roofs, reproducing the shed-like appearance, also adds to the indoor staging and the design of the sports areas. Composed of a main all-purpose gym entirely clad in wood and a secondary gym for body-building, the new gym offers the best possible conditions for all sporting activities.

Gymnasium of the Louis de Cormontaigne High School in Metz

A Challenging Context

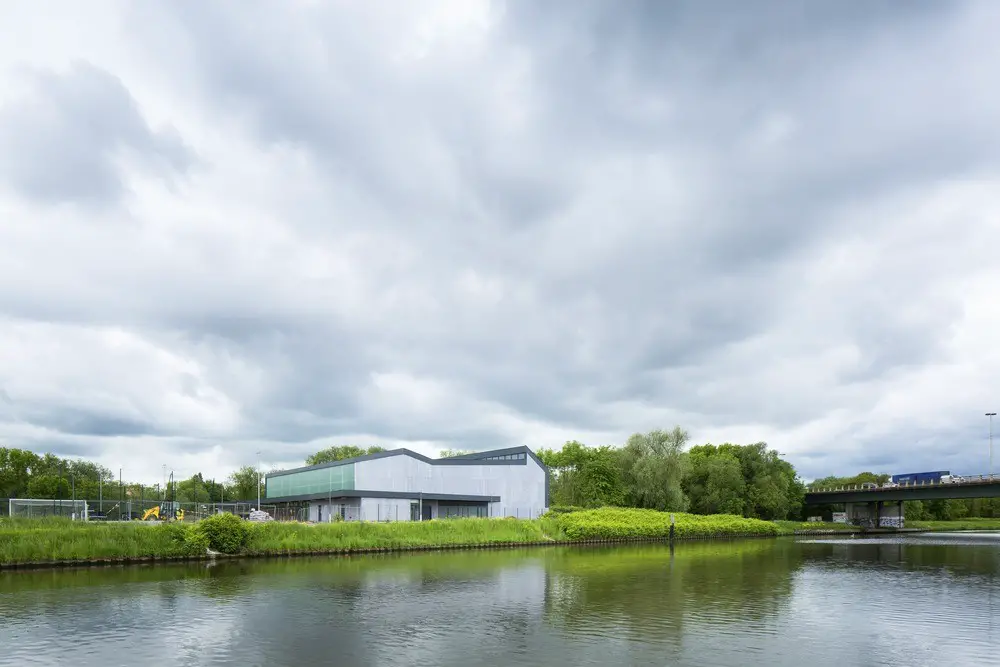

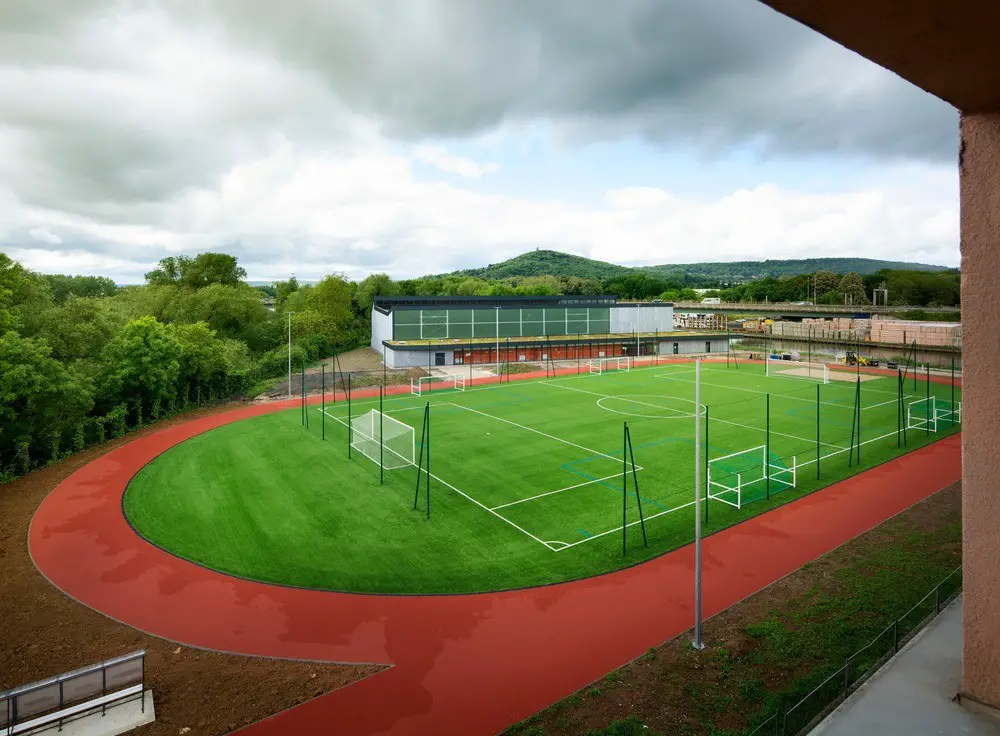

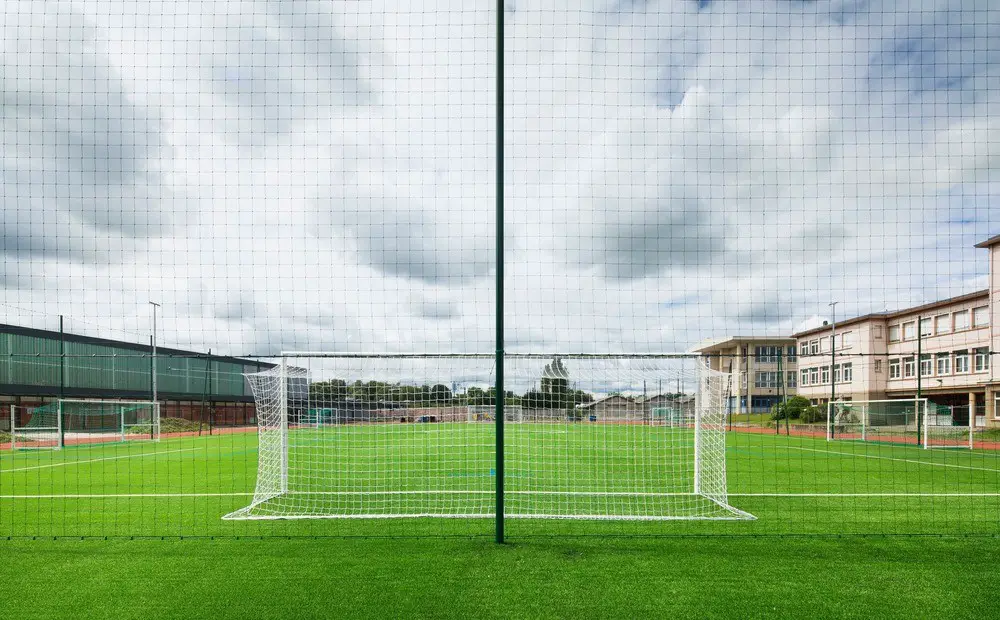

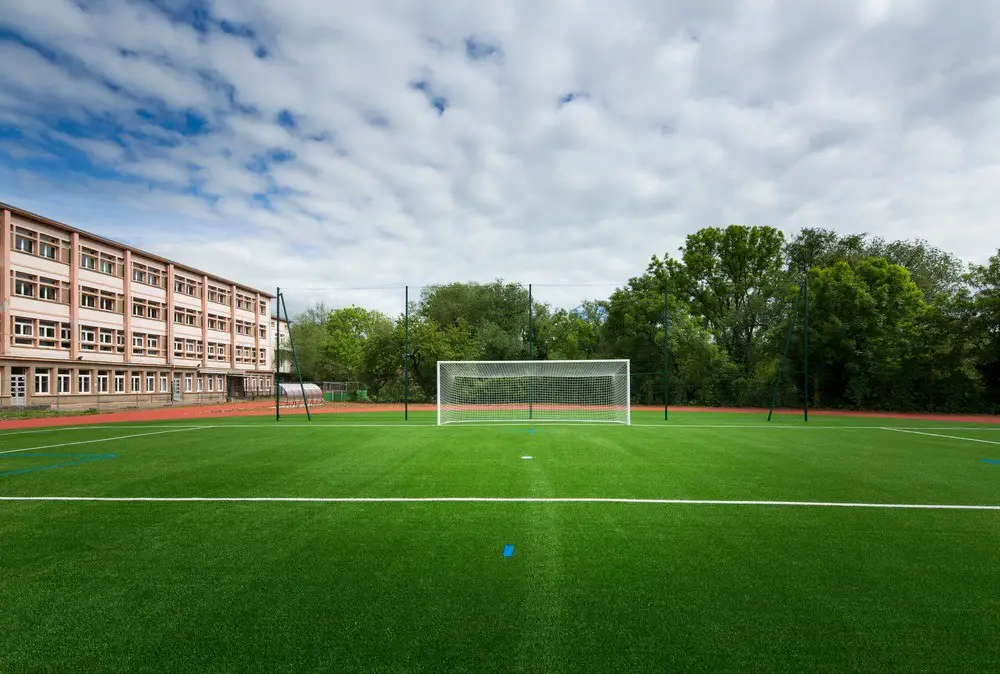

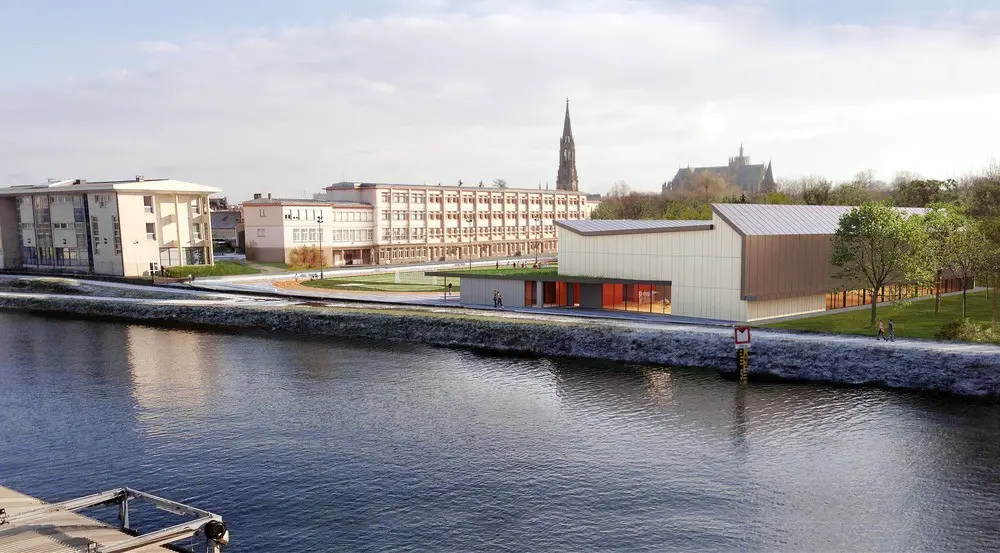

The new gymnasium is located on the site like a ship’s bow, facing the Louis de Cormontaigne High School building, a three-story structure housing the classrooms between the Moselle River and the canal and facing the motorway, which is the site’s main acoustic challenge. The decision to place the playing field between the two buildings creates a welcome distance between them. It makes it possible to suitably meet the need for working continuity with the present gymnasium and the entire high school having to continue to operate until the new complex is delivered.

Gymnasium of the Louis de Cormontaigne High School in Metz Gymnasium of the Louis de Cormontaigne High School in Metz

The geometric composition reproduces the high school’s orientation, perpendicular to the canal, with a slight concentric zone rotation up to the bridge, which itself is a part of the design. It incorporates the outdoor areas like full-fledged elements of the entire layout.

Gymnasium of the Louis de Cormontaigne High School in Metz

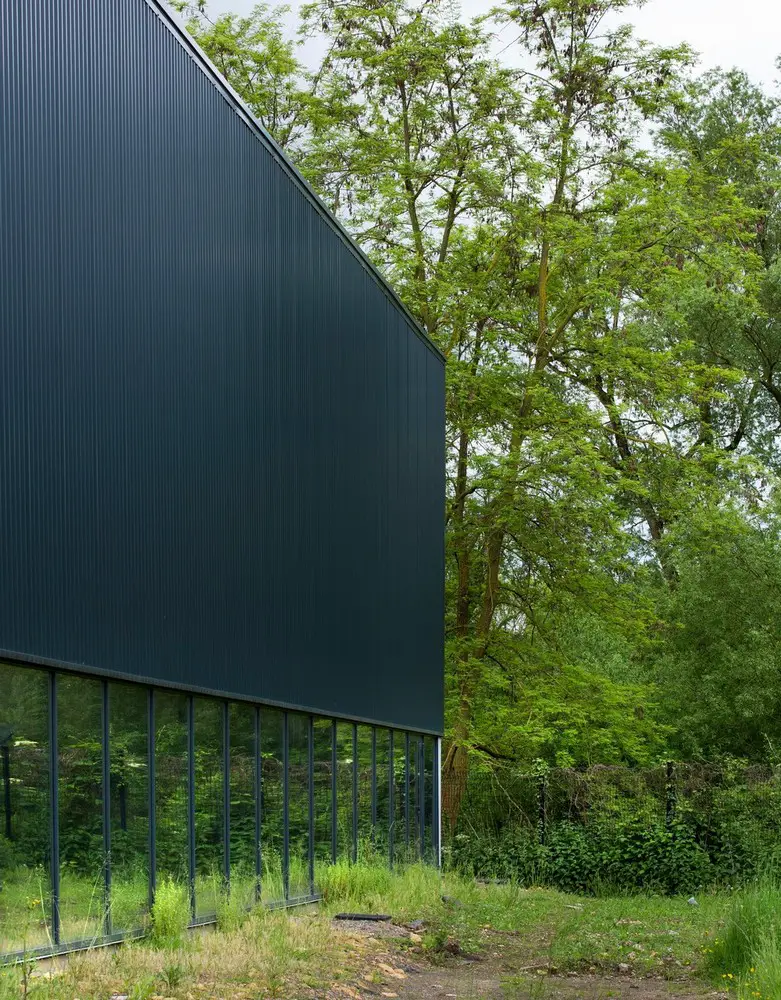

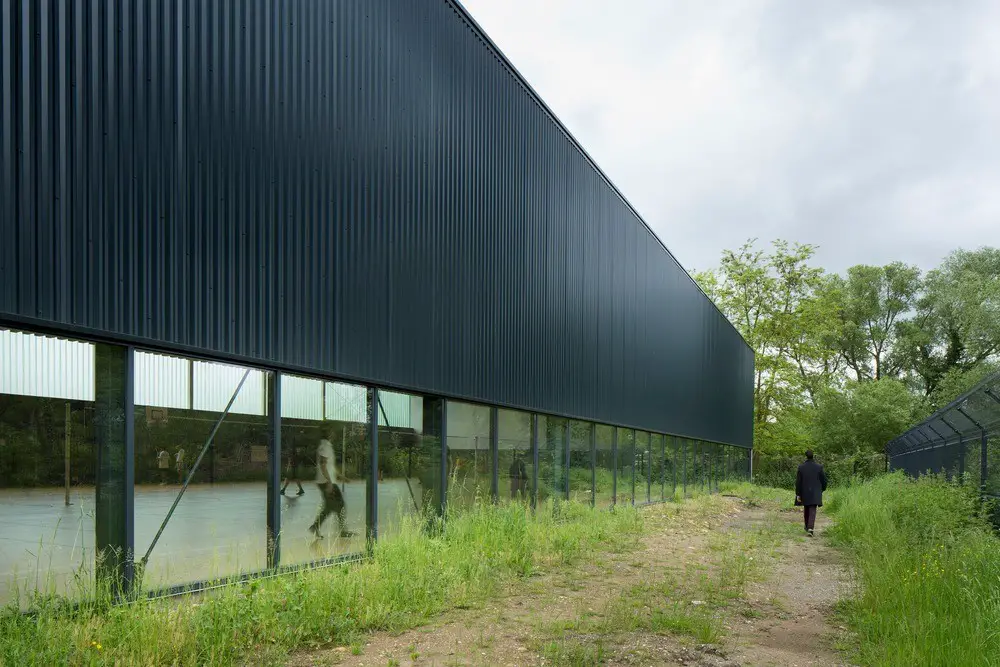

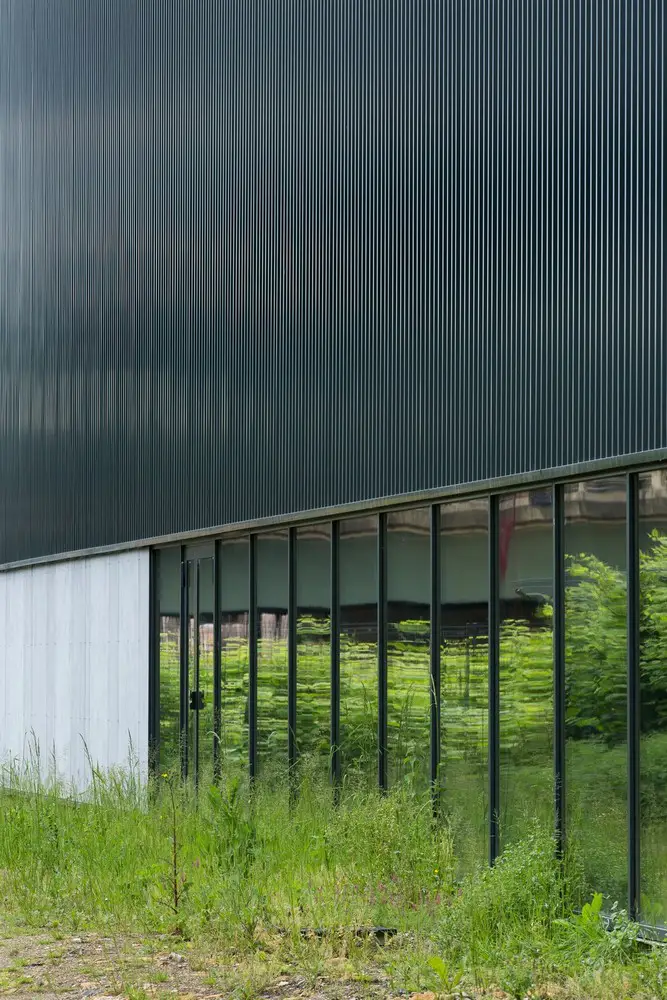

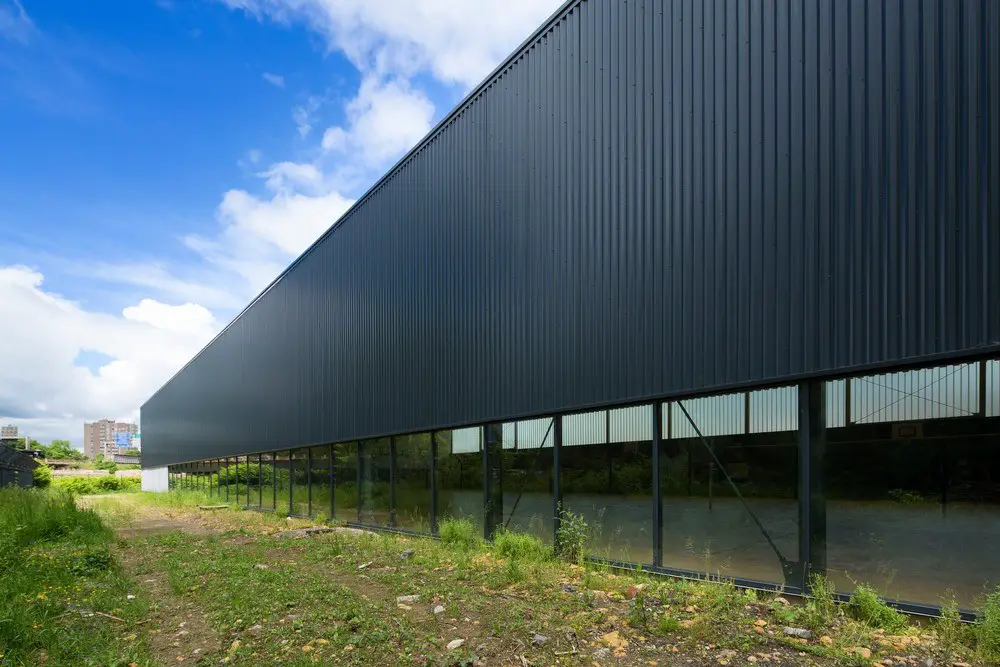

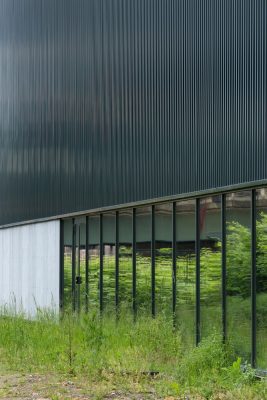

To limit the motorway noise, the southwest facade has been designed very opaque like a shield, a purposely elevated acoustic screen to both create a shed in the north and to protect it from the motorway noise. This facade is covered by cladding over insulation on the outside, then another wooden soundproofing layer on the inside. It thereby ensures both thermal and acoustic quality inside both sports halls.

Gymnasium of the Louis de Cormontaigne High School in Metz

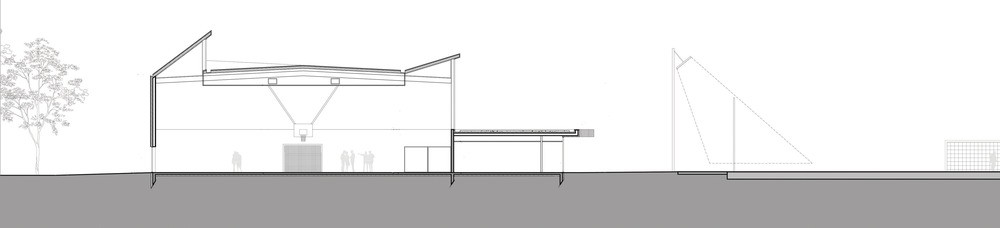

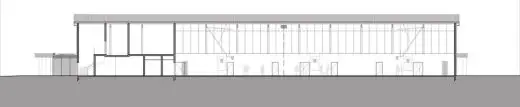

Three Layers, Three Roofs
The sports halls call for imposing volumes that are often difficult to incorporate into an urban setting. Here, we have carved the building up into several layers. It includes a low, telluric foundation; this is the volume of the annexes. Above it three ledges form 3 layers that cut through the top of the big halls through which abundant natural light flows in.

Gymnasium of the Louis de Cormontaigne High School in Metz

This composition creates 3 ledges for 3 roofs:

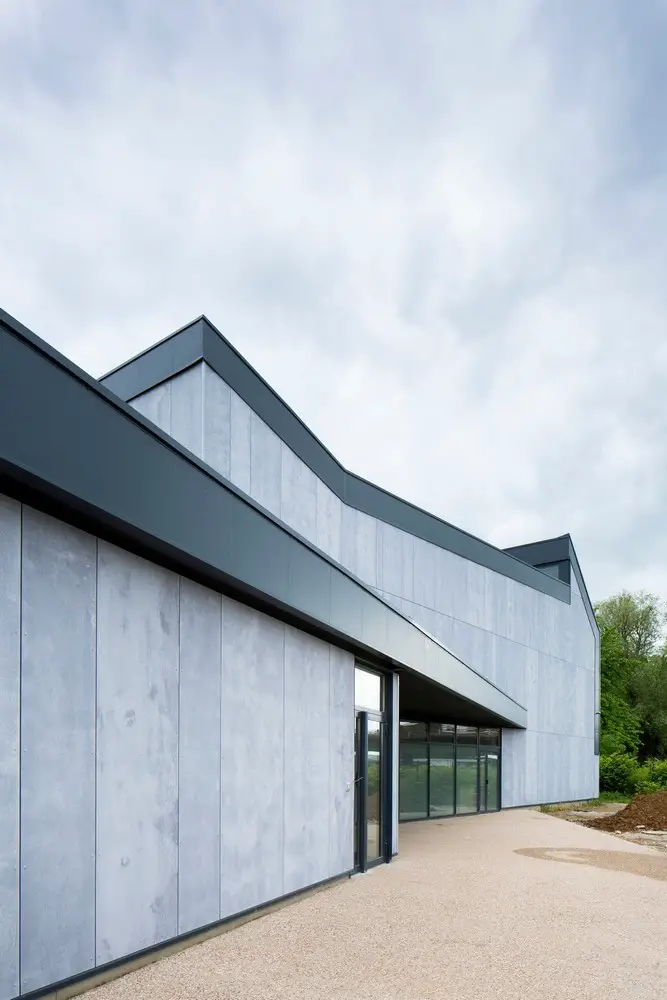

The first roof caps the low volume of the annexes. It is landscaped because it is visible from the school building, the classrooms, and motorway. It is extended by a slight overhang of the roof between the annexes and the outdoor areas.

The second roof covers the large halls. A slight inflection translates the sectioning, a two-layer sealant placed onto a steel base.

The third roof serves as an acoustic screen facing the motorway. Its curve enables a third contribution from the north, partially vertical light, and completes the luminous scheme. It is clad in continuous metal between the roof and its vertical part.

Gymnasium of the Louis de Cormontaigne High School in Metz Gymnasium of the Louis de Cormontaigne High School in Metz

Bright Spaces
With a view to visual and environmental comfort it is essential for gymnasiums to choose the best orientation in relation to the sun. In this case the gym’s north/south position highlights the quality of natural light.

Gymnasium of the Louis de Cormontaigne High School in Metz

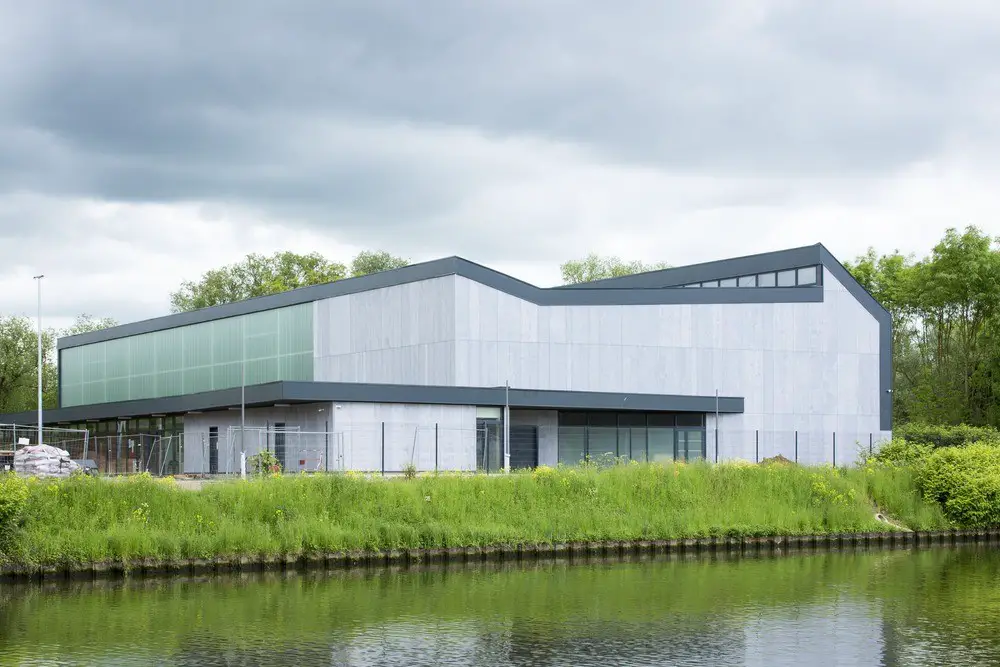

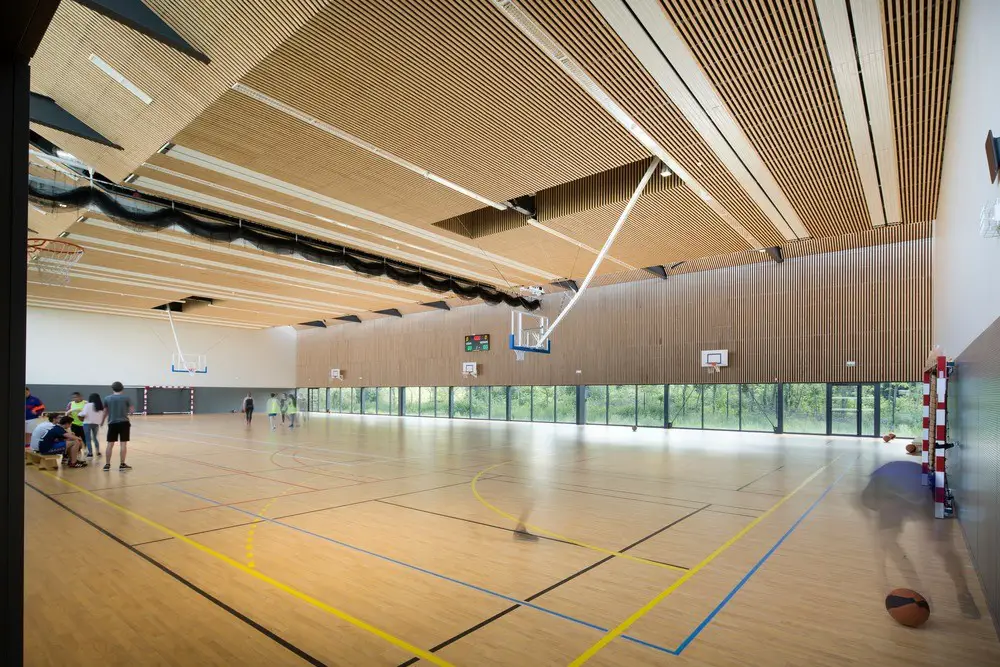

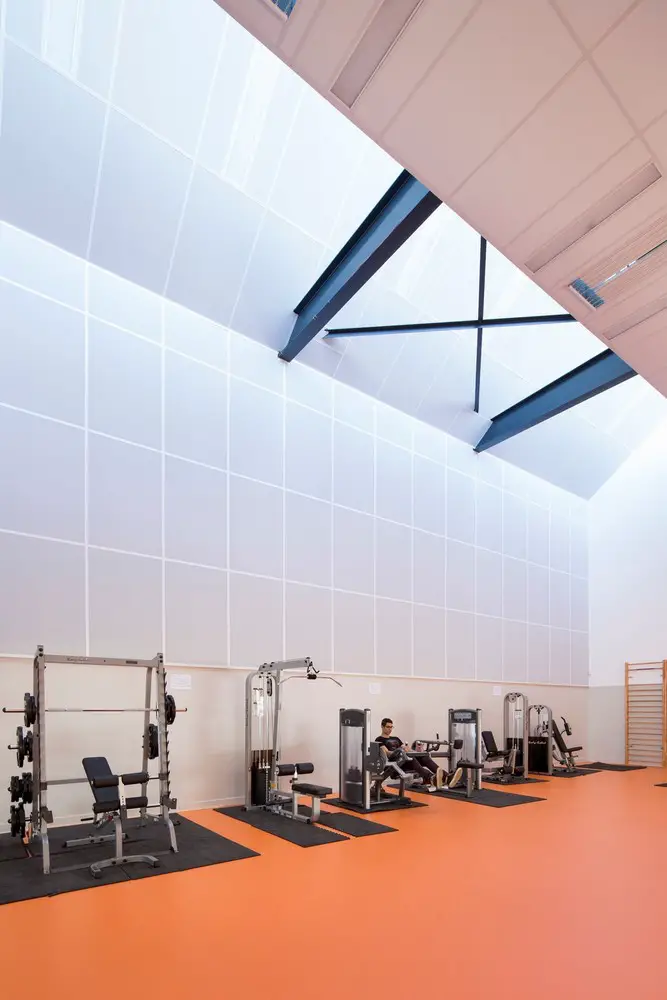

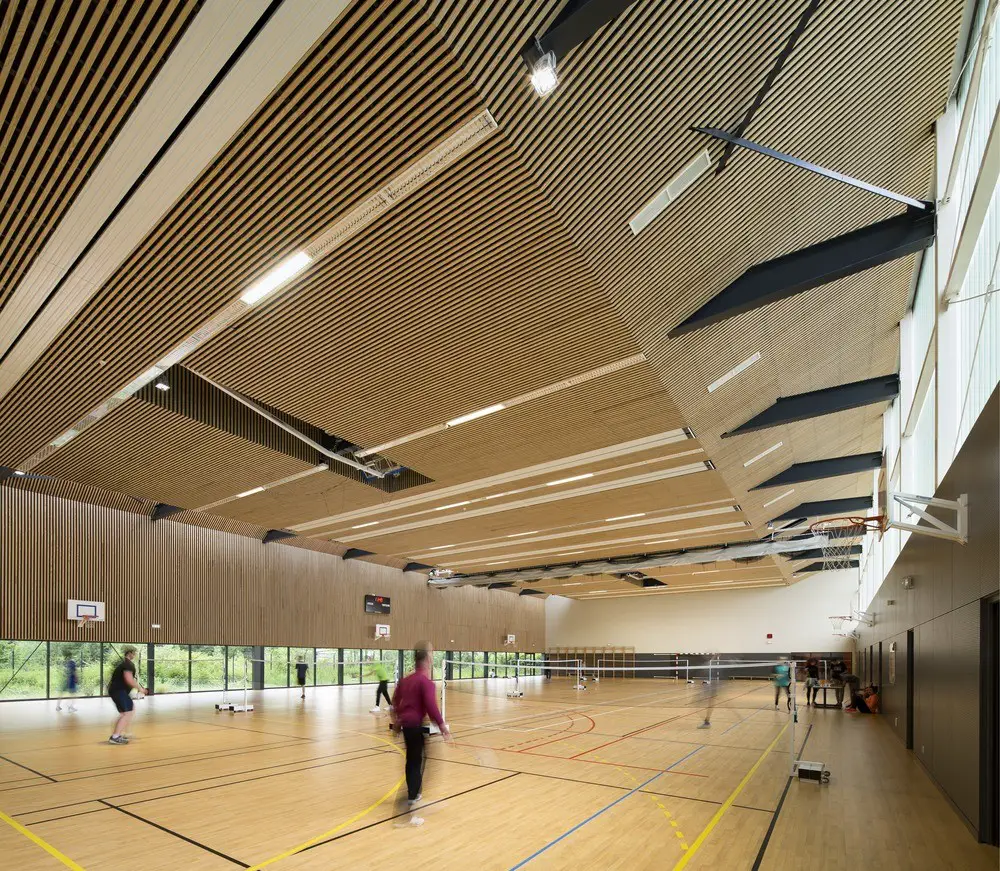

The vertical, abundant northern light provides the uniformity good for sports because it isn’t too dazzling. The translucent Reglit glass of the northern facades provides generous, harmonious light in the main gym’s remotest corners. The sheds make it possible to increase the light cone throughout the entire volume of the two gyms that avoids shadowy or overly bright areas. They also add to the indoor decor and the design of sports areas.

Gymnasium of the Louis de Cormontaigne High School in Metz

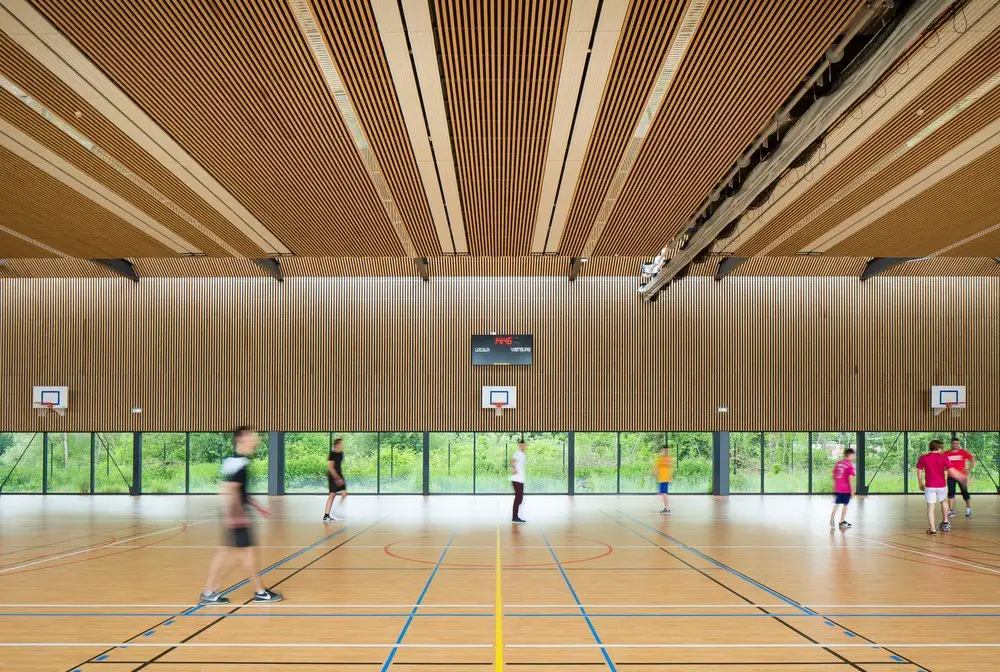

The soft, controlled southern light provides the gyms with added heat from the sun. This intentionally soft opening gives a direct view to the surrounding plant life and woodland, creating a warm, friendly undergrowth-like atmosphere.

Gymnasium of the Louis de Cormontaigne High School in Metz

The presence of a “hat” at the upper level makes it possible to avoid overheating from sunlight in the summer while still taking advantage of the winter sun.

Gymnasium of the Louis de Cormontaigne High School in Metz

The gyms thereby enjoy excellent lighting and add to the building’s heating performance while providing a pleasant view.

Gymnasium of the Louis de Cormontaigne High School in Metz

Simple, Readable Functionality
The annexes’ low volumes open onto the athletics track and outdoor football pitch. It revolves around the volume of the main gym by circling it on the northern and southeastern corners. A large glass facade in this low volume makes the foot traffic-friendly, pleasant and bright. Interaction with the outdoor areas is therefore clear-cut. This entire low volume is topped by a green roof to limit the volumes in rainwater retention, improve heating and offer a pleasant view from the classrooms which have an uninterrupted view of the new gym.

Gymnasium of the Louis de Cormontaigne High School in Metz

This base condenses the many access points, i.e. from the path along the embankment for outdoor users, from the high school’s buildings and from the outdoor track and pitch.

Gymnasium of the Louis de Cormontaigne High School in Metz

The inside has been organised to enable several uses of the annexes and access points:
• The smaller gym has a dedicated changing room. It is located across from it and also opens onto the outdoor areas
• the main gym has two dedicated changing rooms, also accessible through the glass band
• the main access to the centre gives onto both gyms with a second access point into the main gym
• a secondary access point from the embankment for sporting associations and clubs (evenings and weekends)
• outdoor access to the service and storage rooms

Gymnasium of the Louis de Cormontaigne High School in Metz

The entry hall for the general public can easily be seen from the school and outdoor areas. It communicates with the entrances of the two gyms, the reception, the toilets, the changing rooms for teachers and the service areas. A friendly space that, weather-permitting, extends to the outdoor space. The changing rooms are walk-through in order to adhere to the ideal layout:

• dirty feet/clean feet
• street shoes/sports shoes

Gymnasium of the Louis de Cormontaigne High School in Metz

Gymnasium of the Louis de Cormontaigne High School, Metz – Building Information

Location: Metz (57)
Client: Région Alsace-Champagne-Ardenne-Lorraine
Team: agence Engasser & associés
ID+ (engineer)
Programme: Reconstruction and extension of the gymnasium, two gyms and an outdoor field
Area: 2,000 sqm SP – 1,850 sqm SU
Budget: 2.9 M€ HT
Year: 2013–2017

Gymnasium of the Louis de Cormontaigne High School in Metz

Photography: Mathieu Ducros

Gymnasium of the Louis de Cormontaigne High School in Metz images / information received 020318

Location: Metz, France

Metz Buildings

Metz Architecture

Metz Architecture

Centre Pompidou-Metz
Design: Shigeru Ban with Jean de Gasties & Gumuchdjian Architects
Centre Pompidou-Metz
photo : Roland Halbe
Centre Pompidou-Metz

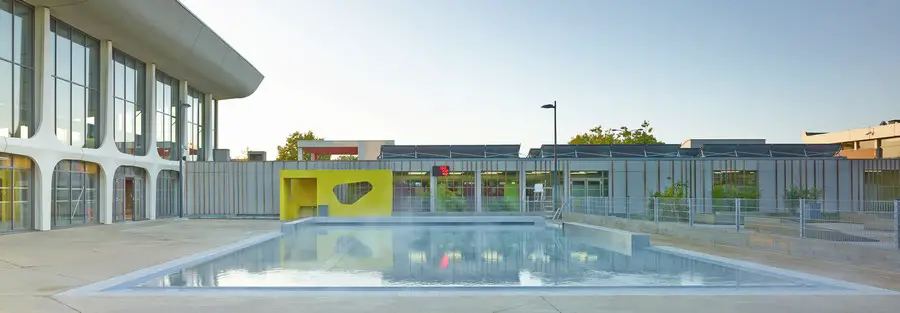

Montigny-les-Metz Aquatic Centre, 19 rue Pierre de Coubertin
