Meadow House in Essex

14 Jan 2021

Design: Strom Architects

Location: Essex, Southeast England, UK

Meadow House is a replacement house in a quiet village in Essex.

Meadow House Essex

Visuals by NuMa

Meadow House, Essex

The beautiful site sits at the edge of the village, and has an open parkland feel. Our approach was to ensure that we placed great emphasis on the landscape so the house and site were considered as one.

Meadow House Essex

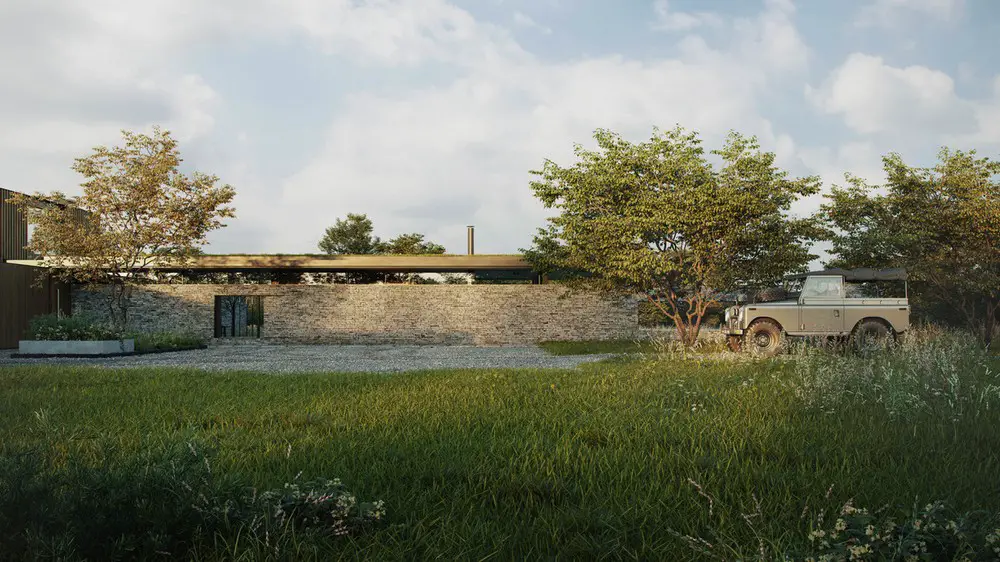

To re-organise the site, our proposals insert a series of walls which respond to the physical site features. A wall starting near the access point to the site delineates the entrance, and with another wall perpendicular to the first, an entrance court is defined. A third wall on a south-west to north-east axis defines an area facing south-west for living and another for sleeping that faces south east to catch the morning light.

Meadow House Essex

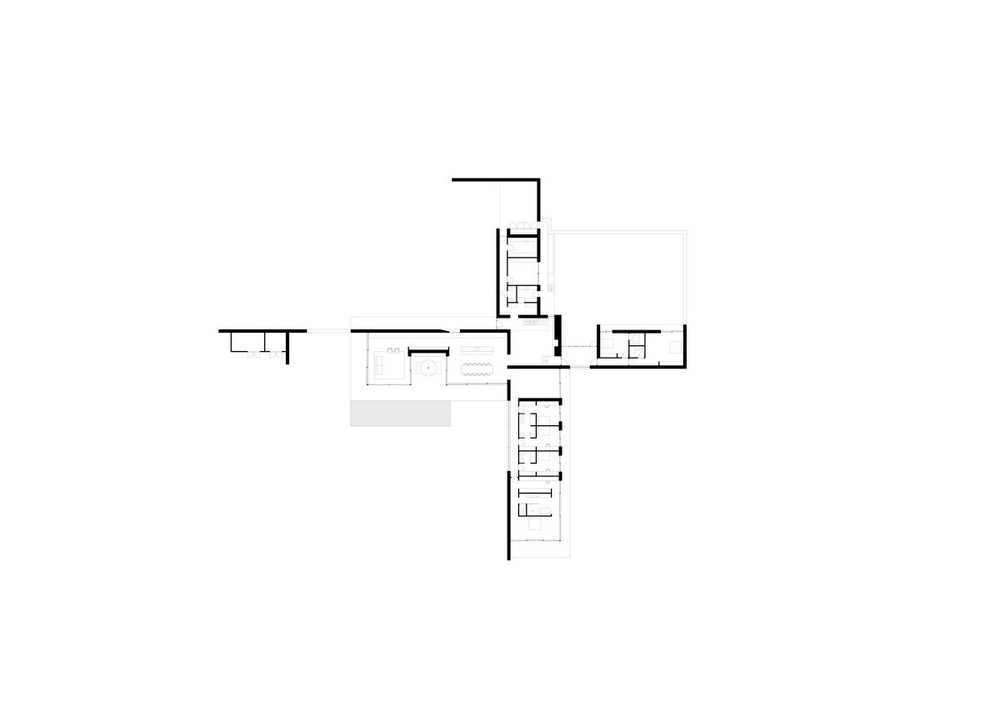

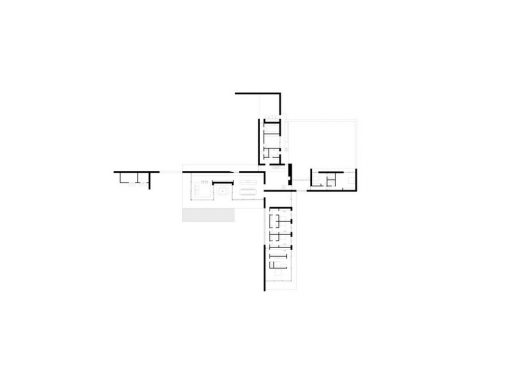

A final fourth wall defines an area to be used as kitchen garden and where the ancillary building containing the study and gym is located. Together the walls form a pin-wheel arrangement of space. The entrance and access point to the different areas are at the centre and at the pivot point of the plan arrangement.

Meadow House Essex

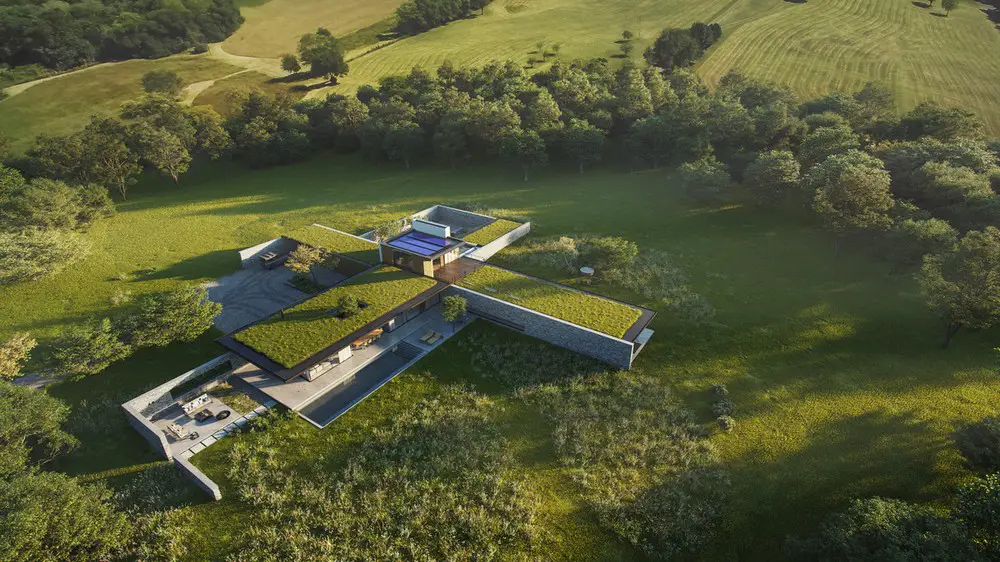

Four different pavilions, each with its own function, occupy the four different corners of the pin-wheel plan.
To the north-east is the garage volume, also containing plant, utility and storage.

Meadow House Essex

To the south-east is the guest annexe. This volume is located in a walled garden. This is the higher part of the site, allowing the walled garden to be set into the ground to reduce visual impact.

Meadow House Essex

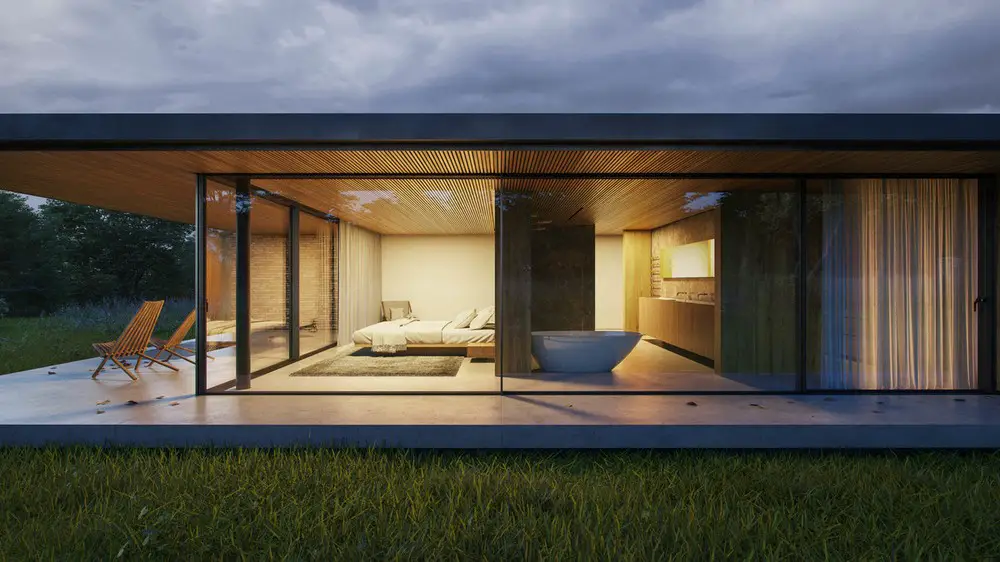

To the south-west is the bedroom wing – it faces south-east to capture the morning light. The master bedroom is at the end, allowing the best views out over the landscape.

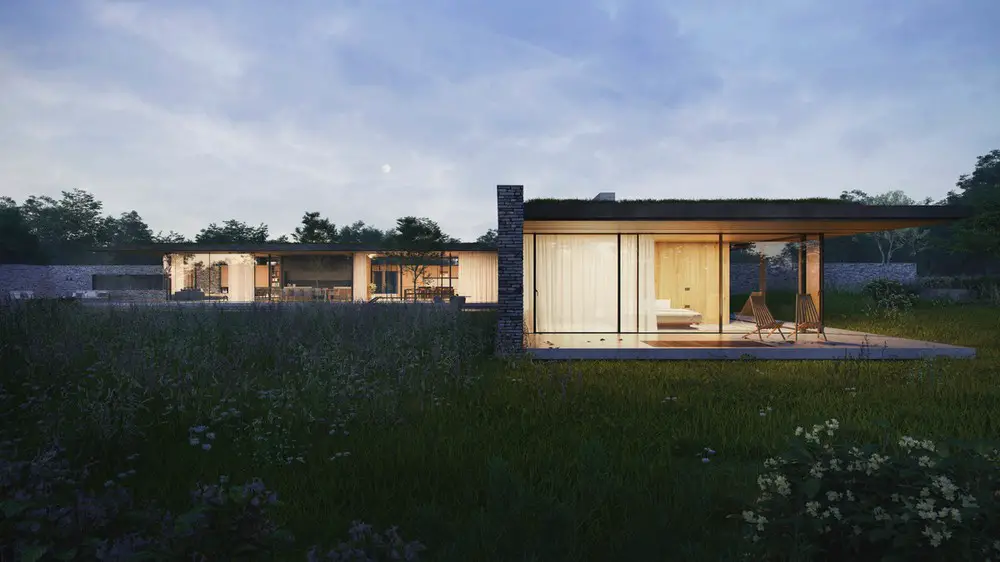

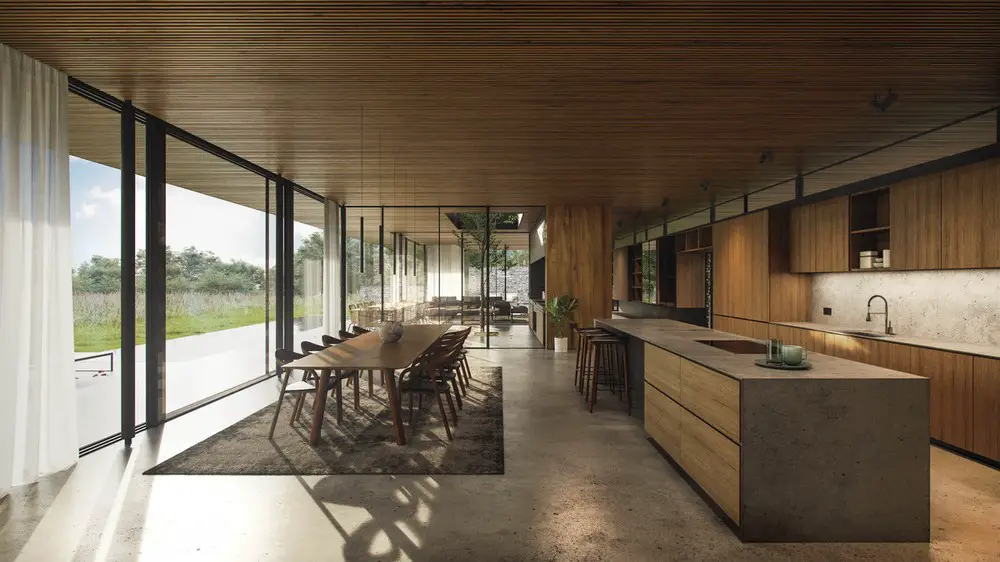

The final volume contains the social areas: kitchen, dining and living room. By locating all other functions in the other volumes, this pavilion can be very clean in its architecture, achieving an elegant and distinct appearance.

Meadow House Essex

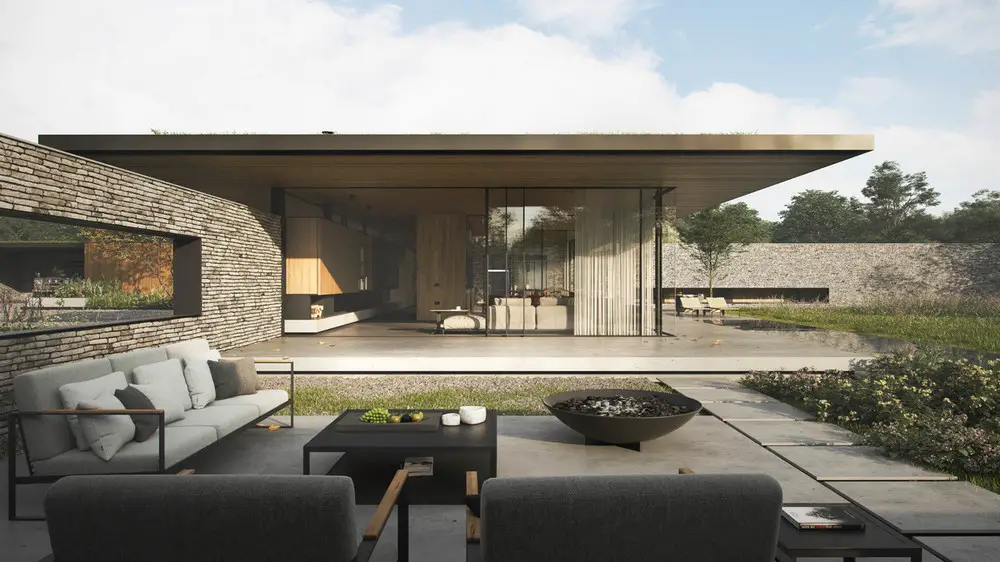

By continuing the external walls we create a series of walled gardens, each with its own identity and purpose, and creating visual continuity out into the gardens.

Meadow House Essex

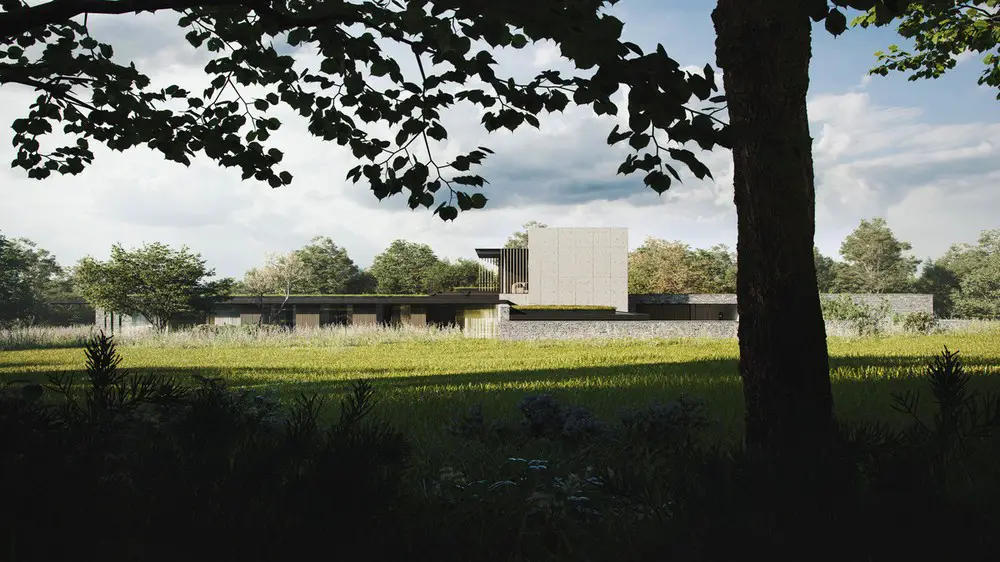

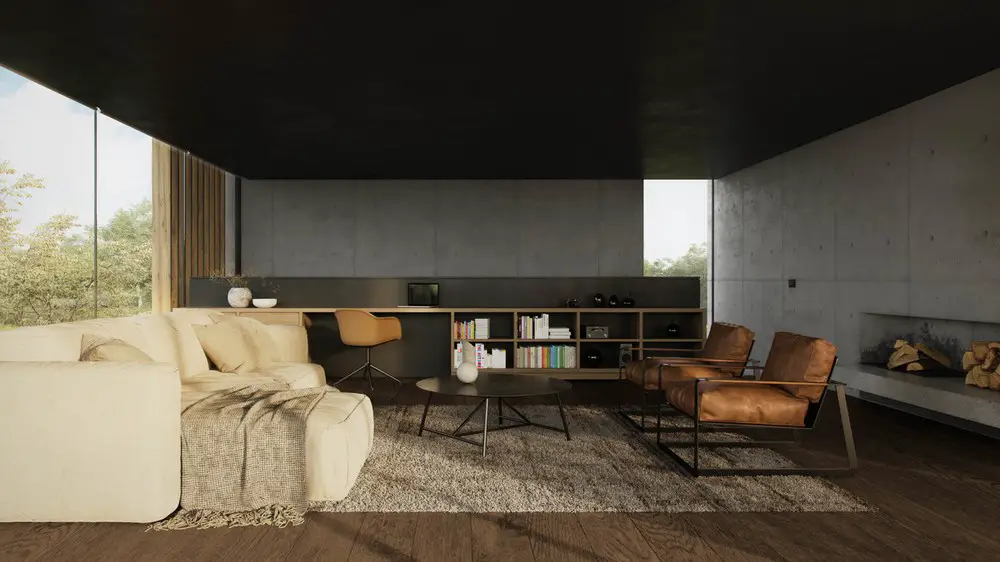

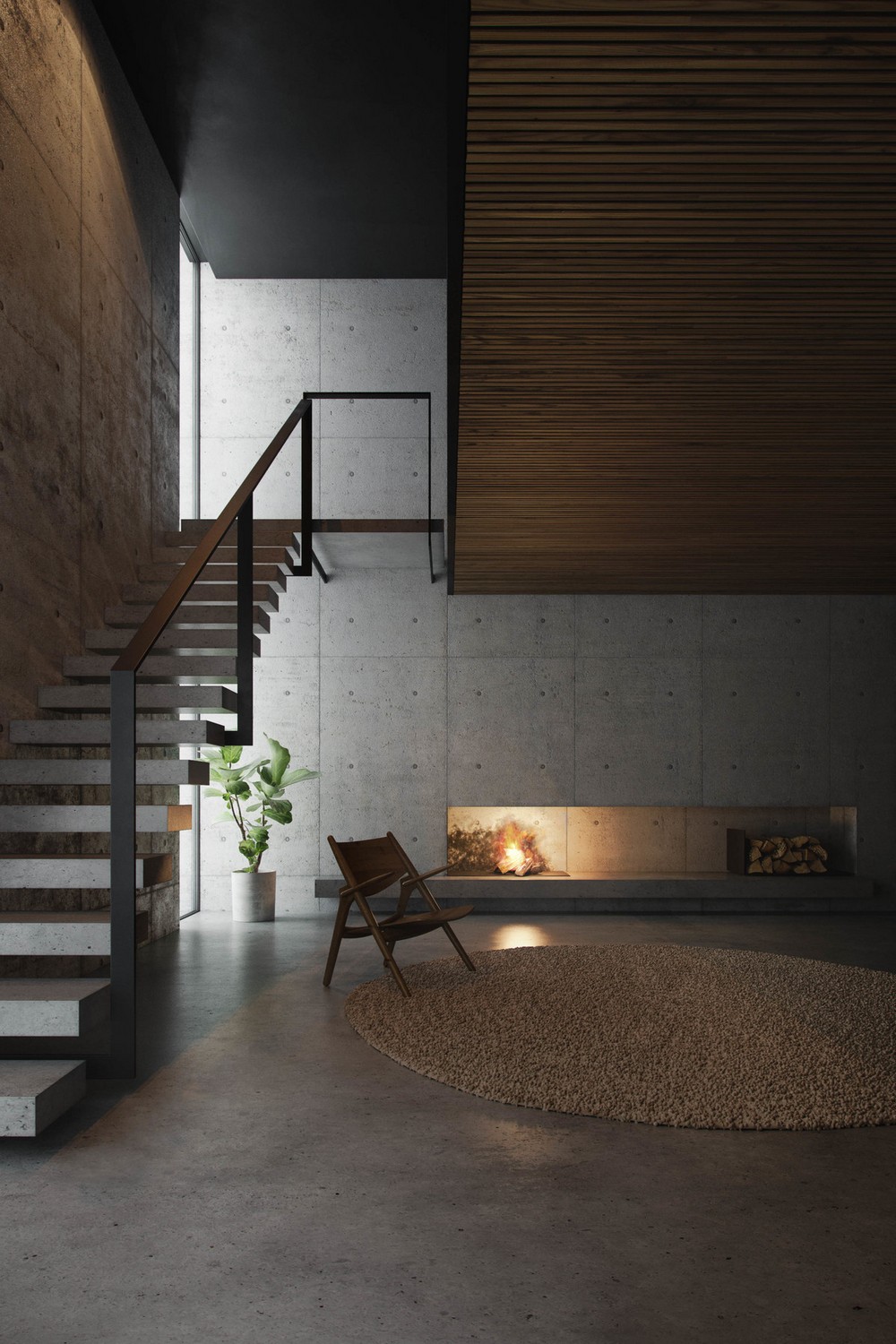

In the centre of the pin-wheel plan sits the primary access and circulation space. This is the only part of the house that is two-storey, accommodating a more formal sitting room, benefiting from elevated views of the site and surrounding countryside.

Meadow House Essex

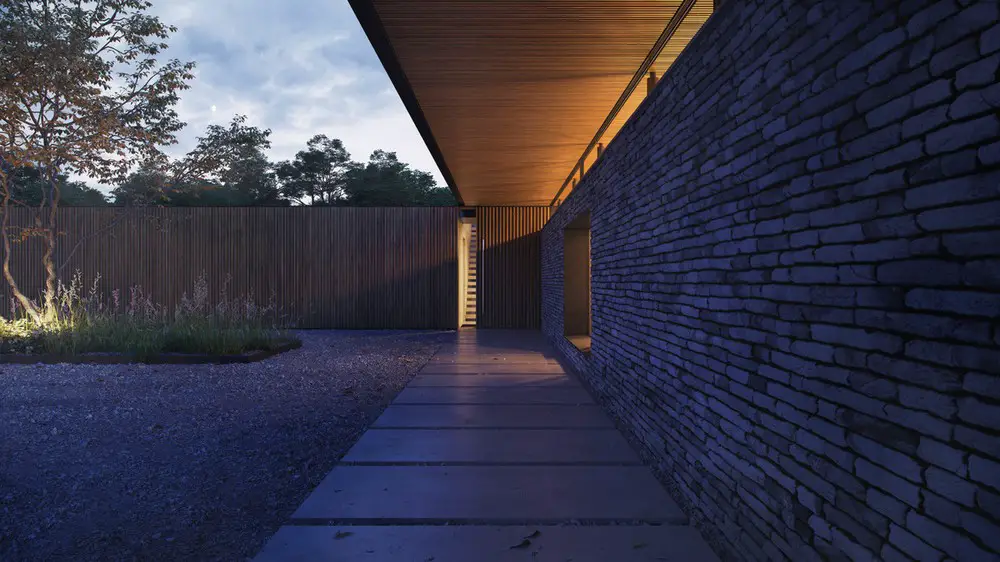

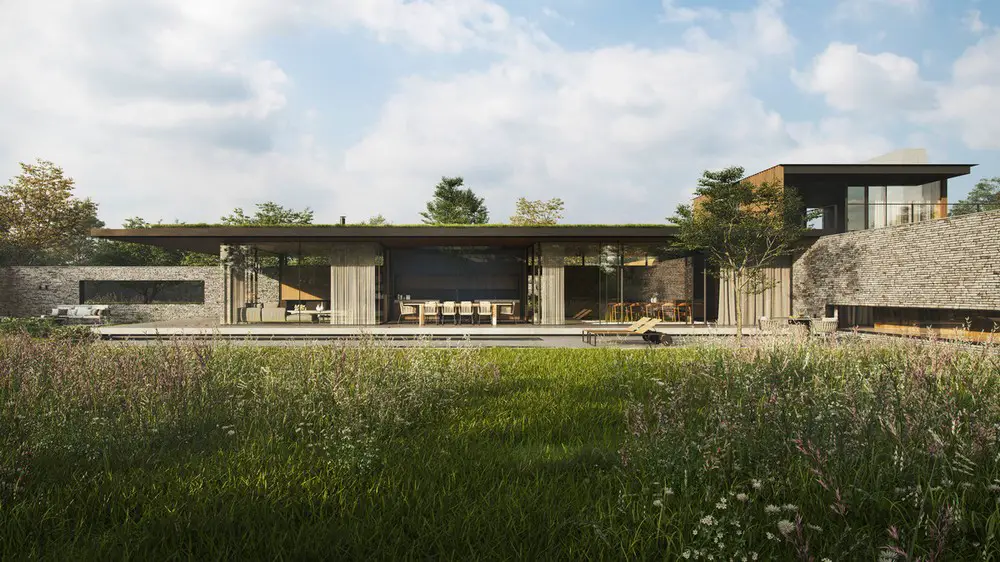

The over-sailing roofs are strong features of the house, helping to define spaces, frame views and provide texture and material warmth. The timber soffit will run from inside to the outside, strengthening the appearance of the roof as a singular plane, and ensuring a link between internal and external environments.

Meadow House Essex

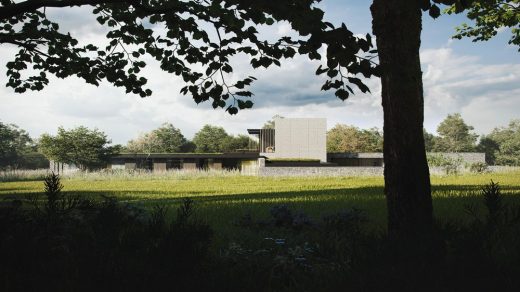

With stone walls that extend from being part of the house, to becoming part of the landscape, and with ground and roof planes that do similarly, we ensure that the house is grounded to the wide, open site.

The project gained planning approval in June 2020, and started on site in September 2020 and is due for completion in December 2021.

What were the key challenges?
The key challenge was to successfully overcome planning constrains as the building sits in Green Belt.

Meadow House Essex

What were the solutions?
We started with a landscape lead approach, with a key emphasis of the project having less visual impact than the house we replaced. As such, we designed a predominantly single storey building.

Meadow House Essex

Meadow House in Essex, UK – Building Information

Architects: Strom Architects

Project size: 650 sqm
Site size: 36000 sqm
Building levels: 2

Glazing: IQ Glass

Sustainability Consultant and M+E Consultant: Mesh Energy

Jensen Hunt
Emily Erlam Studio

Meadow House Essex

CGI Renderings: Numa

Meadow House in Essex, England information / images received 140121 from Strom Architects

Another recent house design by Strom Architects on e-architect:

House on Omaha Beach

Location: Essex, south east England, UK

Essex Properties

Essex Buildings

Essex Architecture – architectural selection below:

A House for Essex, England
Design: FAT Architecture + Grayson Perry
House for Essex by FAT + Grayson Perry
photo : Jack Hobhouse
A House for Essex
Shortlisted for Mies van der Rohe 2017 Awards and the Stirling Prize

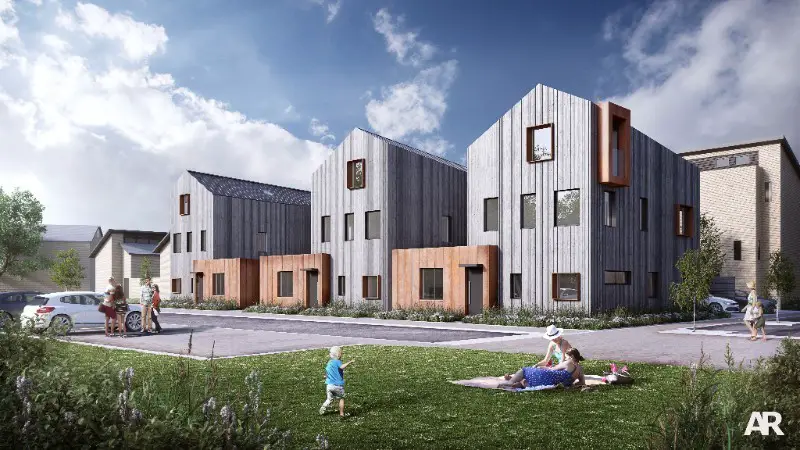

New Pond Street, Newhall
Architects: AR Design Studio
New Pond Street Newhall, Essex by AR Design Studio
image courtesy of architects
AR Design Studio

Newhall Be, Harlow, north west Essex
Design: Alison Brooks Architects
New Housing in Harlow
photo : Paul Riddle
Newhall Housing

ESSEX Architecture Weekend

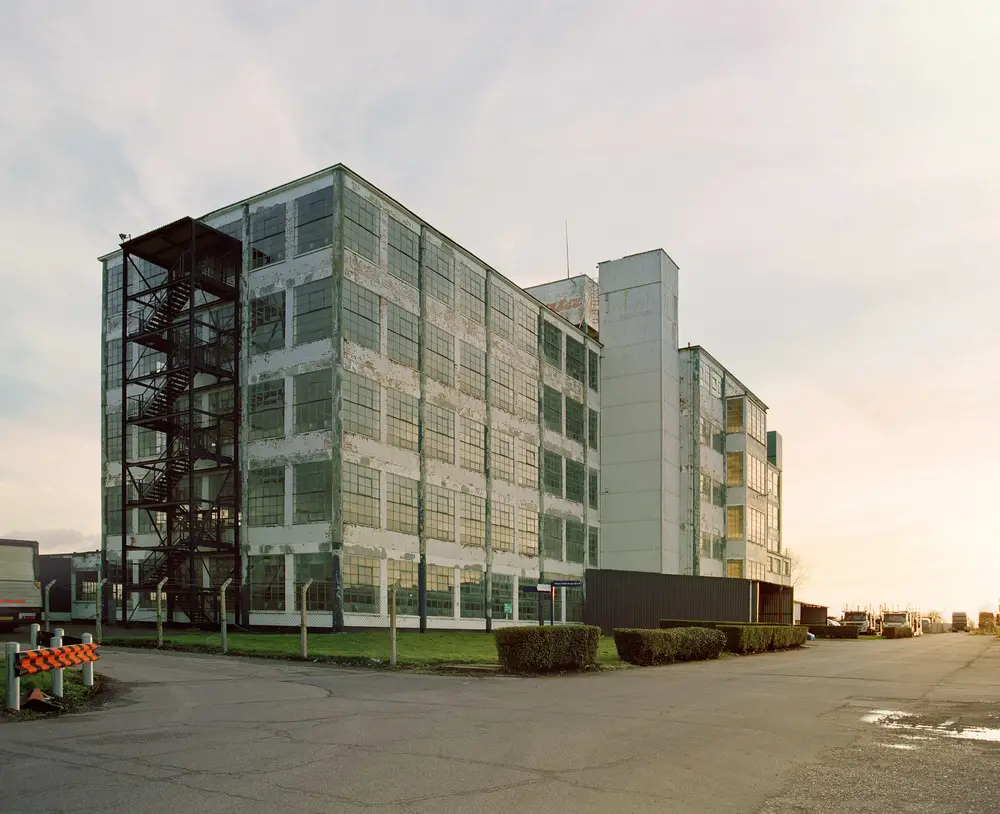

Bata Factory, East Tilbury building in Essex
photo © Catherine Hyland. Courtesy Focal Point Gallery
Essex Architecture Event

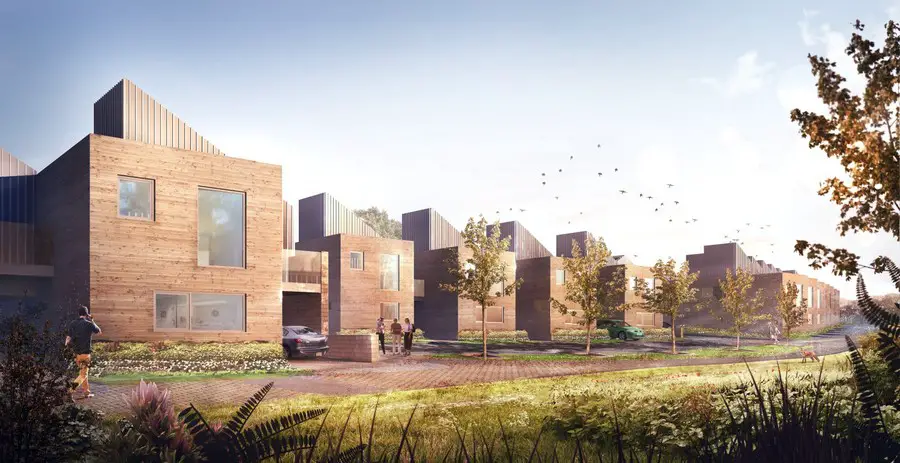

Newhall Housing
