Pergola Pavilion in Lo Barnechea

Pool House Development in Santiago de Chile, South America home design by PAR Arquitectos

15 June 2020

Architects: PAR Arquitectos

Location: Lo Barnechea, Santiago, Chile

Pergola Pavilion

Pergola Pavilion

Photos by Diego Elgueta

Pergola Pavilion – Lo Barnechea Pool House

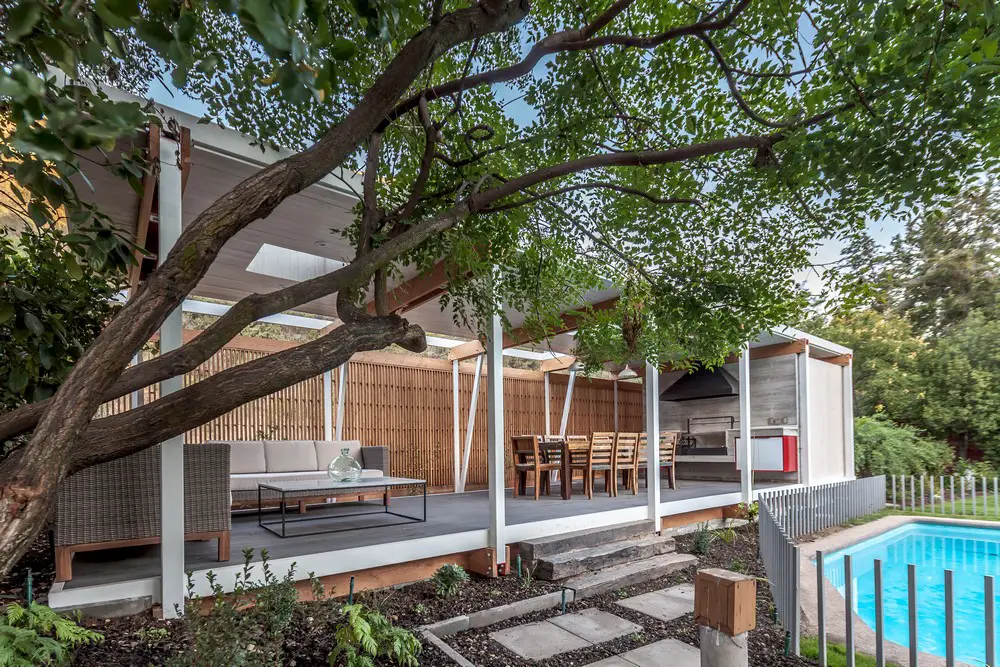

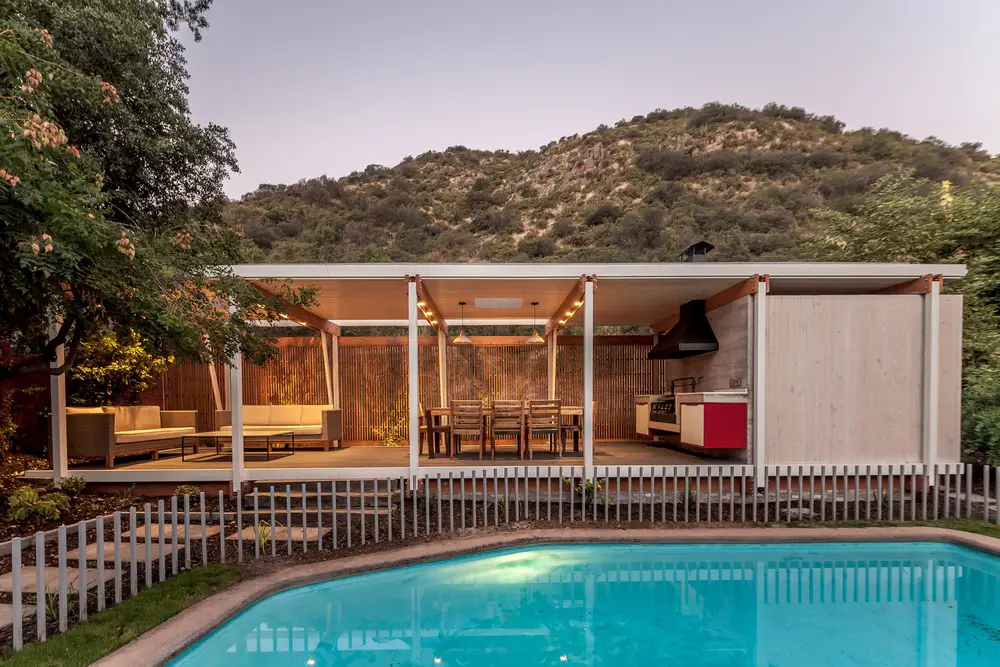

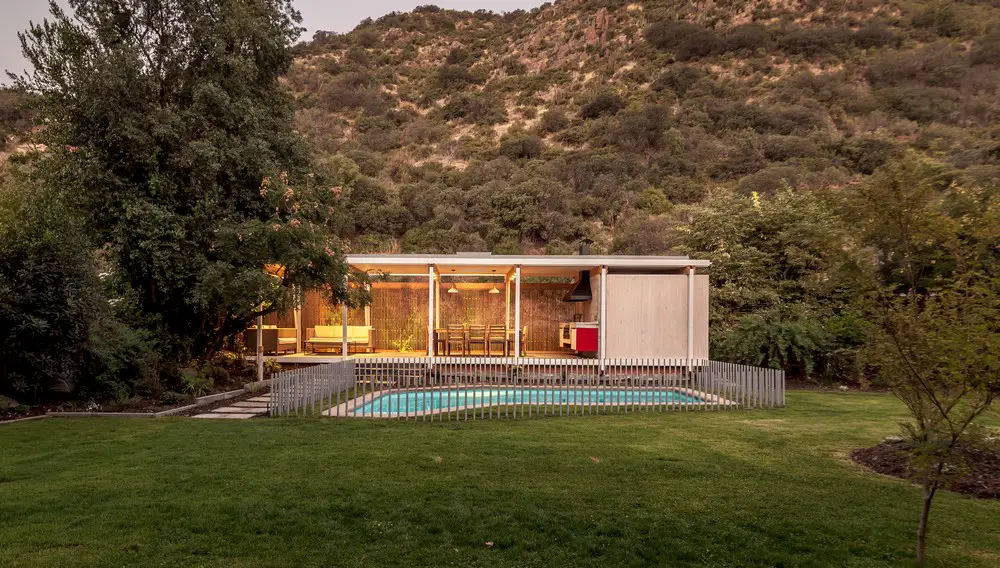

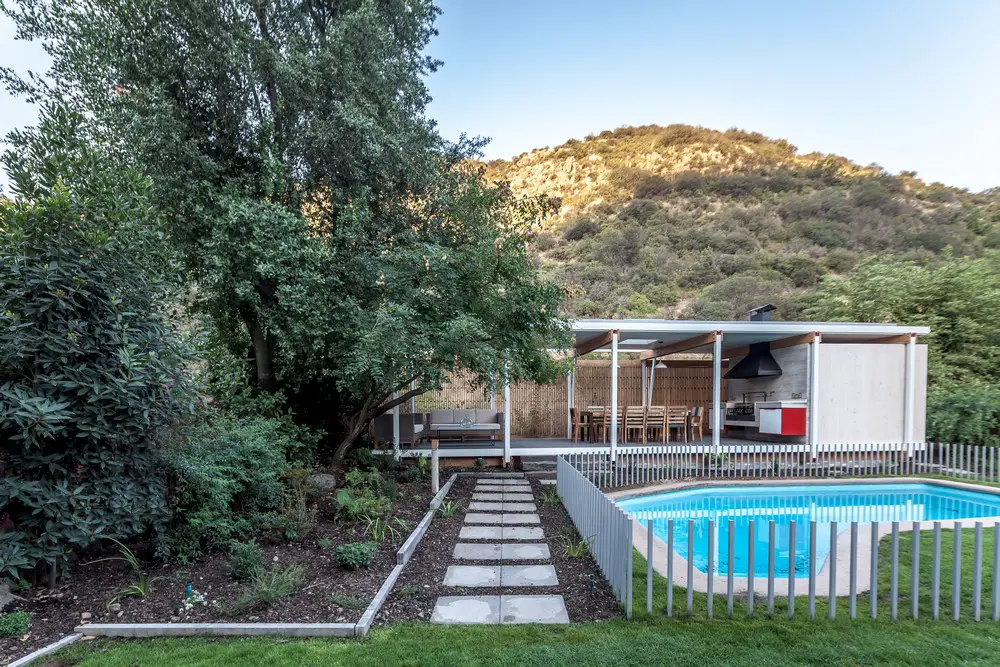

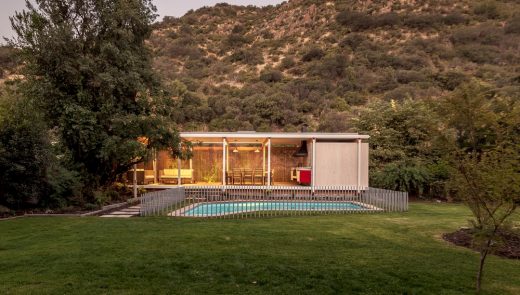

An isolated and open construction, next to an existing swimming pool, was ordered at the end of the house garden. The place is presented with an outstanding geographical support, which contains and frames a privileged green environment, typical of the pre-mountain range area east of Santiago.

Pergola Pavilion

The project strategy refers to the pergola as an architectural reference; That light and autonomous frame as an integral support of nature and multiple activities.

Pergola Pavilion

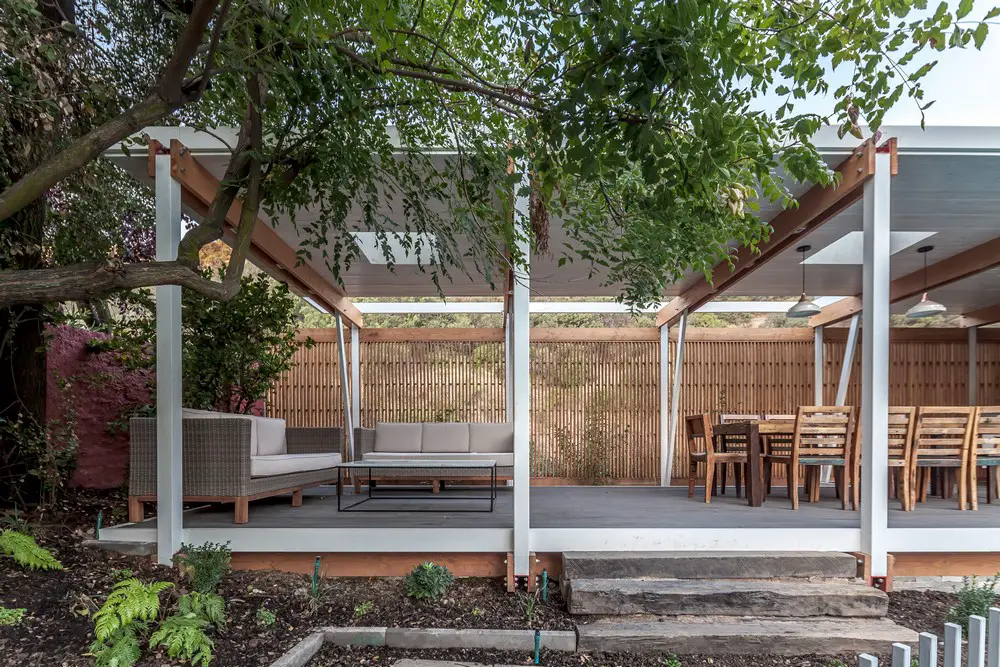

Taking into account these premises, the project proposes as a general party a sequence of 5 modules configured through 6 mixed structural trusses composed of a system of 100x100x3 white painted steel pillars and composed beams of 2×8″ Oregon Pine worked in commercial formats, which stand on a stone base that gives the project a new layer over the natural terrain level.

Pergola Pavilion

Pergola Pavilion

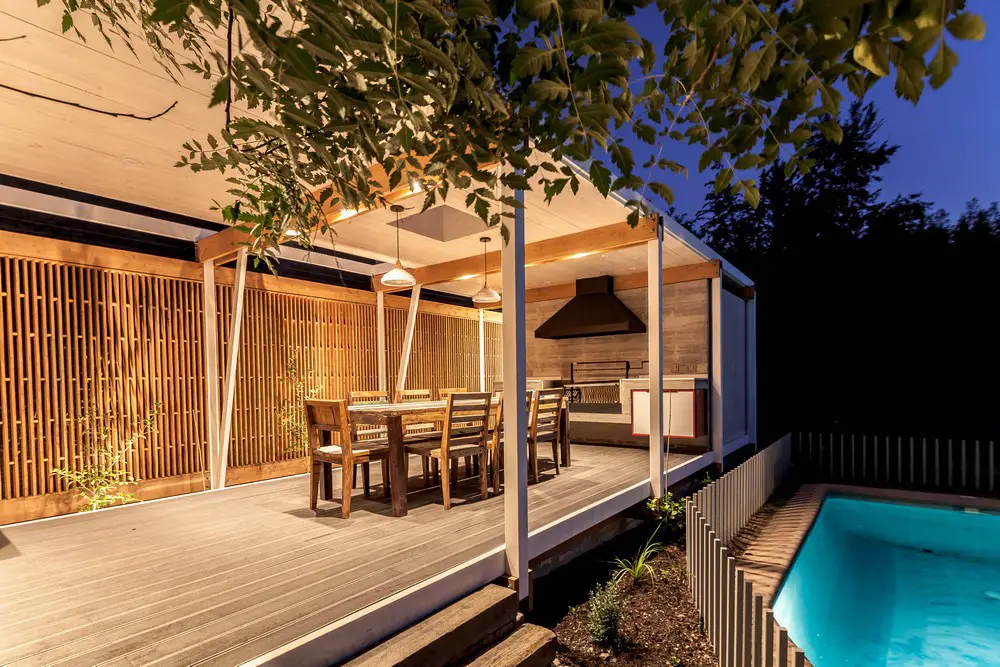

The project contemplates two programmatic areas, which are divided and articulated by a central concrete wall transversal to the volume that contains the grill`s equipment.

Pergola Pavilion

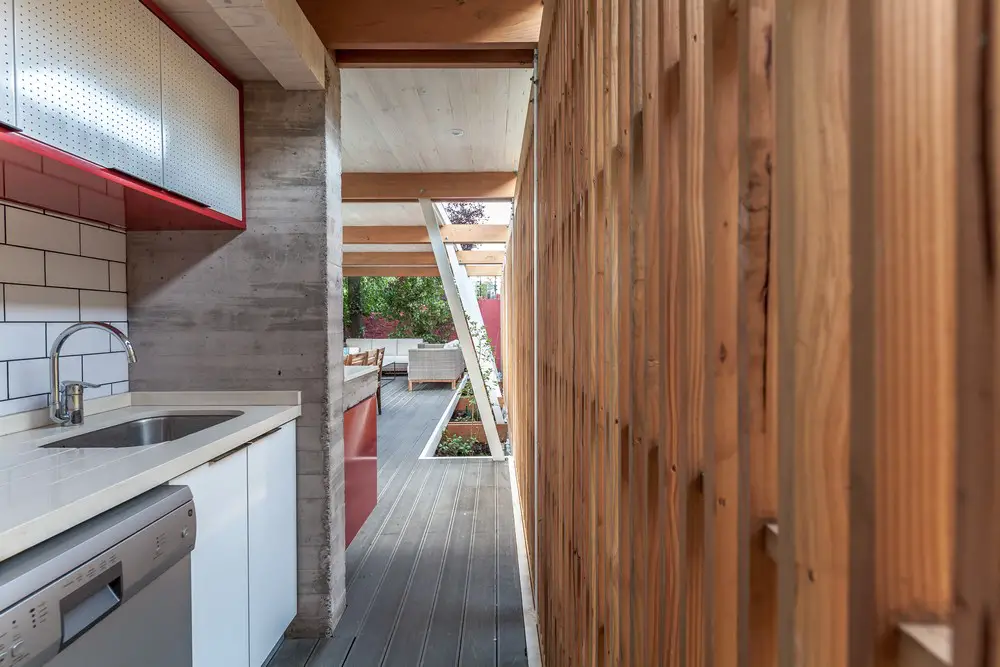

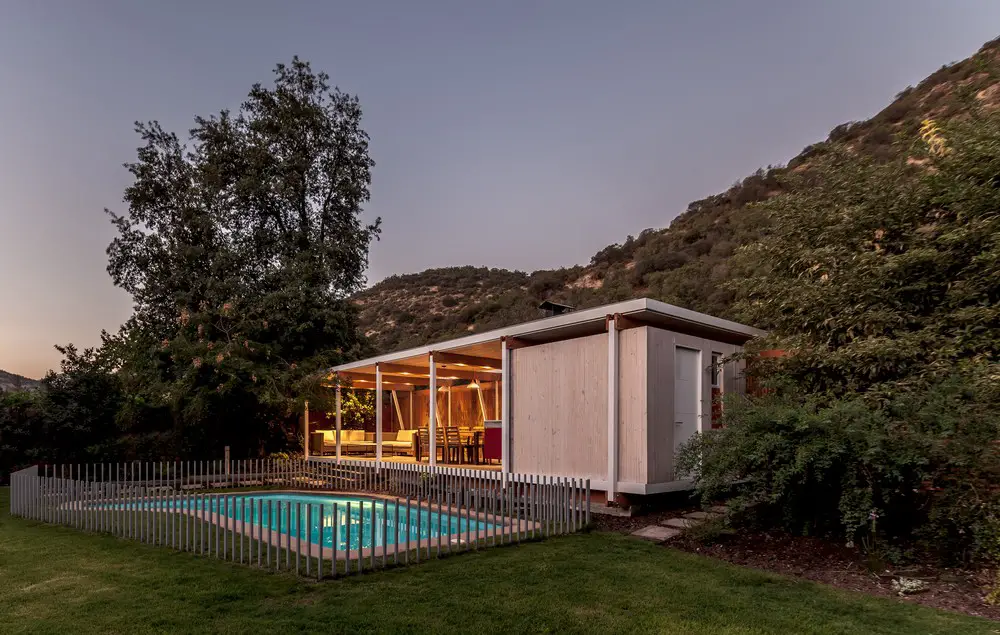

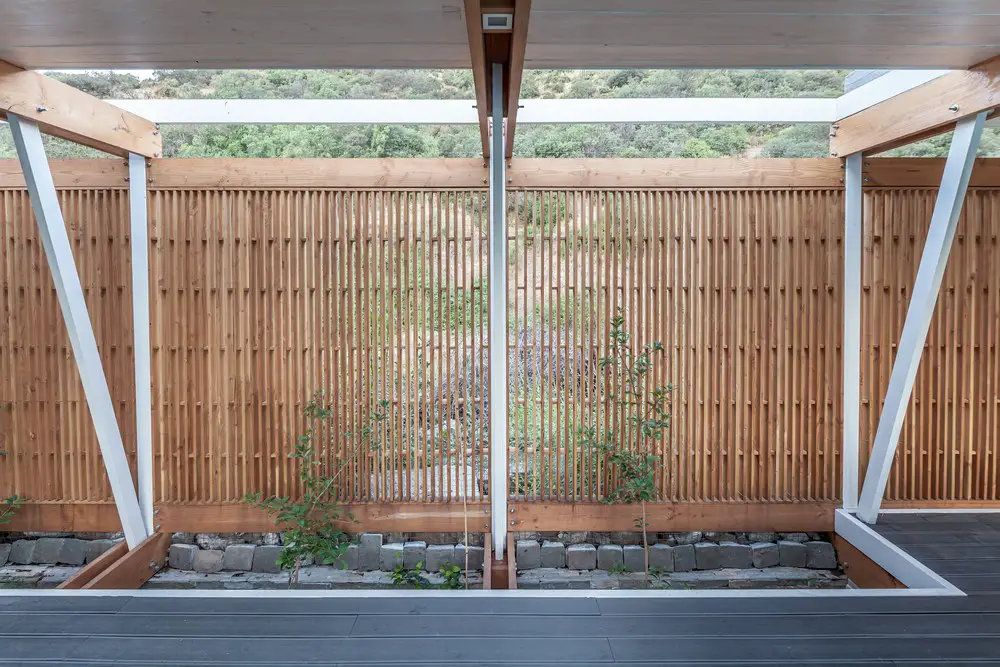

A permeable and translucent area of recreation contained by the closure of a 1 “x 4” Oregon Pine louver that accompanies the volume throughout its length, and a sealed service module uncoupled and detached from the established modulation, which houses the kitchenette, Bathroom and wine cellar.

Pergola Pavilion

At the same time, as a conditioning of the approach, a certain flexibility is established in the future composition of the pavilion, which by the repetition of the structural framework, can constitute a new programmatic unit of a playroom or spa, without breaking the composition Unit of the skeleton.

Pergola Pavilion

Pergola Pavilion

For the anchoring of the structural pieces the detail of the encounter is worked through a metallic joinery that assembles the Union as part of the character and image of the project.

Pergola Pavilion

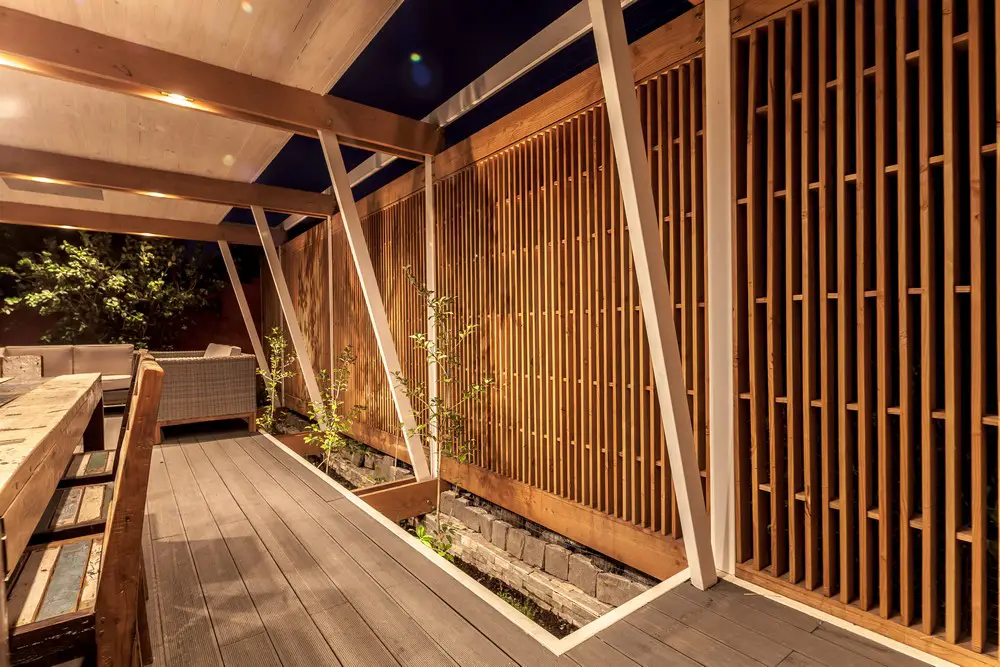

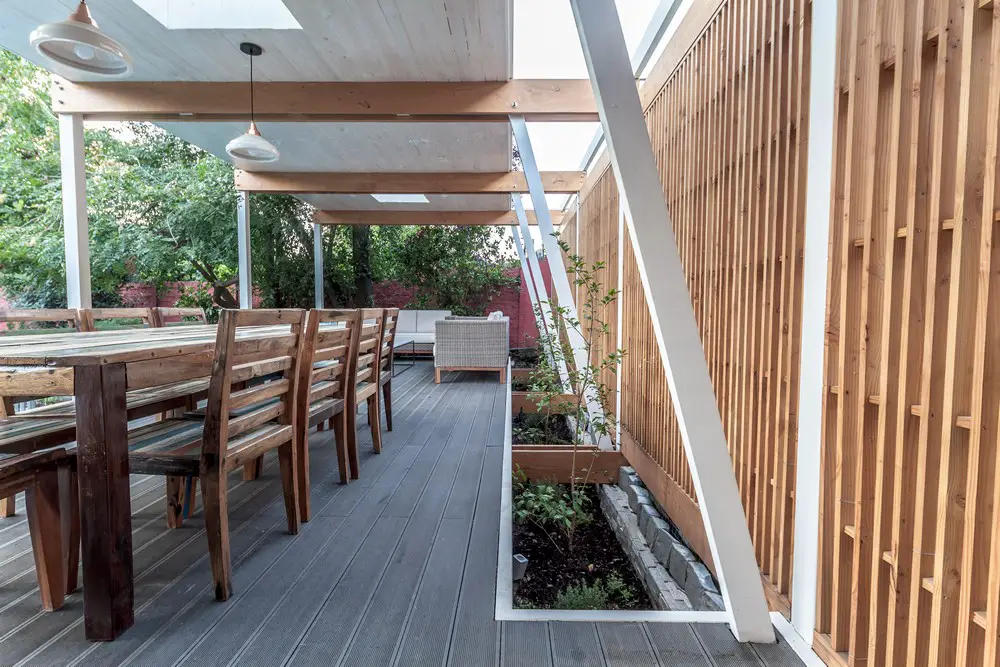

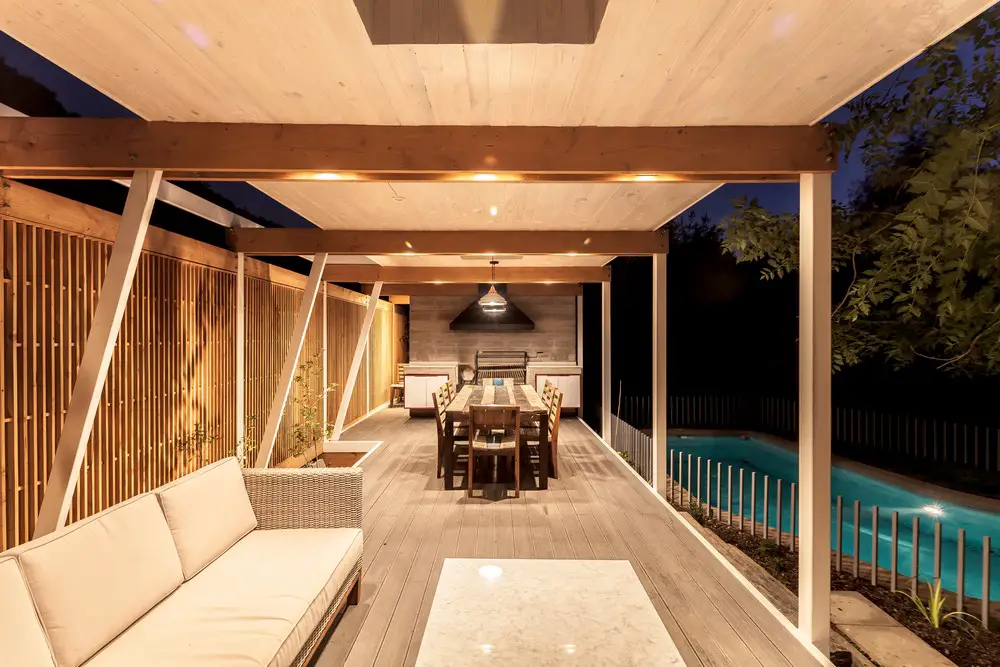

Complementing the East orientation established, the transparencies are worked integrally with skylights and louvers in search of different areas of light and natural ventilation, and certain openings by cutting of the deck and the floor platform that give rise to an interior planter.

Pergola Pavilion

Pergola Pavilion

In relation to the materialities are favored noble materials, easy to maintain and long lasting. The structure and pallets are Oregon Pine lumber dried and dressed in chambers and treated with Wetproff extra colorless waterproofing varnish.

Pergola Pavilion

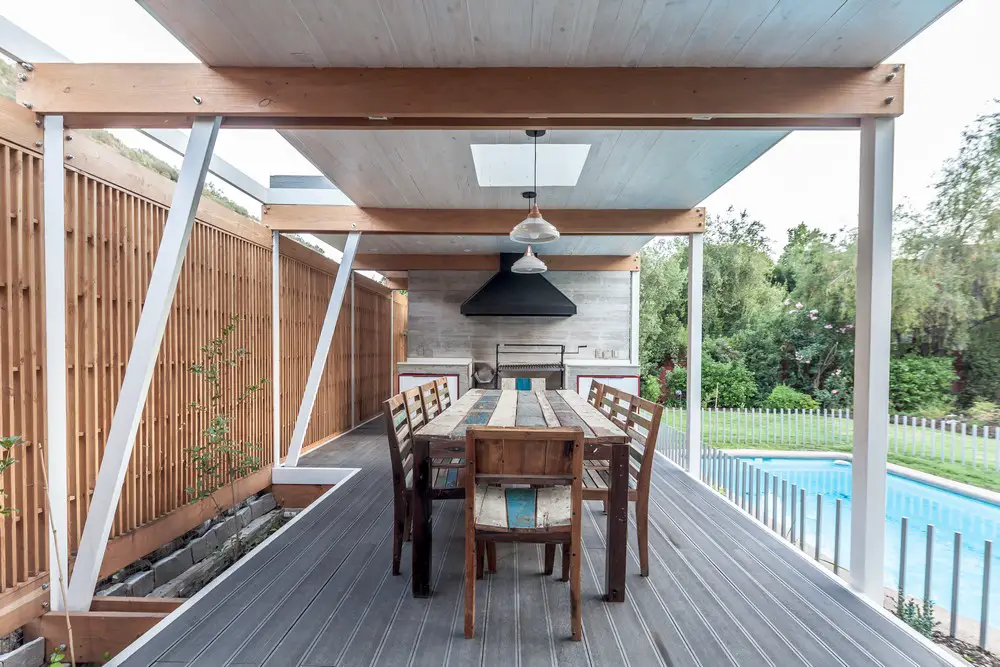

In the case of pavement, WPC gray-gray deck of Lorenzini was chosen. As ceiling cladding, 1″x 4” wood board pine is used, of Arauco treated with white varnish Wetproff, nailed on rafters which are anchored to the main steel beams forming a rigid diaphragm with the OSB wood board of the roof.

Pergola Pavilion

Pergola Pavilion

Pergola Pavilion in Lo Barnechea – Building Information

Project Name: Pergola Pavilion
Architects: PAR Arquitectos / Pablo Lopez, Alvaro Cortés, Tomás Pardo
Location: Lo Barnechea, Santiago, RM.
Year: 2017
Area: (m2) 52 sqm / 1.114 sqm

Proveedores / Productos:
1. Forestal Arbolito / Oregon Pine
2. Opendark / Ilumination
3. Ingeniería Bosón / Metal Anchors
4. Lorenzini / Deck WPC

Pergola Pavilion

Photographs: Diego Elgueta

Pergola Pavilion in Lo Barnechea images / information received from PAR Arquitectos
