Chilexpress Building : Architecture
Contemporary Building by Guillermo Hevia H, Chile, South America
page updated Aug 21, 2016
Location: Parque ENEA, Santiago (R.M.), Chile
Date built: 2005
Design: Guillermo Hevia H Architects
Photographs by Cristián Barahona unless stated otherwise
Building Materials Reinforced concrete at sight, steel and glass ( curtain walls serigraphiated and indoors offices fronts) Metallic beams and trusses.
Covers and linings of metallic pre fabricated stainless steel panels, with inner polyurethane isolation. Reinforced concrete floor, concrete walls. Shear articulated gates.
Two volumes with different program, format and materiality are articulated by a social meeting space contained by the buildings of this courier company. Analogy of code bars and the use of corporate colors are expressed as light, color and transparencies lines.

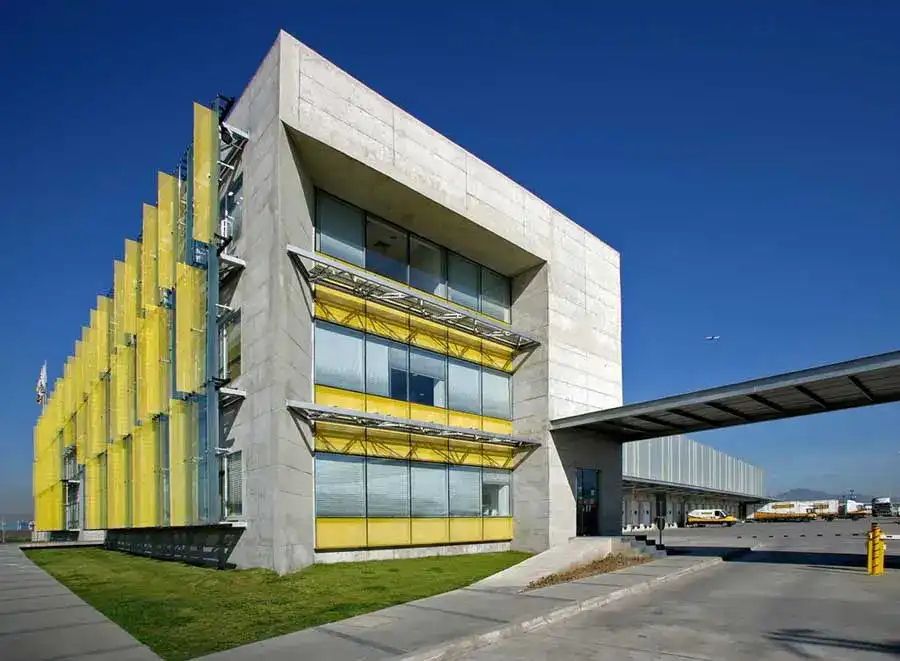

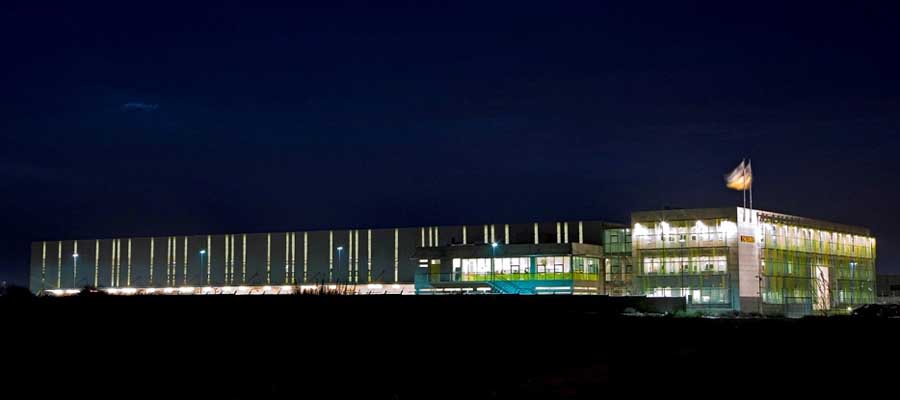

An horizontal three stories offices building made of reinforced concrete at sight, coated with glass curtain walls, looking as a suspended skin which changes according to daylight and the observation point. At night, it becomes a lighted surface that seems to float in darkness.

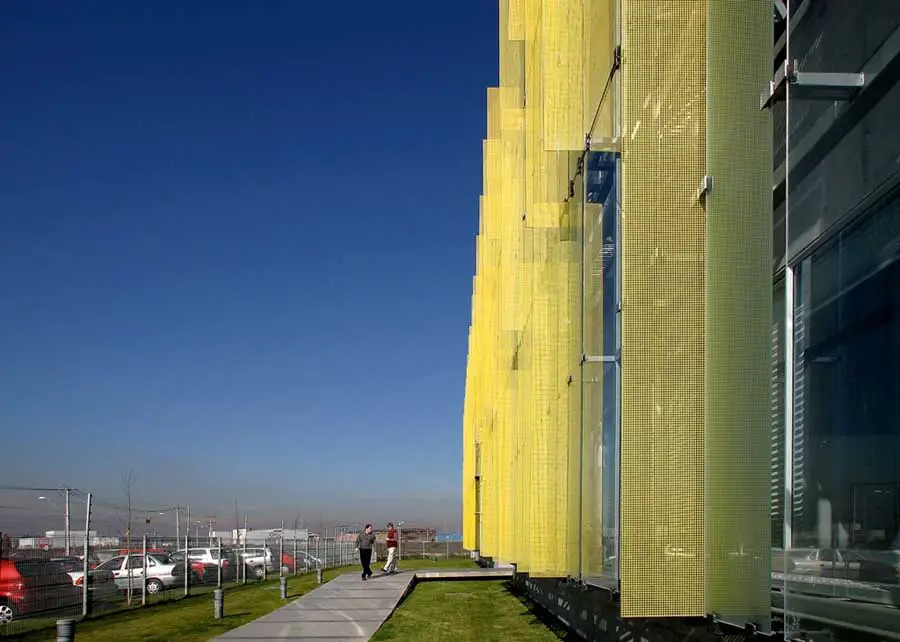

Glasses are replaced at west by drilled metallic panels allowing sun radiation screening but without losing inside transparencies. Contrasting, the production area is a closed volume containing a big inner space where automatic selection and dispatch systems are located.

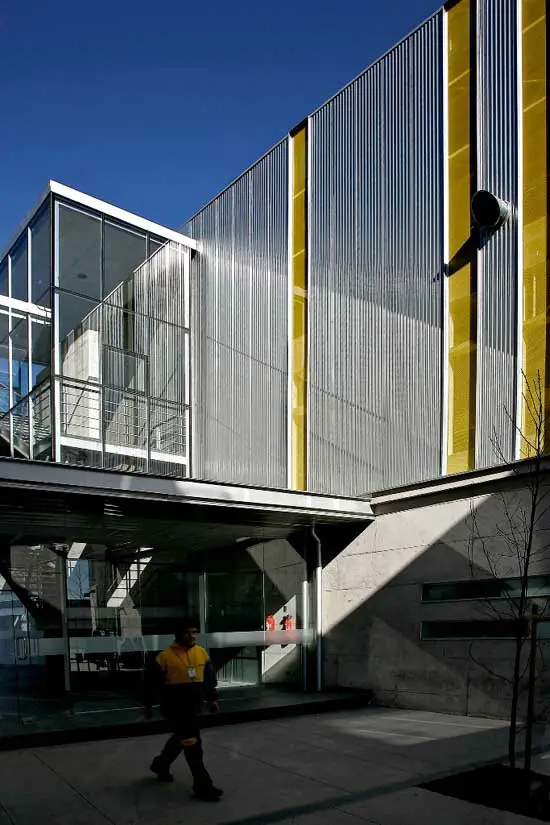

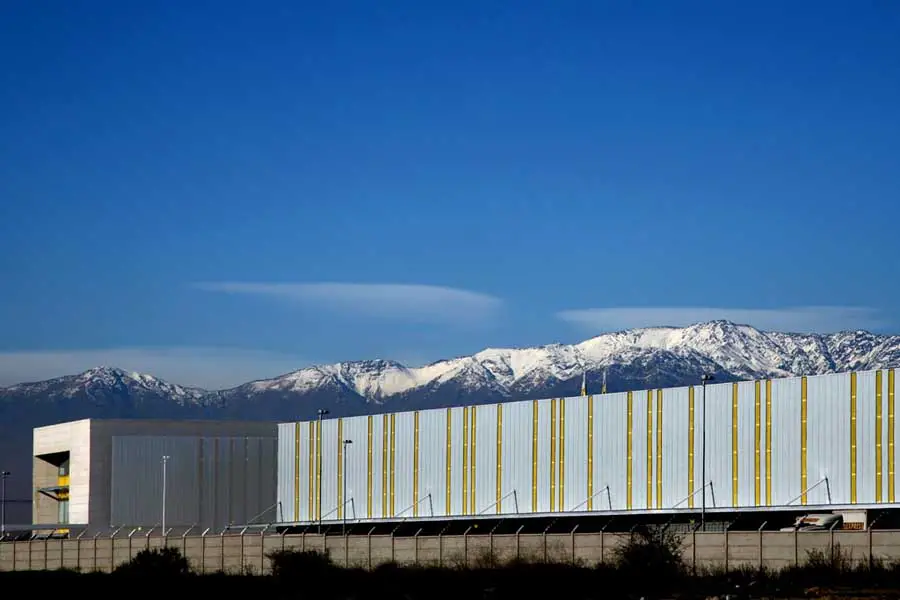

Façade textures, wavy metallic panels stainless steel colored with inner isolation show a typology of all heights windows imitating a bar code image allowing natural lighting and the surrounding environment perception from indoors. At night, they become light stripes generating presence at distance.

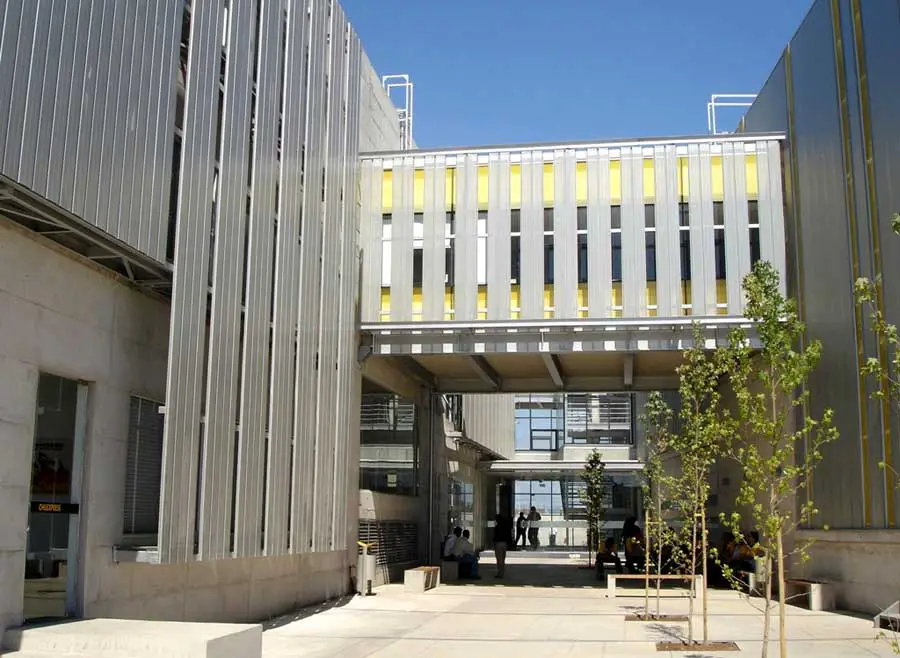

Both building bodies shape an empty space denominated “meeting square” which becomes a social meeting point, the main space, the pause during the labor activity.

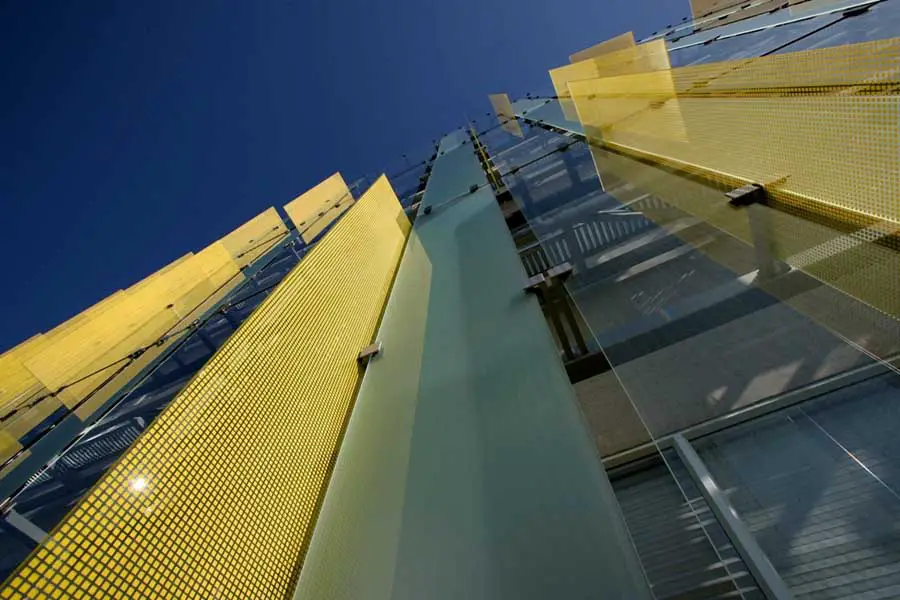

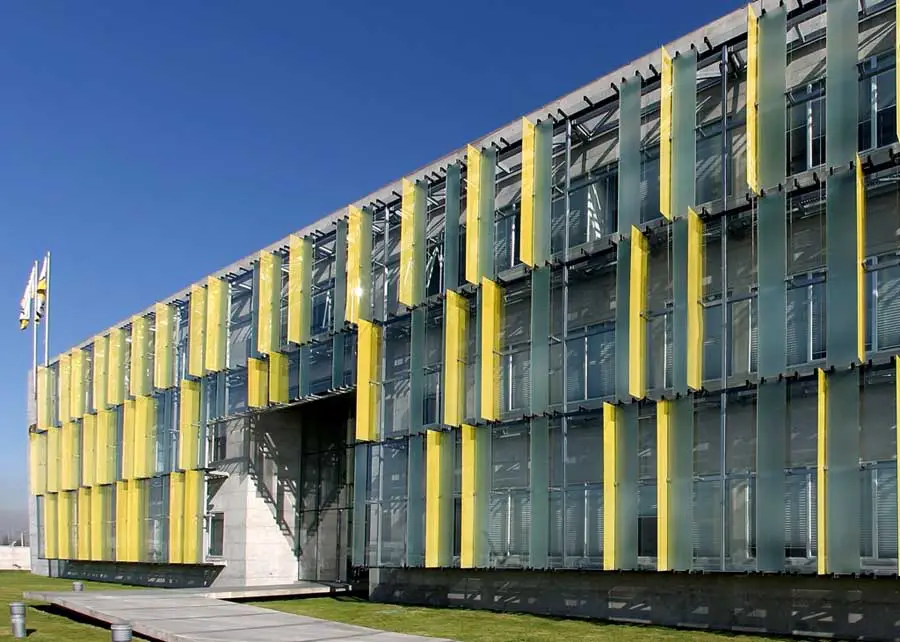

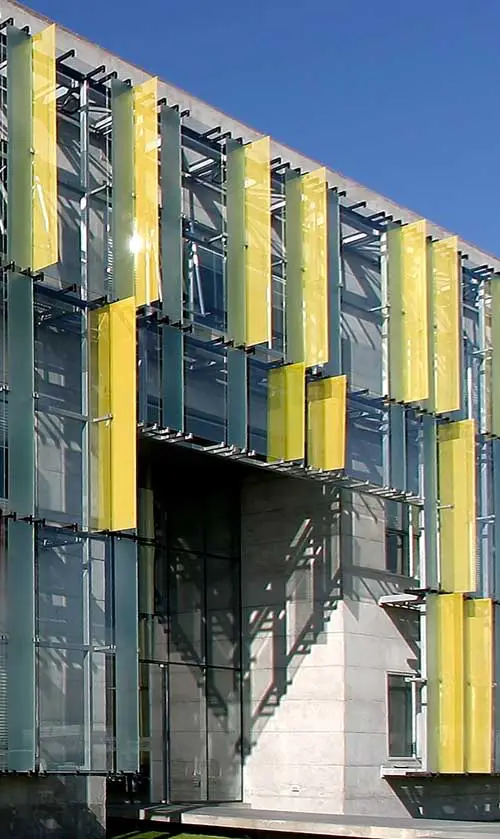

Technical and aesthetic sense rules the design of the second skins. These plans, separated from the building walls generate a natural vertical air circulation and constitute the thermic barrier of facades (Venturi effect). This play of glazed and transparent glass stripes, with alternated perpendicular glasses serigraphiated in the yellow corporate color produce a rhythm which gives movement, bright, luminosity and transparency to facades. From a foreshortening view, they form a color veil.
Suspended design of second skins and separated plans of the building walls generate pressure changes. Warming of glasses and perforated metal plates screen light, as well as temperature, and because of the separation between them, produce a perfect multiple ventilation during warm months (70% of the year).
Natural daylight is fully used with the controlled lighting of windows and zenithal lighting.
Energetic saving is considerable ( environmental light and air)
Chilexpress Parque ENEA, Santiago – Building Information
Title: Corporate Building and classification Center/ Distribution
Category: Corporate Building
Architect: Guillermo Hevia Arq. U. de Chile
Dipl. Arch. Sustentable PUC
Francisco Carrión G. Architect
Dipl. Arch. Sustentable PUC
Marcela Suazo M. Development CAD
Alfonso Pacheco (Structural Calculation)
DE MUSSY Ltda. (Building Company)
INVAL Ltda. (ITO)
HUNTER DOUGLAS (Lining and covers)
GLASSTECH S.A. (Walls glass curtains and glasses)
OPENDARK S.A. (Lighting)
ATIKA S.A. (Floor, Ceramics, Faucets, Sanitary installations)
TAZ S.A. – Pilar Undurraga F. (Furnitures)
Location: Av. J. J. Pérez 1376, Parque ENEA, Santiago (R.M.)
Area Surface: 12.000 m2
Building Surface: 7.200 m2
Chilexpress building images / information from Guillermo Hevia H Architects, South America
Location: Av. J. J. Pérez 1376, Parque ENEA, Santiago (R.M.), Chile, South America
