New Central Library

Architects: Snøhetta and DIALOG

Location: 800 3 St SE, Calgary, Alberta, Canada

Calgary’s New Central Library aims to welcome over twice as many as previously annual visitors to its 240,000 SF of expanded facilities, the library will fill a vital role for the rapidly expanding city.

New Central Library in Calgary

As Calgary’s largest public investment since the 1988 Olympics, the library signals the beginning of a new chapter in the life of the city, one centered on the creation and innovation of knowledge and culture.

New Central Library in Calgary

Calgary Public Library is one of the largest library systems in North America, where more than half of its residents are active cardholders, and accordingly, the new main branch was created for and inspired by its diverse inhabitants. The new building provides spaces for all types of people and activities—for social interaction and exchange, for studying and learning, for quiet and introspection—championing the unique civic function that libraries provide today.

New Central Library in Calgary

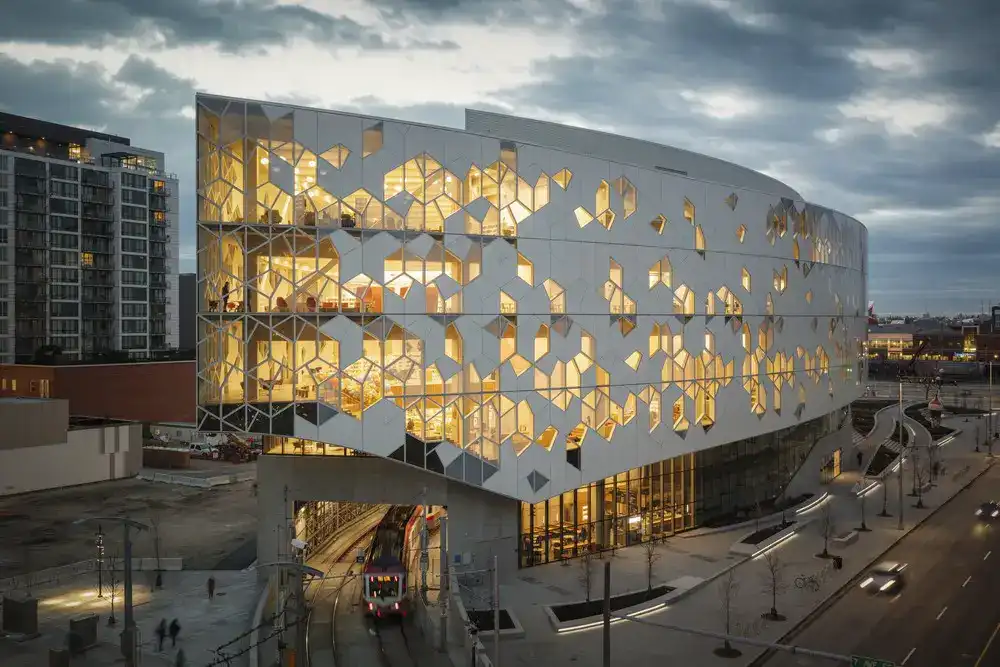

The building is sited within a complex urban condition, where a fully operational Light Rail Transit Line crosses the site from above to below ground on a curved halfmoon path, dividing Downtown and East Village. In response, the design lifts the main entry over the encapsulated train line. Gently terraced slopes rise up to the heart of the building, allowing for people arriving from every direction to interact with the library.

New Central Library in Calgary

Outdoor amphitheaters nestled into the terraces provide places for people to sit and for library programs to spill outside. Plantings that reference the native landscape draw Calgary’s mountains and prairies into the cityscape, and line the plaza’s surrounding streets with elms and aspen trees. Doubling as a portal and a bridge, the entry plaza heals the previously-split seam between the two neighborhoods and re-establishes visual and pedestrian connections across the site.

New Central Library in Calgary

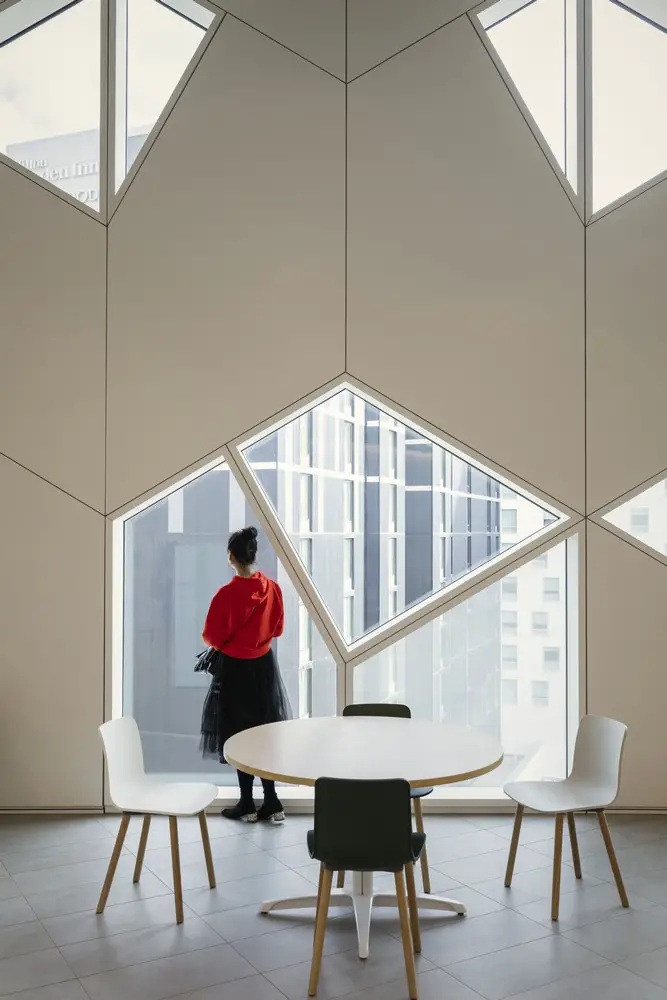

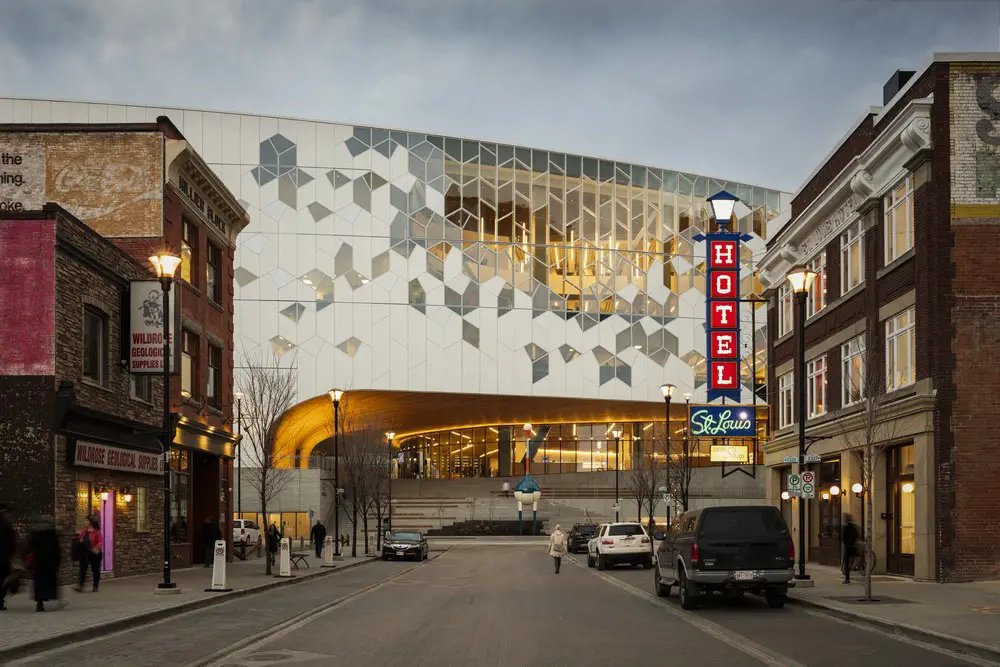

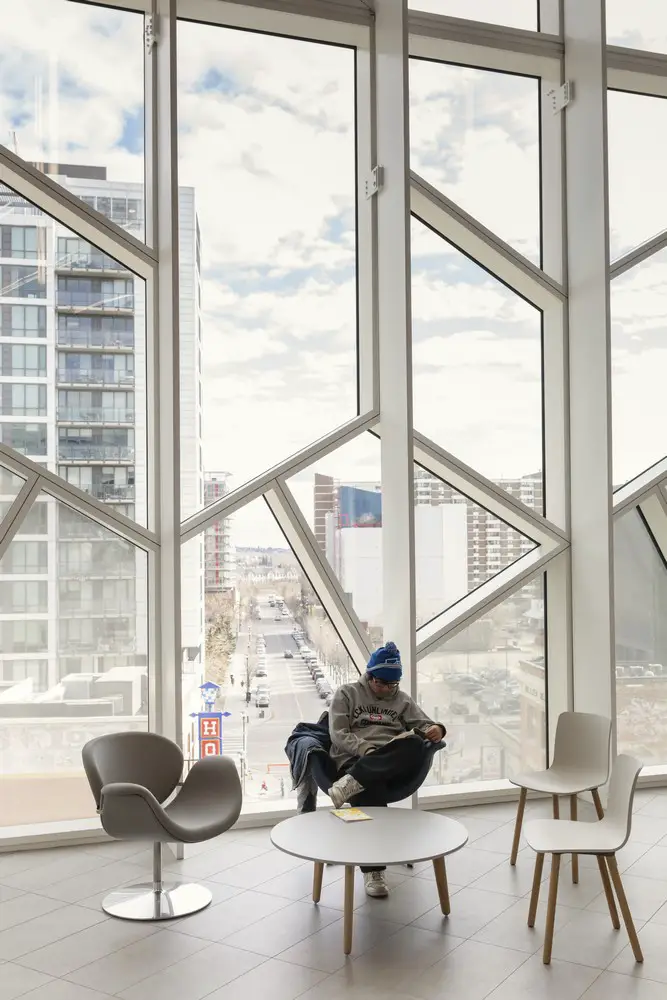

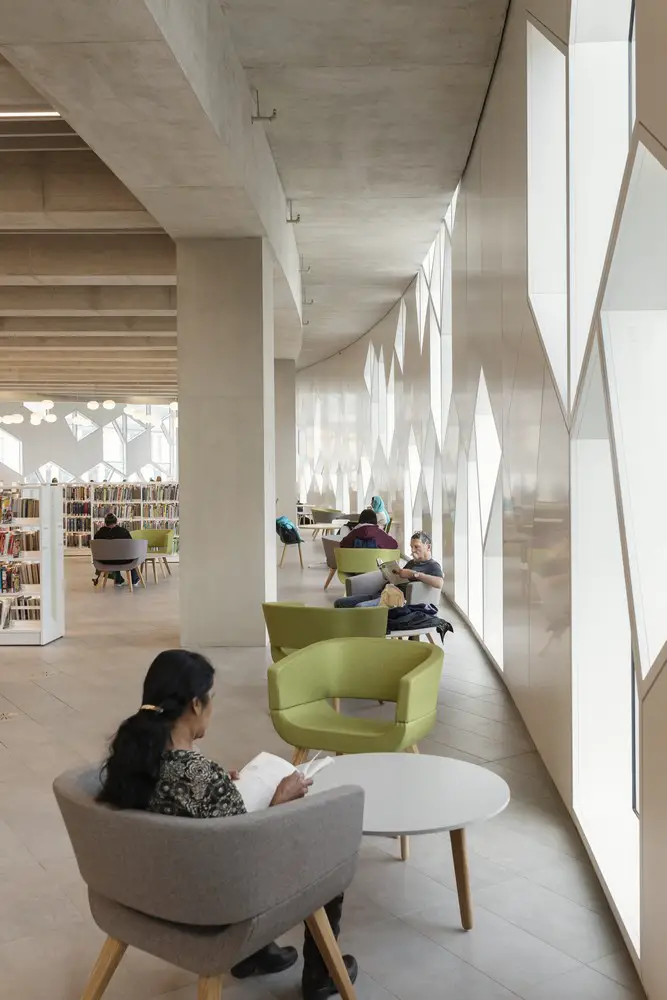

The dynamic, triple-glazed façade is composed of a modular, hexagonal pattern that expresses the library’s aims to provide a space that invites in all visitors. Aggregated variations on the hexagon form scatter across the building’s curved surface in alternating panels of fritted glass and occasional iridescent aluminum.

New Central Library in Calgary

From these shapes emerge familiar forms: Parts of the pattern might resemble an open book, snowflake-like linework, or interlocking houses, anchoring the ideas of the collective and community. Most importantly, the entire building volume is enclosed in the same pattern, allowing all sides to function as the “front” of the building. This visual vocabulary continues inside, expressed in the design of CPL’s new visual identity and wayfinding signage in the building, unifying the library’s goals of inclusivity.

New Central Library in Calgary

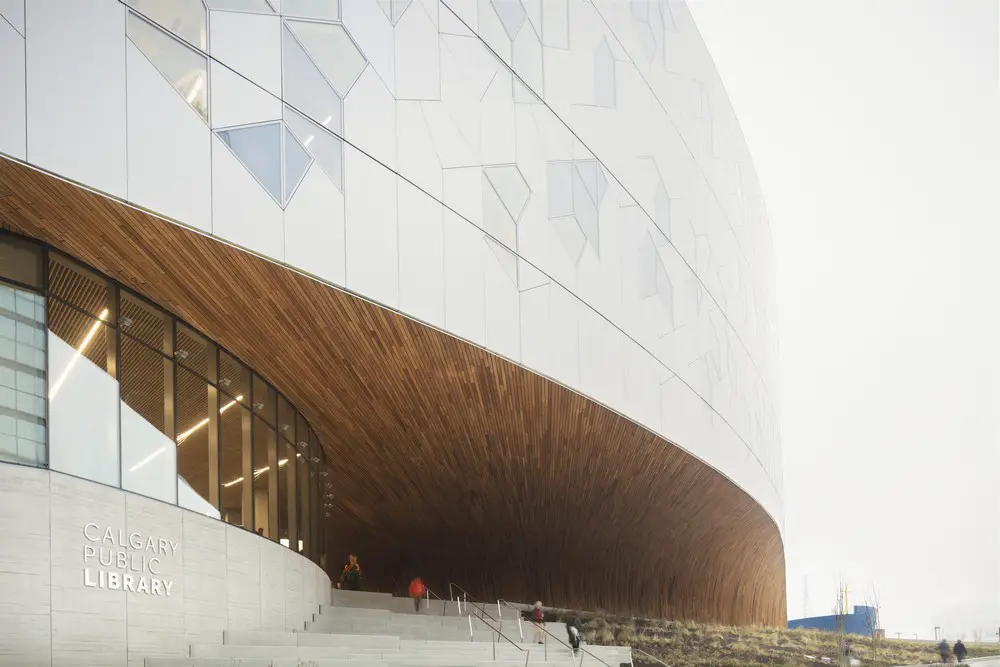

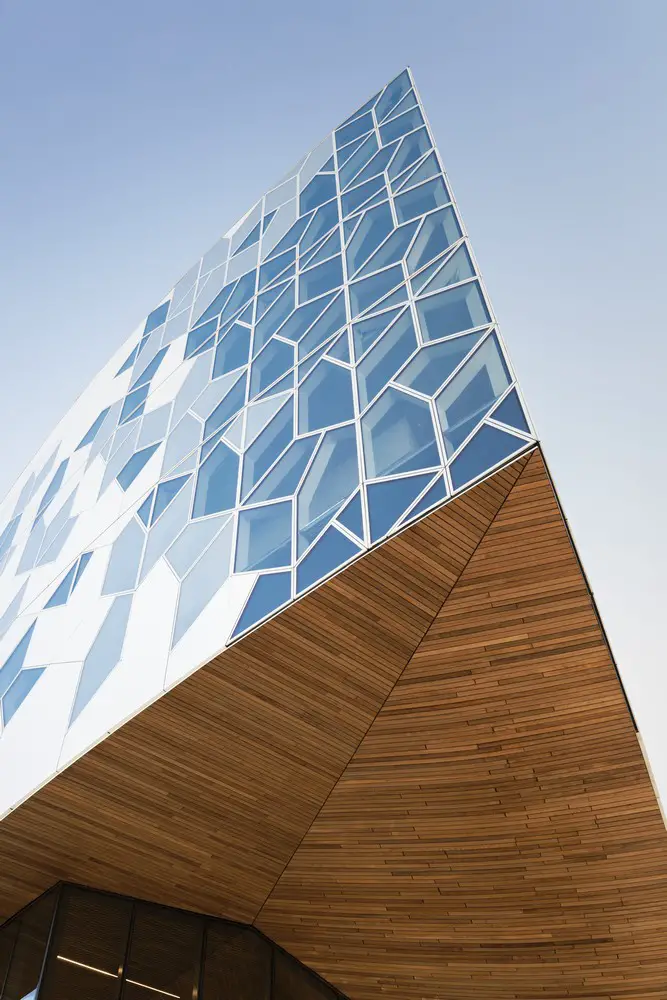

The crystalline geometry of the façade is carved away to reveal an expansive wood archway that embraces visitors as they approach. Framing the entrance of the building, the form references the Chinook cloud arches common to the region.

New Central Library in Calgary New Central Library in Calgary

Created entirely of planks of western red cedar from nearby British Columbia, the doublecurved shell is among one of the largest freeform timber shell in the world. Its organic form and texture bring the large building down to a tactile, intimate scale. Visible from the outside of the building is the main atrium, inviting people in.

New Central Library in Calgary

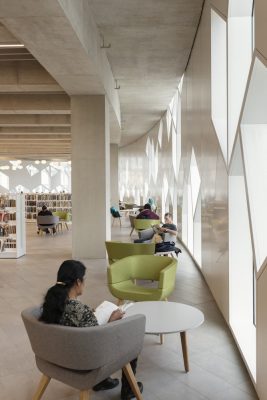

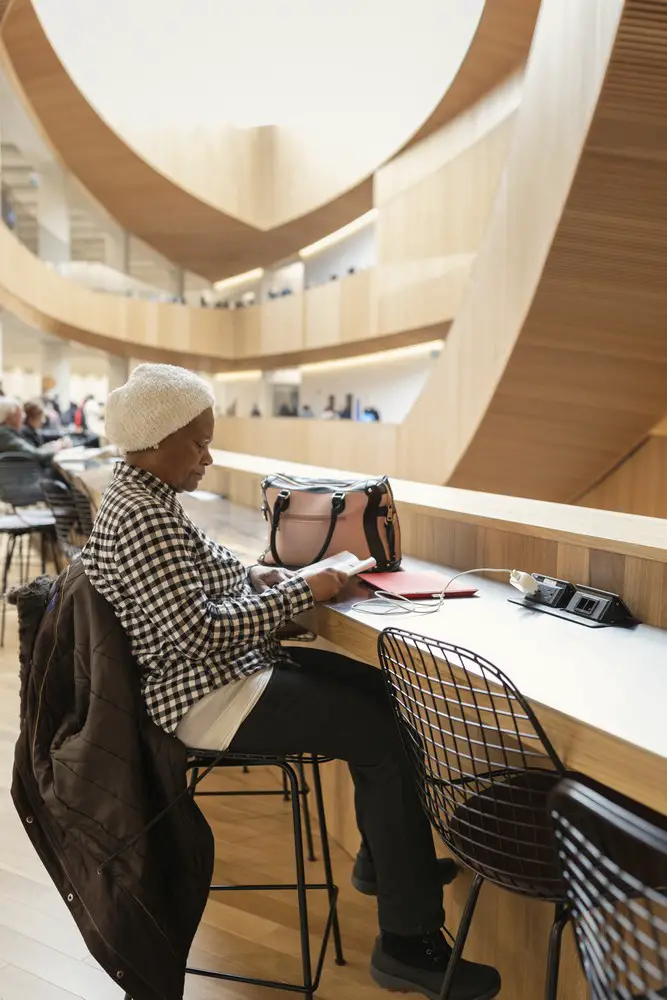

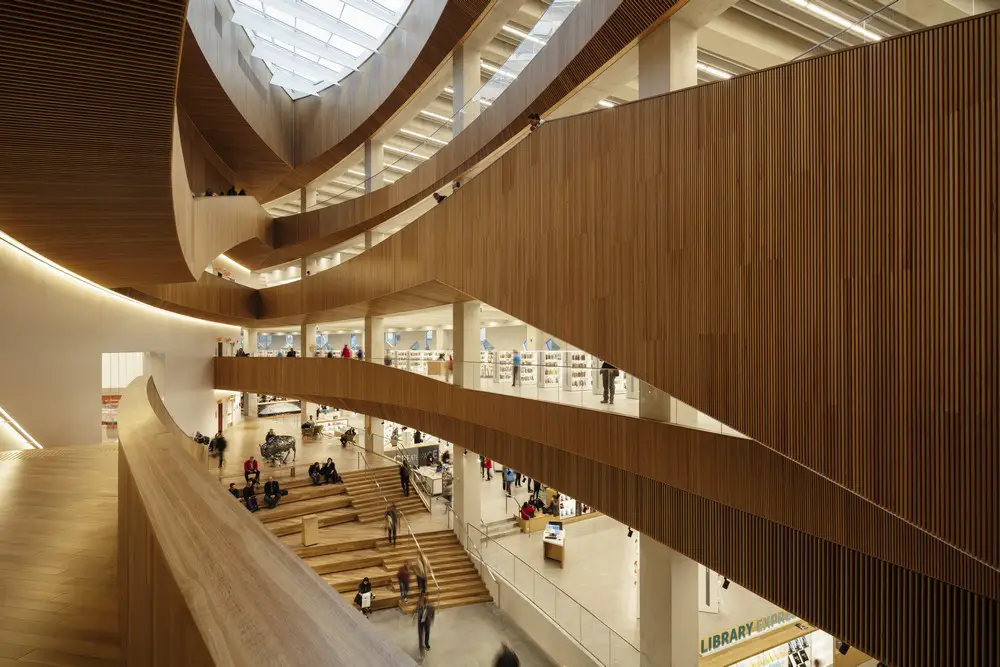

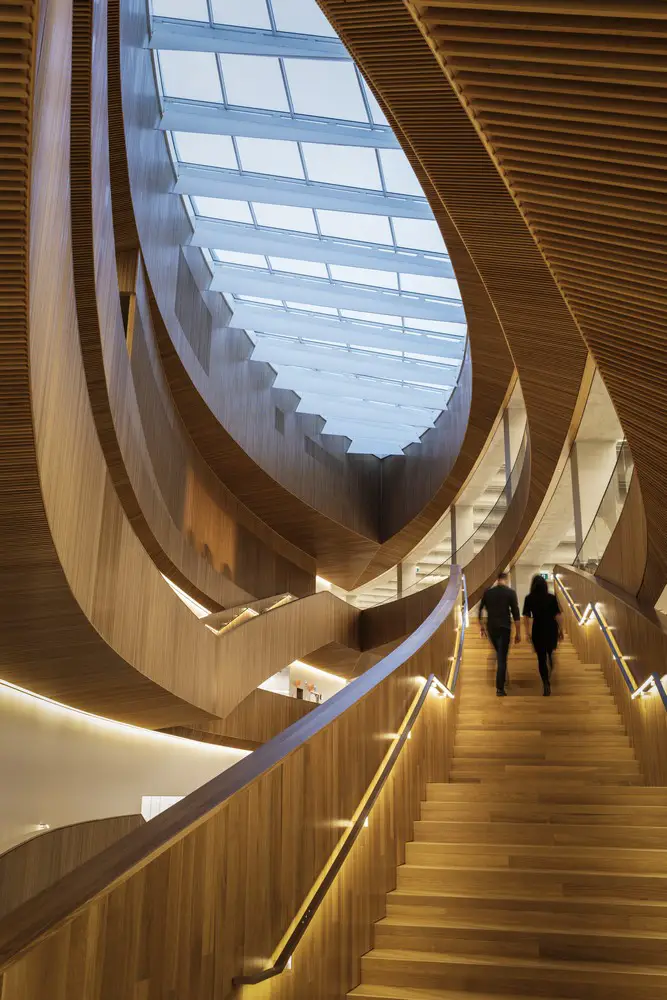

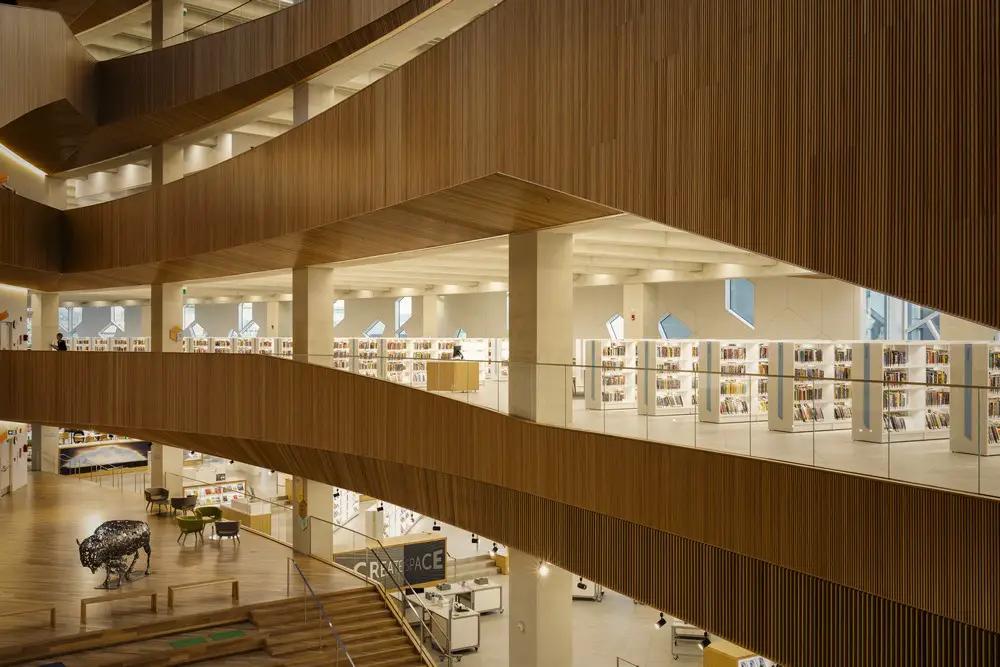

As the archway continues into the lobby and atrium, the wood spirals upwards over 85 feet to a view of the sky through the oculus. Wood slats line the perimeter of the open atrium, shaped in plan like a pointed ellipse, serving as an orientation device for people to quickly grasp the circulation and organizational logic of the library. Inside, the concrete structure is left exposed and unfinished, hinting at the open-ended possibilities within.

The rhythm of beams and columns are reminiscent of a stoa, the public, open-air colonnades of ancient Greek architecture that doubled as spaces of gathering and intellectual exchange. The rawness of the material palette is intended to give people the sense that the library is a place of engagement, rather than a sacrosanct repository for books.

New Central Library in Calgary

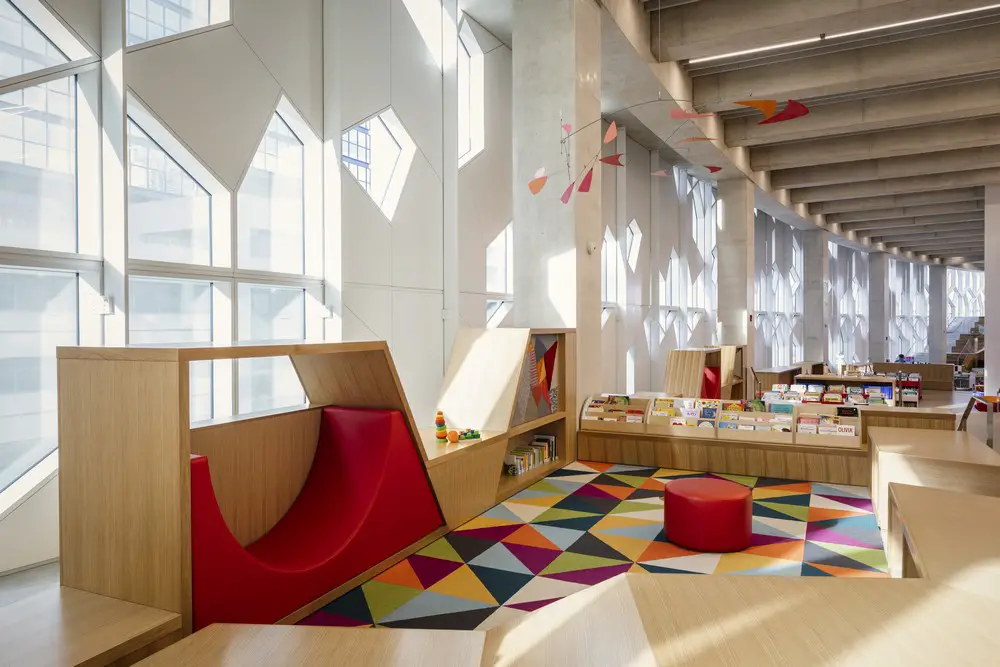

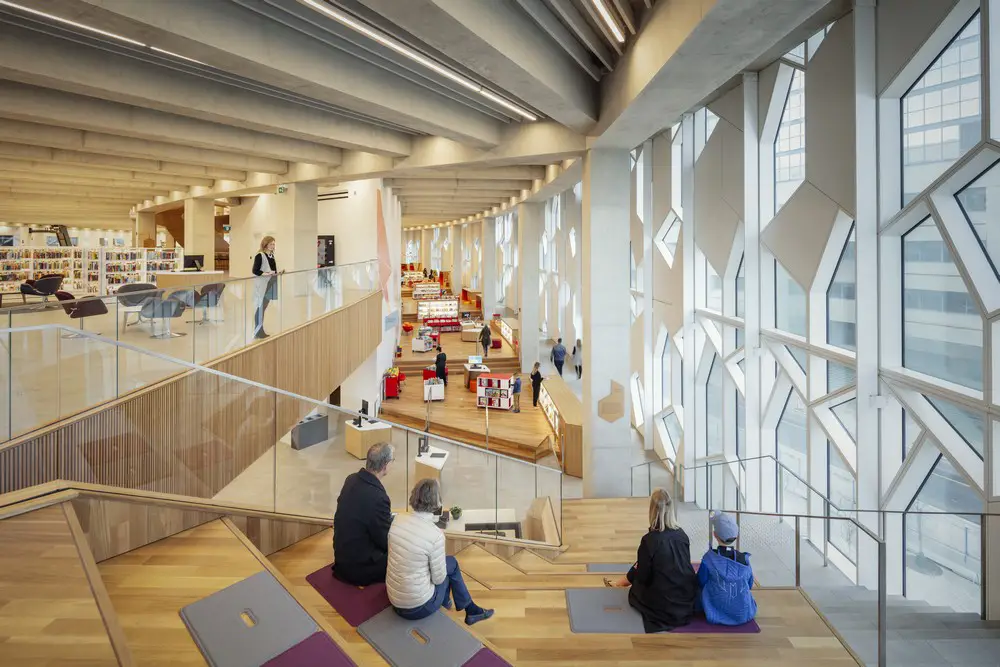

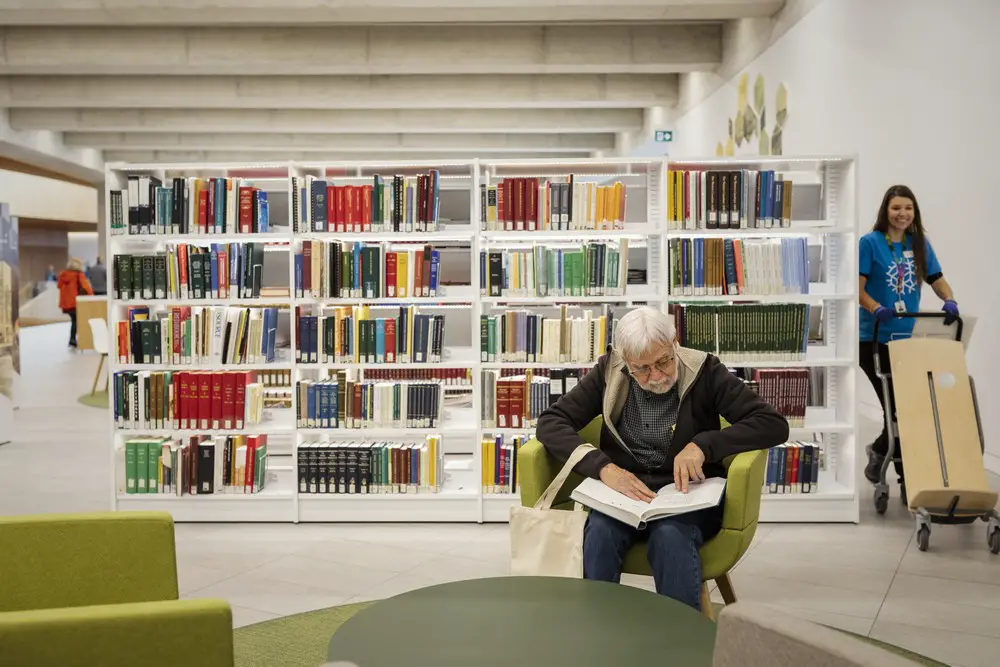

Organized on a spectrum of ‘Fun’ to ‘Serious,’ the library program locates the livelier public activities on the lower floors, gradually transitioning to quieter study areas on the upper levels as one spirals upwards. At the street level, a series of multi-purpose rooms line the perimeter of the building, enhancing the connectivity between inside and outside. On the ground floor, a Children’s Library offers playhouses that provide space for crafts and drawing-based activities, early literacy programs, and a full-body indoor play experience.

New Central Library in Calgary New Central Library in Calgary

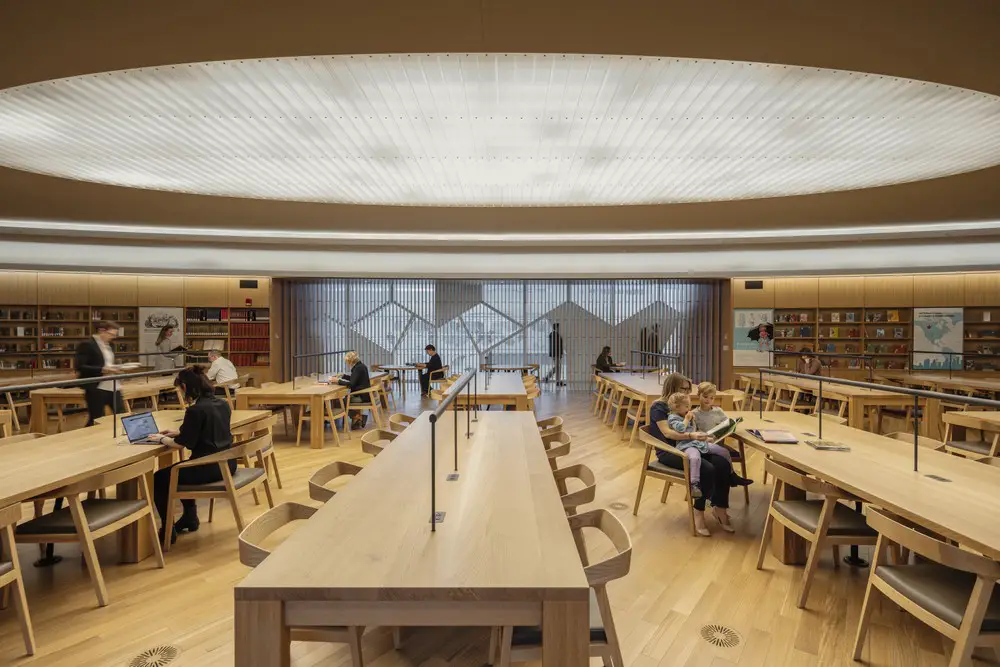

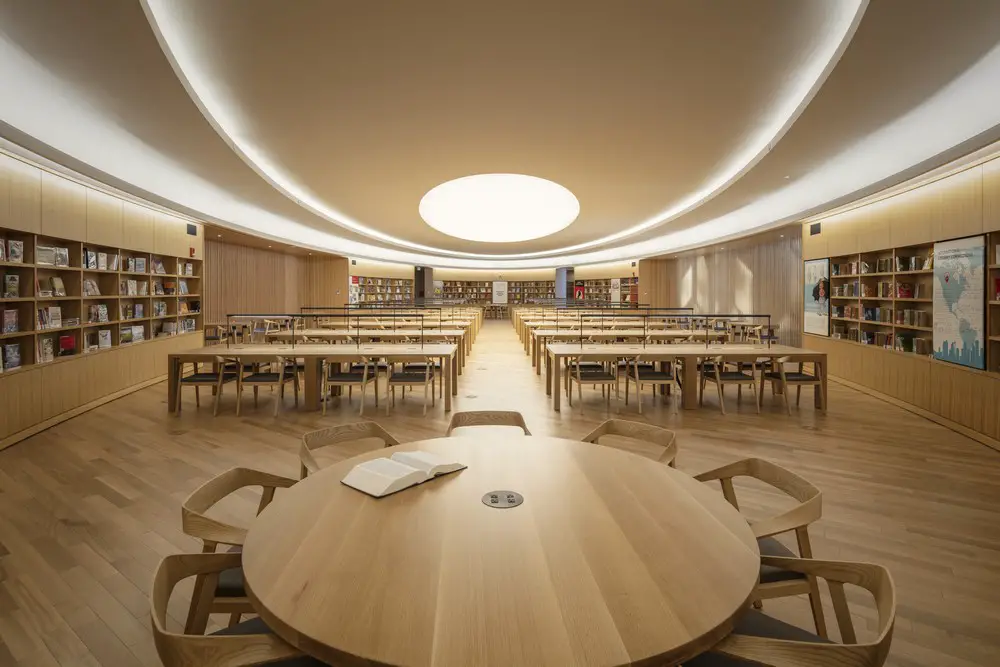

Throughout the six floors, a variety of spaces provide for digital, analog, group, and individual interactions. At the uppermost level of the library is the Great Reading Room, conceived as a jewel box tucked within the library, which provides a space for focused study and inspiration. Readers enter through a transitional space with softened light and acoustics.

New Central Library in Calgary

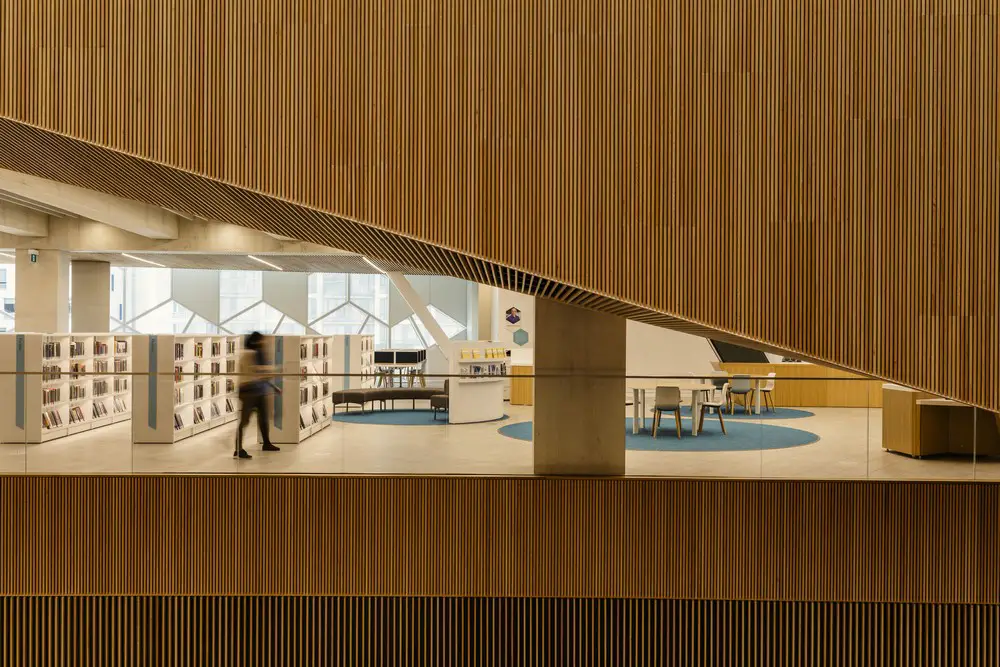

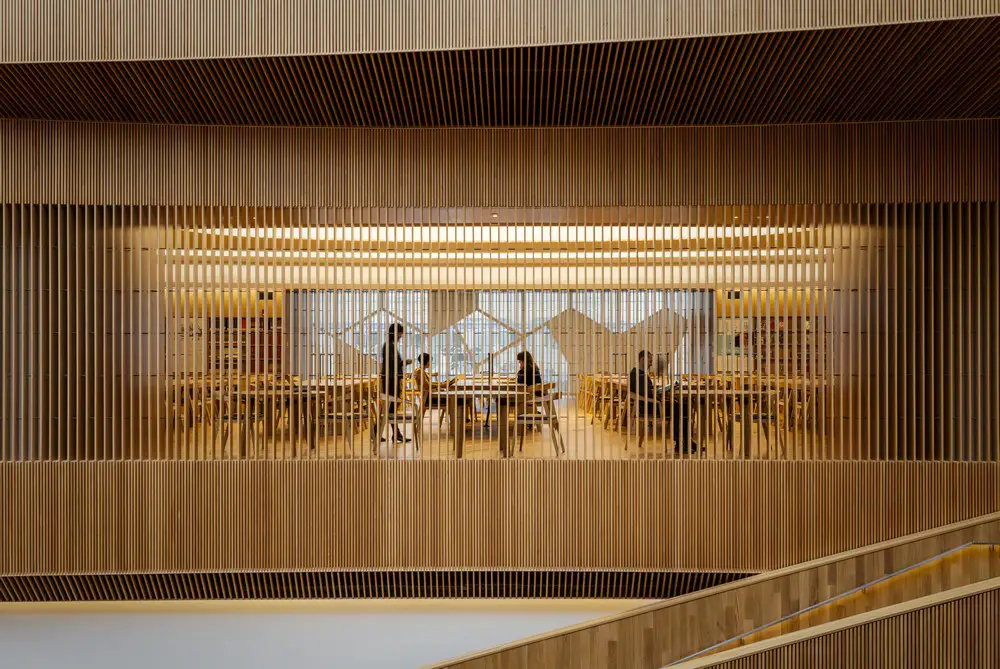

Within, vertical wood slats line the space to provide both privacy and visibility, defining an interior space without using solid walls. Natural light illuminates the space through the wood slats creating glancing sightlines between the atrium and western façade.

New Central Library in Calgary

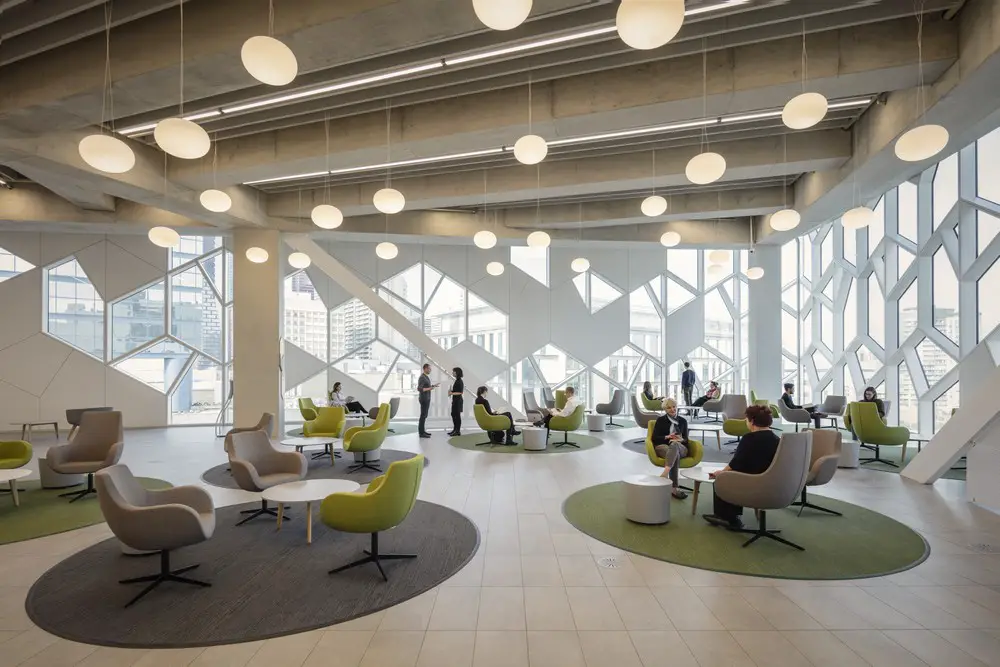

Arriving at the northernmost point of the library, one finds oneself at the Living Room, overlooking the train line and the meeting point of the two neighborhoods. Filled with light and activity, this prow of the building will not only serve as a beacon to those outside, inviting them to enter, but also as a prospect for looking back out – a fitting vantage point to observe the impact of a building that hopes to re-energize the spirit of culture, learning, and community in Calgary.

New Central Library in Calgary New Central Library in Calgary

Project Background
The Calgary Public Library system is actively used by over 670,000 Calgarians (over half of its 1.2M population) and plays a major role in connecting residents from all walks of life. Accordingly, the new Central Library was catalyzed by a significant public engagement process. A series of programs were held in 2012, where more than 16,000 people provided input for what they hoped to see in the Library’s role within the community and its function.

In 2013, CPL and CMLC hosted an international design competition to select the architecture and landscape architecture team to realize the Central Library. The Snøhetta- and DIALOG-designed library reached substantial completion in July 2018, was handed over to Calgary Public Library in September, and opened on time and on budget to the public on November 1, 2018. The new Central Library will join Studio Bell, the Arts Commons, and the Glenbow Museum as part of a burgeoning cultural campus in downtown Calgary and the East Village.

New Central Library in Calgary

The New Central Library, Calgary – Building Information

Design Architect, Landscape Architect, Interior Architecture, FF&E, Millwork, Signage & Wayfinding: Snøhetta
Executive Architect & Executive Landscape Architect: DIALOG
Client: Calgary Municipal Land Corporation (CMLC)

Location: Calgary, Alberta, Canada
Status: Completed 2018
Size: 240,000 sqft (2/3 larger than original library)
Budget: $245 million CAD (total project cost), $147 million CAD (hard cost)

Structural: Entuitive
Mechanical: DIALOG
Electrical & Lighting: SMP Engineering
IT/AV: McSquared System Design Group, Inc.
Contractor: Stuart Olson

New Central Library in Calgary

Photography © Michael Grimm

The New Central Library in Calgary image / information received 061118

Snohetta / DIALOG

Address: 800 3 St SE, Calgary, AB T2G 2E7, Canada
