Hole 19 Golfclub St. Oswald, Austrian Building Project Photos, Design Property Images

Golfclub St. Oswald, Upper Austria

Hole 19 design by xarchitekten

18 Oct 2009

Hole 19 Golfclub St. Oswald

Location: Upper Austria

Design : xarchitekten

Hole 19 Golfclub St. Oswald, Upper Austria

Photos by Dietmar Tollerian

Hole 19 – Golfclub St. Oswald

Corporate Golf Space

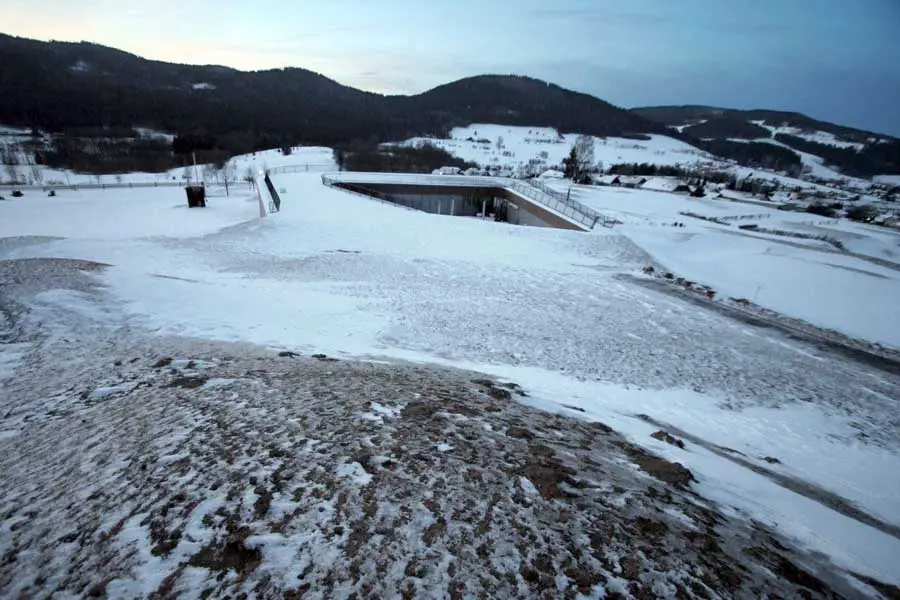

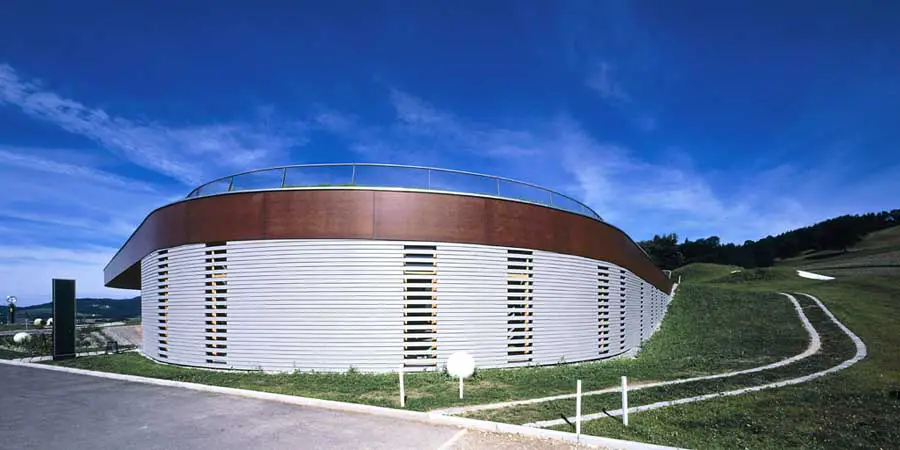

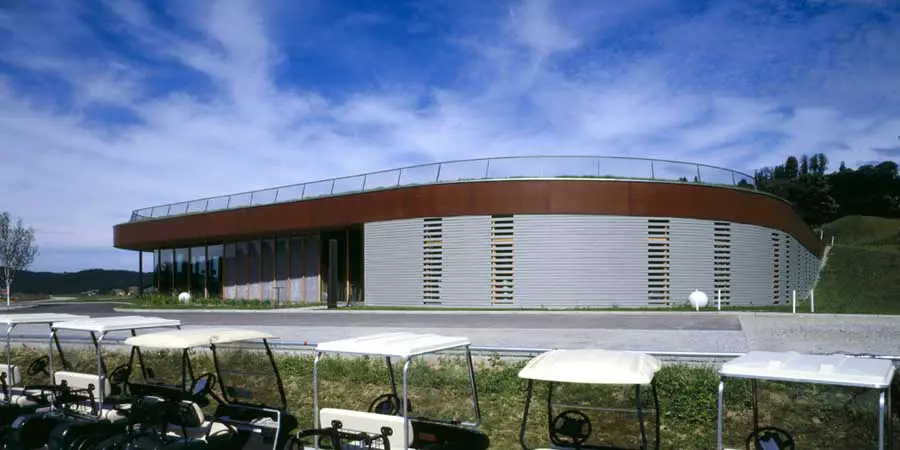

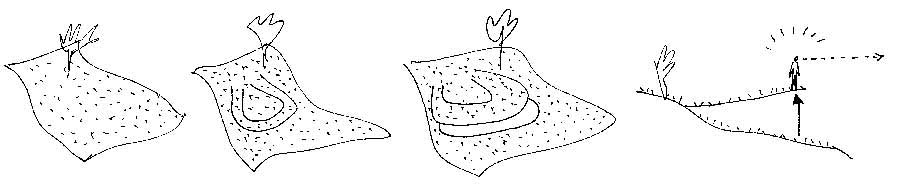

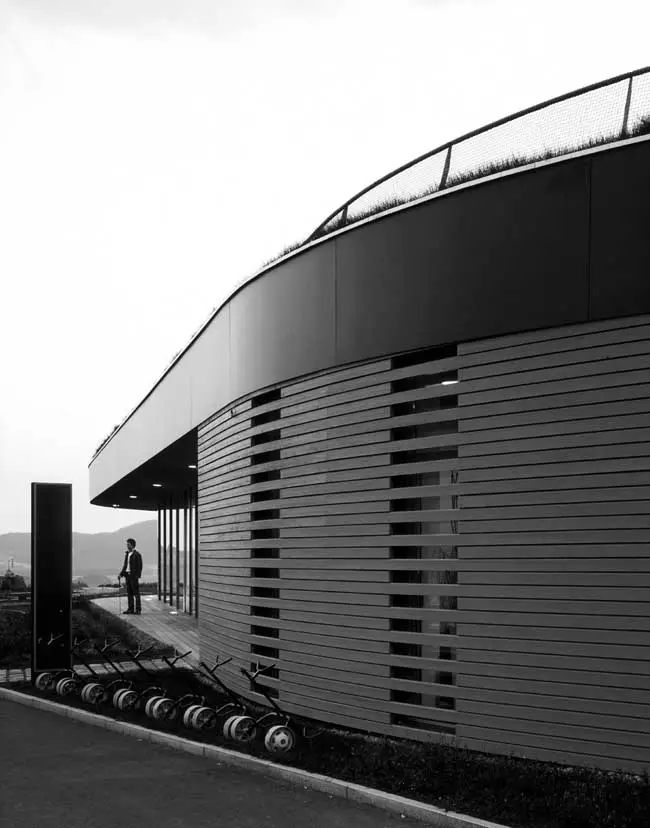

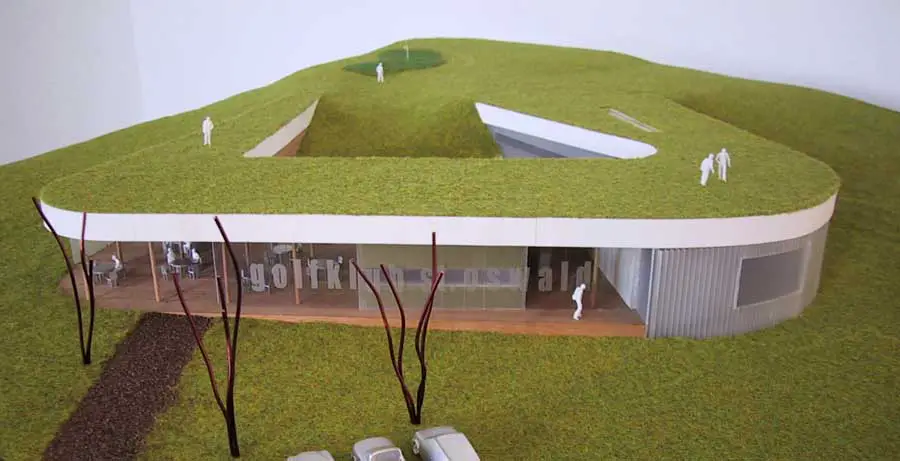

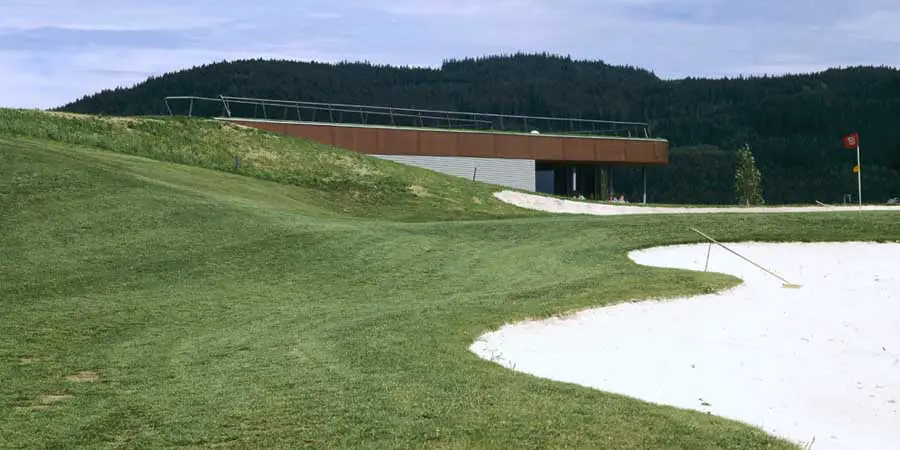

The golf course as an integrated design landscape and topography nestles up to the soft downs of the Mühlviertel. The club house merges with the landscape and integrates consistently into the natural surroundings, almost being completely absorbed by it. Its outer and inner rooms are designed as a seamless transition into the golf course and become one with the surrounding sports grounds.

Hole 19 Golfclub St. Oswald Golfclub St. Oswald Austria Golfclub St. Oswald Building

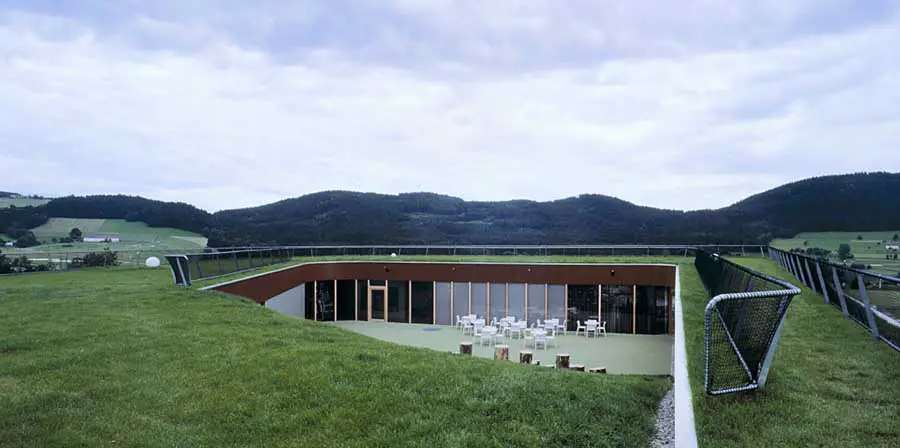

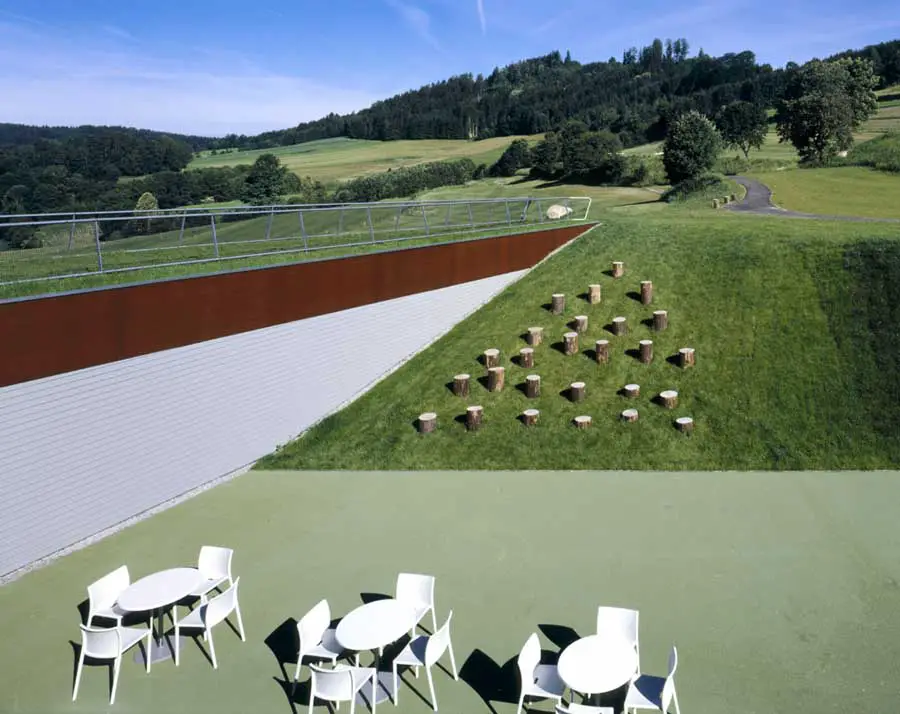

The inner court offers possibilities for multi-functional activities in a sheltered atmosphere – as a garden for visitors as well as a location for events and award ceremonies. Towards the south west the court opens up into a covered terrace as far as the driving range. On the northern side, it serves as a reception area for players returning from the 18th Hole. The inner court presents itself as the “19th Hole” and the club house as the “19th Green” of the golf course and they resemble the Start as well as the Finish in the movement of club members and visitors.


Openness and responsible action, not an elitist club life, are most important for the building project. This vision is implemented through the integration of the golf course into the landscape, through ecological care of the lawns and the concept of Zero Energy in the club house.

Golfclub St. Oswald Hole 19 Golfclub St. Oswald Golfclub St. Oswald Austria Golfclub St. Oswald Building

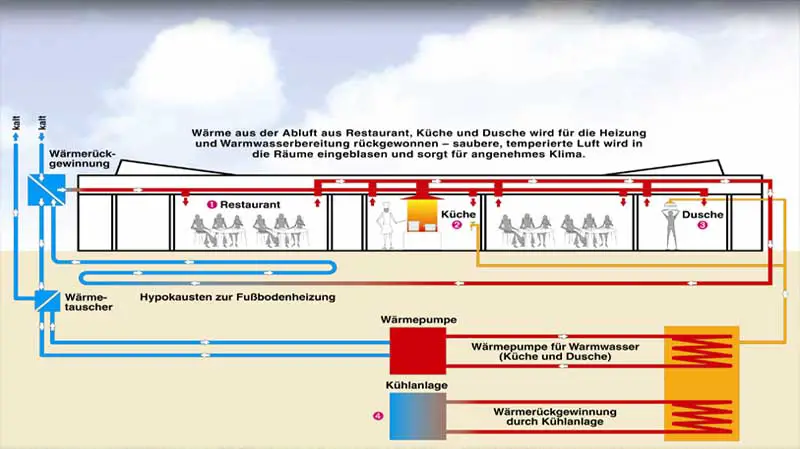

The concept of Zero Energy

The club’s existing area which is being restored produces unusually high energy surpluses. Therefore the use of this thermal waste with regard to the energy concept seemed to be a natural and logical consequence. The waste heat from the systems and devices in the restaurants is used optimally in the form of a multiple energy cascade. Warm and polluted air from the hottest points of the restaurant kitchen are sucked into a ventilation system, which is already a necessary part of the design, and which filters the air and sends it through to a hypocaust.

This hypocaust heats the floor in the bar and restaurant area. A heat exchanger then releases 50% of the heat content of the slightly cooled air into the incoming fresh air. As the now considerably cooled exhaust air still contains a lot of energy, heating energy and warm water for the heating of the supply air and the floor heating in the changing rooms is won with the help of another air/water heat pump.

An ecologically reconcilable golf lawn

The golf lawn is kept free from weed in terms of a broader ecological approach solely through mowing and mechanical treatment without the use of herbicides – surely a unique method on Europe’s golf courses.

Upper Austria golf club building Hole 19 Golfclub St. Oswald Upper Austria building design by xarchitekten

Golfclub St. Oswald – Building Information

Location: Am Golfplatz1, A-4271 St. Oswald, Upper Austria
Client: Golf und Tourismusförderung
Architecture Competition: 2002

Built-up area: 757 m²
Start of planning: 2002
Floor space: 489 m²
Start of construction: May 2003
Construction: Passivhaus
Handing over: Jun 2004

Pictures: Dietmar Tollerian

Hole 19 Golfclub St. Oswald images / information from xarchitekten Oct 2009


Location: Am Golfplatz1, A-4271 St. Oswald, Upper Austria, central Europe
