GKK Dental Ambulatory, Austrian Building Project, Photo, News, Design, Property Images

GKK Dental Ambulatory Linz

Dental Clinic Linz, Oberösterreich (Upper Austria) design by xarchitekten

18 Oct 2009

Location: Linz, Upper Austria

Design: xarchitekten

GKK Dental Ambulatory, Linz Clinic Building

Photos by Max Nirnberger

GKK Dental Ambulatory Upper Austria

Task

The relocation of various businesses from the Voestalpine steel manufacturer’s premises included the dental clinic of the Upper Austrian regional medical insurance company. The nearby “Service Zone” was chosen as the new location. The task was to create a modern and service-oriented clinic on a 525 m2 plot which offers the dentists the best possible hygiene and functionality at work and which receives and guides the patients.

GKK Dental Ambulatory Linz GKK Dental Ambulatory Austria GKK Dentists

Draft

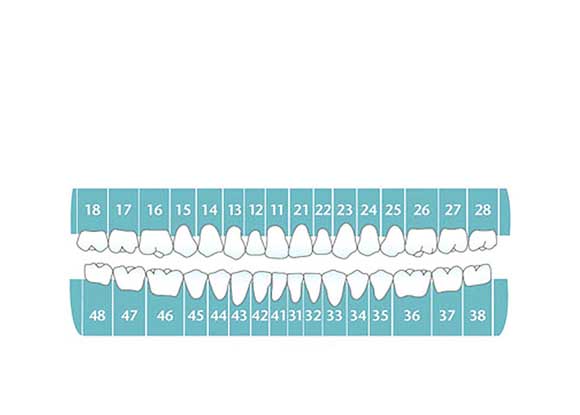

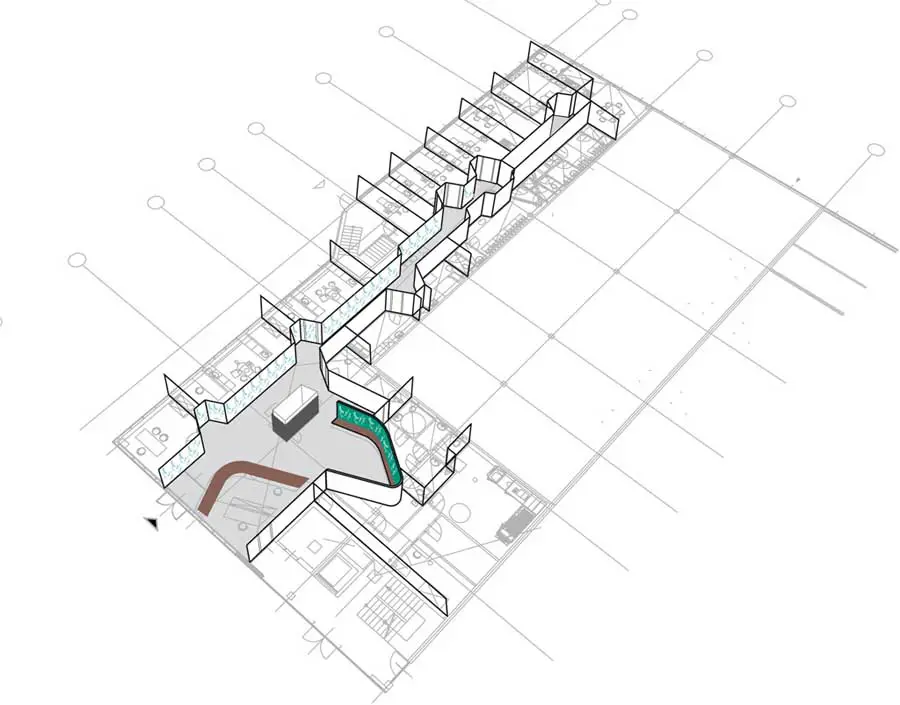

The draft was defined by the clinic’s central theme, with the concept of a double row room structure for the extension, being derived from the two-dimensional illustration of a set of teeth. Five treatment rooms, as well as one room for prosthetic dentistry, are lined up next to each other on the southern side, benefiting fully from the natural sunlight. The separation of the rooms and their doorways are clearly defined by angular niches recessed into the walls that help guide the patients to their destination.

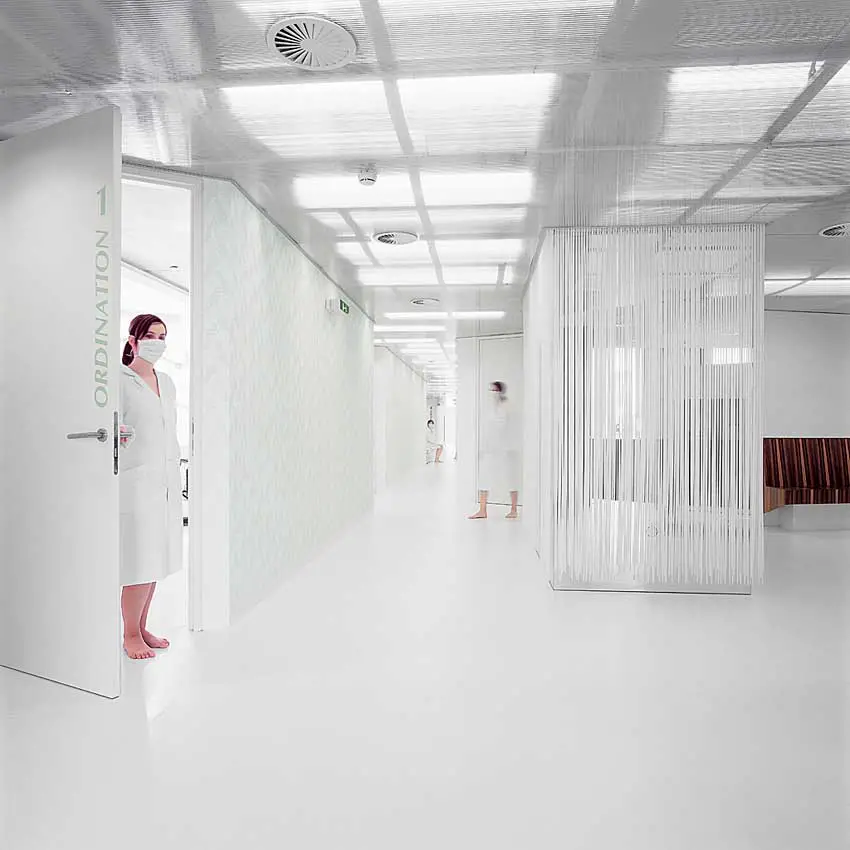

Several functional rooms such as X-ray, rest and sterilising rooms can be found opposite the treatment rooms. The general concept is also emphasised by the colours used. The ubiquitous use of the clinical colour white, accentuated by the mint-coloured Corporate-Identity-Green of the regional medical insurance company, is the perfect analogy for hygiene and fresh breath.

Implementation

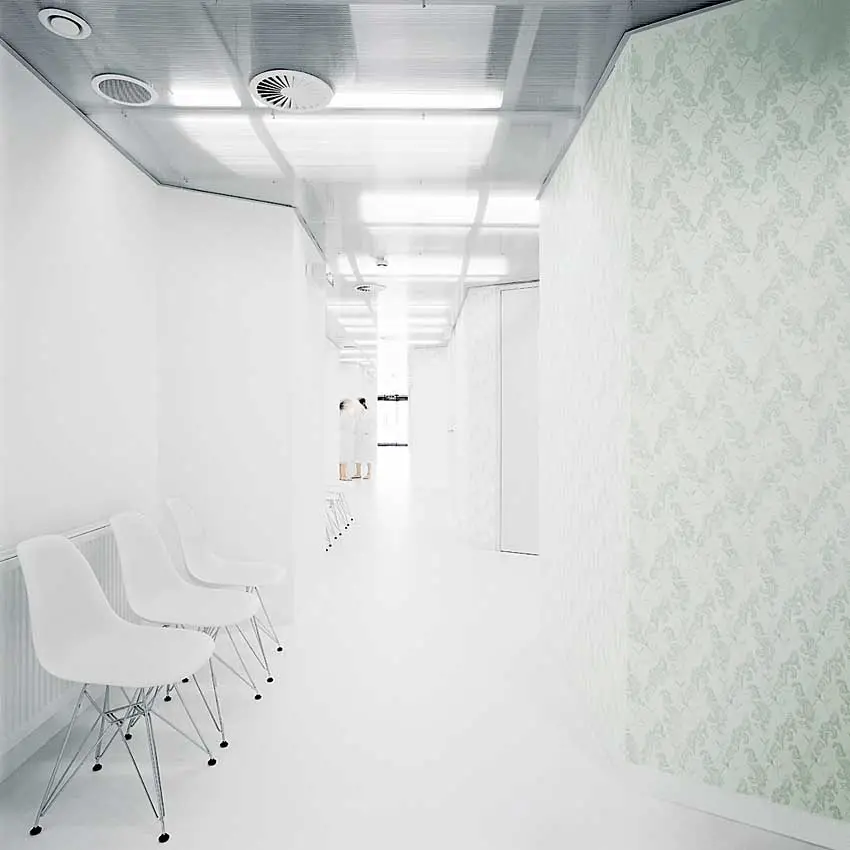

The general tone, created by the use of the colour white, is experienced by the visitor right from the doorstep. A white and soft PVC floor coating and a transparent back-lit ceiling made of polycarbonate web plates compensate for the reduced daylight in the hall and waiting area.

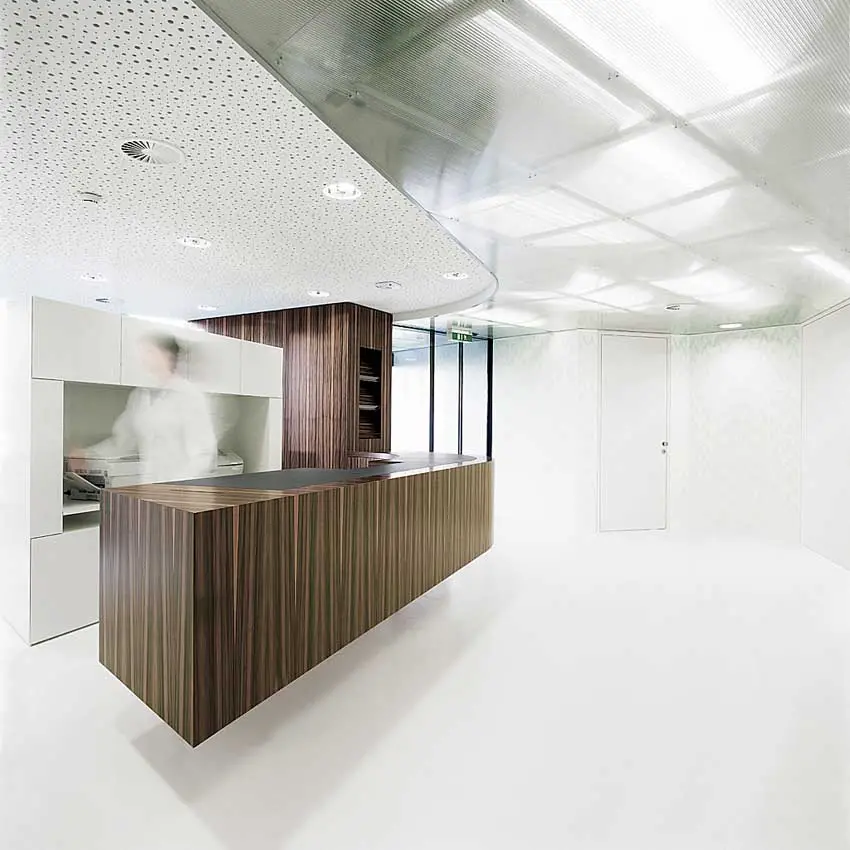

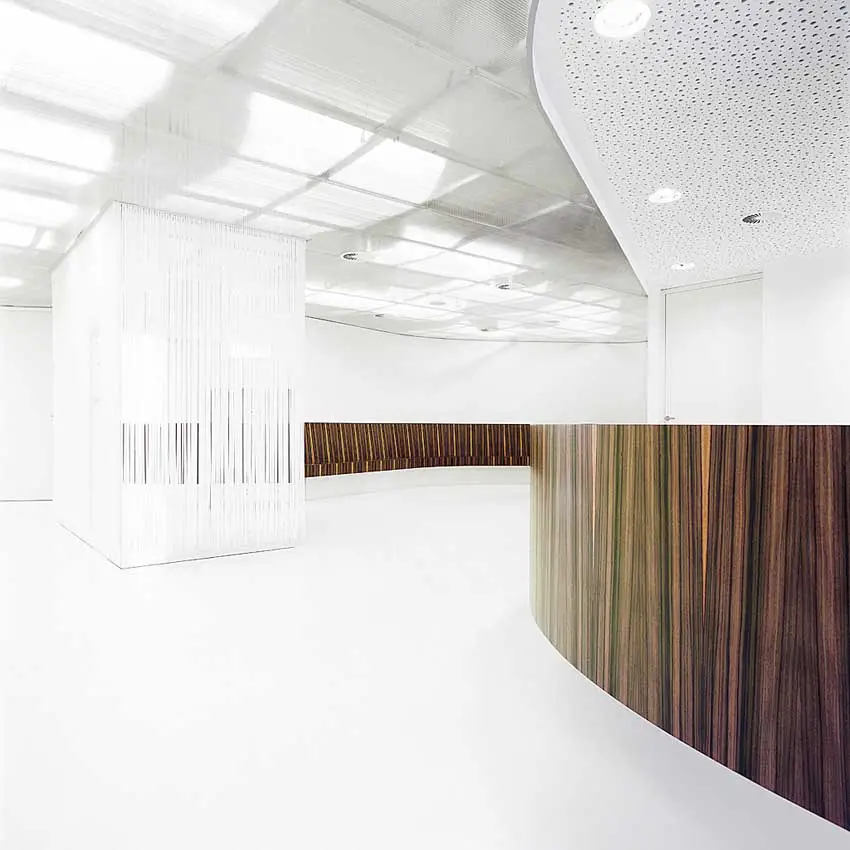

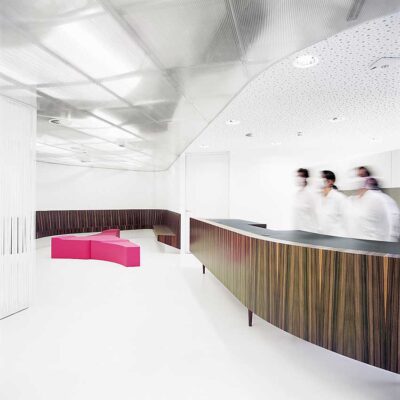

The rolled-on pattern on the walls, as well as the mirrored “mouth hygiene” area with its display cabinets, completes the friendly and almost glamorous character. The latter was coated with acrylic glass rods reminiscent of the bristles of a toothbrush making it a success aesthetically as well as conceptually. This interpretation is successfully continued with a curved reception and seating area with desk and bench representing the throat, complemented by a red seating element as the tongue.

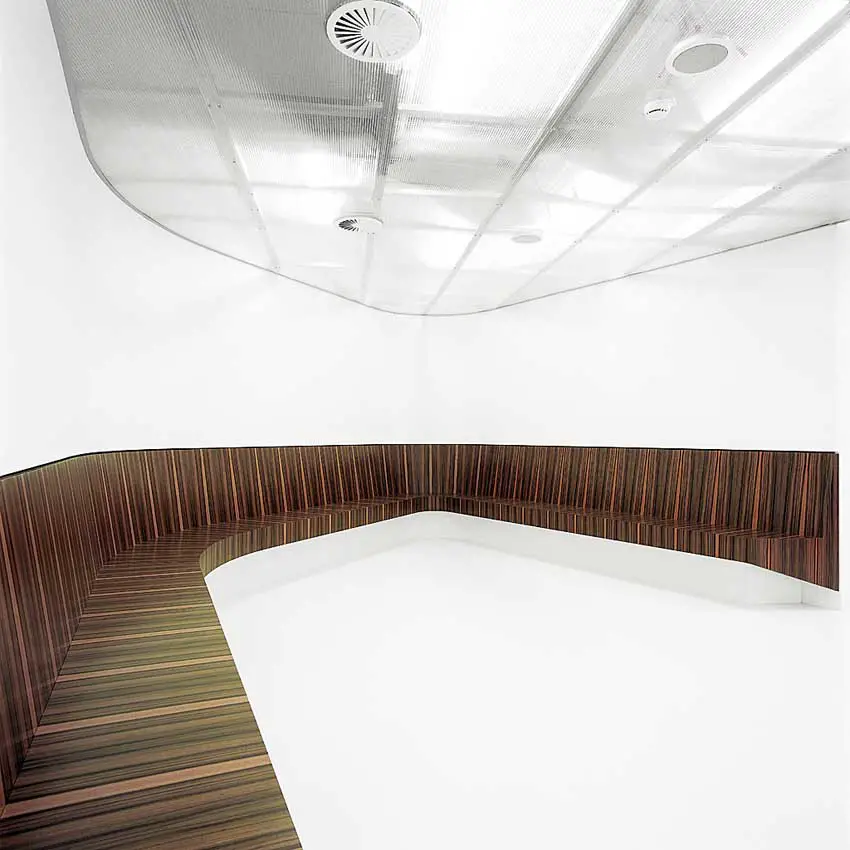

The dark wood veneer of Australian nut wood used for the desk and bench gives a warmth which counteracts the hygienic impression of the premises, disrupting the clinical theme and adding to the atmosphere. The high degree of technology typical of such a facility remains mostly in the background to produce surroundings that are considerate to the patient’s needs.

It can only be seen through the translucent ceiling as well as the supply and exhaust air nozzles. The labelling and signposting of treatment and special rooms was also reduced and concentrated. The logical and clearly differentiated room structure demonstrates the recognisable success of the overall concept.

GKK Dental Ambulatory GKK Dental Ambulatory Linz GKK Dental Ambulatory Austria GKK Dentists

Text: Andreas Kump, 2009
Translation: Anja Ganley, 2009

GKK Dental Ambulatory – Building Information

Location: Stahlstraße 2, Linz, Oberösterreich
Client: APK Pensionskasse AG
Direct order 2006
Floor Space: 525 m2
Start of Planning: Dec 2006

Construction: Ceiling Polycarbonatplatten
Handing over: Feb 2008
Floor: Raised Floor PVC-Covered
Bersten-Corpus: Acrylglass unnotched

Photos: Max Nirnberger

GKK Dental Ambulatory images / information from xarchitekten Oct 2009
