ACA Coop Offices in Bahía Blanca, Buenos Aires
25 Apr 2022
Association of Argentine Cooperatives
Offices of ACA Coop in the city of Bahía Blanca, Buenos Aires
Architects: Arrillaga Parola Arquitectos
Location: corner of Hipólito Yrigoyen and Pirovano streets, Aldea Romana, Bahía Blanca, Buenos Aires, Argentina, South America
Photos by Ramiro Sosa Fotografía de Arquitectura
ACA Coop Offices Bahía Blanca Building
The project for the new branch of the Association of Argentine Cooperatives in the city of Bahía Blanca, Province of Buenos Aires, is located on the corner of H. Yrigoyen and Pirovano streets in the Aldea Romana neighborhood.
This location is strategic since it is located on Av. Cabrera, one of the main access and commercial axes of the city. It is an area in constant growth, which will allow the Association of Argentine Cooperatives to spread its actions at a local and regional level and, at the same time, generate with this building a new urban landmark linked to the notions of production, cooperativism, innovation and sustainability.
The very choice of the terrain to intervene reveals ACA’s vocation to make its actions visible, and its commitment to openness to the environment where it is inserted. The initiative to build a new institutional headquarters of its own speaks clearly of the social commitment and desire to integrate the Association into the community.
MORPHOLOGY
From its morphological expression, the project tries to manifest values that ACA promotes in its actions: The public scale of the complex and its degree of openness towards the environment respond to the social responsibility that ACA maintains as a company. The building is presented as a “transparent” object that exposes its interior activity, promoting a dialogue with the community. The project also foresees the treatment of the surrounding exterior spaces and a public square open to the community, which speaks of the link that it will try to forge with the environment.

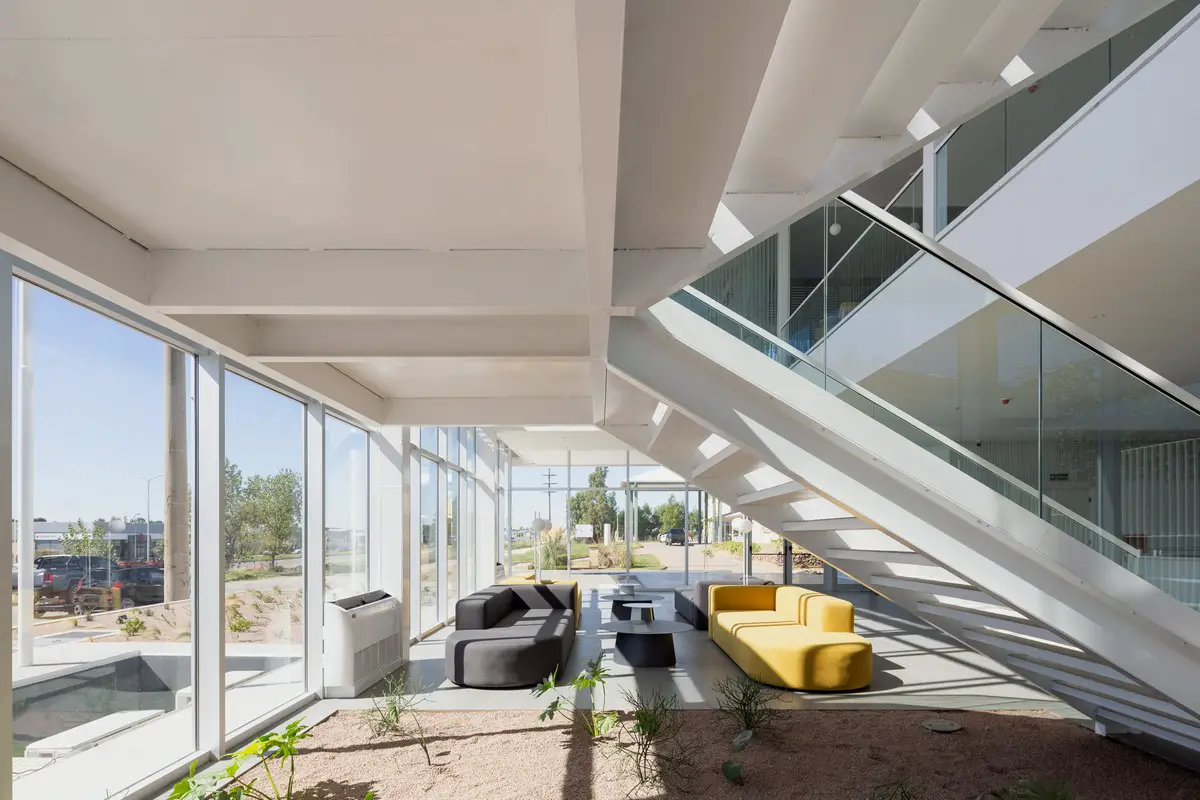

Its interior spatiality, marked by spatial fluidity and double open levels, generate wide and inclusive visuals, fostering a sense of equality, integration and equity. The work spaces are resolved in continuity and tending to unify the areas that, in the past, were understood as isolated or independent events. This project search speaks of the intention of transversality and mutual collaboration that is intended to be achieved.
TYPOLOGY

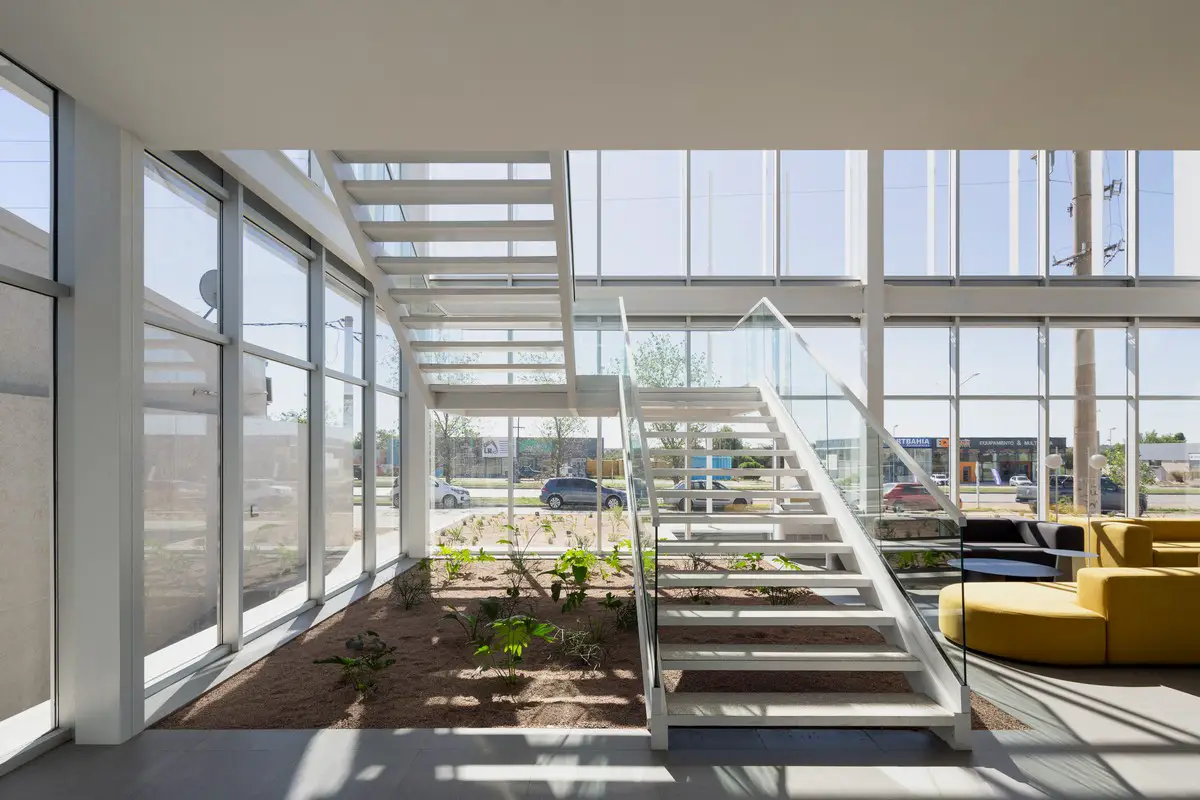

The proposal arranges the different spaces of the program on the free perimeter of the building (4 facades), articulated to the interior by a large central void (patio) that notably improves the natural lighting and ventilation conditions of the building. This central void allows the interrelation between all the spaces to be appreciated from any angle, reinforcing the idea of a democratic space and equality.
For the rest, the typology is linked to the concept of “open floor plan”, nucleating the service spaces and vertical circulation against one side and freeing the rest of the floor plan from fixed structures. This solution allows to achieve a structure of high flexibility and versatility of the spaces, enabling growth and adaptation to change.
MATERIALITY

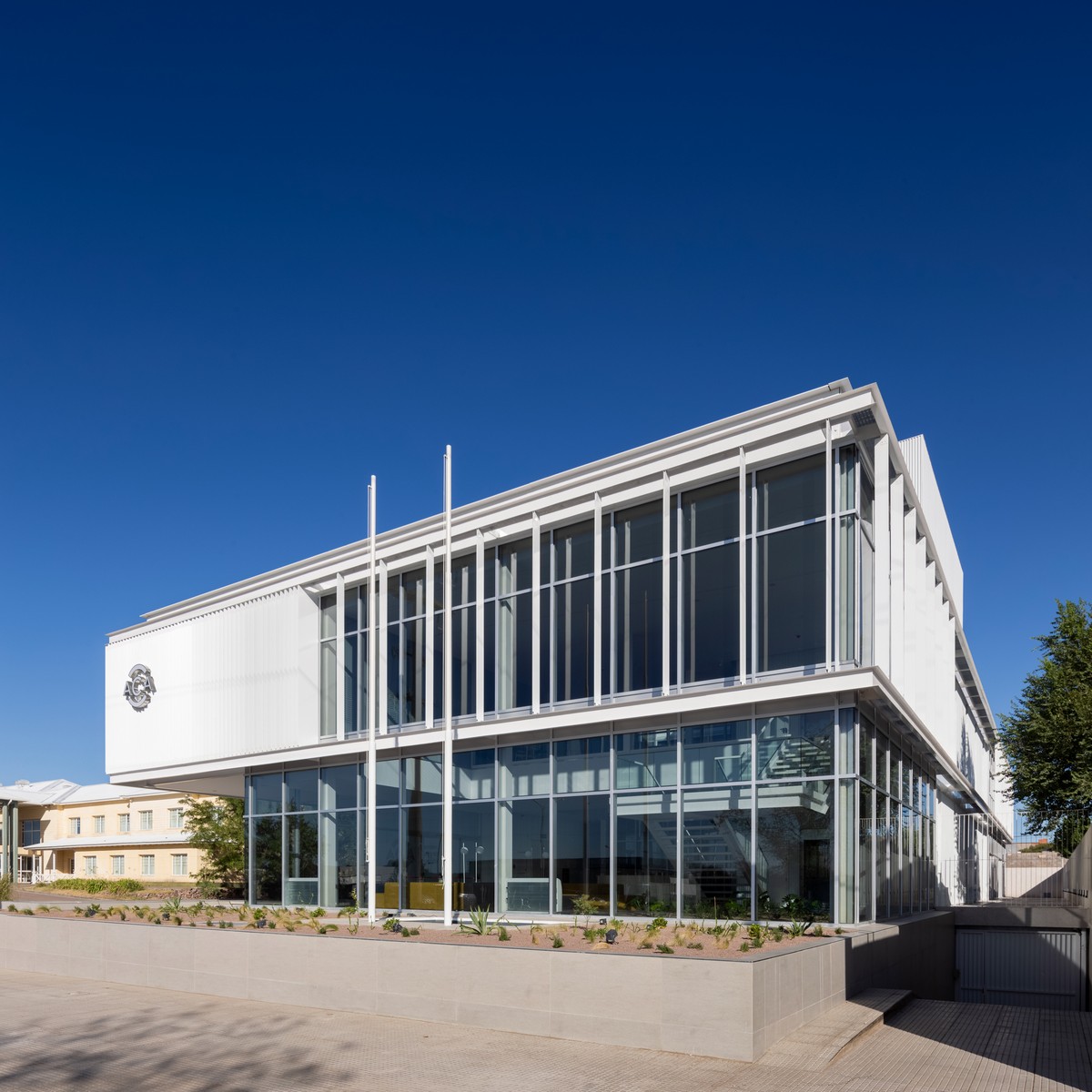

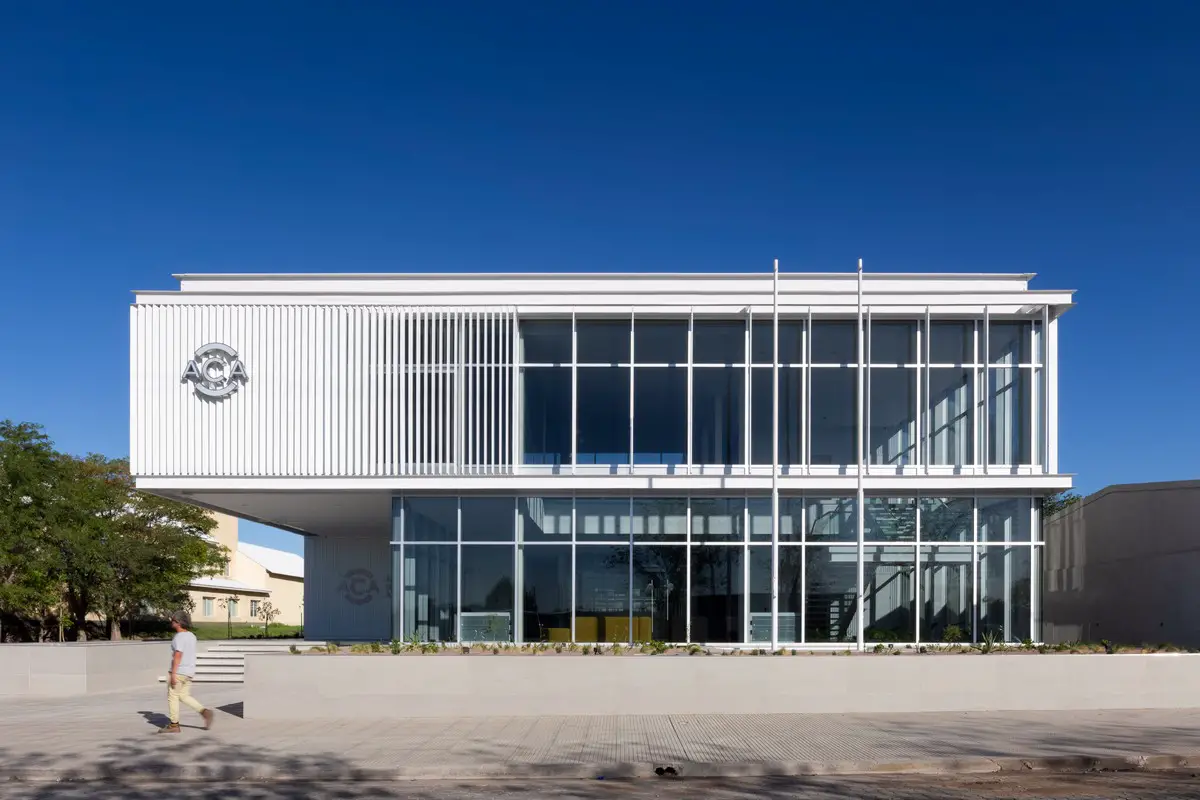

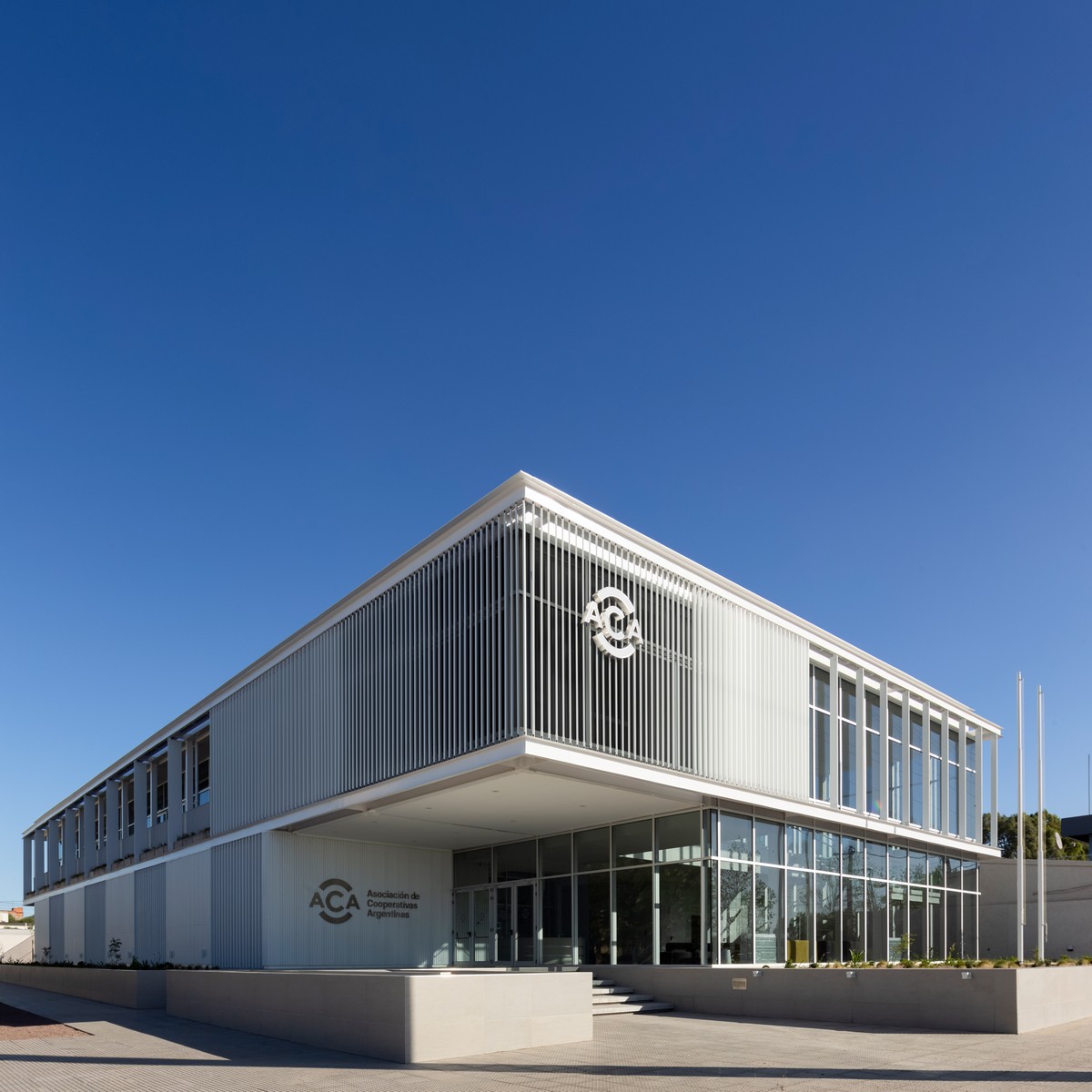

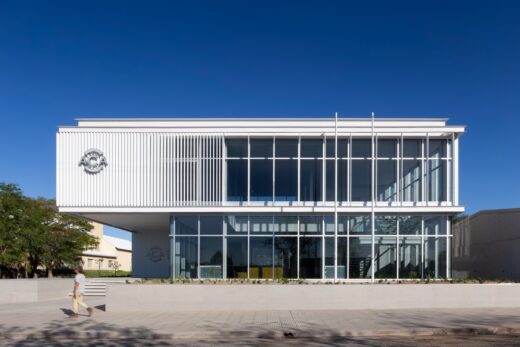

From the point of view of the materiality of the building, the repertoire of materials used suggests concepts such as modernity, innovation and efficiency. In general terms, the aesthetic commitment is to the honest manifestation of each one of the structural and constructive components. The glazed closures propose transparencies that allow the interior of the building and its operation to be recomposed from the street, resorting to a series of metal parasols to subtly hide the spaces that need some type of climate control or greater privacy.
The metal structure, drywall partitions and slabs, designed as a resource to simplify and speed up the construction process, define a set that is perceived as simple, austere and contemporary.
SUSTAINABILITY
The project pursues principles of sustainability, accompanying the company’s vocation for social responsibility and efficiency ambition. In the first place, it favors well-ventilated spaces (cross ventilation) and with optimal natural lighting, generated from a series of interior patios that favor this aspect. Towards the perimeter, the glass closure is complemented by a series of parasols that allow controlling the direct incidence of the sun in unfavorable orientations.
These devices, as a whole, aim to minimize energy consumption and improve the habitability conditions of the building. Likewise, the installation of panels for the generation of solar energy is planned, tending to cover the energy consumption and the heating of sanitary waters.
PROGRAM
The project program is developed in 4 (four) levels:
The project has a first underground level that houses a covered garage for 9 vehicles, together with a machine room and the circulatory core to access the other levels of the building.

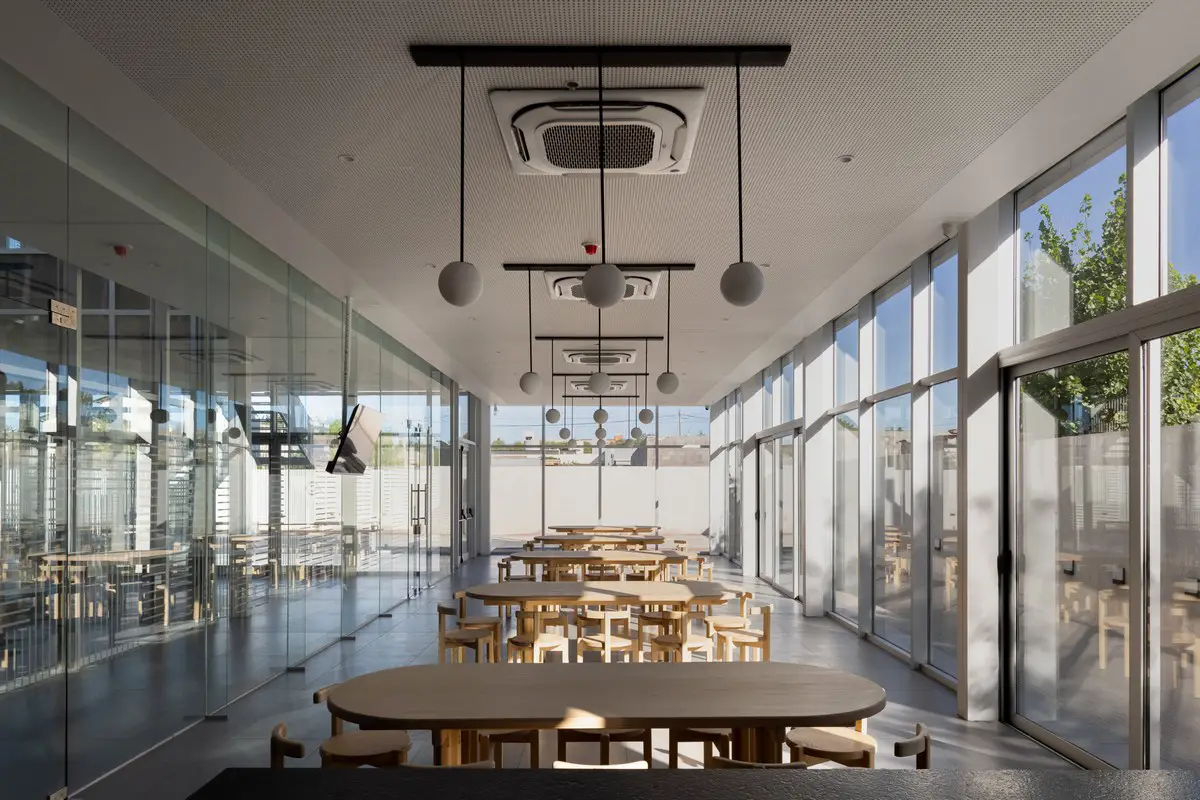

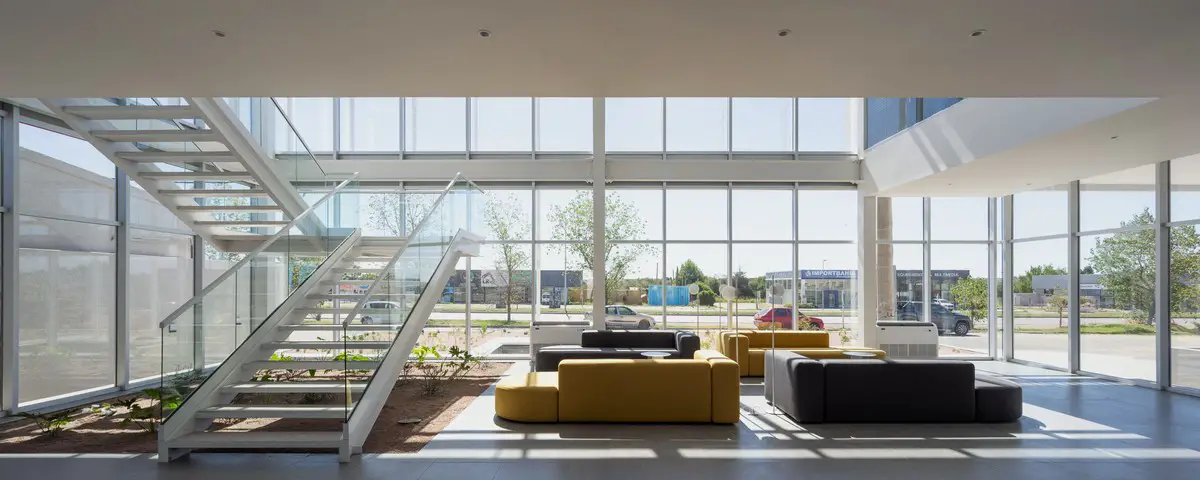

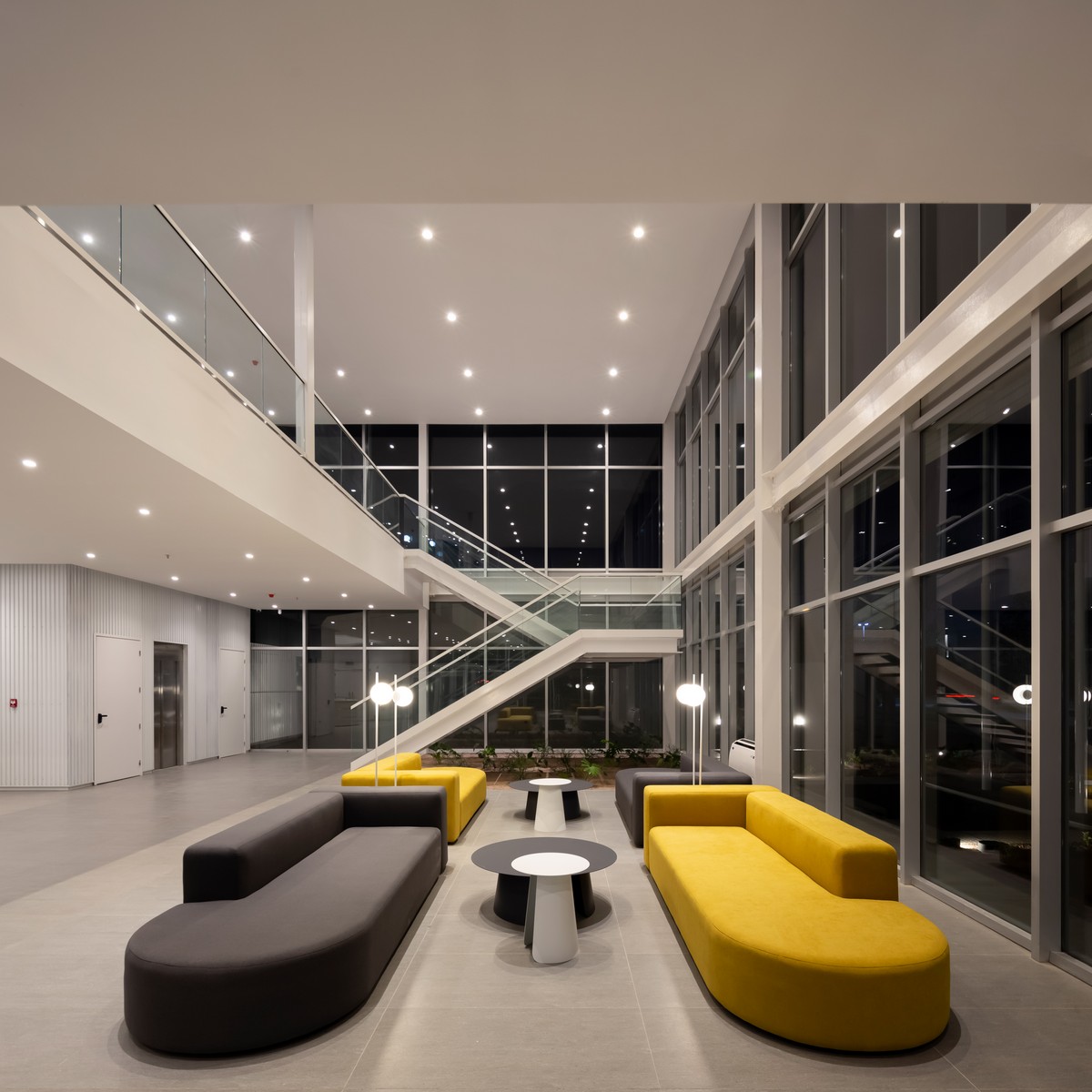

On the ground floor are the spaces for public use with the highest influx of visitors. From the main entrance, located on the corner of the planting, the reception and information hall is approached and from there you can access the auditorium for 160 seated people (subdividable to operate in groups of fewer people) and a barbecue area – dining room for 70 people, both articulated by a central courtyard that organizes the layout and improves lighting and ventilation conditions.

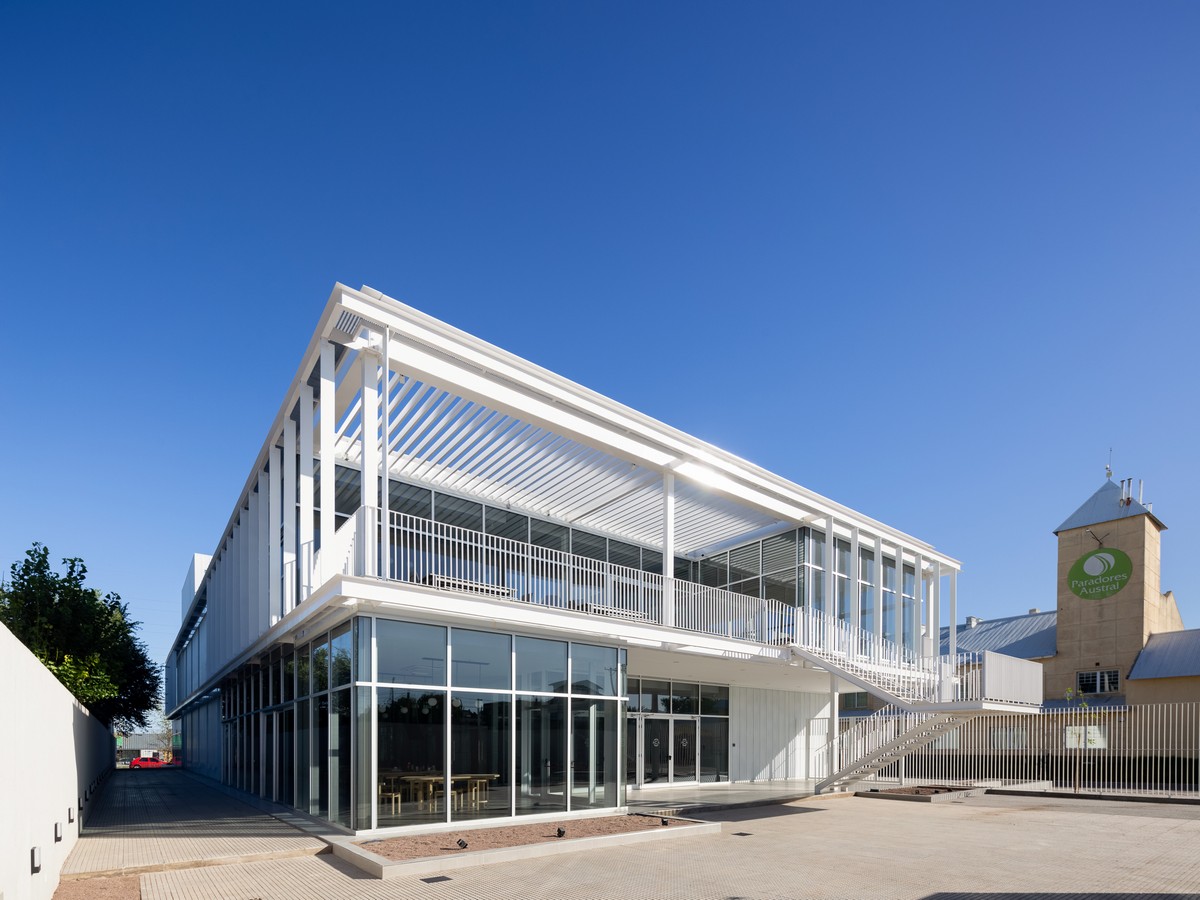

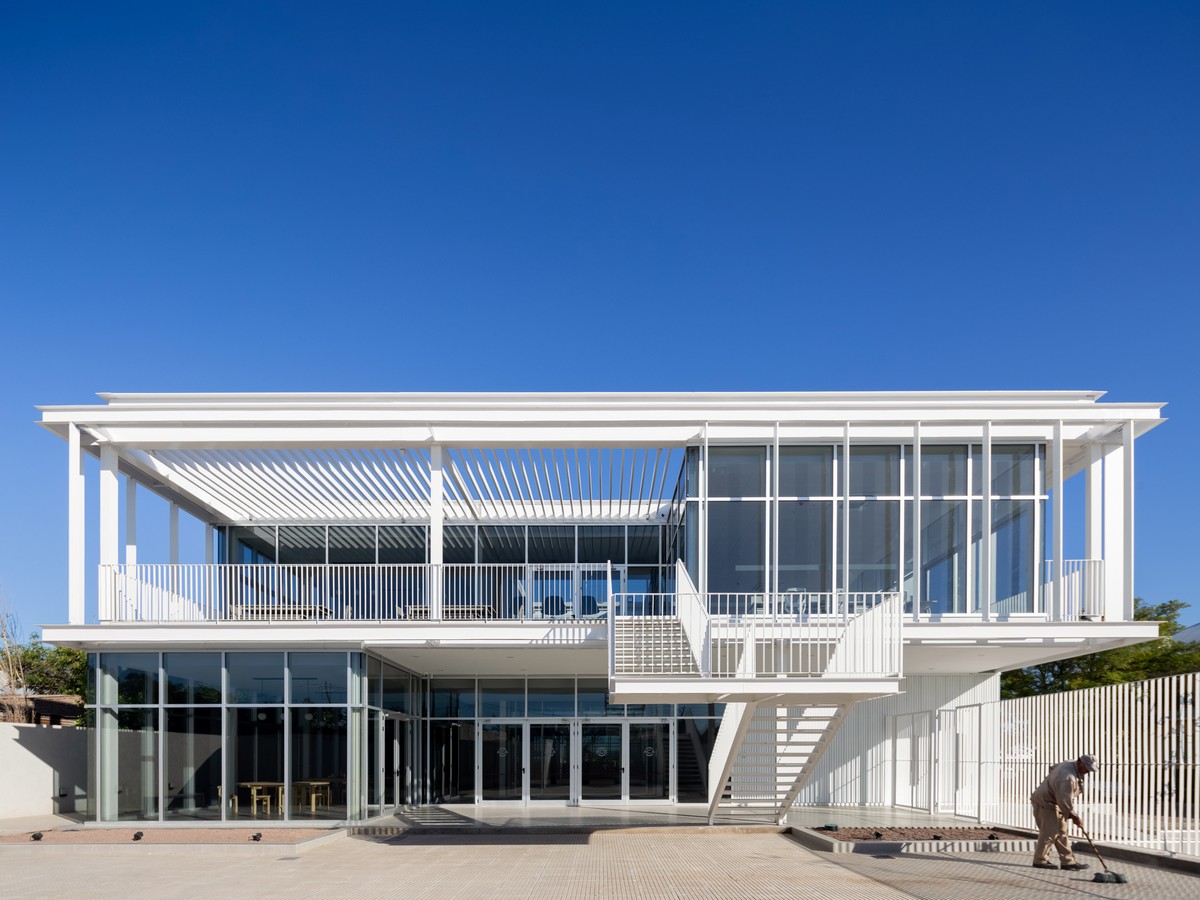

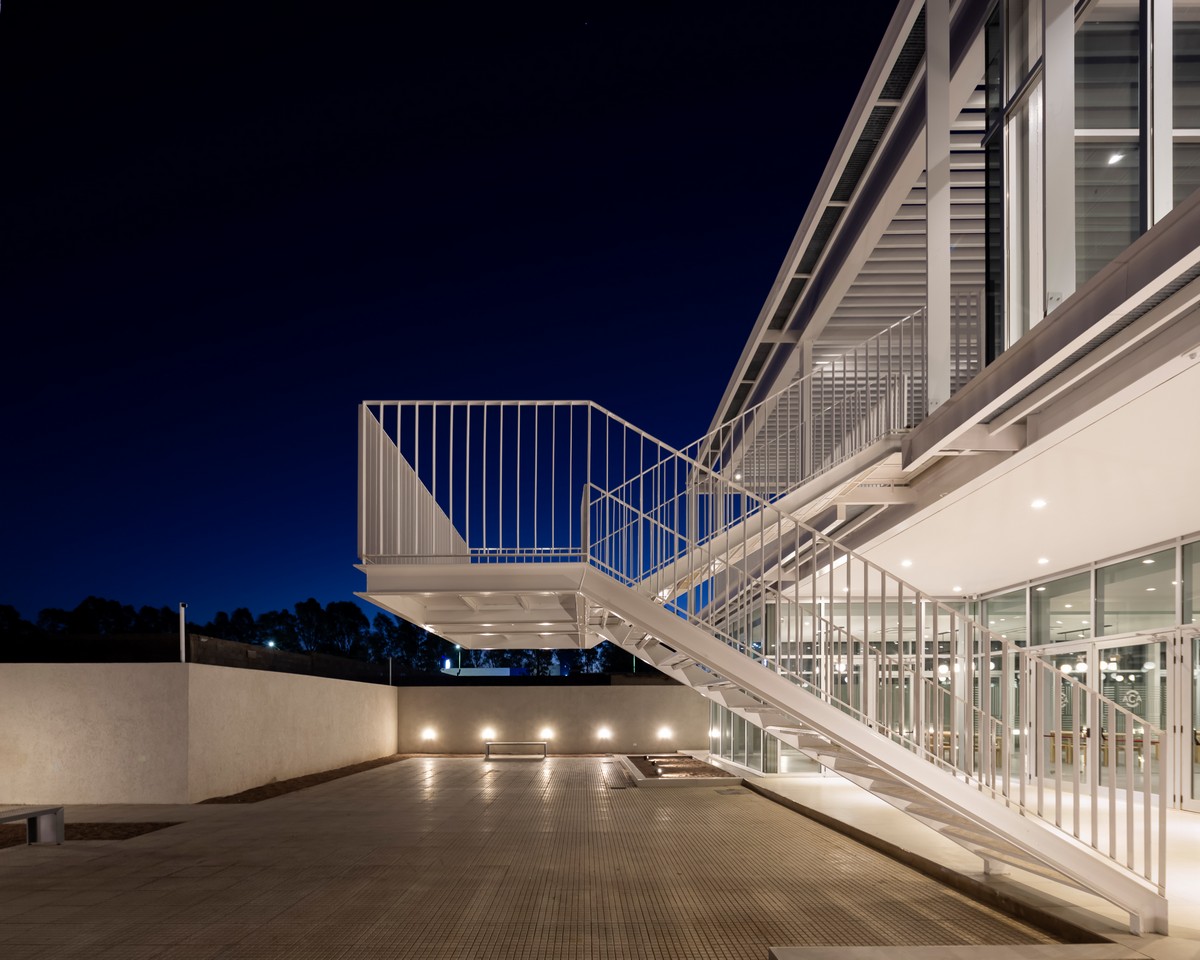

Towards the bottom of the land, a large patio is arranged as the main expansion space and for the development of outdoor activities. This open space is accessed from inside the building, or through a secondary and service entrance from the side street. This large patio, in turn, is articulated with a public square on the adjoining land, functioning as an integral open area that improves the link between the building and its surroundings.

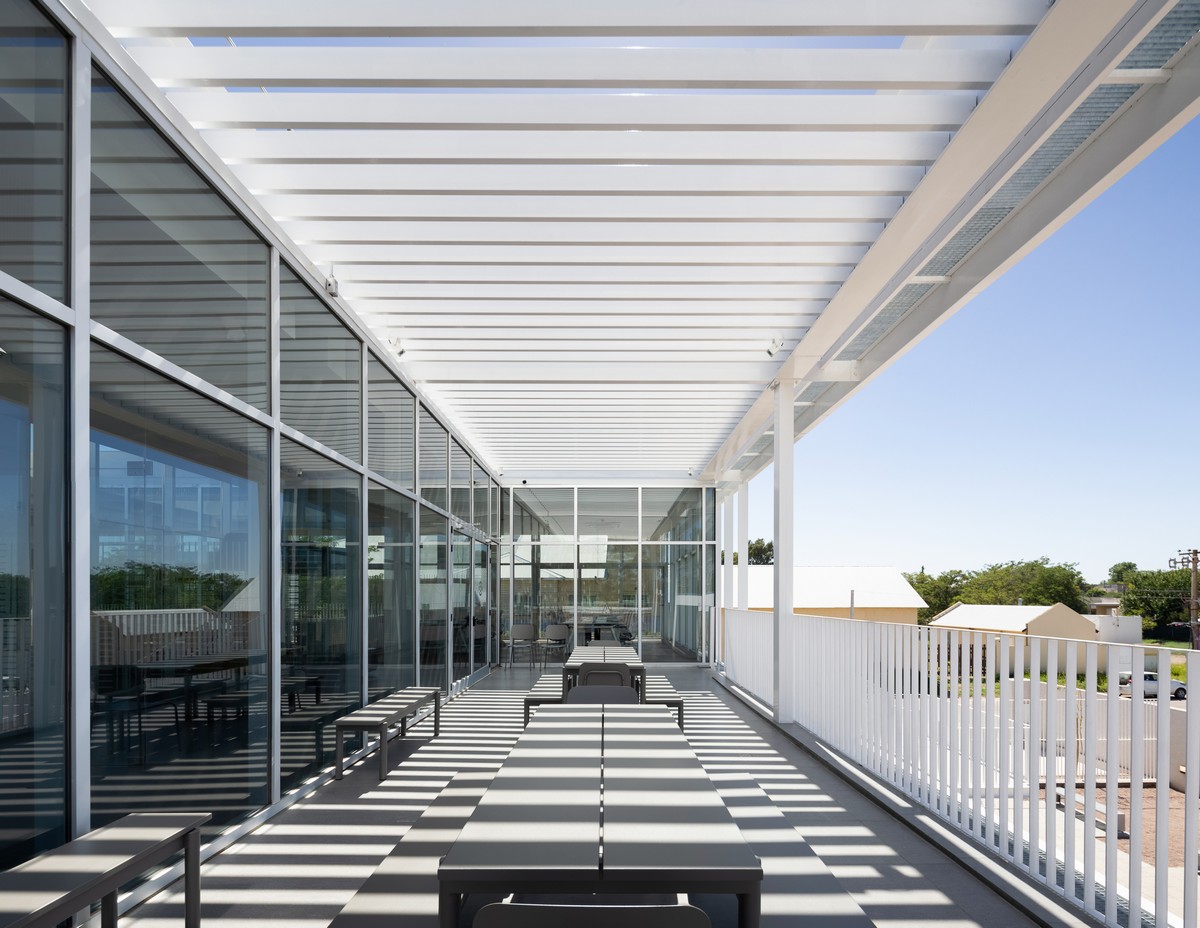

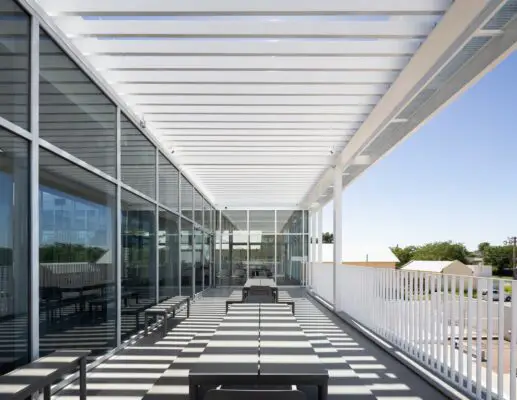

On the first floor, all the managerial and administrative tasks of the company are carried out: secretary, meeting rooms of different capacities, management, administrative space and dining room for employees. External public access to these areas, for more private use, is channeled through a second hall that has a balcony in the form of a bridge over the main hall, from which there is access to a reception area that controls and coordinates the influx of external people. . The administrative spaces have expansions to an open terrace for recreation from where you can descend to the general patio. In this way, at each level, the interrelation between exterior, interior and intermediate spaces is promoted.
The roof on the 3rd level is free and open in this instance and a machine room and other technical equipment will be located there.
ACA Coop Offices Bahía Blanca – Building Information
Datos de Obra:
Obra: Edificio oficinas A.C.A. (Asociación de Cooperativas Argentinas) / Sucursal BAHÍA BLANCA.
Ubicación: Ciudad de Bahía Blanca – Provincia de Buenos Aires
Fecha de proyecto: 2020
Fecha de construcción: 2021 – 2022
Proyectistas: Arq. Ignacio Arrillaga, Arq. Walter Parola, Arq. Pedro Martorana, Arq. Analía Nieva, Arq. Bernardo Bertone
Directores de obra: Arq. Ignacio Arrillaga, Arq. Walter Parola, Arq. Pedro Martorana
Superficie: Superficie CUBIERTA: 1.985 m² – Superficie SEMICUBIERTA: 390 m2
Asesores Externos:
Cálculo de estructuras: Ing. Juan Manuel Fratti
Ejecución de la obra: COCYAR S.A. Empresa Constructora
Diseño de interiores: Arq. María Delia Zacagnini, Arq. Ignacio Arrillaga
Diseño paisajístico: Arq. María Paz Cantarelli
Cálculo Instalación Eléctrica: Ing. Gustavo Pacheco
Cálculo Instalación Sanitaria: Andrés Olivetti
Fotografía de Obra: Arq. Ramiro Sosa
Proveedores Principales:
Materiales de construcción COCYAR S.A.
Climatización CLIMATEC S.R.L.
Aberturas de aluminio B.H. Aberturas
Aberturas de madera Aberturas SAN GERÓNIMO
Herrería de obra COCYAR S.A.
Mobiliario – Equipamiento Grupo A2 – Estudio TE – RIES estudio – WERTHEIM muebles
Amoblamiento de cocina JOHNSON Amoblamientos
Pisos VITTE – SBG
Revestimiento INTERIOR – Cielorrasos HUNTER DOUGLAS ARGENTINA
Revestimiento EXTERIOR HUNTER DOUGLAS ARGENTINA
Artefactos de Iluminación IMDI – FLO´S MARKET
Sanitarios – Griferías ROCA – SBG
Photography: Ramiro Sosa Fotografía de Arquitectura
ACA Coop Offices, Bahía Blanca, Buenos Aires Argentina images / information received 250422
