Sun Rock Taichung, MVRDV Taipower Building Design, Modern Taiwan Architecture Images
Sun Rock in Taichung, Taiwan, design by MVRDV
17 January 2022
Location: Changhua Coastal Industrial Park, near to Taichung, Taiwan
MVRDV’s “Sun Rock” is a built manifesto for Taipower’s carbon-free future in Taiwan
Building Images © MVRDV

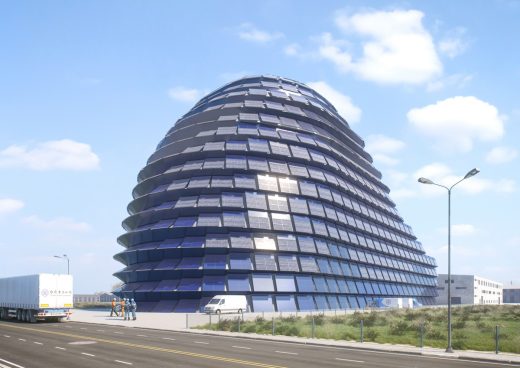

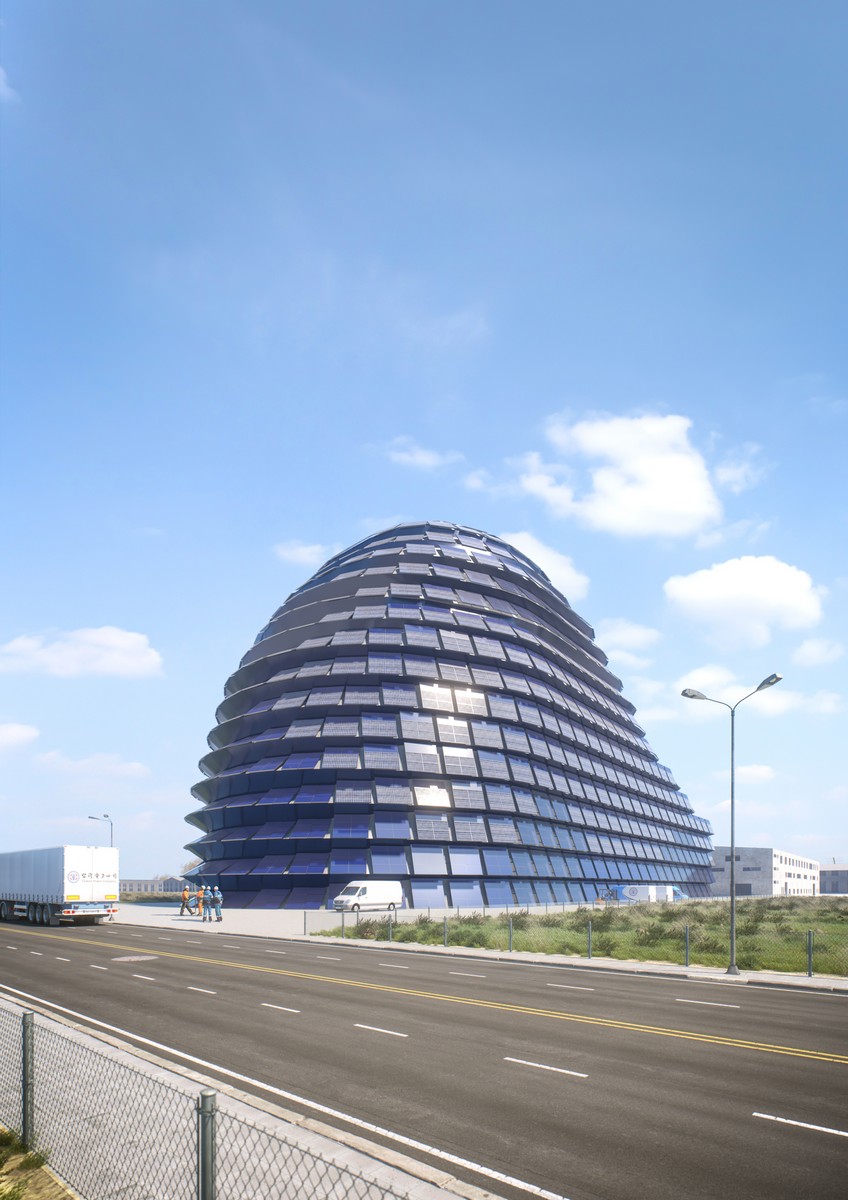

Sun Rock by MVRDV in Taichung, Taiwan
Rotterdam, January 17th 2022 -MVRDV has revealed Sun Rock, an operations facility containing offices, a maintenance workshop, storage spaces, and a public gallery for Taiwan’s government-owned power company Taipower. Anticipating Taiwan’s planned transition to green energy, the features of the Sun Rock building, from its shape to its façade, are focused upon generating solar energy as efficiently as possible. The building therefore acts as a definitive statement of intention, and a “manifesto in a building” to communicate Taipower’s goals to the public.

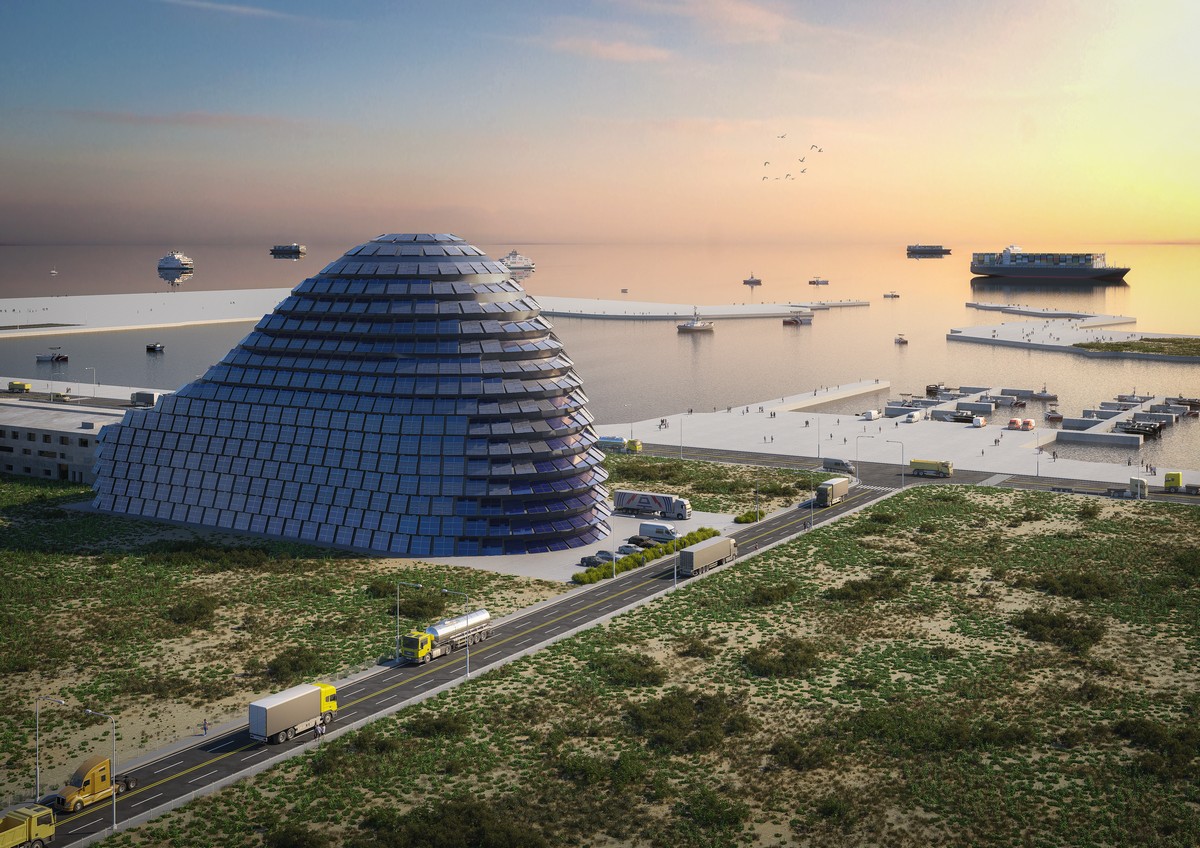

Located at the Changhua Coastal Industrial Park, near to Taichung, the building’s primary purpose is for the storage and maintenance of sustainable energy equipment:
Located at the Changhua Coastal Industrial Park, near to Taichung, the building’s primary purpose is for the storage and maintenance of sustainable energy equipment. The site for Taipower’s new facility receives a significant amount of solar exposure throughout the year, and so the rounded shape of Sun Rock is designed to maximise how much of that sunlight can be harnessed for energy.
Anticipating Taiwan’s planned transition to green energy the features of the Sun Rock building are focused upon generating solar energy as efficiently as possible:
On the southern side, the building slopes gently downwards, creating a large surface area that directly faces the sun during the middle of the day. At the northern end, the domed shape maximises the area of the building exposed to the sun in the mornings and evenings.
The façade maximises this solar potential with a series of pleats, which support photovoltaic panels (mixed in with windows, where required) on their upper surface. The angle of these pleats is adjusted on all parts of the façade to maximise the energy-generating potential of the solar panels. As a result of these measures, the building can support at least 4,000 square metres of PV panels that would generate almost 1 million kilowatt-hours of clean energy per year – an amount of energy equivalent to burning 85 tonnes of crude oil – and making the building completely self-sufficient. Further design options are under consideration that would add an even larger area of PV panels, with calculations showing the building could generate up to 1.7 million kWh annually to contribute energy to the grid.

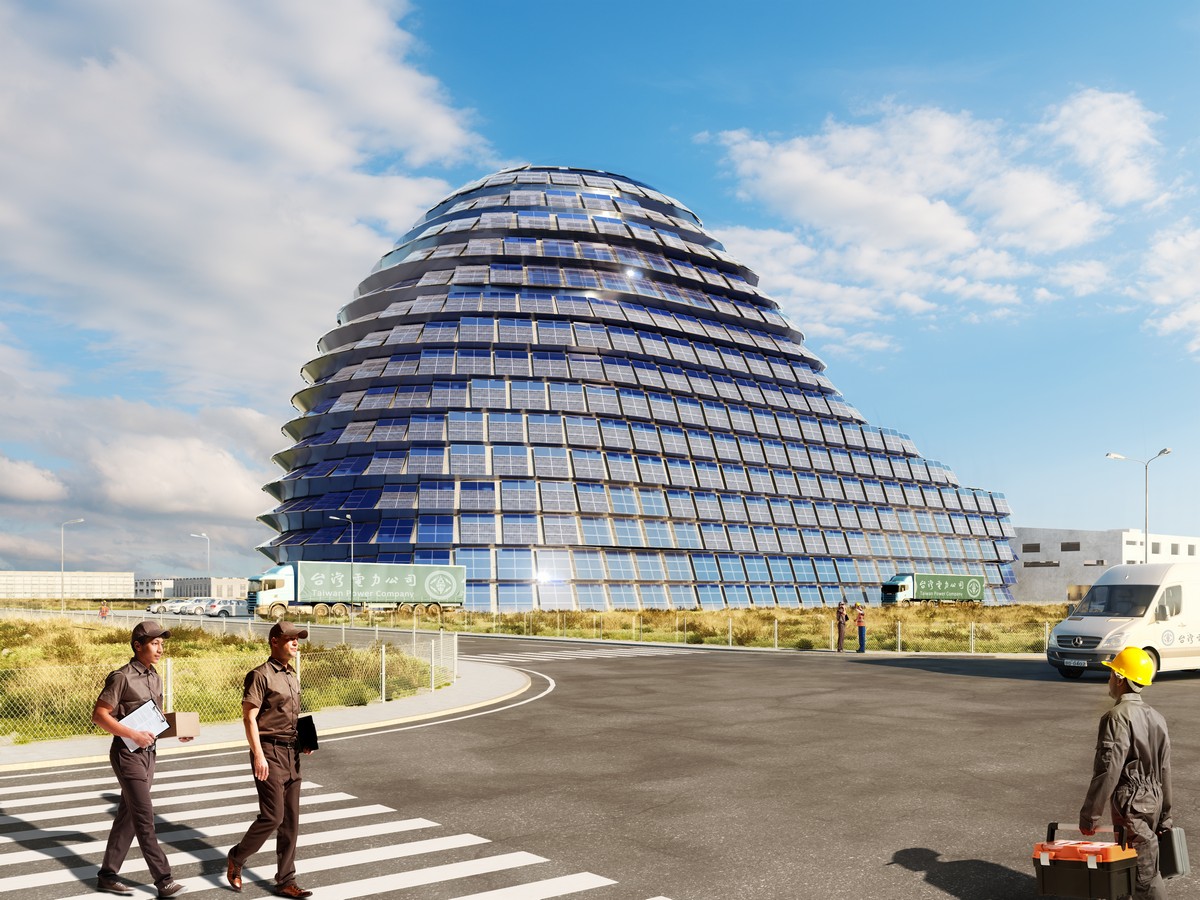

The façade maximises its energy-generating potential with a series of pleats, which support photovoltaic panels on their upper surface:
“Of course, we aim to make all of our projects as sustainable as possible. Yet we see that projects can go beyond just being sustainable in themselves. This project has unique and fascinating potential”, says MVRDV founding partner Winy Maas. “The user is an energy company, which has allowed us to do more than usual. We cladded the entire façade with photovoltaics, maximising the energy gains to make it not only self-sustainable, for its own usage, but also allowing the building to become a tool of energy production, exporting electricity to the rest of the grid. This is achieved through a maximally efficient positioning of the panels. As a result, our design is completely data-driven. It’s always fun to see the results when you let analysis be the determining part of the design.”
At the heart of the building is the Data Room, a soaring atrium with real-time displays of data about Taipower’s operations:
At the heart of the building is the Data Room, a soaring atrium with real-time displays of data about Taipower’s operations and the amount of renewable energy the company generates. On the first floor, a gallery space provides a view onto the maintenance workshop, allowing the public an up-close look at the machines that make sustainable energy possible, from solar panels to massive wind turbine blades. A further gallery for exhibitions is included on the top floor, while at roof level, under the shelter of a dome of solar panels, is a terrace complete with trees for both visitors and Taipower employees to relax.

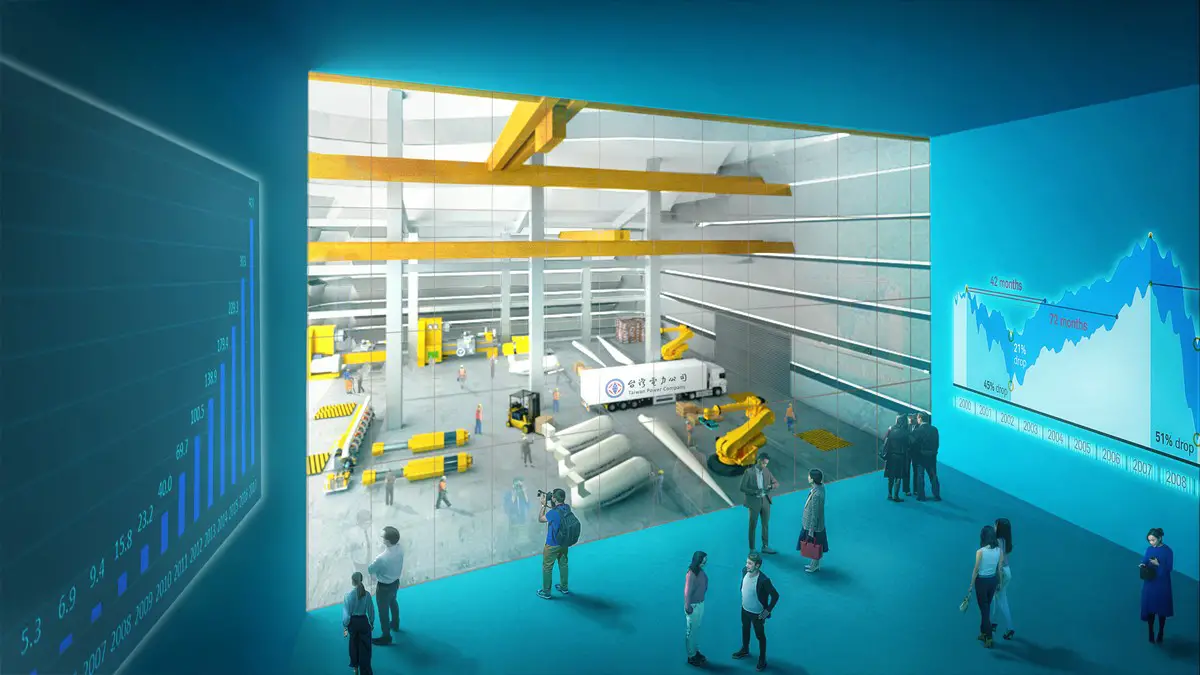

A gallery space provides a view onto the maintenance workshop, allowing the public an up-close look at the machines that make sustainable energy possible:
The sustainable energy-generating features of Sun Rock make the building more than simply an operations and maintenance facility; the design cleverly combines the building’s utilitarian spaces with a series of gallery spaces. The building is thus also an important communication tool for Taipower to publicly show their ambitions for a greener future.
Images © MVRDV
Sun Rock in Taichung, Taiwan, by MVRDV images / information received 170122 from MVRDV Architects
Location: Changhua Coastal Industrial Park, near to Taichung, Taiwan, eastern Asia
New Taiwan Architecture
Contemporary Taiwan Architectural Projects, chronological:
Taiwan Architecture Designs – chronological list

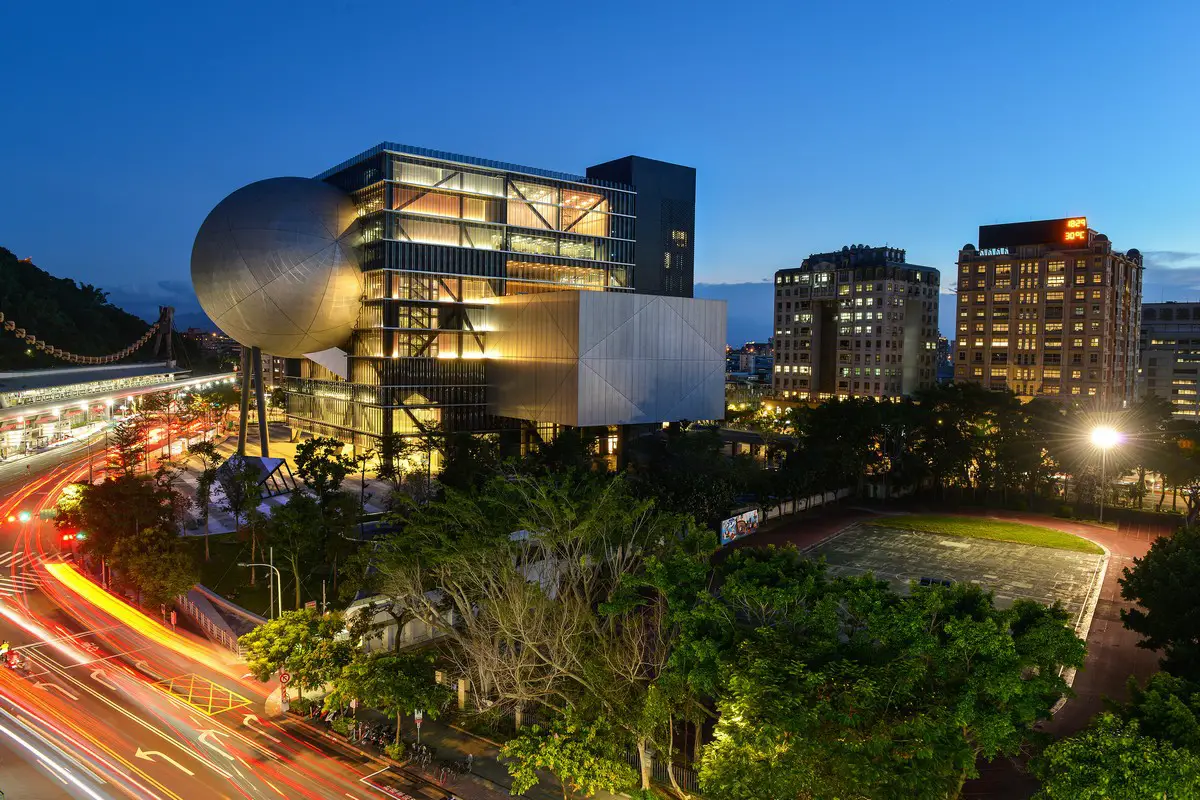

Taipei Performing Arts Center
