Darlington Brickworks Apartment Building

Architects and Urban Planners: Glyde Bautovich

Location: Sydney, New South Wales, Australia

Darlington Brickworks Apartments Sydney

The primary concept for this multi-residential Darlington Brickworks Apartment Building is to create a sense of place using a terrace form typology reflective of it’s context.

Darlington Brickworks Apartments Sydney

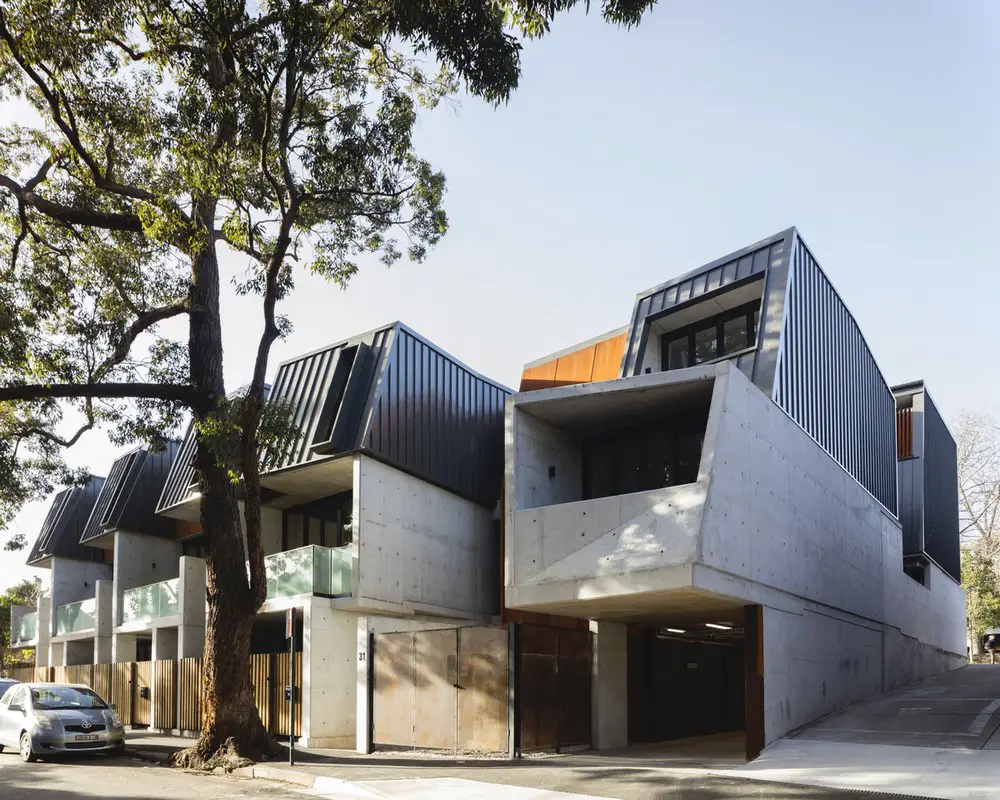

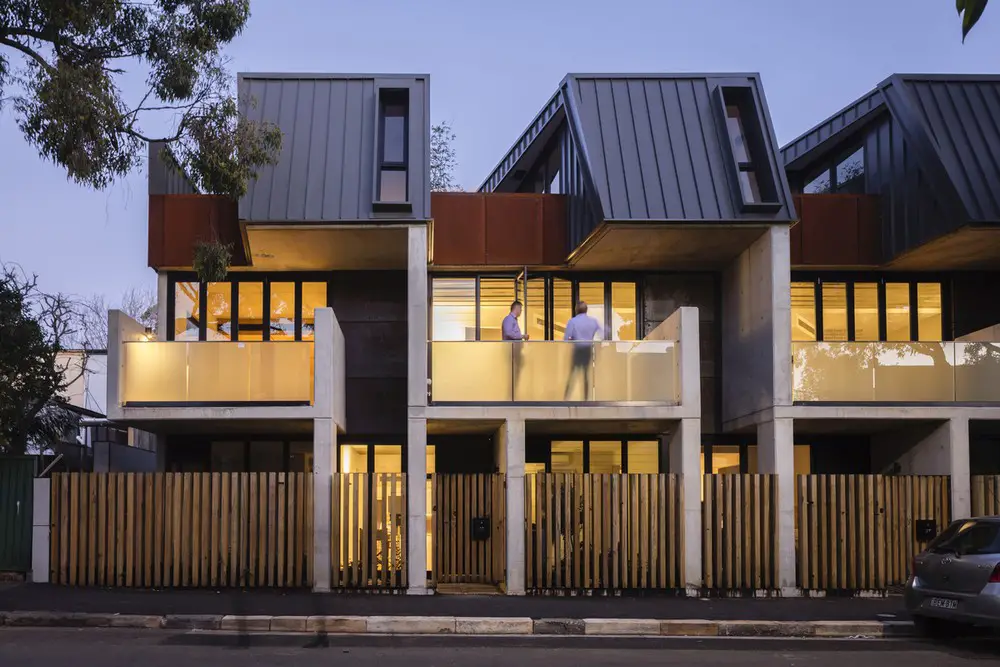

The council controls allowed for two storeys for the area. An interpretation of ‘storey’ within council’s controls allowed for an attic form that presents to the streets as a roofing element and essentially provides for a third level to the building.

Darlington Brickworks Apartments Sydney

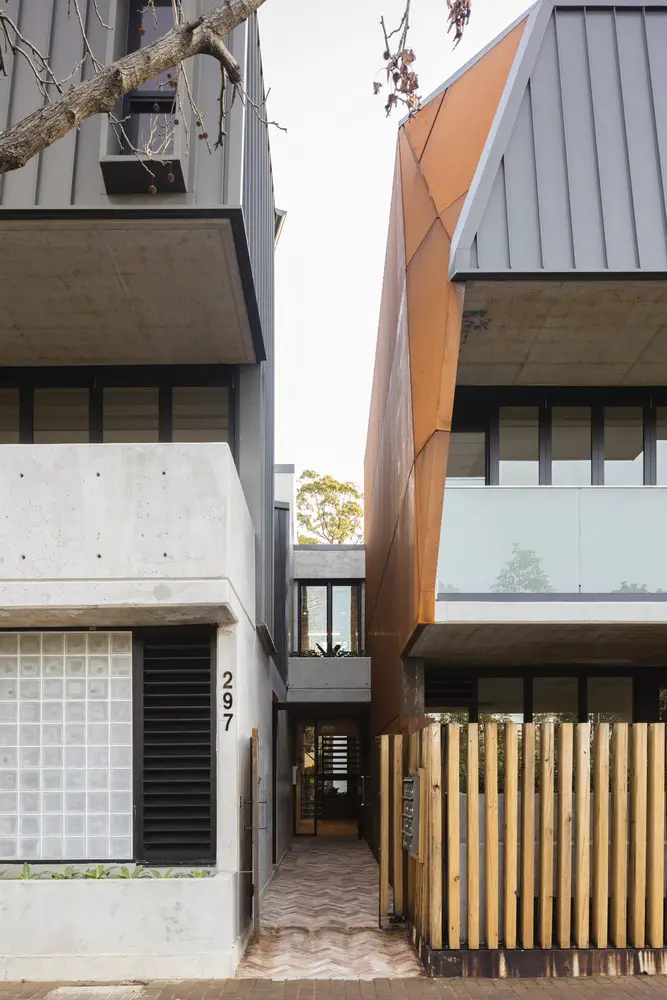

Deep internal fissures were cut into the building perpendicular to the street frontages to increase the surface area of light and ventilation into each dwelling. Typically apartment buildings have private open space located on street edges with privacy often compromised. Our design layers private open space deeper into the building form reducing the fish bowl effect and minimising anonymous façadism. The lack of dependency on windows to the street allowed us to be more confident in using solidity and materiality.

Darlington Brickworks Apartments Sydney

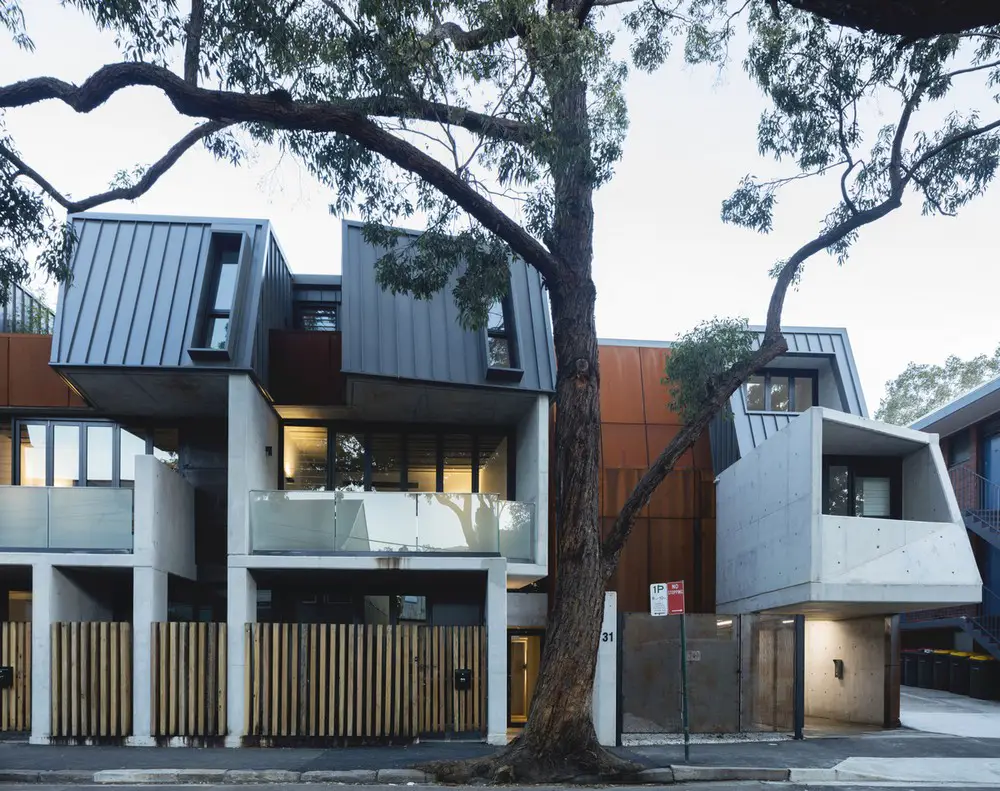

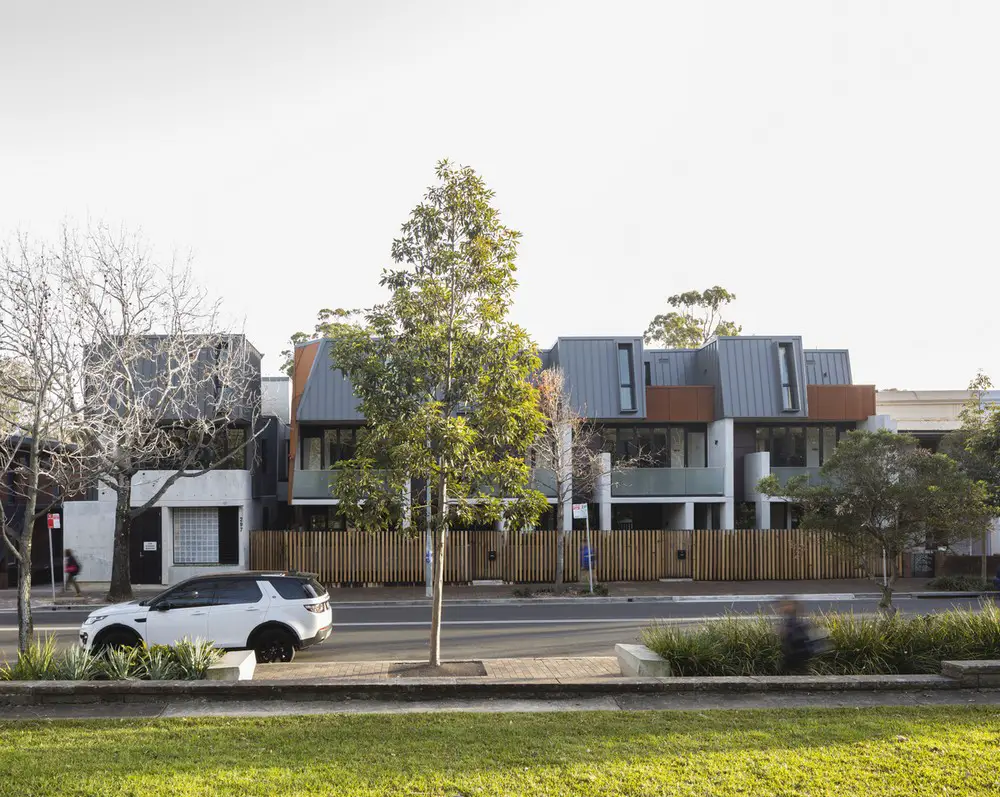

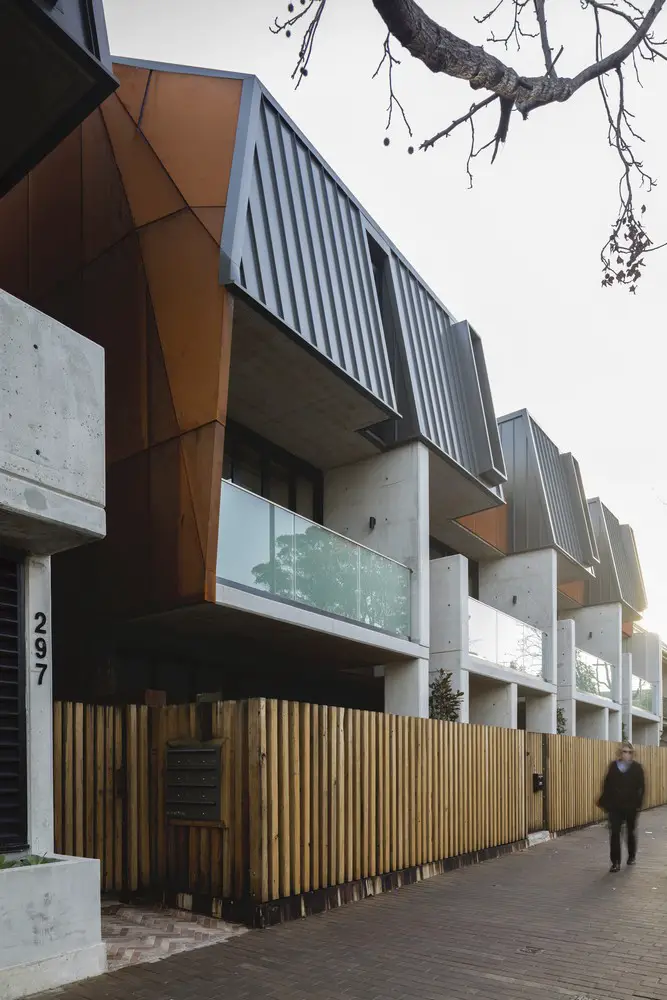

Each street frontage has been carefully broken down and eroded to produce a fine urban scale commensurate with the human body. Landscape helps fill in the gaps.

Darlington Brickworks Apartments Sydney Darlington Brickworks Apartments Sydney

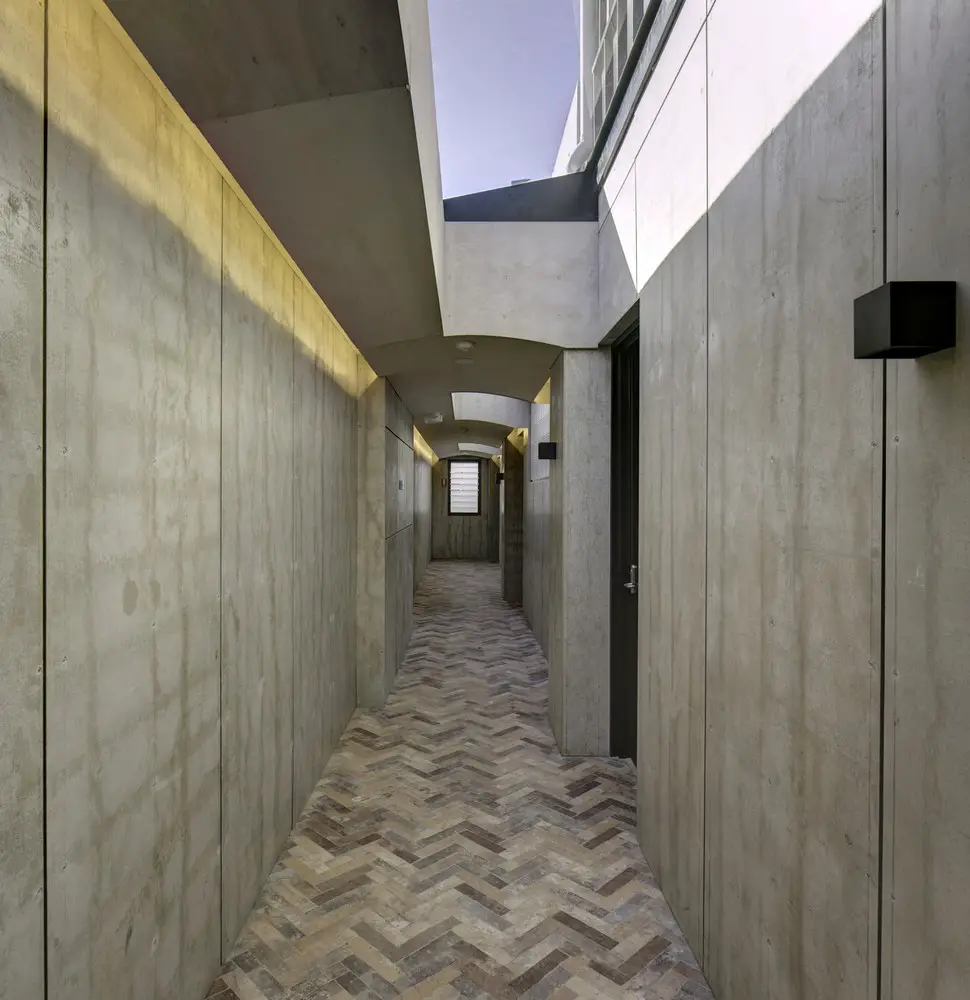

Internal corridors have been designed like external streets.

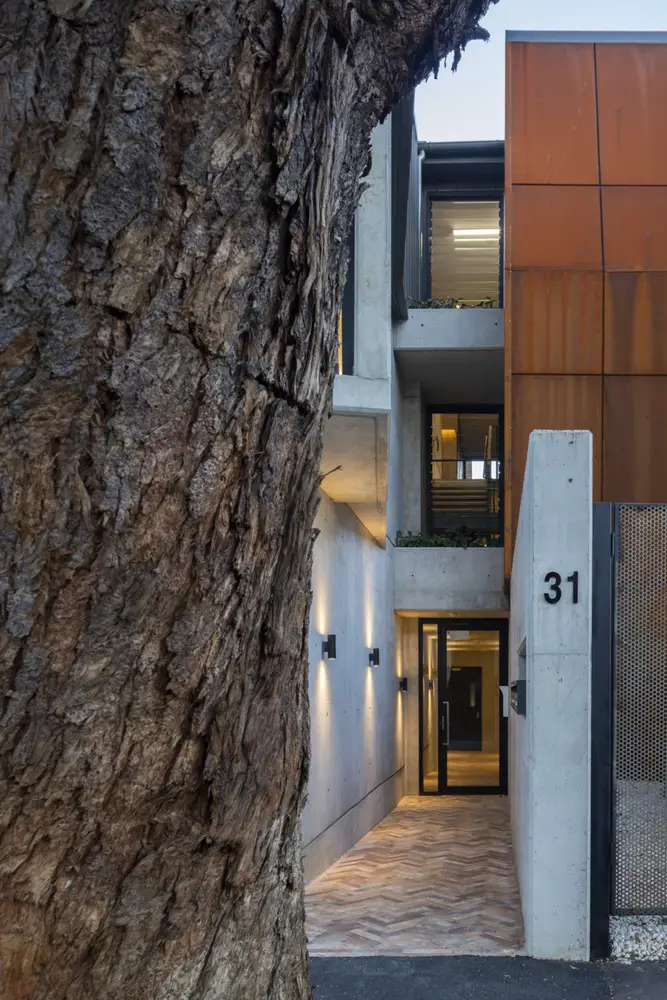

Usually internal corridors are utilitarian and treated as low grade space. In the building corridors have been treated like an extension of the local streets, a celebration of its urban environment. The common location of the main lobby entries and vertical circulation allow a landscaped ‘mid block’ link to occur between both Abercrombie and Lander Streets and provide permeability within the street block.Subtly faceted steel and folded concrete further reinforced these entries at street level.

Darlington Brickworks Apartments Sydney Darlington Brickworks Apartments Sydney

External materials have been used as internal materials.

The use of unpainted materials to internal lobby areas such as fibre cement sheet and Corten steel walls, plywood ceilings, brick paving to the floors and natural light is in contrast to the dingy ‘motel lobby effect’ and gives these semi public spaces a sense of place. The upper level corridors have skylights and glass brick walls to allow winter sun to penetrate deep into the building.

Darlington Brickworks Apartments Sydney

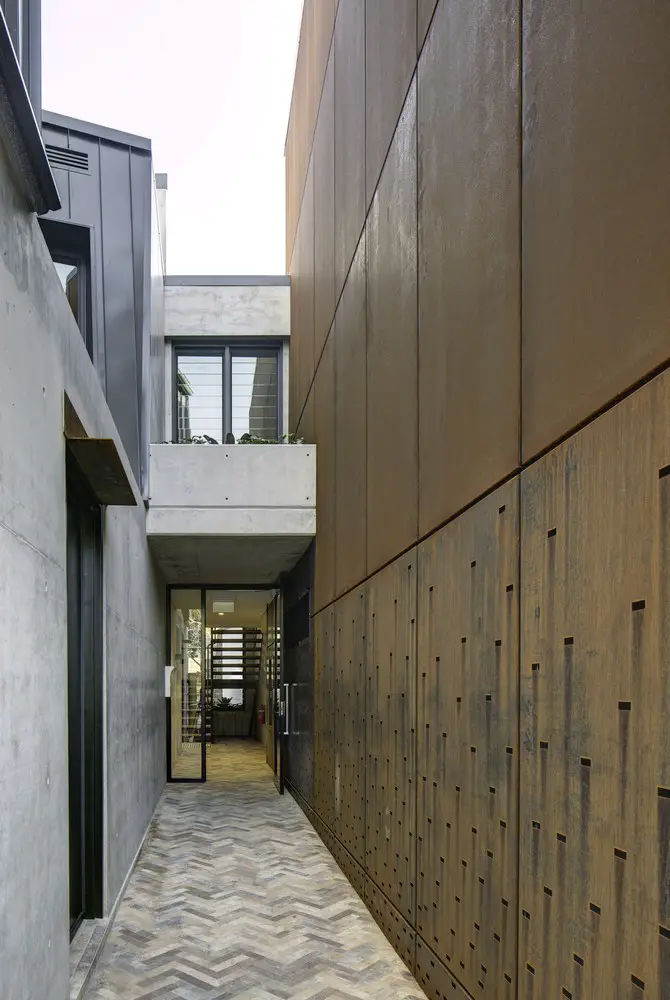

The predominant materials of off form concrete and rusted steel are materials that reflect both the heritage of Darlington and its immediate context. An example of this, is the rear entrance to Sydney University at the end of Lander Street where Corten steel is used as a screening element. Our decision to use Corten steel as cladding provided another opportunity for our building to connect within its context.

All the markings used in the construction of the building have been preserved such as pencil set out lines for cladding, spray paint markings on concrete, even mistakes made during construction are not deliberately covered over or hidden. Rather they are left as scars commemorating the human condition.

The brief was to create a place that was for people to live in. Not an investor driven project. We were asked to go beyond creating a dumb box, a building that contributed to the city without being flashy. Defined character.

Darlington Brickworks Apartments, Sydney – Building Information

Architect: Glyde Bautovich

Project size: 1440 sqm
Site size: 824 sqm
Completion date: 2018
Building levels: 4

Key products used:
Off form concrete
Corten Steel
Recycled hardwood timber

Darlington Brickworks Apartments Sydney

Photography: Brett Boardman

Darlington Brickworks Apartment Building in Sydney images / information received 011219

Location: Sydney, New South Wales, Australia
