Iran Pavilion Expo 2015 Milan

Feeding the Planet : New Italian Building design by NJP with LAD, Architects

16 Jan 2014

Iran’s Pavilion – Expo 2015 Milan

Design: NJP with LAD

Winner – Iran Pavilion Expo 2015 Milan

International exhibitions company_Ministry of Industry, Mine and Trade, Islamic Republic of Iran First Prize Winner

NJP, Naqsh, E, Jahan-Pars Consulting Engineers

Local consultant: LAD, Italy

Considering the EXPO subject, the main design idea has been based on

“A living process narrative in central plateau of Iran”.

Iran Pavilion Expo 2015 Milan

Due to the existence of two mountain range of Alborz in north and Zagros in West of Iran, The main portion of the country consists of arid and semi arid deserts. From several thousand years ago, the Iranian were in search of ways to live in such arid region of the world, thus, they tried hard to bring the water from inner layers of the land to the surface, created their farms and gardens and lived beside them.

Iran Pavilion Expo 2015 Milan

The most well-known solution was the creation of “qanats” .By designing the wells in higher areas, the Iranian people was able to direct the water, by means of underground canals, earth’s gravity and slope, to lower parts and had obtained a permanent water and as a subsequence a glittering water at the ground level and their life continued because of the water. Along the history in this part of the world the water has been the most important element and the continuation of living depended on it.

Perhaps, if the Iranian could not reach out towards the Qanat technology, they could not create such a vast and continued civilization in such region of the world. In the Iranian culture and literature, dryness and wetness remind and follow each other. In this culture we face with such concepts as water and shadow, water and darkness, water in darkness, reflection in water, and mirror effects.

Iran had transferred the Qanat technology to other parts of the world, From Palermo in south of Italy in Europe to Africa.The Iranian scholar “Abuback Karaji” has presented the rules and regulations of digging the Qanats in his book “Extraction of Hidden Waters” during the eleventh century, AD. This book is considered as the first document of hydraulic law in the world.

Iran Pavilion Expo 2015 Milan

With this type of obtaining water from the ground, the public image of cities in central plateau of Iran’s several broad stretch of land exist one after another such as high lands and foothills (very close or further from the city), gardens and farms in mountain slopes, and finally a residential stretch of land.

The Iranian garden, as of the most important elements of architecture and urban planning of modern history, has been the result of such approach toward the nature. Iranian did not search the paradise image in green and lush parts of the planet, but created them in the deserts and this was not possible except with extraction of hidden waters.

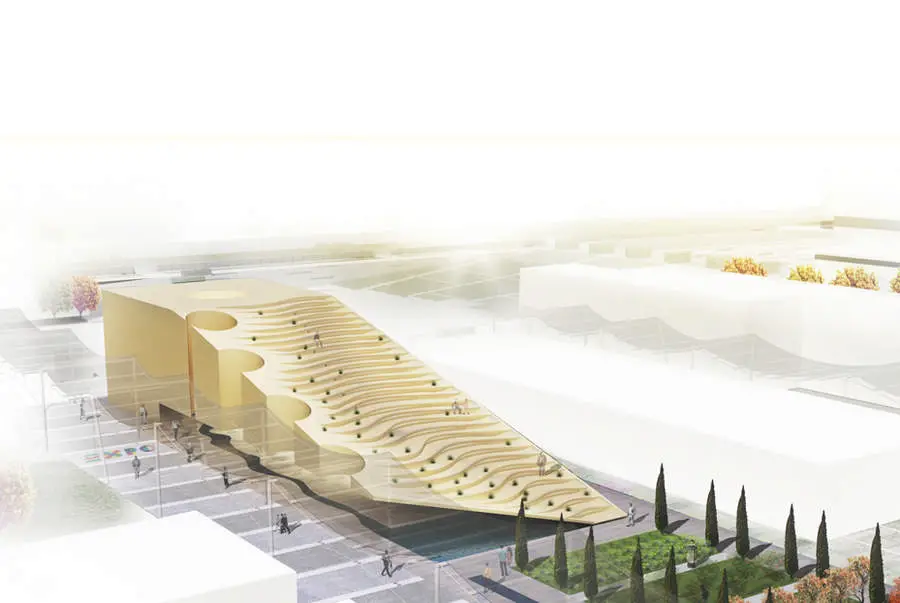

In proposed design of Iranian pavilion in the EXPO of Milan, an effort has been paid to the above said scenarios in the cities of Iranian plateau to completely renovated with today’s image. The main sequence includes: highland, Qanat, Water, garden, farms and the city. The highlands have been presented By creating a slope where the Qanat’s wells are shown and under the final well (mother well) the spread of underground water is located. The wells are connected in the lower part and at the end; water from the crack between the slope and ground finds an exterior presentation (Qanat’s manifestation). It is followed by gardens, farms and a water stream which irrigates them and at the end the city which in this case means the Expo Complex of Milan.

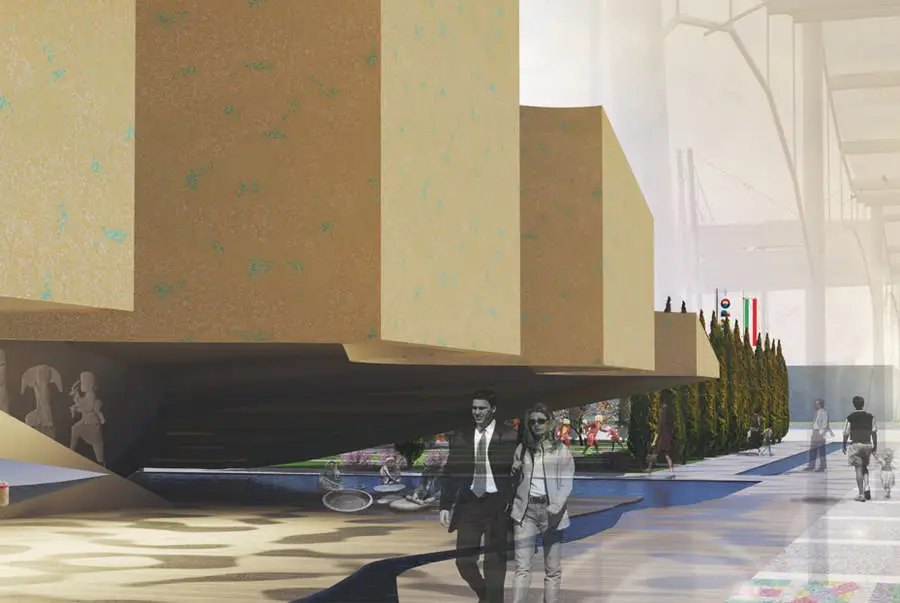

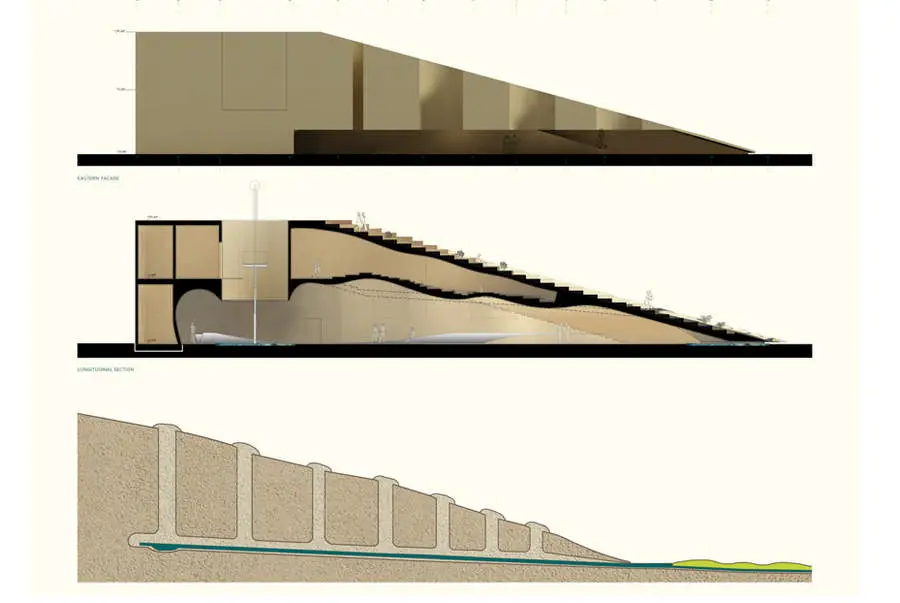

For better understanding of Qanat’s wells and the Qanat’s performance method, the project demonstrates a section of Qanat route and garden but not all of it, this way, the visitor at the passes through the garden will face the building elevation which is like a section of Qanat route and could easily enter the inner space. This will cause by itself, that the visitors could first have the opportunity of seeing the garden,Qanat’s manifestation and a section of a Qanat instead of the direct entrance from Decumanus boulevard.

New Italian Building design by NJP with LAD, Architects

By organizing the negative space like Qanat’s well and by digging, the interior space has taken its shape and has been dug to the extent of creating more space in both surface and altitude Supporting and management areas are located behind this space. Visitors after seeing the mother well, will follow the water course and will understand the whole space as a unity.

From this space and the elevator provided inside the well, one can reach over the sloped surface and can see the view of Iranian garden and from there the EXPO exhibition of Milan. Coming down from the sloped area gives the impression of moving from the altitude (slope) of mountain foot lands to the fields of gardens and finally the city.

Iran Pavilion Expo 2015 Milan

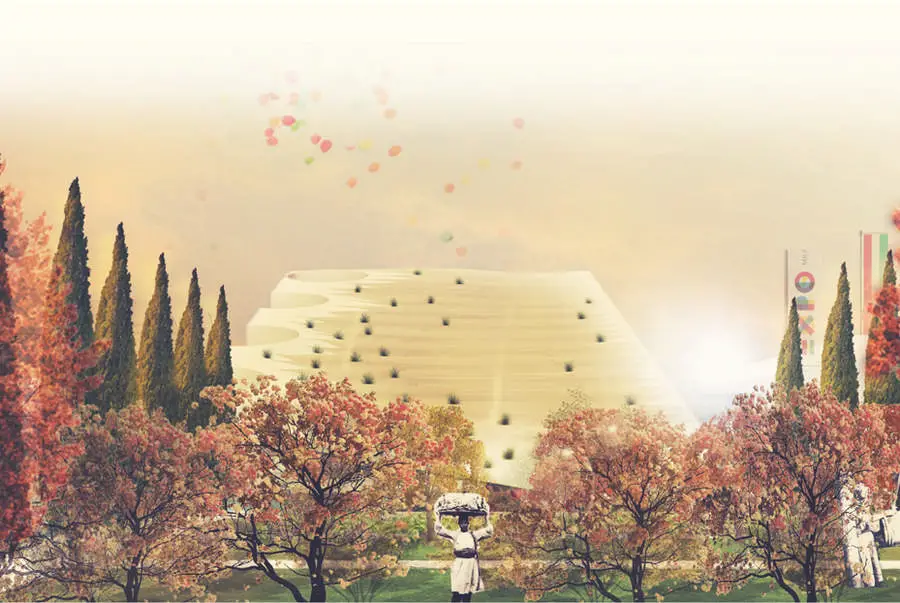

From the top of sloped area, the visitors will be directed towards the Iranian garden where agricultural and gardening products and Iranian food will be presented. Over the sloped area the balloons filled with Helium gas (like the clouds in high altitude) are located and are connected by cables. This cloud will be moved over the project’s sky and will shade over the sloped surface of the building and will prevent the raining over the great part of it and in the meantime creates the possibility of demonstrating the projection of images in the evening.

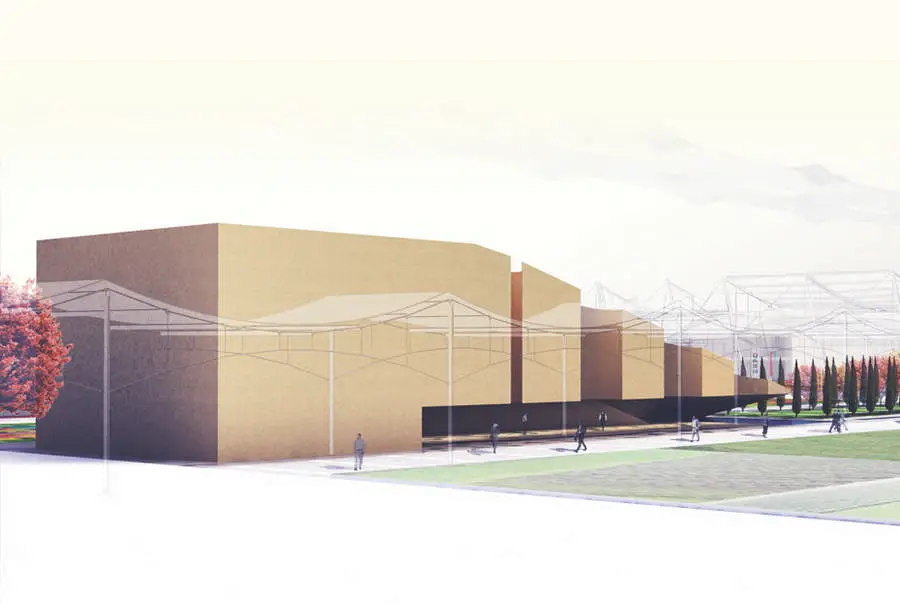

The building facade color has been chosen as the natural color of Iranian soil where in the sectioned “Qanat” wells, in their interior sides, some spots of turquoise color represents a well-known Iranian stone could be seen. This part of the facade will allow a defused light to the building during the daytime and will permeate a defused light in the evening.

Iran Pavilion Expo 2015 Milan

Iran Pavilion Expo 2015 Milan – Building Information

CREDITS: International exhibitions company_Ministry of Industry, Mine and Trade, Islamic Republic of Iran First Prize Winner

NJP,Naqsh,E,Jahan-Pars Consulting Engineers
Local consultant: LAD, Italy

Project Location: Milan, Italy
Date: September 2013
Project and Design Manager: Hamid Mirmiran
Design Consultant: Iraj Etesam, Nasrine Faghih, Francesco Napolitano (LAD)
Coordination Manager: Farideh Saebi
Co-Designer and coordinator: Saman Sayar
Architectural Design Team: Maryam Rahimi Danesh, Hiva Farajpoor Bakhtiari, Saeed Amirzadeh (LAD)

Project Associates: Maryam Shirsalimian, Shima Aghaei Karim, Mana Ghabussi, Azadeh Piroozmand, Tina Fazeli, Mina Shamisa

Conceptual Programming: Mohammad Salari far, Amin Masoodi
Area Planning Studies: Nader Roozrokh, Tohideh Yadegari
Structure Studies: Ehsan Sabaghi, Ali Etesam
Mechanical and Electrical Studies: Behrooz Alamdar Milani, Hamidreza Lahijani
3D Renders: Majid Jahan-mehr, Nazli Milani
Model: Hossein Ghaffari, Saeed Toodeh Fallah, Alireza Khosravi
Photography: Hamidreza Framarzi, Azad Zargami
Graphic Design: Reza Soltani-Zadeh

Iran Pavilion Expo 2015 in Milan images / information from LAD, Roma

Another entry:

Iran’s Pavilion – Expo 2015 Milan
Design: New Wave Architecture
Iran Pavilion Expo 2015 in Milan
image from architects
