Tree-less Treehouse in North West London

23 May 20212

Design: De Matos Ryan

Location: North West London, England, UK

Tree-less Treehouse North West London

Photos ©Hufton+Crow

Tree-less Treehouse, UK

De Matos Ryan has created an innovative, Tree-less Treehouse in the garden of a North West London townhouse. De Matos Ryan Director Angus Morrogh-Ryan comments, “Our client was a young family, who lamented the loss of an ailing tree in their neighbour’s garden. The children longed to have a treehouse but were prevented from doing so by having no trees of their own. The brief was therefore to design a treehouse without a tree.”

Tree-less Treehouse North West London Tree-less Treehouse North West London

Tree-less Treehouse London

The new, 4.1m high space was designed in collaboration with the client’s children. Their unencumbered view of the world acted as a catalyst to a highly innovative and imaginative concept. Ideas were developed around creating a den that could only be accessed by children with an elevated look-out or crow’s nest. The children’s favourite cartoon, Danger Mouse, heavily influenced the design. Danger Mouse’s reluctant assistant and sidekick Ernest Penfold is a timid, bespectacled hamster with the codename ‘Jigsaw’, because at the first sign of danger, he falls apart. The playful new treehouse was going to be Penfold’s hide out. His codename gave license to develop a geometric frame that looks exactly like the way it was built.

Tree-less Treehouse London Tree-less Treehouse London

De Matos Ryan’s starting point was to design an entirely expressed timber frame structure, sufficiently abstract to allow the children’s imagination to run wild and without creating a literal representation of a tree. On a practical level, the structure needed to be prefabricated in pieces and carried through the house via domestic scaled doors at the front and back.

Tree-less Treehouse North West London

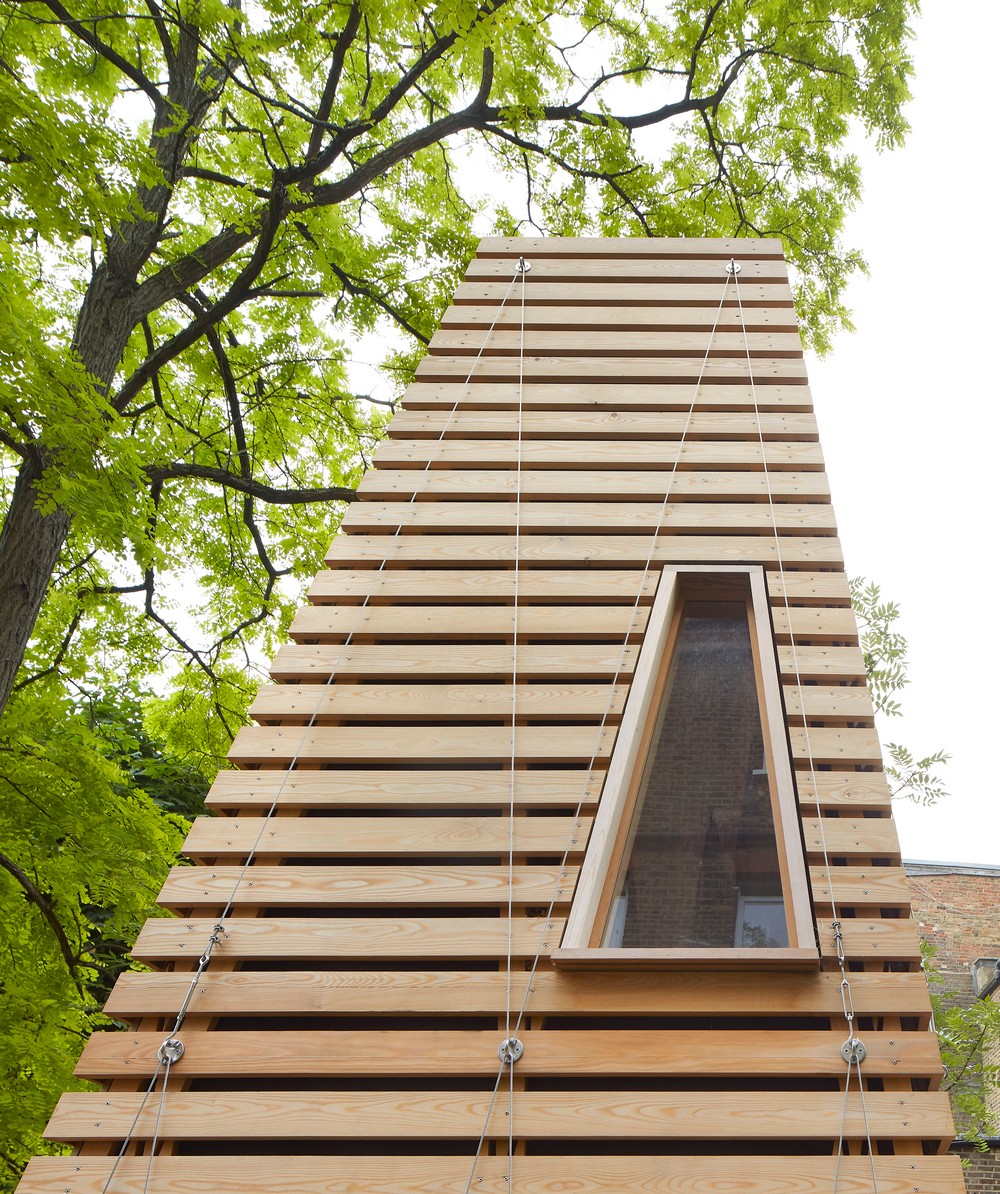

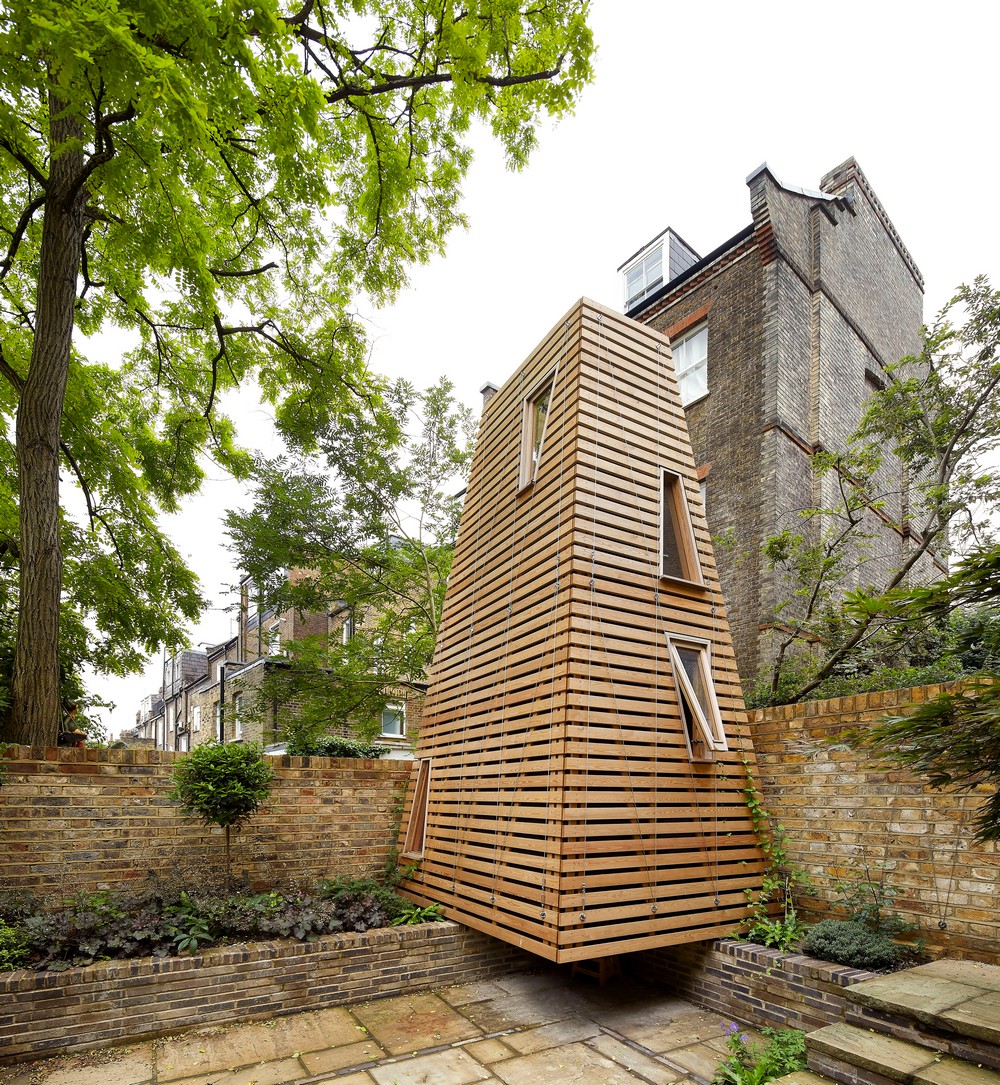

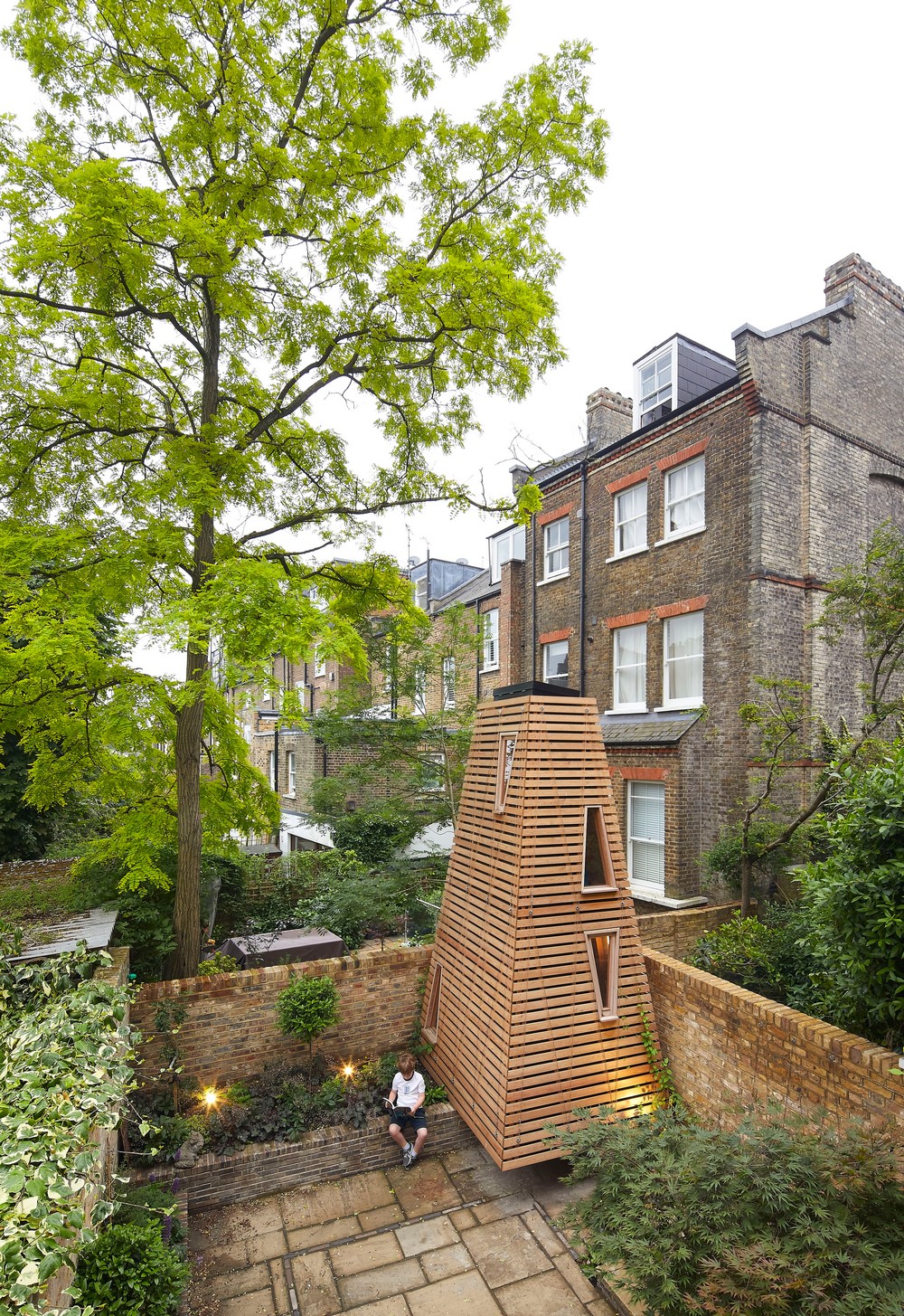

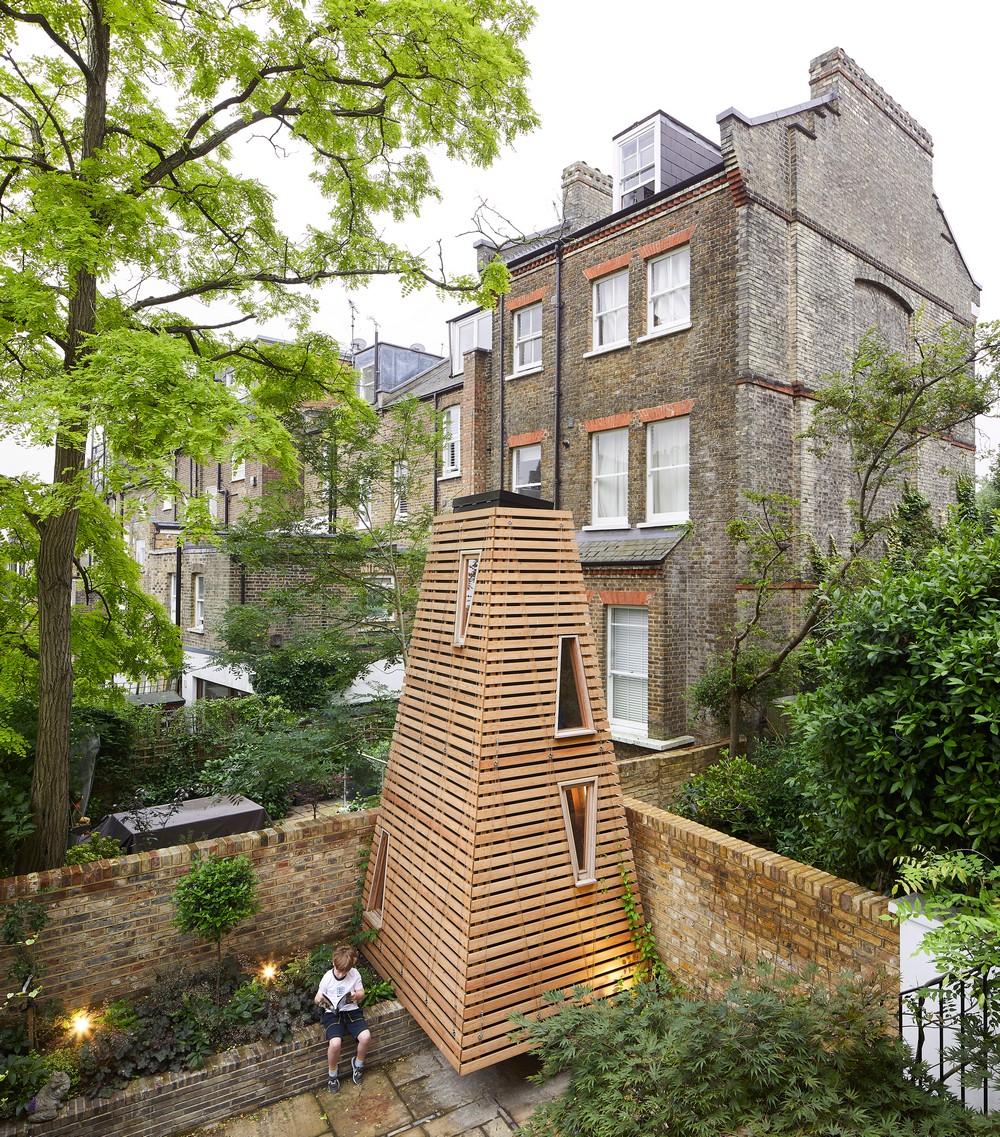

The resulting design is a series of triangular Douglas fir frames which combine to make a truncated pyramidal form. At the bottom, the triangles startwith rows of seven and five. The Siberian larch slatted cladding has a stainless-steel cable lattice to encourage climbing plants over the volume and ultimately create the sense of a tree that never was.

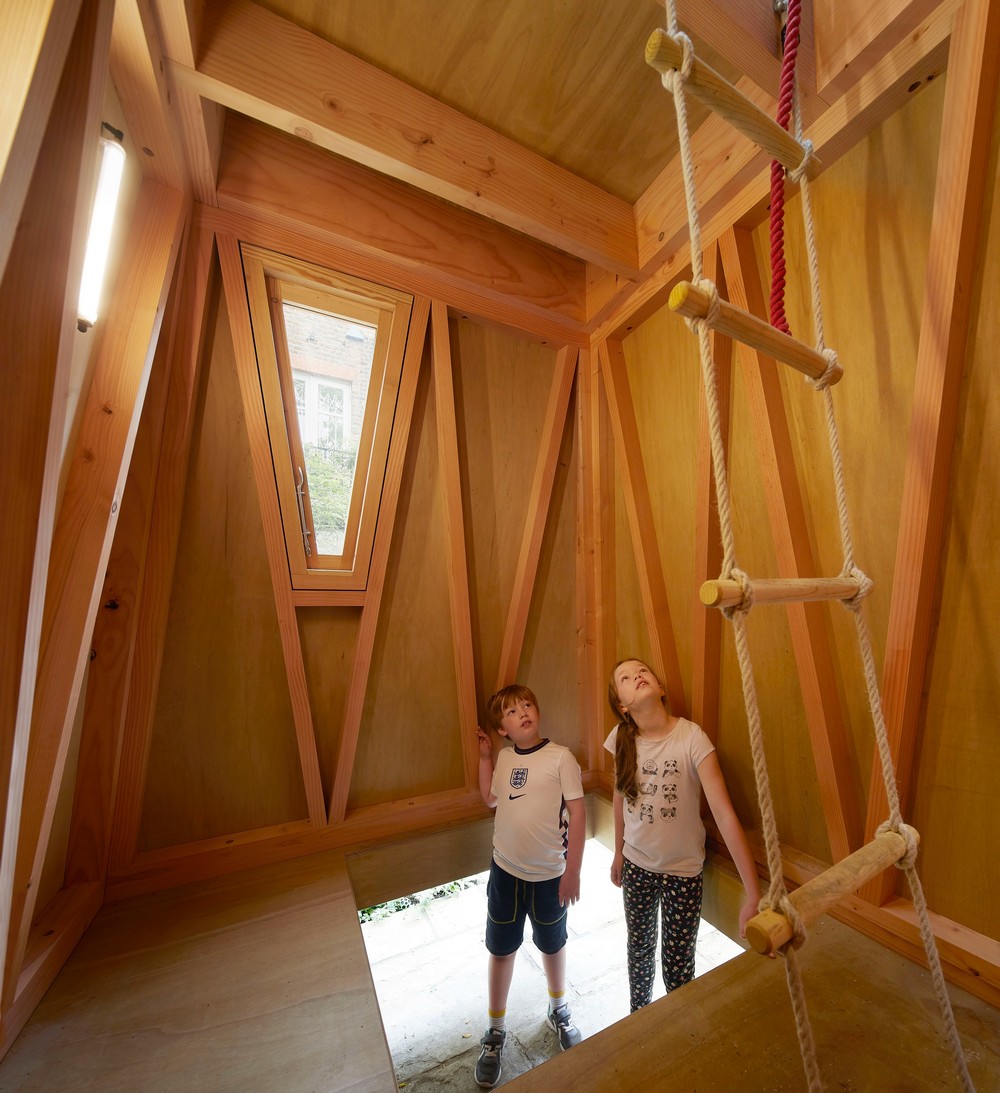

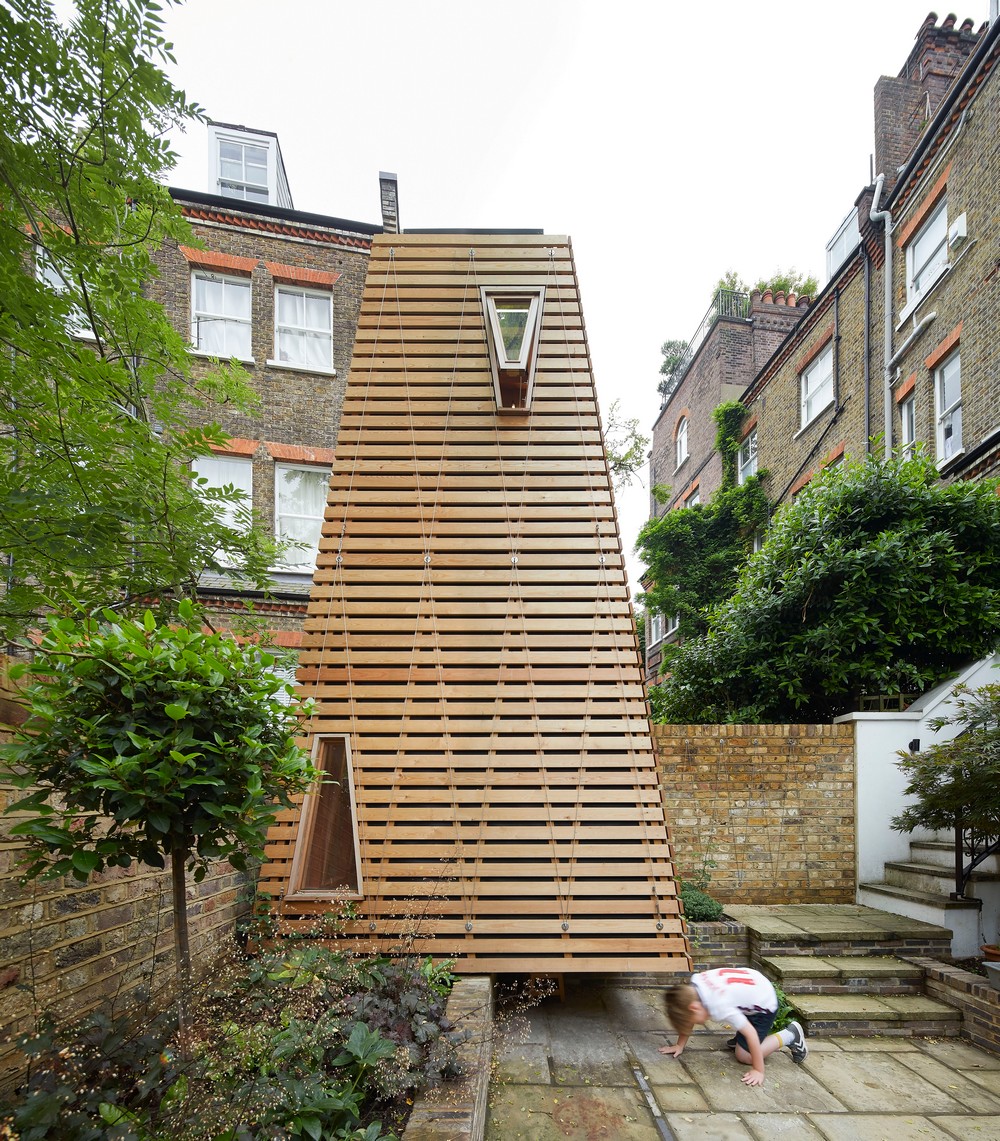

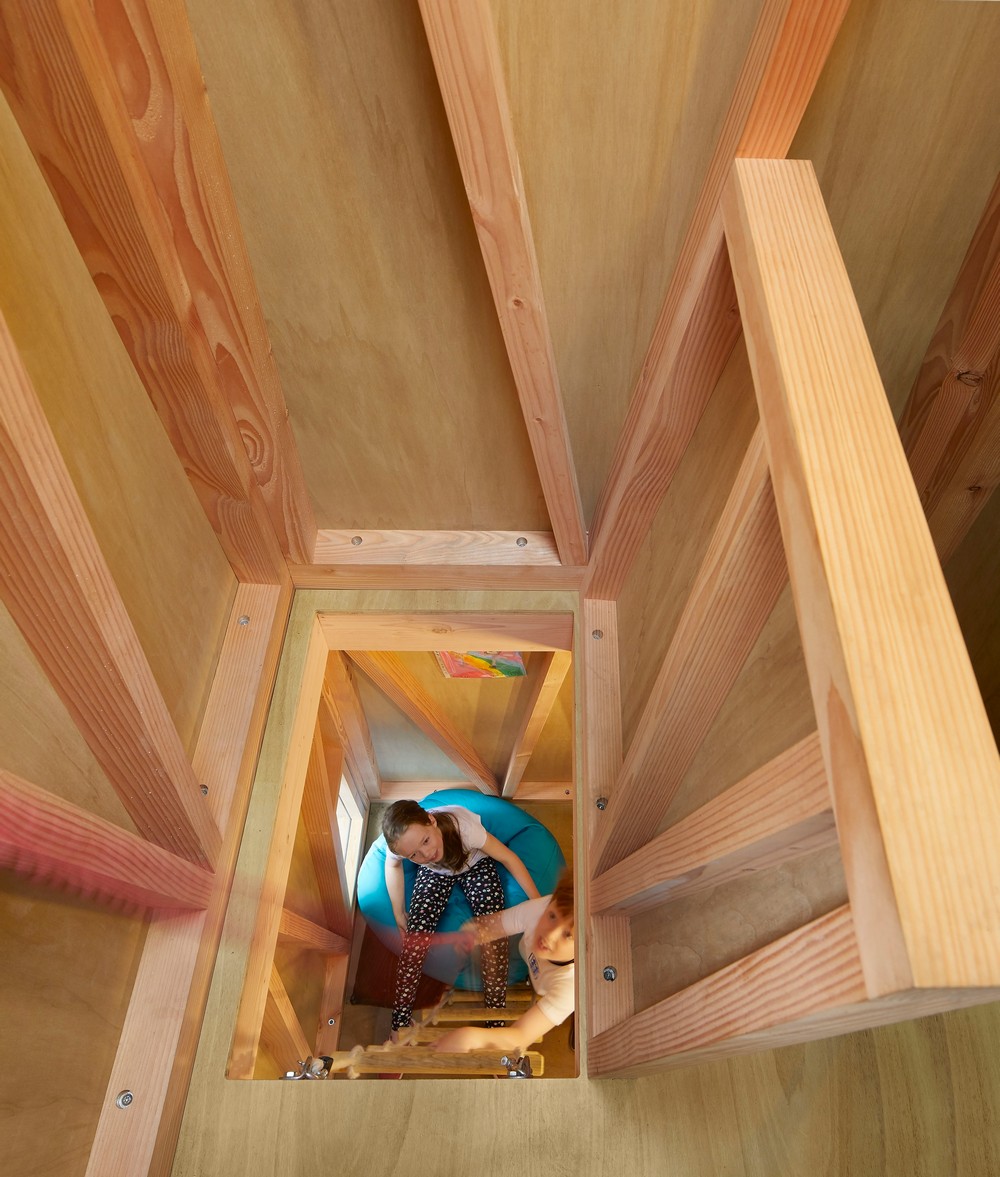

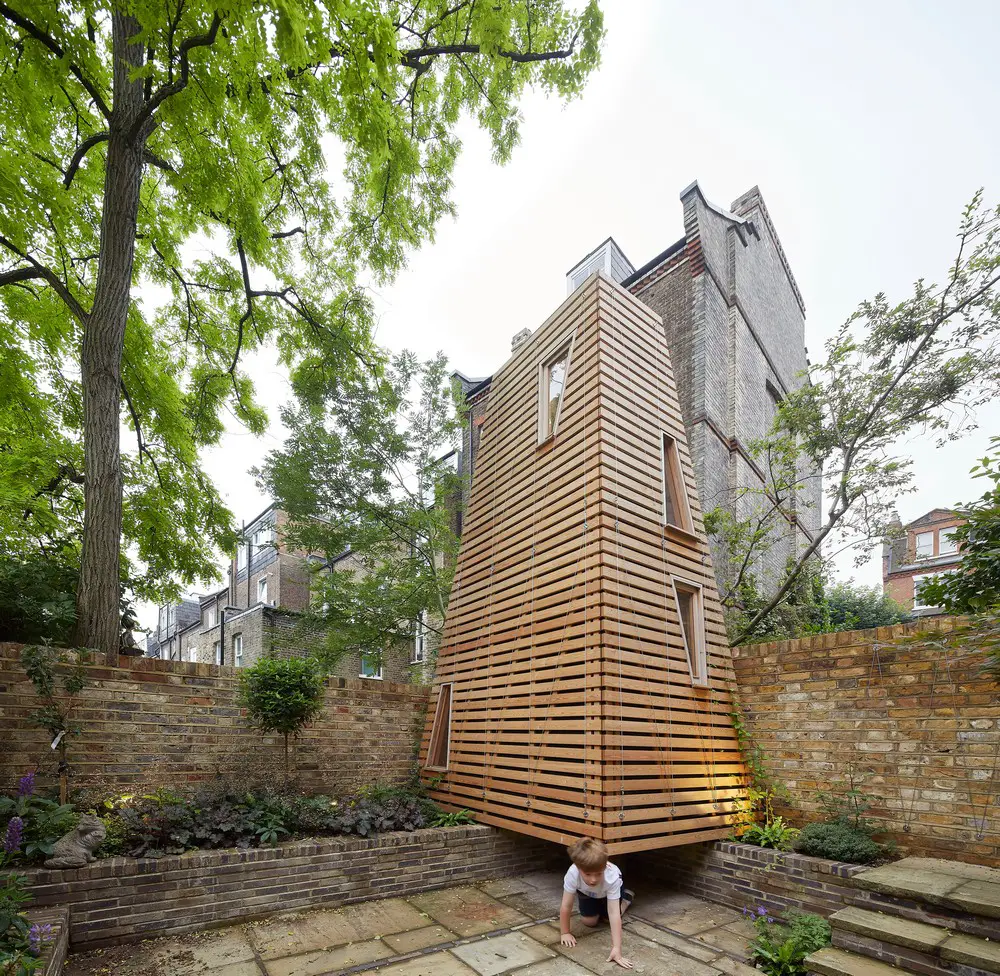

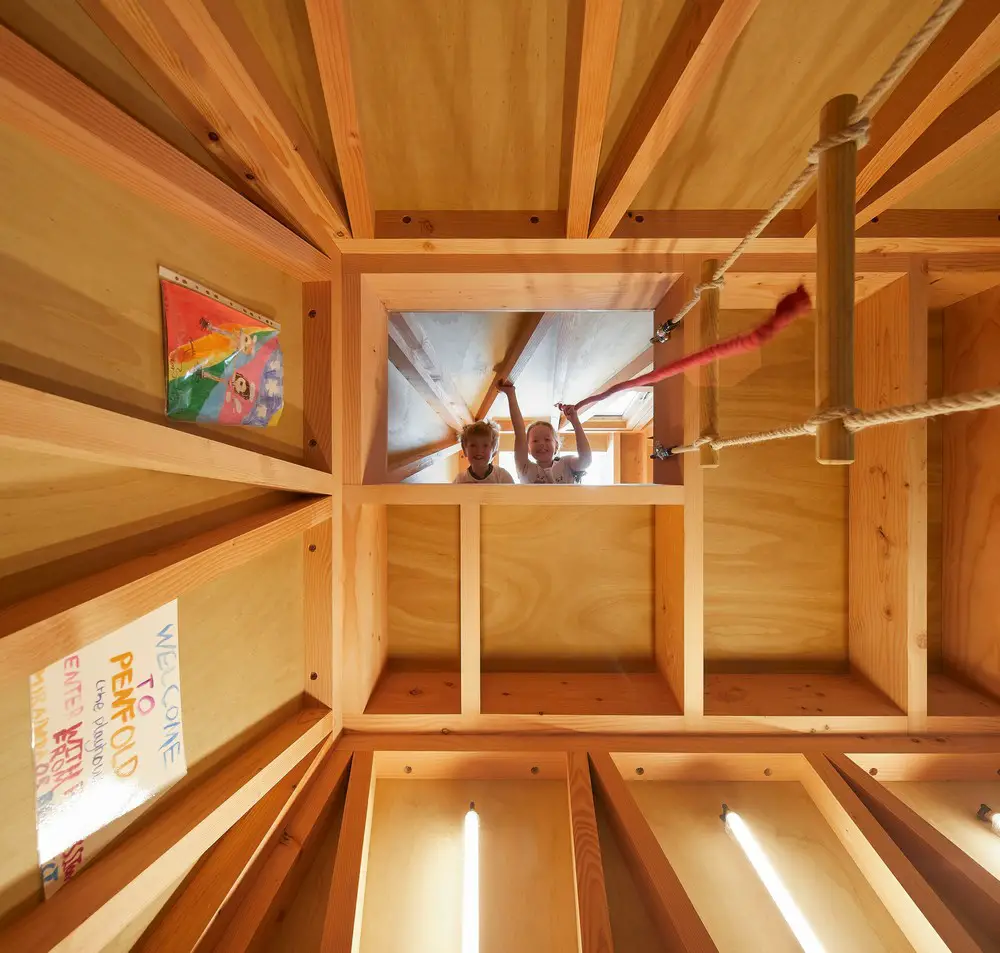

The unusual form and scale of the structure provides scope for imaginative play and permissive exploration, whereby at any point it can be simultaneously reminiscent of limitless dramatic inquiries such as a hollowed tree trunk, a spaceship, or a castle turret. Adults are somewhat prevented from accessing the interior by a low portal where one must stoop under and crawl into the structure. Within the space, the top look-out level is accessed by a timber and rope ladder.

Tree-less Treehouse London

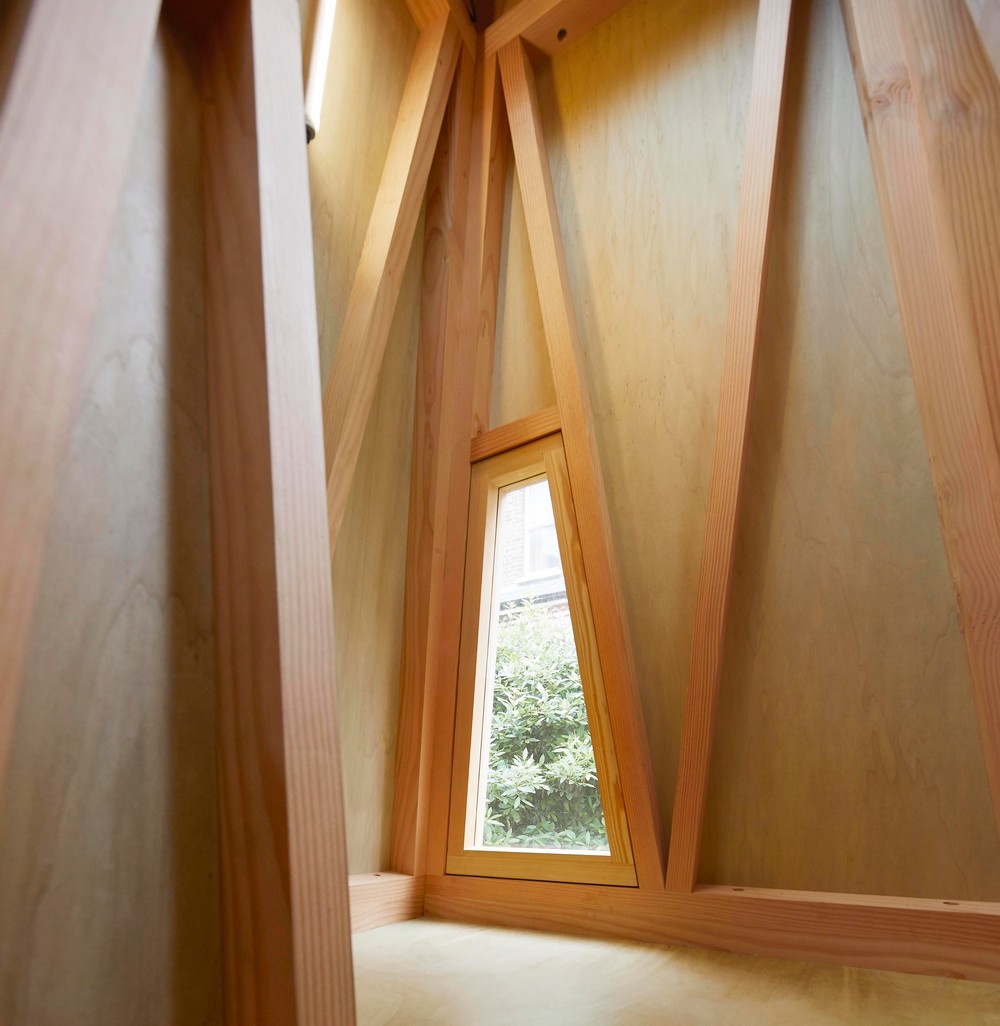

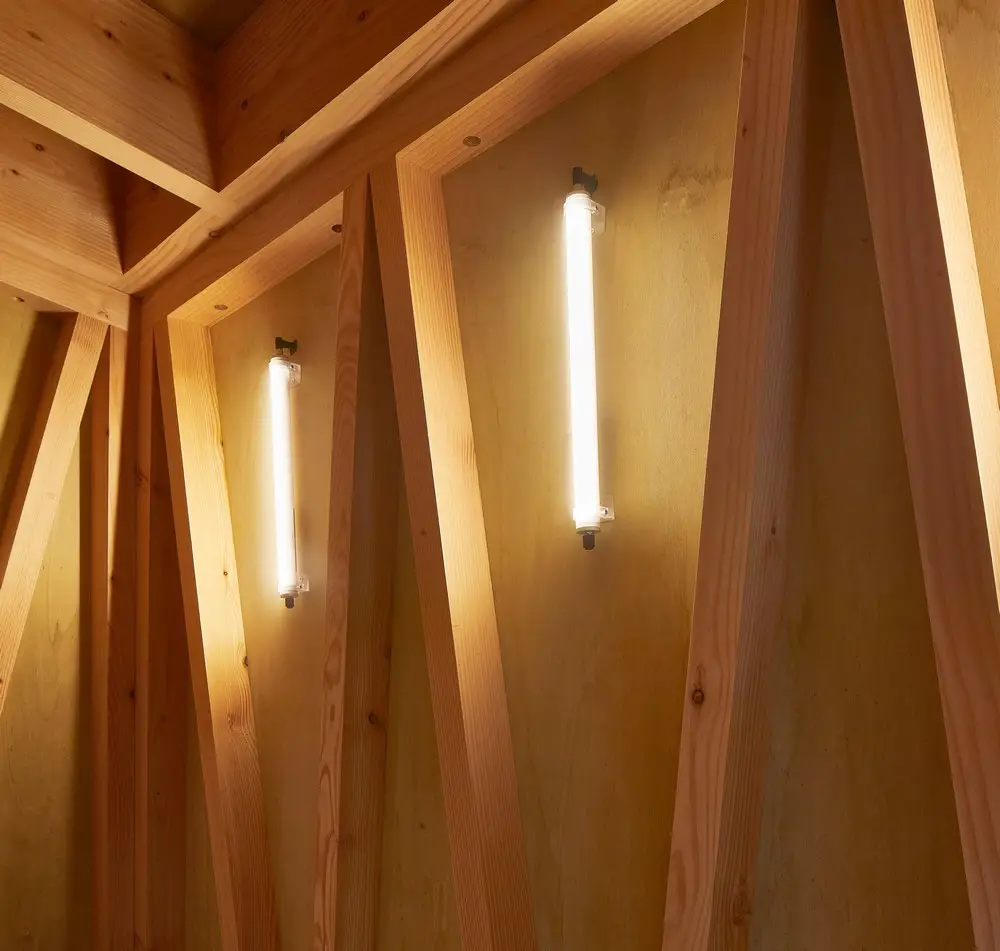

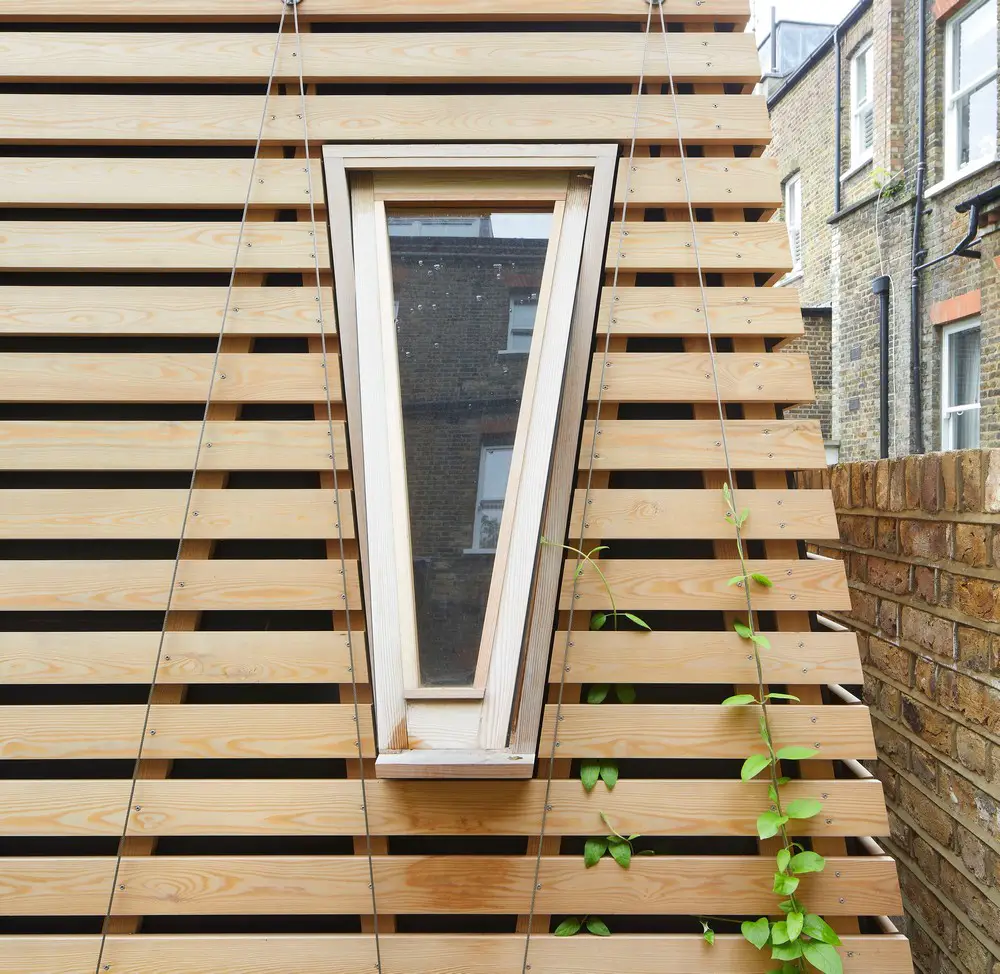

The children can peer out through a series of windows designed to echo the structure’s shape, these can also be opened to provide ventilation to the space. An electric, rain-sensor rooflight sits at the top of the structure which automatically closes as soon as rain begins to fall. External grade LED architectural tube lighting has been used inside the space to ensure that the children can continue to play on darker days or when the sun has gone down. The structure was put together onsite within one week, including all the cladding and windows.

Due to its unusual height and form for a rear garden, planning permission was sought and achieved with the only condition being that the structure would need to be disassembled and removed when the property was sold.

Tree-less Treehouse London Tree-less Treehouse North West London

Tree-less Treehouse in London – Property Information

Architects: De Matos Ryan – https://www.dematosryan.co.uk/

Project Dimensions
Height: 4.1m
Width on long side: 2.38m at bottom, 1.28m at top
Width on short side: 1.8m at bottom, 0.7m at top

Tree-less Treehouse London UK Tree-less Treehouse London UK

About De Matos Ryan
De Matos Ryan is known for creating simple but imaginative contemporary environments and interventions often within historically or culturally sensitive settings, incorporating all disciplines from landscape to interiors.

The practice’s confident and well considered end-user approach draws attention through its quality and clarity, ensuring sustainability through not only carbon and energy reduction but also long-term community and business planning resilience. The team believes in the social and public role that architecture plays in motivating a community and works hard to ensure that their projects are both accessible and engaging for all.

De Matos Ryan has received numerous awards, including RIBA and Civic Trust. Current projects include: Young V&A (Bethnal Green), ArtsEd, National Railway Museum’s ‘Wonderlab’ (York), BFI, Oriel Myrddin Gallery (Carmarthen), Borough Theatre (Abergavenny), Canolfan Ucheldre (Holyhead).

Tree-less Treehouse London UK Tree-less Treehouse London UK

Photography: ©Hufton+Crow

Tree-less Treehouse, North West London images / information received 230522
