House in Yamasaki, Japan : Hyogo Residence
Contemporary Japanese Home – design by Tato architects
30 Nov 2012
Design: Tato architects
Looking for the stable climate in the room

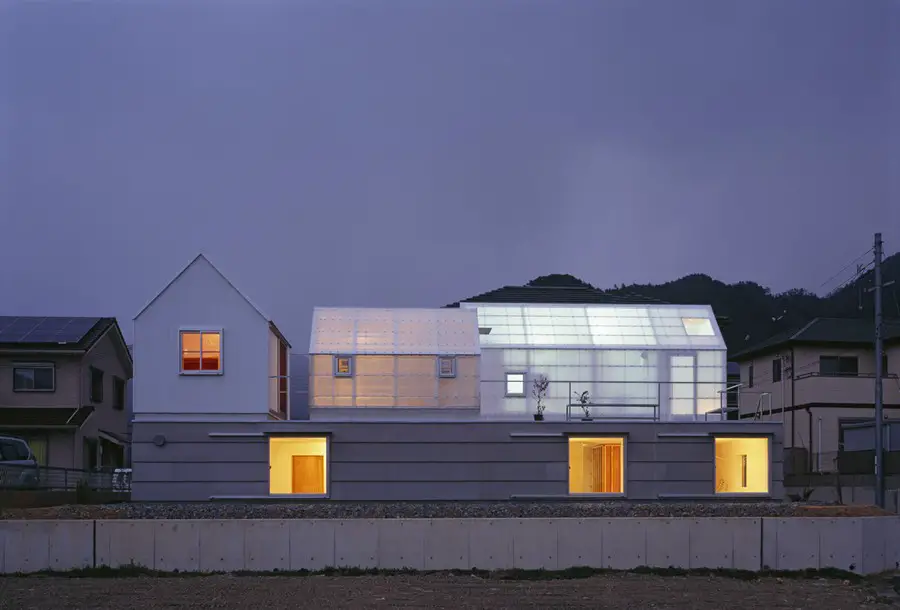

This is a house in the northern part of Hyogo Prefecture for a couple and their two children. The construction site is a part of a place surrounded by mountains and the sky is overcast most of the days. I wanted to create light, stable indoor climate and came up with a plan of three sheds of house type arranged on a 1.8 m high, grey foundation platform.
The level of the first floor was lowered by 760 mm below the ground to get firm basement, as the site was slant before the development, and to get more stable performance of the floor heating system of foundation heat condensing type utilizing the terrestrial heat. It was also expected that the whole site could be used like a garden as the rooftop neared the ground thereby. The site is at the corner entering the residential area and I thought that lowering the rooftop would leave wide visibility to the surroundings of the mountains and the sky, and that it would be beneficial to the whole residential area.

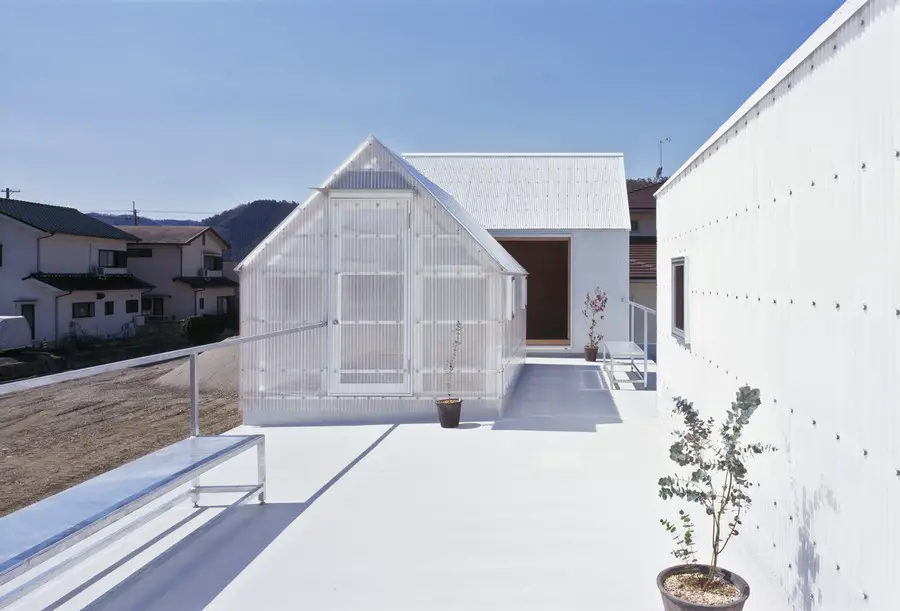

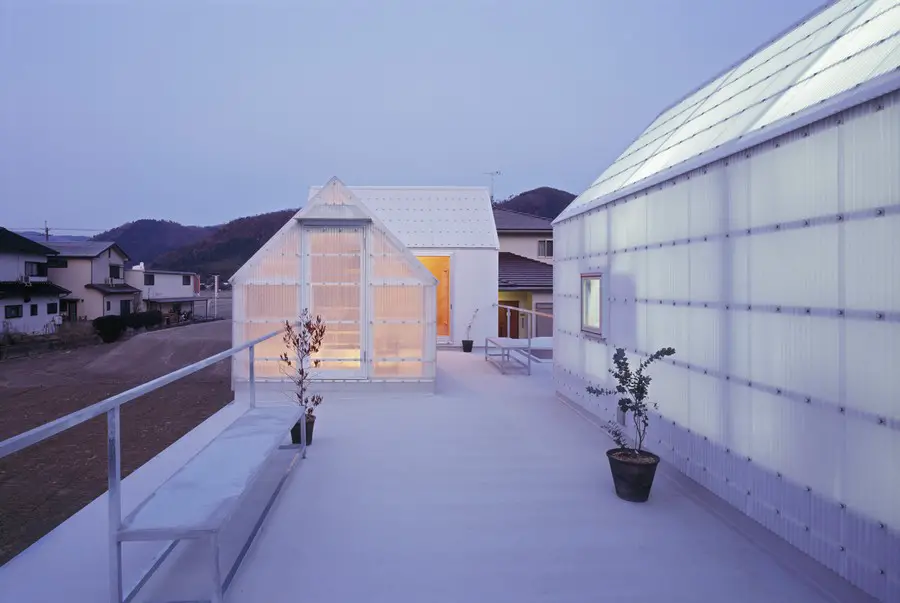

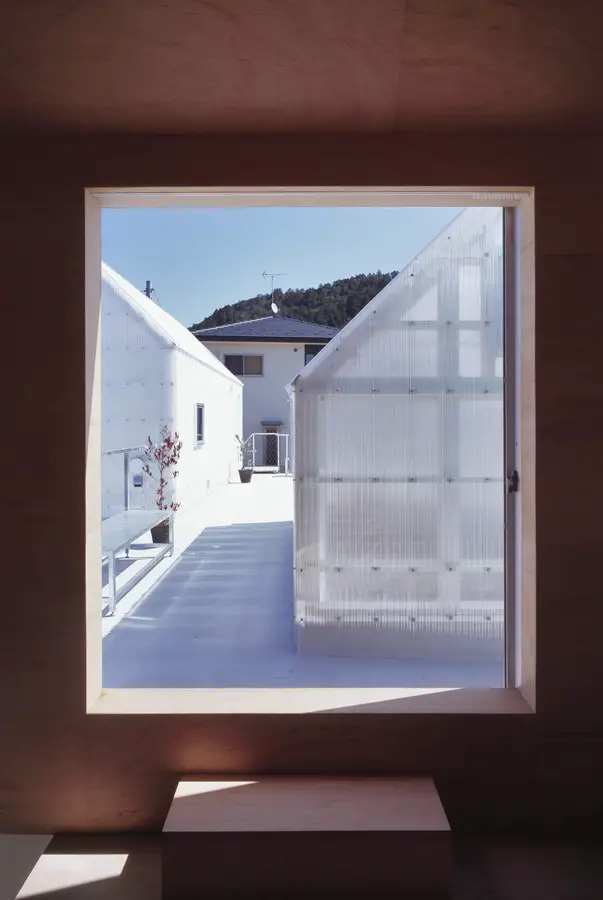

On the foundation platform I arranged three–for a bathroom, for a sunroom and for a guestroom. The bathroom shed and the sunroom shed provide lighting and ventilation for the lower floor. They form a overhead courtyard in a sense. Especially the sunroom collects heat in winter, and exhausts heat in summer by the breeze through the five motor-operated windows.
The three shed s do not actually provide spaces for usual staying but cover the living floor on the foundation platform. This resulted in keeping away from neighboring eyes and keeping in touch with eyes of children playing in the garden or nearby. Accordingly, I think, both delicate closeness and distance to the surroundings have been realized.

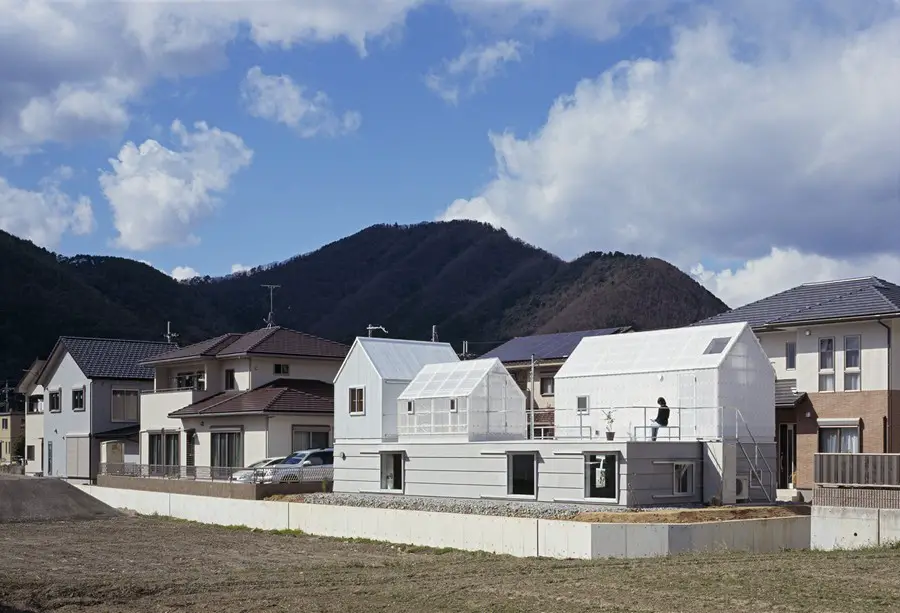

The residential area including the site was developed in recent years and is the front for the fields to change further to building lots. It was anticipated that brand-new commercialization houses would be built one after another. By constructing a house looking as small as a peasant’s work shed of such material as vernacular as corrugated panels in an agricultural area I expected for this house to be a tie for the prospective rows of such new houses and the rural landscape still existing.
For free behavior of things

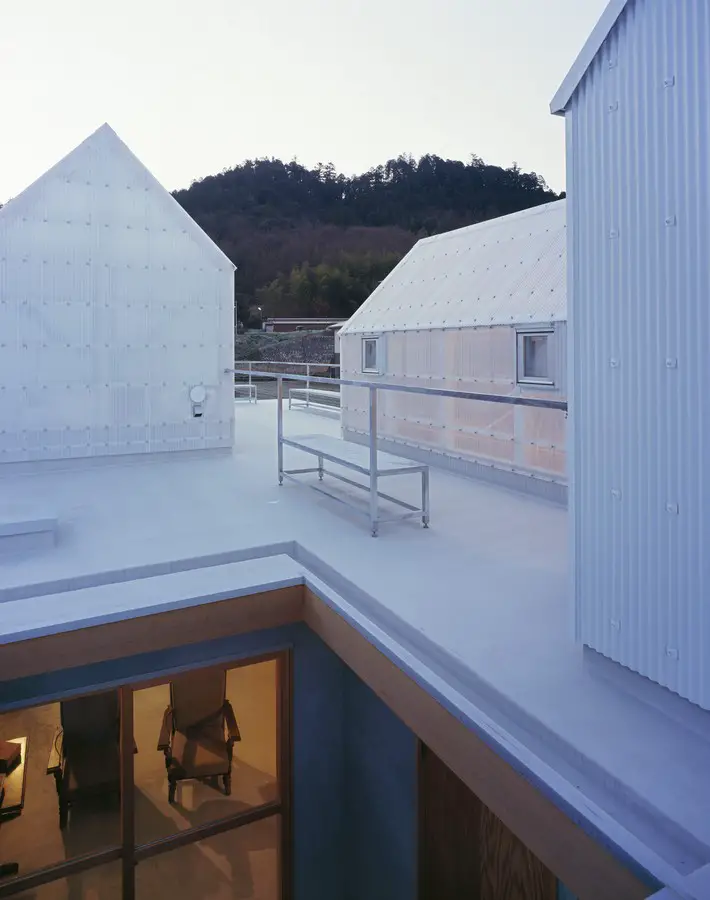

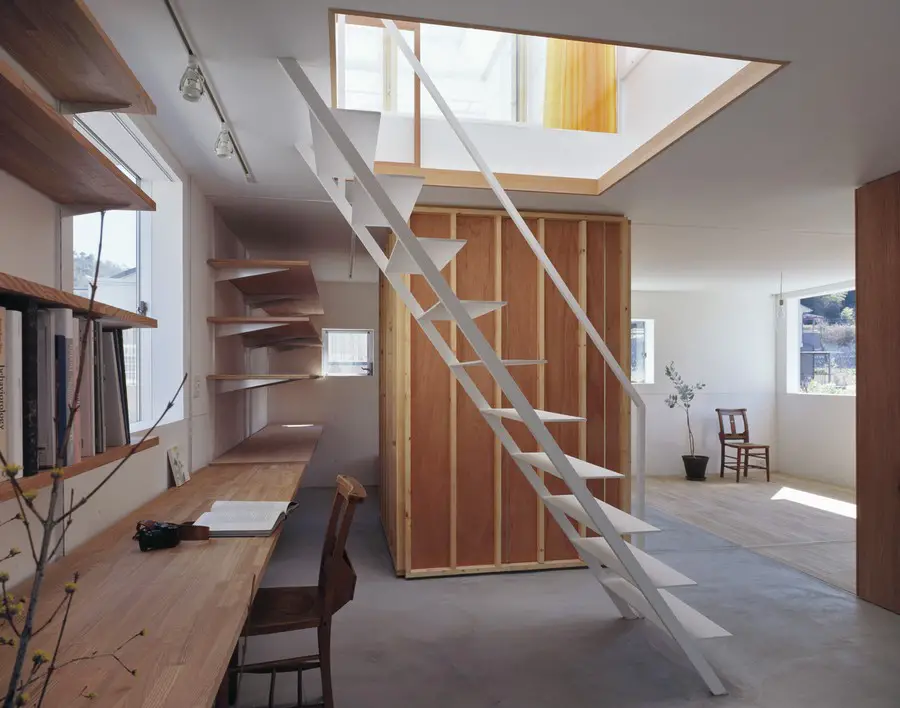

Some box-shape volumes, such as storages and a lavatory were required in the house, and they were made to resemble boxes for packing. Through studying the method of fixing the balustrade onto the rooftop without damaging the waterproofing membrane benches were mingled with the balustrade. A washstand is fixed to the stairwell serving as handrail as well. The sunroom is a greenhouse itself, where various elements are misused as reference elements. Construction elements, such as handrails and top lights, are mingled together with conventional things for dual serving.
The reason for such elaboration is that I wanted to give the indoor scenery a kind of freedom using everything happened to be there as bricolage. Various things the residents carry in are expected to behave freely.

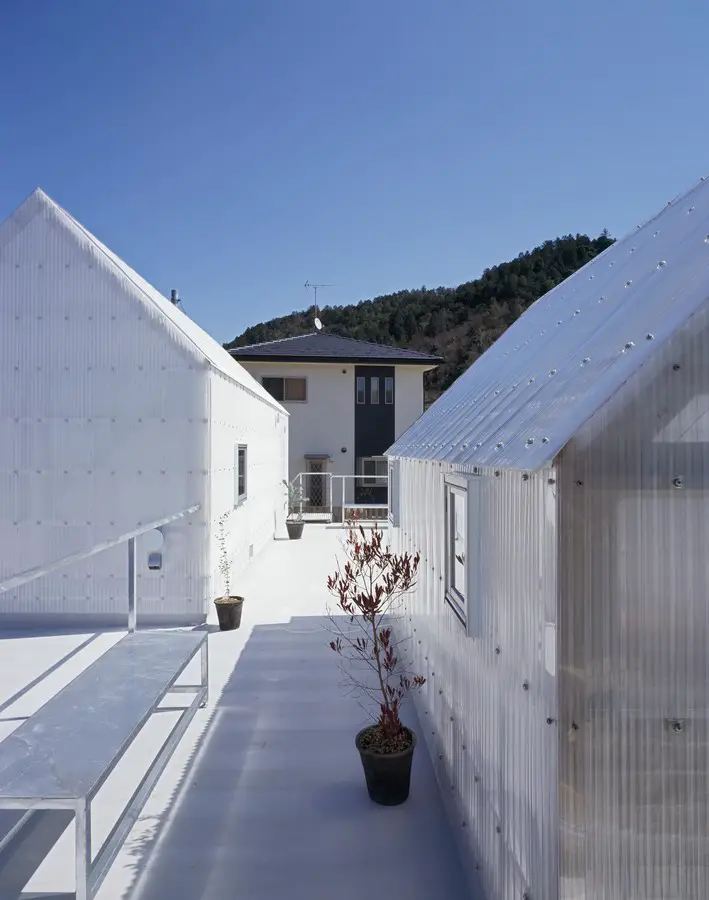

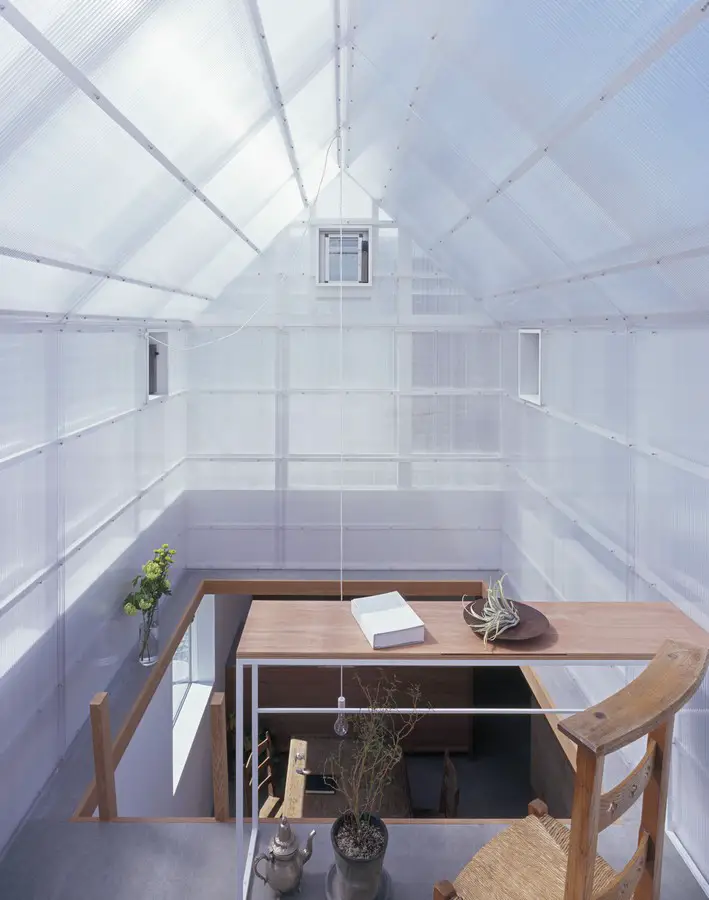

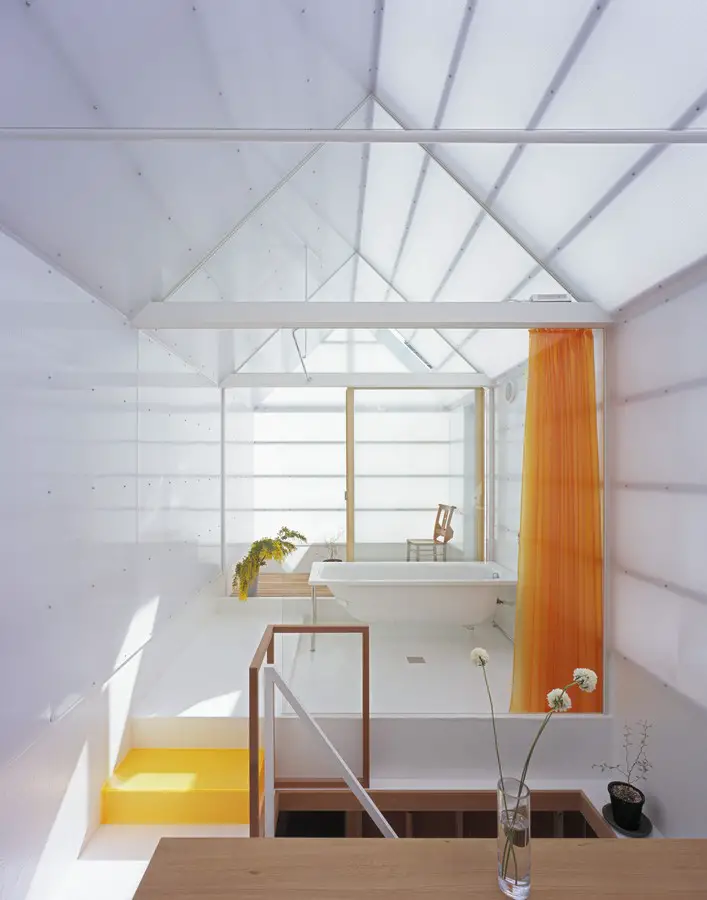

Corrugated polycarbonate panels are used for outer walls of bathroom shed and sunroom shed among the three sheds to take in solar radiation. Moisture and water absorbing and heat-retaining sheets of greenhouse use are inserted in between the corrugated panels and structure. The inside of the walls are formed with heat insulating layer of polycarbonate clear hollow sheet. The ceiling and walls of bathroom are further filled up with light transmitting thermal insulation material of reproduced PET bottles.

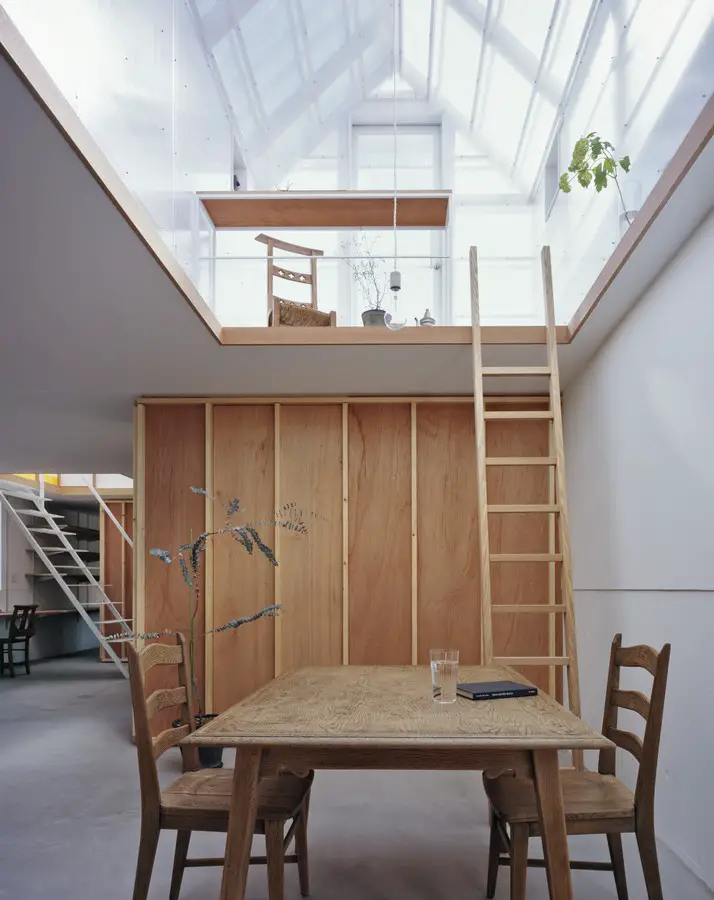

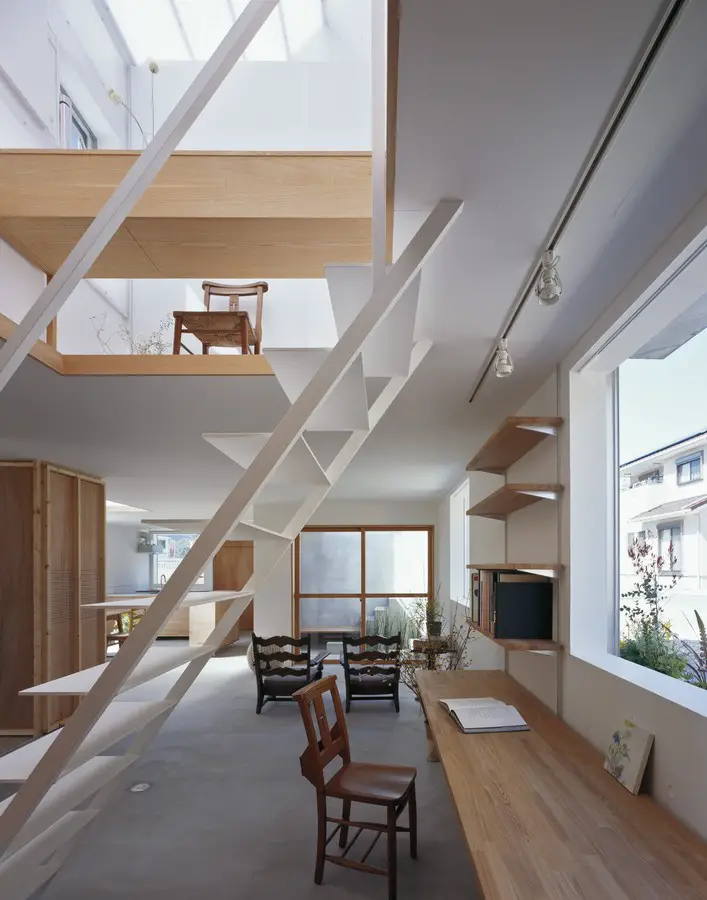

To bring the second floor close to the first floor 50 mm square pipes are laid around the opening connecting both floors. They are sandwiched by the flooring material and the ceiling material to come up to 80 mm thickness. This opening is to be closed with a shade during extremely hot hours in summer and extremely cold nights in winter.

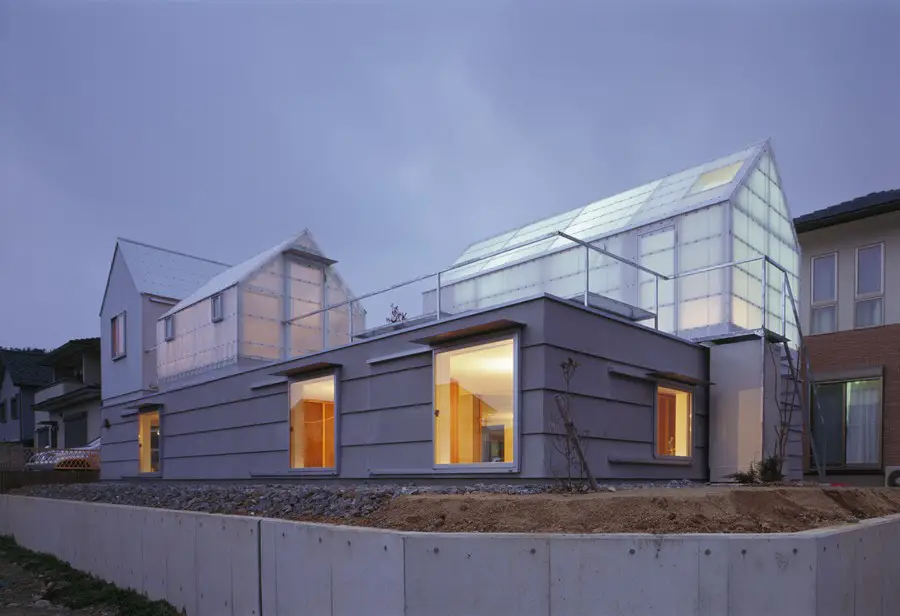

The outer walls of a foundation platform are covered with fiber reinforced cement board leaving space a little to make rainwater drops easily off the edges and also to provide shading. The RC part is provided with external heat insulation and broken cobblestones are laid all around it for drainage of rainwater and heat insulation.
House in Yamasaki – Building Information
Project name: House in Yamasaki
Location of site: Hyogo, Japan
Site area: 231.72m2
Building area: 93.68m2
Total floor area: 119.11m2
Type of Construction: Wooden
Project by: Tato architects
Principal designer: Yo shimada
Photo credits: Ken’ichi Suzuki
Design period: Oct 2010 – Aug 2011
Construction period: Oct 2011 – Feb 2012
House in Yamasaki images / information from Tato architects
Comment received, 5 Dec 2012:
“Very interesting project with amazing transluscent roof giving a lightness from above not commonly experienced in domestic properties. The metal staircase beggars belief for and I would have thought the occupants (especially the children) would feel distinctly unsafe.”
Anthony Sully, Cambridgeshire, UK
