Campus for Infosys Ltd in Nagpur, India

Campus for Infosys Ltd, Offices, Architect, Images, Indian Eco Architecture

Campus for Infosys Ltd

Sustainable Building Development in Nagpur, India – design by Morphogenesis Architects

23 Oct 2015

Campus for Infosys Ltd in Nagpur

Design: Morphogenesis Architects

Location: Nagpur, India

Iconicism of Sustainability: The client brief was simply- to create the world’s most sustainable office building. The challenge is enormous – to consider Sustainability in its broadest sense; not just about conservation of water, energy and resources, but of tectonic perfection, of the detail, the process, and the wisdom of a thousand years of architecture of the region.

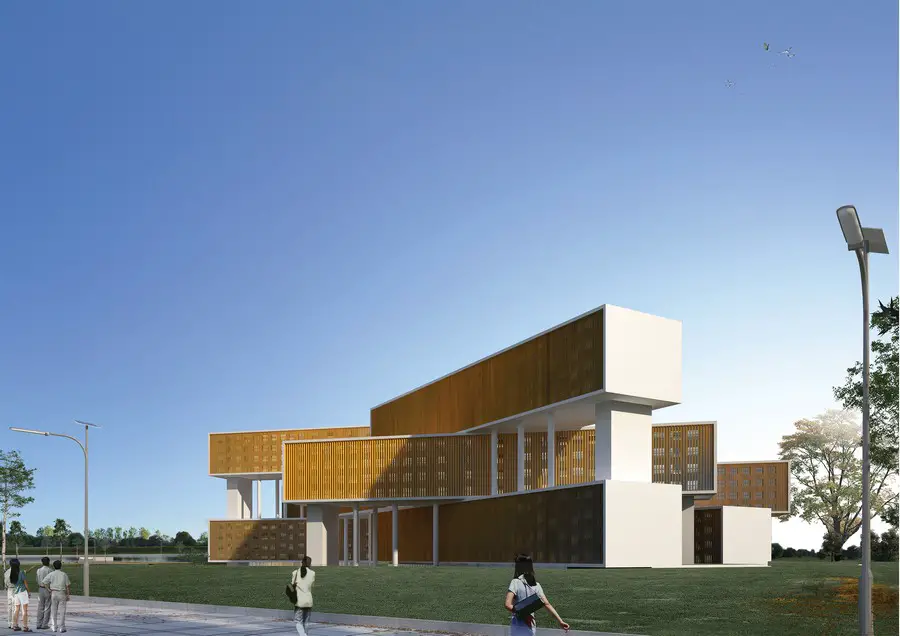

Campus for Infosys

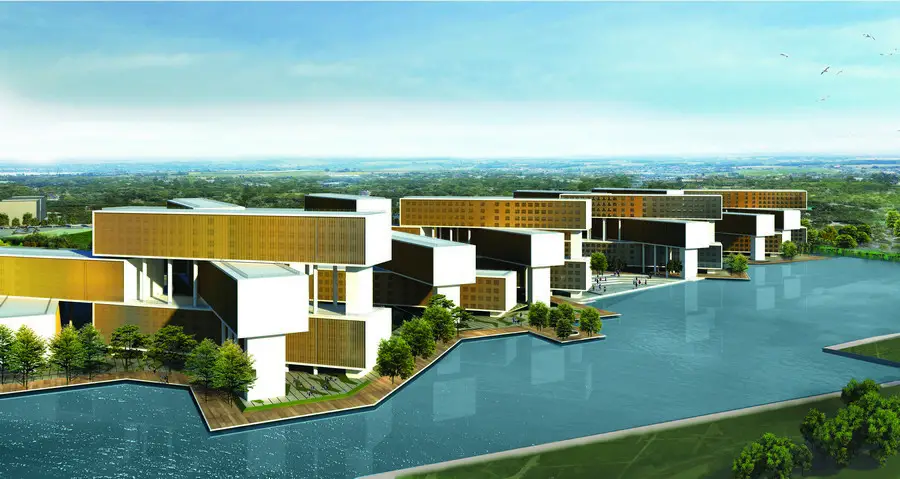

A prototype for innovation in the design of sustainable workplaces: The plan evolved from the notion of understanding the capacity of the site; a capacity determined by four functions- energy, water, geology of the land, along with essential rules of urban design pertaining to light, ventilation, shading, etc. Based on that a Masterplan with a working population of 60,000 emerged, of which 20,000 would be net zero on Energy, Water and Waste discharge.

A remarkable envelope design along with orienting the blocks at ± 22.5 degrees to the North (in response to the solar orientation) allows for 100% shading of all windows and walls. 90% of all floor plate areas are designed to be uniformly day-lit and glare-free. Energy requirement is reduced to a fifth of that of a typical office building, which is offset by a 15 acre solar plant, giving complete independence from the grid. Zero Water dependence is achieved by calculating the rainfall on site, how much could be realistically harvested, creating a reservoir to that capacity, simultaneously ensuring that all systems are designed to the greatest efficiency, such that the water consumption per person is 50% of baseline. Biological waste is to be dealt with on site through a bio-gas plant.

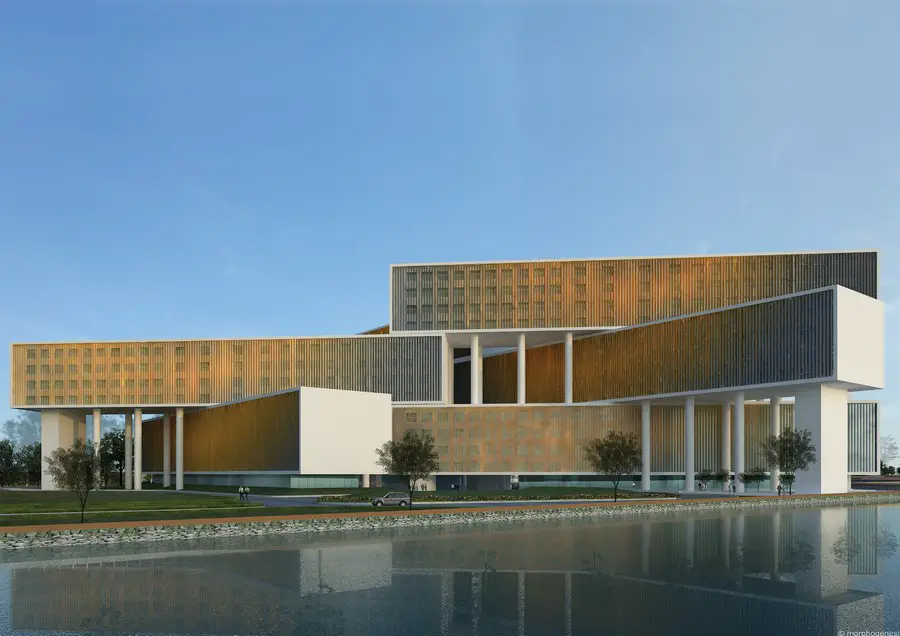

Campus for Infosys

Morphology: The geological structure is fractured basalt, and Nagpur being in a seismic zone 2, a large lateral load with a height of 10 to 12 storeys is optimal because it will support that kind of load without having to go for piling and other complex forms of support. The introduction of an earth sheltered, shaded and passively cooled pedestrian landscape at a subterranean level integrates the different building blocks into a seamless Masterplan. The food court is placed at this level and is entirely non air-conditioned. It gets shading from the building on top and thermal buffering from the surrounding land. All passive features being taken into account, active measures include radiant cooling given the harsh heat conditions of Nagpur.

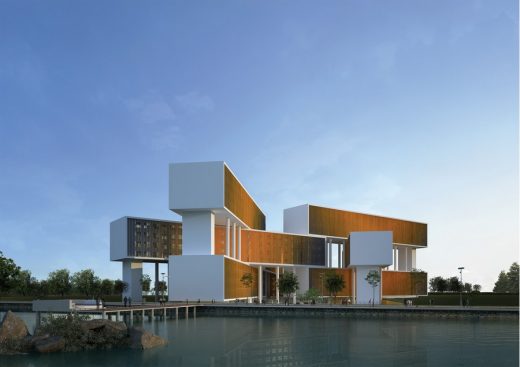

Campus for Infosys

The building volumes were sized based on the lowest common denominator, ie the workstation, so that there is no waste of space. At the same time, the design offers full flexibility through largely column free spaces, should needs alter with time. To bring back a sense of human scale, the modules are stacked into a four floor format connected through an atrium and staircase, allowing for slow mode interconnectivity; the enhanced human interaction leading to newer and better ways of thinking and working.

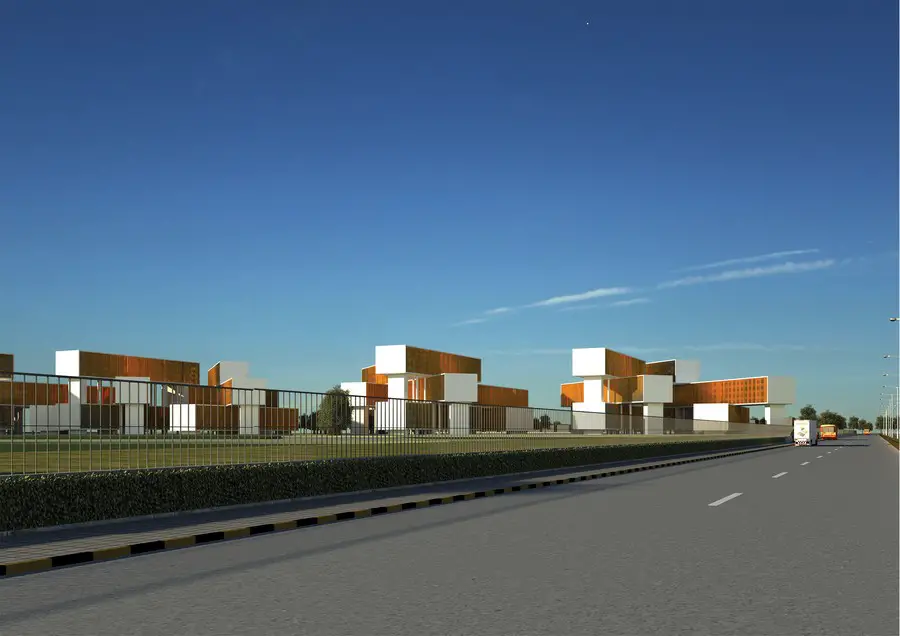

Campus for Infosys

Performance: To ensure the campus remains net zero on Water, Energy and Waste, the EPI arrived at was 42. With the benchmark EPI of buildings being 200 and the GRIHA baseline being 140, the challenge was enormous. It would push us towards delivering one of the world’s most energy efficient buildings in any case, and enabling the aim to build the world’s most sustainable office building.

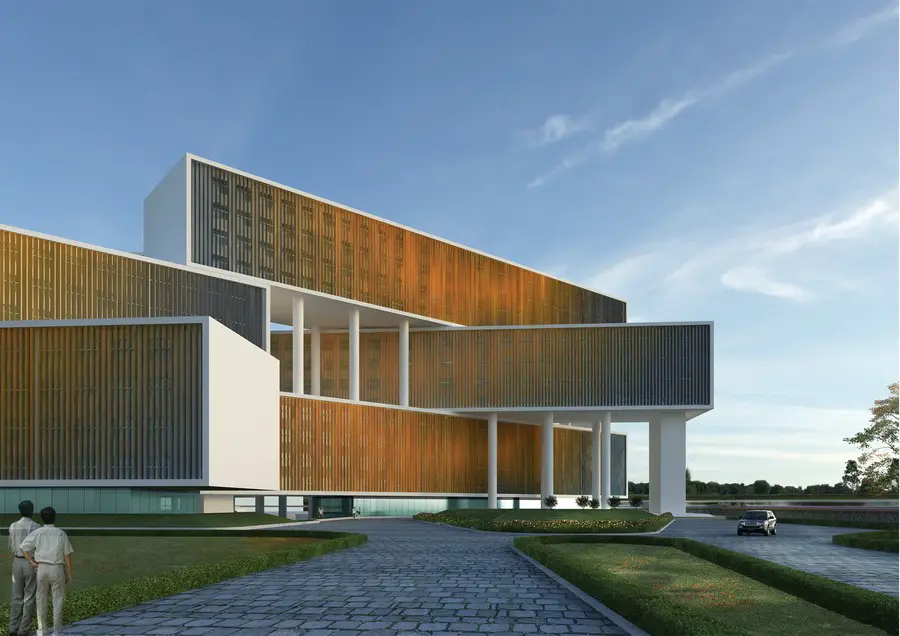

Campus for Infosys

Campus for Infosys Ltd – Building Information

Project Name: Campus for Infosys Ltd.
Typology: Institutional/Offices
Location: Nagpur, India
Completion Year: In Progress
Client: Infosys
Built-up Area: 8,25,000 Sq.Ft (Phase 1)
Site area: 142.0 Acres
Climate: Composite

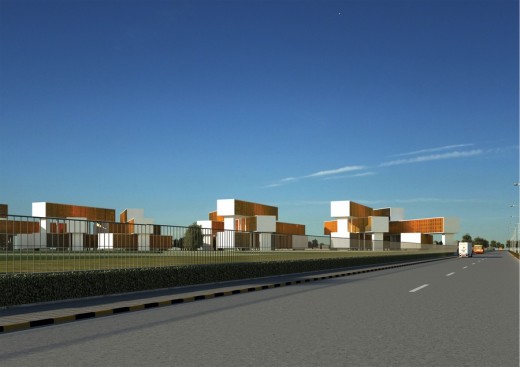

Campus for Infosys

Structure: LERA (Nayan B Trivedi)
Plumbing: McD BERL
Electrical: McD BERL
Landscape Design: Deep Roots (Rajalakshmi Iyer)
Fire Fighting: McD BERL
MEP: Mcd Berl

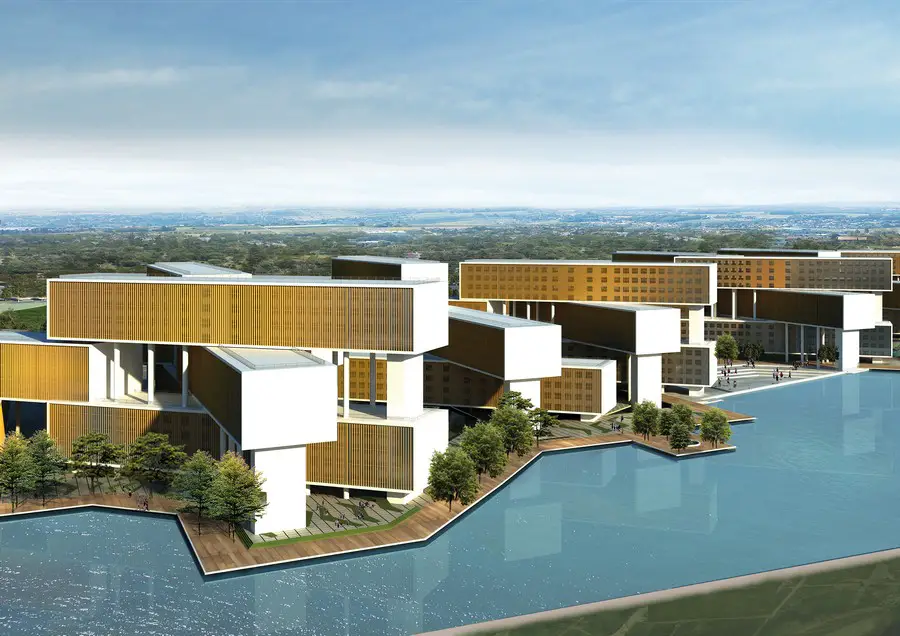

Campus for Infosys

Campus for Infosys Ltd in Nagpur images / information from Morphogenesis Architects

Location: Nagpur, Maharashtra, India
