Westside Office Building in Rennes

10 March 2021

Design: a/LTA architectes

Location: Rennes, Brittany, north west France

Photos © Charly Broyez

Westside Office Building

The Westside Office Building project is located in the Cleunay area southwest of Rennes. It is located on a plot of land with a surface area of 1,400 sqm. It participates in the renewal of the fringe of activities and is located along the rue Jules Vallès, accessible by vehicles from the allée René Hirel. The Cleunay sector presents a range of urban forms: residential fabric, suburban and collective housing estates from various periods as well as changing activity spaces.

The building is set up by strictly observing an imposed setback, in order to align itself with the neighboring building, thus creating a coherence on the scale of a city entrance. The R+4 project surmounts 2 basement levels dedicated to parking.

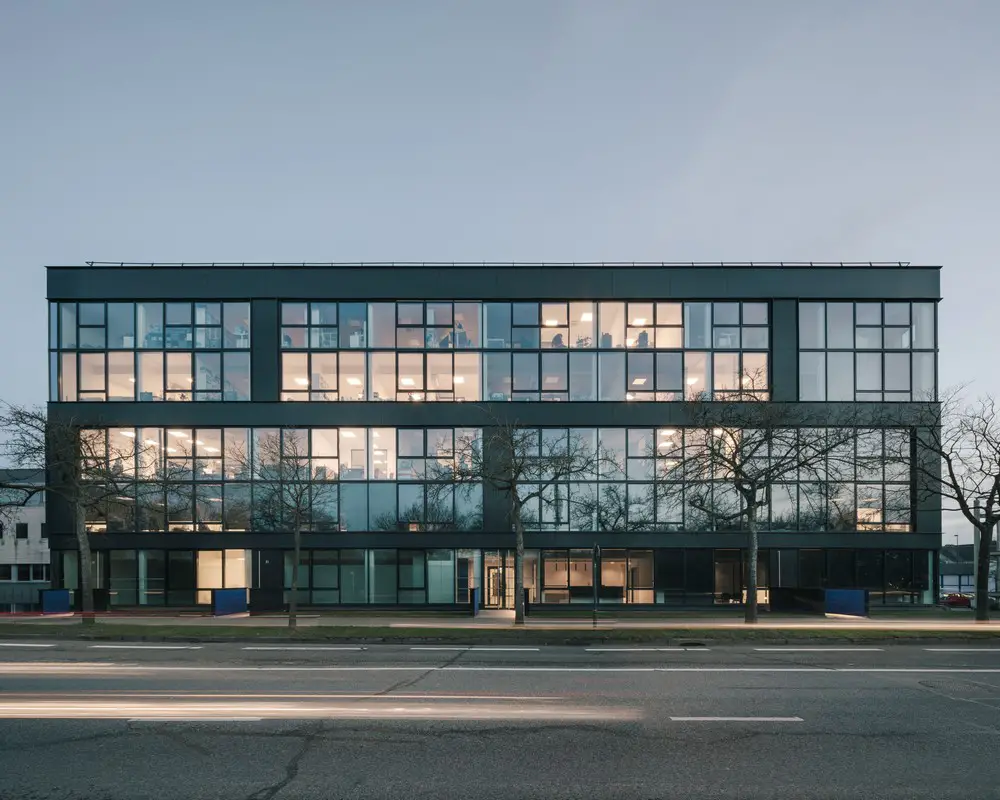

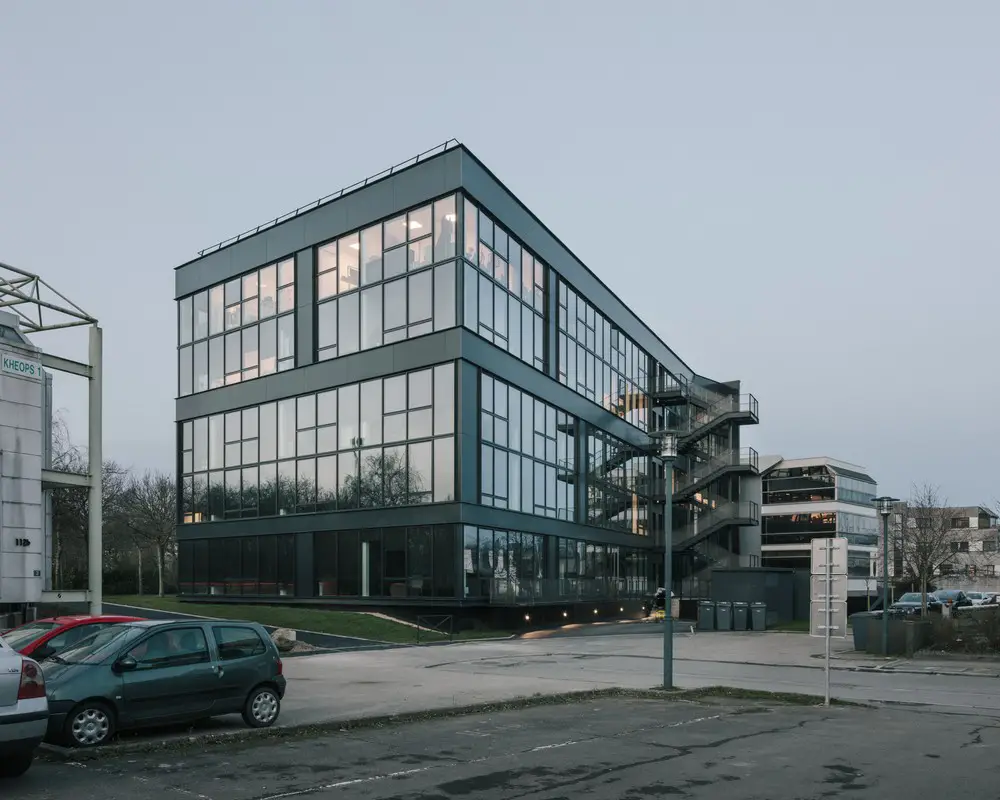

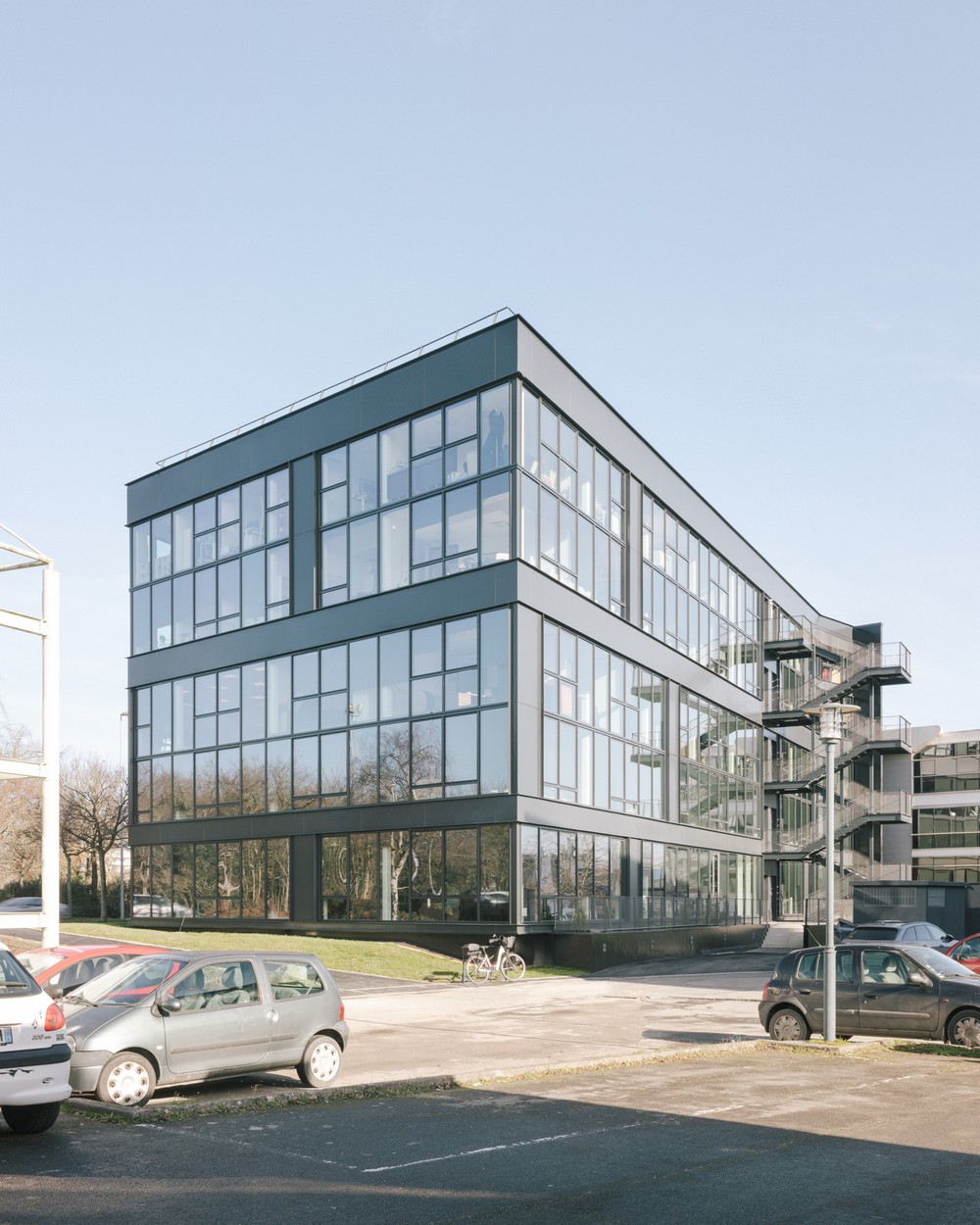

The unique volume of metallic materiality is made up of large double-height bays. With its parallelepipedal geometry, it “asserts” the ambiguity of two double levels that actually house 4 levels of plateaus. The regular grid of 1.35m gives rhythm to this ensemble and gives to read “urban windows” that dialogue with the close and more distant environment.

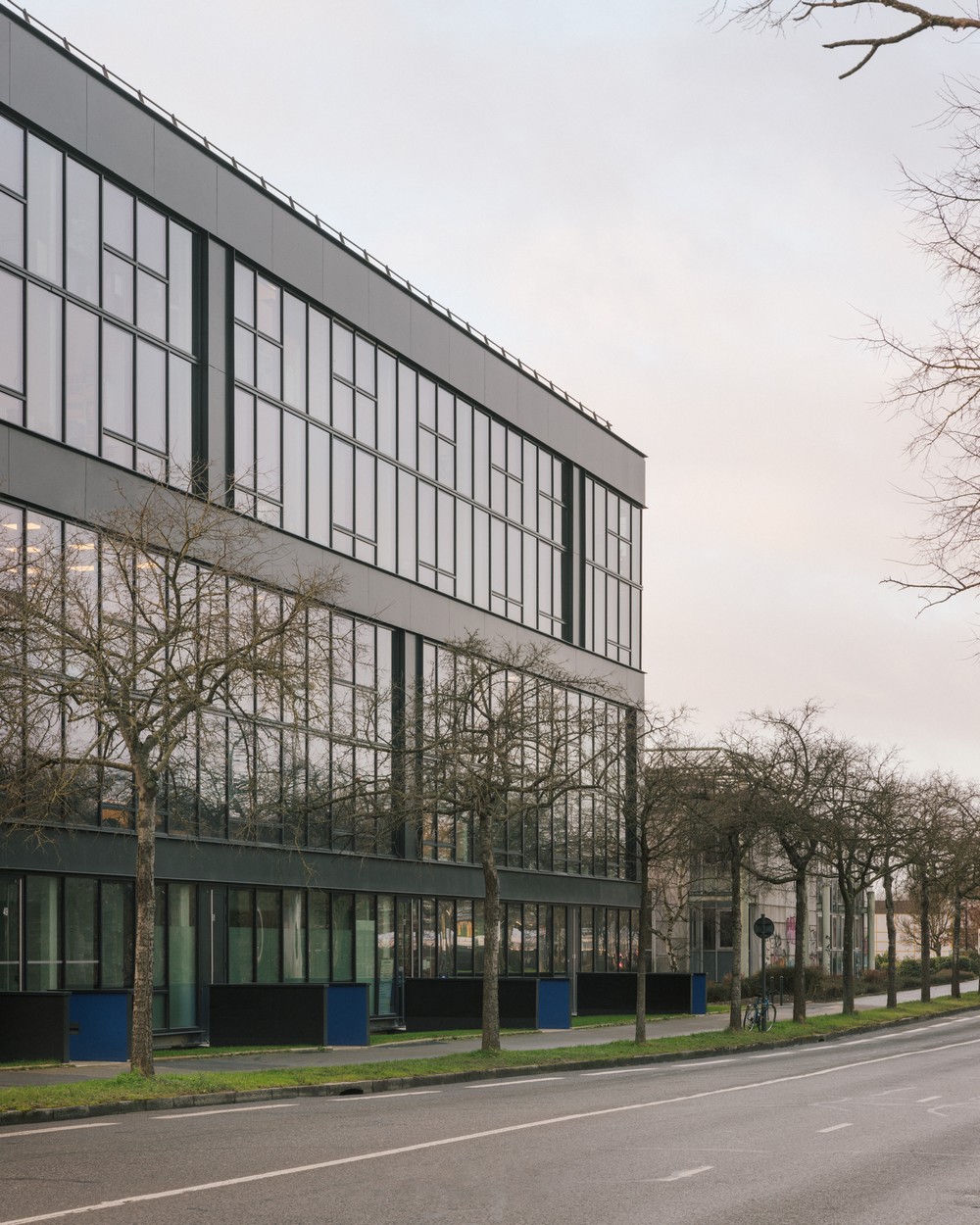

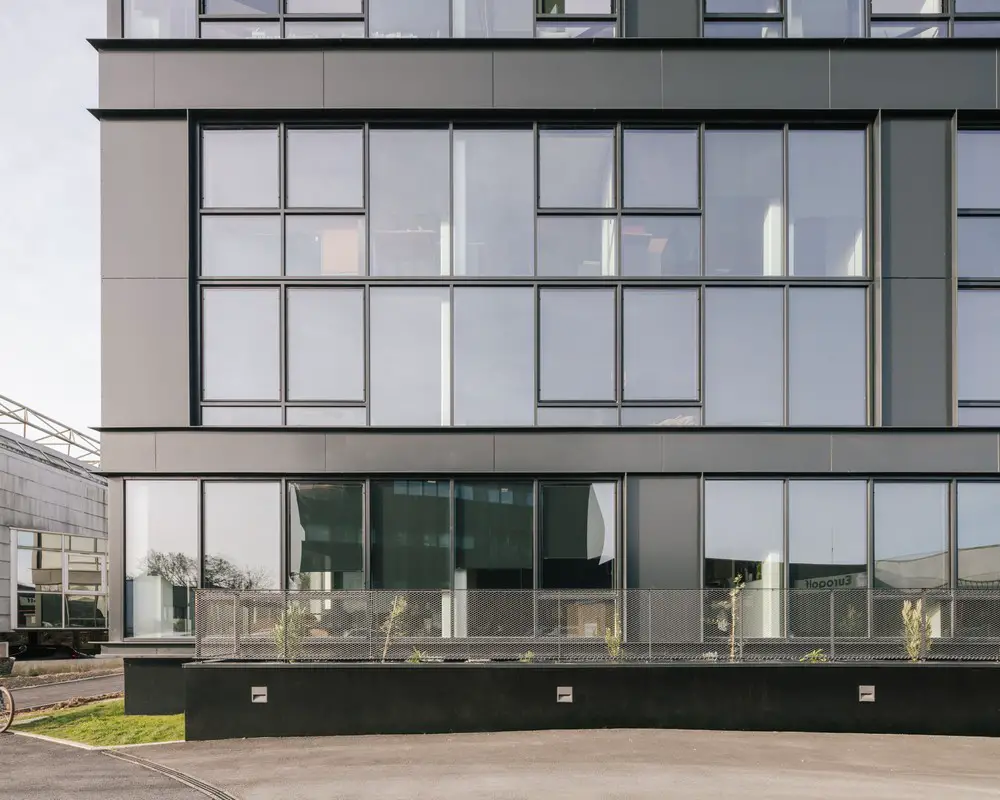

The horizontals are marked by UPN-type metal elements, creating a modenature borrowed from the register of 20th century industrial hotels with timeless writing.

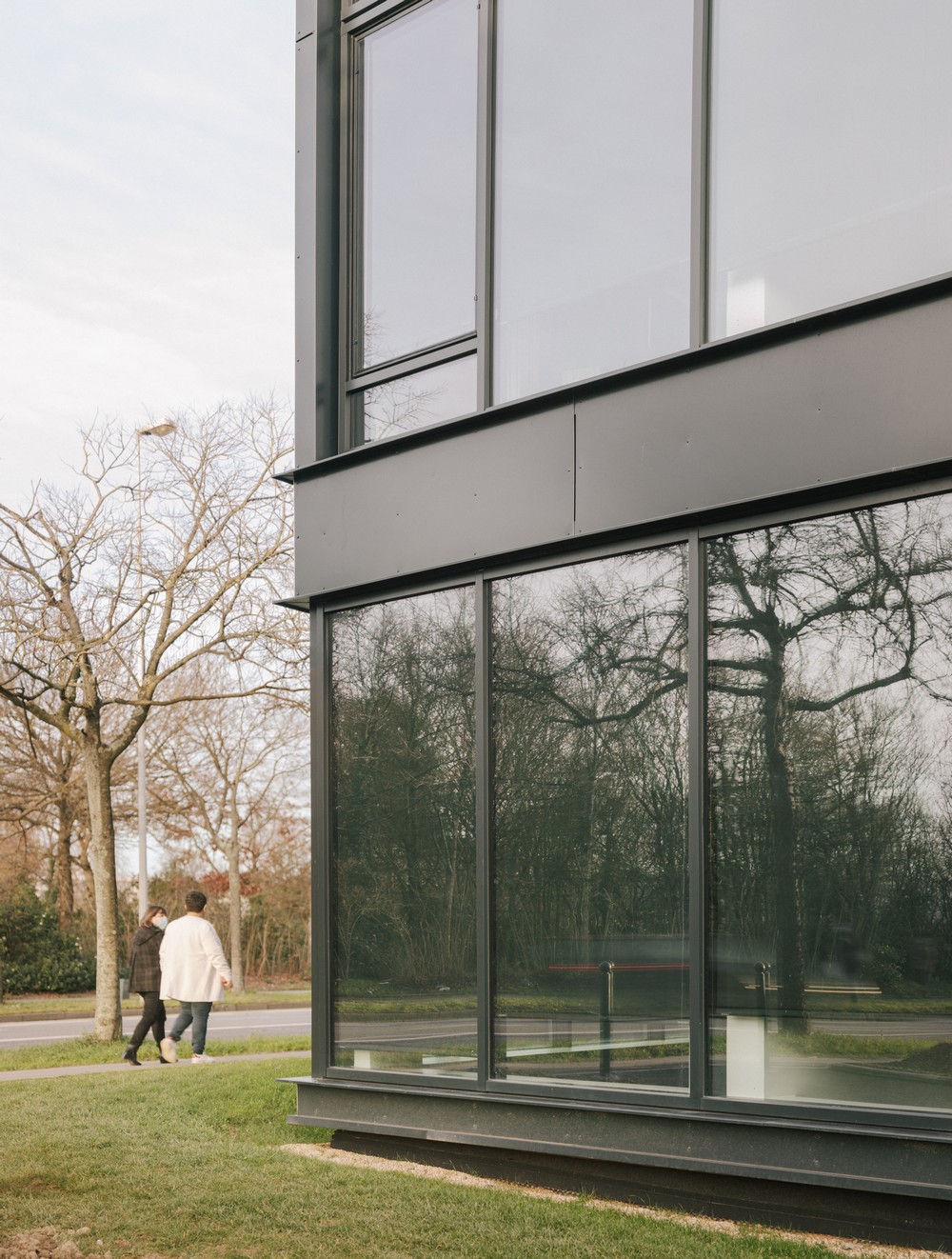

Their thickness varies progressively in altimetry to boost the general volume. In the same constructive logic, verticals frame the glazed areas and mark the entrances to the ground floor.

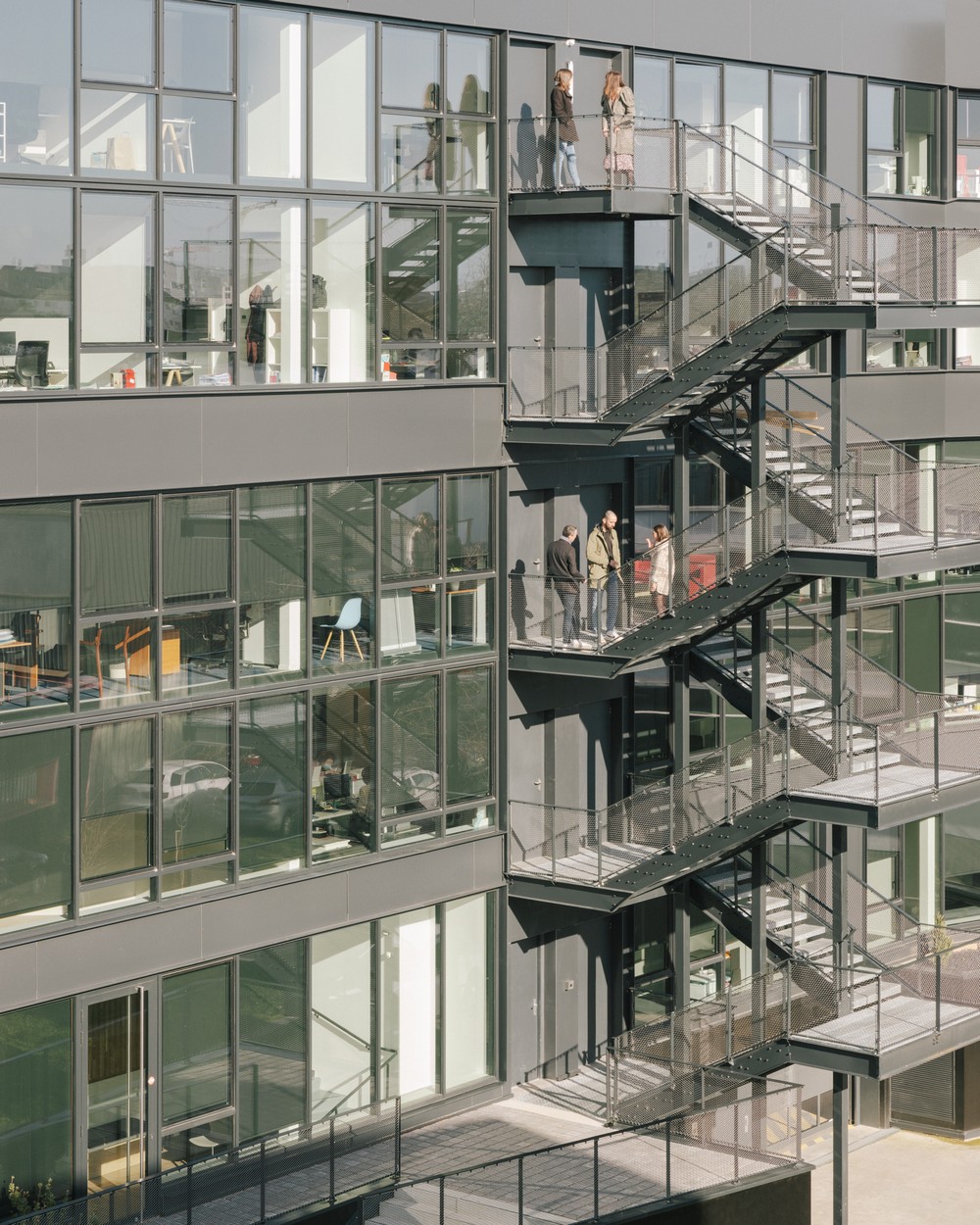

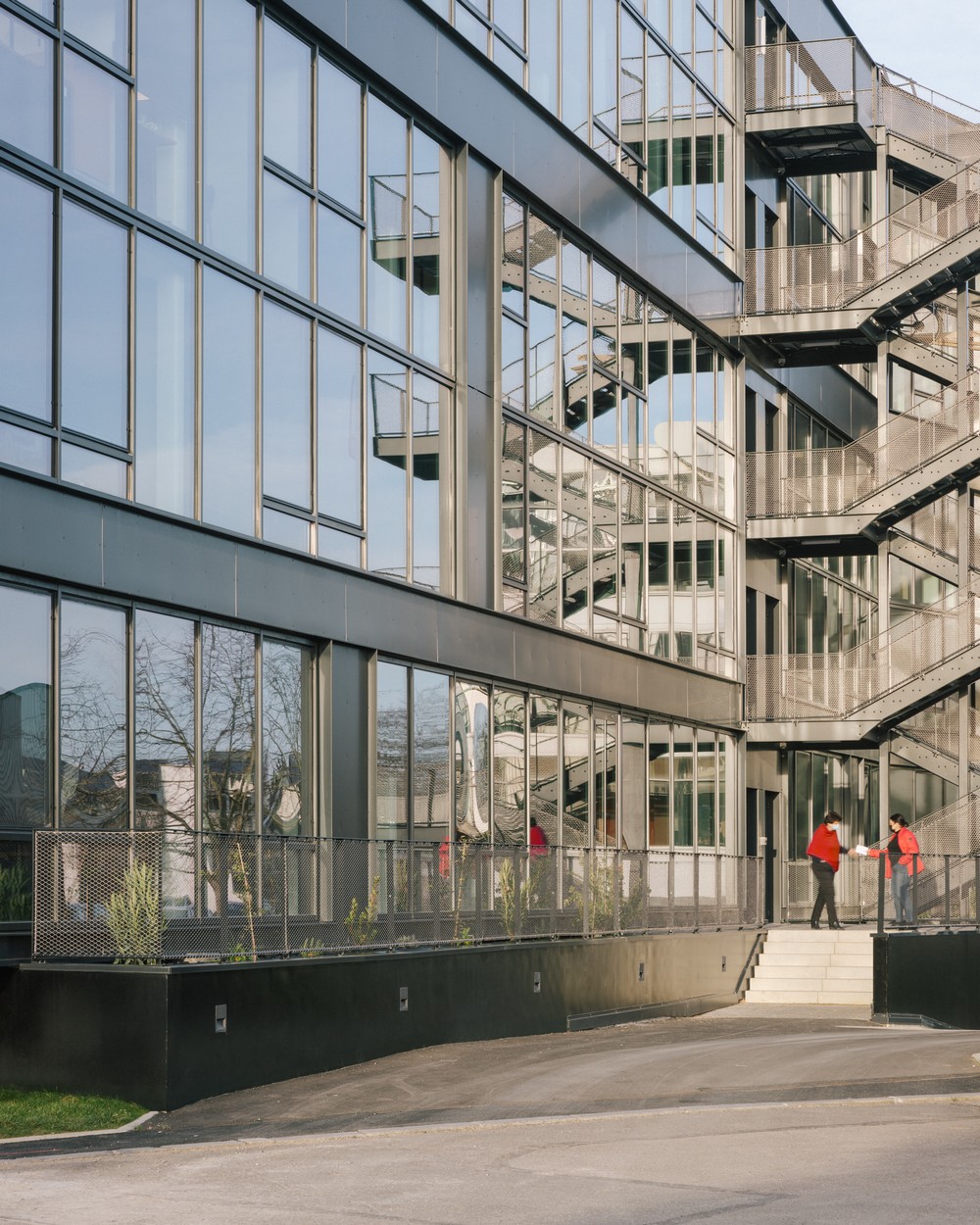

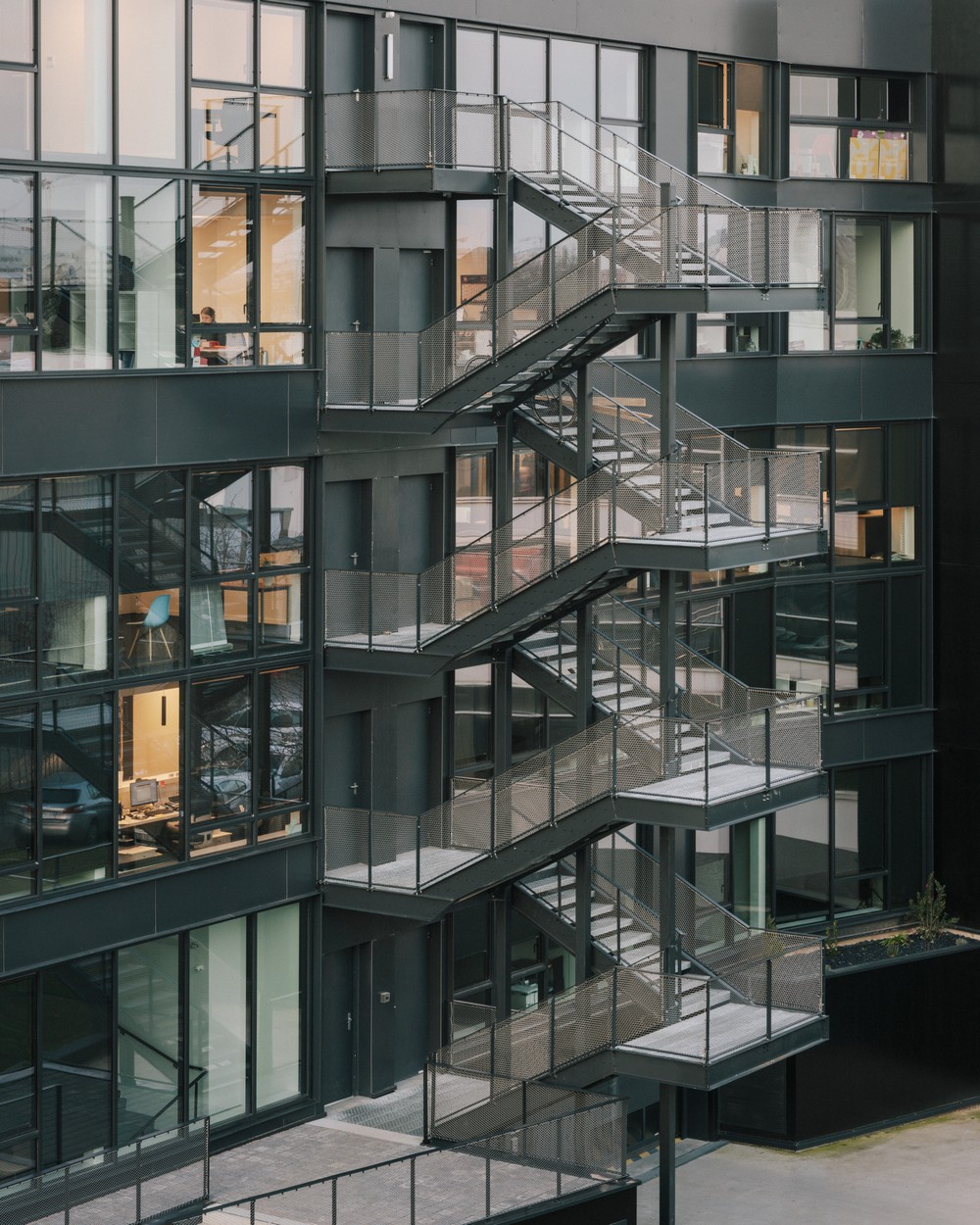

To the south, an external metal staircase, initially for emergency purposes, constitutes the informal space for meetings between platforms, encouraging emulation between users.

The architecture of the building responds to common sense objectives in terms of light input, solar orientation criteria and work-related uses. The grid allows to satisfy these issues. It brings both homogeneity and fl exibility, particularly in terms of reversibility to the project.

Materials:

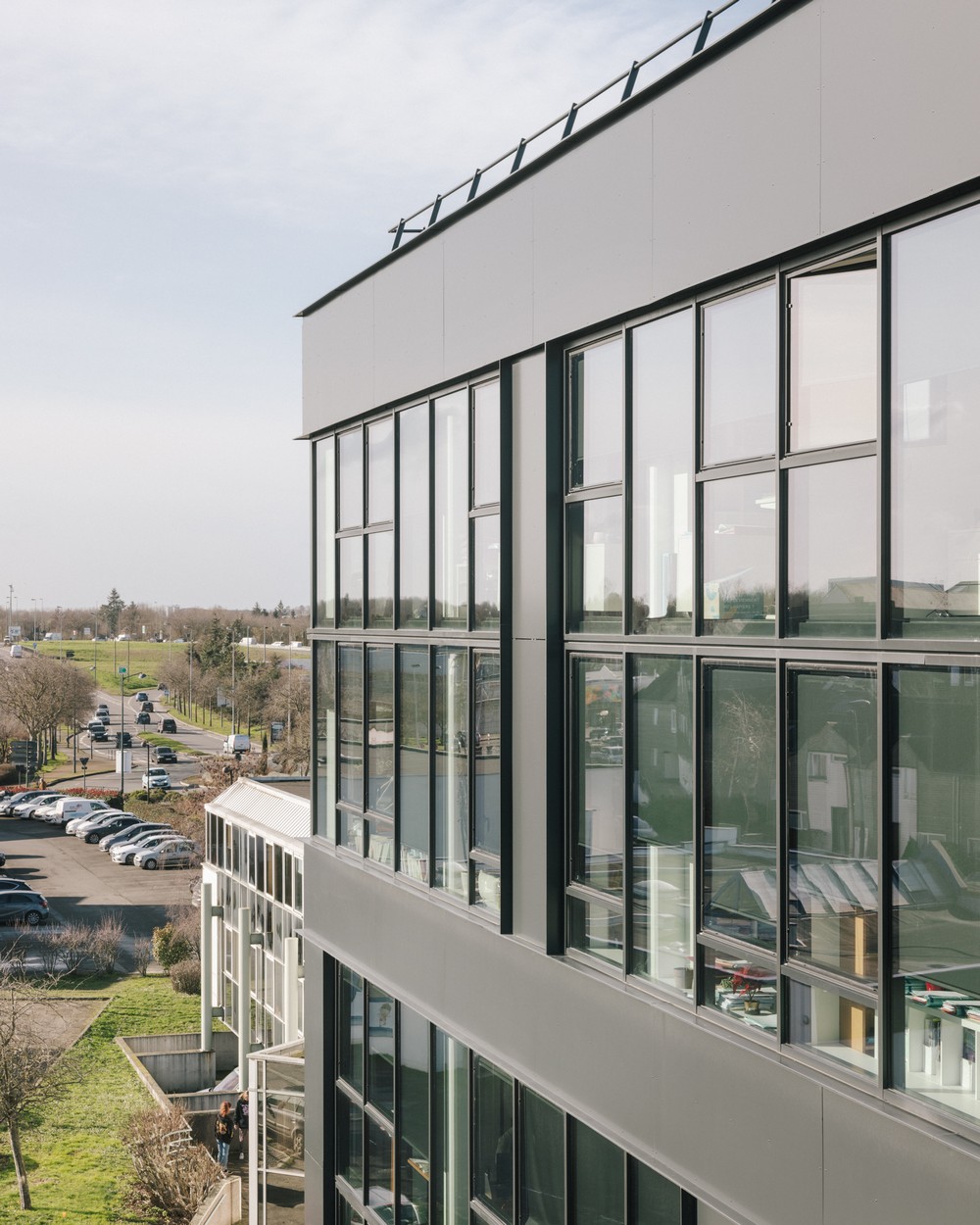

– Dark-colored metal cladding for the facades (RAL 7024)
– Dark lacquered aluminum joinery (RAL 7024)
– Railing and staircase made of dark lacquered steel (RAL 7024)
– Clear glazing for all windows
– Entrance walls and concrete retaining walls + paint in dark (RAL 7024) and KLEIN blue colors

The pedestrian access to the North naturally constitutes the addressing of the building. Vehicle access is to the South-West of the plot from the René Hirel driveway.

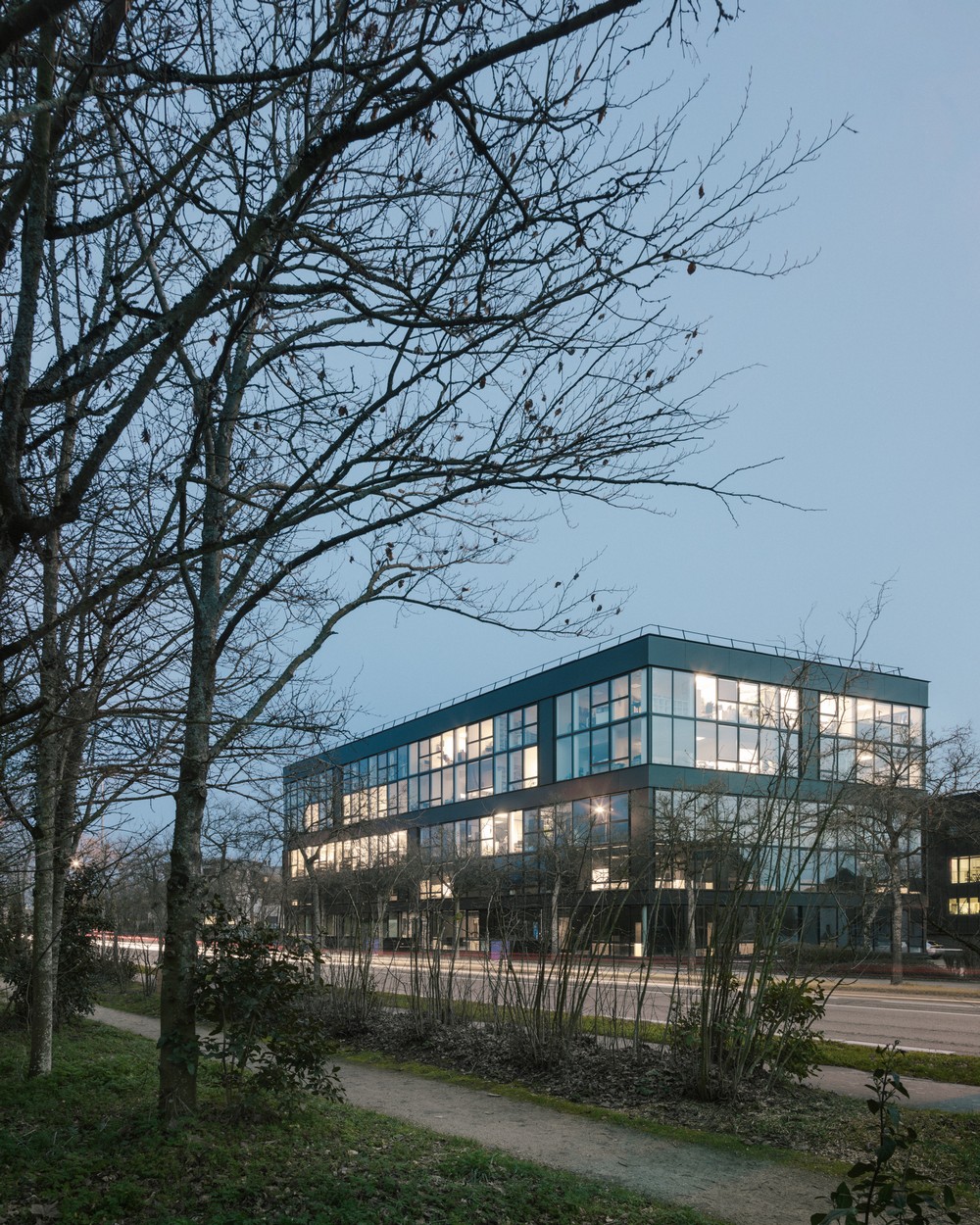

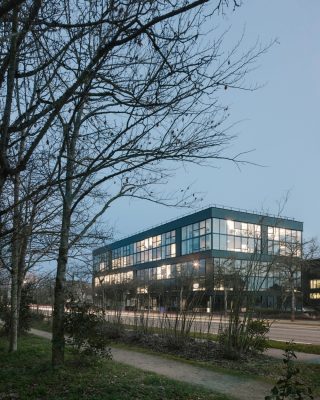

The landscaping sets up the building in the natural topography of the plot. The open space design opens onto rue Jules Vallès and is punctuated by walkways giving access to the ground fl oor cells and the common entrance. With no fences, the land’s surroundings remain clear in keeping with the site’s original conditions.

Westside Office Building in Rennes, France – Building Information

Design: a/LTA architectes
Place: Rennes (35), France
Client: KERMARREC
Status: Delivered 2021
Surface: 3.514 sqm
Cost: 4.300.000 € HT.
Program: offices + conviviality spaces + 2 parking levels
Performances: NF HQE BATIMENT TERTIAIRE

People
Maitre D’ouvrage
Architecte
Maitre D’œuvre Exe
Bet Fluide / Cfo / Cfa
Bet Structure
Bet Acoustique
Bureau De Contrôle
Coordinateur Sps
Etude De Sol

Photography © Charly Broyez

Westside Office Building in Rennes, Brittany images / information received 010920 from a/LTA architectes
