Wormhole Library in Haikou, Hainan Building Development, New Chinese Concept Design Images

Wormhole Library in Haikou, China

9 Feb 2021 + 10 Aug 2020

Design: MAD Architects

Location: Haikou, Hainan Province, China

MAD-Designed Wormhole Library Tops Out

Wormhole Library Haikou

Renderings by SAN

Wormhole Library

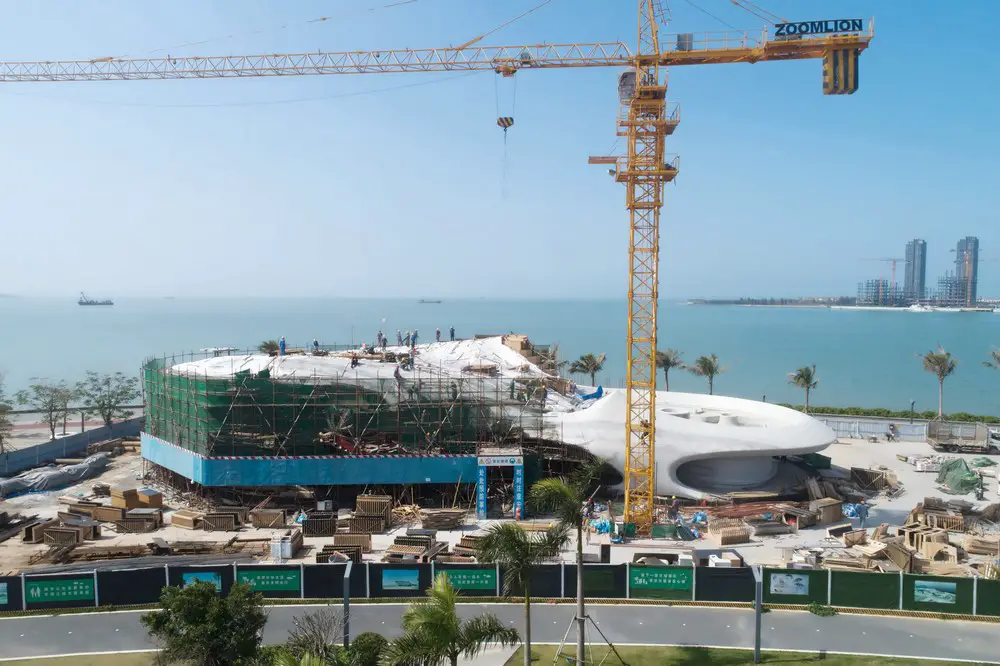

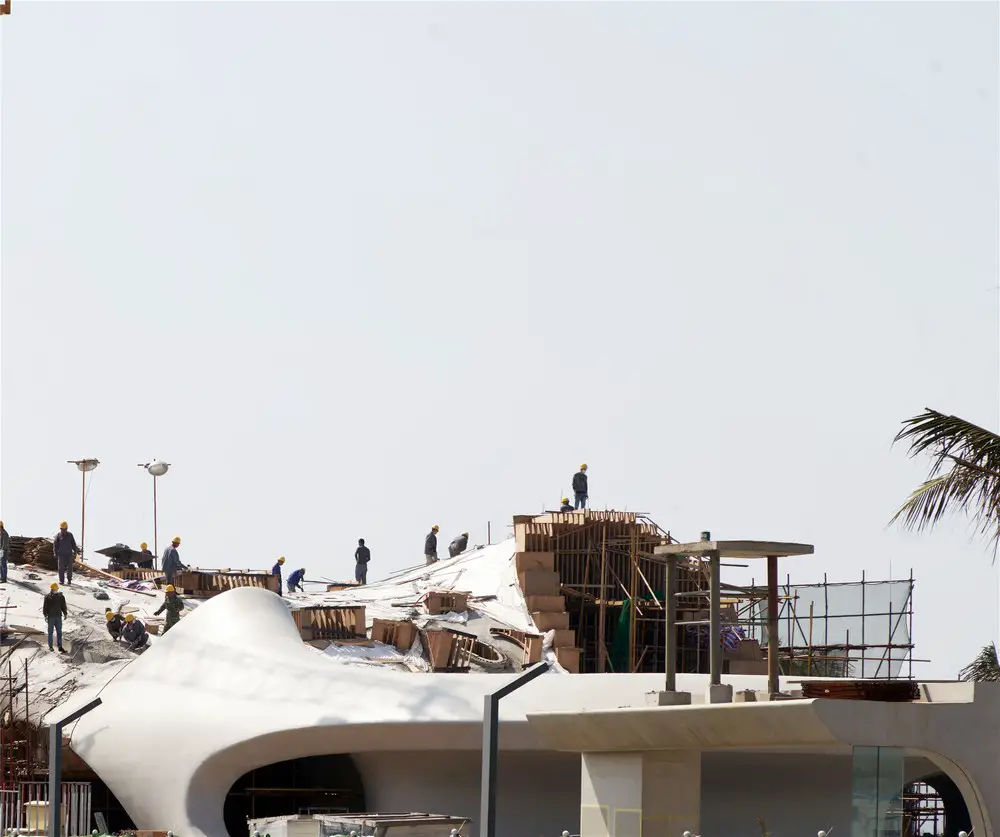

The Wormhole Library, designed by MAD Architects, has topped-out in the city of Haikou, China. The milestone was reached at the end of January 2021.

Wormhole Library Haikou
photo © Agovision – Wormhole Library Ma Yansong, Yosuke Hayano and project architect on site of top out

Overlooking the China South Sea, the Wormhole Library is situated within the Century Park along the Haikou Bay coastline. Upon completion it will serve as a multi-functional building, accommodating spaces for reading, and a public rest area for visitors.

Wormhole Library Haikou

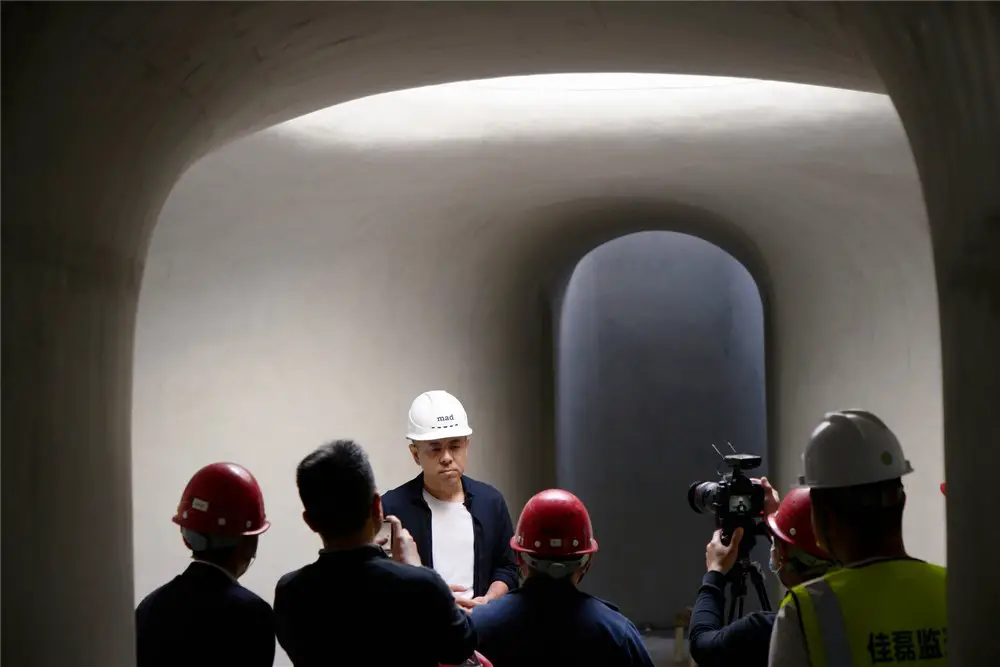

photo © Agovision – Wormhole Library Ma Yansong on site of top out

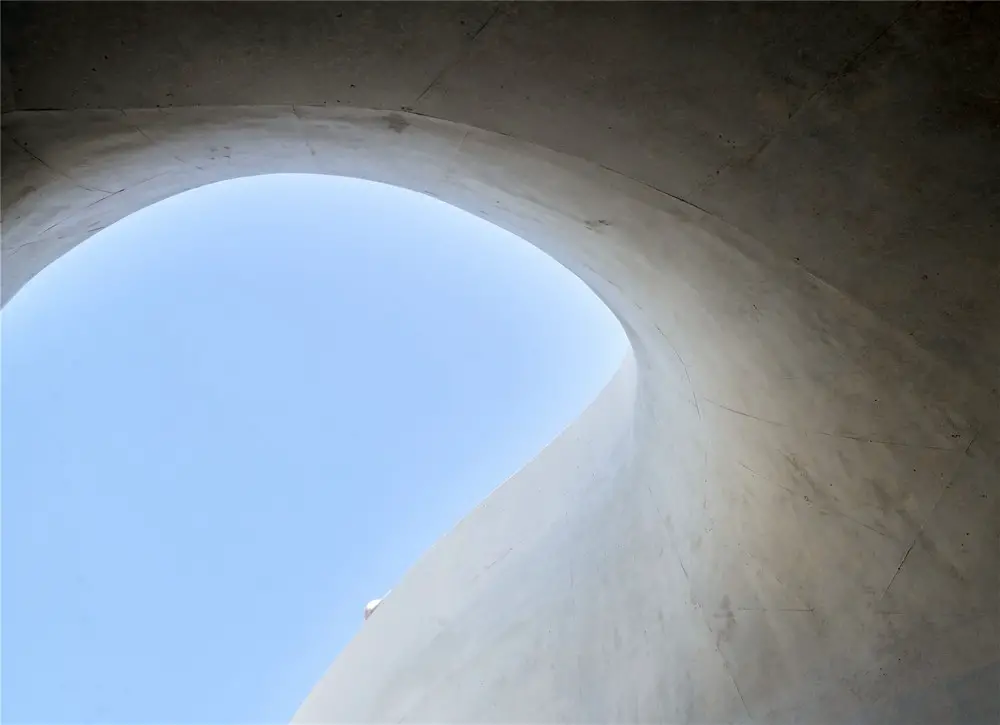

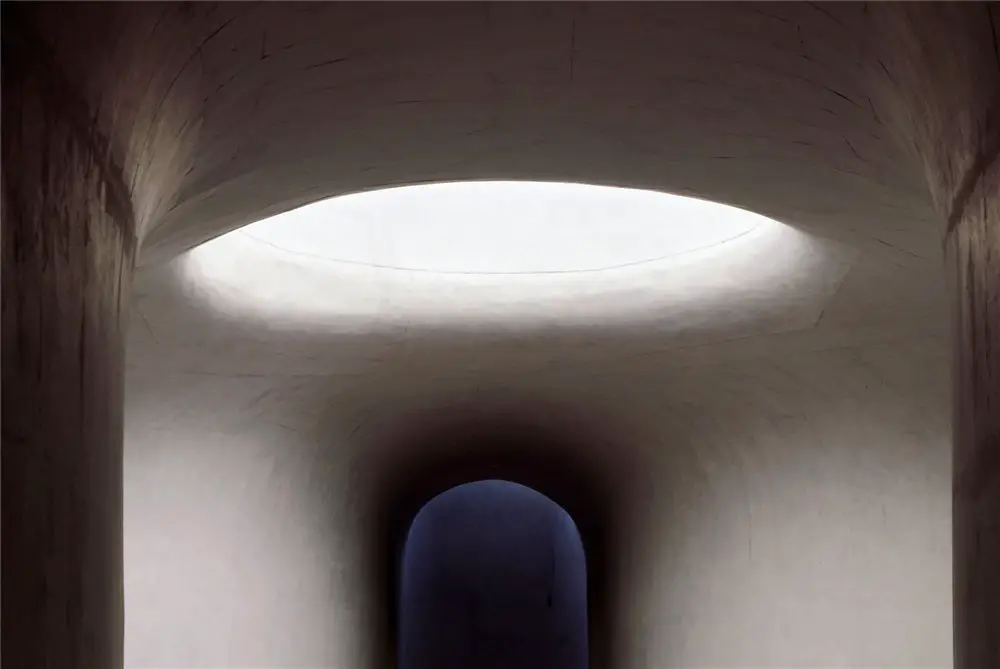

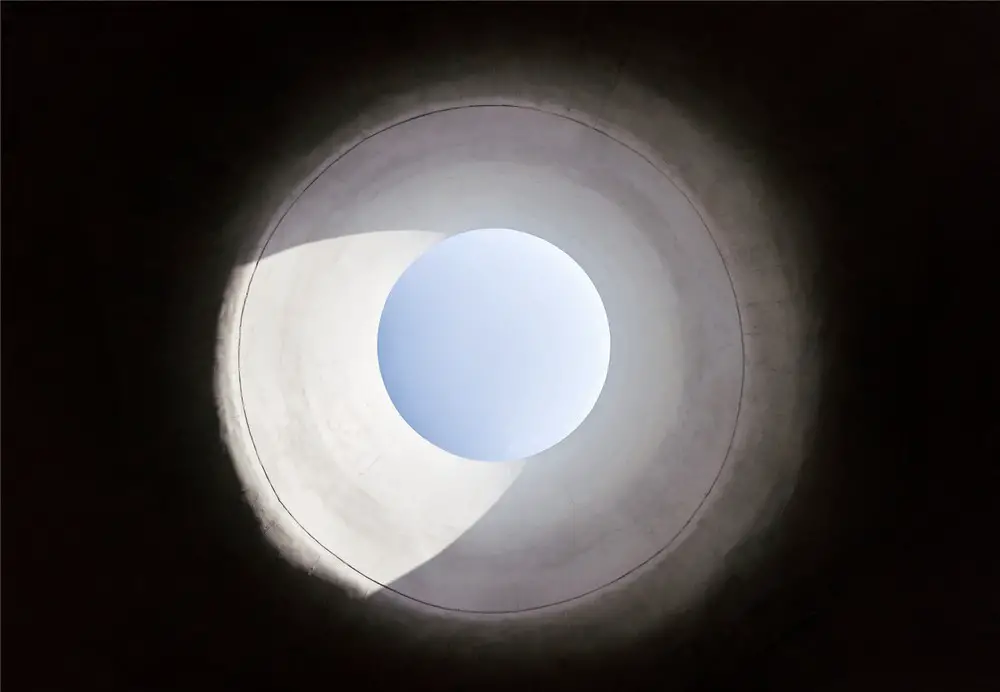

The intimately scaled structure is cast of white concrete as a unit. The curved concrete walls not only serve as an organic architectural structure, but also connect the ceiling, ground, and walls together. Holes of varying sizes allow the architecture to breathe, while also letting natural light flood the interior. The grey spaces of the exterior corridors provide shaded spots for passers-by to stop and rest.

Wormhole Library Haikou
photo © Agovision – Wormhole Library MAD Partners Ma Yansong and Yosuke Hayano on site of top out

Within the library, people interact directly with both the sky and sea. Humans are no longer the dominant beings, and architecture is no longer the dominant vessel. The visitor experience is instead a “glimpse into the universe” – abstract but infinite.

Wormhole Library Haikou

Wormhole Library Haikou

The Wormhole Library allows visitors to read, enjoy views of the sea, and attend open-air performances, temporarily removing themselves from the hustle and bustle of everyday life. As Haikou’s next energetic, popular public space, the library will bring layers of color and activity to the city.

Wormhole Library Haikou

Wormhole Library Haikou

Wormhole Library Haikou

The project is scheduled to be completed and operational in the Spring of 2021.

Wormhole Library Haikou

Photography Agovision

MAD’s Wormhole Library Creates a Dreamscape by the South China Sea

Wormhole Library Haikou Hainan Province

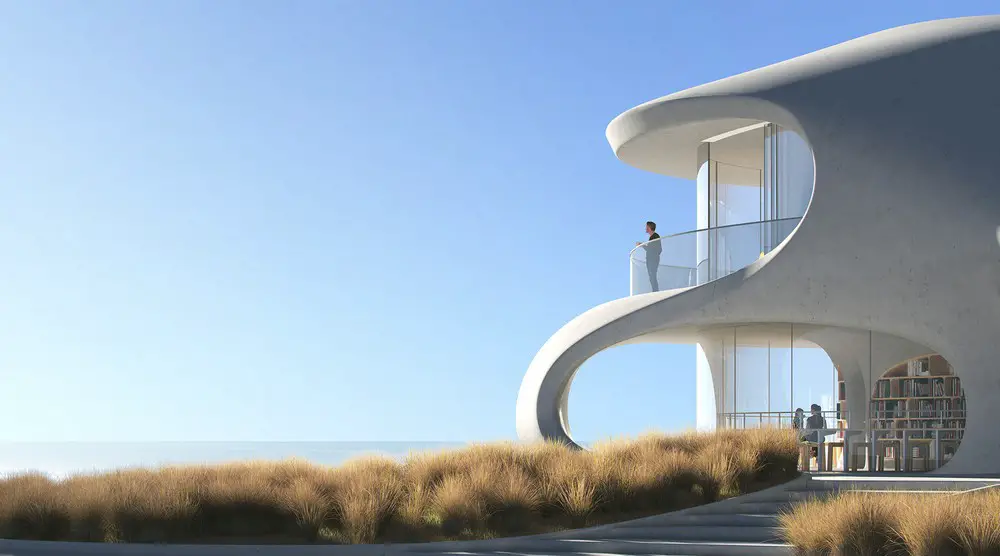

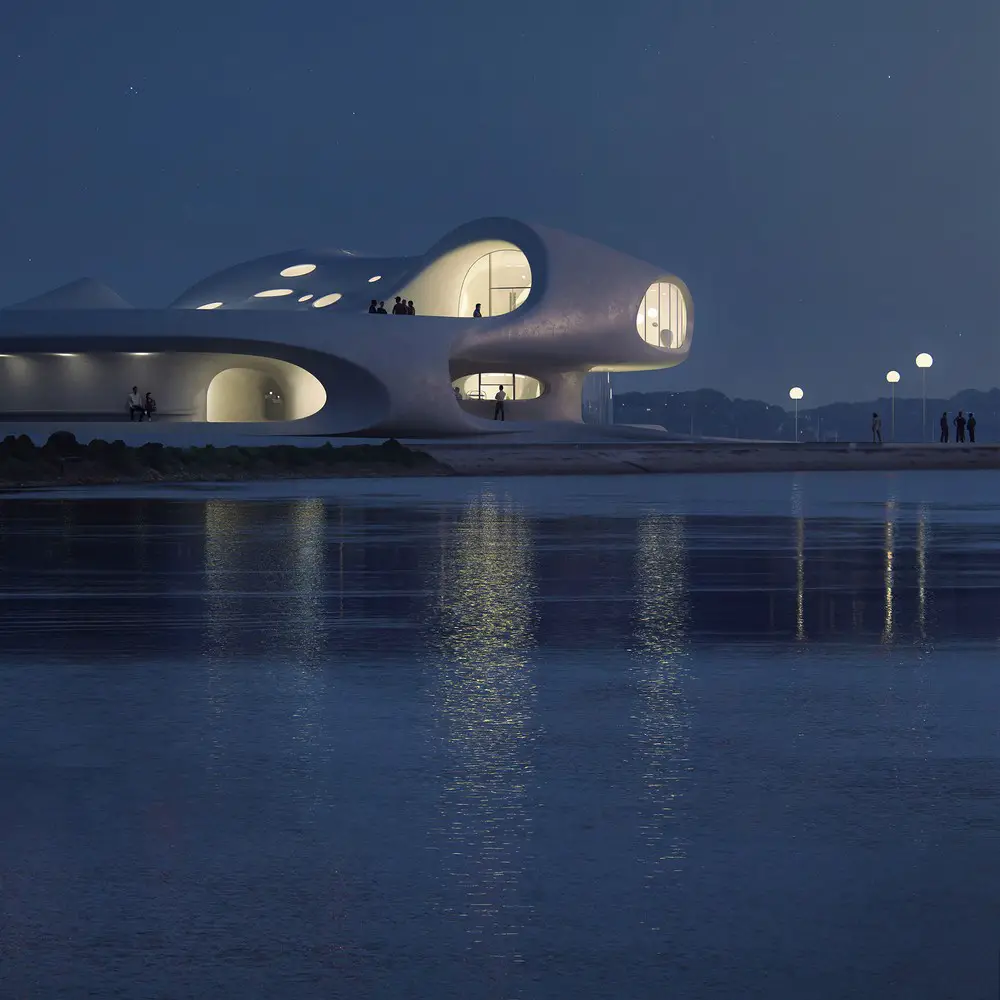

Led by Ma Yansong, MAD Architects releases the design of the Wormhole Library, which sits on the coast in Haikou, Hainan Province in China. The sensuously curved pavilion appears to be a “wormhole” that transcends time and space. It serves as a multi-functional building that allows visitors to read, enjoy views of the sea, and attend open-air performances, temporarily removing themselves from the hustle and bustle of everyday life. The building is now under construction and will be completed in 2021.

Wormhole Library Haikou Hainan Province

Located in southeast China, Haikou is the capital of Hainan province. It once served as an important port along the Maritime Silk Road, and today has become a key area of the Hainan free-trade island initiative.

Wormhole Library Haikou Hainan Province

Wormhole Library Haikou Hainan Province

In 2019, the local government launched the Haikou Bay rejuvenation plan in an effort to enhance the use of public space along the Haikou coastline. A series of pavilions by both domestic and international architects is under planning and the Wormhole Library will be the first one to be completed.

Wormhole Library Haikou Hainan Province Wormhole Library Haikou Hainan Province

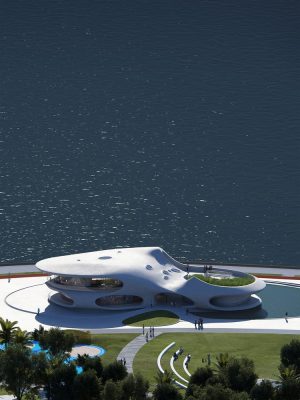

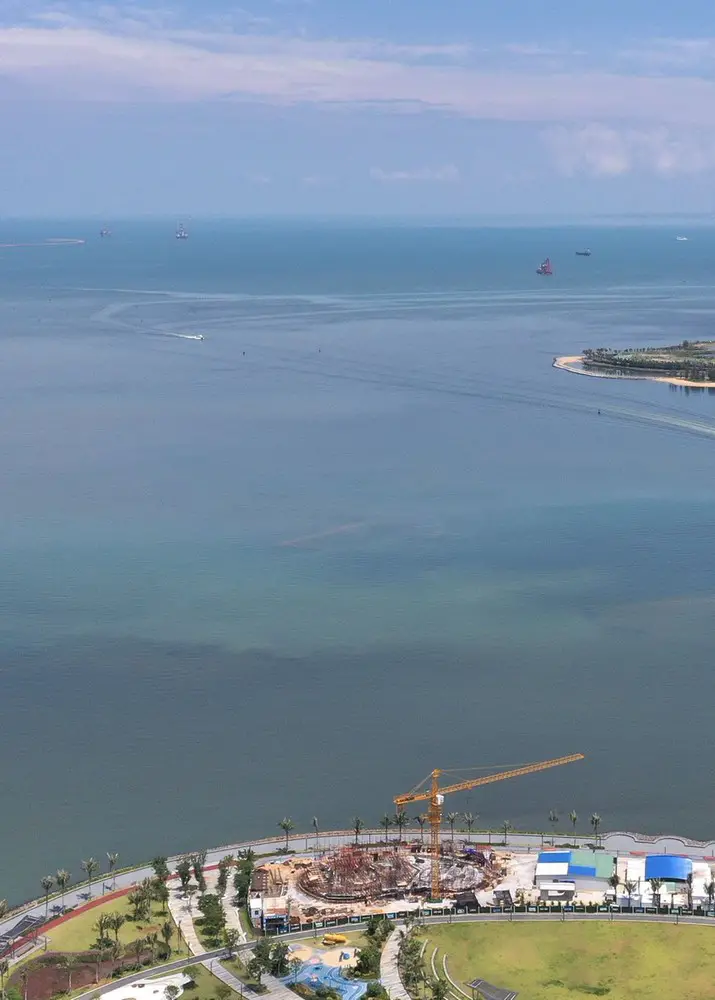

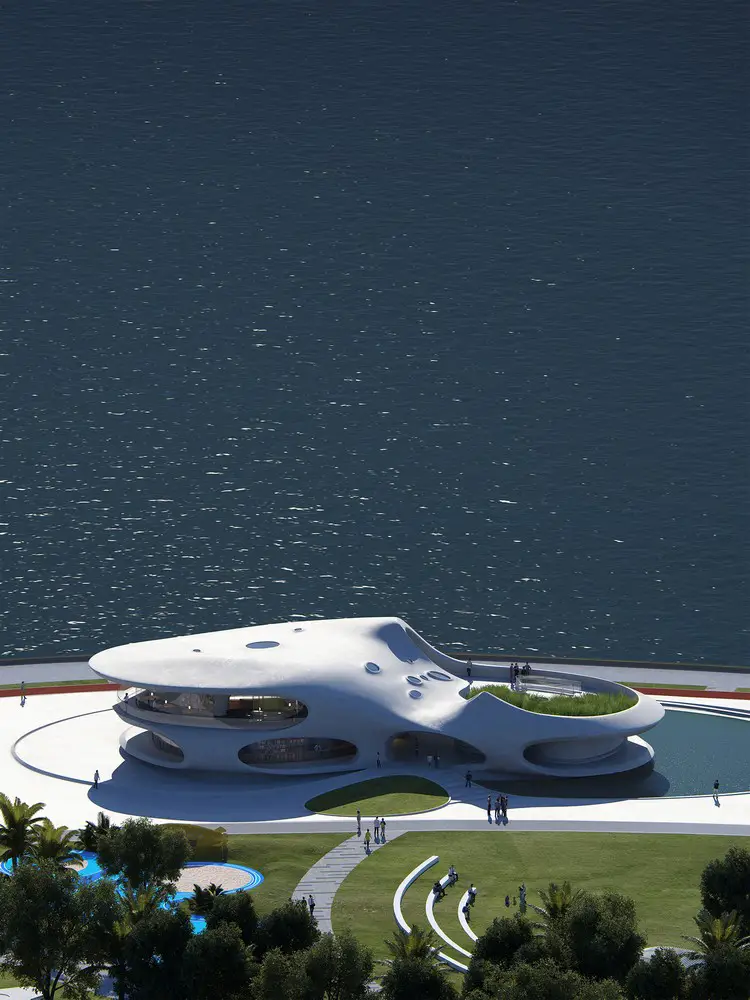

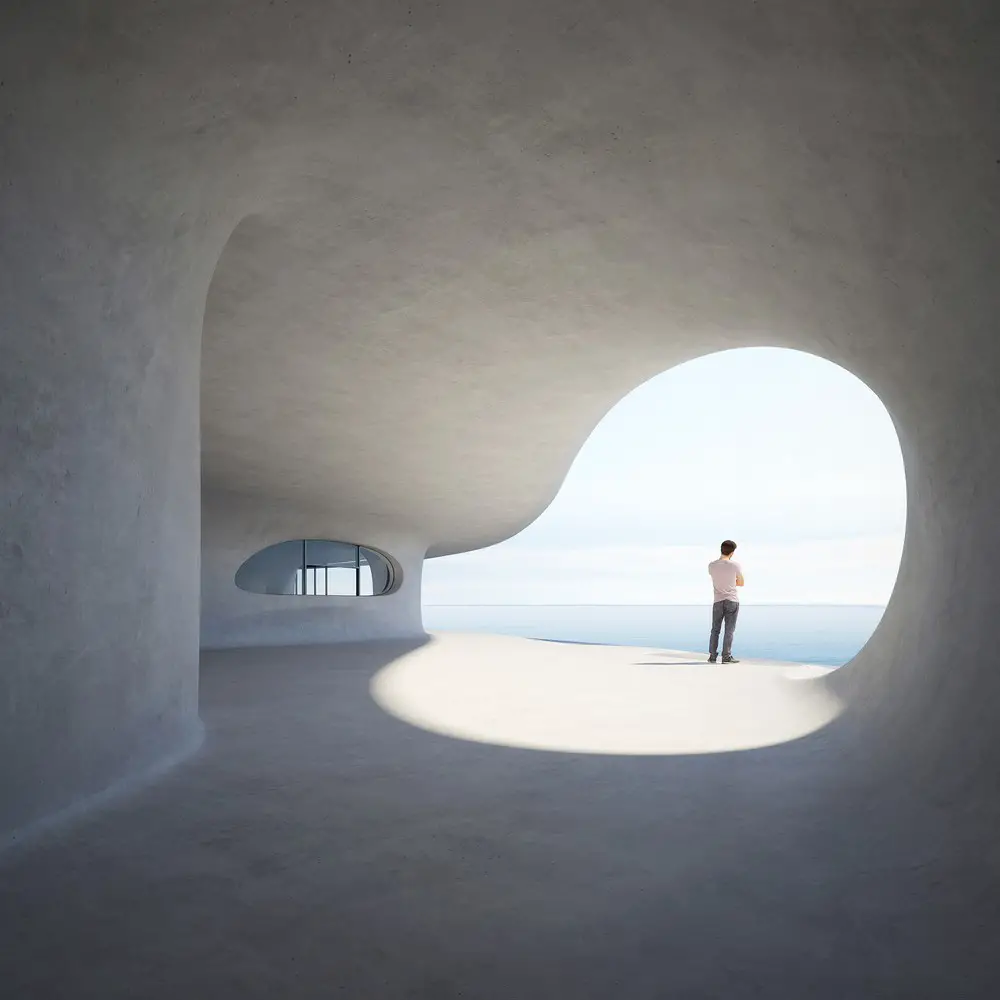

Facing the South China Sea, the Wormhole Library is located in Century Park along the Haikou Bay coastline. The intimately scaled structure is cast of white concrete as a unit. The curved concrete walls not only serve as organic architectural structure, but also connect the ceiling, the ground and the walls together. Holes of varying sizes allow the architecture to breathe and meanwhile let natural light flood the interior. The grey spaces of the exterior corridors provide shady spots for passers-by to stop and rest.

Wormhole Library Haikou Hainan Province

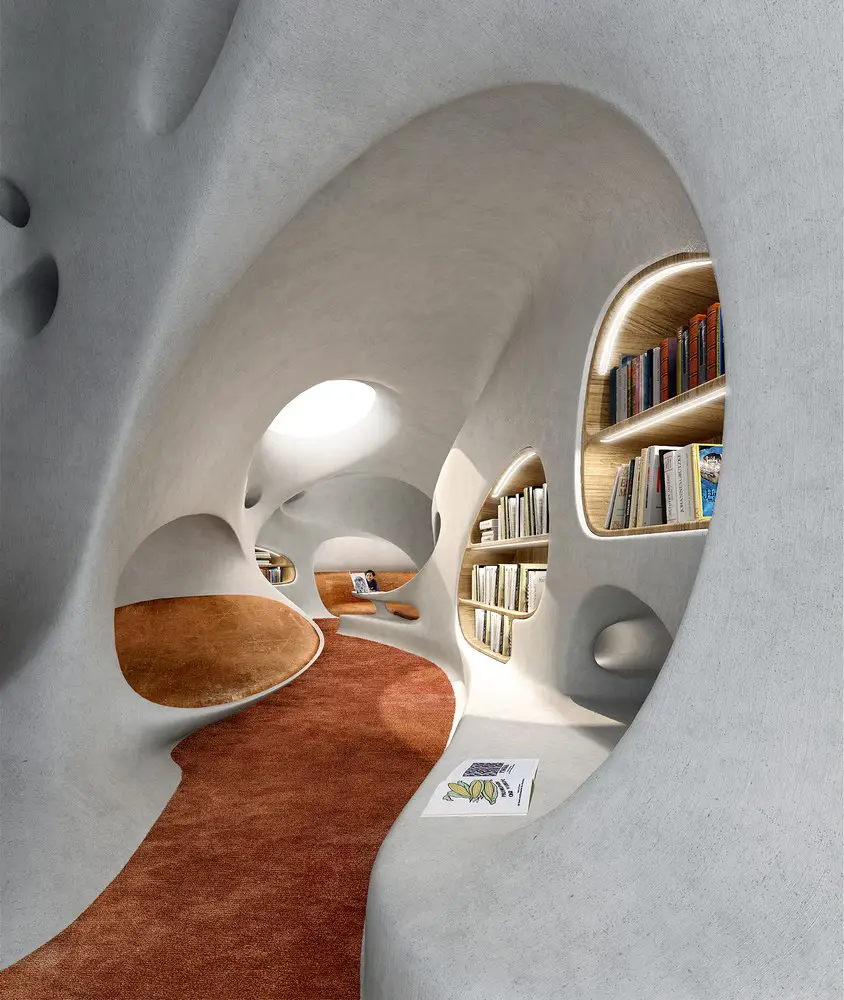

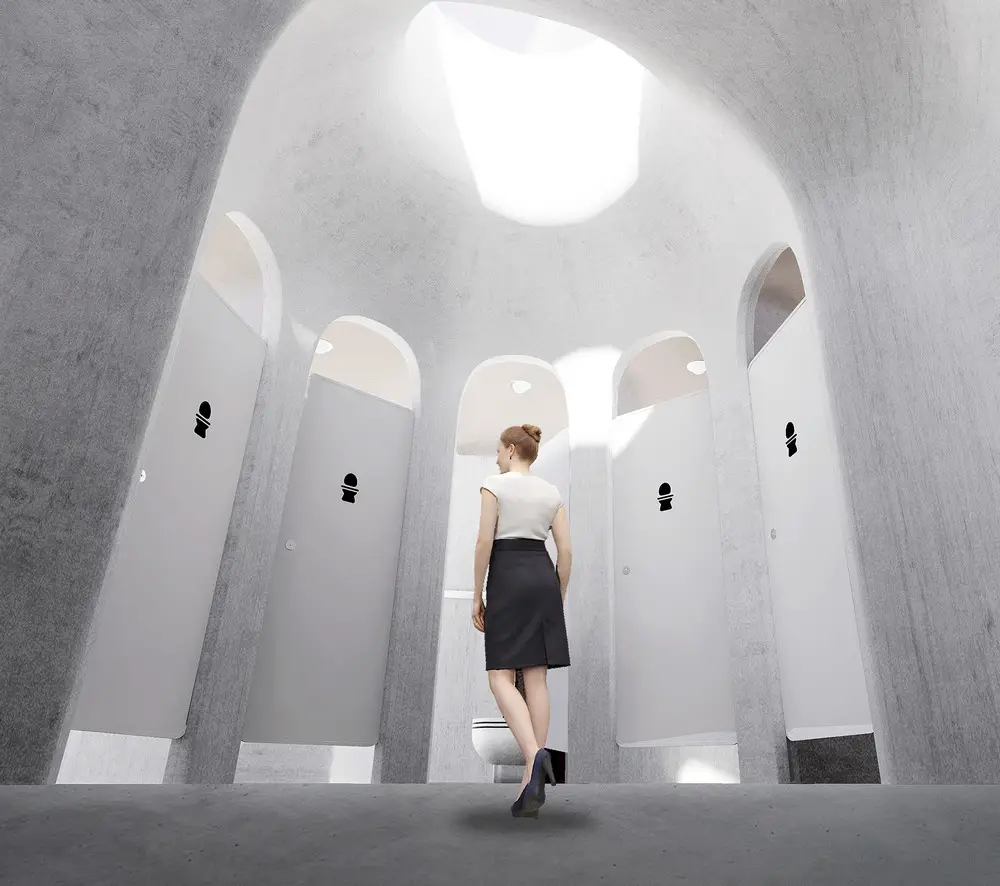

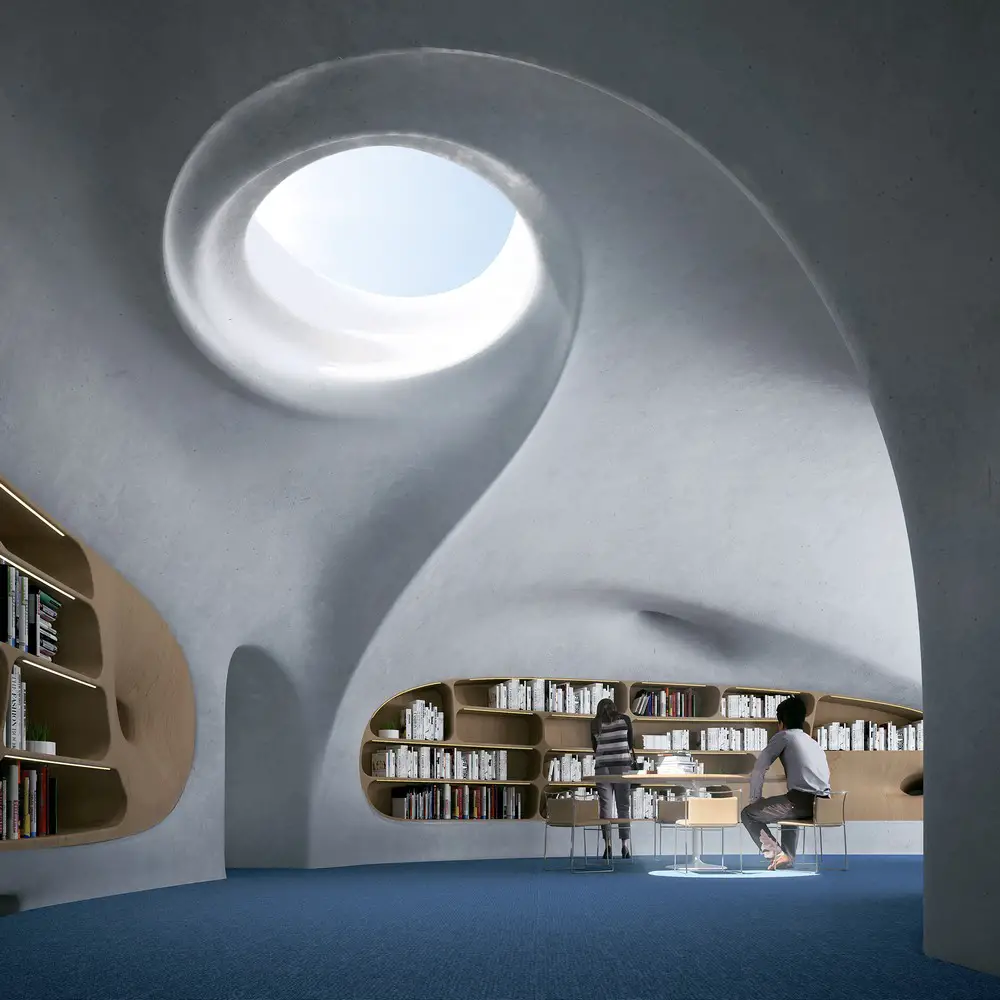

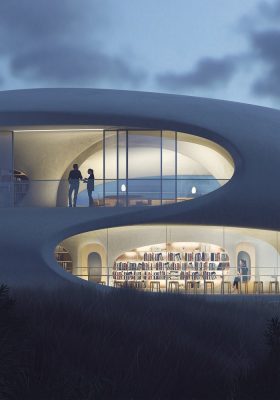

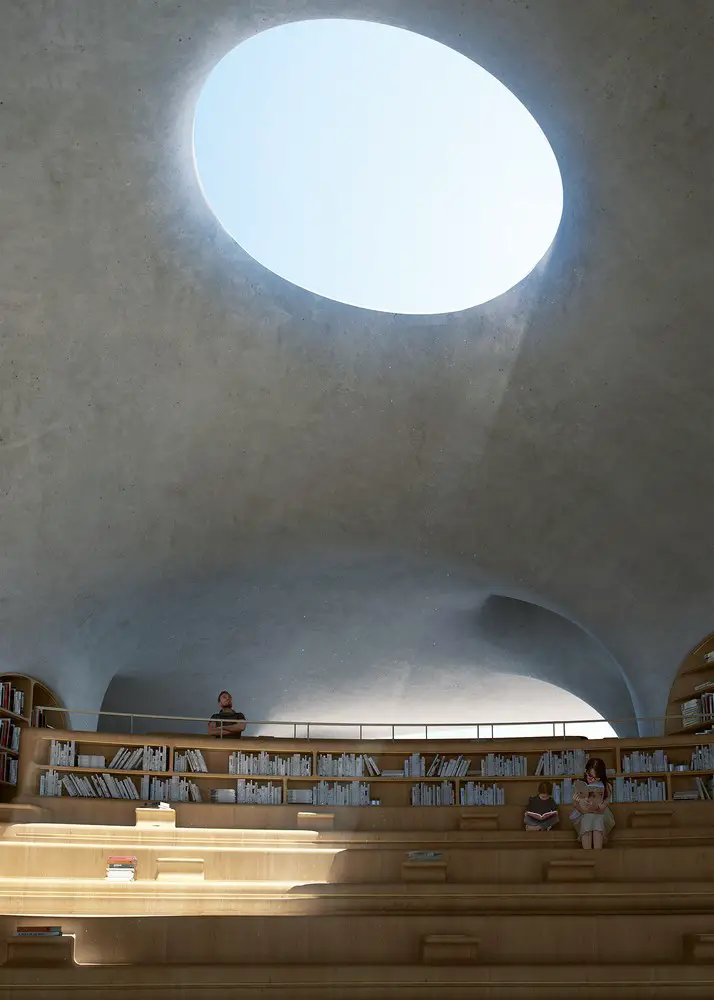

The interior is composed of two parts: a 690-square-meter (7,430-square-foot) reading space that can store approximately 10,000 books, a café and a terrace; and a 300-square-meter (3,230-square-foot) public rest area that is equipped with a bicycle parking system, public bathrooms, and shower areas.

Wormhole Library Haikou Hainan Province

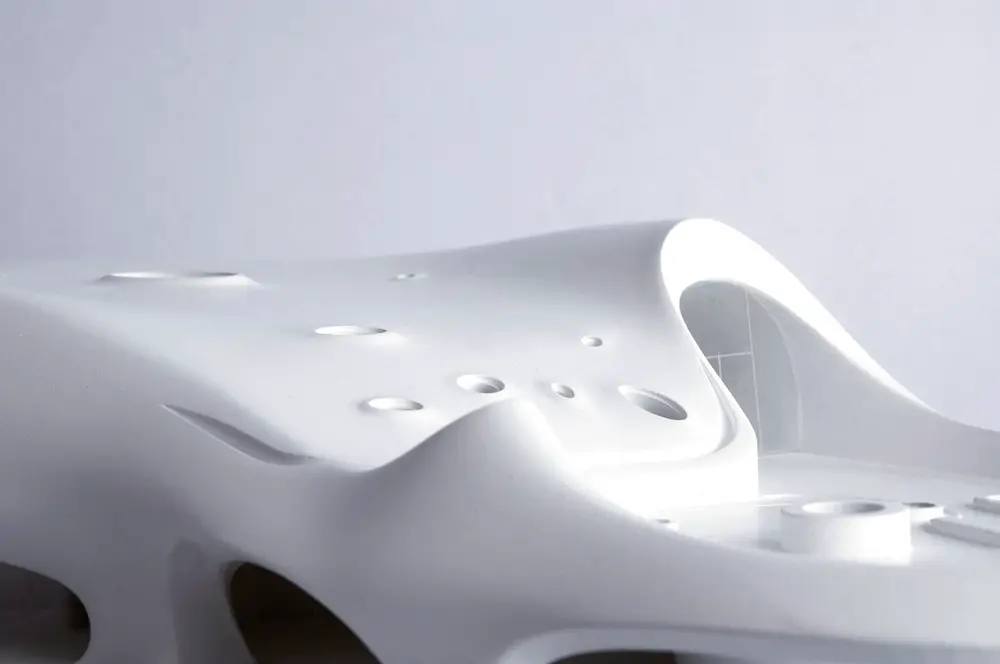

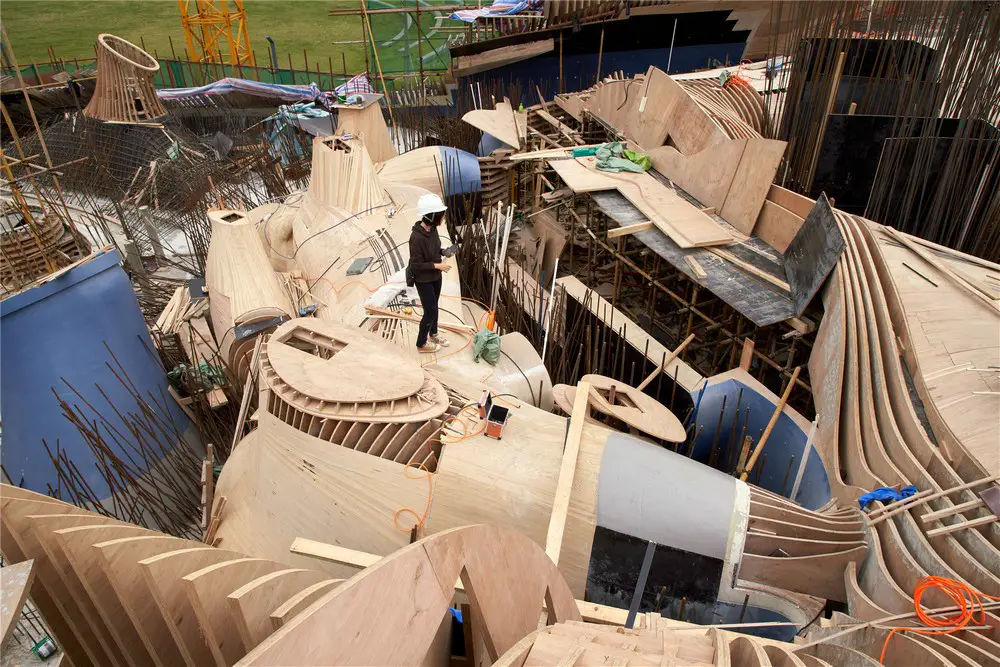

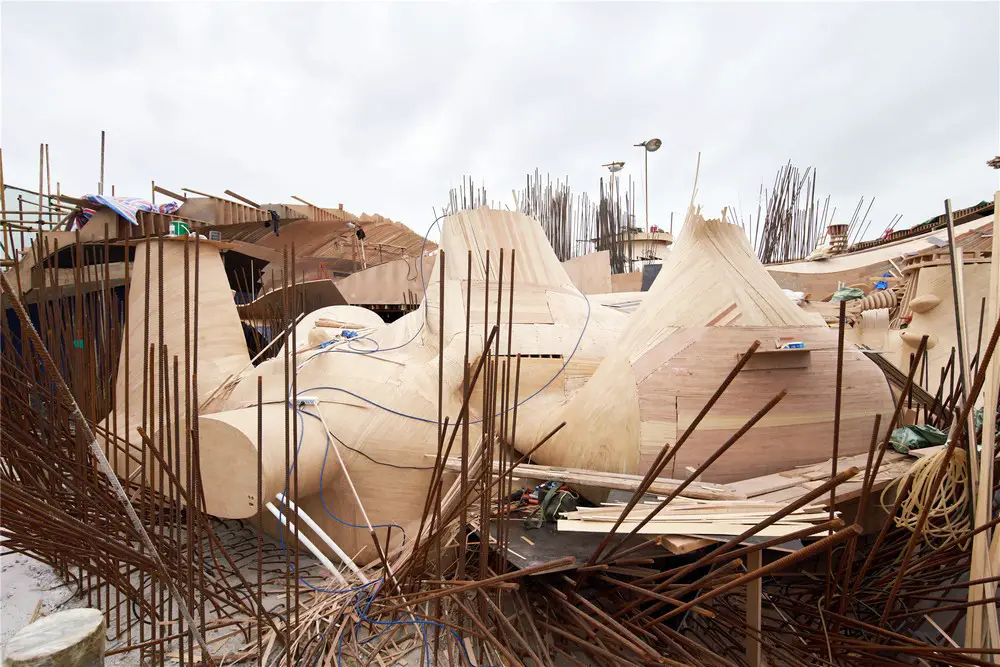

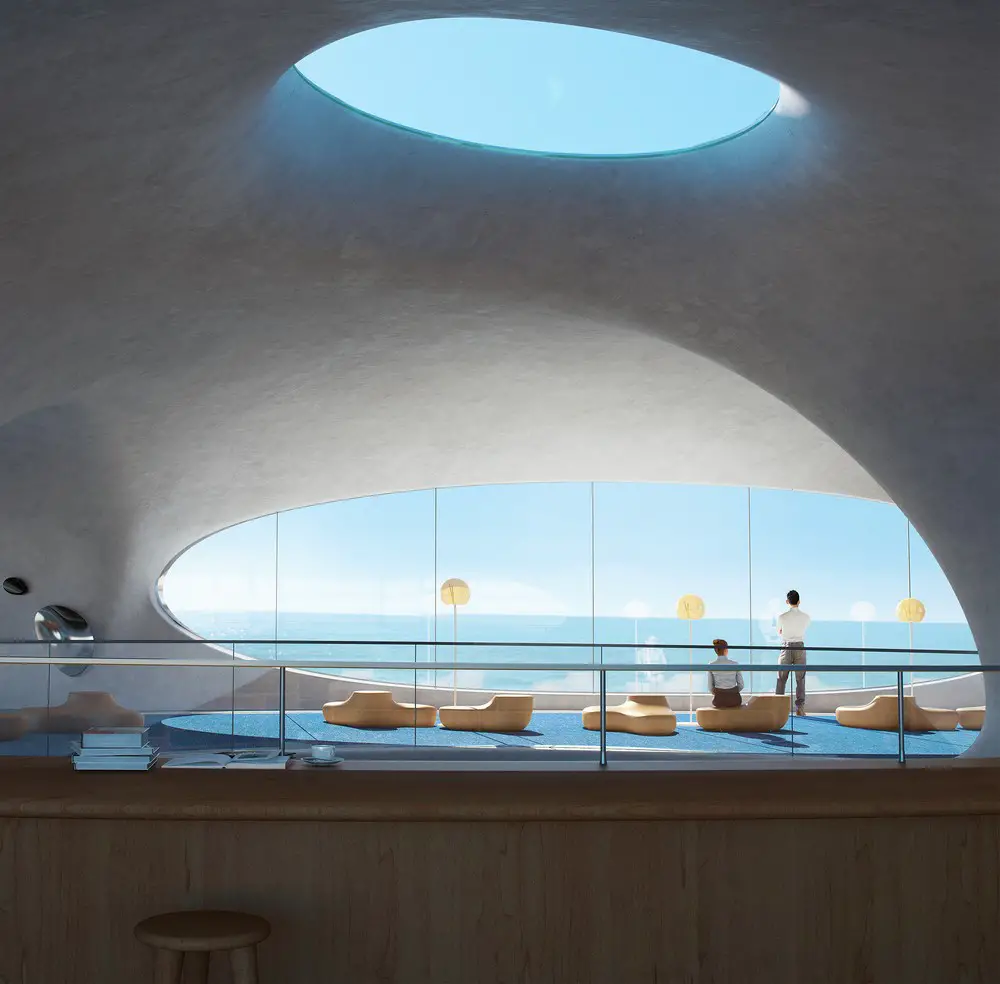

To ensure accuracy and seamlessness across the curved surfaces, the building is being cast using both a CNC and 3D printed model. All MEP has been designed to be hidden within the concrete cavity to minimize its appearance and create visual consistency. Curved sliding doors and retractable glass curtain walls not only provide views of the sea, but also enhance overall airflow and ventilation. In response to local weather conditions, the roof on the sunny side is cantilevered to achieve comfortable temperatures, realizing a sustainable and energy-saving building.

Wormhole Library Haikou Hainan Province

Wormhole Library, Hainan Province – Building Information

Design firm:MAD Architects

Haikou, Hainan Province, China
2019-2021

Site Area: 4,397 sqm
Building Area: 1,380 sqm

Wormhole Library Haikou Hainan Province Wormhole Library Haikou Hainan Province

Principle Partners in Charge: Ma Yansong, Dang Qun, Yosuke Hayano
Associate in Charge: Fu Changrui
Design Team: Qiang Siyang, Sun Feifei, Dayie Wu, Shang Li, Alan Rodríguez Carrillo, Xie Qilin

Wormhole Library Haikou Hainan Province

Client: Haikou Tourism & Culture Investment Holding Group
Executive Architect: East China Architecture Design and Research Institute
Façade Consultant: RFR Shanghai
Construction Contractor: Yihuida Shimizu Concrete

Wormhole Library Haikou Hainan Province

Renderings: SAN

MAD Architects

Wormhole Library in Haikou, Hainan Province images / information received 100820 from MAD Architects
