Quzhou Stadium in Zhejiang
5 Oct 2022
Design: MAD Architects
Location: Zhejiang Province, China
photo : CreatAR Images © MAD Architects
Photos by Arch Exist, Aogvision, Tian Fangfang and CreatAR Images ©MAD Architects
Quzhou Sports Campus, China

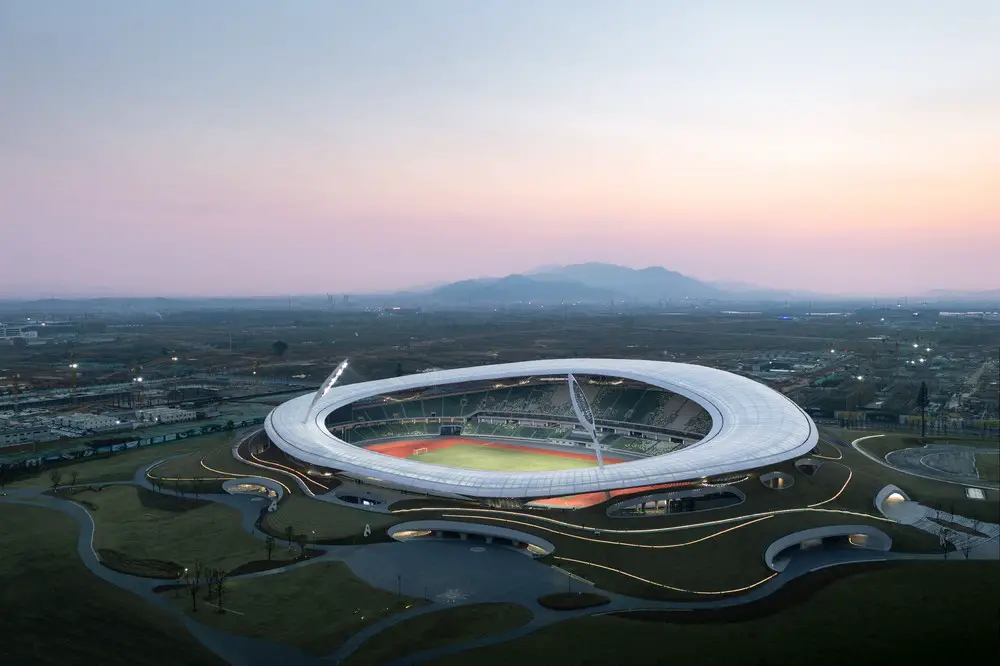

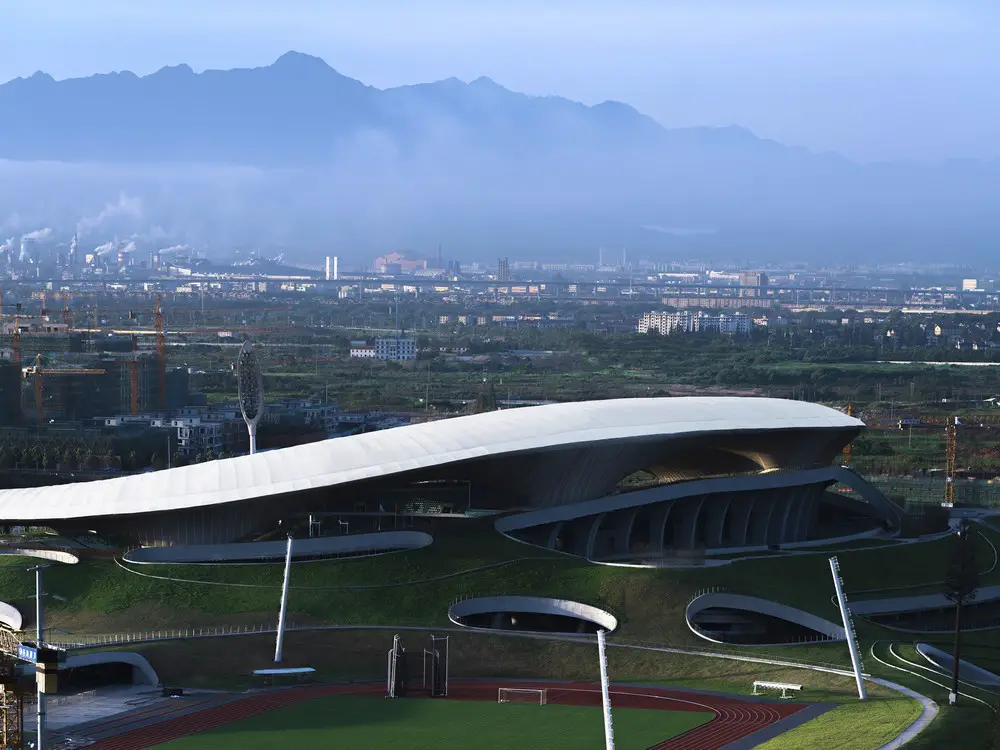

MAD Architects, led by Ma Yansong, has completed Quzhou Stadium, the centerpiece of a complex spanning almost 700,000 square meters that will be known as Quzhou Sports Park in Zhejiang Province. Quzhou is a historic city 400 kilometers southwest of Shanghai and surrounded by dense forests to the east and west, its sinuous exterior profile reflects the mountain ridge within distant view of the site while its landscape evokes those of planets imagined by visionary science fiction authors.
photo : CreatAR Images © MAD Architects
Despite its impressive 30,000-seat capacity, Quzhou Stadium was designed to appear as a continuation of the surrounding landscape rather than an object standing out against it. Unlike the typically fortress-like stadiums built in urban areas around the world, MAD Architects was determined to build a stadium that would embed much of the technology that went into its production so that it can instead be open to the surrounding public space from nearly every angle.
photo : CreatAR Images © MAD Architects
photo : CreatAR Images © MAD Architects
MAD Architects considers the stadium grounds as not only a dynamic park space adjacent to the city’s urban center amenable to athletic and leisurely recreation, but also an opportunity for a spiritual connection between people and nature. For Ma Yansong, the Quzhou stadium breaks away from the conventional sports architecture. It is conceived as a piece of land art that submerges itself into the nature and welcomes everyone to gather and share the sports spirit.
photo : Aogvision © MAD Architects

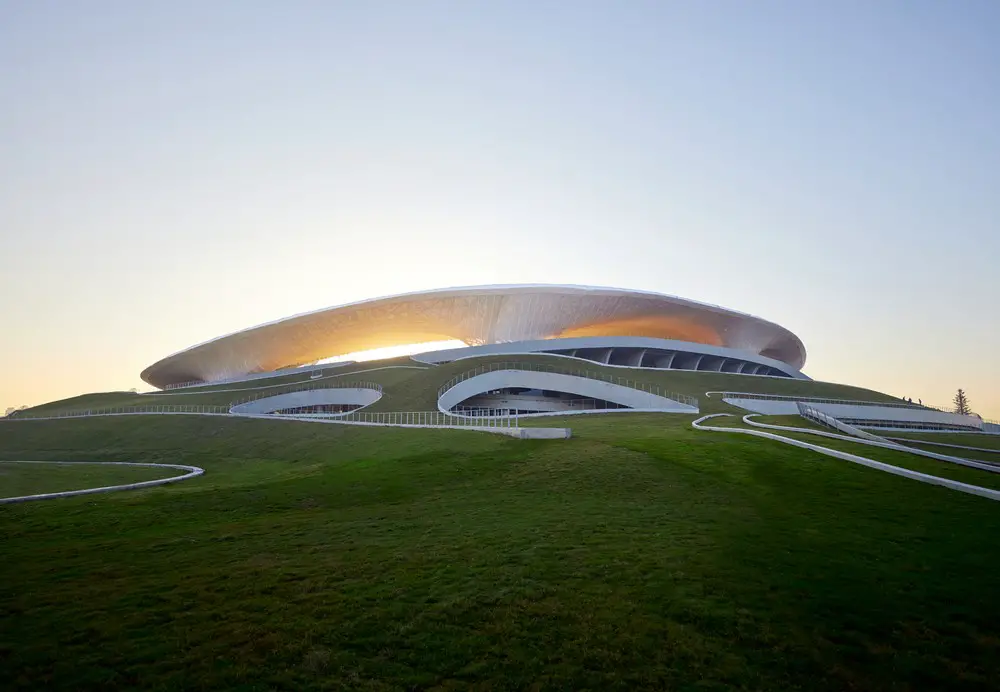

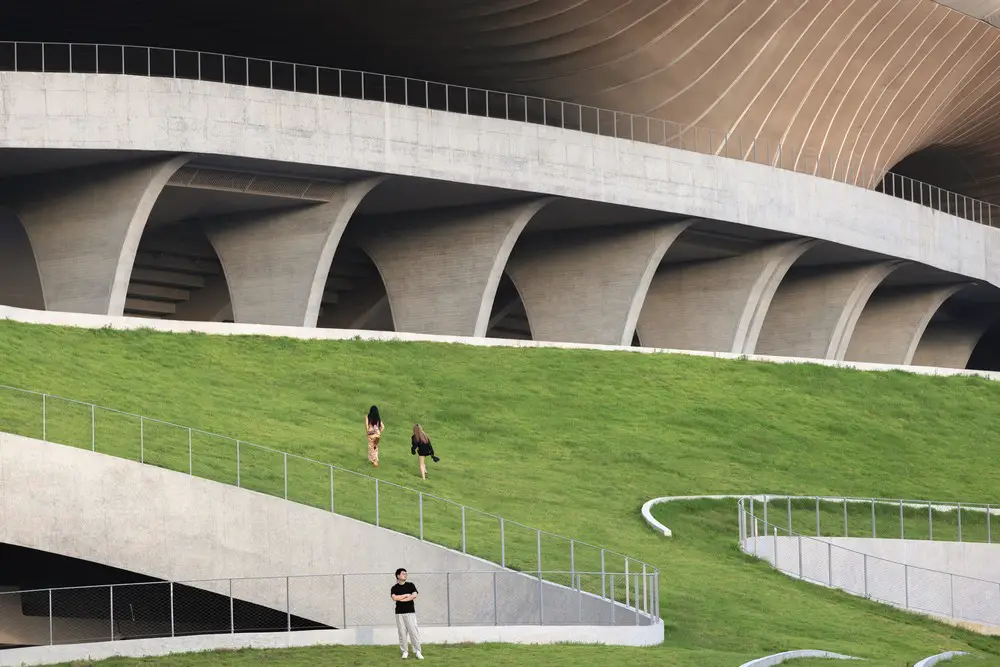

With this concept in mind, the undulations of the surrounding topography are carried through to the sloping facade, onto which visitors are encouraged to determine for themselves where the landscape ends and the building begins. Even when the stadium is closed, visitors are encouraged to climb the structure and treat it as an active piece of the landscape.
photo : Aogvision © MAD Architects

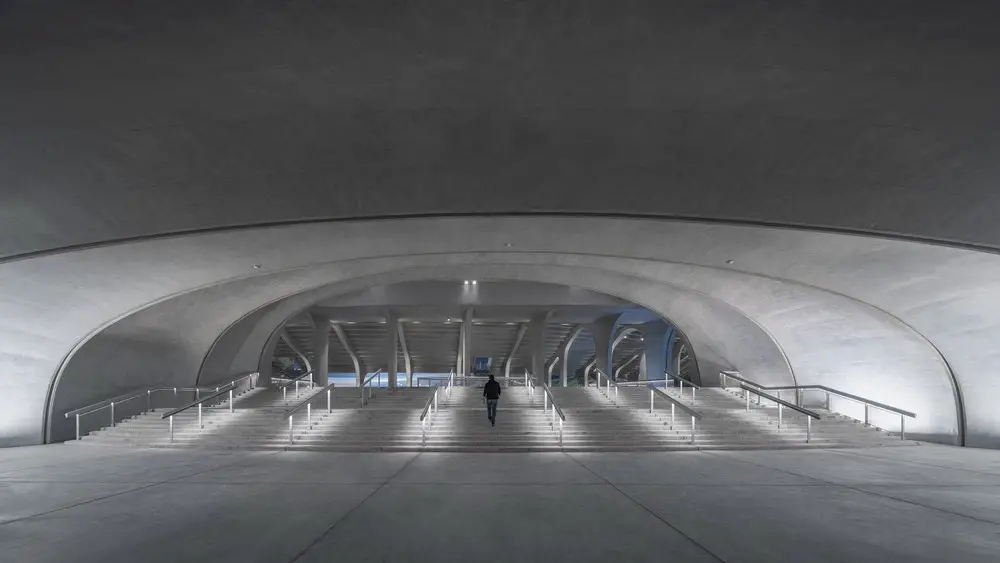

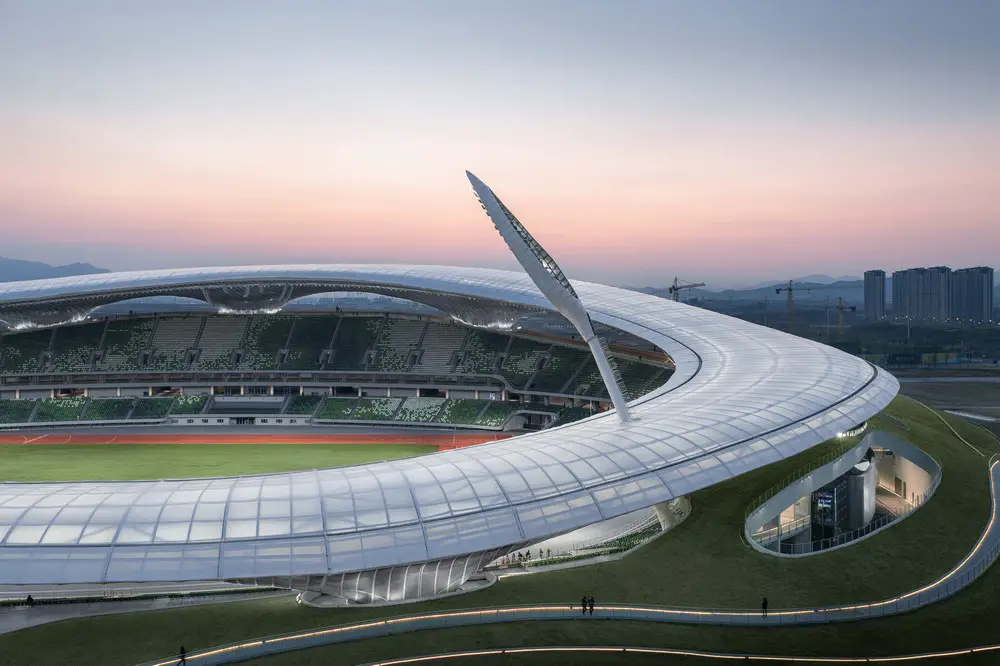

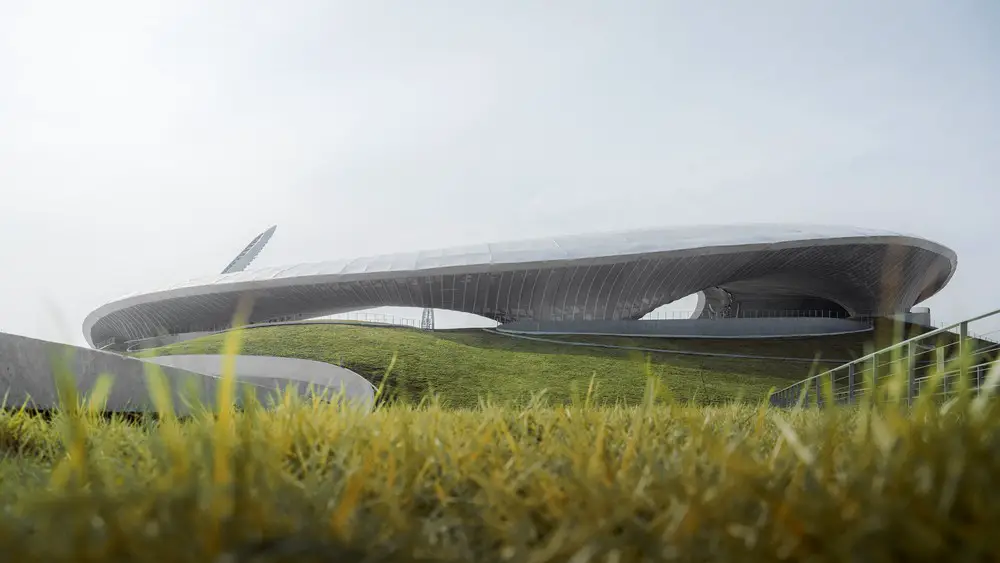

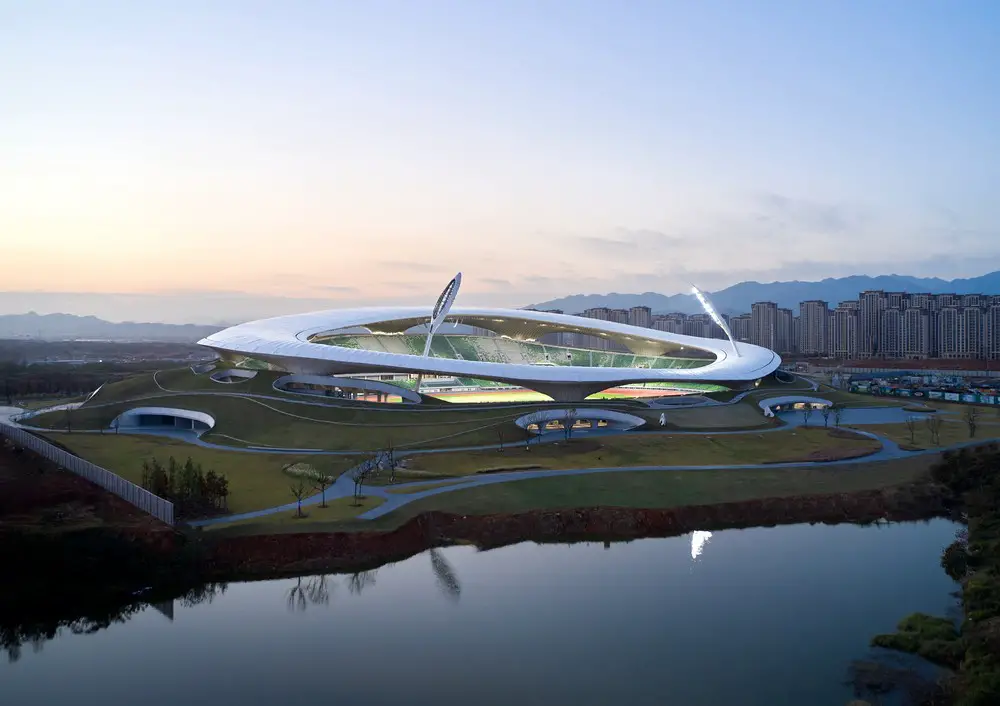

Appearing from a distance like a halo hovering gently above the landscape, the overhanging structure of Quzhou Stadium is the newest crown jewel of the city. Visitors approach the stadium by walking through the canopy from one of eight entrances, all of which feature complex double-curved surfaces that ripple overhead like ocean waves. The canopy is supported by only nine drop points with a maximum span of 95 meters between them to allow the building to “float” over the landscape while offering framed perspectives of the city from many points of view.
photo : CreatAR Images © MAD Architects

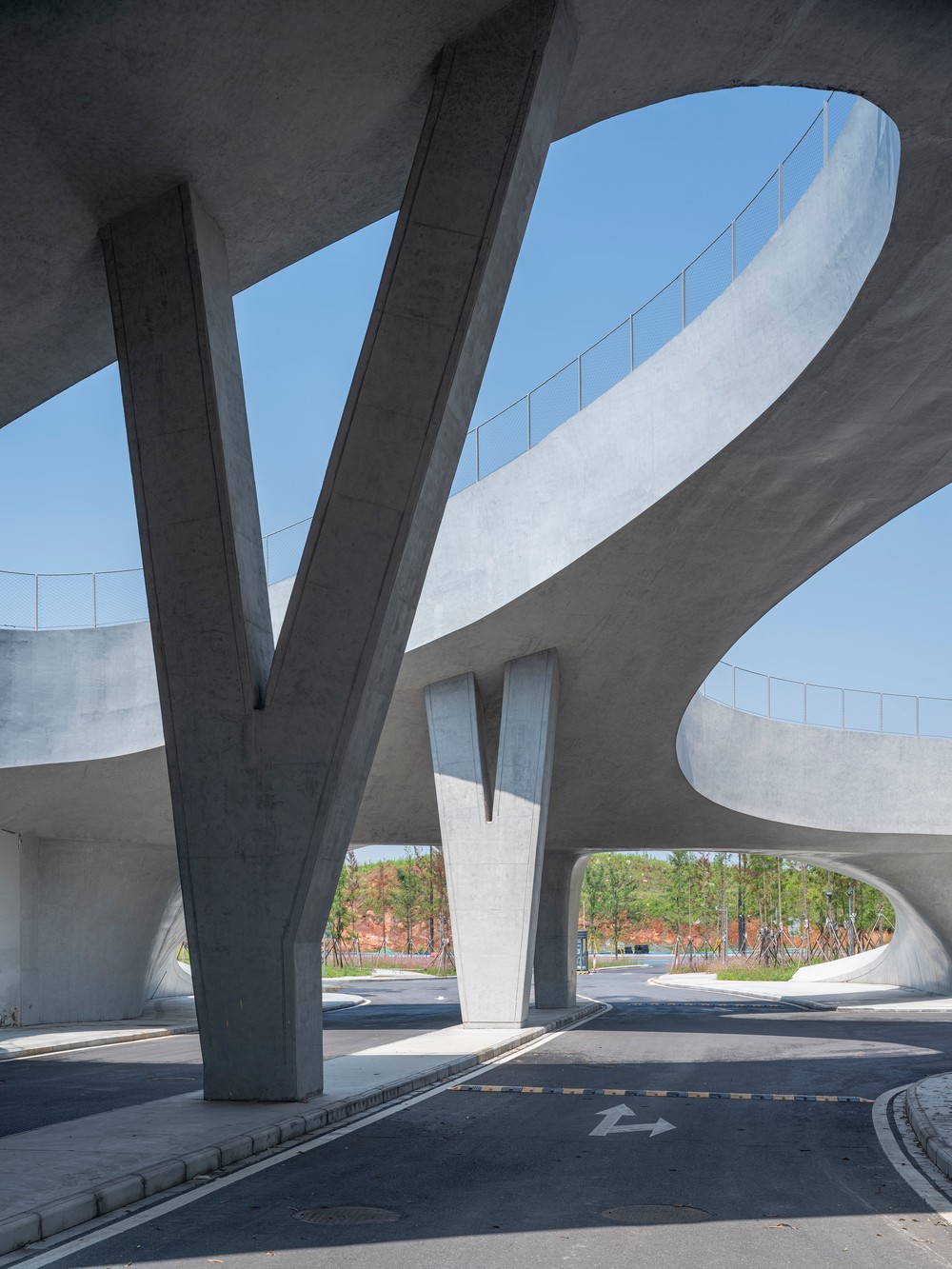

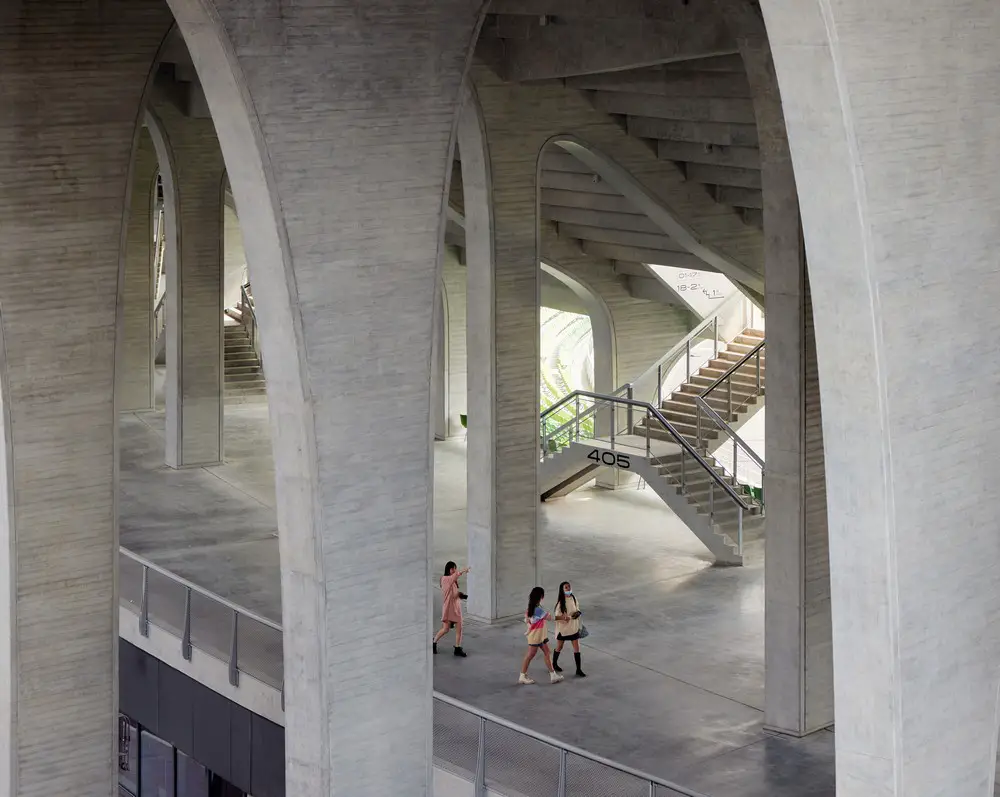

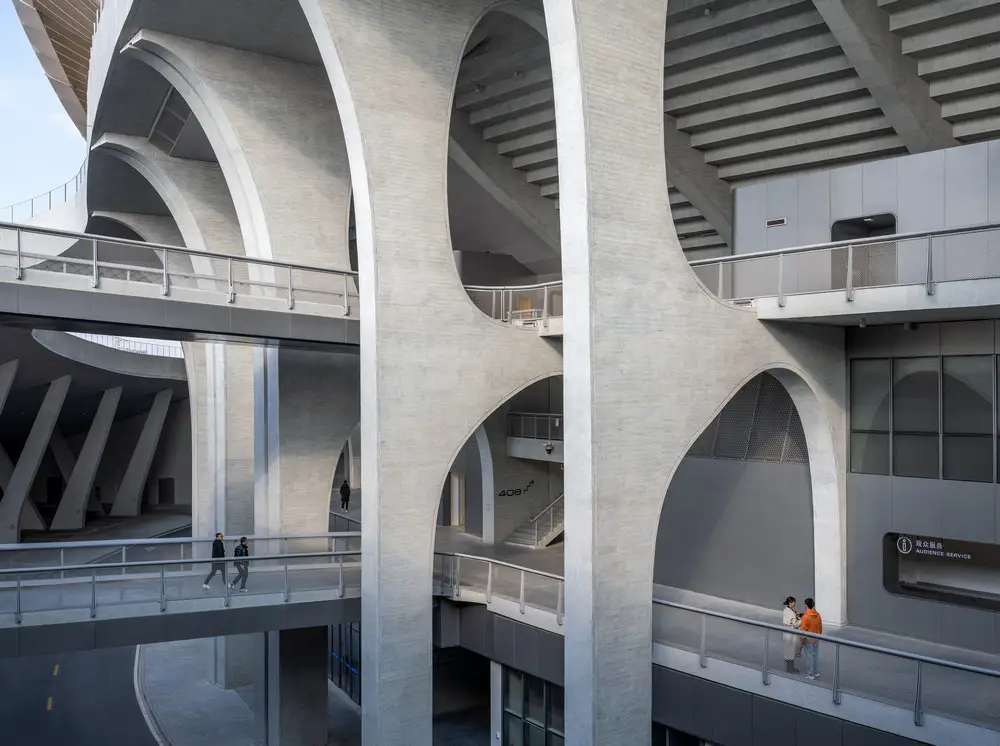

The 60 sets of concrete column walls that support the stadium are composed of exposed wood-grained fair-faced concrete sheet walls that brings the warmth feeling with texture to such material, and blur the boundary between interior and exterior. The canopy is internally composed of self-supporting steel, onto which a translucent light-emitting membrane material was wrapped that could take on the complex geometry required for the long-spanning design.
photo : Arch Exist © MAD Architects

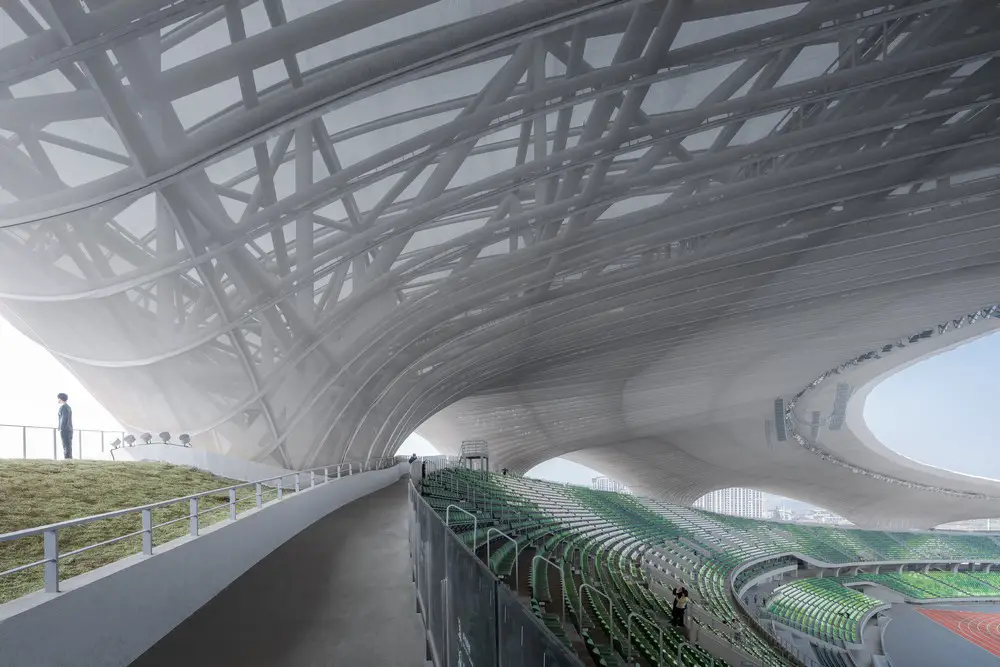

Though the canopy is composed of a monumental steel frame, it appears lightweight thanks to the light-transmitting synthetic polymer PTFE membrane wrapped around the lower half of the structure that is composed of micro-perforations to improve the acoustic performance throughout the stadium. The upper surface of the canopy is composed of a more solid PTFE membrane to prevent rain from entering the seating bowl.
photo : Arch Exist © MAD Architects

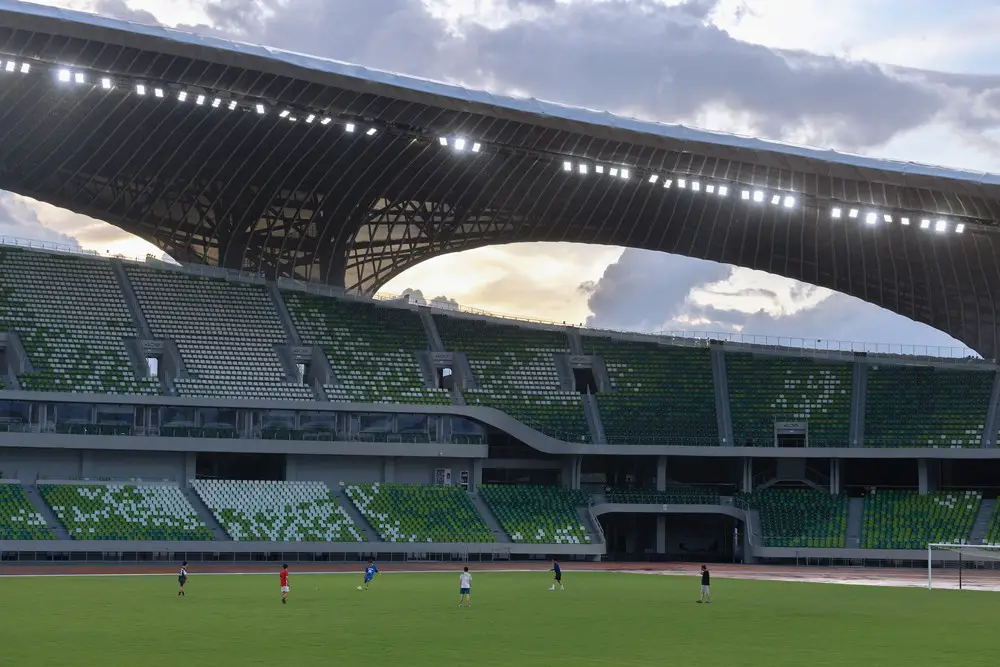

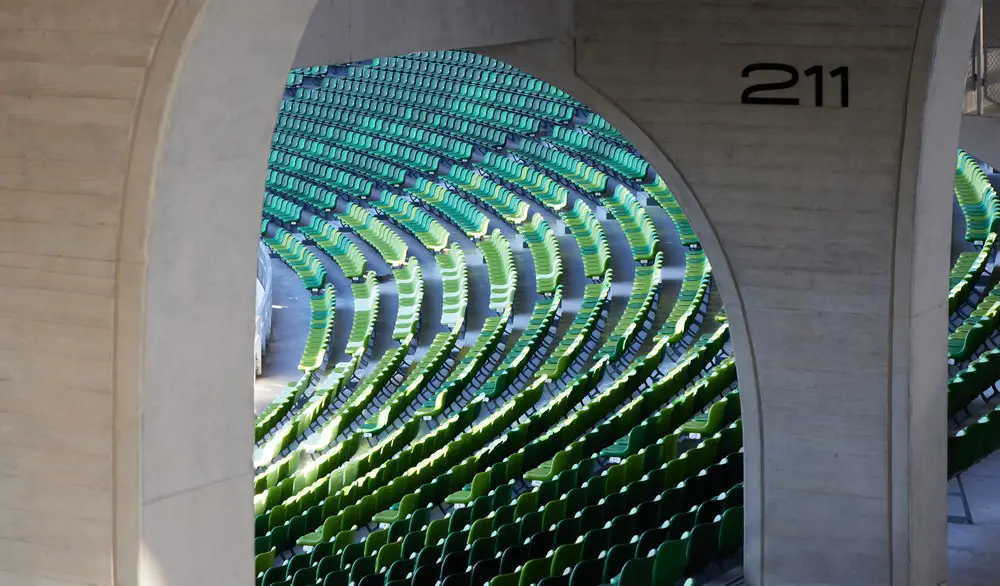

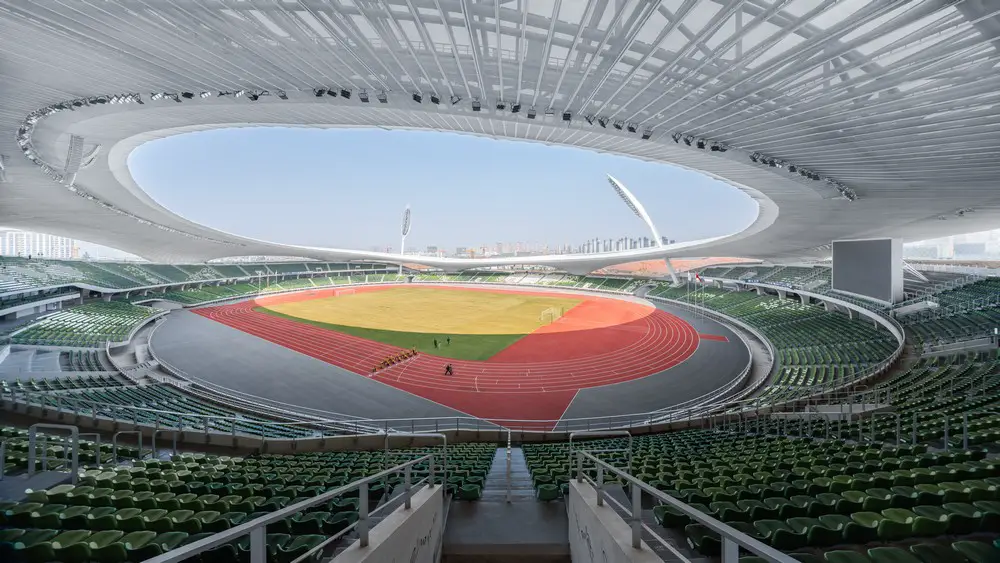

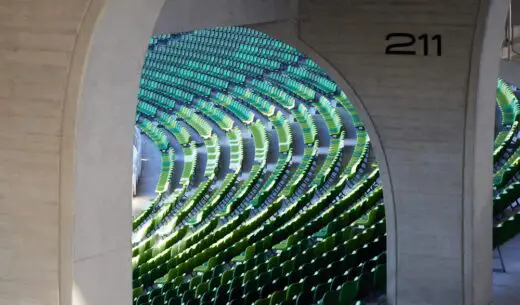

The sinuous geometry is continued within the stadium itself, where up to 30,000 spectators can occupy the crater-like interior and catch select glimpses of the city and mountain landscape beyond. The seating undulates in relation to the surrounding landscape, which it also simulates as an array of shades of green that visually contrast the white canopy structure above them.
photo : CreatAR Images © MAD Architects
In addition to providing an intimate setting for spectatorship, the stadium was designed with a wide array of sustainable design features. Aside from the audience seating and arena, the majority of Quzhou Stadium’s facilities are located beneath the ground plane.
photo : CreatAR Images © MAD Architects
Large openings in the landscape allow for natural light to penetrate the parking garage, entry levels of the stadium. Across the entire structure, the stadium is engineered to absorb, store, and infiltrate rainwater, which will have the added effect of protecting the building from excess rain damage and leads to a substantial reduction in temperature fluctuations and energy consumption.
photo : CreatAR Images © MAD Architects
As a piece of land art, MAD selected regionally-specific plants that would require little maintenance to promote water conservation, while the outdoor signage for the stadium is composed of stone and metal and embedded within the ground plane to blend into the landscape.
photo : Aogvision © MAD Architects
Moreover, all of the concrete materials found throughout the site were locally produced, thus minimizing the carbon footprint associated with the transportation of materials throughout the construction process.
photo : Tian Fangfang © MAD Architects

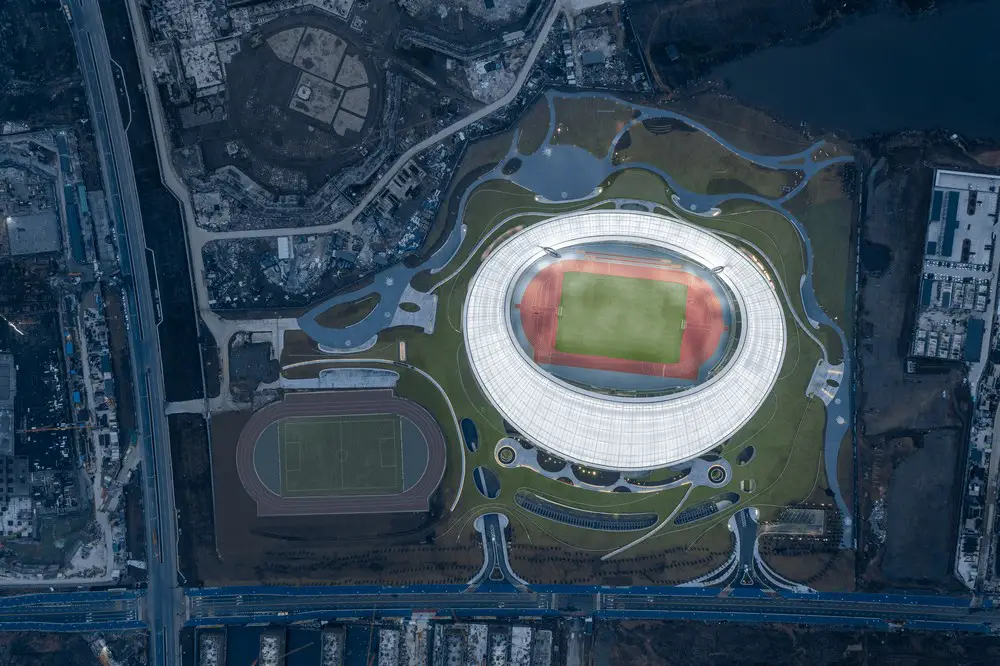

Quzhou Stadium represents the first of two construction stages for the Quzhou Sports Park complex, a major project first announced to the public in 2018 that will include a 10,000 seat gymnasium, a 2,000 seat natatorium, a science & technology museum, hotel accommodations, youth center and retail programs. The design of the buildings placed throughout the park break away from the traditional way of highlighting the structural strength of athletic facilities to instead convey a subtle inner beauty. When complete, Quzhou Sports Park will become the largest earth-sheltered complex in the world, and will provide a much-needed contrast to the dense urban fabric of the region.
photo : Aogvision © MAD Architects
Quzhou Stadium in Zhejiang, China – Building Information
Design: MAD Architects – http://www.i-mad.com/
Quzhou Stadium, China
2018 – 2022
Typology: 30,000 seats Stadium, Sports and recreational facilities
Stadium Site Area: 33,731 square meters
Stadium Building Area: 58,565 square meters
Quzhou Sports Park Masterplan Site Area: 610,556 square meters (Phase One: 327,370 square meters; Phase Two: 283,186 square meters)
Quzhou Sports Park Building Area: 390,074 square meters (Phase One: 269,474 square meters; Phase Two: 120,600 square meters)
Principal Partners in Charge: MA Yansong, DANG Qun, Yosuke HAYANO
Associate Partners in Charge: LIU Huiying, Kin LI, FU Changrui
Design Team: XU Chen, LI Cunhao, LI Guangchong, LI Gang, Iting LIEN, Kyung Eun Na, MA Yin, Thoufeeq AHMED Alessandro FISALLI, LI Hui, Tian JIN, ZHANG Kai, MA Yue, Melanie Weitz, ZHOU Haimeng, XIAO Yuhan, Yuki ISHIGAMI, Luis TORRES, SU Le, KANG Wenzhao, Pittayapa SURIYAPEE, YU Lin, Neeraj MAHAJAN, ZHANG Bo, Connor HYMES, ZHANG Yufei, WANG Qi, SONG Minzhe, CAO Xi, LIU Hailun, ZHANG Xiaomei, ZHENG Kangcheng
photo : CreatAR Images © MAD Architects
Client: Quzhou West District Development Committee, Quzhou Baoye Sports Construction and Operation Co., Ltd
Architect of Record: CCDI Group
Landscape Architect: PWP Landscape Architecture, EADG, Yong-High Landscape Design Consulting Co.Ltd
Structural Engineer: Schlaich Bergermann Partner
MEP Engineer: SC Consultants Limited
Façade Consultant: RFR Asia
Lighting Consultant: Ning’s Field Lighting Design
Signage Design: Kenya Hara (Nippon Design Center, Inc.)
photo : Arch Exist © MAD Architects
Photography: Arch Exist, Aogvision, Tian Fangfang and CreatAR Images ©MAD Architects
Quzhou Stadium, Zhejiang Province, China images / information received 051022
