Lyon 1633 Apartment Building

Design: SML ARQUITECTOS

Location: Cerro San Luis, Santiago de Chile, Chile

Lyon 1633 Apartment Building Santiago

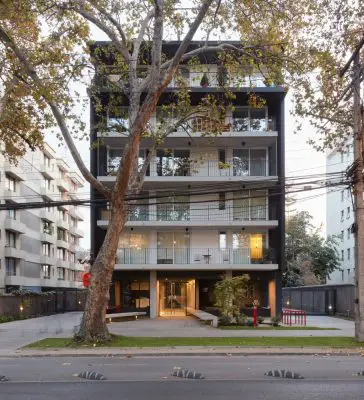

Lyon 1633 Apartment Building located on 1200 sqm site, which has a rather narrow front to the public space, but it is long enough to allow the design of a residential project.

Lyon 1633 Apartment Building Santiago

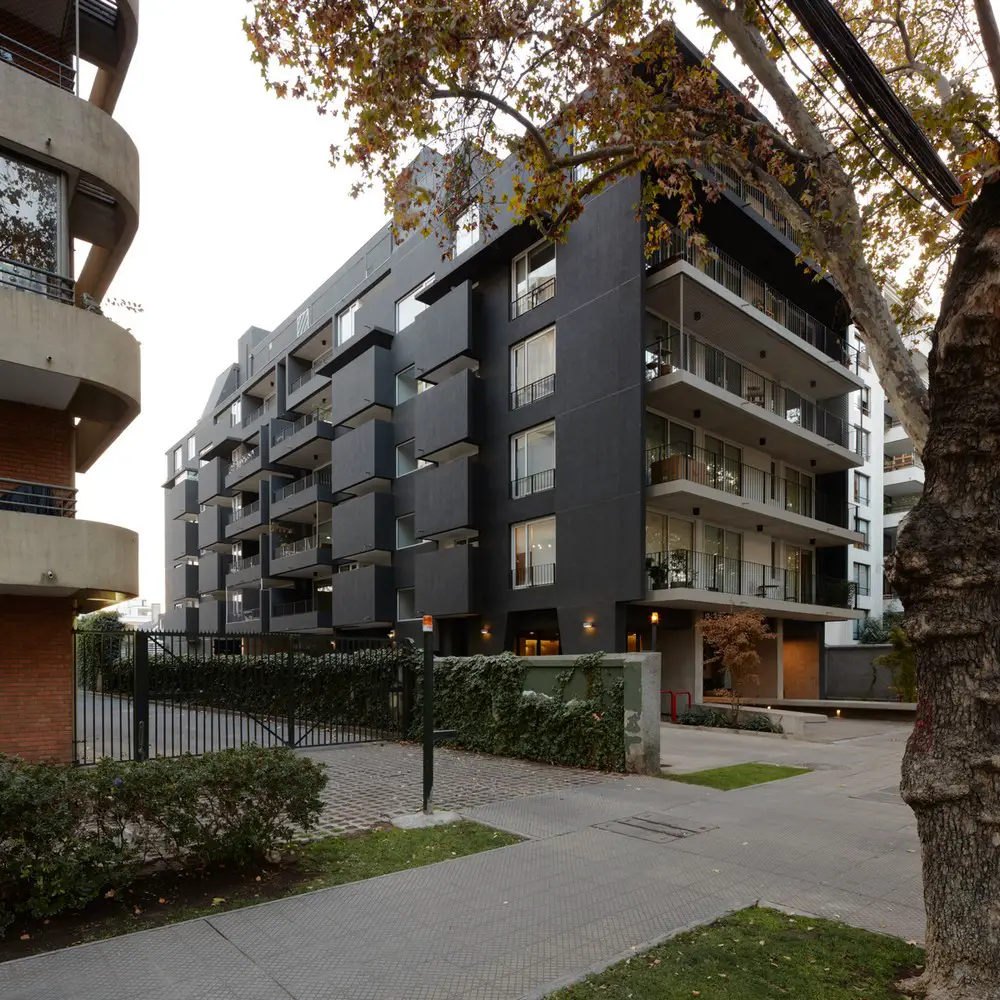

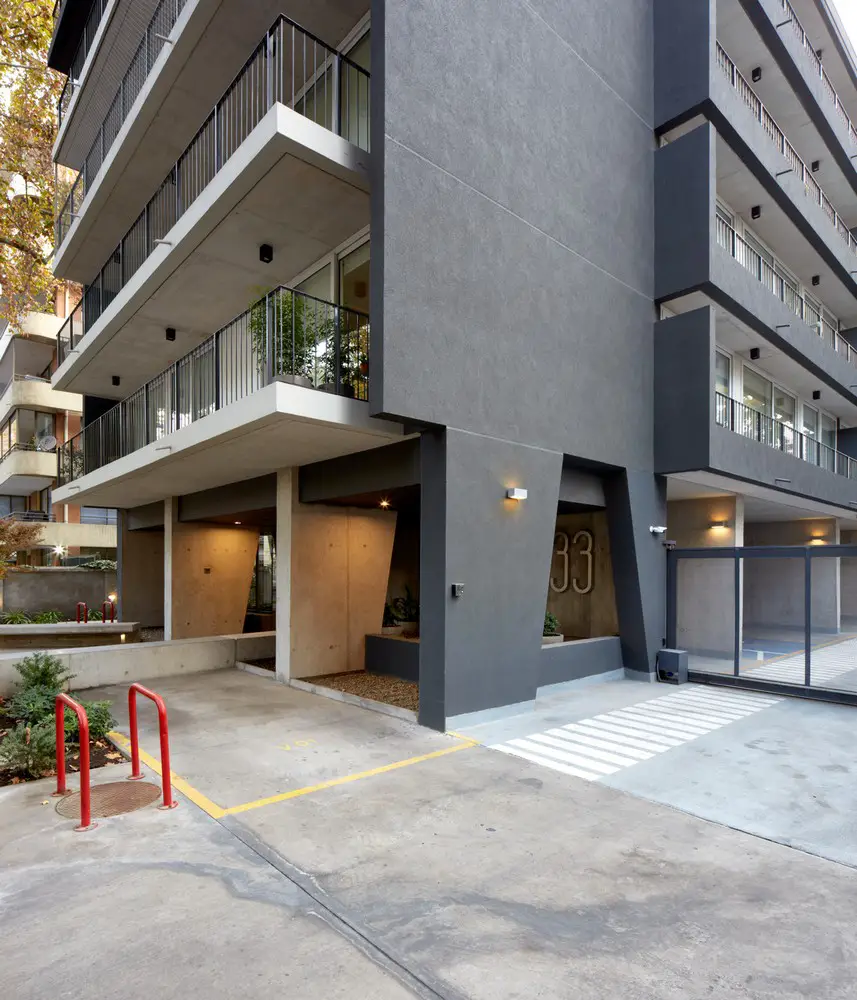

It is conceived as a long block of 32 apartments distributed in 6 stories, leaving the first one open with small enclosures for accesses and services and a few parking spots.

Lyon 1633 Apartment Building Santiago

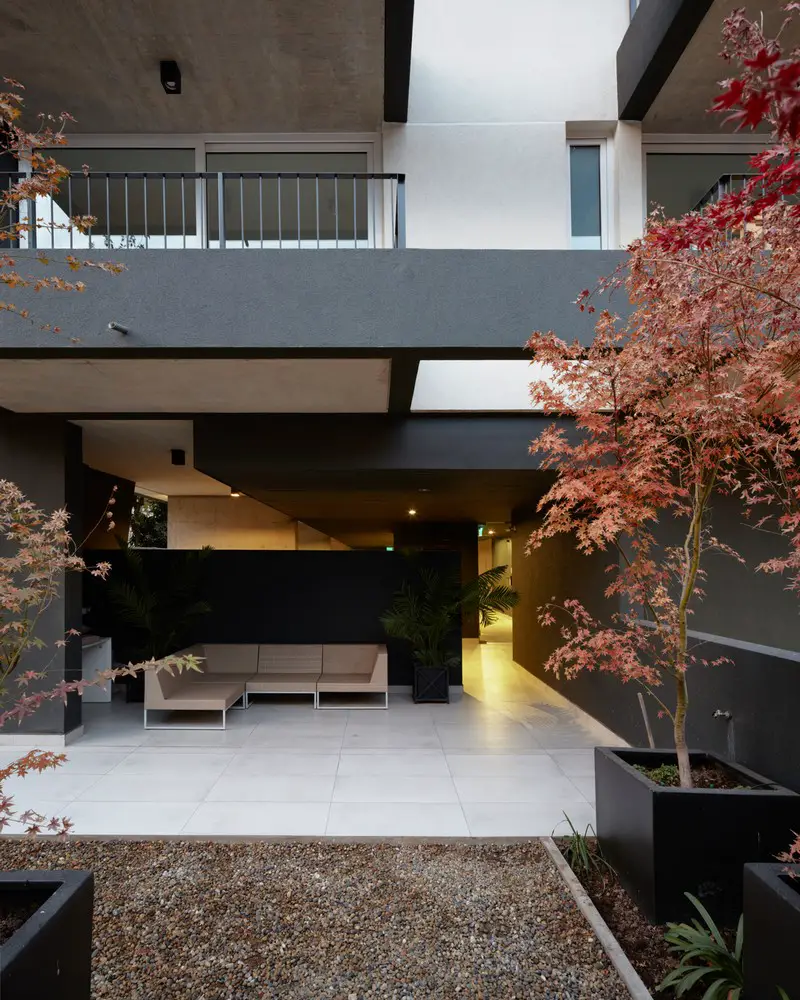

This level is presented as a continuity of the pedestrian public space immediately adjacent to the site, which is a typical attribute of the residential architecture in this area which proliferated in the 60’s and 70´s.

Lyon 1633 Apartment Building Santiago

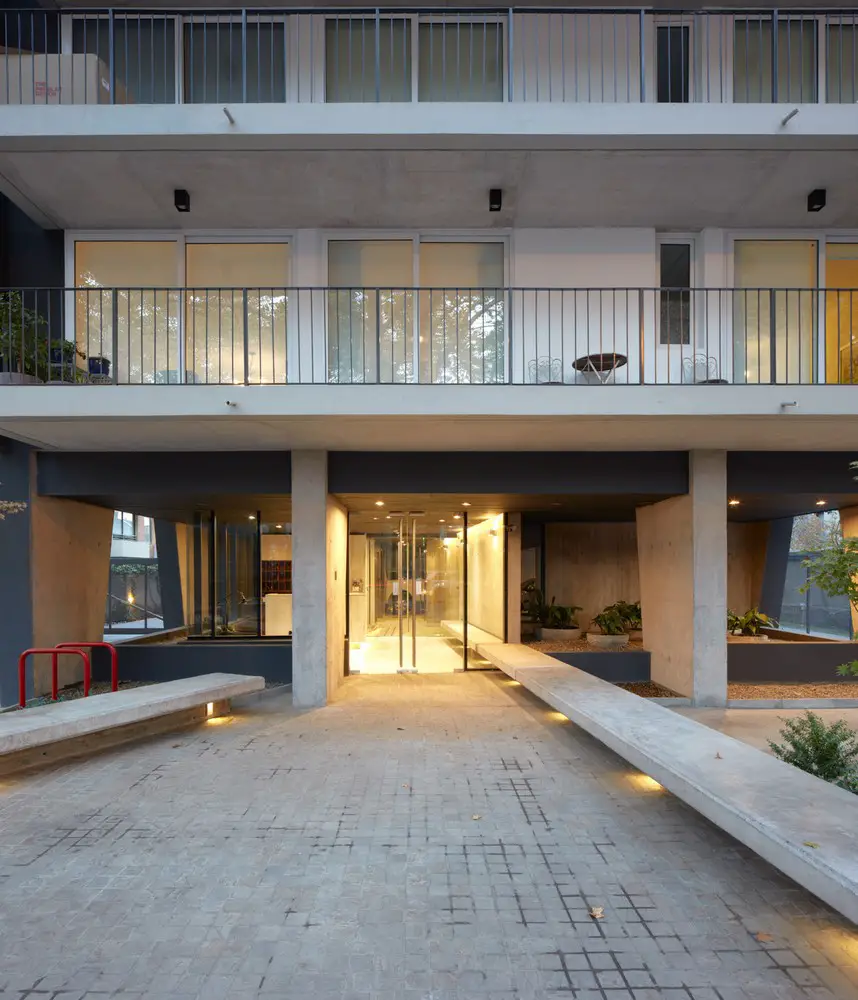

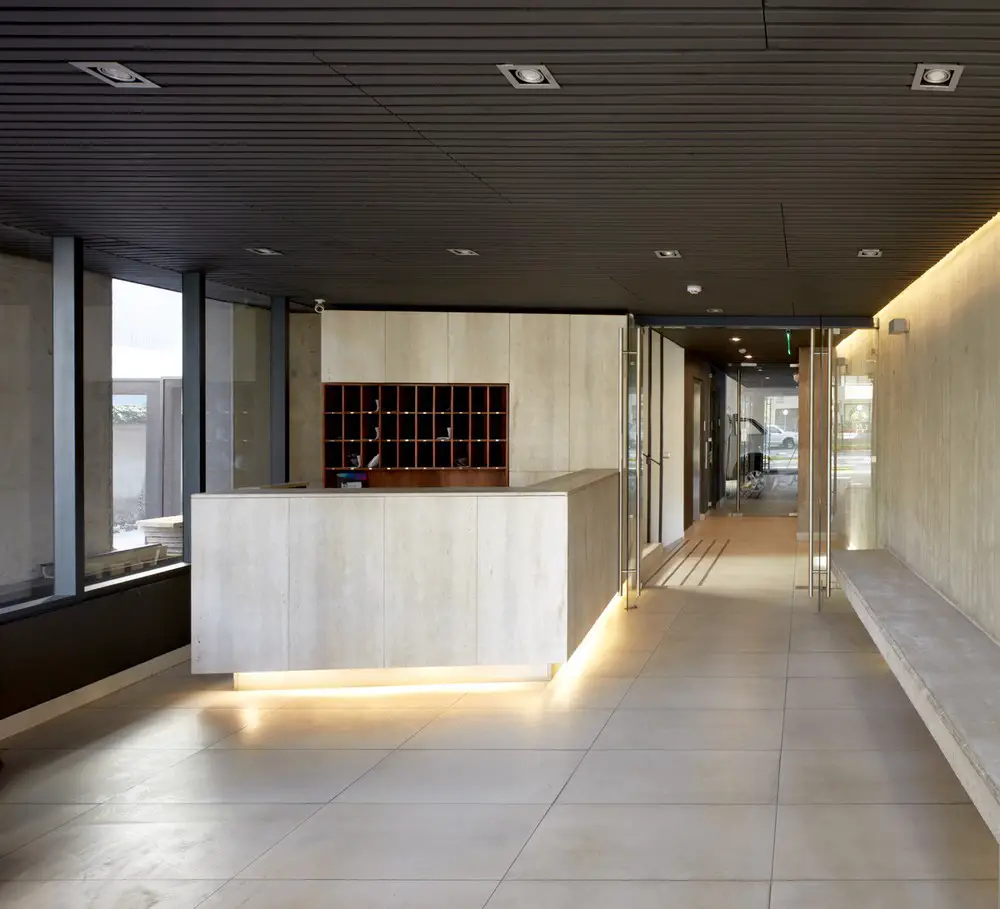

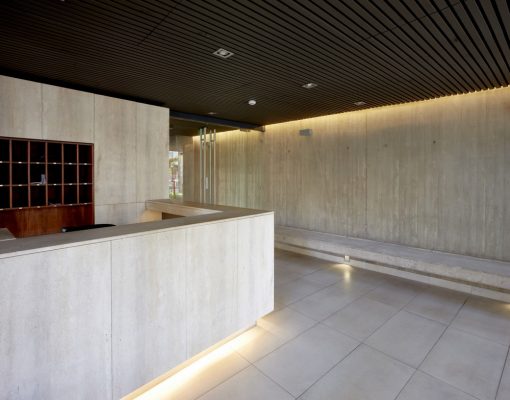

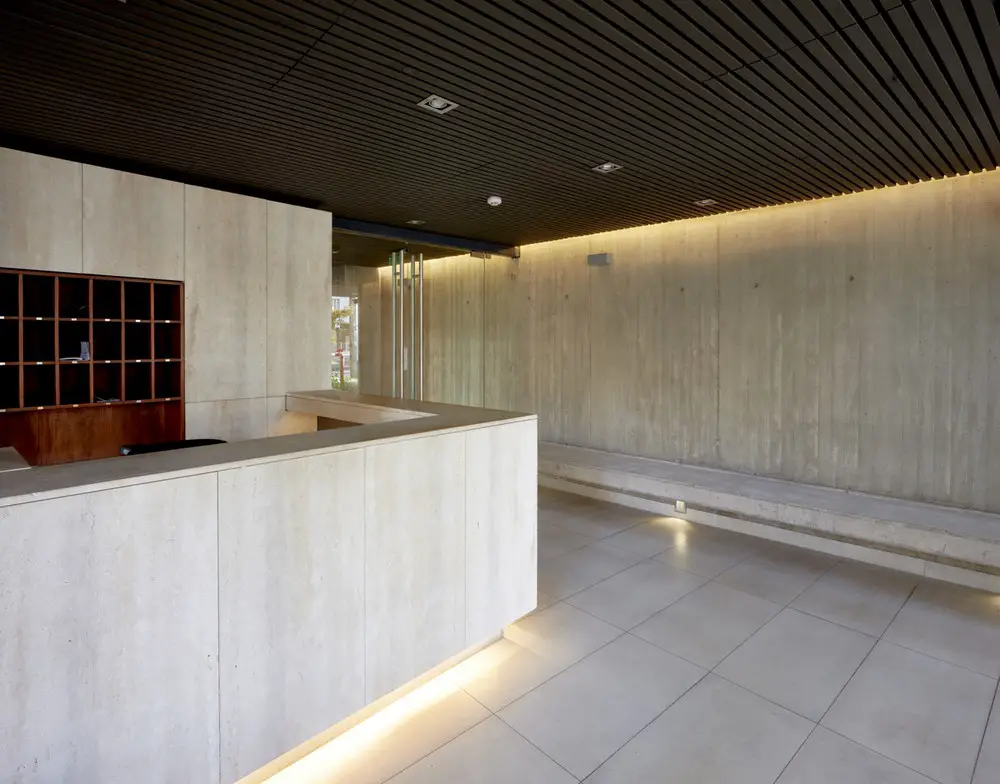

That is why we deliberately chose not to force divisions between the public and private space, but on the contrary, this limit becomes diffuse and the lobby of the building is practically a projection of the outer space, something that can be illustrated by the concrete bench that starts on the sidewalk and goes into the lobby, inviting people to the interior in a fluent way.

Lyon 1633 Apartment Building Santiago

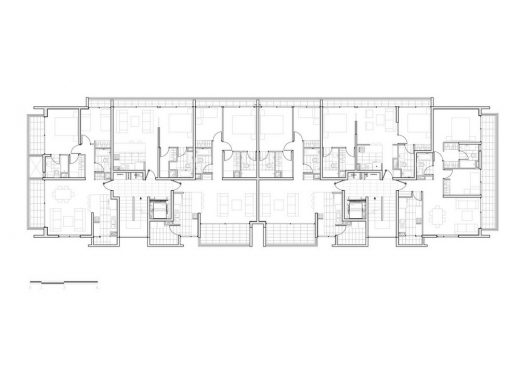

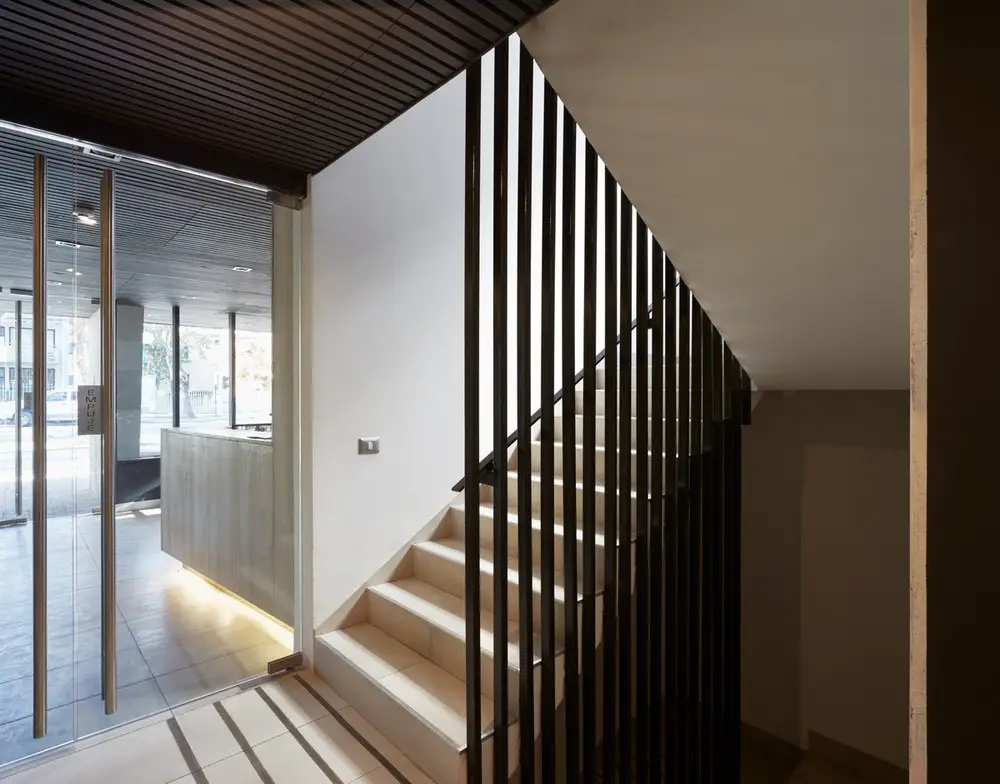

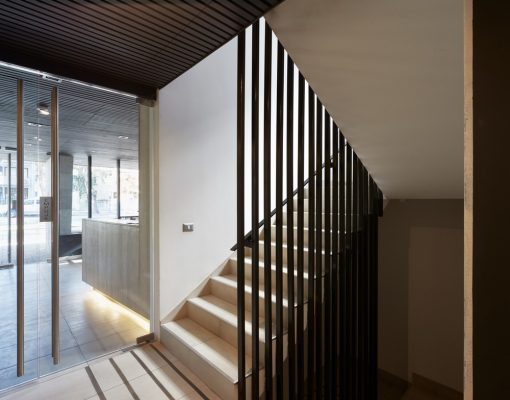

The upper stories lay over few structural columns and walls and the access to them are projected through two glassed bodies that contains the stairways and elevators. The decision of dividing the vertical circulations into two comes from a commercial and spatial requirement.

Lyon 1633 Apartment Building Santiago

The first one consisted on reducing the excess of common space by avoiding long corridors that, due to the length of the project, would have been excessively long. The second requirement was to allow a rather good ventilation an illumination in the apartments, so if we projected a central corridor, half of the apartments would have been facing south, an orientation that in this latitude is not convenient.

Lyon 1633 Apartment Building Santiago

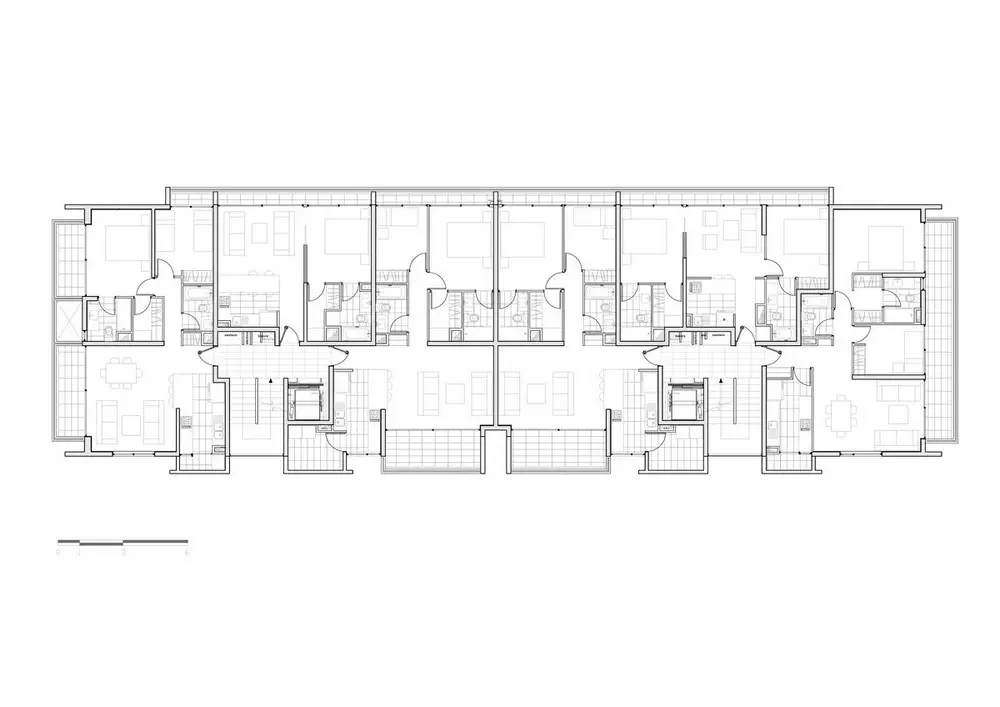

Thus, the decision of atomizing both circulations allow us to project double orientation units, leaving bedrooms at the northern façade and living rooms mainly orientated to the south, allowing good thermal behavior and crossed ventilation in every unit.

Lyon 1633 Apartment Building Santiago

Lyon 1633 Apartment Building, Santiago – Building Information

Architects: SML ARQUITECTOS

Project size: 2931 sqm
Site size: 1200 sqm
Completion date: 2018
Building levels: 6

Lyon 1633 Apartment Building Santiago

Photography: Felipe Fontecilla

Lyon 1633 Apartment Building in Santiago images / information received 011019

Location: Santiago, Chile

Chile Architecture

Contemporary Chile Architectural Projects

Chile Architecture Design – chronological list

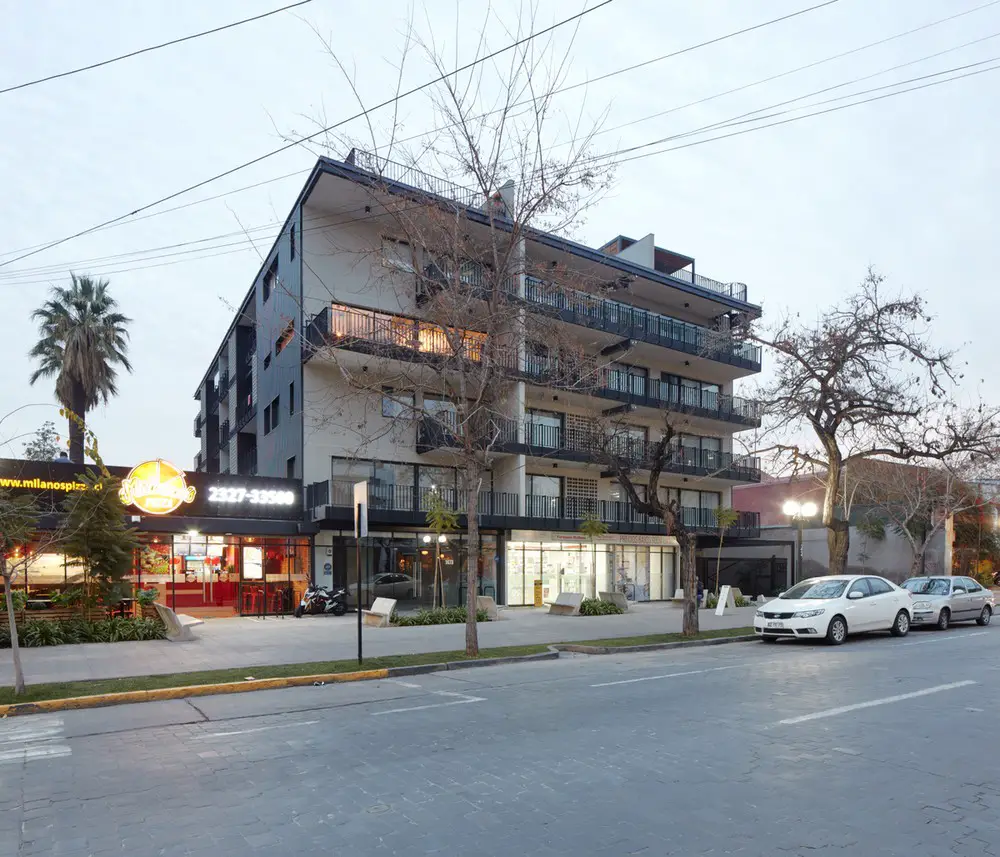

MM Apartment Building, Santiago de Chile
