Winnipeg Skating Shelters
Dates built: 2010-11
Design: Patkau Architects
Location: Winnipeg, Manitoba, Canada
Winnipeg Skating Shelter Design
Winnipeg is a city of 600,000 residents located on the Canadian prairie. It is the coldest city of its size outside of Siberia. Winter can last six months. So learning to celebrate winter – learning to take advantage of the opportunities that winter provides – makes sense.
The Red and the Assiniboine Rivers meet in the centre of the city, and in winter, when plowed of snow, skating trails many miles long are created. But with temperatures that drop to minus 30 and 40 for long periods of time, and winds that can make minus 30 feel like minus 50, creating opportunities to find shelter from the wind greatly enhances the ability to use the river skating trails. Therefore, a program has developed to sponsor the design and construction of temporary shelters located along the skating trails.

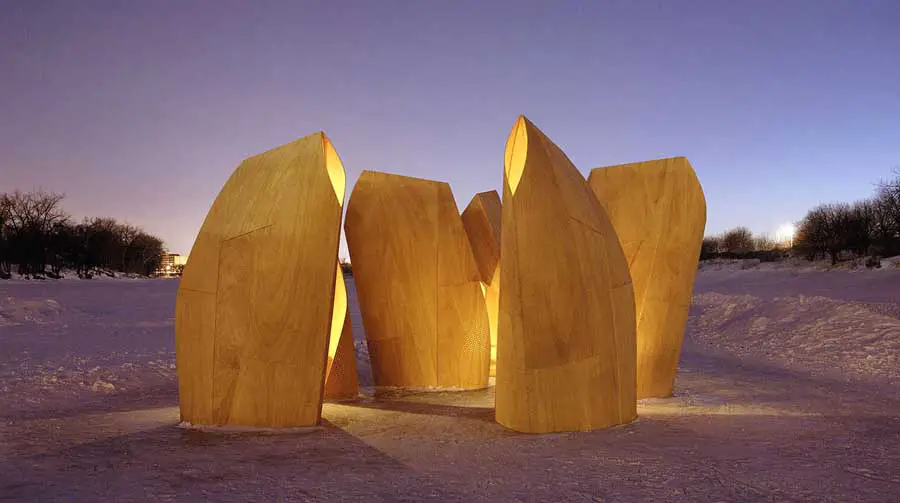

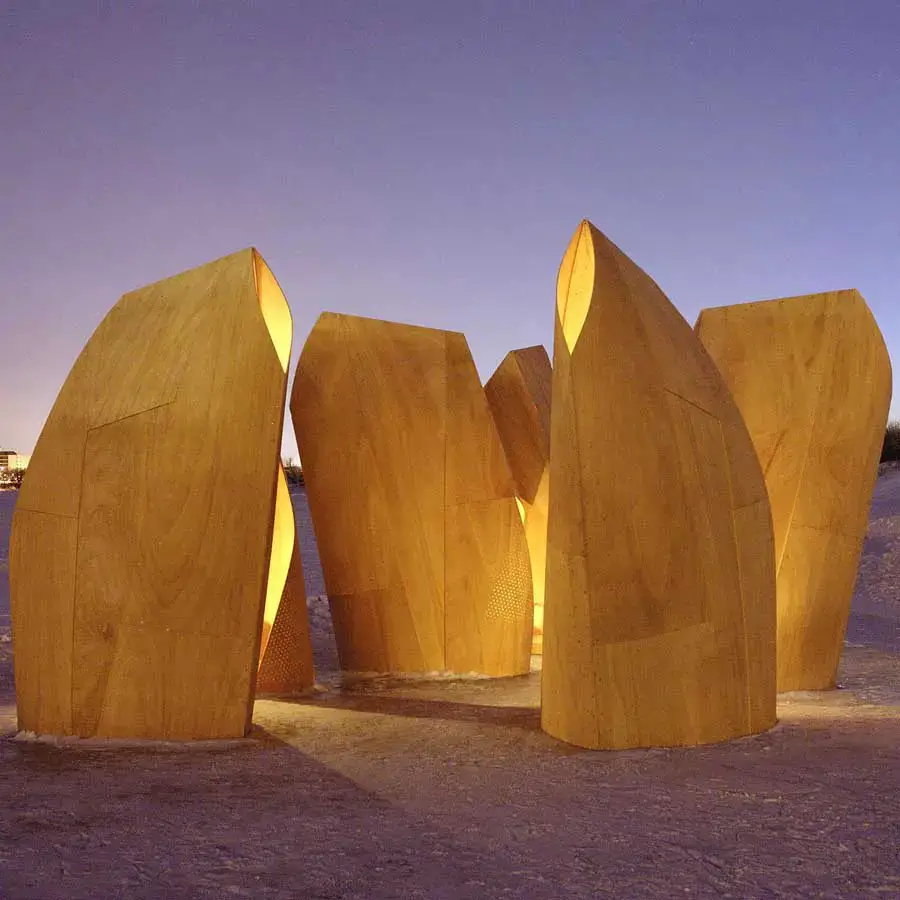

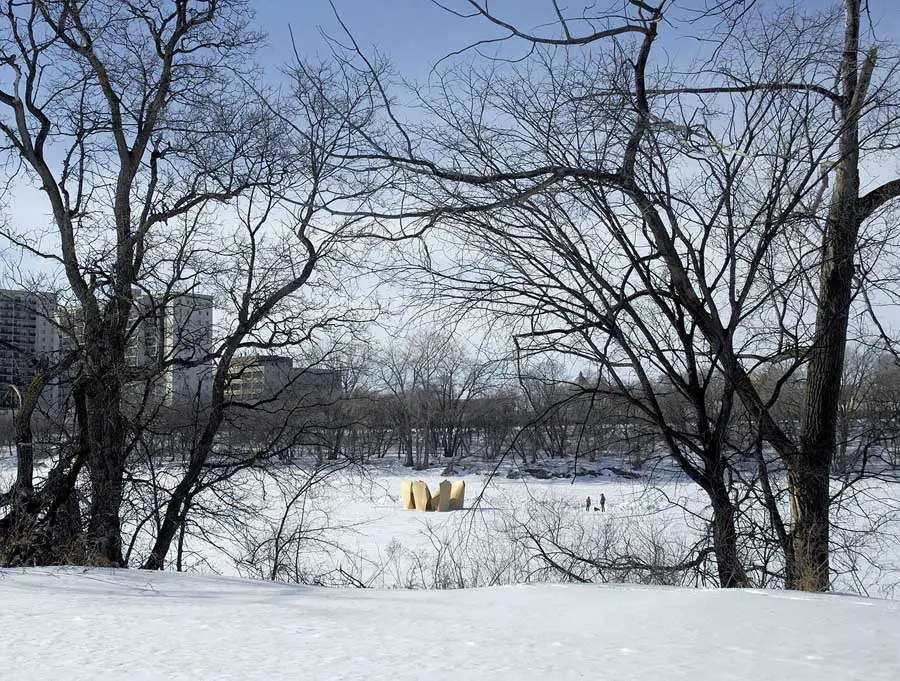

The proposal consists of a cluster of intimate shelters, each accommodating only a few people at a time. They are grouped in a small ‘village’ (or ‘herd’, or ‘school’, or ’flock’, or ‘flotilla’) to form a collective . . . of ‘something’ . . . irreducible to a single interpretation. They stand with their backs to the wind like buffalo, seeming to have life and purpose as they huddle together shielding each other from the elements.

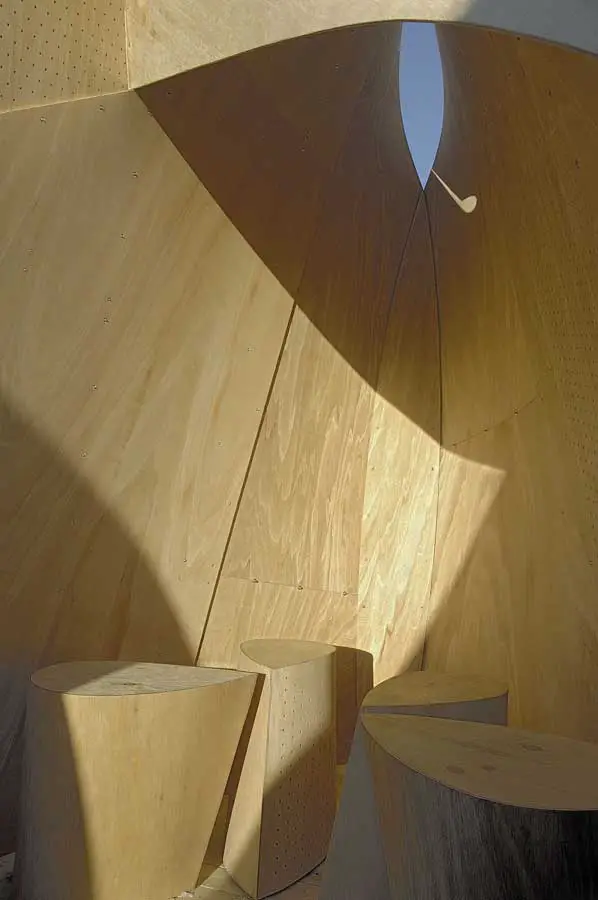

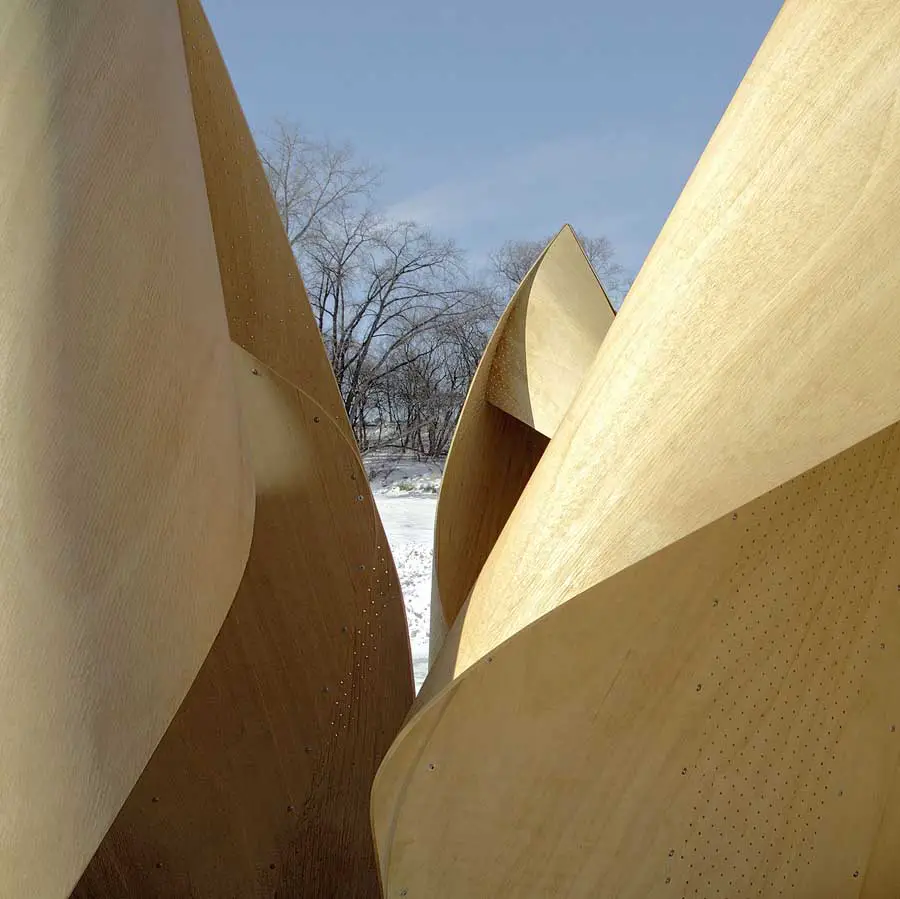

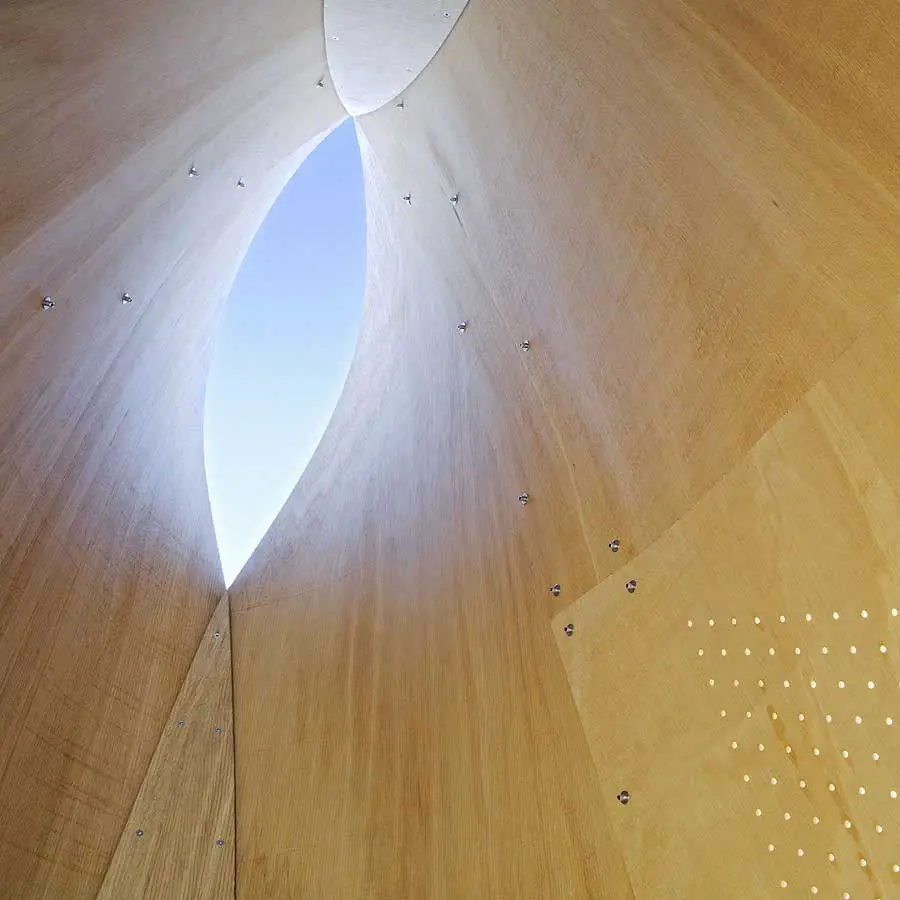

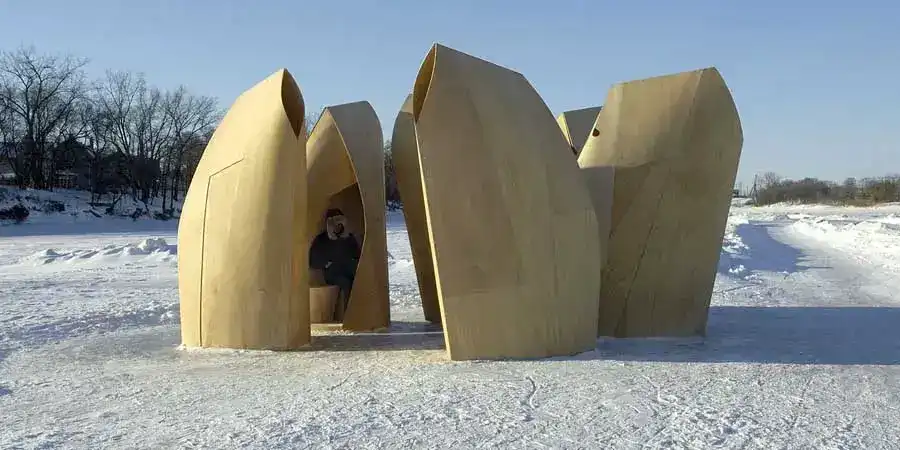

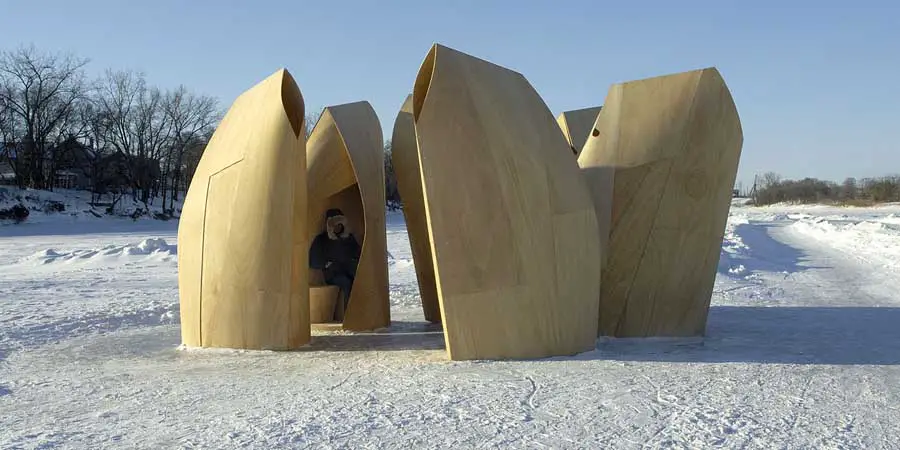

Each shelter is formed of thin, flexible plywood which is given both structure and spatial character through bending/deformation. Skins, made of 2 layers of 3/16th inch thick flexible plywood, are cut in patterns and attached to a timber armature which consists of a triangular base, and wedge shaped spine and ridge members. (The ridge is a line to negate the gravity loads of snow.) Experiments in our workshop with a full-scale prototype mapped the stresses of bending. Stress points were relieved by a series of cuts and openings. The form of the shelter is a resultant of this process of stressing/deforming and then releasing stress.

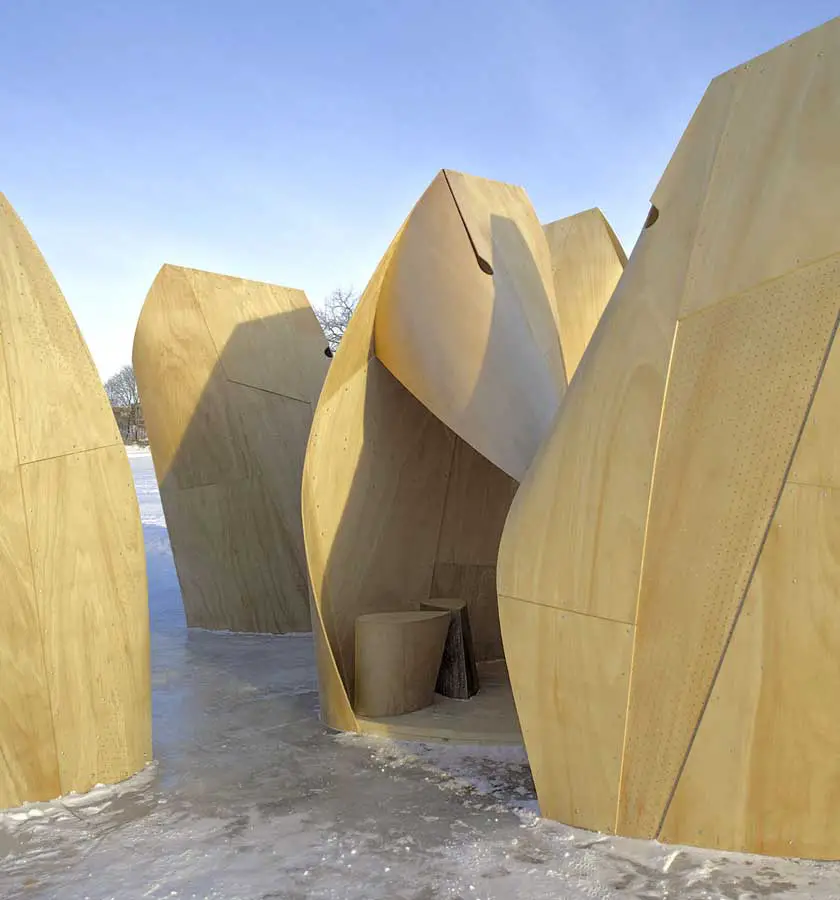

Grouping the shelters into a cluster begins with the relationship of two, and their juxtaposition to qualify the size and accessibility of their entrance openings. This apparently casual pairing is actually achieved by a precise 120 degree rotation. Three pairs (one with mirror reflection) are then placed in relation to one another through a secondary rotation of 90 degrees to form the cluster and define an intermediate ‘interior’ space within the larger grouping. Together, the shelters create dynamic solar/wind relationships that shift according to specific orientation, time of day and environmental circumstance.
These are delicate and ‘alive’ structures. They move gently in the wind, creaking and swaying to and fro at various frequencies, floating precariously on the surface of the frozen river, shaking off any snow that might adhere to their surfaces. Their fragile and tenuous nature makes those sheltered by them supremely aware of the inevitability, ferocity and beauty of winter on the Canadian prairies.
Winnipeg Skating Shelters – Building Information
Location: Winnipeg, Manitoba
Client: The Forks Renewal Corporation
Architectural team: Tyler Brown, Matthew Bunza, James Eidse, John Patkau, Patricia Patkau, Thomas Schroeder, Luke Stern, Peter Suter
Structural Advisor: AnnaLisa Meyboom
Photographer: James Dow
Winnipeg Skating Shelters images / information from Patkau Architects
Location: The Forks, Winnipeg, Manitoba, Canada
