Terrassenhaus Berlin / Lobe Block Building

Terracehouse Berlin Building, Lobe Block Mixed use Wedding, German Architecture Images

Terrassenhaus Berlin / Lobe Block

Multi-use atelier and gallery building in Germany design by Brandlhuber+ Emde, Burlon, Muck Petzet Architekten

14 Feb 2019

Terrassenhaus Berlin / Lobe Block, Wedding

Terracehouse Berlin, Wedding, Berlin, Germany

Design: Brandlhuber+ Emde, Burlon, Muck Petzet Architekten, Berlin, Munich

Terracehouse Berlin building
photographs © Erica Overmeer, David von Becker

Terrassenhaus Berlin / Lobe Block

The Terrassenhaus Berlin, located in Berlin-Wedding, is a multi-use atelier and gallery building that combines different forms of usage.

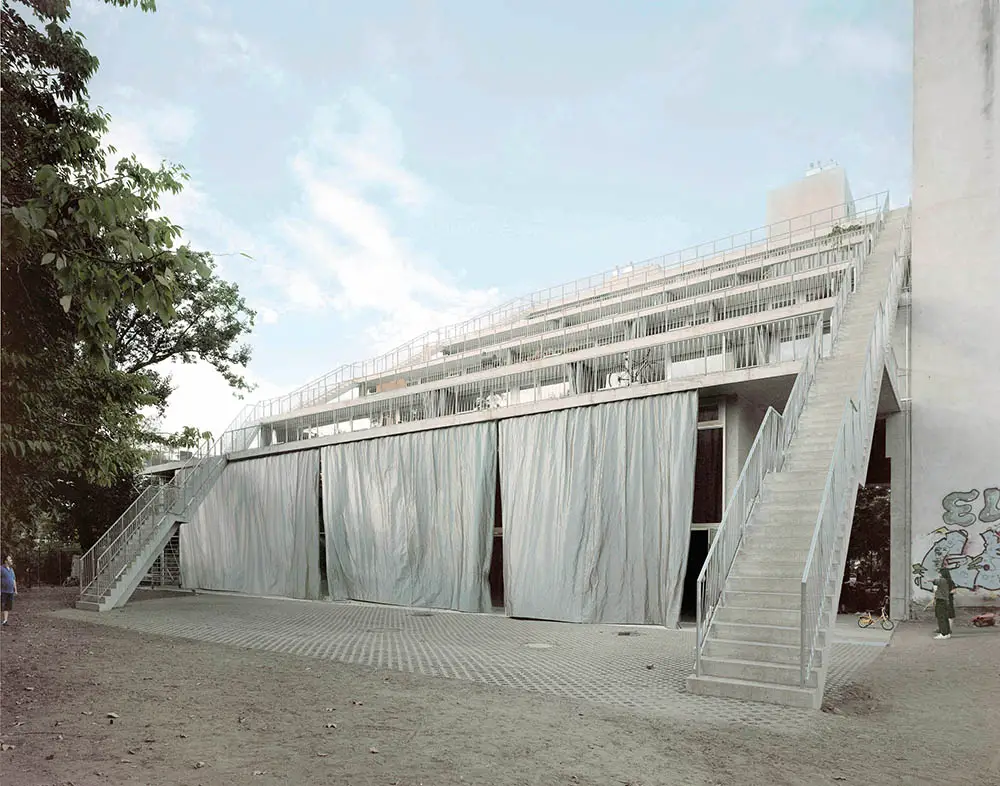

The site faces onto the suburban railway track, offering a wide view towards the south. The building’s levels are staggered, creating a ziggurat-like shape with six metre deep terraces on each floor and a maximised semi-public space in the ground floor, which otherwise would have been sealed off.

Shifting the lower floors to the south creates a 7.50 metre deep covered sidewalk that functions as a semi-public plaza in front of the gallery space on the ground floor. The depth of the units vary from 26 metres at ground level to 11 metres at the highest level.

Terrassenhaus Berlin / Lobe Block Building

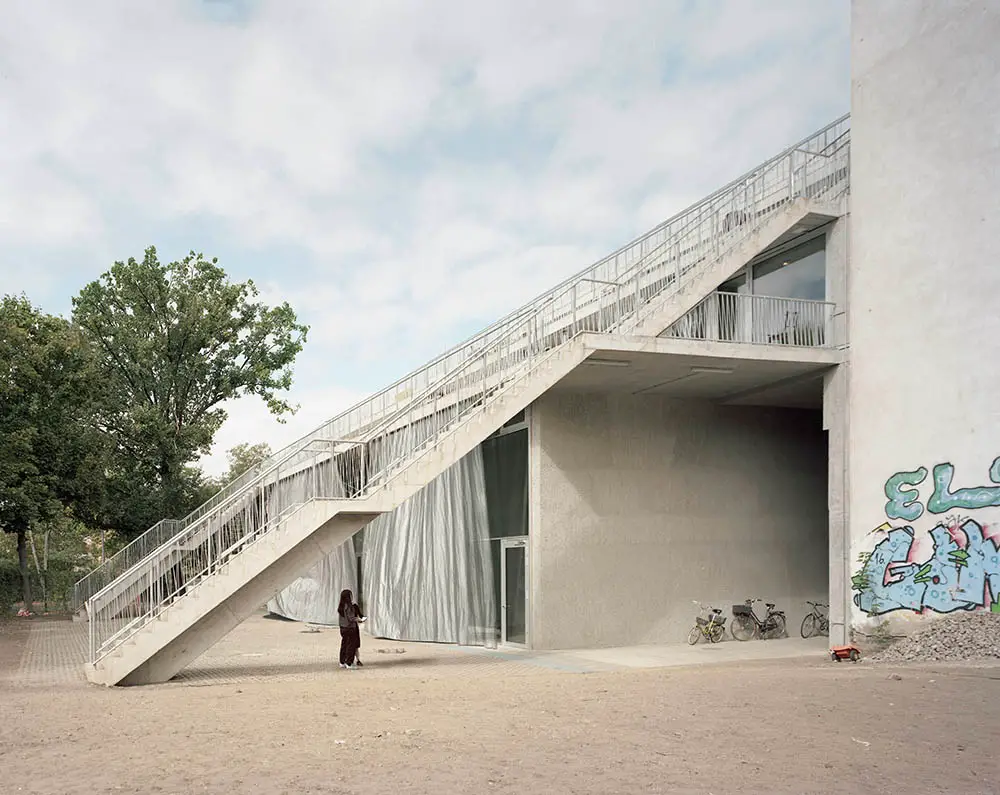

In this sense, the program of the units is aligned with the floor depth and subsequently the amount of light. Two external staircases at the back connect the different floors via the terraces, aiming for a more common and public use of the exterior spaces by the users, leading to a shared public roof space.

Neither roof nor patios have extra drainage. Therefore, all surfaces are slightly tilted to drain the water like a cascade onto the garden. Built entirely in concrete, exterior and interior spaces are perceived alike, enabling the users to open their apartments through ceiling-high doors towards the terraces.

Terrassenhaus Berlin / Lobe Block Building

The fit-out standard follows the logic of indeterminacy: only the technical connections and sanitary facilities are pre-installed. The latter is part of the two concrete cores, which also house the elevators, reaching from the ground level to the roof top, as well as all technical services. The 5.7 metre stepped profile creates units of different sizes. Besides the gallery, a co-working space with meeting rooms, rentable offices, an artist’s residence and ateliers are in the building.

Terracehouse Berlin
photo © Erica Overmeer, David von Becker

After purchasing the former junkyard in Berlin-Wedding, the client approached the architects to develop the mixed-use building embedded in a heterogeneous neighborhood of commercial and residential blocks. The main focus of the client was on preserving the exterior space, made accessible to users and the neighborhood.

Contrary to the original idea of a small-scale development, the architects instead proposed a larger project, arguing for the client’s responsibility as a landowner to take advantage of the land and its location in the city. In doing so, the architects referred to a zoning plan from 1958, which allowed the maximum construction of a five-story structure for commercial use.

The design updates the typology of the terrace house as a contemporary and site-specific form, replicating the ground five times in the form of stepped terraces. The platforms are created by setbacks, defined by the length of the exterior staircases, following the German tread ratio of 19:26 cm. The stepped terraces on the building’s rear façade therefore produce a negative form on the street side, creating a covered public space.

Terrassenhaus Berlin / Lobe Block Building

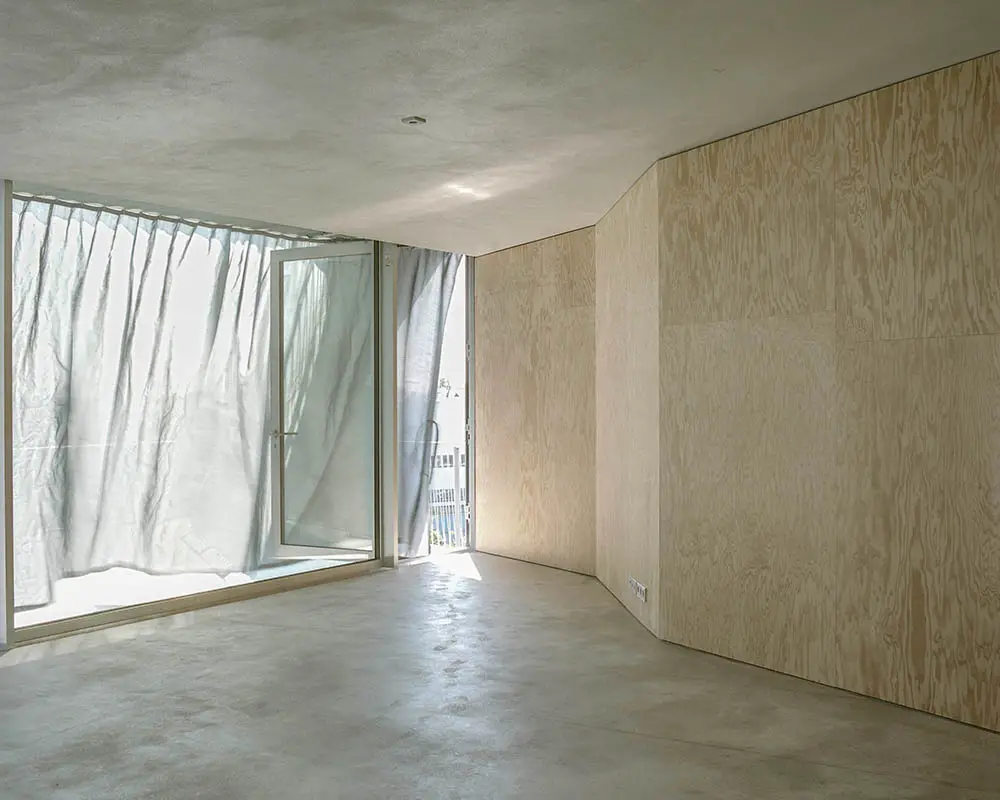

The building’s envelope is built out roughly in concrete and plywood, only including central cores with elevators and bathrooms. All other additions, such as spatial separations, are made by the users themselves according to their needs. Although today the project meets the legal standards of a commercial building, it is aimed at overcoming the separation between living and working, commercial and residential, questioning existing norms.

Terrassenhaus Berlin / Lobe Block Building

Terracehouse Berlin – Building Information

Placement: Finalist
Prize year: 2019
Location: Berlin, Germany
Year completed: 2018 (Year began 2016)

Studios: Brandlhuber+ Emde, Burlon; Muck Petzet Architekten
Authors: Arno Brandlhuber (1964 Germany); Thomas Burlon (1978 Germany); Markus Emde (1968 Germany); Muck Petzet (1964 Germany)

Program: Mixed use – Commercial & Offices
Labels: Compact, Studio, Café, Showroom, Office

Total area: 2086 m2
Usable floor area: 3396 m2

Client: Lobe Block / Olivia Reynolds & Elke Falat
Client Type: private
Map: LatLng: (52.5488966, 13.381072600000039)

Terrassenhaus Berlin – EU Mies Award Finalists 2019

Location: Wedding, Berlin, Germany, Europe
