Tamina Therme, Swiss Baths building photos, Resort design Switzerland, Architect

Tamina Thermal Baths, Switzerland : Swiss Resort

Tamina Therme, Grand Resort Bad Ragaz design by Smolenicky & Partner Architecture, Zurich

6 Apr 2010

Grand Resort Bad Ragaz – Tamina Therme

New Construction Of Tamina Thermal Baths
Town And Site Planning

Grand Resort Bad Ragaz
Neubau Tamina Therme
Städtebau Und Arealplanung

Tamina Therme, Grand Resort Bad Ragaz, Switzerland

Tamina Therme

Tamina Thermal Baths Switzerland Tamina Therme Switzerland Tamina Therme
photos : Roland Bernath

New construction of Tamina thermal baths

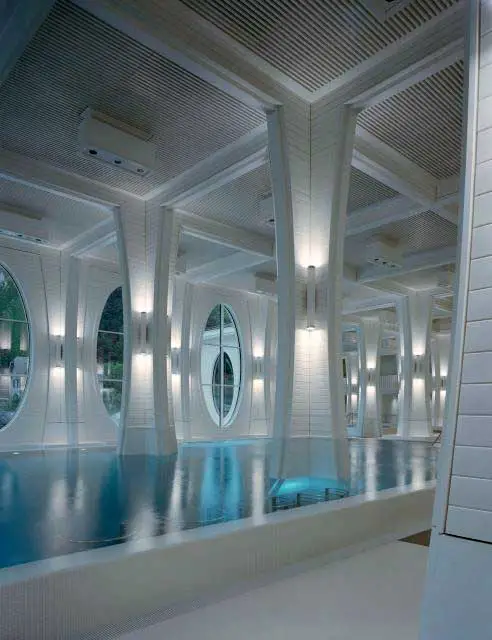

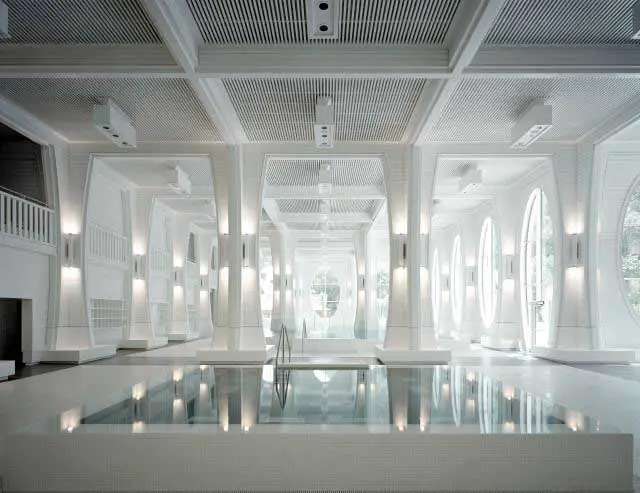

Thermal baths with indoor bathing pool, large sauna area, shops and restaurant.


Grand Resort Bad Ragaz
Town and site planning
New construction of Tamina thermal baths

Tamina Thermal Baths Tamina Thermal Baths Switzerland Tamina Therme Switzerland Tamina Therme
photos : Roland Bernath

Commentaries by Josph Smolenicky


The project for the Tamina thermal baths is the result of a two-stage competition from 2003. The aim of the first phase of the process was to coordinate the large pending architectural interventions in terms of town planning.

Where should the new five-star hotel be located, where should the extension of the medical centre be set, and how should the new public thermal baths be accessed from the site? The plan was to invest and coordinate a total of SFr. 160 million in new constructions and structural alterations.

The second part of the competition involved designing the project’s two major new constructions – the hotel and the thermal baths. The architectural office Smolenicky & Partner won the project for the Tamina thermal baths, Hilmer & Sattler andAlbrecht Architects the project for the new hotel.

Tamina Thermal Baths Tamina Thermal Baths Switzerland< Tamina Therme Switzerland Tamina Therme
photos : Walter Mair


The town-planning character of the resort is dominated by large representative buildings set in an expansive park landscape. To this extent the resort clearly distinguishes itself from the identity of the village of Bad Ragaz. During the belle époque this principle of building monumental hotels in close vicinity to a village was successfully applied to a number of locations in the Swiss Alps.

The most important examples are Interlaken, St. Moritz and Gstaad. In Bad Ragaz two cul-de-sacs fork off from the main road that runs through the golf course connecting Bad Ragaz and Maienfeld.

In the new project the thermal baths were deliberately located on the cul-de-sac accessing the resort’s public facilities, such as the new conference centre in the renovated spa spring hall, the casino and the golf club house. The second cul-de-sac running along the park has been kept free to provide access to the three grand hotels, and emits a more private and calmer atmosphere.

Tamina Therme
image : Smolenicky&Partner

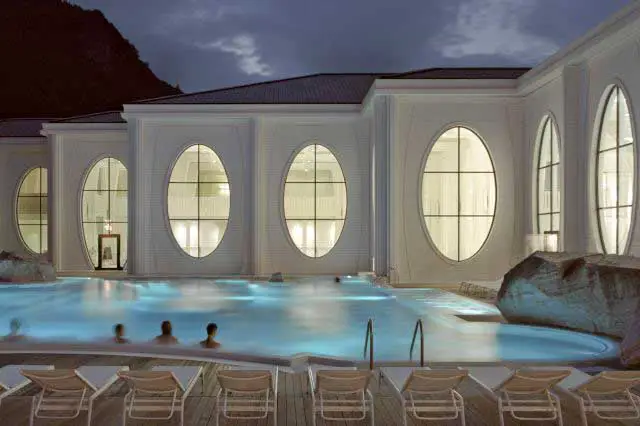

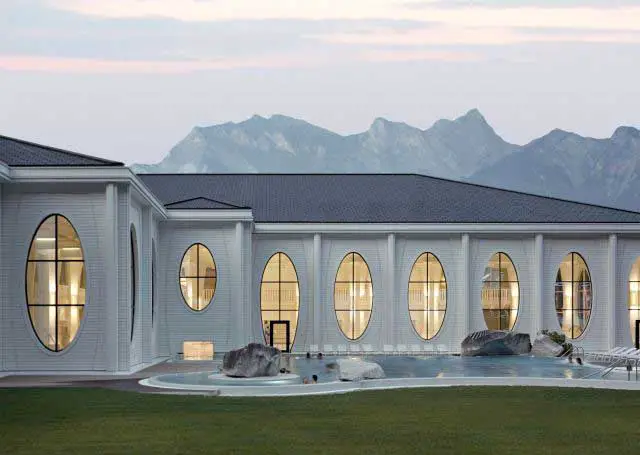

Instead of being freestanding, the form of the building volume emerges from the enclosing of exterior spaces. In the area of the open-air baths, for instance, the volume of the building is stepped back and opens out the sunbathing lawn to the wooded slopes of the mountain ridge. The view extends past the existing buildings, screened by newly planted groups of trees. The guests experience a park landscape that melts into woods and mountain slopes.

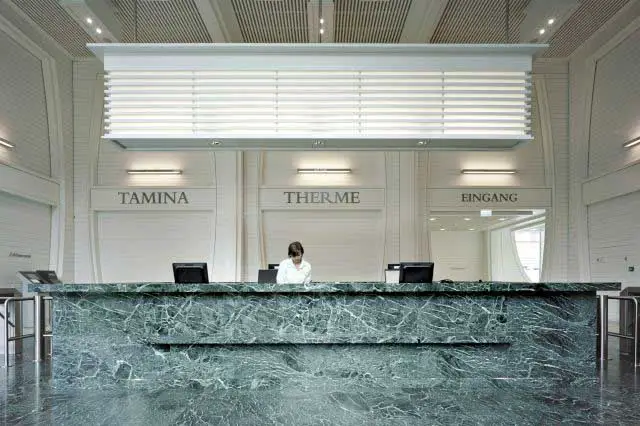

The predominant landscaped, park-like atmosphere remains intact despite the compact manner of building. Thus the resort remains characterized by its park. The main entrance to the thermal baths, the spa spring hall, is set on the visual axis of the cul-de-sac in order, from the main road, to mark its presence in the depth of the site as a public facility.

Tamina Thermal Baths
photo: Walter Mair

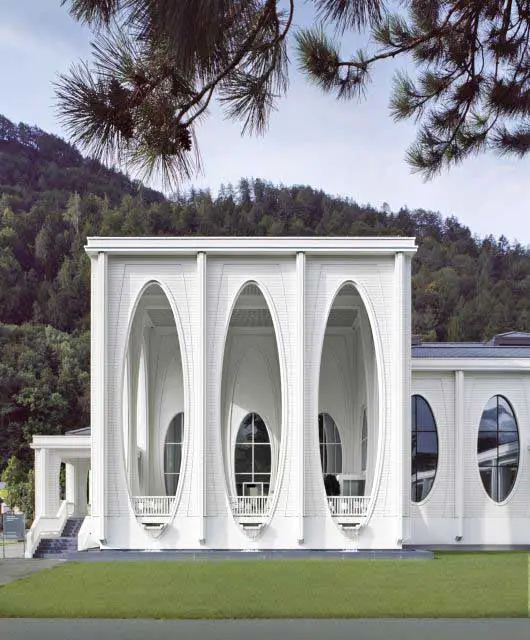

The Tamina thermal baths is explicitly conceived as a part of the grand-hotel culture. The cultural and aesthetic identity of the project seeks an affinity to both Swiss tradition and the grand hotels of the Baltic coast, such as Heiligendamm.

For this reason the building volume has a monumental character, in order to stand out as an institution equal to the other buildings in the resort. Simultaneously the thermal baths are intended to relativize the almost “urban” stonework character of the spa spring hall. This explains the snow-white woodwork of the thermal baths, lending it the pavilion-like character of the architecture of a historical holiday resort.

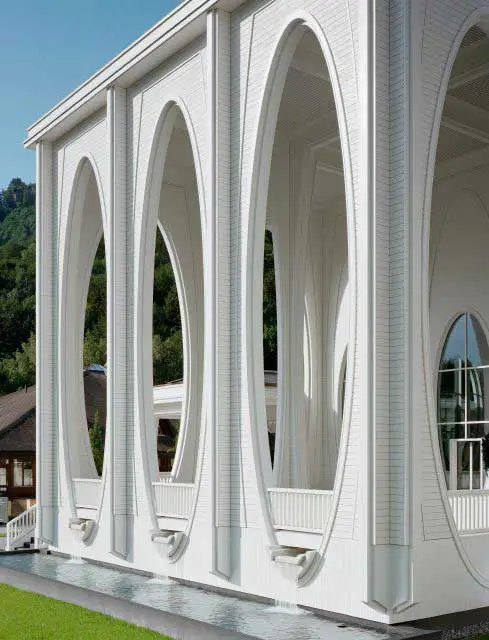

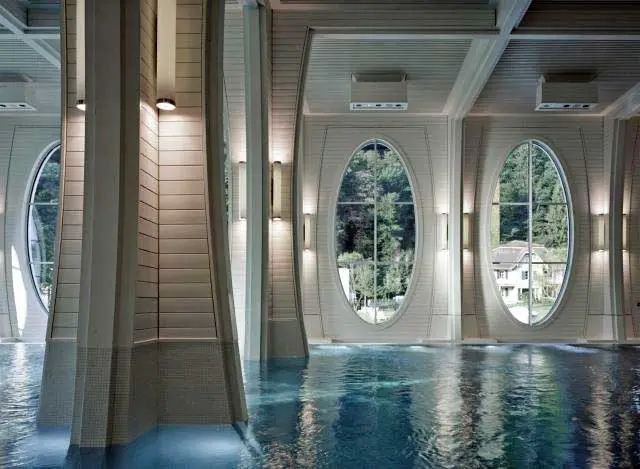

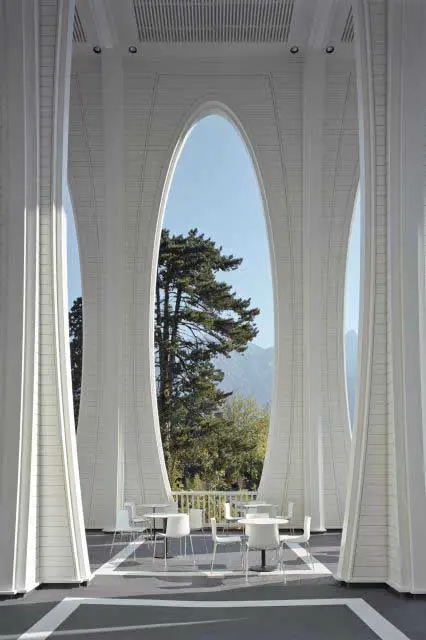

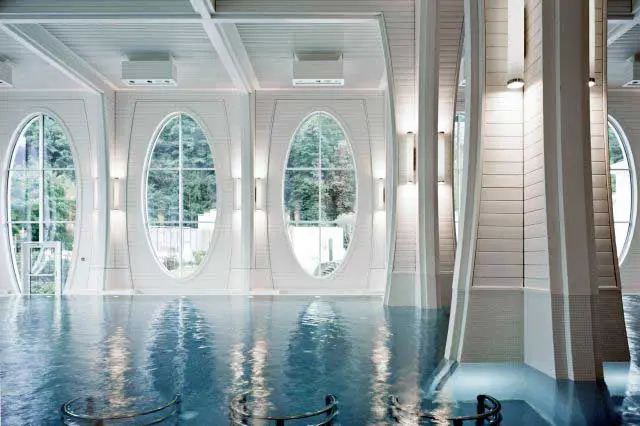

This strategy of using an explicit resort architecture is underscored in the building’s formally fanciful oval windows. Seen from the inside, the windows have the effect of over-dimensional picture frames. Oval picture frames were widespread in the Victorian era for landscape scenes, whereby the intention in the current project is to give specific expression to the view over the relatively neutral landscape by means of the gesture of the frame.

Tamina Thermal Baths Tamina Thermal Baths Switzerland Tamina Therme Switzerland Tamina Therme
photos : Roland Bernath

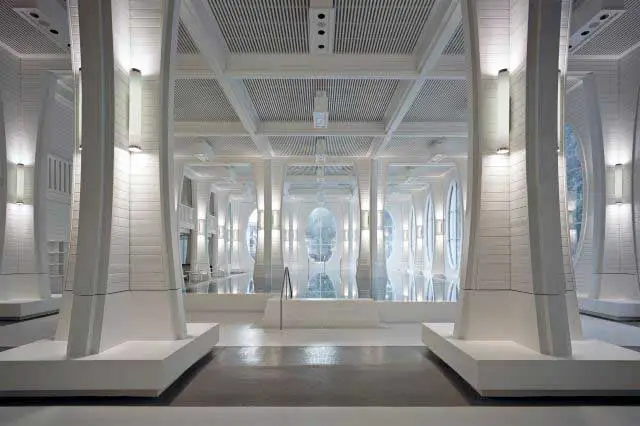

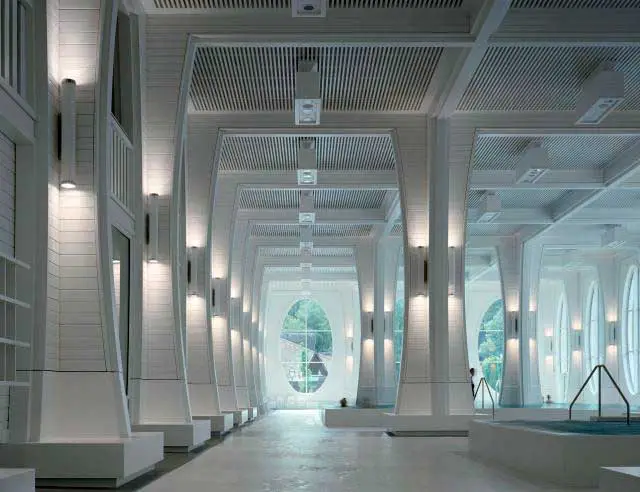

Metaphorically the creation of the interior spaces of the project has an analogy in cutting clearings in the pattern of a forest by felling individual trees. This is the reverse of the common design process.

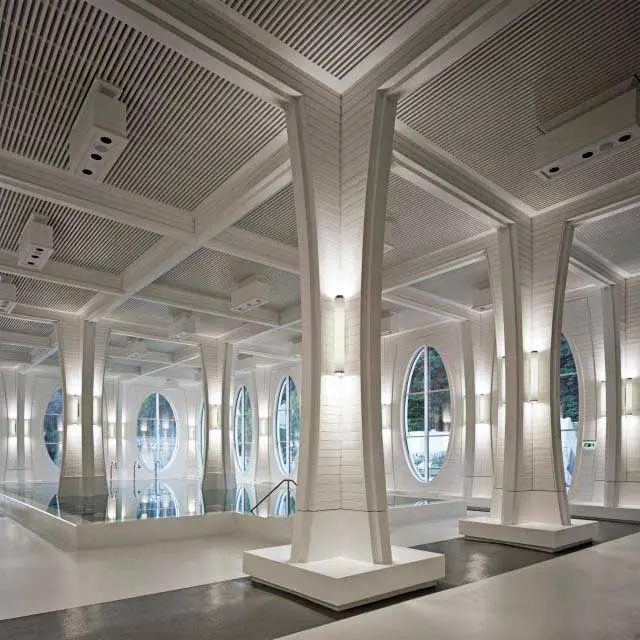

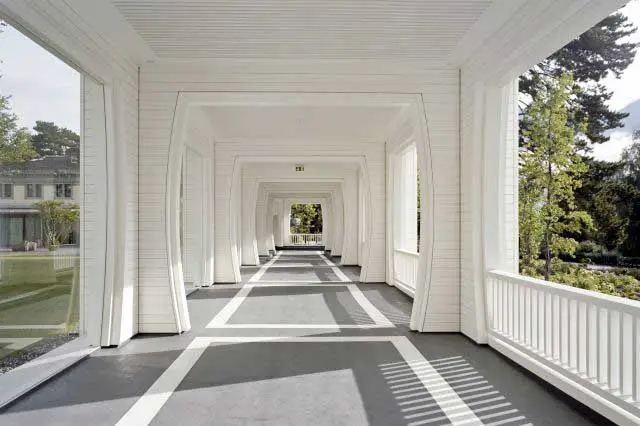

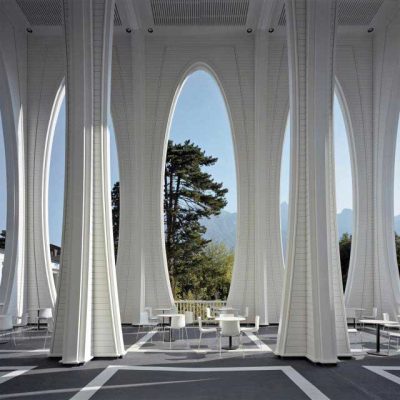

The exterior spaces are similarly created by “felling” supports on the periphery of the building volume. Structurally the building can be more or less seen as a forest, created out of columns instead of trees – a total of 115 supports using the timber of 2,200 fir-trees (this amount of wood is regenerated in Switzerland in two-and-a-half hours).

Tamina Thermal Baths
photo : Roland Bernath

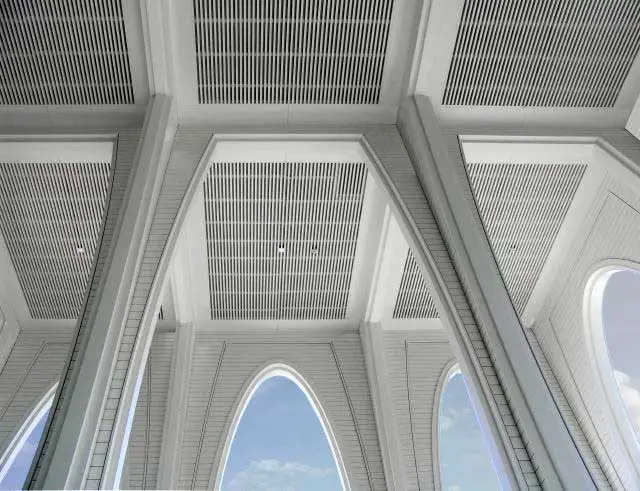

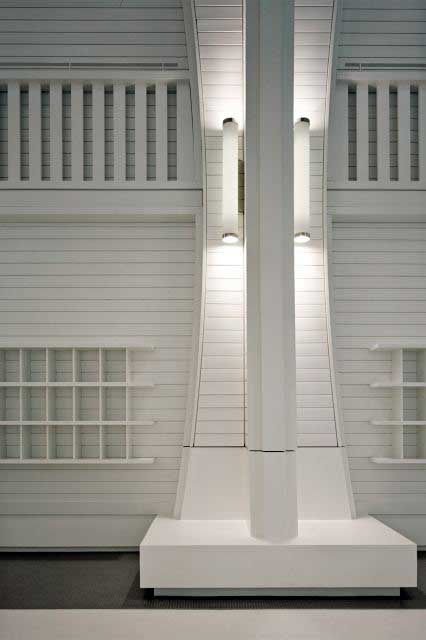

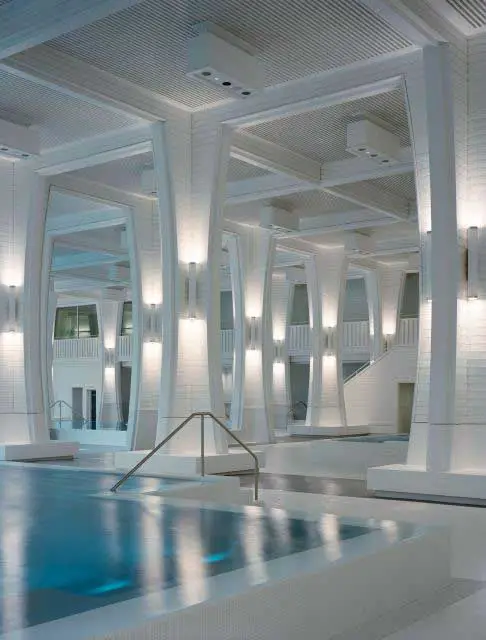

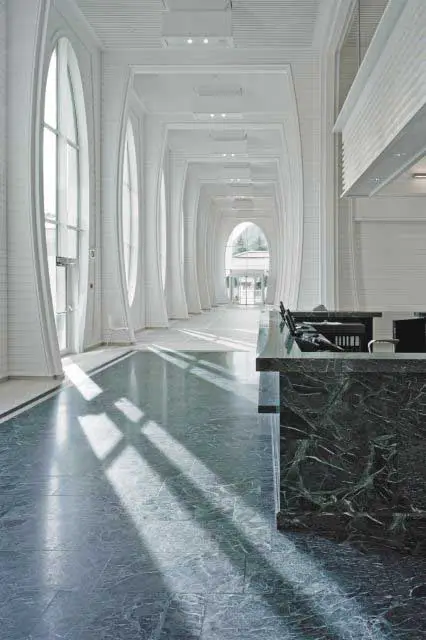

Materially the project possesses the same appearance internally and externally. The snow-white timber battens are carried over internally as wall surfacing. In this sense there is no actual interior architecture to the building, but instead only a whole architecture of the building.

The timber structure of the building is not merely determined by the criteria of the span of the supports. Instead of a focus on the engineering of the function of the supports and the reinforcement of a construction, the structure concentrates far more on spatial phenomena, creating a beauty and a ceremonial atmosphere. Bathing is celebrated as a cultivated activity.

Tamina Thermal Baths
image : Smolenicky&Partner

Tamina Therme, Grand Resort Bad Ragaz – Building Information

Grand Resort Bad Ragaz
Town and site planning

Project address
Tamina Therme, Grand Resort Bad Ragaz AG, CH-7310 Bad Ragaz, www.resortragaz.ch

Grand Resort Bad Ragaz AG, Pfäferserstrasse 8, CH-7310, Bad Ragaz
(main investor Thomas Schmidheiny)

2003 competition by invitation
2004 town and site planning feasibility study
2005 town and site planning preparatory study
2006 building application for all new constructions
-Tamina thermal baths
-medical centre
-Spa Hotel high-rise block (architect HSA)
2007-09 Tamina thermal baths total planning
Mar 2008 commencement of construction Tamina thermal baths
Jun 2009 completion of construction Tamina thermal baths

Overall site, key figures (new constructions + alterations)
overall site – 90,000 m2
total volume of site investment – SFr.160 million

Tamina thermal baths, key figures
building dimensions – length 95m, width 75m, height 20m
site area – 6,789m2
construction area – 3,535 m2
storey areas – 10,306 m2
construction volume acc. SIA 416 – 41,656 m3
investment costs – SFr. 41 million, of which SFr. 10 million in timberwork
construction costs (building cost classification 2/m3) – SFr. 865/m3
timber use – 2,000 m3, corresponding to 2,200 fir-trees (regenerated in 2 ½ hours in Switzerland)
no. of interior and exterior supports – 115
no. of wall elements – 43
no. of acoustic elements – 196

Smolenicky & Partner Architecture, Zurich
Architect: Joseph Smolenicky
Project manager: Philipp Röthlisberger
Contributors: Simon Krähenbühl, Petr Michalek, Juan Carlos Smolenicky Muñoz

Timberwork: Blumer-Lehmann AG, Gossau SG
Heating, cooling, plumbing and sanitary installation: Kannewischer Engineering Office AG, Zug
General contractor: HRS Real Estate AG, Frauenfeld

Spa Hotel high-rise block, key figures
site area – 2,259m2
construction area – 873m2
storey area – 837m2
building volume acc. SIA 416 – 24,198m3
investment costs – SFr. 45 million

Tamina Therme, Grand Resort Bad Ragaz images / information received 060410

Location: Grand Resort Bad Ragaz AG, CH-7310 Bad Ragaz, Switzerland
