Cocoon Offices Zurich

Building in Seefeld, Switzerland – design by Camenzind Evolution Architects

14 Oct 2008

Cocoon Offices

Zurich, Switzerland
Design: Camenzind Evolution

Cocoon Offices, Zurich - Seefeld Building
photograph : Nick Brändli, Zurich

Cocoon Offices Zurich

Cocoon is located in Zurich’s Seefeld district on a beautiful hillside, which enjoys excellent lake and mountain views. The location’s distinctive flair stems from the exceptional park-like setting – a green oasis into which Cocoon snugly nestles.

Cocoon Offices
photo : Nick Brändli, Zurich

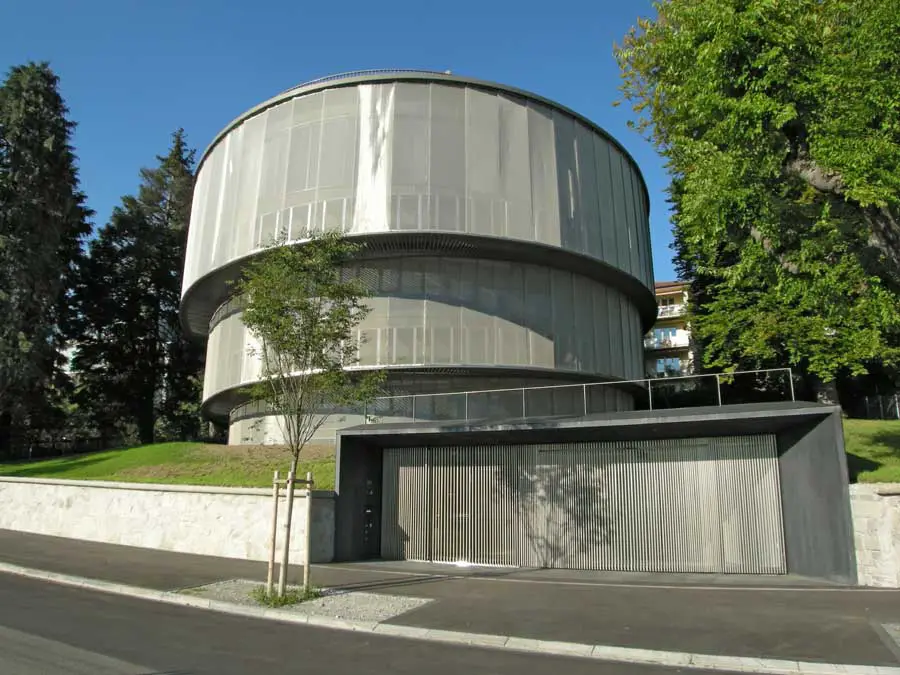

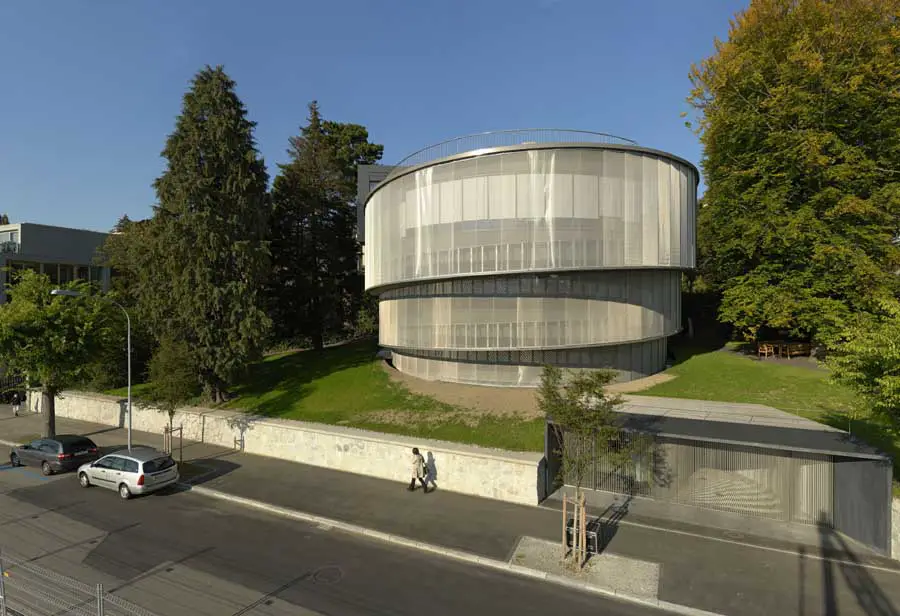

Flanked on three sides by mighty, age-old trees the elliptical structure reads as a freestanding sculptural volume that gracefully spirals up from the park. The stainless steel mesh enveloping the building combines visual privacy with restrained elegance, while establishing a strong and unmistakable presence.

Cocoon Offices Zurich Cocoon Offices Zurich
pictures : Camenzind Evolution, Zurich

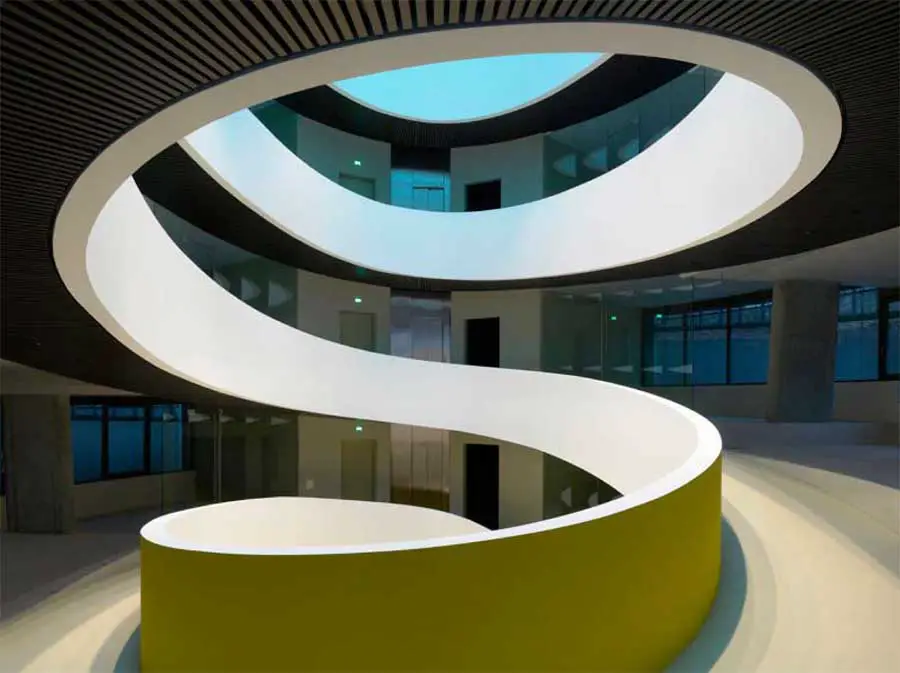

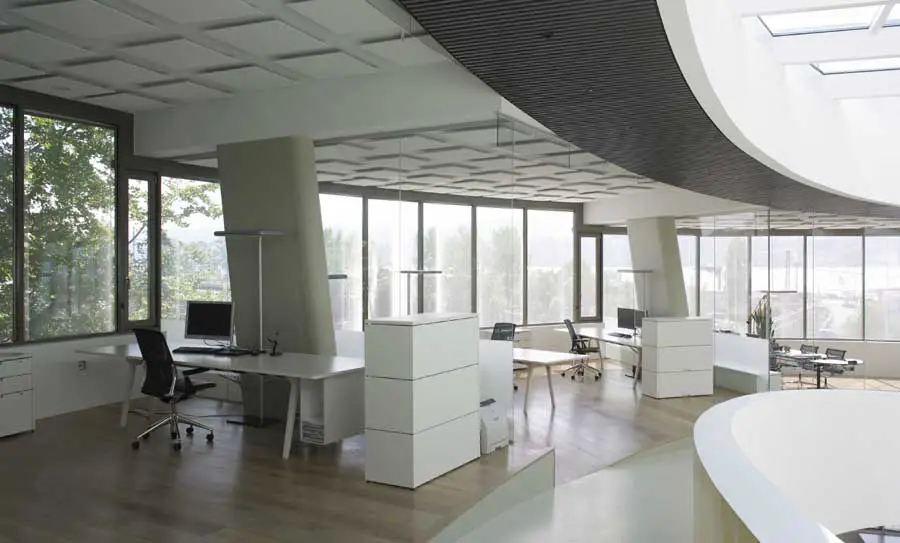

The bold stand-alone building embodies an innovative conception of interior spatial organization and interaction with the surrounding environment. In doing so, it caters for a wide variety of workplace and occupancy concepts. With its spiral massing, Cocoon may be conceived as a sort of “communication landscape” that creates a unique spatial configuration and working environment in a matchless setting. The stepped, upward-winding sequence of segments also shapes the character of the building interior. All spaces are arranged along a gently rising ramp, which wraps around a central, light-flooded atrium. The space planning concept dispenses with the traditional division into horizontal storeys in favour of a seemingly endless sequence of elliptical floor segments. By eliminating the usual barriers to communication, this generates a unique spatial experience and working environment that unlocks a host of intriguing possibilities for interaction and co-operation. The floorspace design is occupancy-neutral and provides for fully flexible partitioning together with the adaptability necessary to meet the shifting needs of future users. Together, the various elements – lift, spiral ramp, segments and stairwell – constitute a clearly structured, versatile circulation system that provides for both the desired interaction and the necessary flexibility to accommodate alternative uses.

Cocoon Offices Zurich Cocoon Offices Zurich
photographs : Ferit Kuyas, Waedenswil

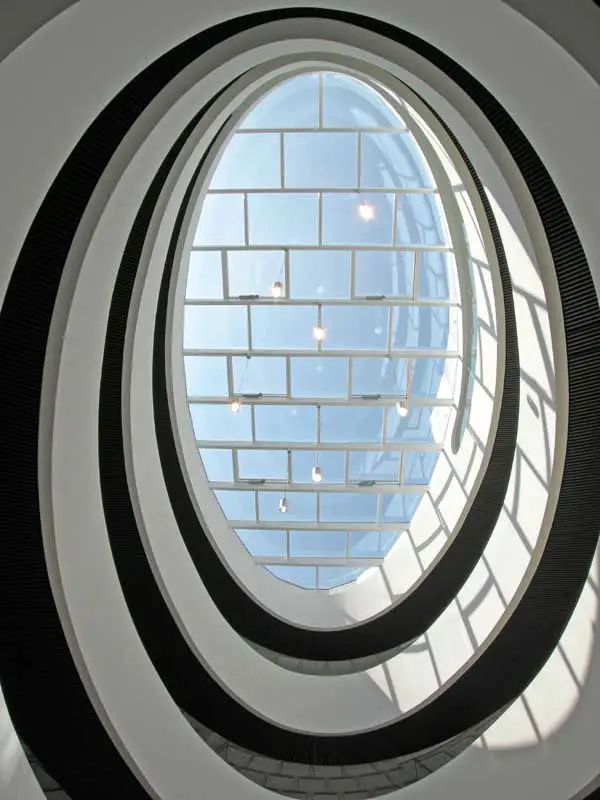

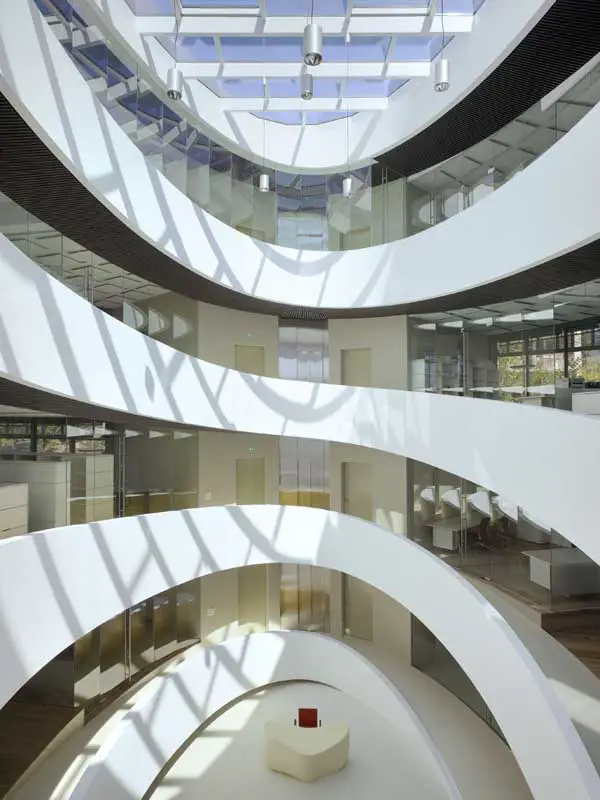

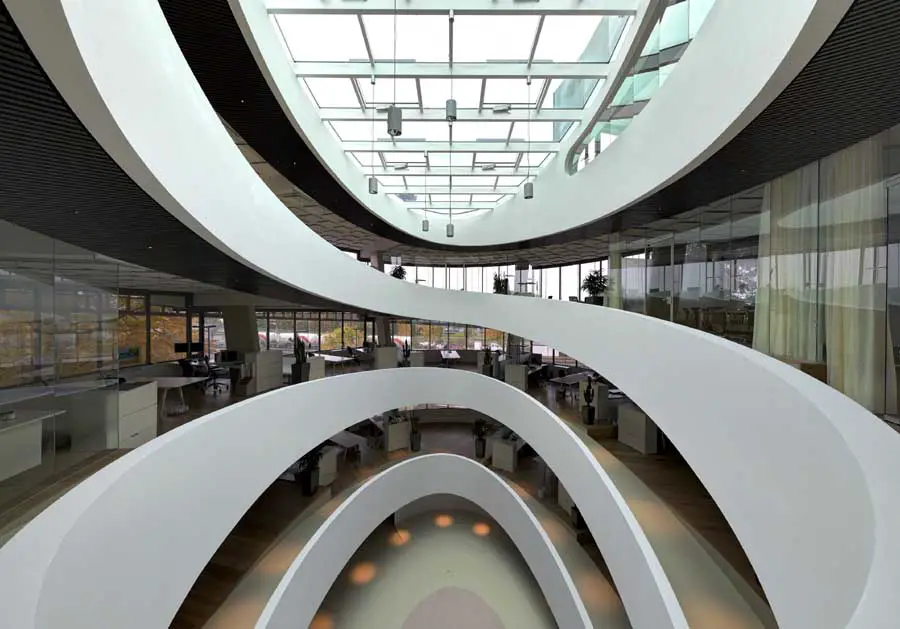

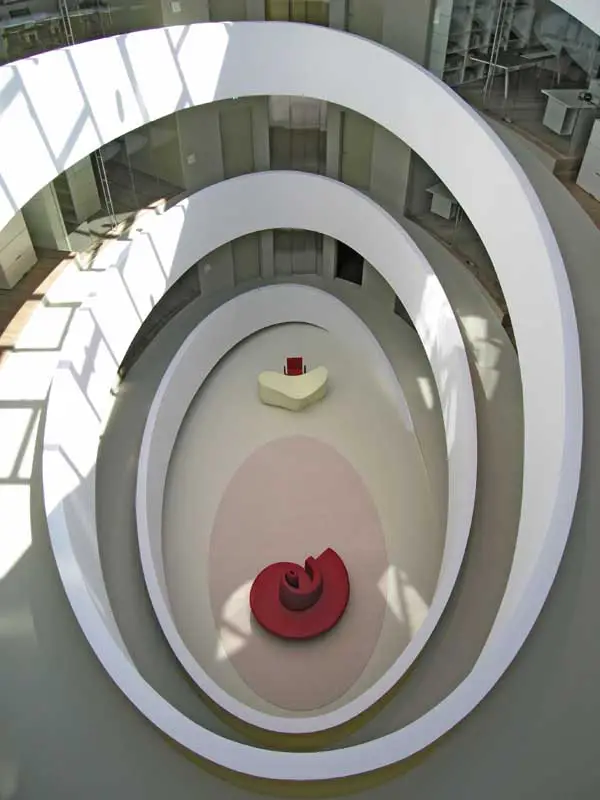

Internally, a light-flooded, upwardly widening atrium forms the centrepiece of Cocoon. Around this, the circulation and communication ramp winds its way upwards in gently curving contours, to provide a fluid link between all the internal spaces. Internally, as the ellipses expand with each turn of the spiral, the skylight void opens up in a stunning spectacle. Externally, the building adopts the guise of a dynamic, upward-reaching sculpture. The dramatic atrium, with its wealth of internal visual links, generates a natural ambience conducive to communication and a sense of community.

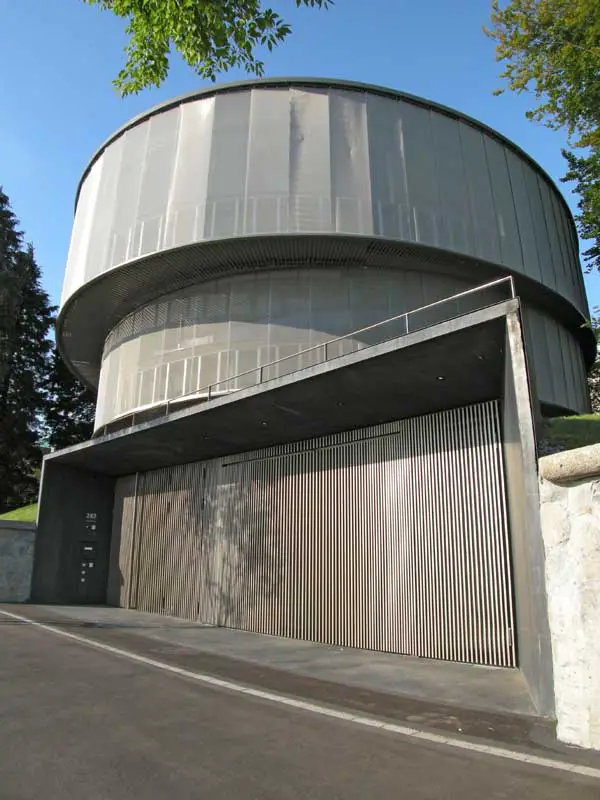

The facade assembly consciously adds a note of subtlety and sophistication to the overall composition. The building is wrapped in a fine, almost scaly veil of stainless steel wire mesh. This curtain curls elegantly upwards in soft lines along the expanding spiral, its junction with the roof terrace accentuated by an open facade frame.

Cocoon Zurich Cocoon Offices Zurich Cocoon Zurich Offices
images : Camenzind Evolution, Zurich

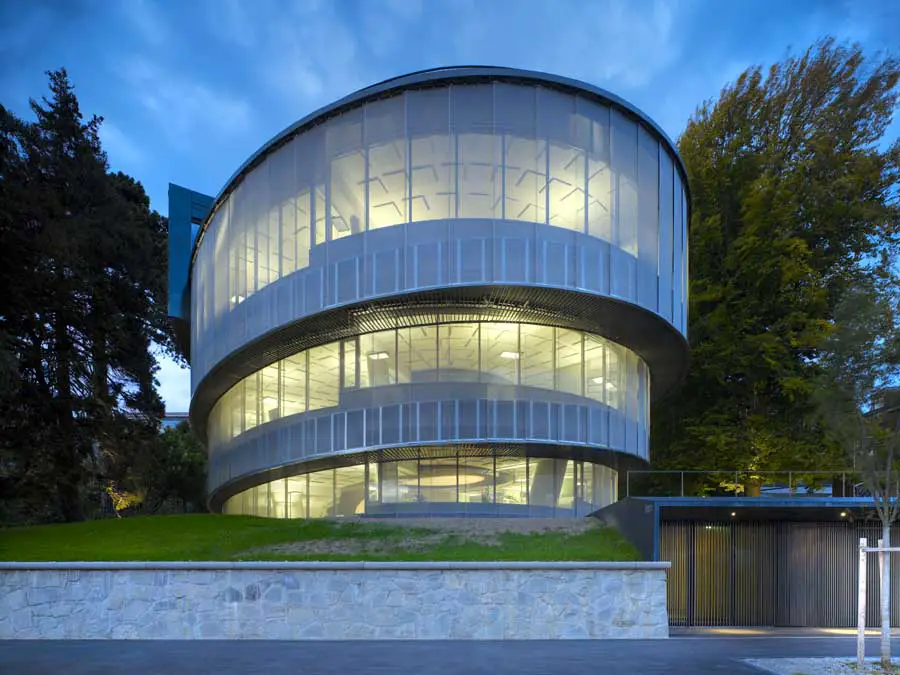

The shrouded, sculptural stand-alone building, introverted during the daytime as it looks inwards towards the atrium, is recast in the evening hours as a transparent shining beacon.

Cocoon uses a Air-source heat pump system for environmentally-friendly heating and cooling.

Cocoon Zurich Building

Cocoon Zurich – Building Information

Project: Cocoon – Exclusive Office Headquarter, Seefeldstrasse 287, 8008 Zürich
Location: Cocoon, Seefeldstrasse 287, 8008 Zürich
Client: Swiss Life
Architect: Camenzind Evolution, Zurich, Switzerland
Project Team: Stefan Camenzind, Marco Noch, Susanne Zenker
Start of Planning: Sep 2004
Start of Construction: Feb 2006
Completion: Sep 2007
Floor Area: BGF 1’900 m2
Building Volume: 8’400 m3
Building Costs: BKP 1-9 CHF 11’000’000.- ; Euro 6’700’000.-

Cocoon Zurich Offices
photo : Romeo Gross, Grueningen

Zurich Cocoon Offices : information from Camenzind Evolution Architecture 141008

Cocoon Zurich architects : Camenzind Evolution

Location: Seefeldstrasse 287, 8008 Zürich, Switzerland
