Public Protection Housing in Inca, Mallorca

6 Feb 2023

Design: Joan Josep Fortuny Giró / Alventosa Morell Arquitectes

Location: neighbourhood of El Terreno, Palma, Balearic Islands, Spain

Public Protection Housing Inca Balearic Islands

Photos © José Hevia

54 Public Protection Housing, Spain

The plot owned by IBAVI has a rectangular shape with an approximate area of 3,266 sqm. The proposed proposal attends to two fundamental aspects, the correct insertion of the building in the urban and physical environment as well as a solution that is a synthesis of the functional aspects of the program.

Public Protection Housing Mallorca Spain

Public Protection Housing Mallorca Spain

The program proposed by the Balearic Housing Institute (IBAVI) consists of Parking in response to municipal regulations that is located underground and the 54 Public Protection Housing are located distributed by 18 flats by floor on the ground floor and two floors. In the interior space there is a common relationship space for users.

Public Protection Housing Balearic Islands Spain Public Protection Housing Balearic Islands Spain

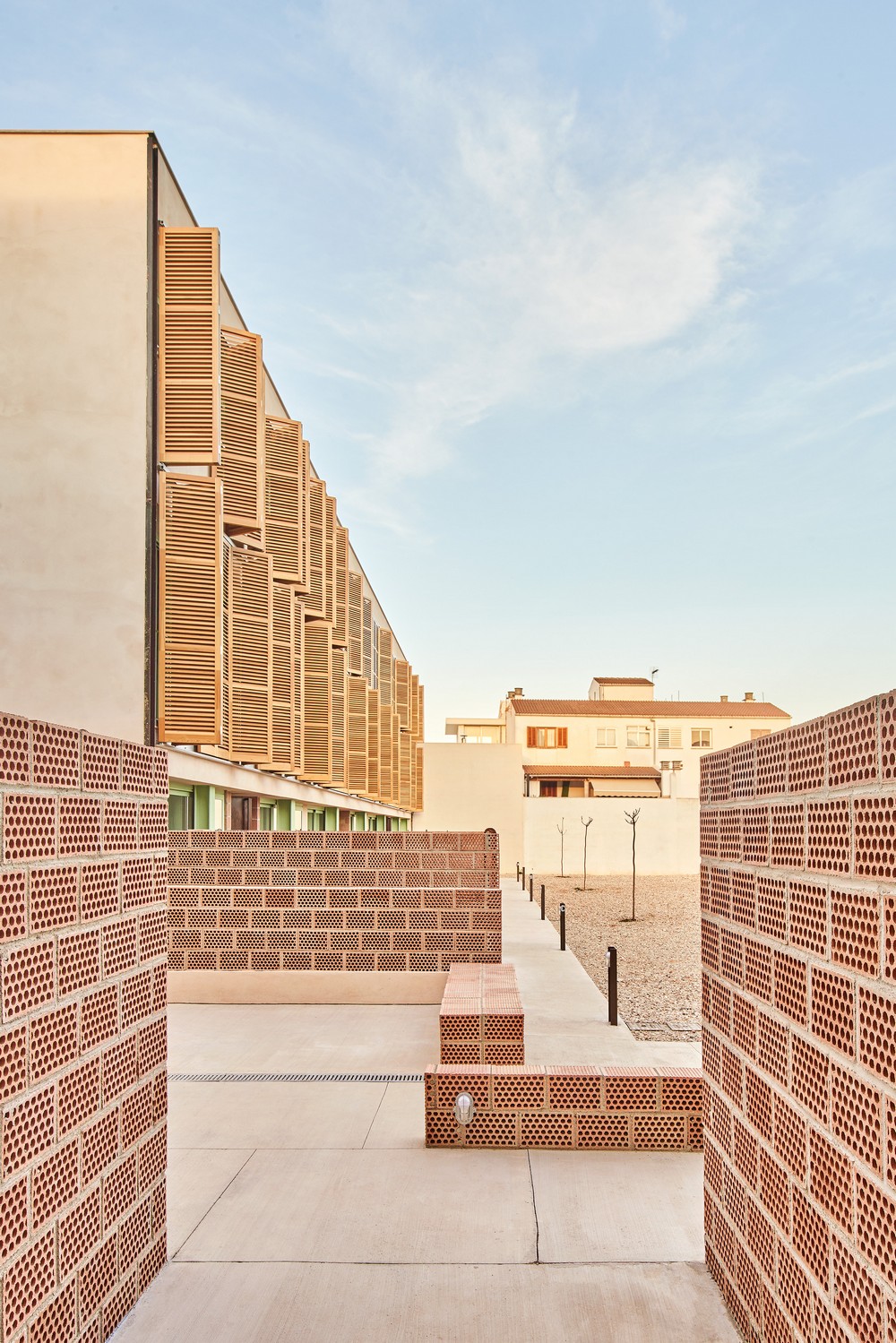

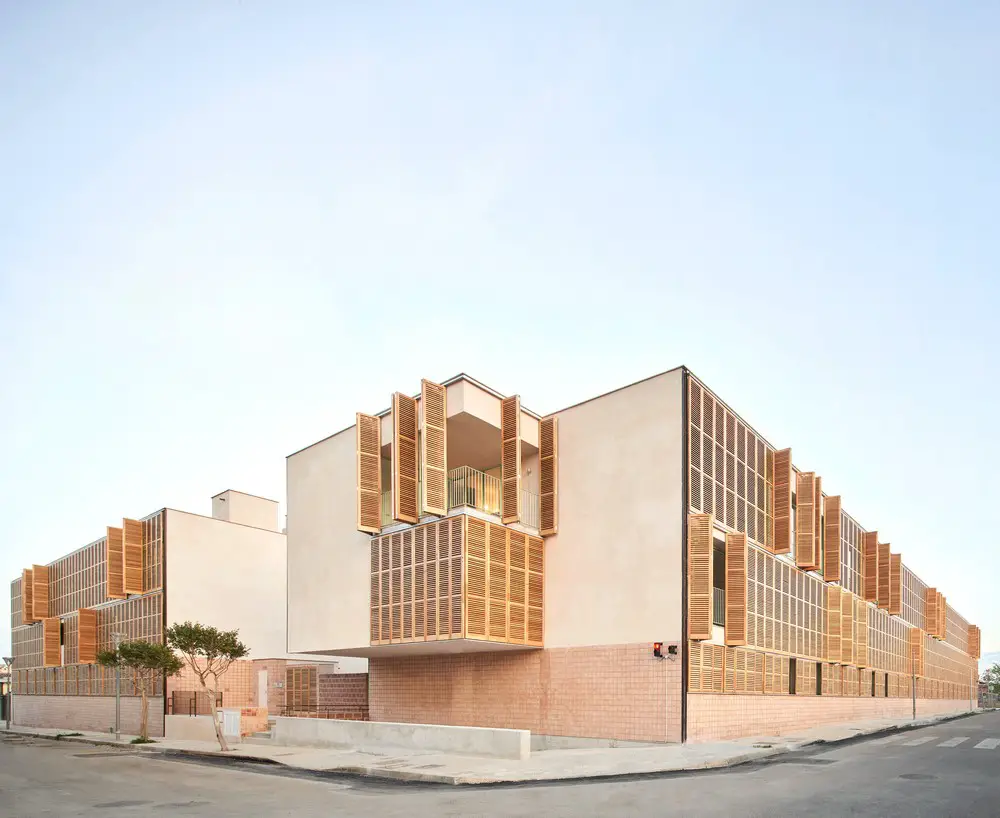

The building is organized by a north-south axis that gives rise to the location of two independent volumes, creating a public space between them.

Public Protection Housing Inca Balearic Islands

As a consequence of the strong unevenness of the land, the building has been settled on the upper level, creating an accessible route, thus we define the level +0.0 at the confluence of Raiguer Avenue with Emmet Abrahim street (highest point of the site). as the starting level of the set.

Public Protection Housing Mallorca Spain Public Protection Housing Inca Balearic Islands

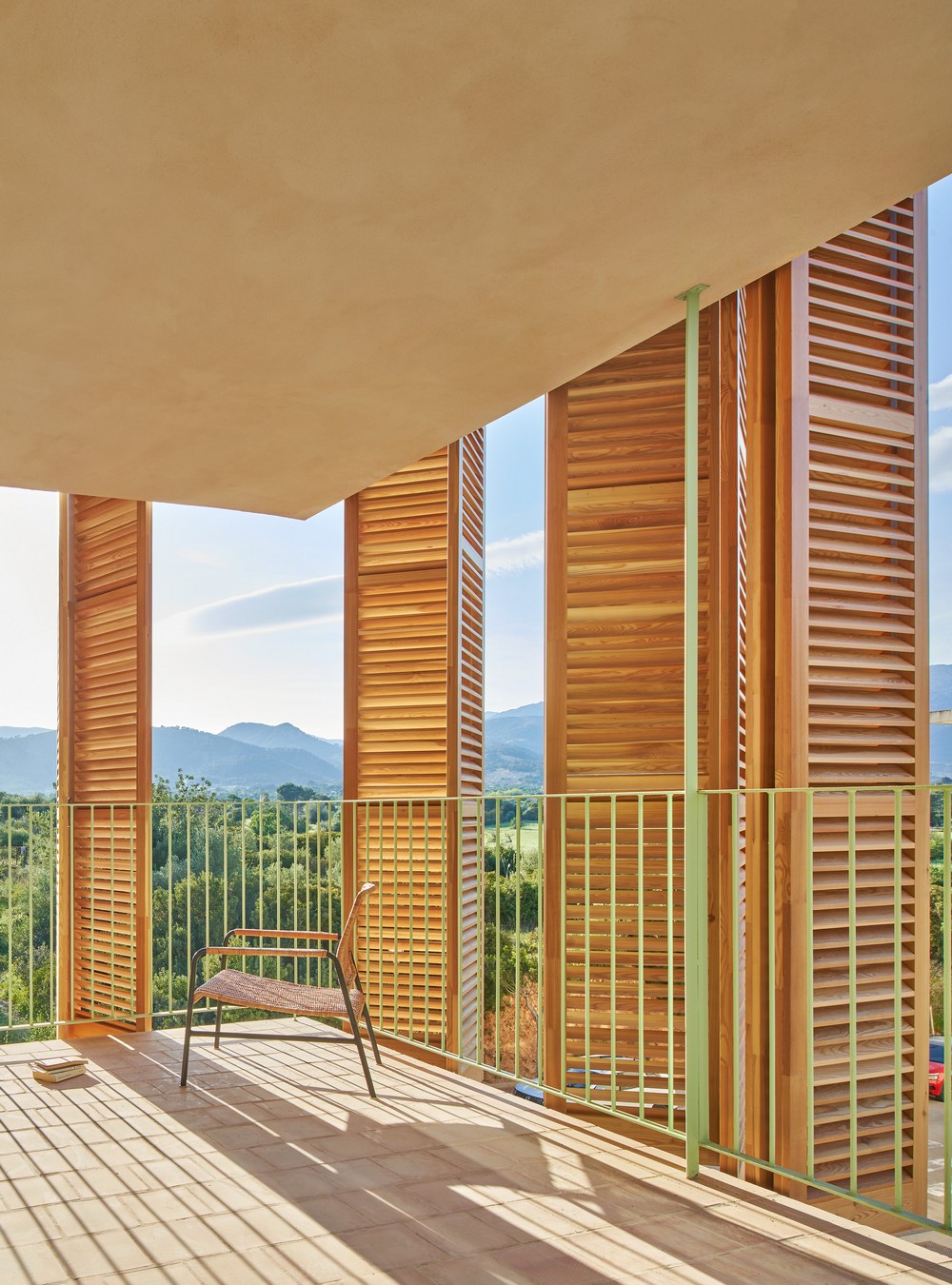

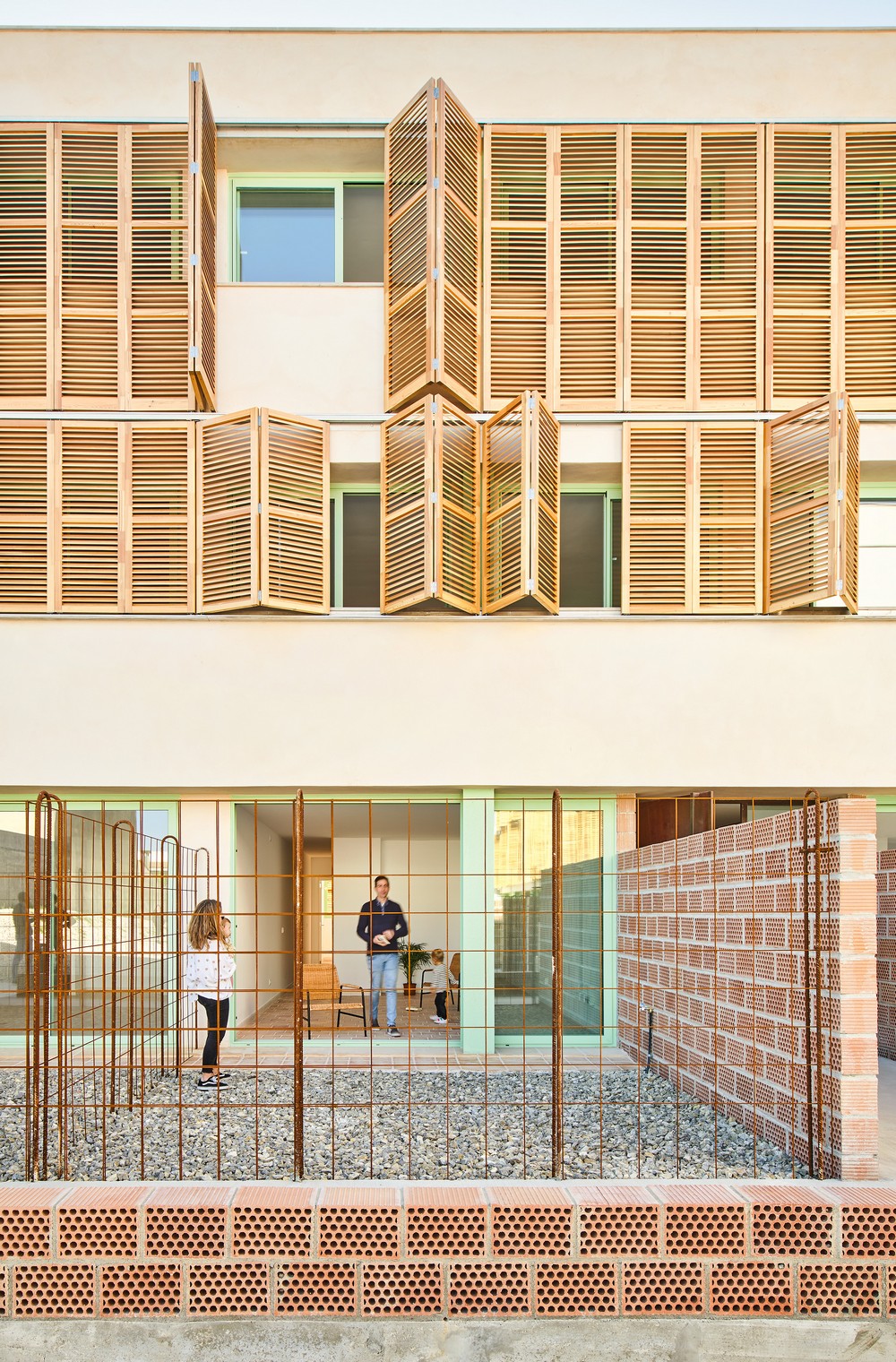

The housing module is organized around a central wet core that defines two areas with a double orientation. The location of the day and night areas are changing by in height attending at the best sun orientation , winds , intimacy and views , generating different types of housing per floor. The houses have outdoor spaces: a private garden on the ground floor, and terraces on the successive floors

The structural solution of the building is using a system of reticular concrete slabs with large spans 35 cm thick and metal pillars. The underground is solved by means of concrete retaining walls, and the foundation by means of a system of deep foundations due to the expansive clays of the Zone.

Public Protection Housing Balearic Islands Spain Public Protection Housing Balearic Islands Spain

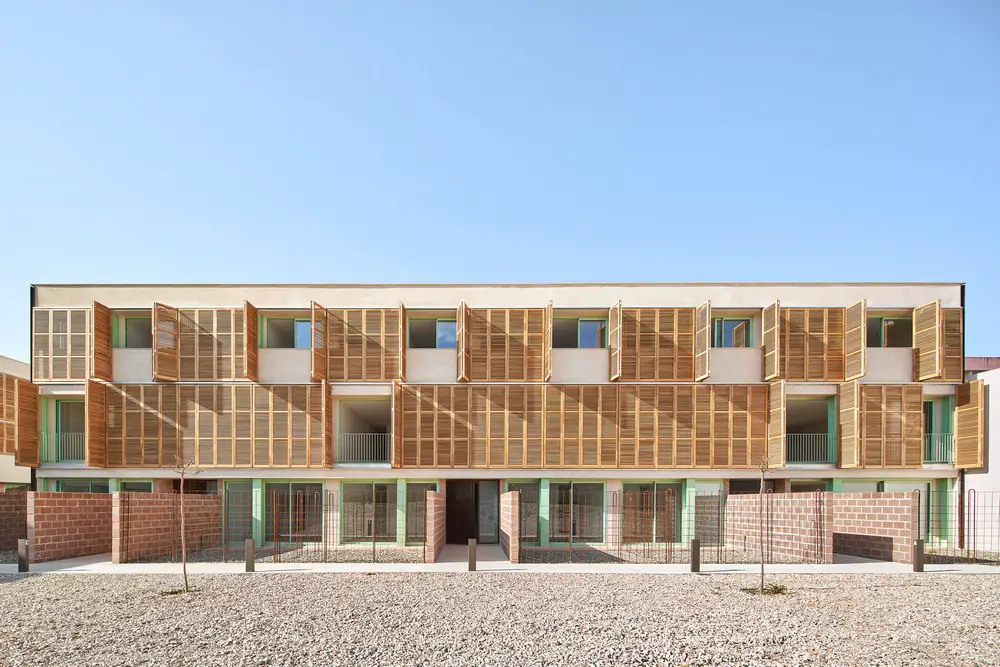

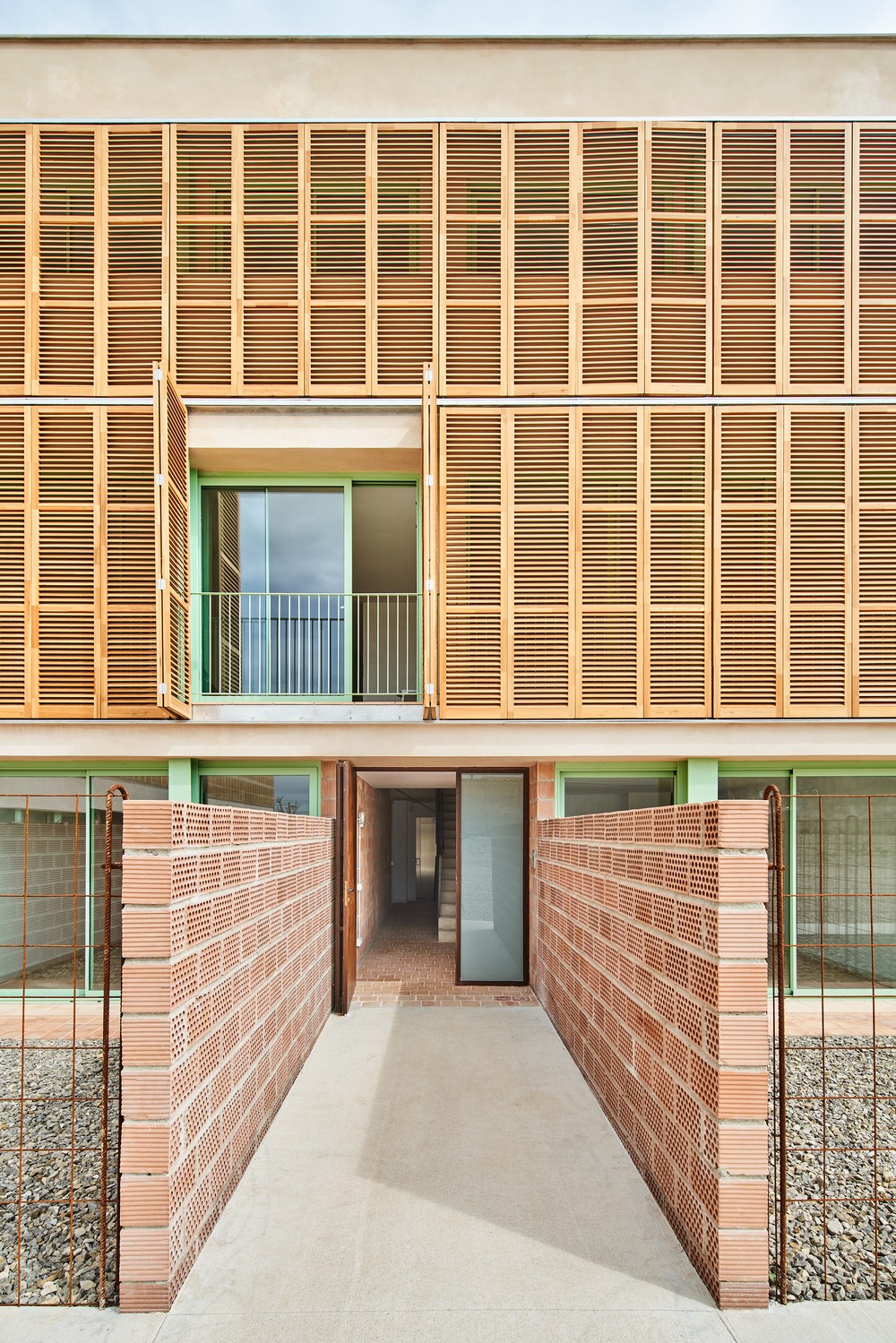

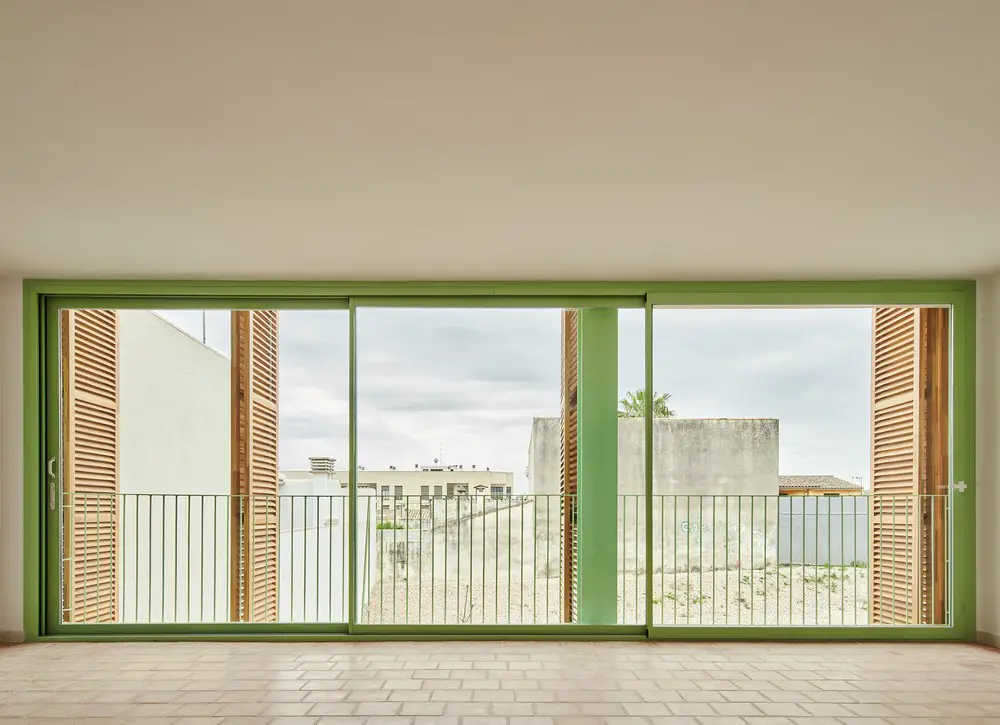

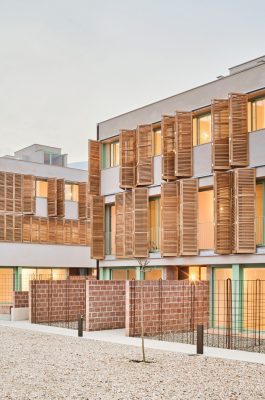

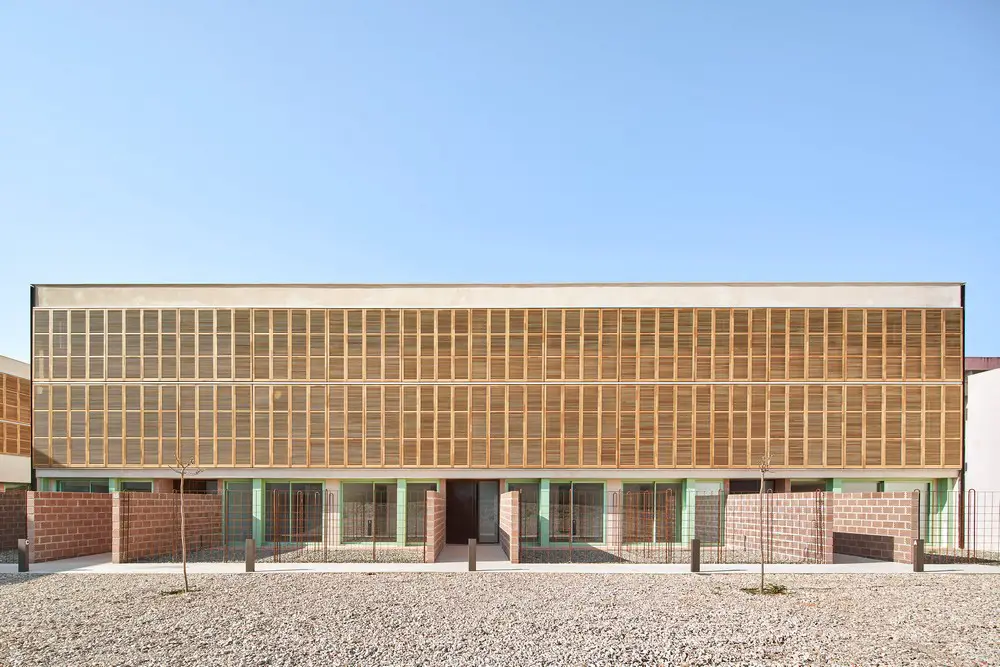

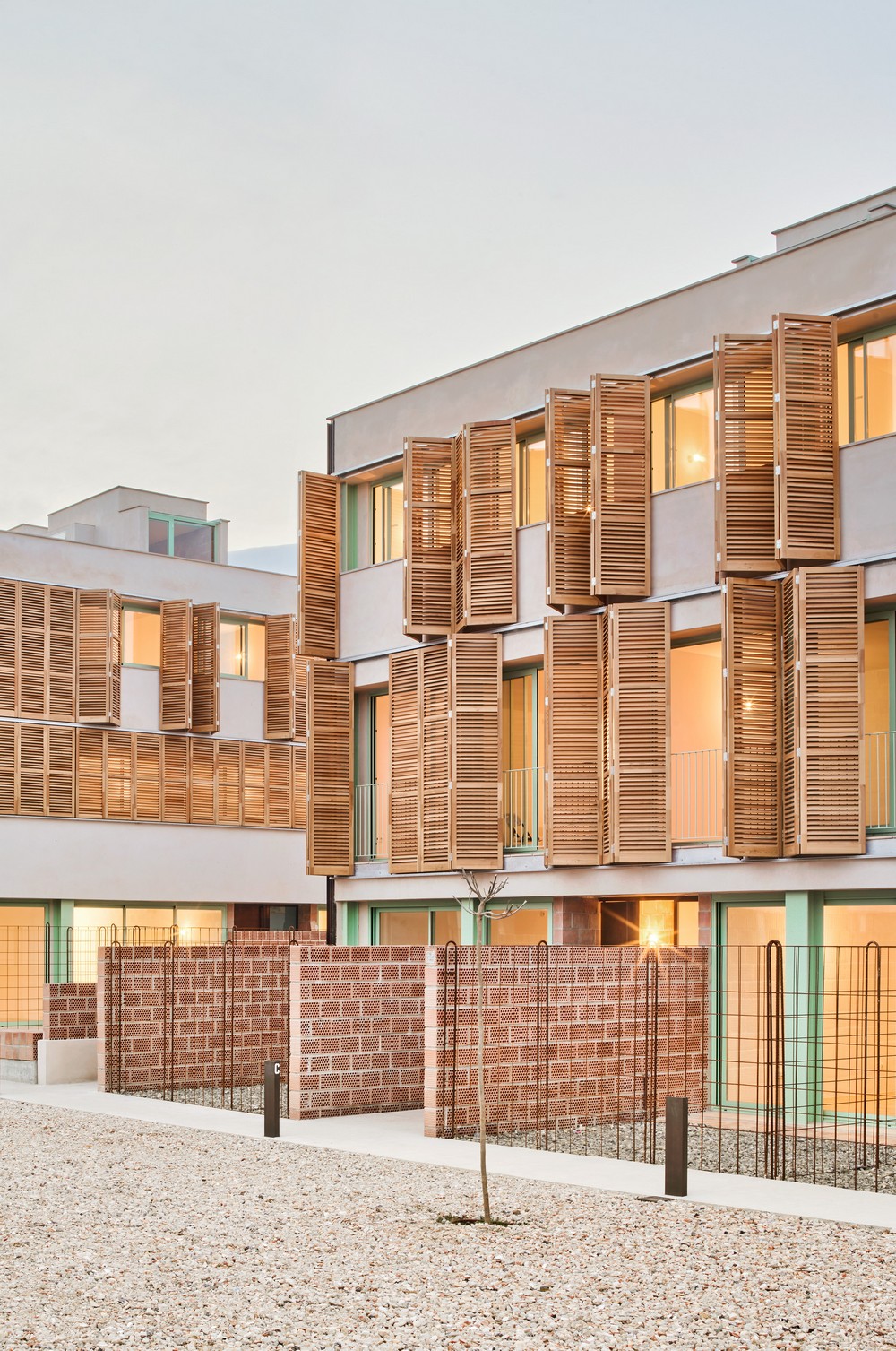

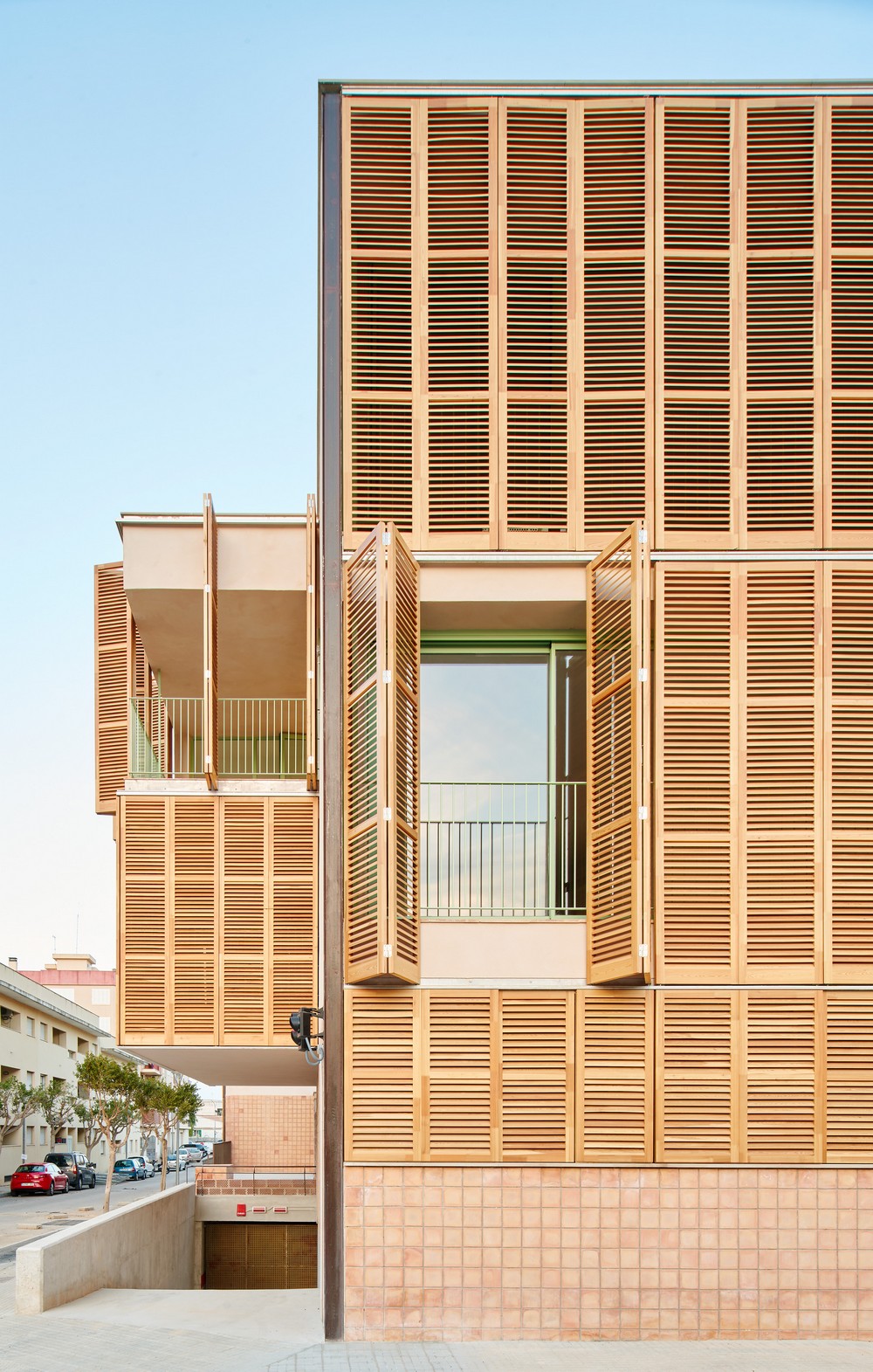

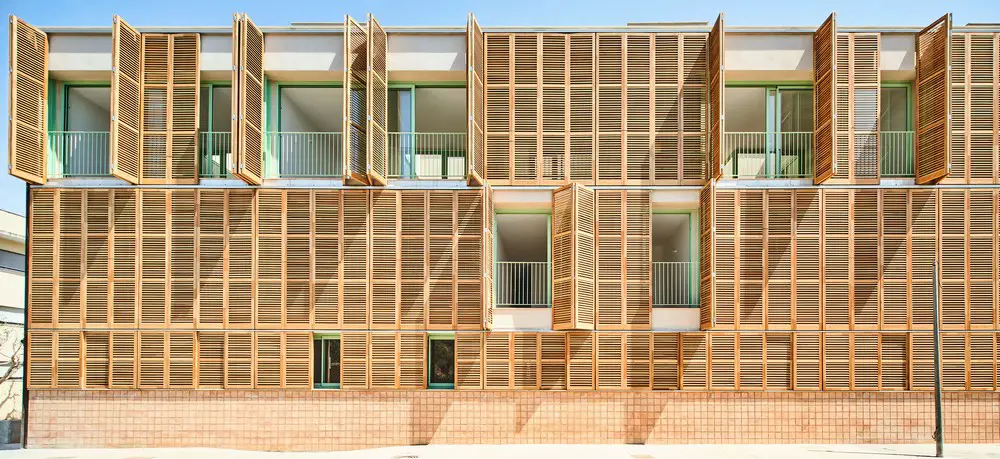

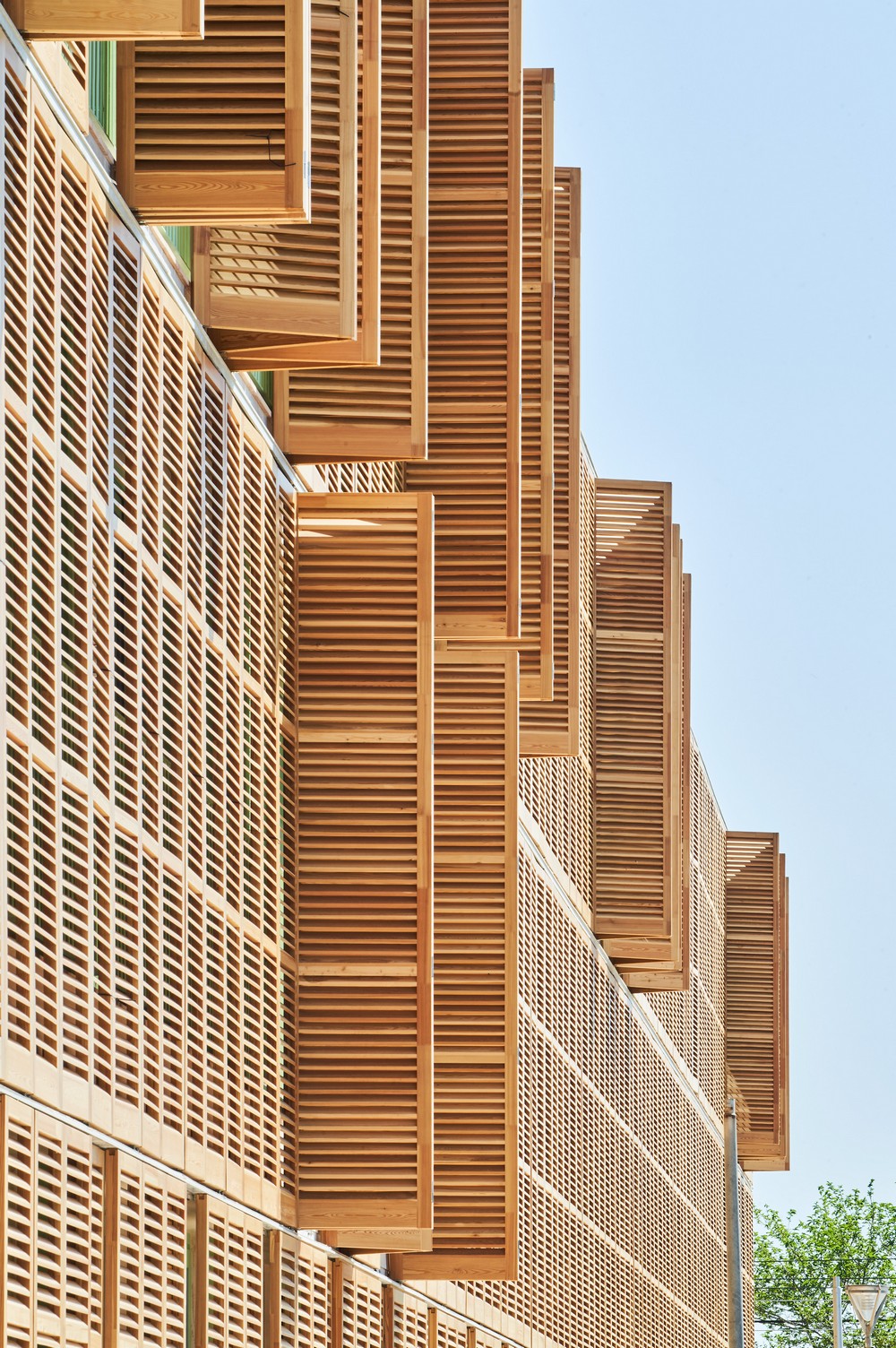

The façade layers are resolved by means of a double local ceramic sheet with recycled cotton insulation in the chamber and externally the envelope is resolved with external insulation using sprayed cork and coarse lime, on top of which is a layer of fine lime with natural pigments. The exterior carpentry is made of aluminium with a thermal break and the solar protections are made of Larch wood, certified from sustainable extraction.

Public Protection Housing Inca Mallorca Public Protection Housing Inca Mallorca

The Roofs are flat and are solved by means of an inverted insulation and waterproofing system and recycled gravel. Above these are the photovoltaic panels, aerothermal and recovery equipment, and ventilation ducts.

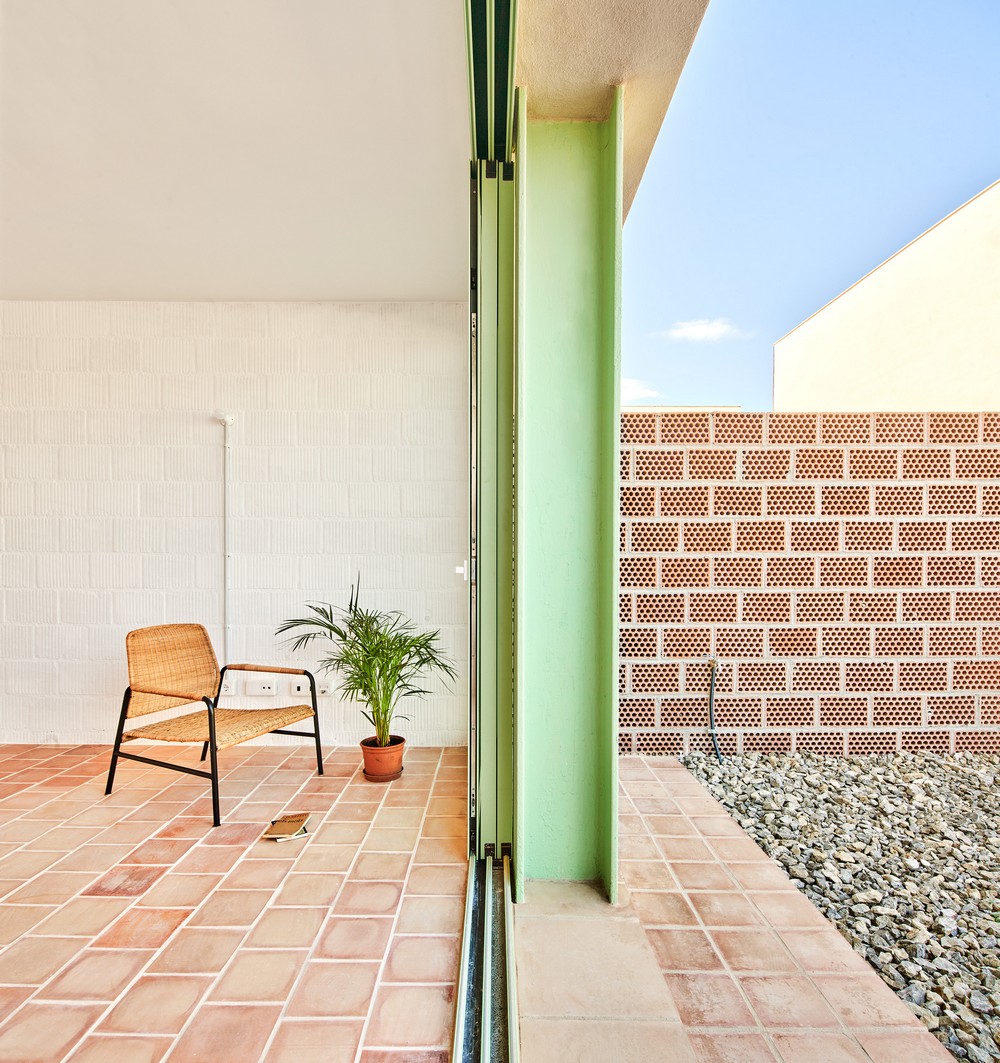

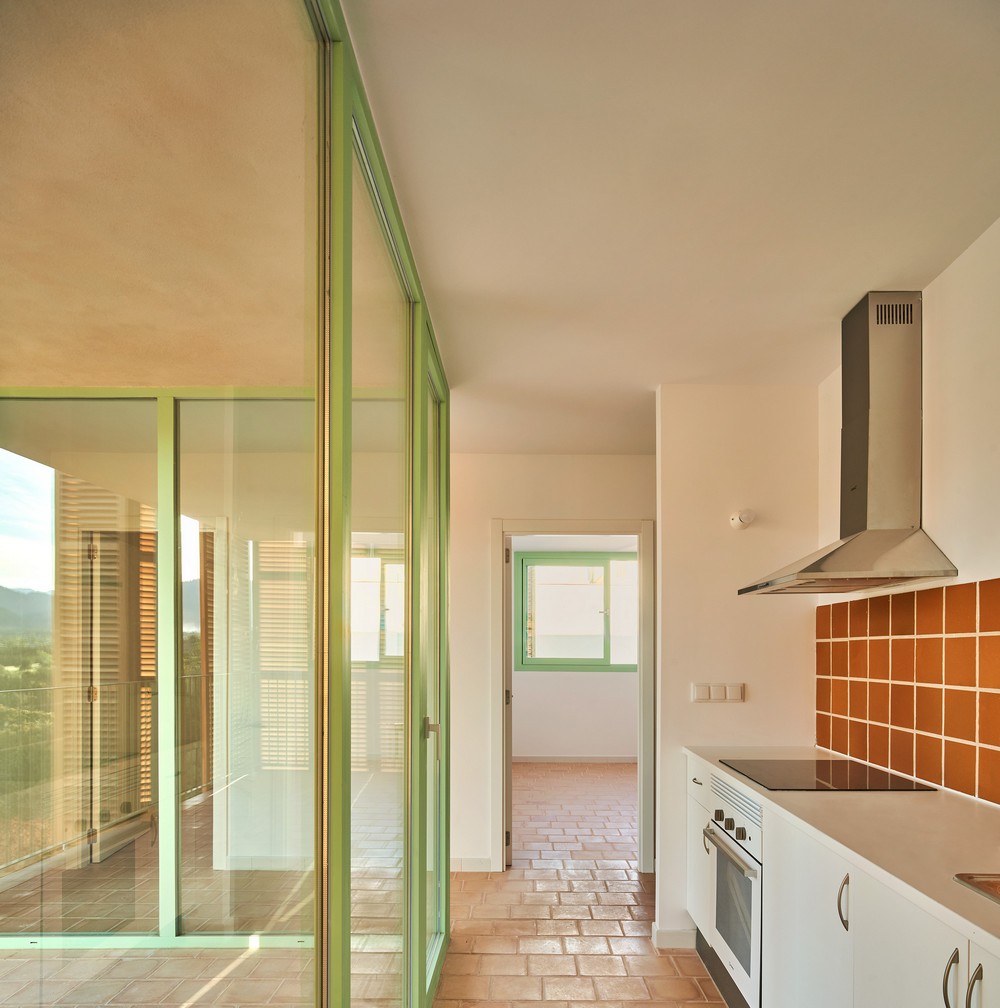

The interior pavements are ceramic local clay “cocked” with biomass. We have reduced the areal facilities on the bathroom areas there is the only ceiling.

Public Protection Housing Inca Mallorca Public Protection Housing Mallorca Spain

The ACS is produced thanks to a “NUOS” Aerothermal system with very low consumption and great performance. The ventilation of the houses is solved by means of heat recuperators that temper the air thanks to community Aerothermal systems.

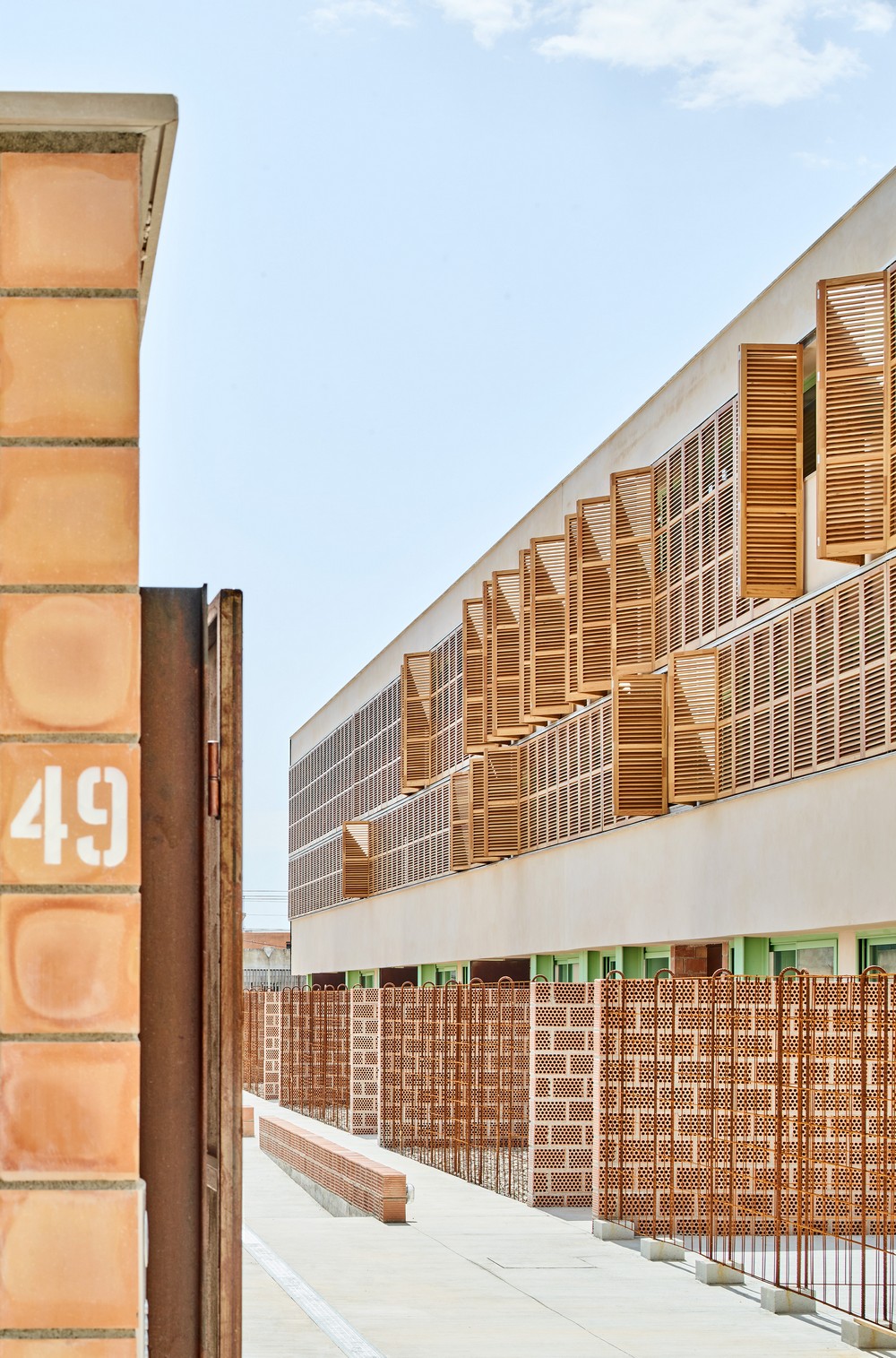

The community spaces on the ground floor have strictly solved the circulations with a concrete floor and the entirety of the space by means of some draining gravel pavements that allow the natural permeability of the ground water, allowing natural flow to the subsoil. Some “Jacarandas” will protect from the sun and accompany the circulation through this community space.

Public Protection Housing Inca Balearic Islands

Public Protection Housing in Mallorca, Spain – Building Information

Project number: 54 Public Protection Housing in Inca, Balearic Islands
Architecture office: Joan Josep Fortuny Giró – https://jjfortuny.com/ and Alventosa Morell Arquitectes – https://www.alventosamorell.com/
Social networks: @jjfortuny_arquitectura / @alventosamorell
Contact email: [email protected] / [email protected]
Office location (City, Country): Palma de Mallorca / Barcelona

Construction completion year: 2022
Constructed area (m2): 4,633.60m2 of above ground housing and 1,746.90m2 of garage in the basement
Location: C/ CANONGE SEBASTIA GARCIAS PALOU nº 54, INCA. BALEARIC ISLANDS
Program: 54 social protection housing and parking.

Architects in charge: Joan Josep Fortuny Giró + Xavier Morell + Marc Alventosa

Public Protection Housing Inca Mallorca

Créditos fotógrafo: José Hevia – https://www.josehevia.es/es/
E-mail fotógrafo: [email protected]

54 Public Protection Housing, Inca, Balearic Islands images / information received 060223 from Joan Josep Fortuny Giró / Alventosa Morell Arquitectes

Location: Inca, Mallorca, Balearic Islands, southern Spain

New Mallorca Houses

Contemporary Mallorca Homes

Project Gomila, El Terreno, Palma, Mallorca
Design: MVRDV with GRAS Reynés Arquitectos
Project Gomila, Palma de Mallorca
photo © Daria Scagliola
Project Gomila, Palma de Mallorca Buildings

Son Fogueró Retreat, Palma, Mallorca
Design: David Jofra
Son Fogueró Retreat Mallorca Spain
photo : Mauricio Fuertes
Son Fogueró Retreat, Mallorca

Casa Mallorca
Architect: herrerosarquitectos
Casa Mallorca
photo : José Hevia
Casa Mallorca

Casa Bauzà
Design: Miquel Àngel Lacomba
House Bauzà Mallorca
photo : Miquel Lacomba
Casa Bauzà

Bora Headquarters
Architects & Interior Architects: SAOTA
Bora Headquarters on Mallorca
photograph : Adam Letch
Bora Headquarters Mallorca

Villa Zamora + Villa Bonanova, Mallorca
Design: CMV Architects
Villas Isla de Mallorca

Villa Gonzalo, Valldemossa & Villa London, Llucmajor
Architect: CMV architects
Villas in Mallorca

Balearic Islands Buildings

MVRDV Buildings

New Spanish Houses

Contemporary Spanish Houses

Spanish Houses

Casa Unifamiliar MJ, La Cerdera, Lleida, Catalonia, Northern Spain – near Andorra
Design: Alventosa Morell Arquitectes
MJ House La Cerdera Spain
photo © Eugeni Pons
MJ House in La Cerdera, Province of Lleida

Oslo Residence, Alicante, Costa Blanca, southeastern Spain
Architects: Ramón Esteve
New House in Alicante
photography : Mariela Apollonio
The Oslo House in Alicante

Architecture in Spain

Spanish Architecture Designs – chronological list

Spanish Architecture – Selection

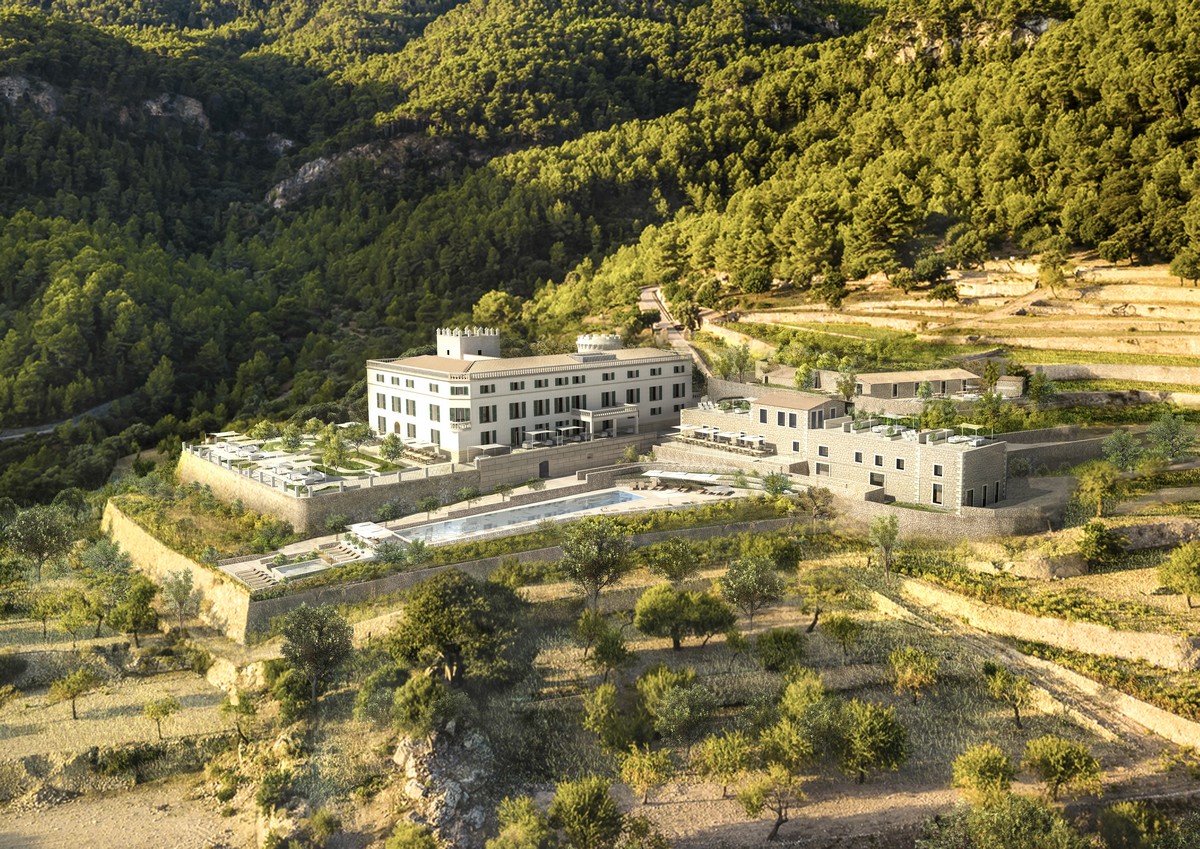

Virgin Limited Edition, Son Bunyola Estate, Tramuntana region, Mallorca
