Tyvek FireCurb Membrane, DuPont Building Product Design News, Museum of Fire Poland

Tyvek FireCurb Membrane

DuPont Building Products News – Flame and Fire Resistant Product

27 Mar 2015

DuPont™ Tyvek® FireCurb™ advanced breather membrane contributes to safety at the prestigious new Museum of Fire in Poland

A poetic specification: Tyvek FireCurb membrane protects a new Museum of Fire

Tyvek FireCurb Membrane Product

The historic town of Zory in Poland has an interesting relationship with fire – its name is associated with the Polish words for flames and burning (after an older settlement and forest on the site was cleared in this way) and the city has suffered the devastating effects of numerous conflagrations over the centuries. Thus when the town’s development and tourism body “Nowe Miasto Sp. z o.o.” decided to create a new cultural and educational facility, the concept for a pavilion inspired by fire took hold, and OVO Grabczewscy Architects from Katowice were commissioned to realise this idea.

Naturally the construction of a new public building demanded the highest standards of both safety and sustainability and as part of the more traditional specifications of reinforced concrete and steel, the flame-retardant advanced breather membrane DuPont™ Tyvek® FireCurb™ was installed behind the structure’s gleaming, flame-like copper façade.

Tyvek FireCurb Membrane Museum of Fire in Zory

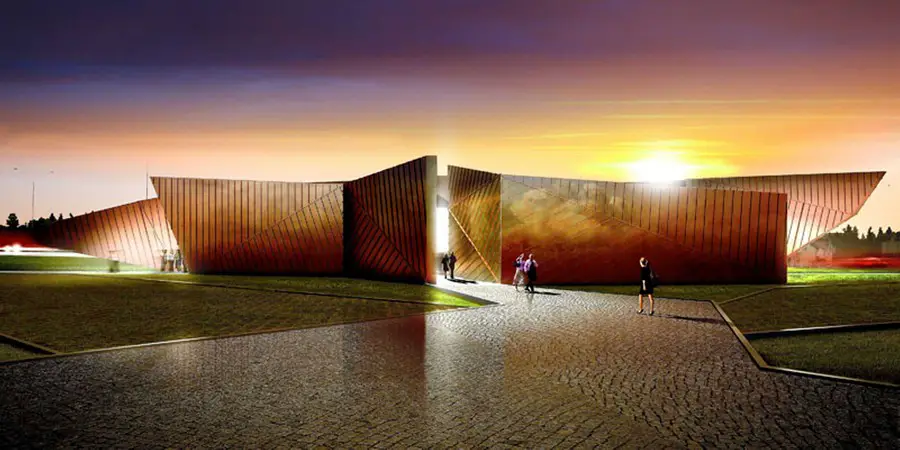

The Museum of Fire in Zory, Poland. Project: OVO Grabczewscy Architekci. Rendering: OVO Grąbczewscy Architekci. All rights reserved.

The strikingly angular building has levels both below and above ground: the lower level houses an interactive exhibition facility covering an area of 394 square metres, while at ground level there is a range of conferencing, seminar and theatre facilities over an area of 250 square meters.

Oskar Grabczewski of OVO Grabczewscy Architects comments on the plan: “This project seemed almost perfect initially – a great location situated prominently on the main road into town and no restrictions to either form or function. In other words – complete design freedom. Construction, however, proved to be much more challenging than originally hoped as the location concealed some unpleasant surprises. Sewage systems, storm water drains and a gas pipeline intersected the area.”

“In addition,” Oskar explains, “geotechnical studies revealed that there had once been a garbage dump on the site, which in effect disqualified the land for new building. However, after considering all options, including various configurations for the foundations, the decision was made to fully excavate the available ground directly under the planned building.”

On the plus side, the required excavation resulted in an increased potential volume for the project, at which point the investors and developers, Nowe Miasto, decided to create the ‘Museum of Fire’ exhibit in the basement – a multimedia space dedicated to both the city of Zory, and this fascinating element in all its aspects.

Tyvek FireCurb Membrane

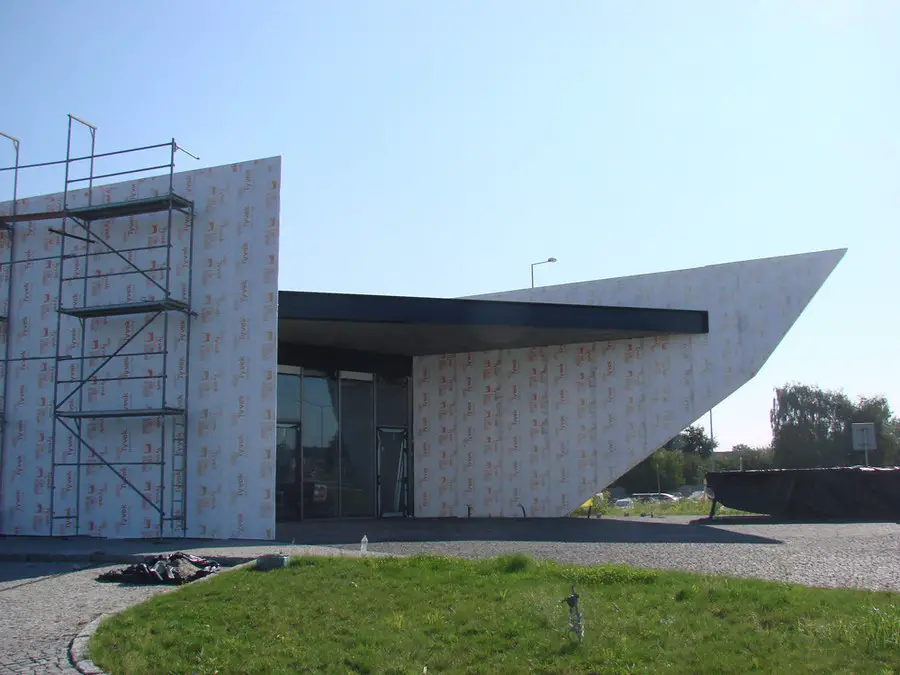

Construction of Museum of Fire in Zory, Poland, with installation of DuPont™ Tyvek® FireCurb™ membranes. Project: OVO Grabczewscy Architekci. Contractor: Voyage Sp. z o.o. Photo: Voyage Sp. z o.o. All rights reserved.

Inspired by this concept (and influenced by the angular restrictions of the footprint), the shape of the building became a creative interpretation of fire – a copper-clad structure reminiscent of leaping flames. The load-bearing walls are built from reinforced concrete, the ceilings are fitted with thermal acoustic panels, and the roof sections are supported by reinforced steel joists. The exterior copper facade benefits from a special new coating (supplied with a 10-year warranty) which will protect against the normal patination one would expect with the metal, and so its gleaming relationship with the light looks set to last

The issue of meeting local and EU fire regulations (clearly, both a legal and thematic imperative!) were solved with the consultation of fire safety experts. Thus a waterproof plywood panel system was coated with a flame retardant lacquer and then fitted with 1250 square metres of the pioneering flame-retardant breather membrane, DuPont™ Tyvek® FireCurb™. For an institution dedicated to educating the public about fire, while also exploring new technologies for fire safety, it is particularly fitting that such an innovative product has played a significant role in its construction.

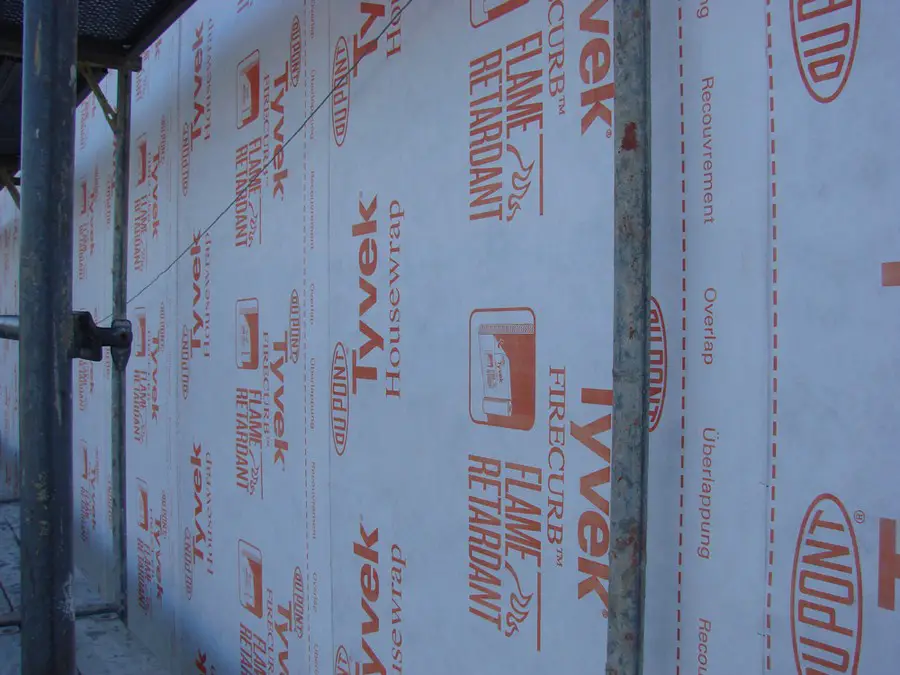

Museum of Fire in Zory, Poland:
Tyvek FireCurb Membrane
photo : Voyage Sp. z o.o. All rights reserved.

Rather than use halogens, the technology to produce DuPont™ Tyvek® FireCurb™ employs a phosphorous-based agent that forms a ‘char’ layer at the surface when it is in contact with an ignition source. This thin layer of carbonized polymer is highly flame retardant and forms a barrier, slowing the release of flammable materials. Starved of fuel, the flame spreads over the membrane more slowly or not at all – and if the membrane does ultimately catch fire, it produces less smoke. Rigorously tested, DuPont™ Tyvek® FireCurb™ Housewrap has a fire rating of class B-s1,d0 according to EN13501-1.

The design of the building posed considerable challenges, its irregular shape and lack of right angles in particular. The interior therefore features many custom made solutions, including broken stretch ceilings, a solid copper reception desk and a geometrically articulated main staircase. The biggest challenge, however, was the installation of the buildings’ crowning feature, the shining copper façade – behind which DuPont™ Tyvek® FireCurb™ is set to perform and protect for the long-term, something upon which the team of architects, developers, contractors and the city of Zory itself can confidently rely.

About the Museum of Fire – The Museum of Fire in Zory, Poland is a unique facility in which an interactive exhibition allows visitors to learn about fire, from prehistory to the present and expectations of the future, via direct engagement. The exhibition consists of scenographic design elements, such as prehistoric caves, and includes presentation texts, photography and diagrams, plus multimedia installations such as large-scale video projections and interactive touch-screen applications. The main functions of the Museum of Fire are both entertainment and education, while also offering meeting and workshop facilities to businesses and institutions.

Tyvek FireCurb Membrane
The Museum of Fire in Zory. Project: OVO Grabczewscy Architekci.Rendering: OVO Grąbczewscy Architekci. All rights reserved on image.

About Nowe Miasto Sp. z o.o. – (http://www.nowemiasto.zory.pl/) The organisation was founded in August 2009 to stimulate development, entrepreneurship, tourism and recreation, thereby enhancing the town of Zory for both residents, commerce and new businesses. The company is fully owned by the city of Zory.

About Voyage Sp. z o.o. – http://www.voyage-zory.pl/

About OVO Grabczewscy Architekci – The Museum of fire was designed by architects Barbara and Oskar Grabczewscy, from the practice based Katowice, Poland. OVO Studio Grabczewscy has won multiple awards including the SARP Award 2006 for the best project implementation in Poland, the EUROPE 40 UNDER 40 award in 2009, distinction at the International Biennial of Architects LEONARDO 2009 and was a finalist for LIVING IN ARCHITECTURE 2012. (http://www.facebook.com/OvoGrabczewscyArchitekci/info?tab=page_info)

To learn more about DuPont™ Tyvek® FireCurb™ technology, please visit: www.FlameRetardant.tyvek.com

About DuPont™ Tyvek® (www.tyvek.pl) – Invented by the research and development laboratories of DuPont in the late ‘60s as a premium material for personal protection and packaging, DuPont™ Tyvek® is manufactured using a unique, proprietary technology, and has, over time been discovered and developed as ideally suited to a variety of further applications and markets. Around 1990, it was first adopted as a breather and water proof membrane for roofs and walls for building construction in certain countries in Europe.

Between 1990 and 1995, it was introduced to the Nordic Countries (Scandinavia), Switzerland, Germany and then to the United Kingdom. Today, DuPont™ Tyvek® is marketed in 35 countries in the Europe Middle East and Africa region, in addition to the USA, Canada and many other countries in the other regions. In 2005, the entire range of DuPont™ Tyvek® membranes achieved CE certification, the first to do so in the building membrane market.

About DuPont Building Innovations – DuPont™ Tyvek® is a product of DuPont Building Innovations. From innovative energy-saving systems to beautiful and long-lasting surfacing solutions, the extensive offering of DuPont Building Innovations delivers safety, durability, beauty and energy efficiency, providing a major contribution to the modern built environment – across the spectrum of building and architecture, roads, bridges and other infrastructure, and also for landscaping and gardens, as well as for the preservation or the renovation of contemporary and historical constructions.

The main products and brands managed by DuPont Building Innovations are DuPont™ Corian® (www.corian.com), DuPont™ Tyvek® and DuPont™ AirGuard® (www.construction.tyvek.com), DuPont™ Energain® (www.energain.co.uk), DuPont™ Typar® (www.typargeo.com) and DuPont™ Plantex® (www.plantexpro.dupont.com).

About DuPont – DuPont (NYSE: DD; www.dupont.com) has been bringing world-class science and engineering to the global marketplace in the form of innovative products, materials, and services since 1802. The company believes that by collaborating with customers, governments, non-governmental organizations, and thought leaders we can help find solutions to such global challenges as providing enough healthy food for people everywhere, decreasing dependence on fossil fuels, and protecting life and the environment.
