Louvre Museum Visconti Courtyard

Islamic Arts Wing, Paris, France, design by Architects Rudy Ricciotti / Mario Bellini

21 Sep 2012

Musée du Louvre – Pyramide, Paris Ie

New Islamic Arts Wing

Location: Paris Ie, France

Design: Architects Rudy Ricciotti and Mario Bellini

Lafarge Concrete Is The Perfect Match For Architectural Daring At The Louvre Museum In Paris, France

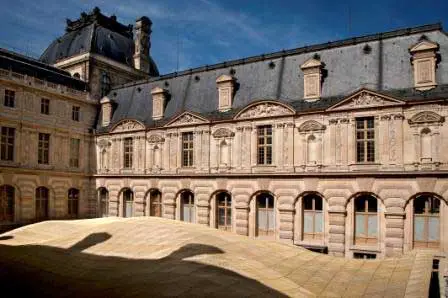

Louvre Museum Visconti Courtyard Islamic Arts Wing Paris
photograph © R. Ricciotti – M. Bellini/Musée du Louvre © Lisa Ricciotti

Louvre Museum Visconti Courtyard – Islamic Arts Wing

A new cutting-edge architectural structure is to open to the public after five years of construction work; designed to showcase the museum’s treasures of Islamic art, the new project is located in the Visconti courtyard, at the very centre of the Louvre. Lafarge has worked in close partnership with the architects to supply the most appropriate materials for the structure, hailed as the most significant museum expansion project since the Louvre’s great Pyramid.

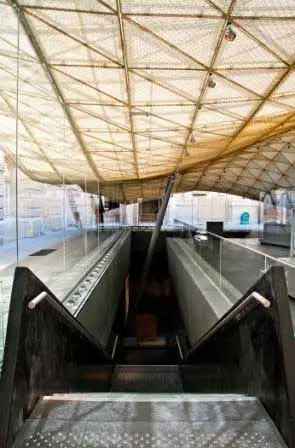

Louvre Museum Visconti Courtyard Islamic Arts Wing Paris
photograph © R. Ricciotti – M. Bellini/Musée du Louvre © Lisa Ricciotti

Lafarge’s CEO Mr Bruno Lafont comments:
“We are delighted to be involved in the new Islamic Arts wing; the wealth and diversity of culture in the treasures it showcases are a perfect reflection of Lafarge values. Architects Rudy Ricciotti and Mario Bellini have succeeded in creating a contemporary structure which enhances the cultural heritage surrounding it.

The new wing is a genuine architectural feat, owed to the innovative use of concrete. The staircase which links the two exhibition levels, constructed in a single pouring of black concrete, is a particular achievement, both from an artistic and a technical point of view. “

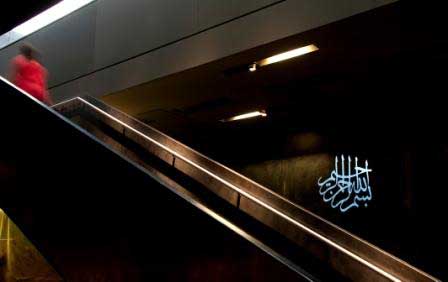

Louvre Museum Visconti Courtyard Islamic Arts Wing Paris
photo © R. Ricciotti – M. Bellini/Musée du Louvre © Lisa Ricciotti

Concrete as the Material of choice, for its structural and aethetic qualities

Concrete has been used throughout this project, in perfect harmony with the stone of the Louvre.

· All walls are entirely coated in a 6cm deep Agilia® black concrete facing, thus adding depth to the space and providing a better backdrop for the collection.
· Also in black concrete is the monumental 16 metre long staircase linking the lower ground and ground floor levels. As well as enhancing the smooth flow of the space, the monolithic staircase is a work of art in itself. Its construction presented a technical challenge: the selfplacing qualities of Lafarge Agilia® concrete enabled it to be injected from the base in one single pouring.
· Agilia® was also used for the 12 columns supporting the floor.
· Ductal®, Lafarge’s ultra-high performance fibre-reinforced concrete, was the material of choice for the staircase steps and risers to provide added resistance (6 to 8 times more resistant than traditional concrete).
· Ductal® was also used in the manufacture of the frame supporting the Mamluk Porch, one of the major pieces of the collection, and in the corridors which link the new space to the museum are other galleries.

Lafarge has enjoyed a close partnership with the Louvre for over 15 years and is a patron of this new wing.

– 16 months on site
– 5800 m3 of concrete supplied
– a staircase 16 m long and 13 m³ in volume
– 128 m³ of inner walls in black Agilia® concrete (equivalent to 2 140 m²)

The Louvre Pyramid:

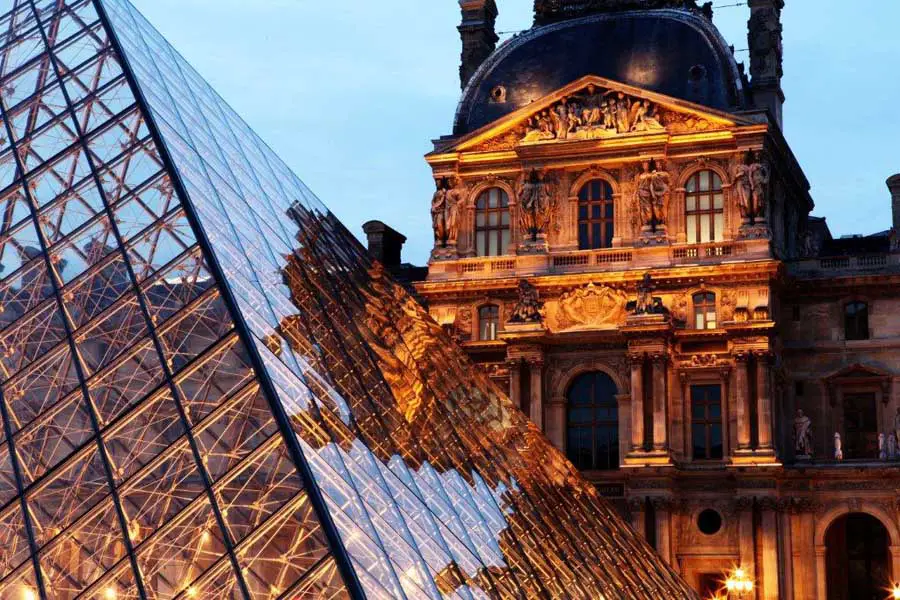

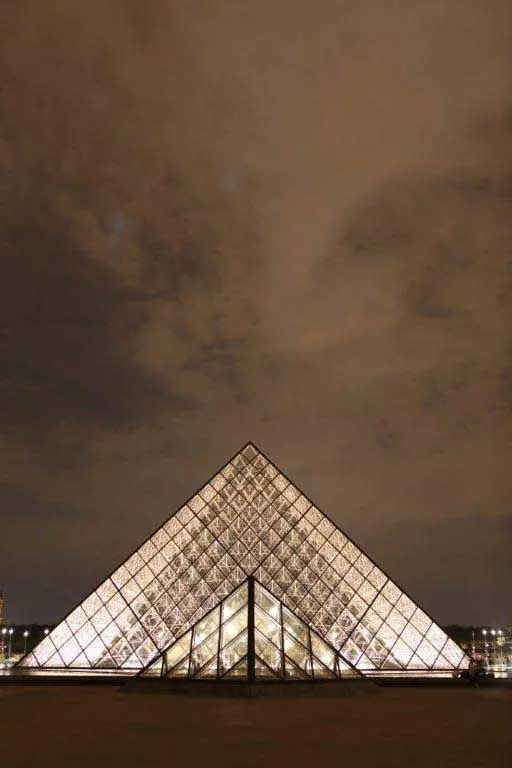

Paris Louvre Pyramid Paris Louvre Pyramid Paris Louvre Pyramid
images © Steven Powell, 2010


Lafarge is a world leader in building materials and its core businesses of Cement, Aggregates and Concrete hold top ranking positions in their respective markets. Through its network of 68 000 employees across 64 countries Lafarge is deeply committed to wider local cultural involvement.

The company invests in iconic projects at the heart of its activities, such as the renovation of the ancient Erbil Citadel in Iraq, or the restoration of Eileen Gray’s Villa in the South of France. Through its close association with the national Fondation du Patrimoine, the Group has also contributed to the safeguarding and rehabilitation of France’s unprotected rural heritage (including churches, towers, communal wash houses etc.).

Since 1995, Lafarge has been actively engaged in scientific collaboration with the Louvre, through the work its research centre carries out on materials for the benefit of heritage restoration. In the 90s, the research centre thus created an exceptionally resistant material similar to gypseous alabaster in order to create a reproduction of an Assyrian winged bull from Khorsabad housed in Chicago, which is currently on show in the Louvre.

Supported by its world leading research centre on construction materials, Lafarge focuses on innovation across its activities for the benefit of sustainable construction and architectural creativity.

Further information on the Lafarge Group and its activities is available on its website: www.lafarge.com

Louvre Museum Visconti Courtyard : Islamic Arts Wing, Paris images / information received 210912

Rudy Ricciotti Exhibition, Cite de l’architecture Show
‘Architecture is a combat sport’ – architectural article by Rebecca Breun, e-architect

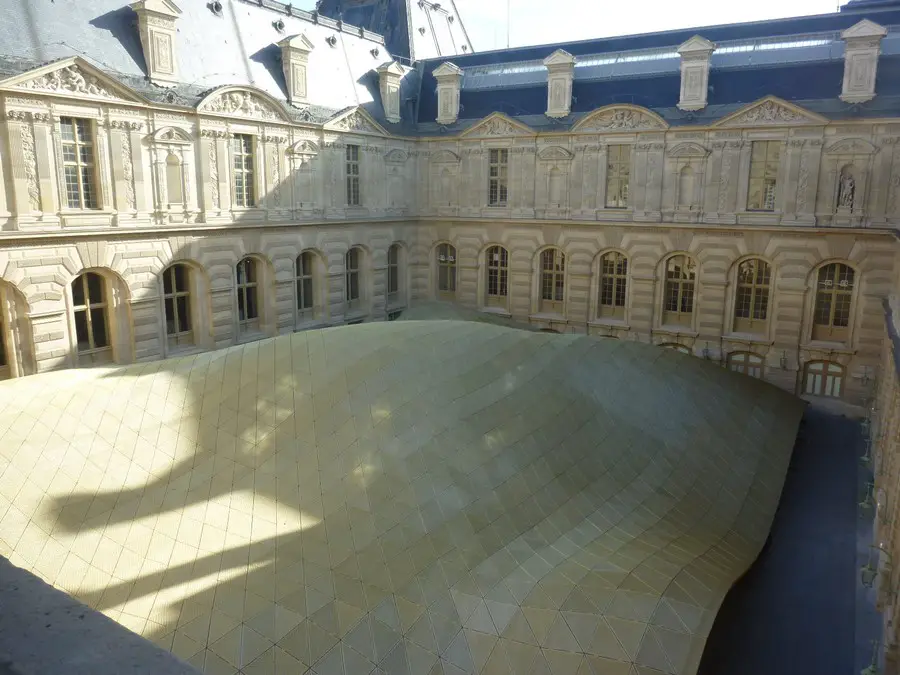

Building by Rudy Ricciotti
photo © RB
Rudy Ricciotti Exhibition Paris – 16 Apr 2013
There can be no question about it: Rudy Ricciotti is the French architect to watch at present.

Islam Arts Department Louvre Museum, Paris – new information + photos – 29 Aug 2013
Design: Architects Rudy Ricciotti and Mario Bellini

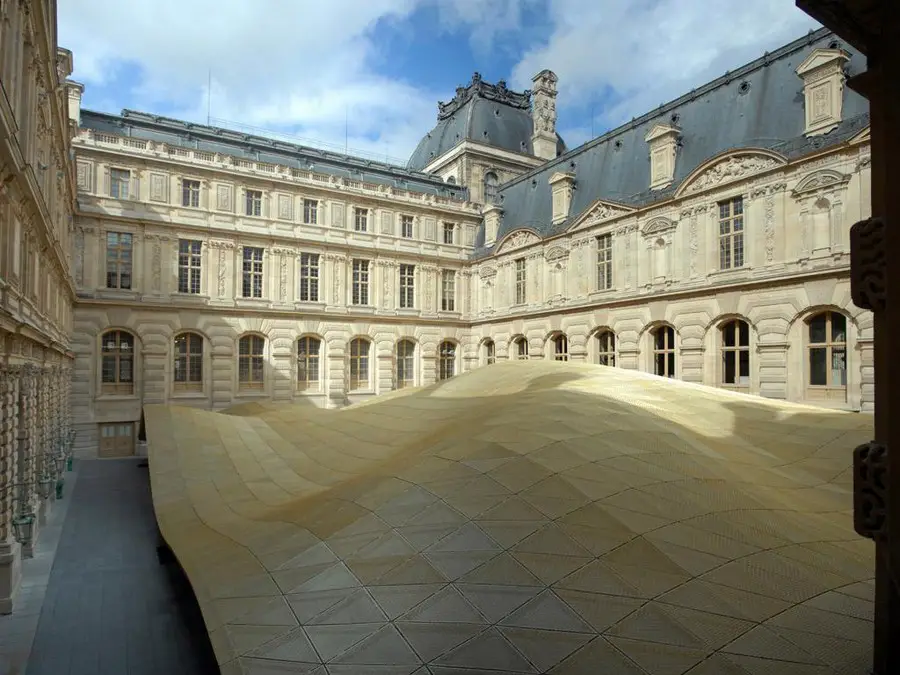

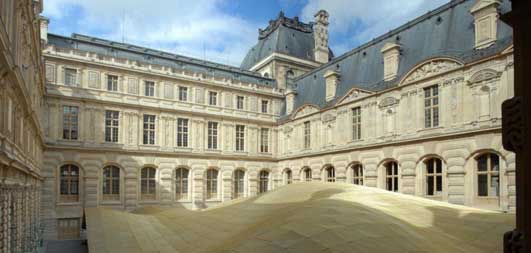

Islam Arts Department Louvre Museum
photograph : Raffaele Cipolletta
The idea of covering the Cour Visconti with a glass roof would hark back to a nineteenth-century concept for a space that, until today, has looked at the sky. We proposed the creation of a sail-like glass and metal canopy set back from the historic facades on all sides, floating over the galleries like golden, iridescent cloud that filters daylight.

Location: Musée du Louvre, Paris, France
