Living in a Park : Milanese housing design by MAB Arquitectura
14 May 2010
Living in a Park
Location: Milan, Italy
Design: MAB Arquitectura
Living in a Park, Via Gallarate – Description

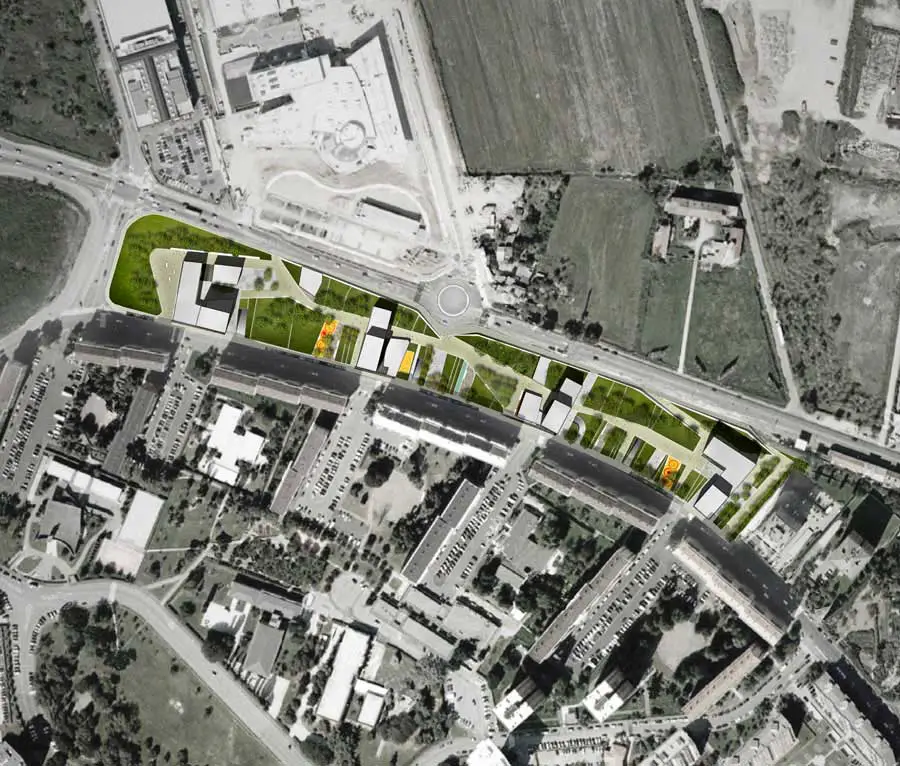

The intervention is located on a long and very narrow plot. The site face the residential neighbourhood Gallaratese on the south side and new development areas on north site and is limited by a perifery road characterized by intense car flow.
The land was fr
ee and only occupied by temporary illegal kiosks. The plot area is 36.000 sm : 3ha of park, public space and public facilities.
AIM OF THE INTERVENTION
The project consist of 184 apartments of Social Housing, services and public space.
In 2005 the City of Milan advertised an international design competition, “Living in Milan-New Urban Spaces for Public Housing Development”, with the goal of creating public housing developments. It offers an occasion for re-opening a full reflection on the public city in phisical and social terms. Our practice won the competition.
The project, focuses on one of the most relevant issues regarding the city, particularly related to social living, public dimension and community neighborhood. The main aim was to establish places of new “urbanity” in marginal areas of the city.
The project is based on a new concept of social housing,a co-habitation concept between Housing and Public Space, where the tenants can live in a pedestrian environment while supported by a strong infrastructure, commerce and public services.These services are open also to the community of the existing neighborhood and will work as social connectors beetween the new and old community.
Opened in november 2009, currently live there around 60 families of the 184 that will occupy the apartments (around 500 people). It is on process the assignment of the commercial space and services: kindergarten, socio-cultural center and day center for elders.
DESCRIPTION OF THE INTERVENTION

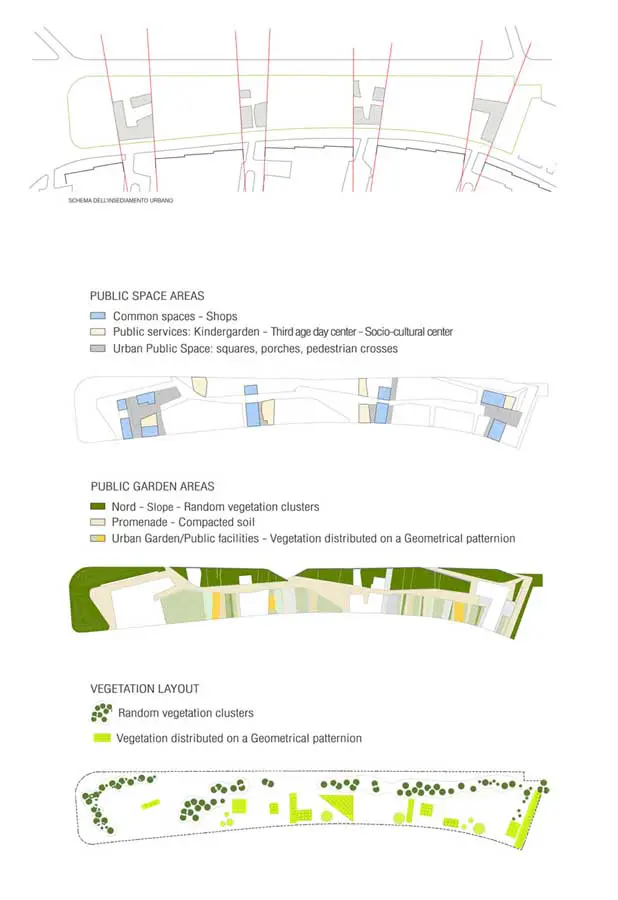

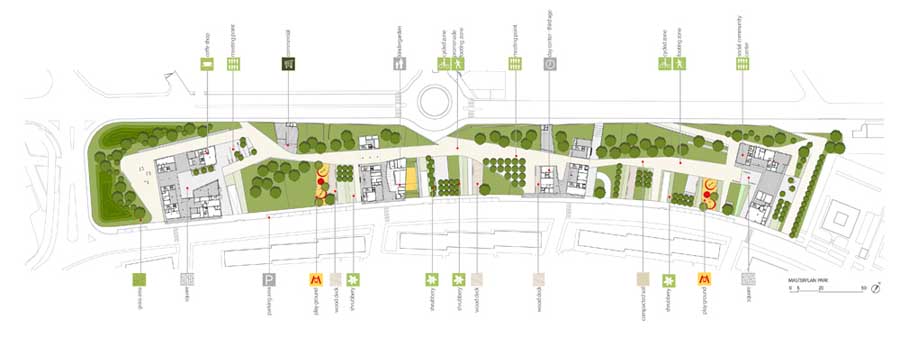

The park and the publics spaces organize the intervention. They connect building, green area and paths in a continuous and unitary project.

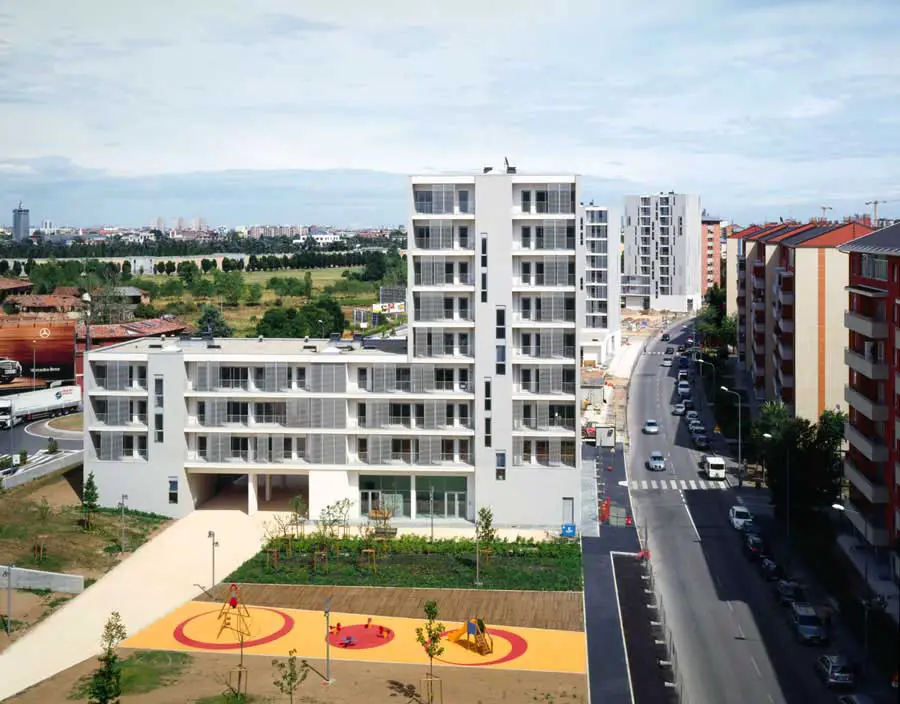

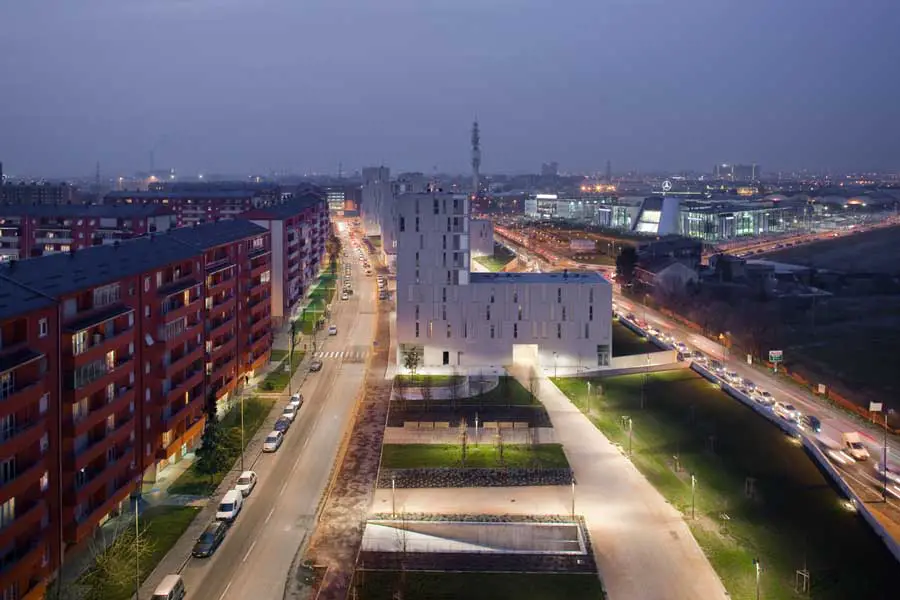

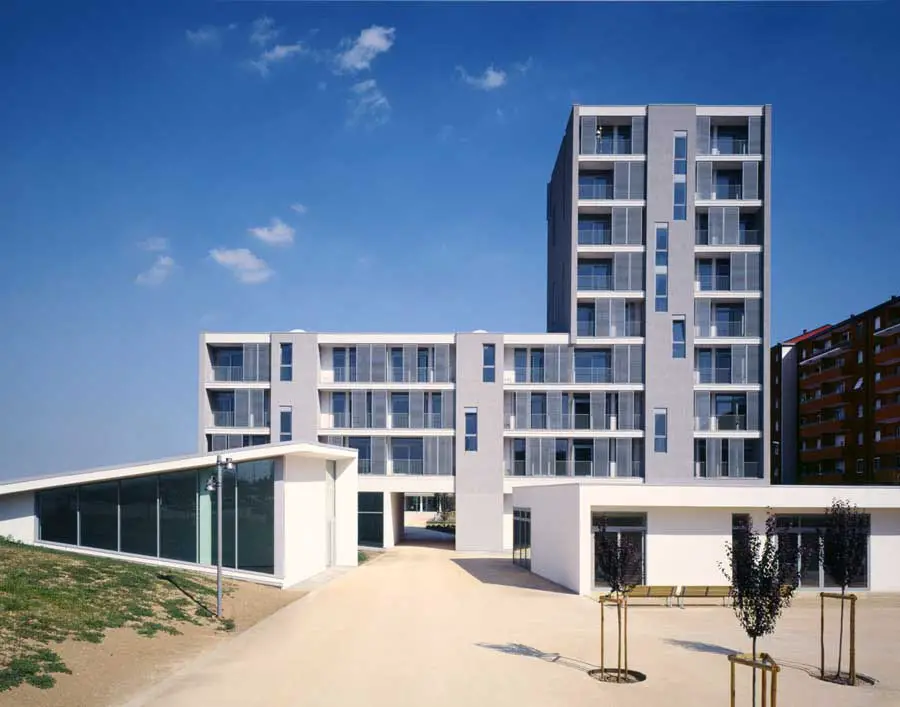

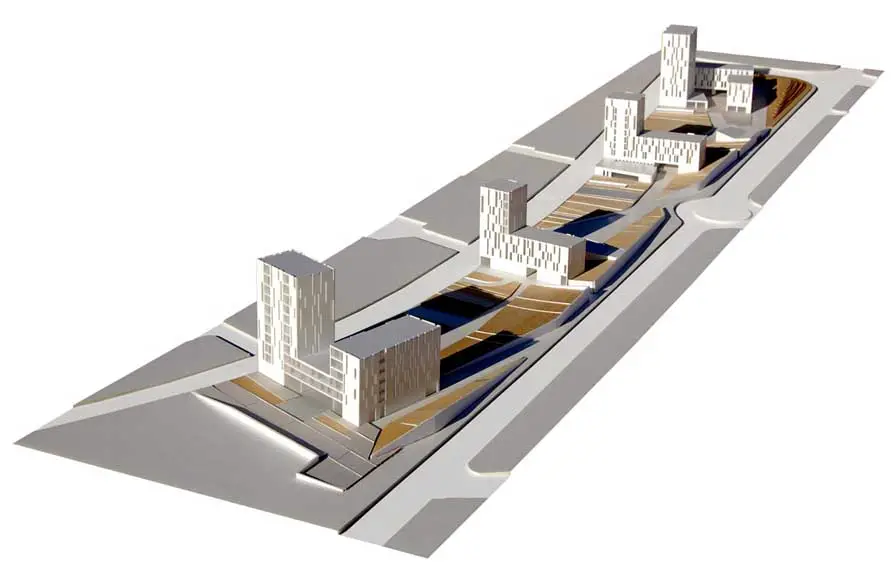

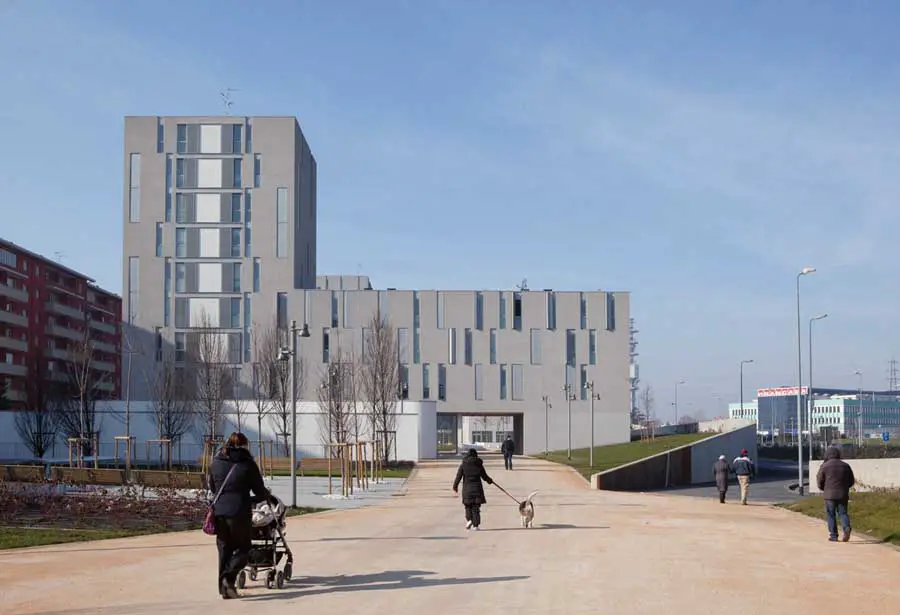

The housing blocks are aligned along the internal pedestrian path and intersect with the green slope the park becoming part of landscape. Their height vary according to the boundary conditions: low along the pedestrian walkway and up to 10 floor on the south side, facing the dense Gallaratese neighbourhood. The construction density allows an important distance between buildings, which are located in such a way as to not face onto the existing buildings on the south, on Appennini street (maximum insolation). The built volume is concentrated in only four paints leaving the rest of site area free for public use. In each point a cluster of buildings always define a sort of public plaza served by common services.

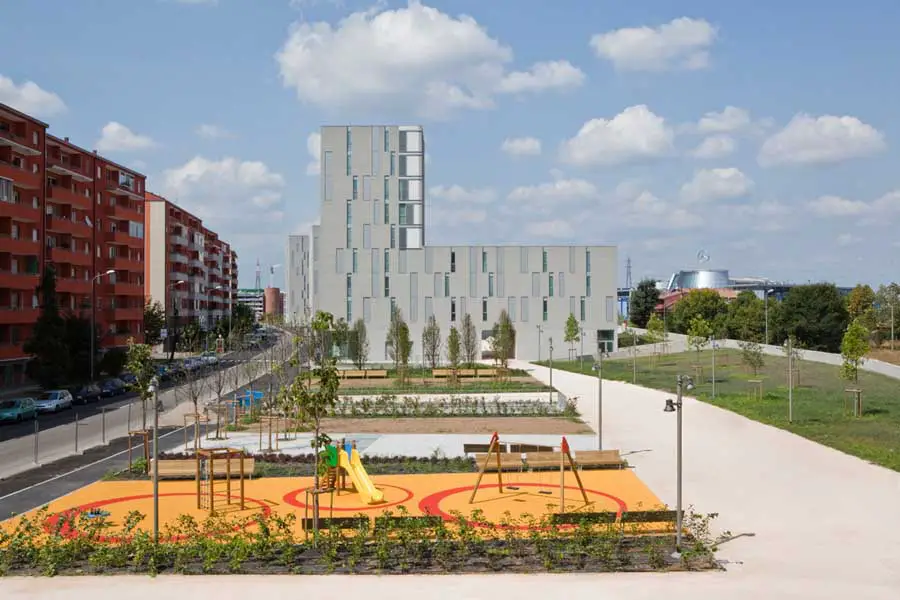

The north side of the park, the green slope, is more irregular, with tall trees, while on the south side, towards the consolidated city, the park and public spaces are more urban. This is reflected in the vegetation typology, with clusters of low trees on a geometric distribution. This side of the park hosts outfitted areas and playground islands. The treatment of the ground level with a variation of different materials – stone, wood, field, bushes, trees – creates a complexity of usage and views from the roof floor.

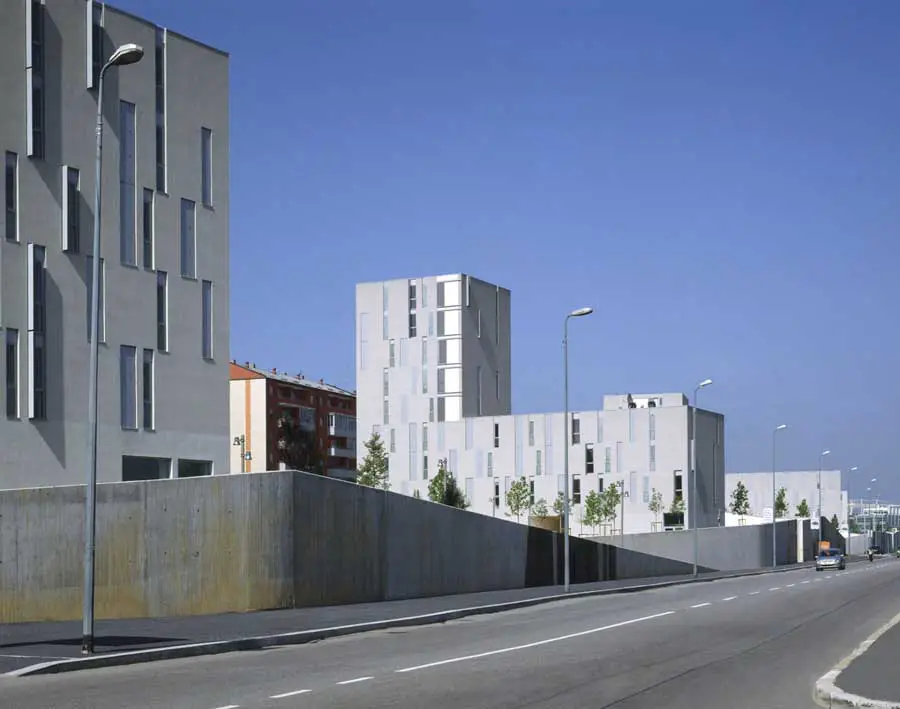

The acoustic problem and the pollution produced by the traffic of Gallarate street, is solved trough the creation of a sculptural system of wall-slope with openings and enclosures which work both as a visual connection with the rural surroundings and as a noise insulation. These elements host some public facilities as a center for elderly and a multipurpose space.
Living in a Park, Via Gallarate – Building Information
LIVING IN A PARK
SOCIAL HOUSING, PUBLIC SPACE, AND PARK IN VIA GALLARATE, MILANO, ITALY
MAB Arquitectura– Massimo Basile, Floriana Marotta
SITE: Via Gallarate, Milano, Italy
CLIENT: Comune di Milano
INTERVENTION: Social Housing, Public Space, and Park
PLOT AREA: 33.860m²
PUBLIC SPACE AREA: 30.000m2
BUILT AREA: 20.683 m2
COST: 24.500.000 €
STRUCTURAL ENGINEERING: Ing. Gabriele Salvatoni
TECHNICAL INSTALLATIONS: BETA Progetti
SECURITY: Ing. Roberto Uslenghi
PHOTO: Paolo Riolzi
Project building phase: MAB Arquitectura + BMS Progetti Srl
Living in a Park, Via Gallarate images / information from MAB Arquitectura
Location: Via Gallarate, Milan, Lombardy, northern Italy
