Celosia Madrid Sanchinarro Housing

Edificio Celosía: New Urban Housing in Spain design by MVRDV with Blanca Lleó

13 Jul 2009

Edificio Celosía

Celosia Madrid

Design: MVRDV / Blanca Lleós

Arquitectura España

MVRDV with Blanca Lleó complete Celosia Residence, Madrid

Madrid, 16 July 2009 – In Madrid-Sanchinarro the first residents received the keys to their apartments in the just completed Celosia building. Jacob van Rijs of MVRDV and Blanca Lleó have completed the social housing block near the Mirador Building, which is an earlier collaboration.

The perforated block of Celosia assembles 146 apartments, communal outside areas throughout the building, and parking and commercial program in the plinth. The total floor area is 21,550m2. With a construction cost of 12,6 million Euro the apartments can be sold for affordable prizes.

The city block is opened and allows wind and light to enter the building, offering vistas and outside spaces contrasting the surrounding area. The client is EMVS, the public housing corporation of the city of Madrid

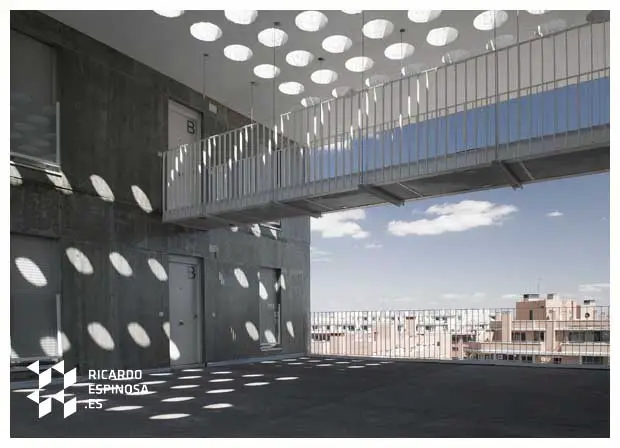

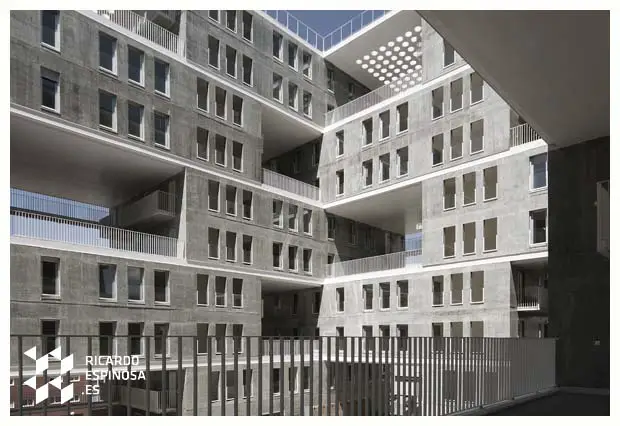

Completed building photos by Ricardo Espinosa, 13 Jul 2009:
Edificio Celosía Edificio Celosía Madrid Celosia Madrid
photos © Ricardo Espinosa

The given volume of the city block was divided into 30 small blocks of apartments. These blocks are positioned in a checkerboard pattern next to and on top of each other, leaving wide openings for communal patios throughout the building. 146 one-, two- and three-bedroom apartments are all accessed via these communal spaces.

Most apartments offer additional private outdoor space in the shape of a loggia right behind the front door. Inhabitants have the possibility to gather in the communal high-rise patios which offer views towards the city and the mountains and provide natural ventilation in summer. Opening the front doors connects the private outdoor areas to the communal area.

The façade is made of coated concrete which was from the ground floor up constructed in complete mould system, an efficient and clean way to cast concrete, keeping the construction cost to a minimum; an important asset for this social housing project. The polyurethane coating allows the façade to shimmer and reflect depending on the light condition.

All windows are floor to ceiling height and can be shielded from the sun. Each apartment has the possibility of cross ventilation through two or three facades and enjoys views through the building and to the surrounding. A system of power efficient boilers is used in the building; solar panels on the roof heat water reducing energy consumption further.

Underneath the building a parking garage on two levels provides 165 parking spaces. The ground floor offers room for 6 individual retail units.

The nearby Mirador building which was completed by MVRDV and Blanca Lleó in 2005 also discusses the traditional building block by putting it vertical. The Celosia building is horizontally arranged around the interior court but opposes the generic introverted architecture in the area by bringing light and communal space into the building allowing a perhaps more extraverted Spanish lifestyle as every apartment opens up to a small plaza.


Celosia Madrid Celosia Madrid Celosia Madrid

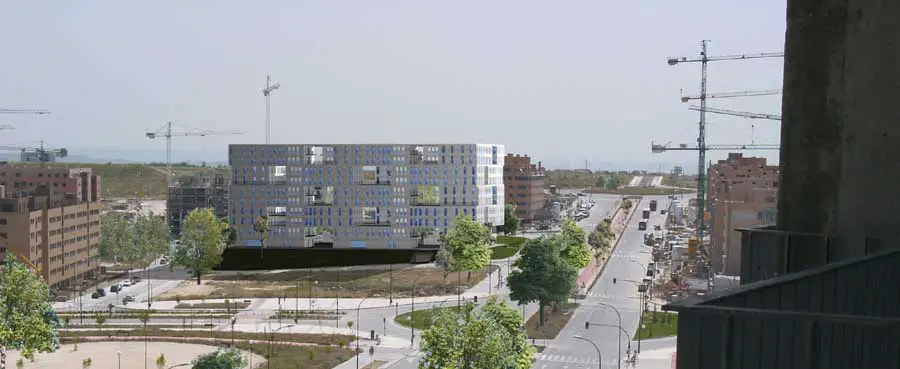

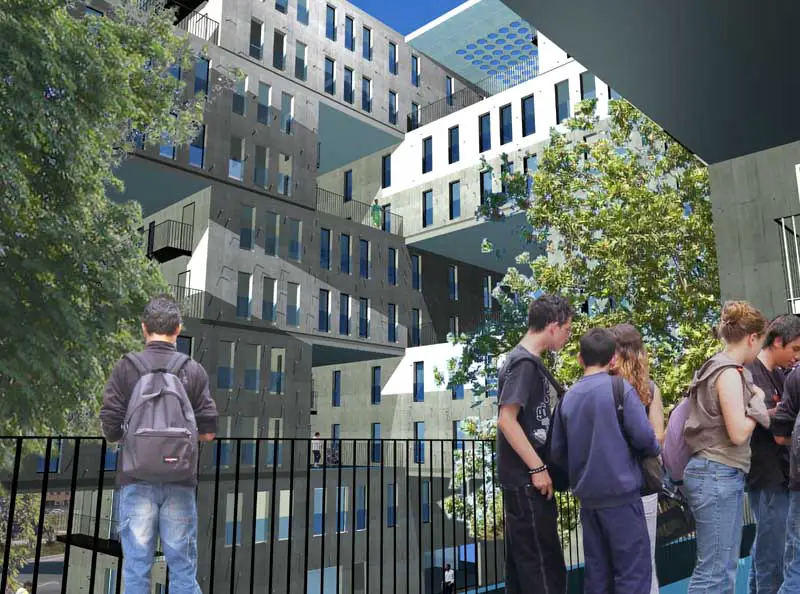

Celosia Madrid images from MVRDV

The opening of the European borders has caused a real estate boom in Spain. The value has been increased enormously, thus leading to an enormous production of housing. This operation is facilitated in Madrid by a giant new neighborhood that surrounds the old city. A series of new cities that are mainly constructed of blocks that surround a private patio, with a more or less introverted architecture with small windows, somehow opposes the extraverted Spanish culture.

In PAU de Sanchinarro, one of these new cities, situated on the northeast edge of Madrid, two plots are given to develop a possible “escape” from the uniformity and claustrophobia of this “sea of six-story-high blocks.”

Next to the Mirador housing, a second escape has been created by “opening” a given block on all levels. Blocks of eight houses are seen as separate prefabricated figures. They are positioned in a checkerboard pattern next to and on top of each other in such a way that they leave openings for communal gardens in between.

A perforated block appears, in which shadow and ventilation compensate for the strong climatic constraints. It creates views from the street through the building. It creates views from the houses to the surrounding area. It defends against the claustrophobic conditions of the existing developments.

Celosia Madrid images / information from MVRDV Architects
