Paddington Elizabeth Line Station London
24 May 2022
Design: Weston Williamson + Partners Architects
Location: Paddington, northwest London, England, UK
Paddington Elizabeth Line Station London Building by Weston Williamson + Partners revealed
Photos by Morley von Sternberg
Paddington Elizabeth Line Station Building Design
Paddington is the oldest mainline station on the Elizabeth Line, and familiar to millions of people arriving from Heathrow into London or from stations to the west. Designed by Isambard Kingdom Brunel and Digby Wyatt, Paddington is Grade I listed and an icon of Victorian railway engineering – setting the bar high for its new Elizabeth Line addition.
Weston Williamson + Partners’ Elizabeth Line station at Paddington is the culmination of over ten years’ work by the practice at the station, transforming the passenger experience by radically improving routes to and through the station, and opening up new connections. It occupies the site of the station’s former taxi rank, which was a gloomy, fume-filled canyon – difficult to access, and an unattractive and unfriendly start to travellers’ journeys in London.
In 2012 Weston Williamson + Partners used the future arrival of the Elizabeth Line as a catalyst for moving taxis to the north of the station alongside a new underground station, thereby opening up new connections with the revitalised Regent’s Canal basin, and improving pedestrian and traffic flow to and through the station.

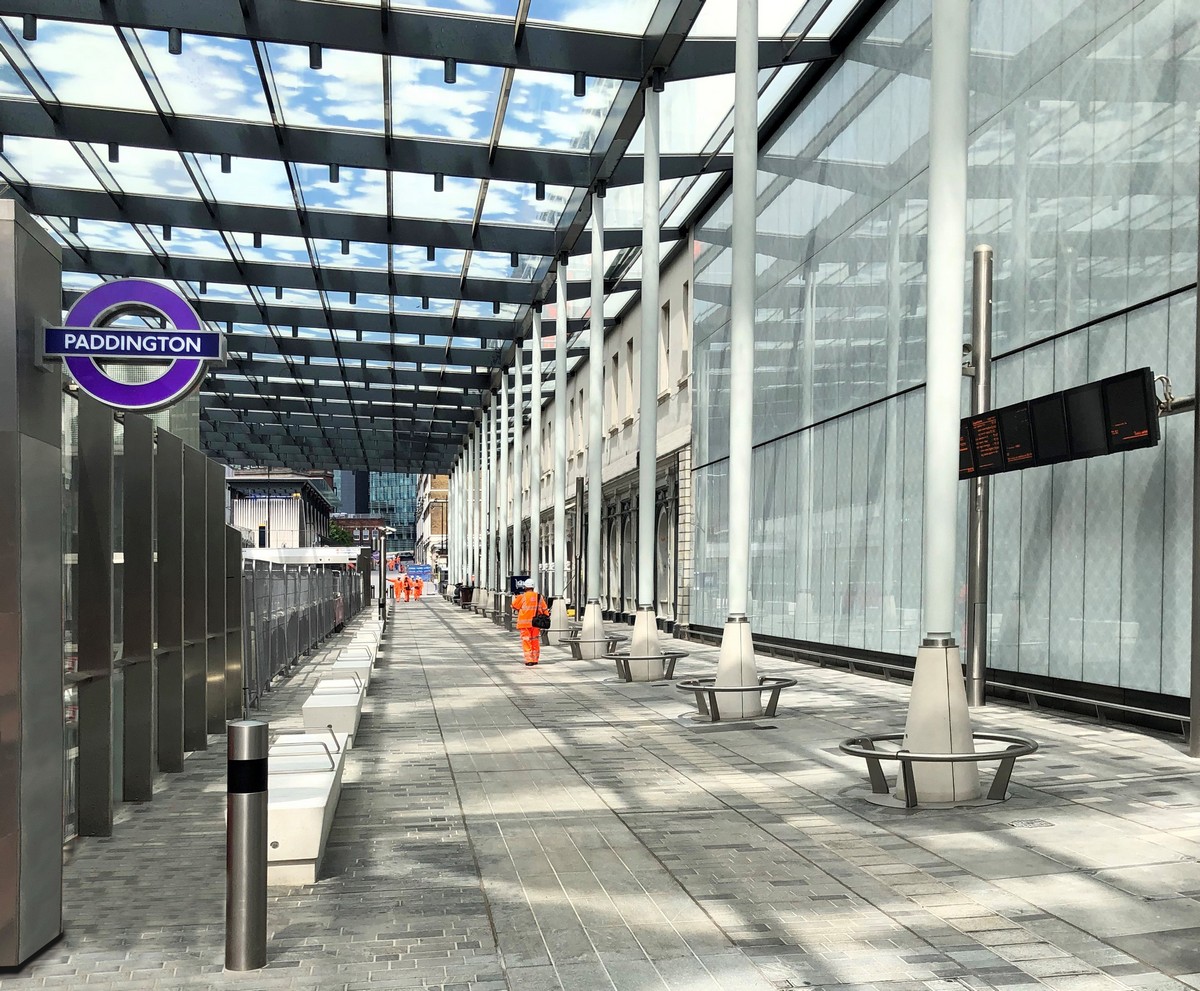

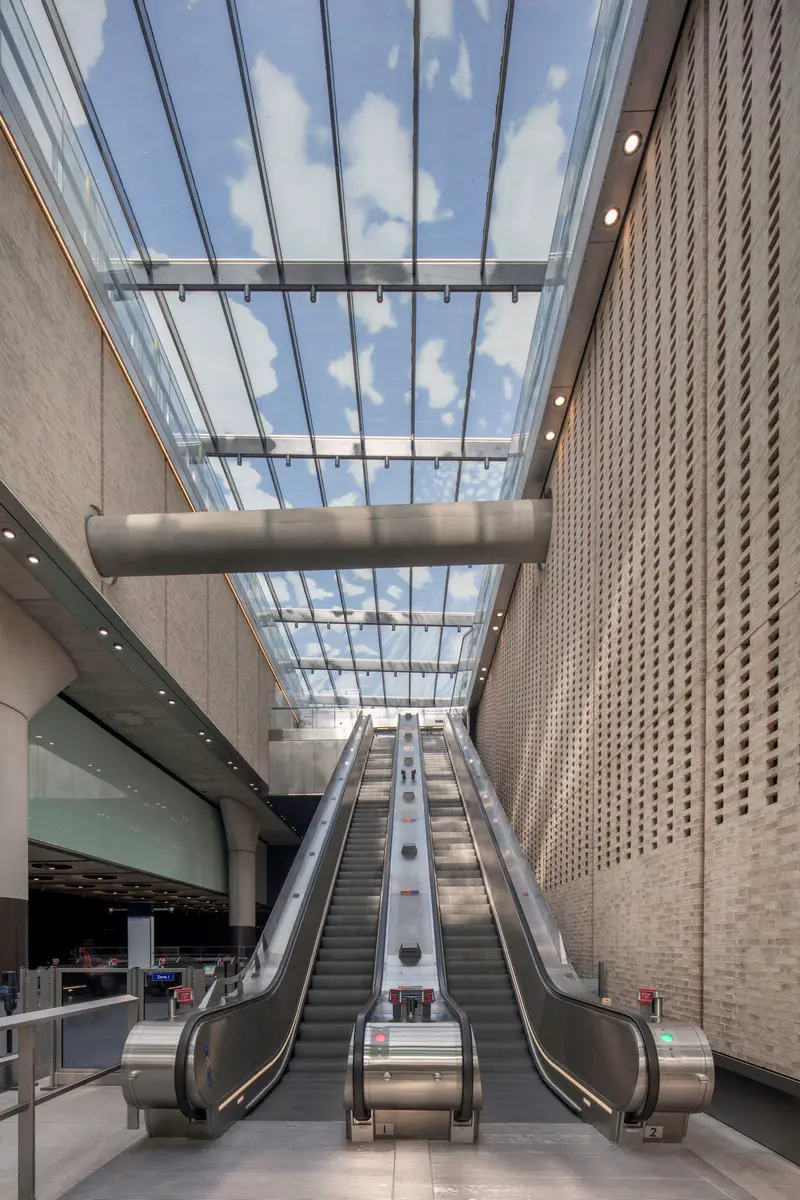

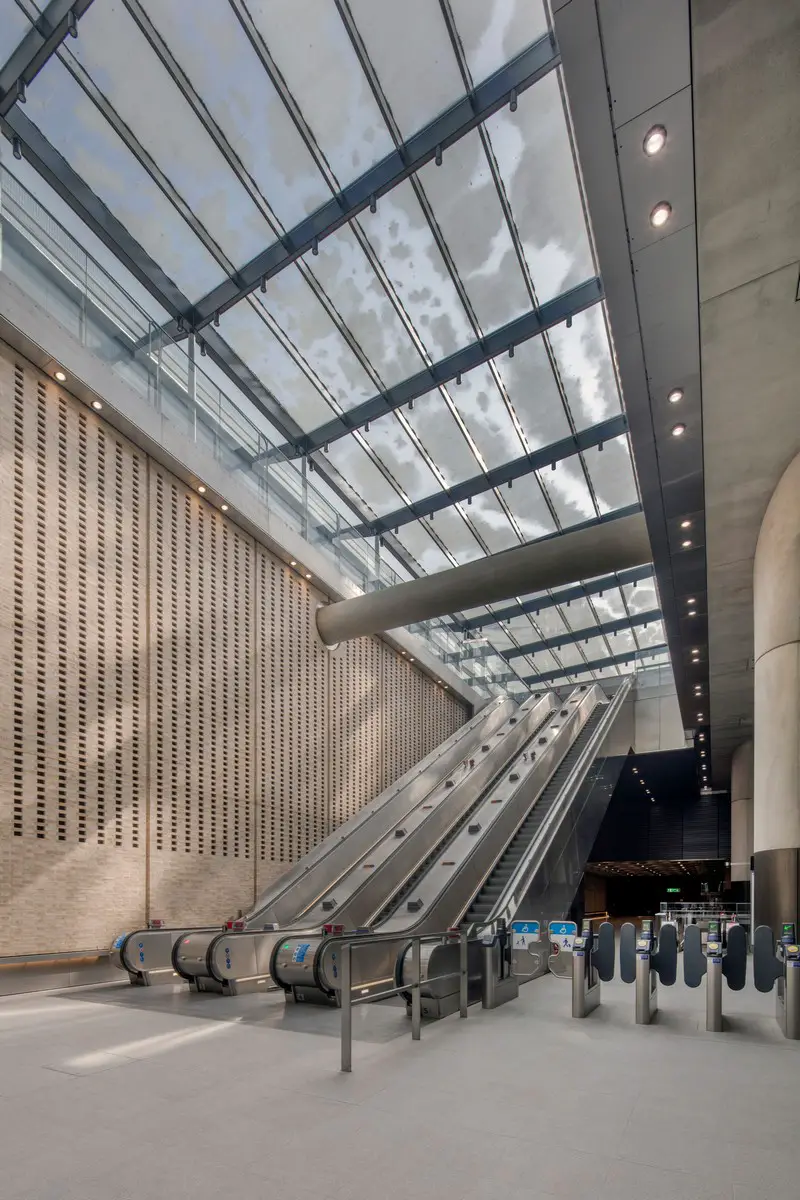

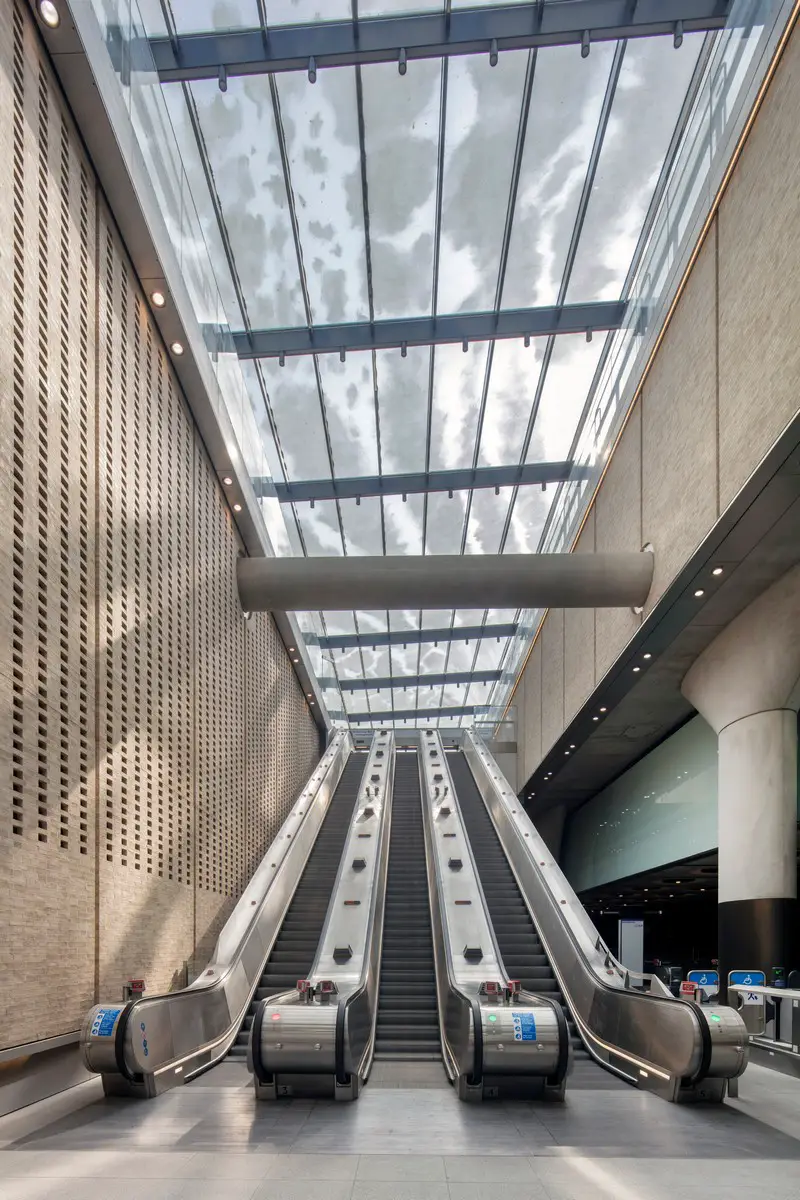

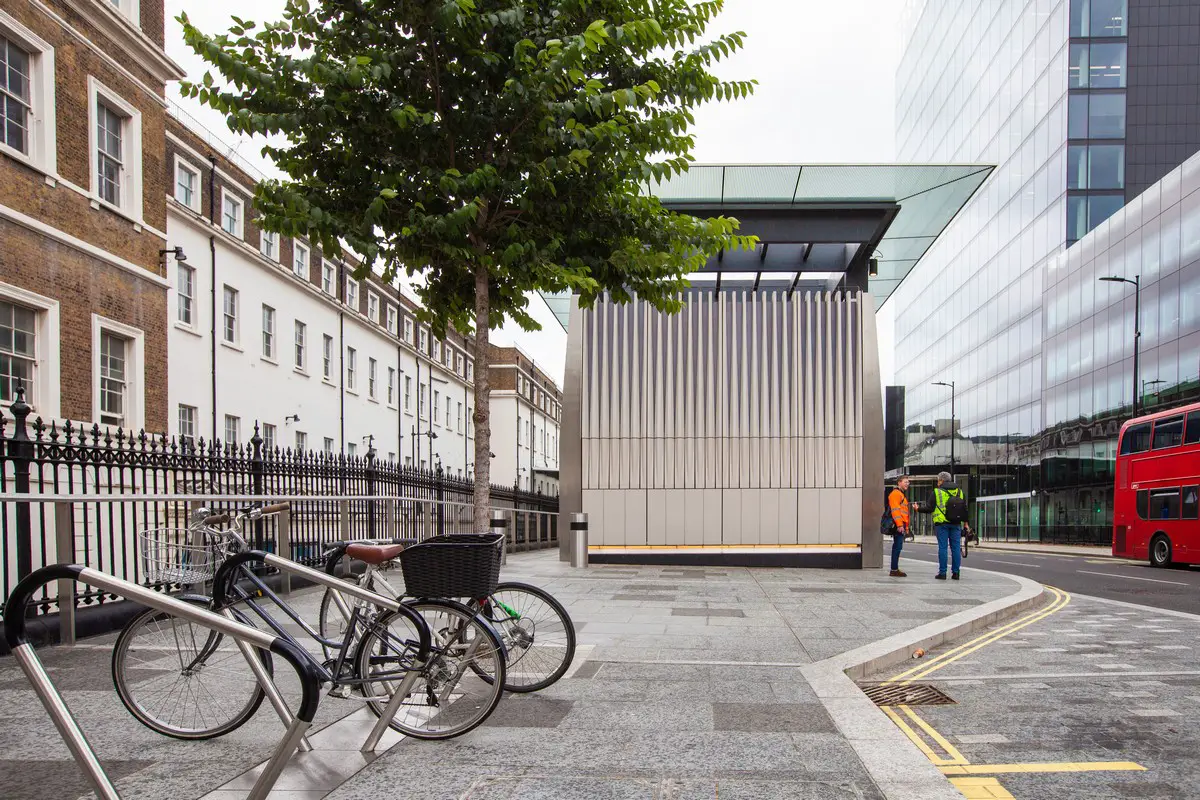

Today, Paddington has a highly visible and navigable main entrance for the first time, with the Elizabeth Line entrance extending alongside Eastbourne Terrace beneath a 2,300 sq.m glazed roof incorporating Cloud Atlas – new artwork etched into the canopy by artist Spencer Finch. From a 300 metre long new public plaza, lifts and escalators take passengers onto the Elizabeth Line station concourse and platforms below, or into the mainline station through a series of new entrance portals. At street level, a pair of sculptural ventilation shaft enclosures, clad with tapering cast stone fins and crowned with glass canopies, help to frame the station entrance, and hint at the grandeur beneath.
As one of only three box stations (alongside Weston Williamson + Partners’ other Elizabeth Line station at Woolwich and Canary Wharf) the design and delivery of Paddington was a major achievement, requiring extensive deep excavations and complex engineering immediately adjacent to Brunel’s historic station in a busy part of central London.

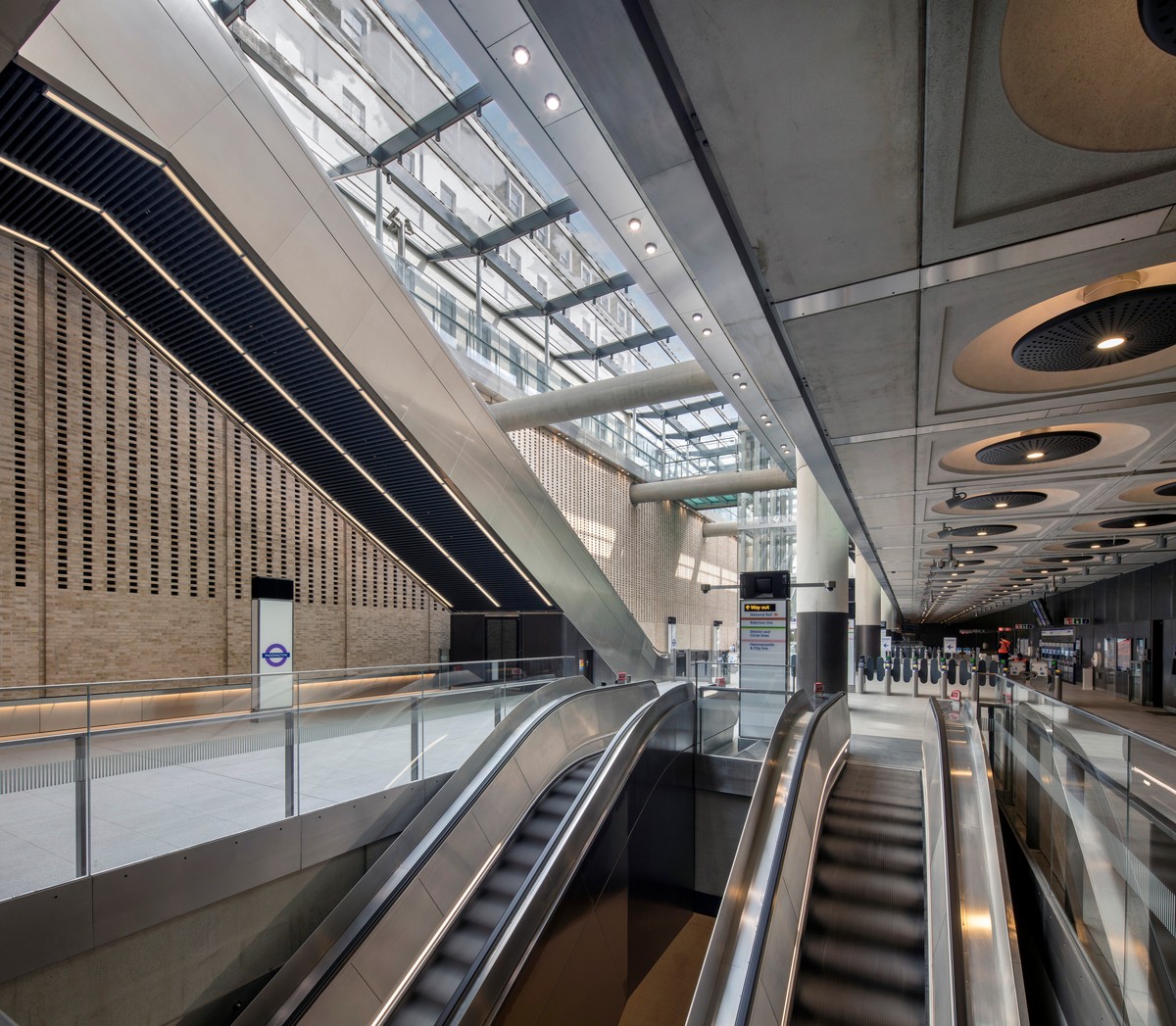

The result is as impressive as its construction and, descending to the concourse, the epic scale of the new Elizabeth Line station is revealed. The station features a 90-metre clear opening – a unique feature for urban underground station design – harnessing space, scale and light to match the grandeur of Brunel’s original station, and creating an uplifting and carefully-detailed space intended to claim its own legacy.

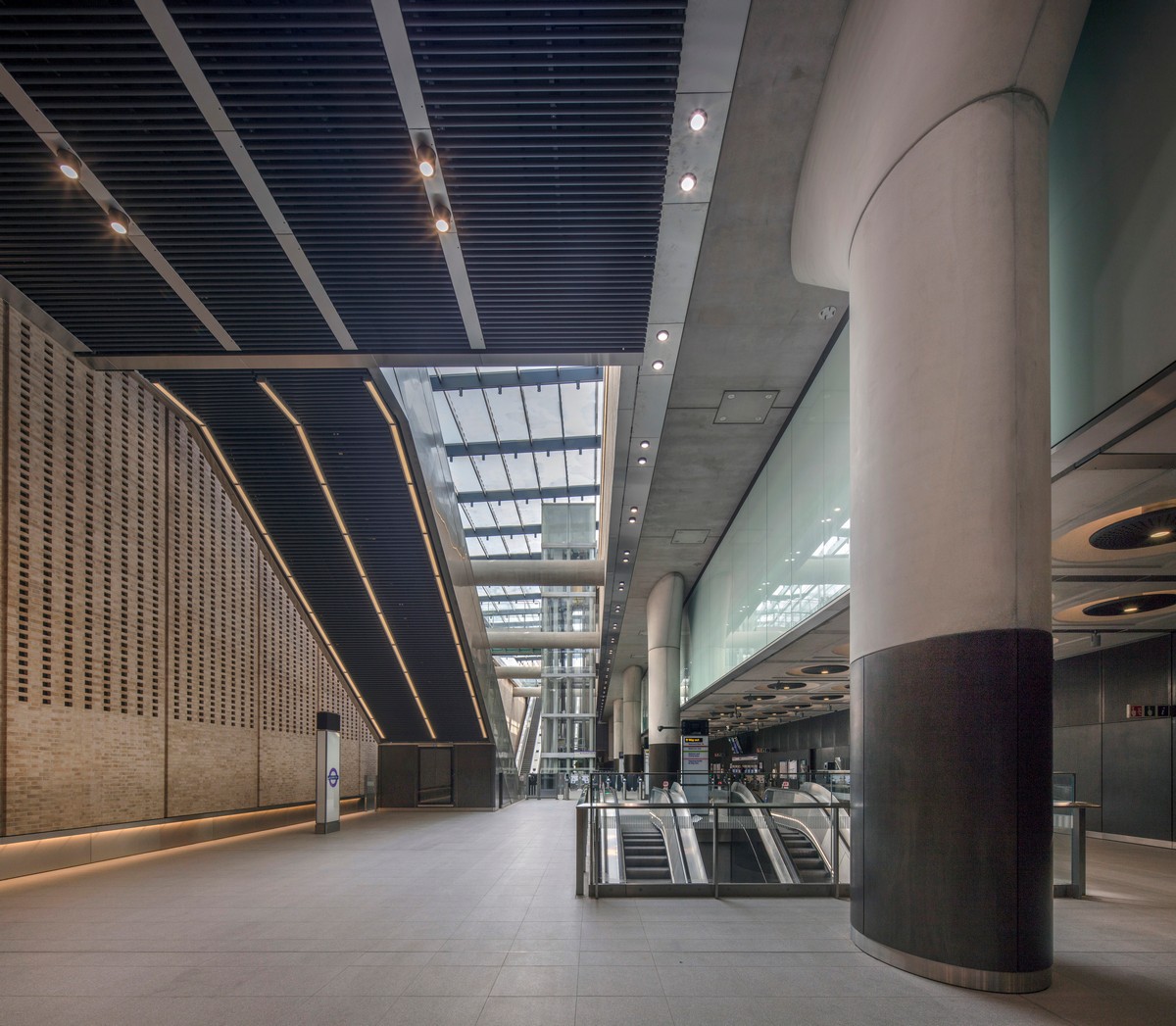

Weston Williamson + Partners harnessed the box station construction technique to bring daylight and natural ventilation deep into the station: uniquely on the Elizabeth Line’s new central section it is possible to stand on the station platforms and look directly up to street level. Its robust engineering is celebrated – for instance in eight gigantic flared elliptical columns, clad in bronze to head height, which carry the weight of the structure above.

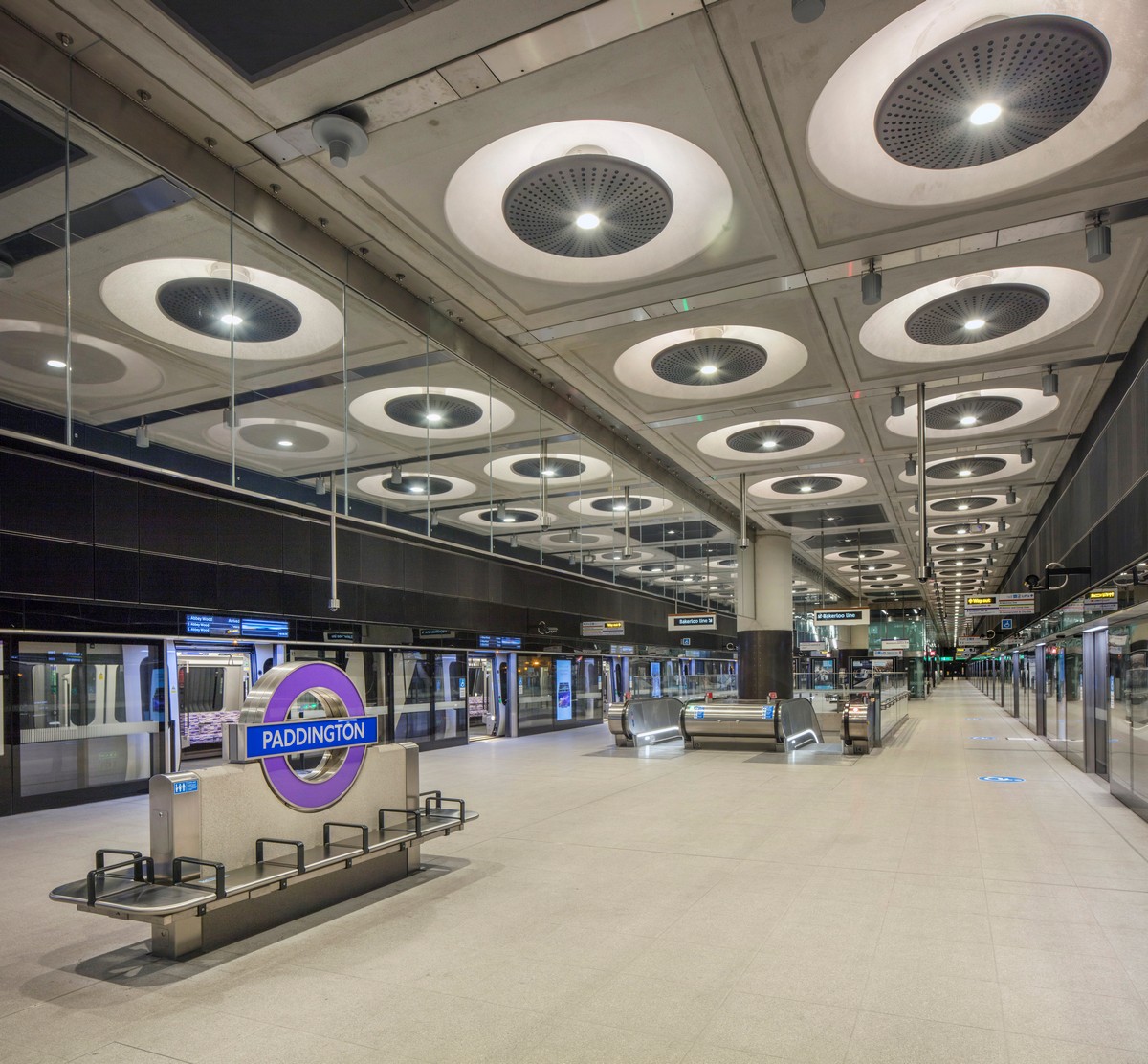

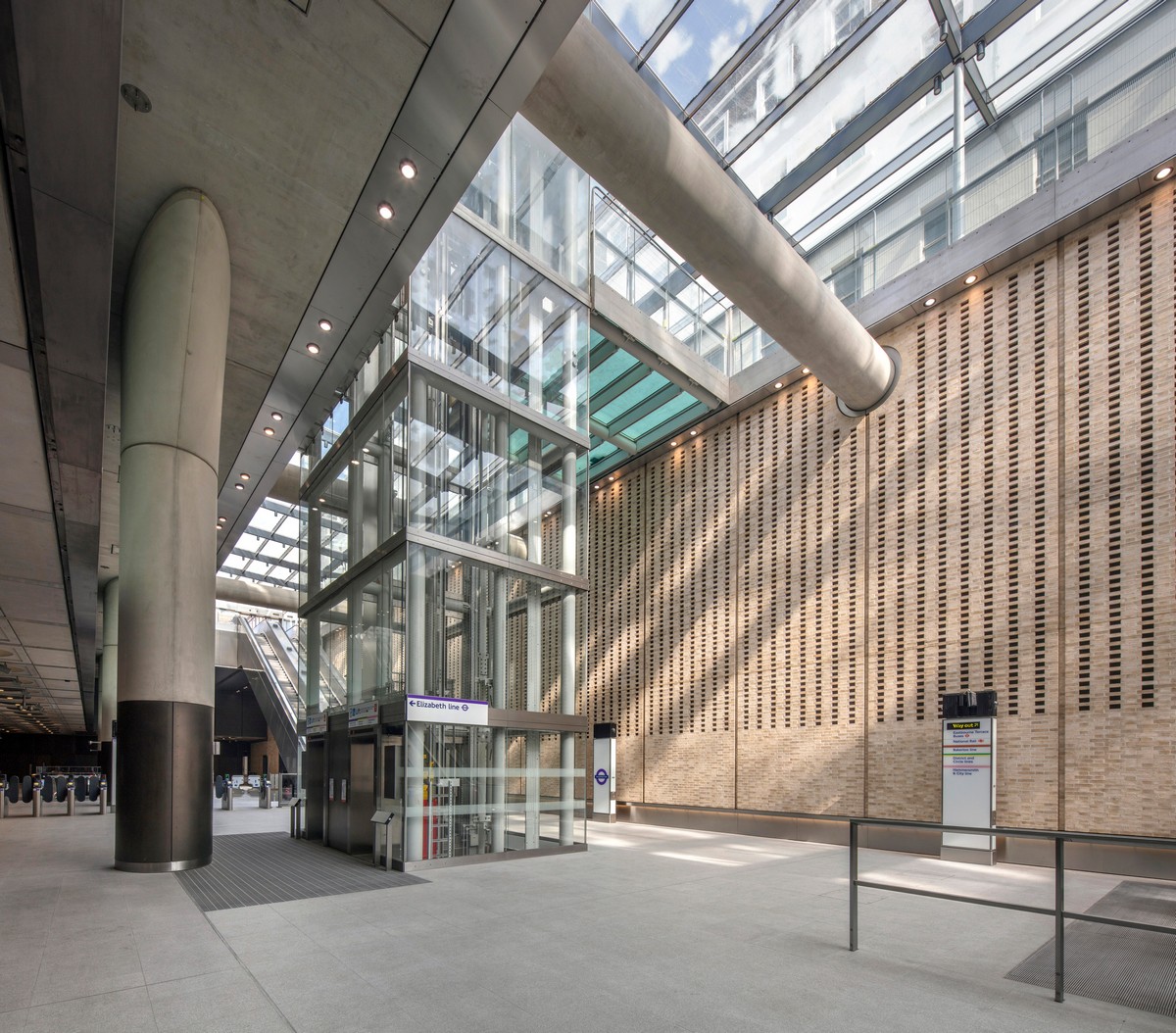

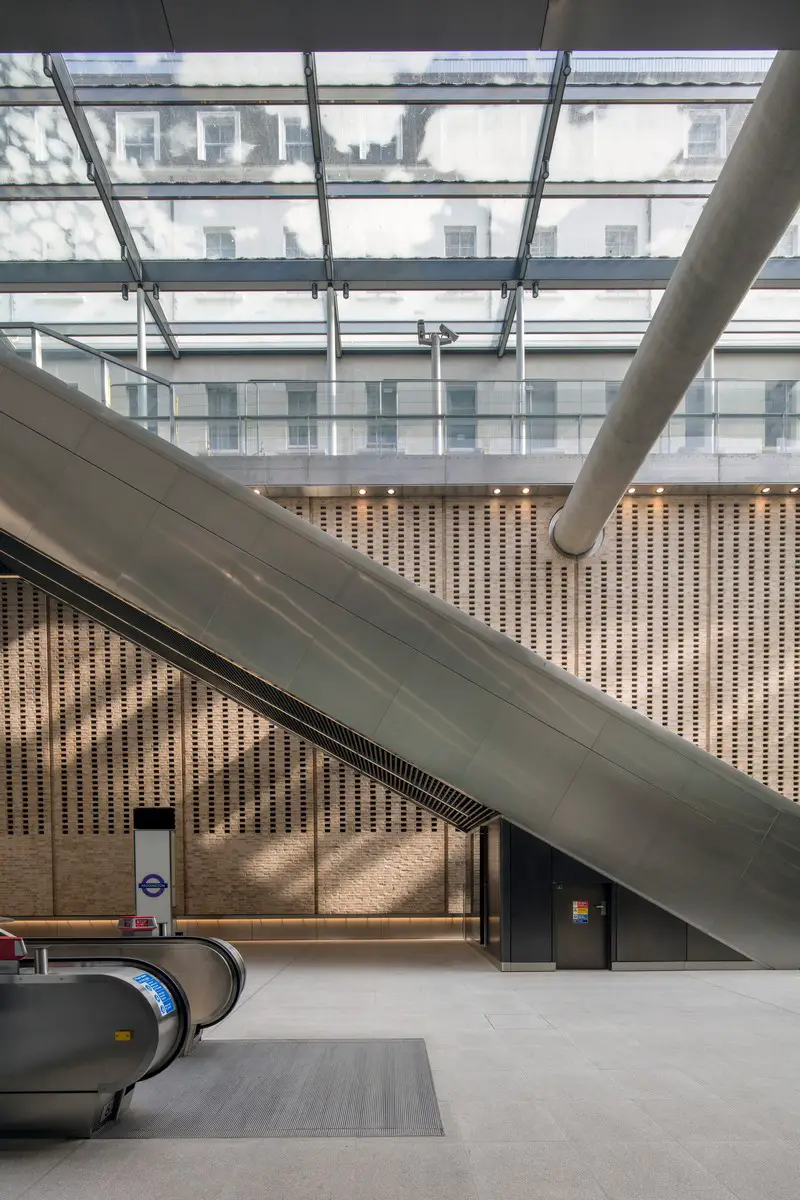

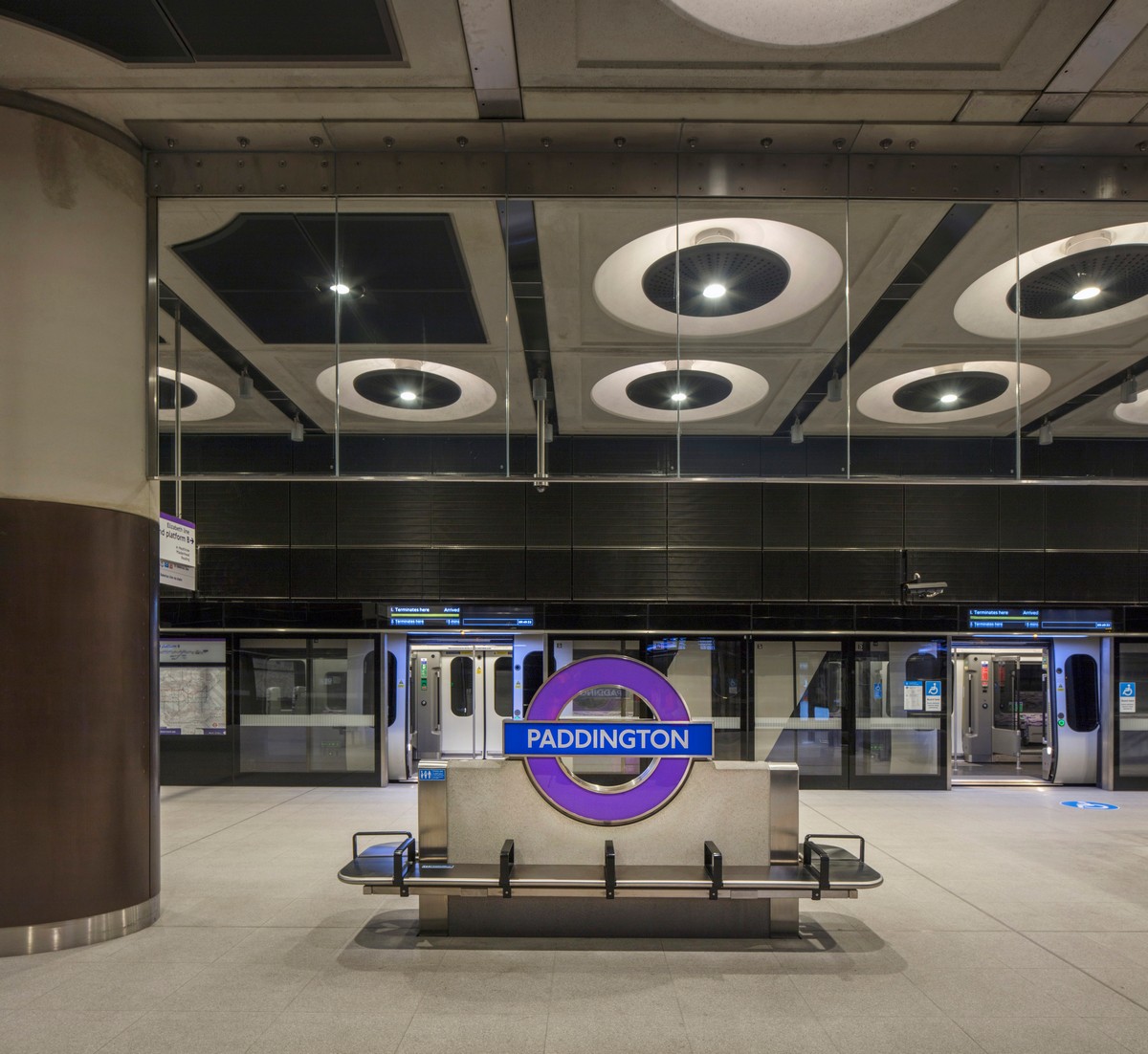

There are careful details too – such as the tall hit-and-miss brick flank wall (which also has an acoustic function), the elegant stone paving to the entrance plaza, and beautiful anodised ‘lily pad’ light fittings set within saucer-like concrete ceiling coffers above the grand ticket hall. The station is constructed on the same rigorous 10 foot imperial grid as Brunel’s station, and references to this – for instance in the floor tiling and colonnades – are there to be found.
The materials, comprising brick, concrete, stone and bronze are earthy and warm, reflecting the palette of the original station and with a nod to the classic underground stations by Holden and others. All services are cleverly tucked away out of sight towards the top of the station box, and ample provision has been made for future adaptations.
Unlike other stations along the central section which feature a common design language, at Paddington (and also Woolwich) Weston Williamson + Partners was tasked with all station design from street to platform level. They used their expertise in large scale infrastructure design to create a high quality, calm and legible station, designed to last for generations.
The passenger experience lies at the heart of Weston Williamson + Partners’ approach to all design decisions at Paddington. Despite its size the station is nevertheless welcoming and easily navigable – qualities that the practice had applied earlier when addressing the shortcomings of the adjacent mainline station. As a result, Paddington’s 19th and 21st century elements are brought seamlessly together for the benefit of station users, and properly establishing Paddington as a key gateway to London.
Paddington Elizabeth Line Station London – Building Information
Client: Crossrail
Architect: Weston Williamson + Partners
Start on site: June 2012
Completion: May 2022
Construction value: Undisclosed
GIA: 25,000 sqm
Structural engineer: WSP
M&E consultant: WSP
Quantity surveyor: WSP
Project manager: Constain Skanska JV
Principal designer: WSP
Approved inspector: WSP
Main contractor: Constain Skanska JV
Urban realm: Gillespies
Lighting consultant: WSP
CAD software used: Microstation
Photography: Morley von Sternberg
