Adelaide Wharf

Location: Haggerston, Hackney, northeast London, UK

Date built: 2008

Design: Allford Hall Monaghan Morris (AHMM)

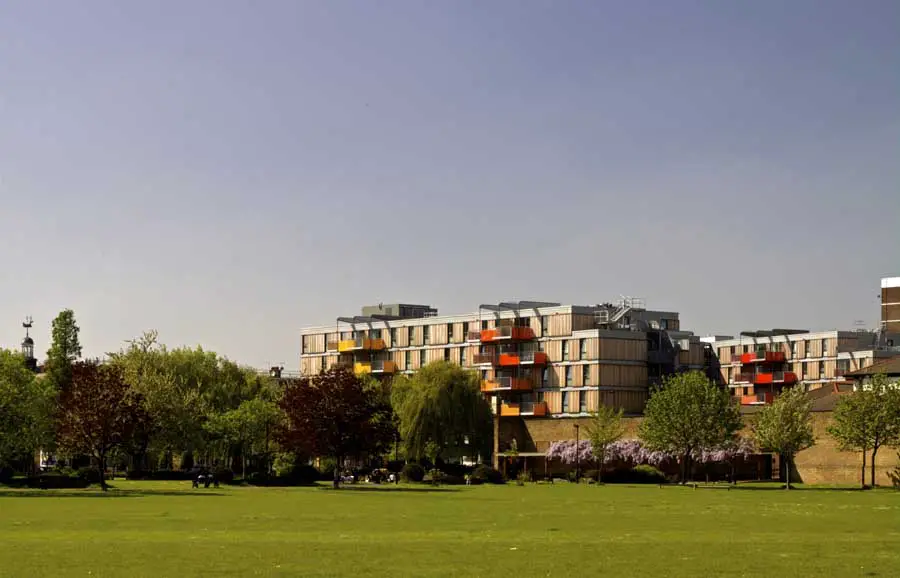

Adelaide Wharf
photo © Tim Soar

RIBA Award Jul 2008

At Adelaide Wharf, the project team developed a high quality, sustainable building with 147 homes and provided an innovative prototype for future housing schemes.

Adelaide Wharf London Adelaide Wharf Housing Adelaide Wharf Housing Adelaide Wharf Housing
photographs © Tim Soar

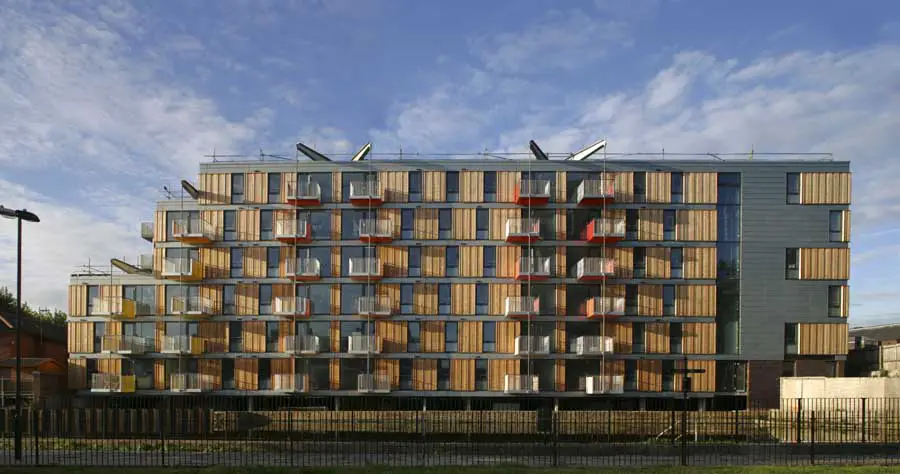

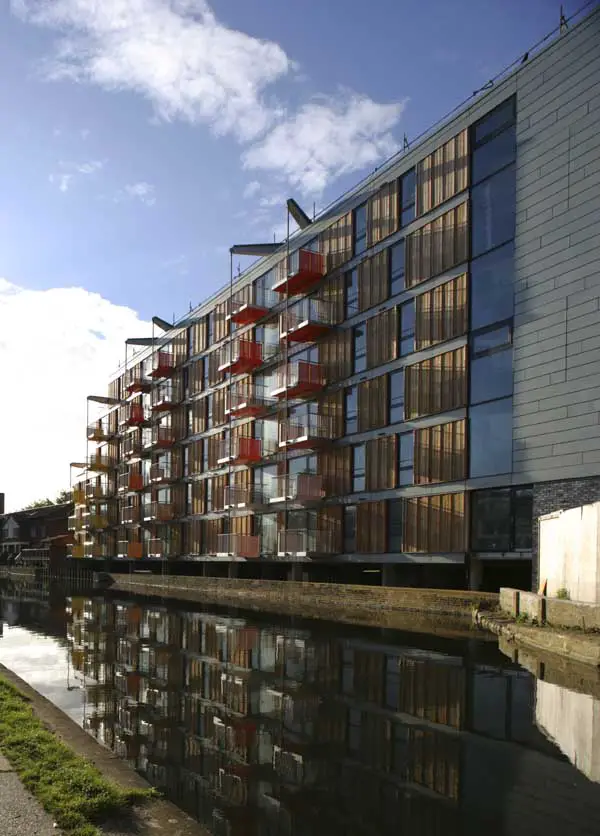

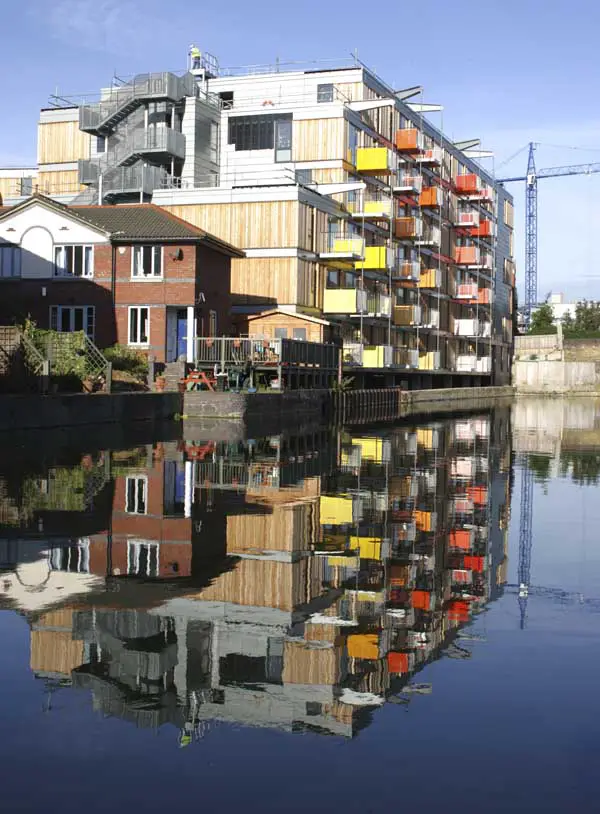

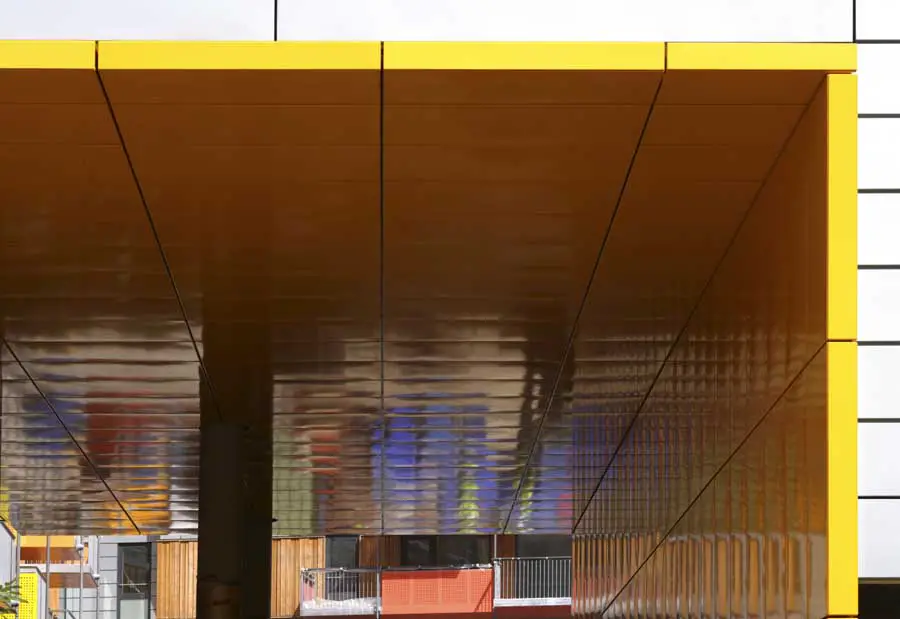

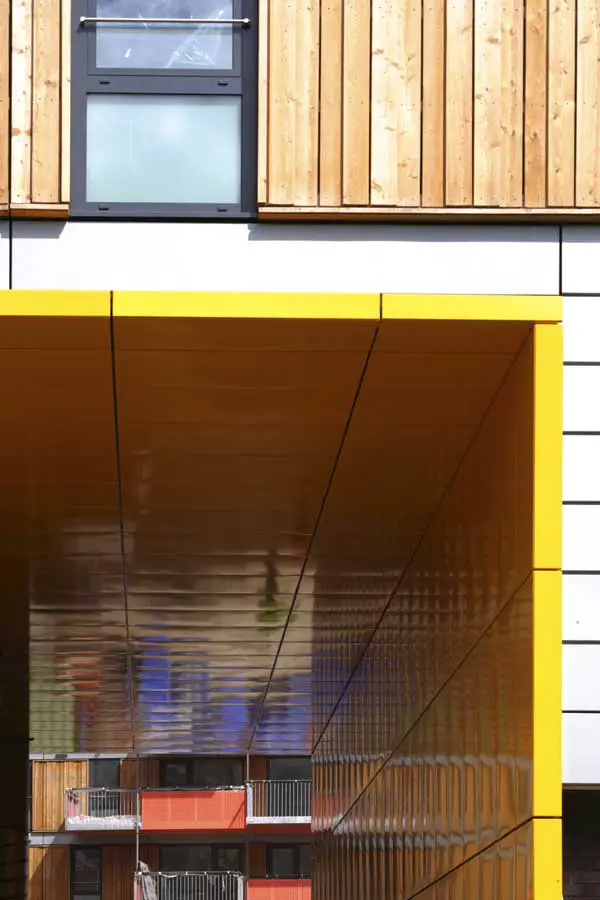

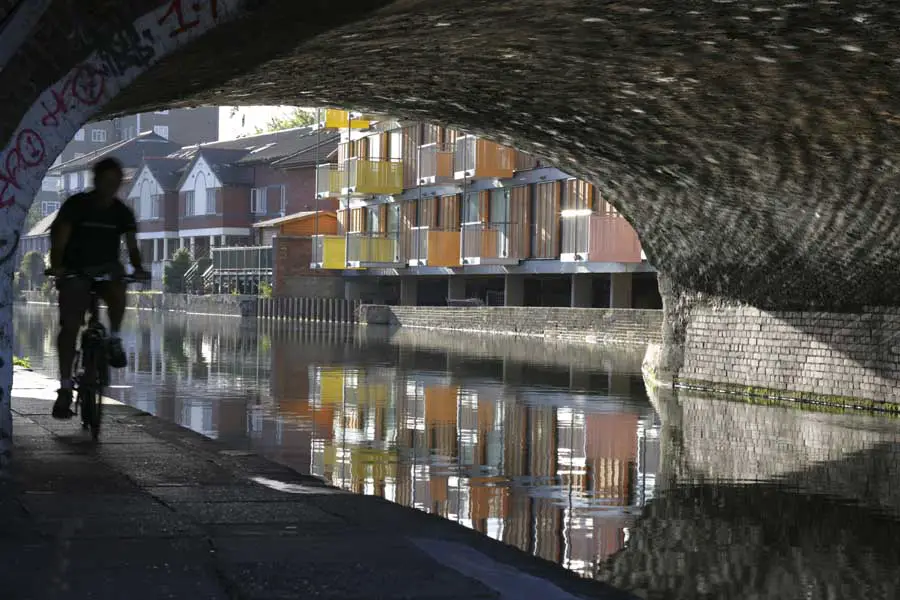

Adelaide Wharf, located in a residential part of Hackney, is a six storey block wrapped around three sides of a landscaped courtyard defining the edges of the city block. The two street elevations have coloured entrance courts lined in glossy vitreous enamel cladding panels punched through between streetscape and courtyard. Within the apartments, circulation is minimised with all serviced spaces located along the corridor wall, and the living/sleeping spaces making maximum use of the window walls. The layouts all have open plan living/kitchen/diners, and one bedroom apartments have double doors opening between the living and bedroom to maximise the sense of space.

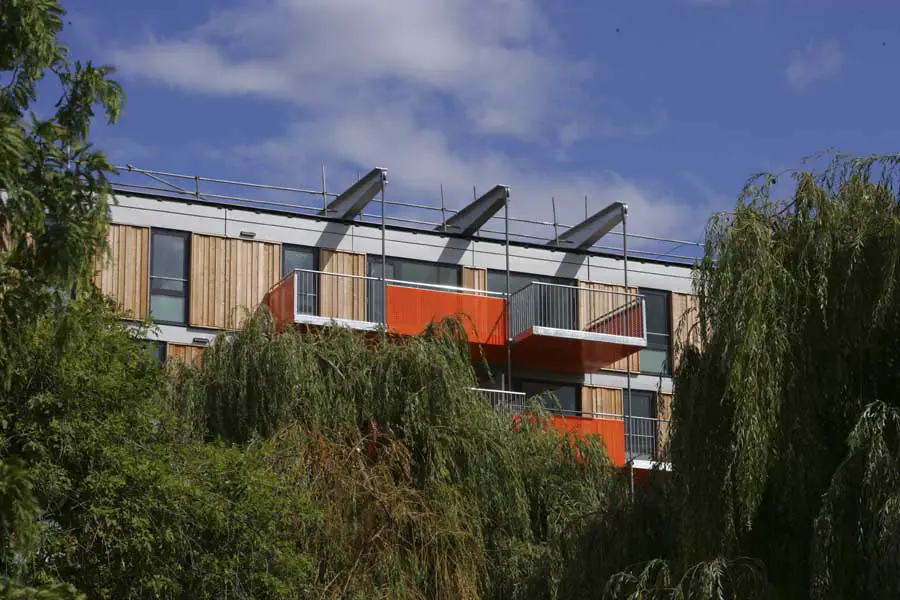

Housing in Haggerston Adelaide Wharf Haggerston Housing Haggerston Housing
photographs © Rob Parrish

The modern construction methods employed at Adelaide Wharf reduced trades to as few as possible, minimising wet trades on site and making extensive and pragmatic use of prefabrication to reduce time on site and improve the quality of build. The principal components are a concrete frame with flat slabs and blade columns using prefabricated reinforcement mats, a unitised cladding system avoiding the need for scaffolding, prefabricated bathroom pods, balconies and plant, and dry-lined internal partitions. The build was completed in 18 months.

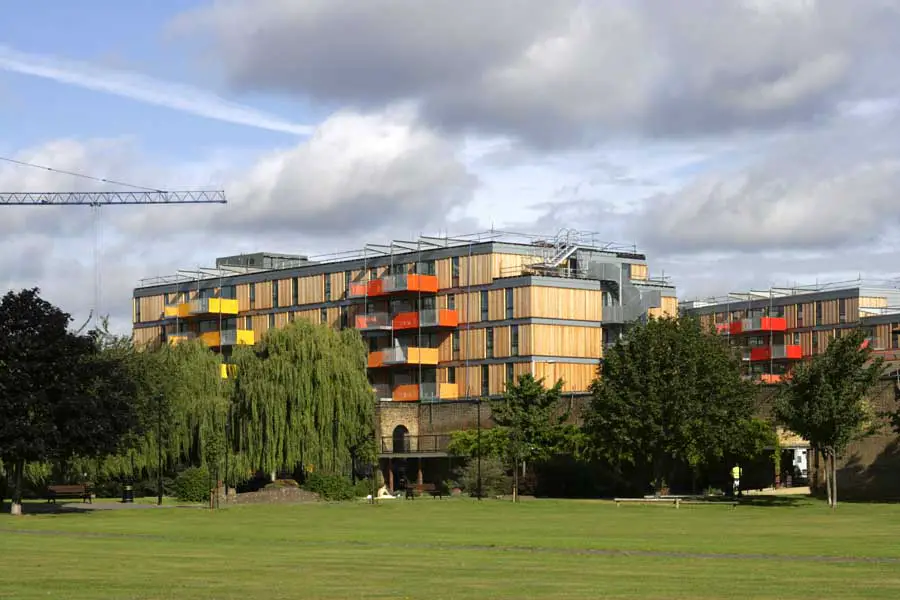

Adelaide Wharf Housing Haggerston Homes Haggerston Housing Haggerston Housing
photographs © Rob Parrish

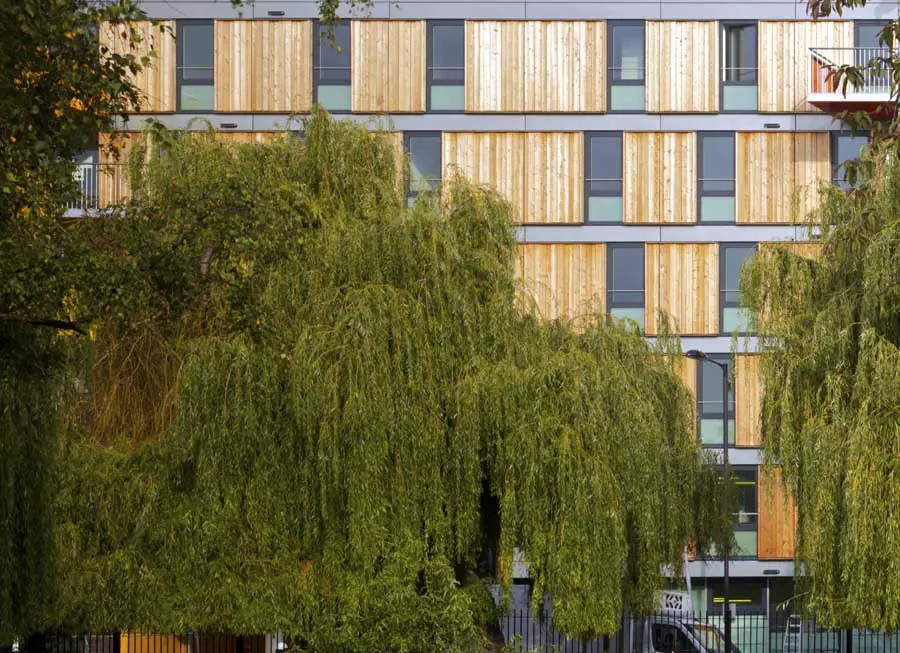

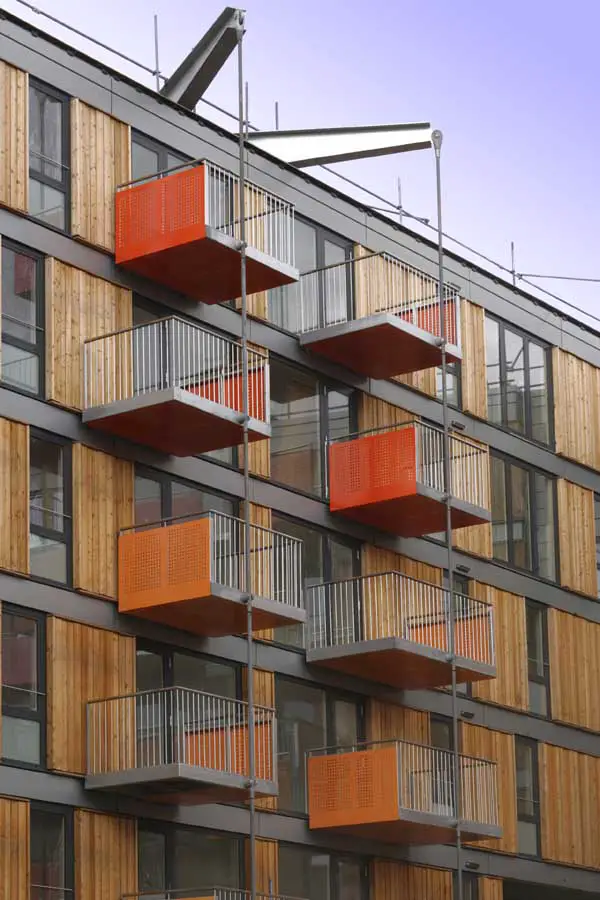

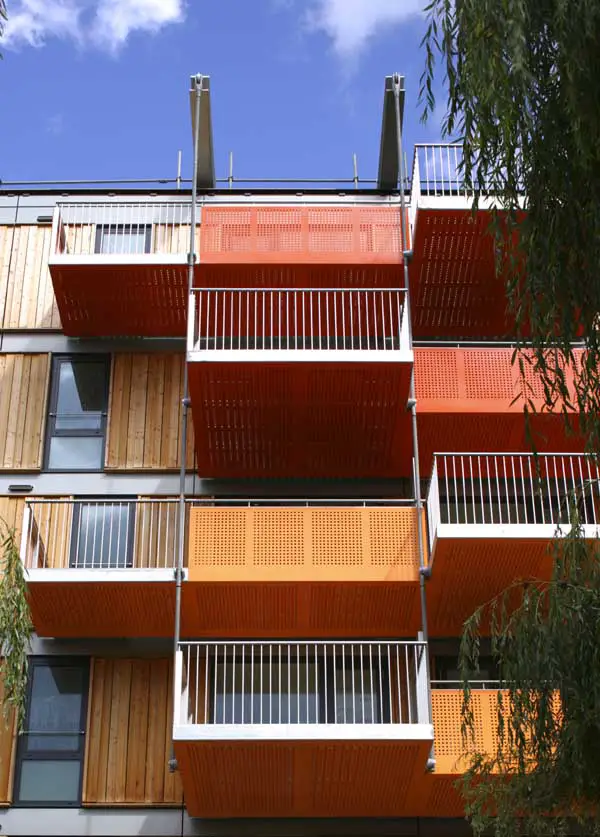

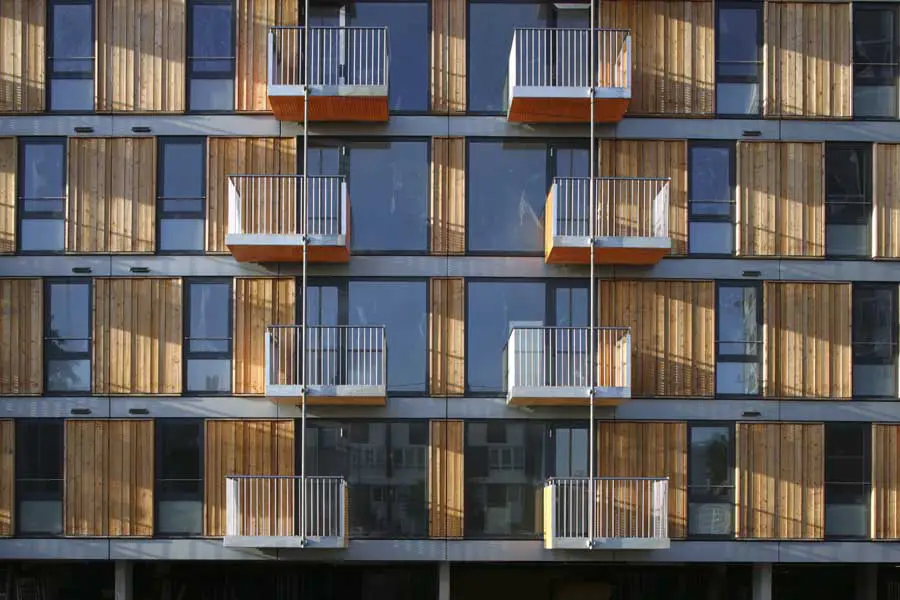

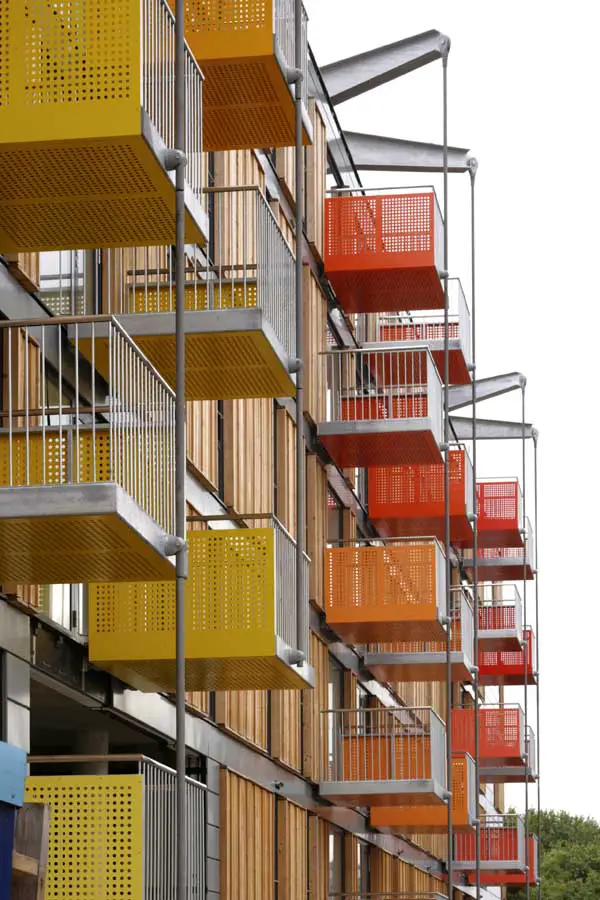

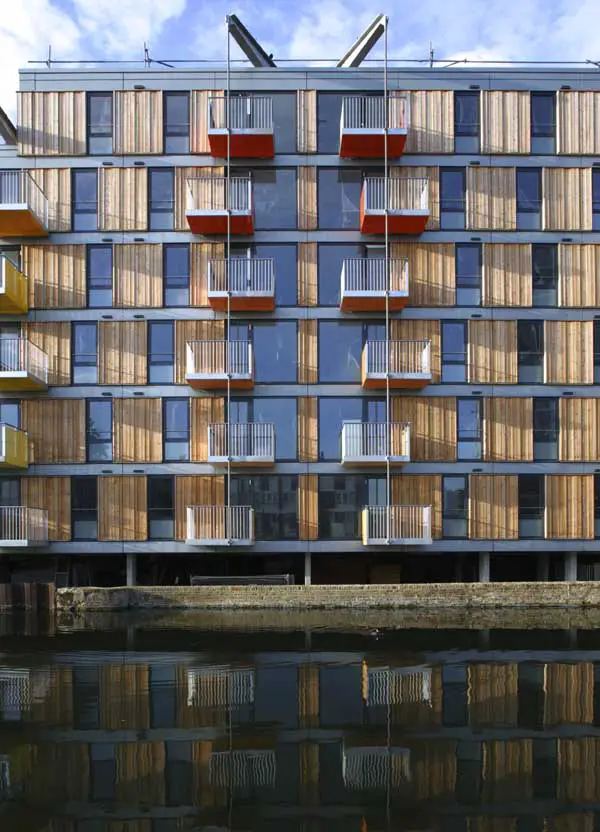

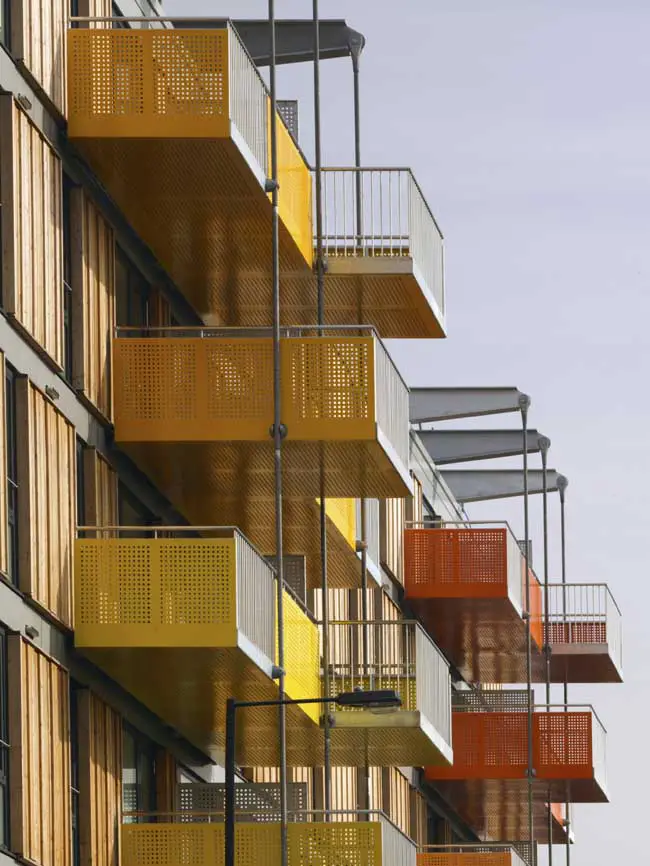

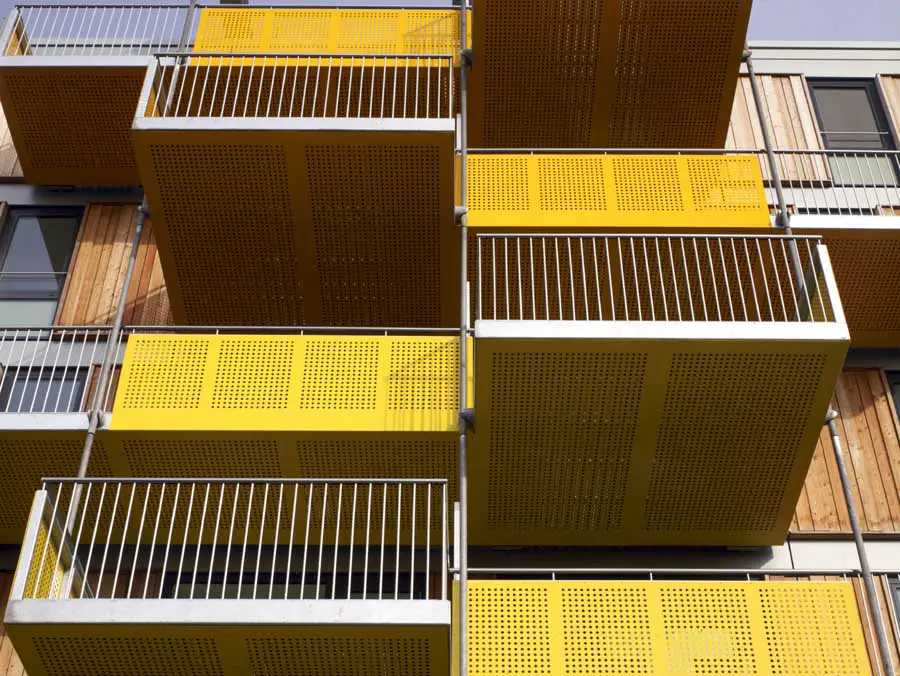

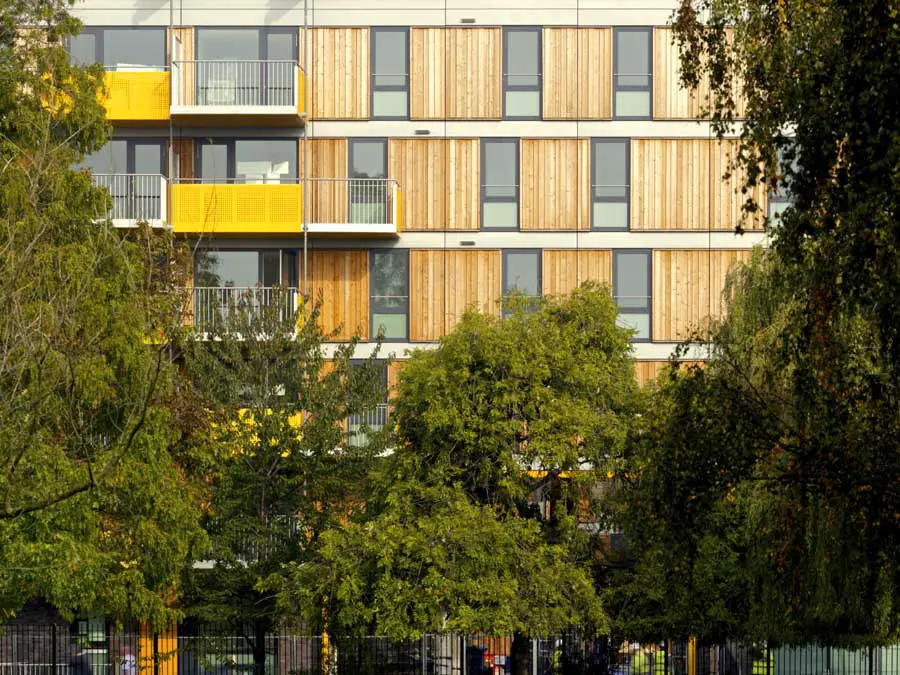

The simple massing of the building made the quality and articulation of the façade critical. Adelaide Wharf derives its aesthetic identity from a unitised facade system and pre-assembled balconies and its appearance a colourful blend of timber, zinc and glass.

Adelaide Wharf Housing Hackney Adelaide Wharf Housing Hackney Housing Hackney
photographs © Rob Parrish

Adelaide Wharf images / information from Allford Hall Monaghan Morris

RIBA Award

Hackney Homes Adelaide Wharf Hackney Haggerston Residential Building
photographs © Rob Parrish

Adelaide Wharf – Awards
RIBA Regional Architecture Award 2008
RIBA National Architecture Award 2008
Housing Design Awards 2008

Adelaide Wharf, Haggerston Residential Development images / information from Allford Hall Monaghan Morris

Allford Hall Monaghan Morris Architects

Location: Adelaide Wharf, Haggerston, Hackney, London, England, UK

London Buildings

Contemporary London Architecture

London Architecture Links – chronological list

London Architecture Tours by e-architect

London Architects Offices

Key London Design by Allford Hall Monaghan Morris:

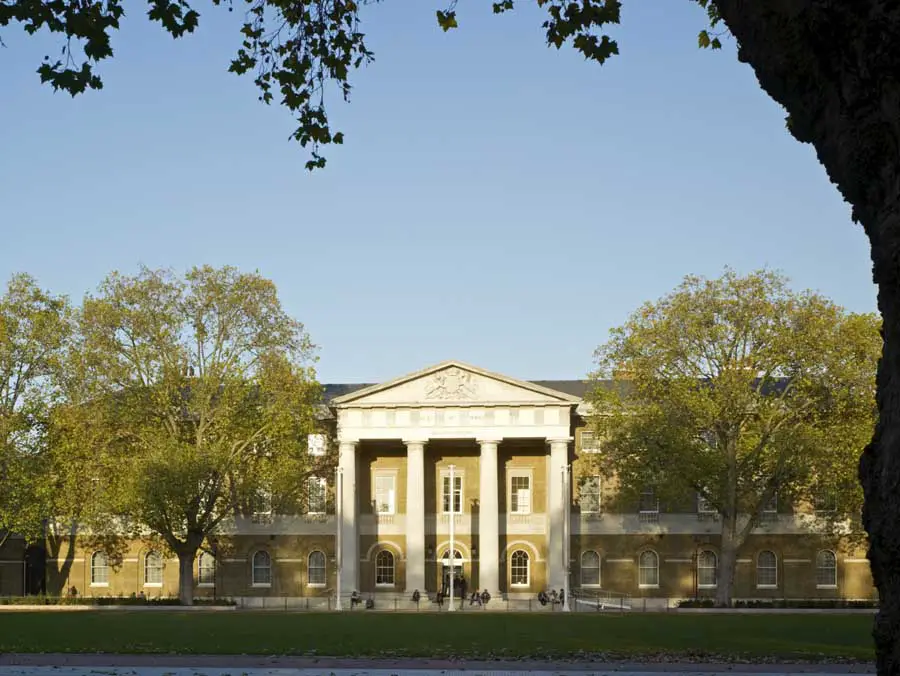

Saatchi Gallery, Chelsea
Allford Hall Monaghan Morris
Saatchi Gallery London
image © Timothy Soar

London Architecture

Hackney Housing : Pembury Estate homes

World Architecture Festival Awards 2008 – Home, Housing Category Finalist

Selected London Architecture

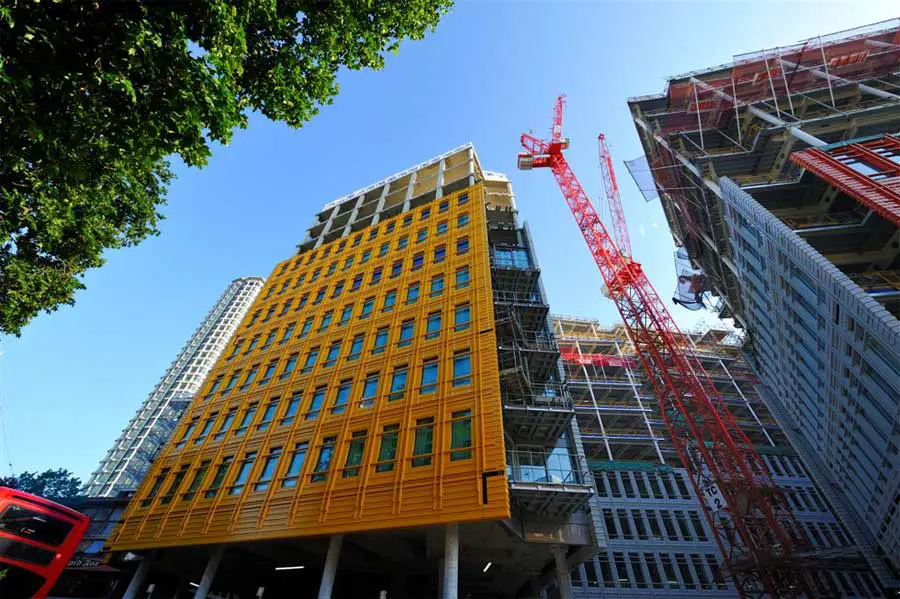

Central St Giles
