Lonate Ceppino Library Varese, Italian Building Project, Photo, News, Design, Property Images
Lonate Ceppino Library Building
Biblioteca Comunale Elsa Morante, Piazza Matteotti, Varese architecture design by DAP studio architetto, Italy
17 Nov 2009
Lonate Ceppino Library
Design: DAP studio architetto
Biblioteca Comunale Elsa Morante
Address: Piazza Matteotti, 4, 21050 Lonate Ceppino VA, Italy
Phone: +39 0331 810913

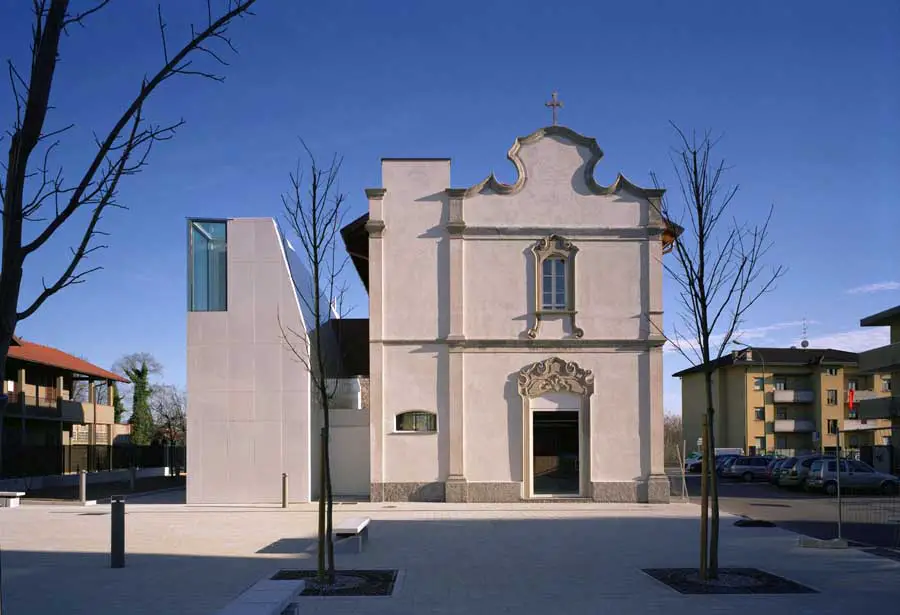

The pre-existing building for the new Lonate Ceppino Public Library already belonged to Lonate Ceppino’s historical heritage. On a rectangular plan, the two levelled buildings housed the Civic Library on the ground floor, while the first floor had been left unused. From the outside, the main entrance façade has a higher decorative part which is independent from the roof structure.
This façade stands out further on the building gutter line and laterally its design suggests the idea of an unfinished bell tower. In this case, neither the bidimensional outline has a counterpart in the interiors. A few ornamental elements mark the façade hierarchies.
The design of the fronts is organized in horizontal bands at different heights while on the north, south and west fronts a system of vertical pilasters apportions the windows on both floors. The east front lacks any decoration and, before the intervention, it was badly compromised by a recently built volume for the service rooms.
The intervention aimed to restore the historical pre-existing building and to adapt the new building to its re-gained functional use. Being inadequate, the previous service’s volume extension was removed together with the internal stairs, which were damaged and not according to laws. The project restored many areas injured by dampness, plasters, floorings and roofing.

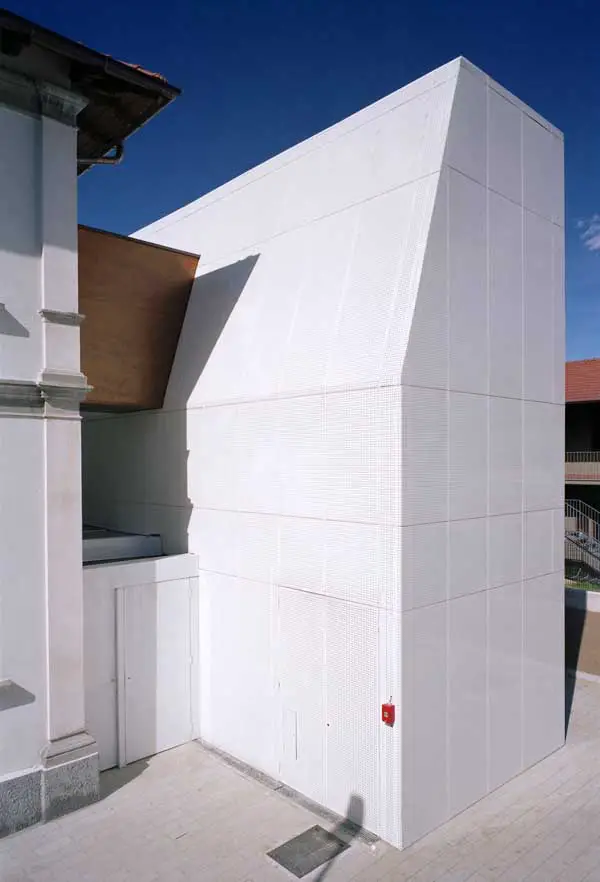

Besides the east front a new well balanced volume has been built, including bathrooms, archives and technical systems. This last choice allowed to clear the historical building out of the functional and potentially invading elements, minimizing any demolition and making the facility rooms easier to share.

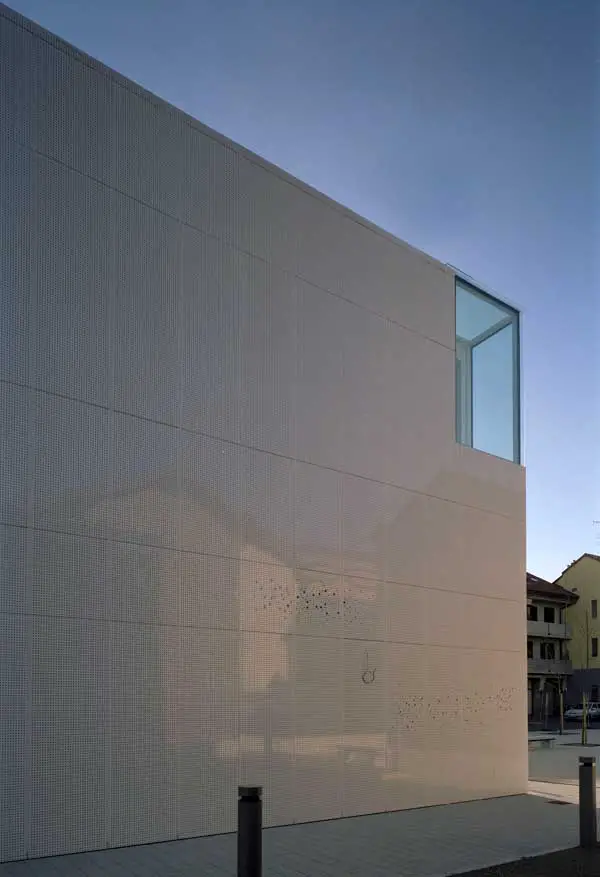

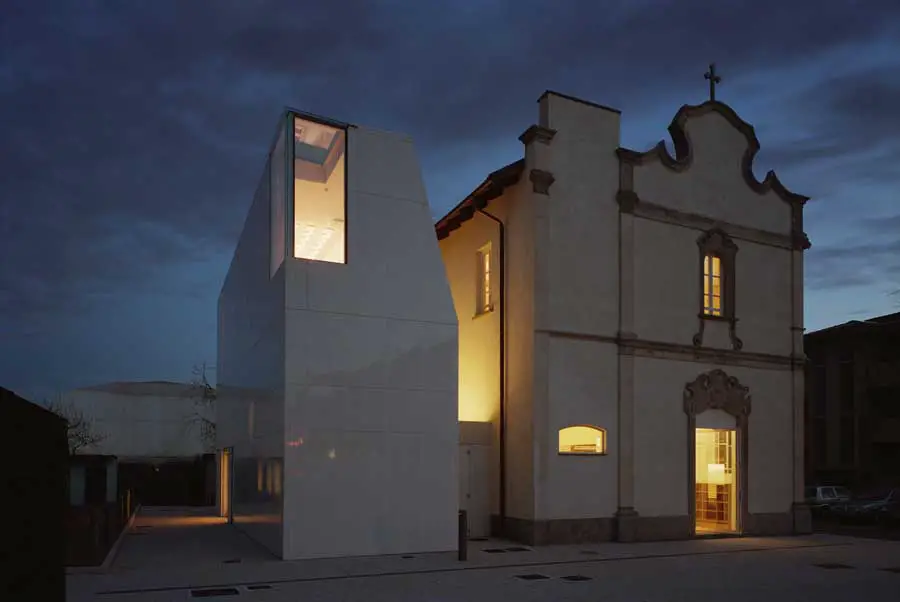

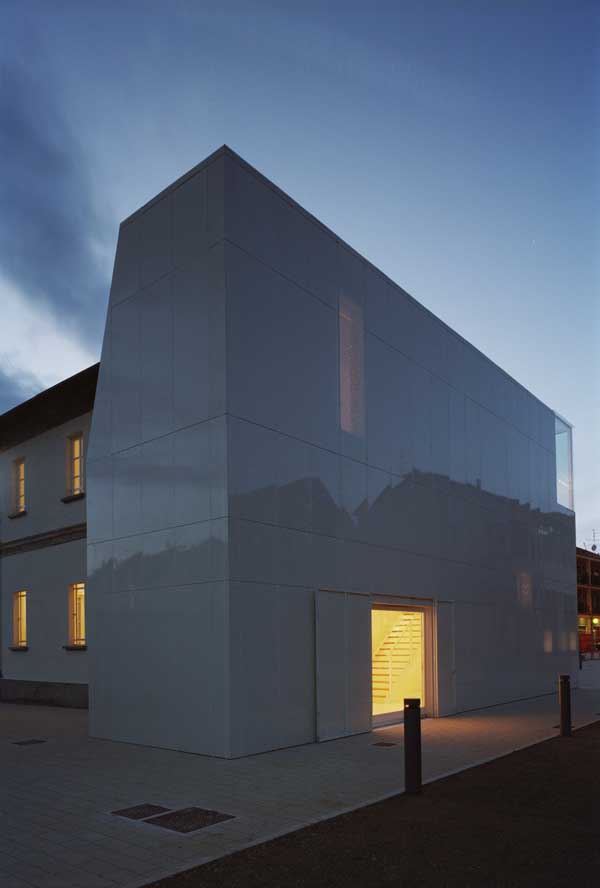

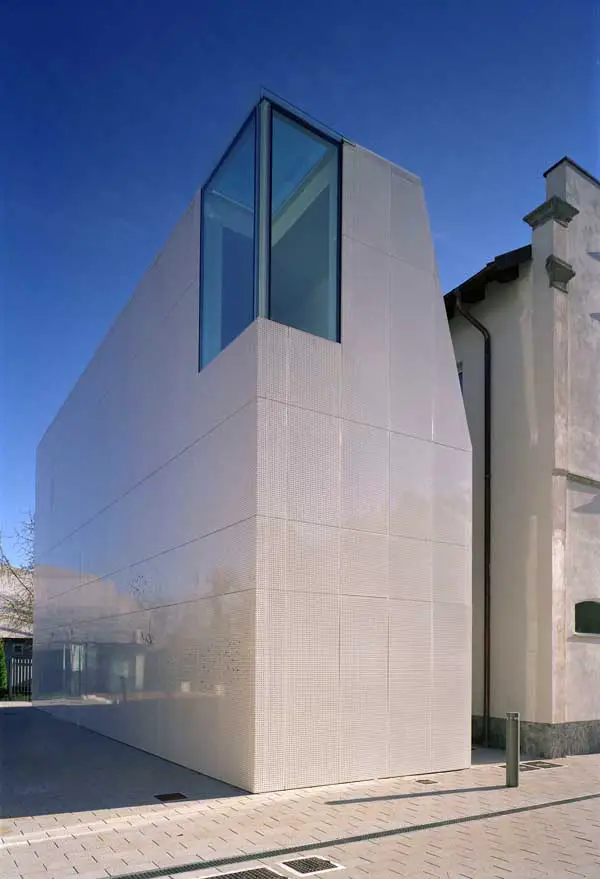

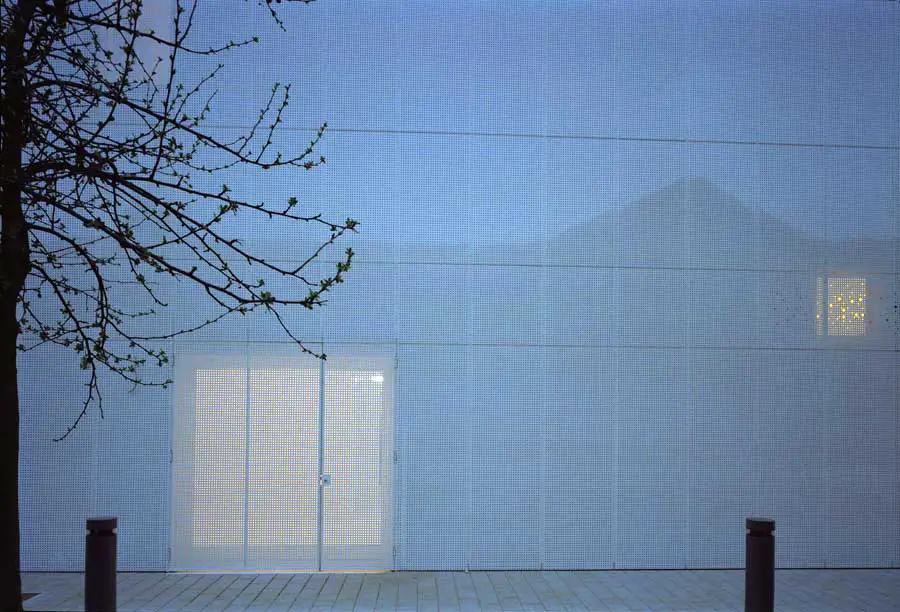

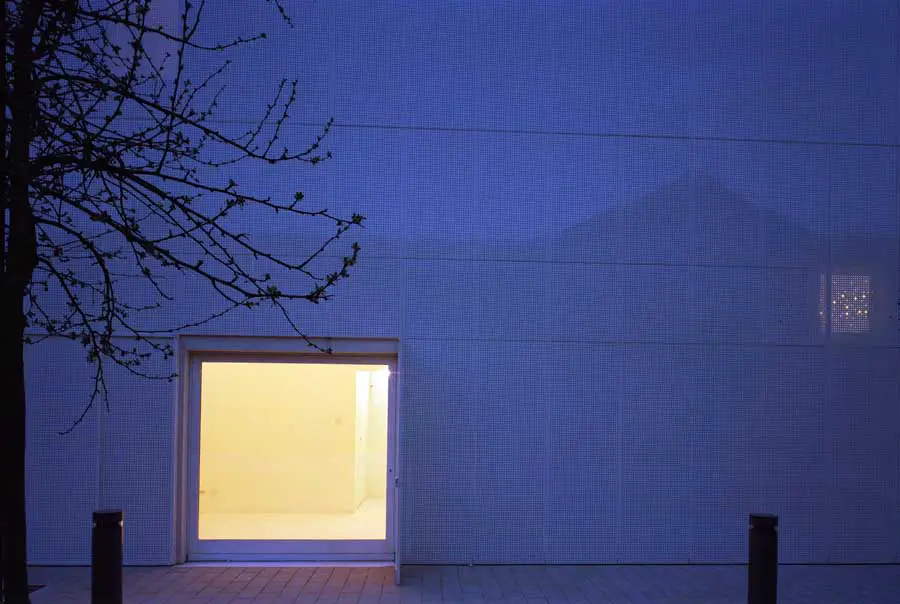

The new volume’s architecture is marked by a narrower profile on its top, with a sloping side that restrains to give more space to the historical building pitches. The dialogue between the volumes is the key and main theme leading the whole intervention. The relationship between the two is nourished by juxtaposition between matterness and lightness, solidity and instability, opaque and reflecting materials.

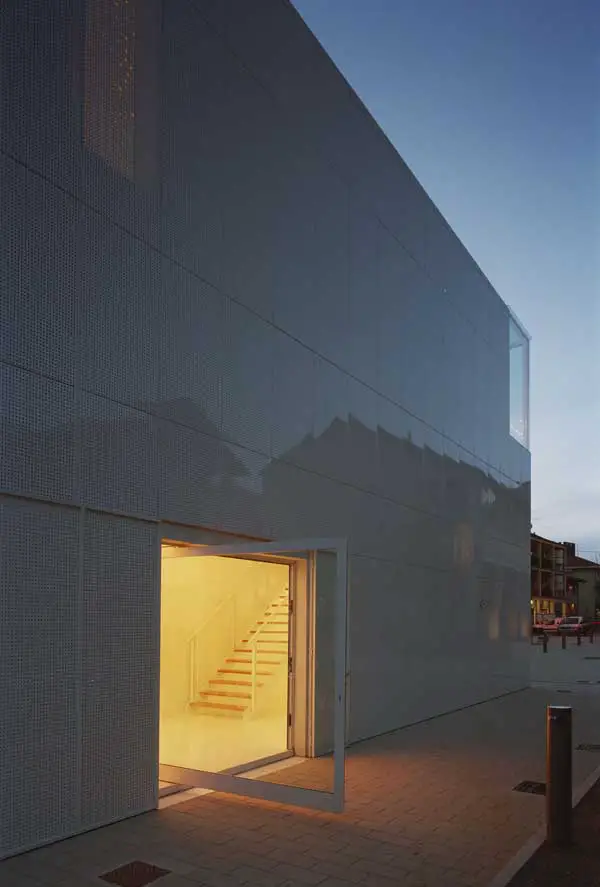

The highlighting of differences underlines the peculiarities of both volumes, in a mutual figure-background relationship. The two buildings are connected through a glazed roofed little volume. The entrance is on the left side and a further wooden connection goes to the first floor.
The Library hall is divided into 4 specific areas: a conference area with a little newspaper library, the children’s area, the bookcases’ and the reading tables. On the first floor there’s a flexible room for exhibitions or conventions.

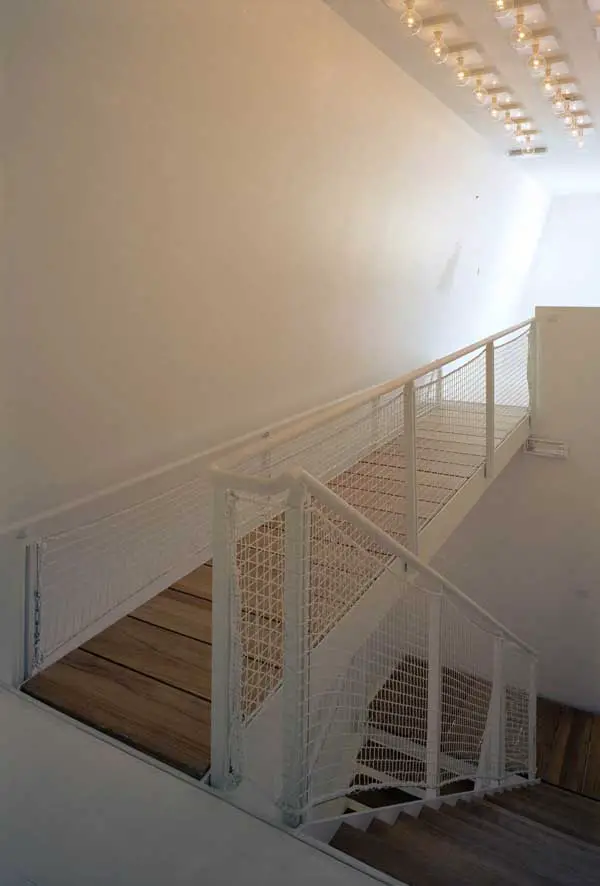

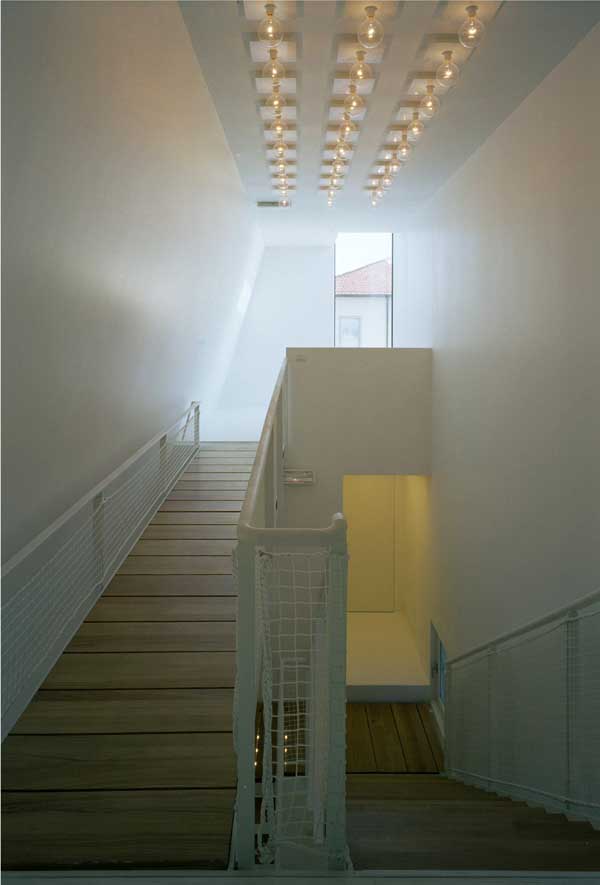

Inside the new volume space reduces while climbing upstairs. After the first floor a platform drives you to a little space lit up by a window on a corner. This spot is the zenit of the specific spatial sequence developing inside the building.

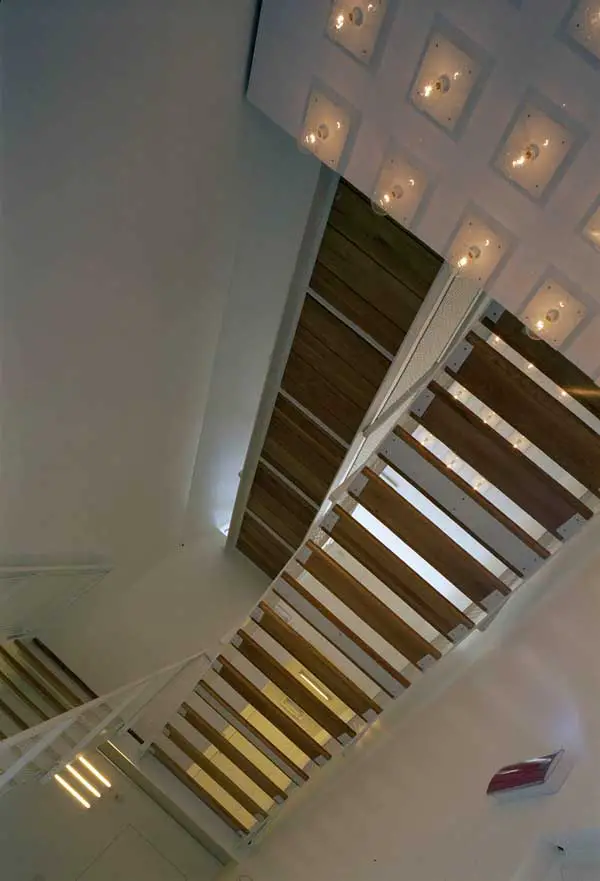

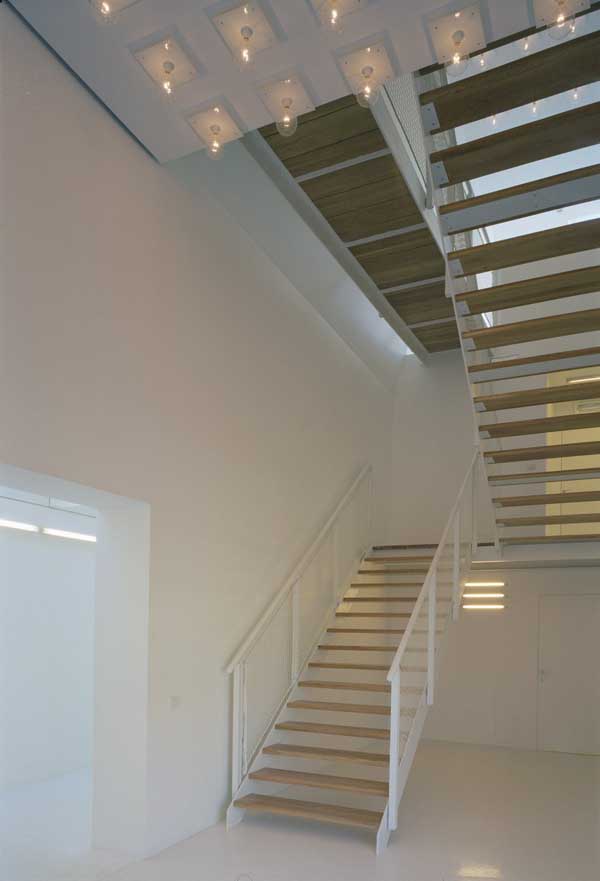

The interiors are monochrome, with a resin floor and enamel walls. The stairs and the white metal platform have durmast steps. Lighting is provided by a pattern of incandescent lamps.

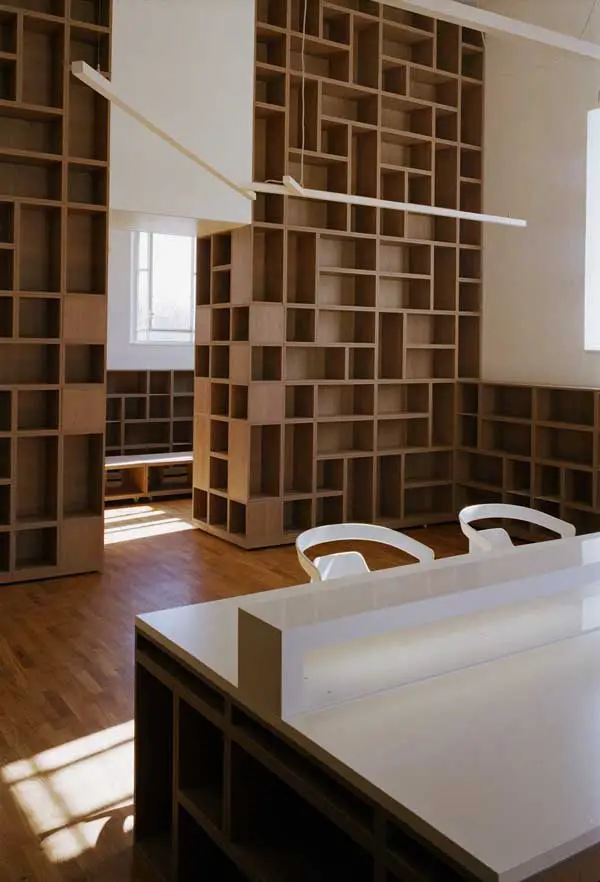

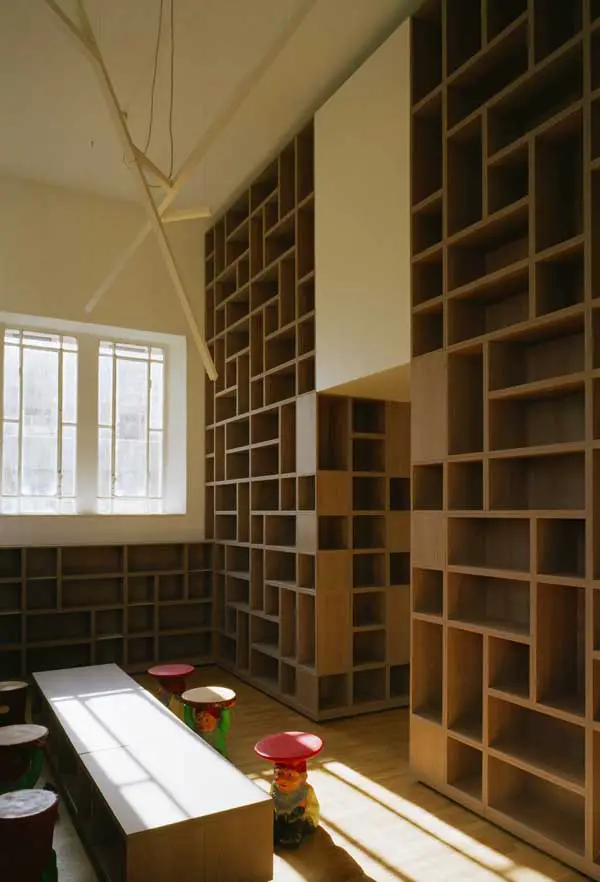

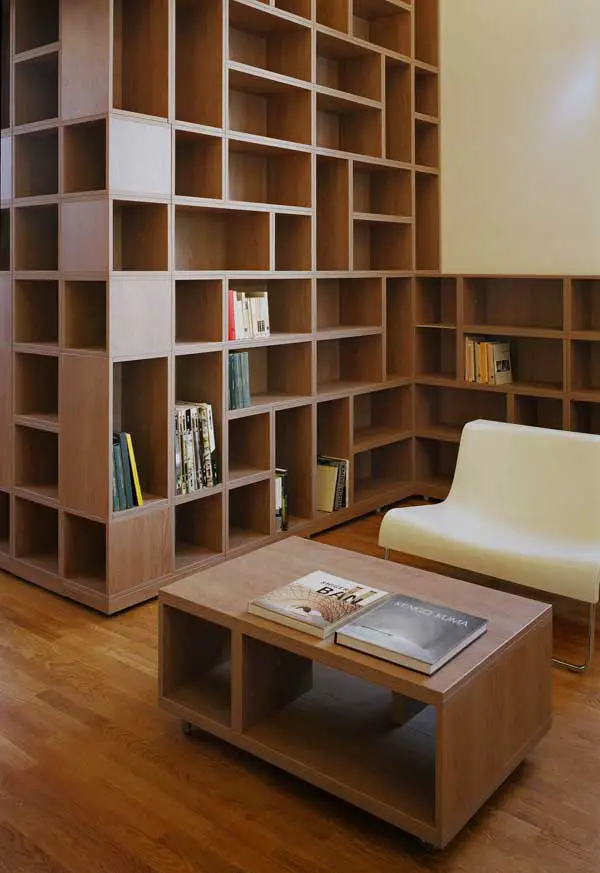

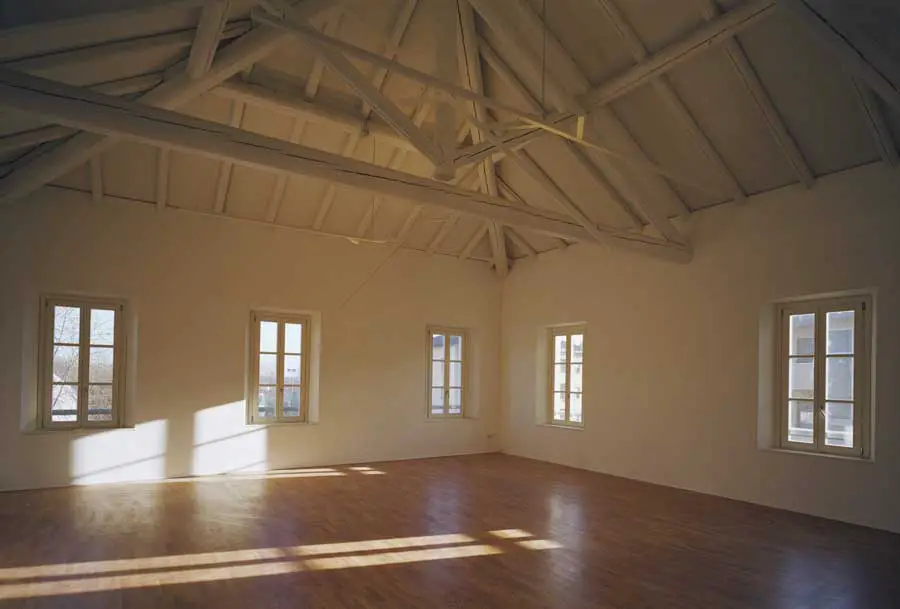

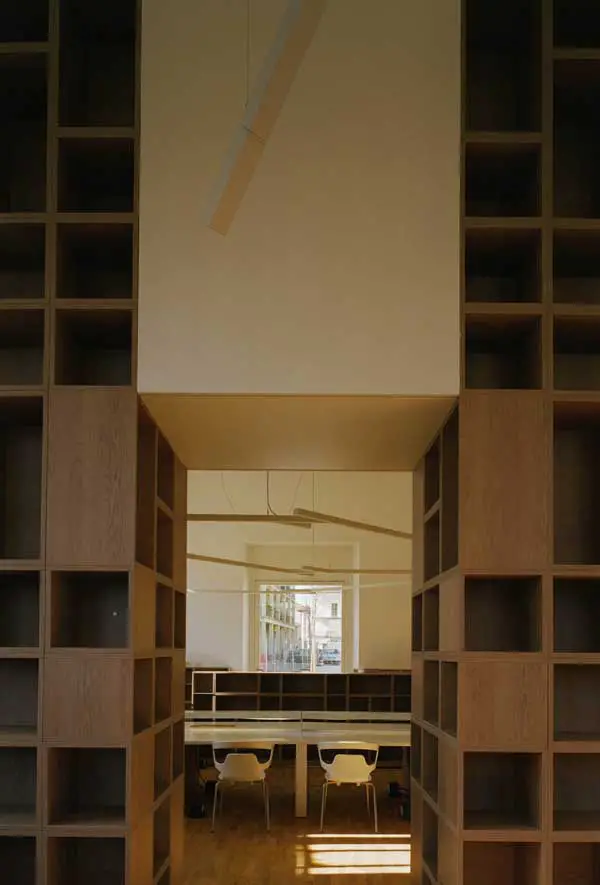

Inside the historical building the floor is in durmast too and the original roof has been restored. The wooden bookcases are designed as modular aggregations, able to be assembled at different heights and exhanged.
Oratory of San Michele : Municipal Library Elsa Morante – Building Information
Client: Lonate Ceppino Municipality, Varese
Project: Dap studio – Elena Sacco / Paolo Danelli
Contributors: Alessia Mosci, Paolo Vimercati, Fabio Pelizzari
Structures: GB. Scolari
Facilities: M. Piantoni, A. Bronzoni
Contractor: Gruppo Edilia
Interior Furniture: Habitat Italiana
Design phase: 2006-07
Construction phase: 2007-08
Lonate Ceppino Library photos © Luigi Filetici
DAP studio architetto based in milano, italia
Lonate Ceppino Library images / information from DAP studio architetto
Location: Piazza Matteotti, 4, 21050 Lonate Ceppino, Varese, Italy, southern Europe
