Copper Canopy Oss Building

Domestic Development in The Netherlands design by The Form Foundation, Europe

1 Feb 2010

Oss Building

Copper canopy to an existing building

Location: Oss, The Netherlands

Design: The Form Foundation, Amsterdam, The Netherlands

Copper Canopy Copper Canopy Oss Copper Canopy Design

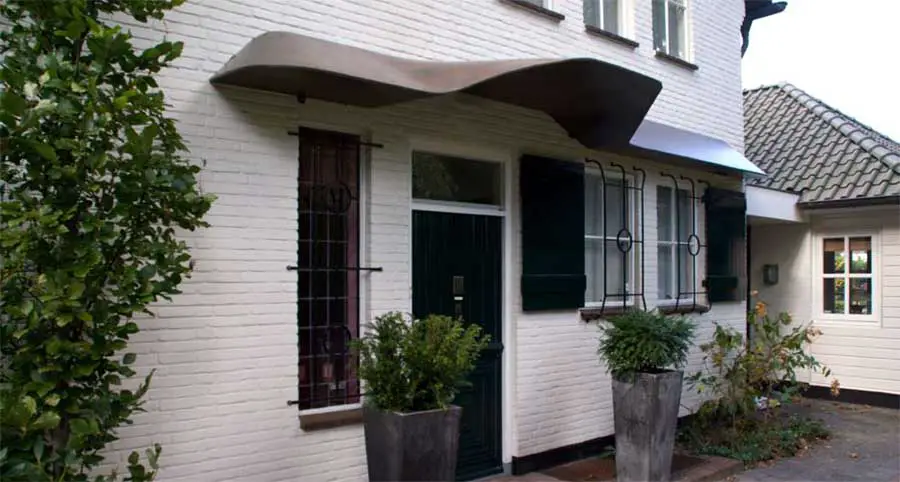

Copper canopy

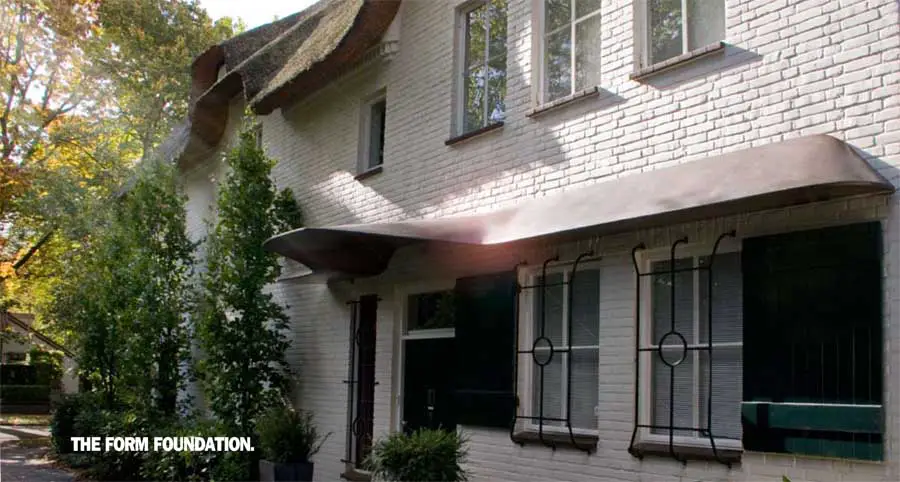

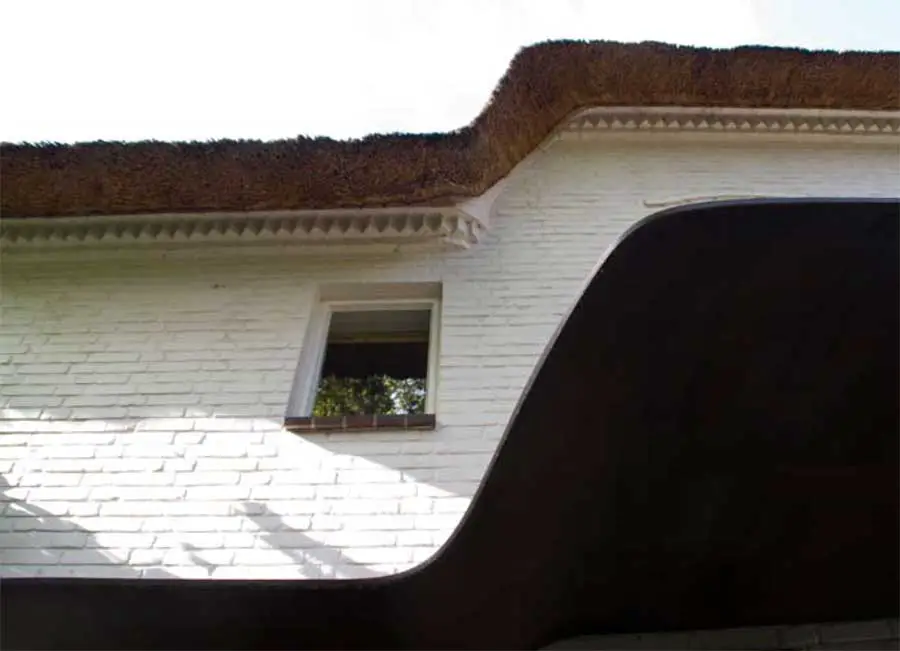

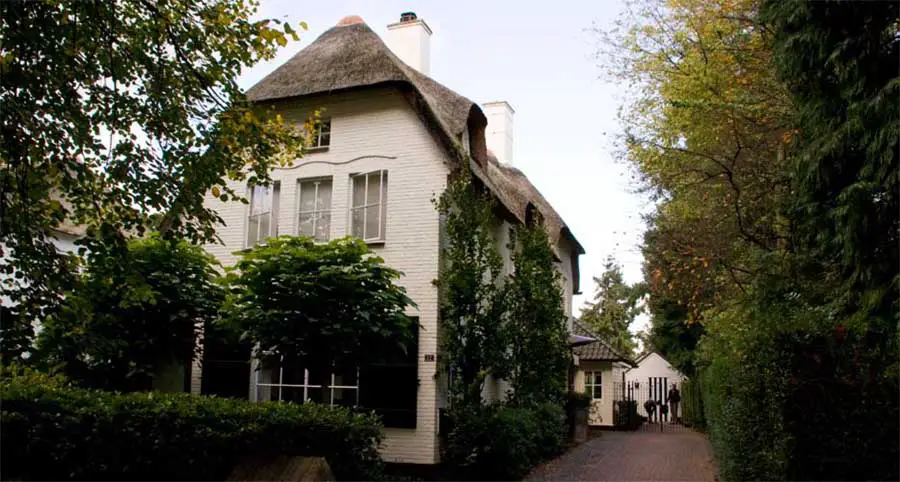

Above the front door of a house with straw roof a copper canopy was designed. The canopy uses the same curvature as its larger brother, the straw roof. The curvature above the front door is designed to ensure rain water falls down to the sides of the canopy, creating a dry zone in front of the canopy. The canopy was digitally fabricated resulting in an accurate, easy to assemble object. The copper resin coating creates a seamless monolithic object with matches the homogeneous structure of the straw roof.

Copper Canopy Copper Canopy Oss Copper Canopy Design

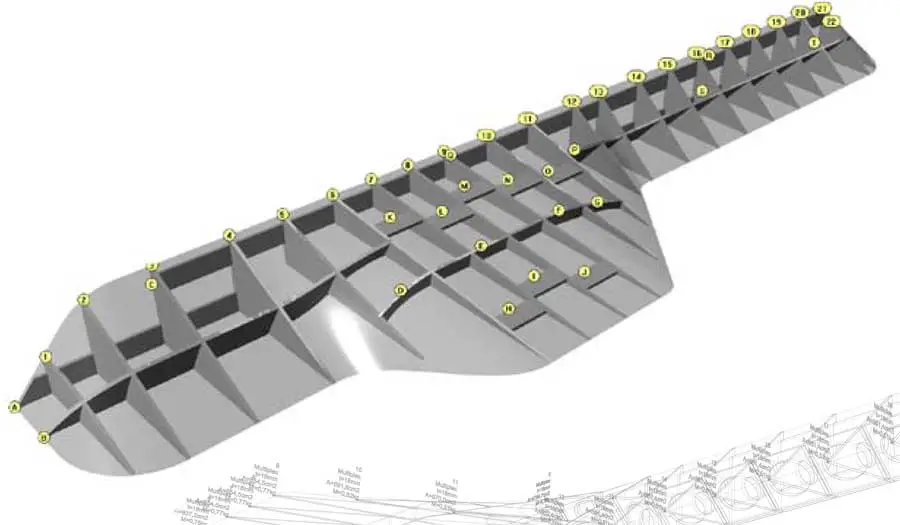

3D model

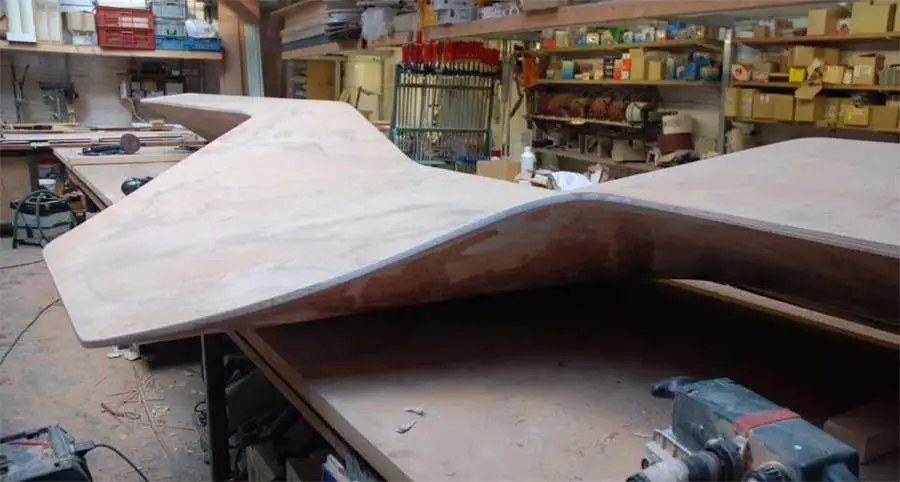

The geometry was defined in a 3D model. The canopy’s cladding consists of two 3mm thick bendable plywood sheets. Because this material can only be bent in one direction, the canopy was design using only single curvature. The rib structure on the inside is perforated to save weight. All ribs are automatically measured so the strength/weight ratios can be calculated instantaneously.

Digital fabrication

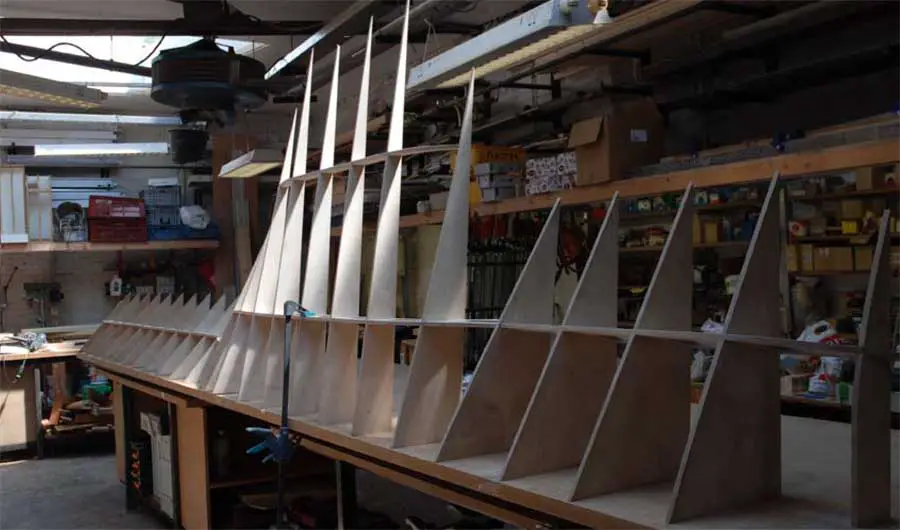

All ribs are tagged and are laid out on plywood sheets. This is done by a nesting software to minimise cutting loss. A waterjet cutter is used to cut the parts to a precision of 0,2mm. The result is a building package in which every numbered rib is easy to assemble and a frame which can be complete in a minimum of time.

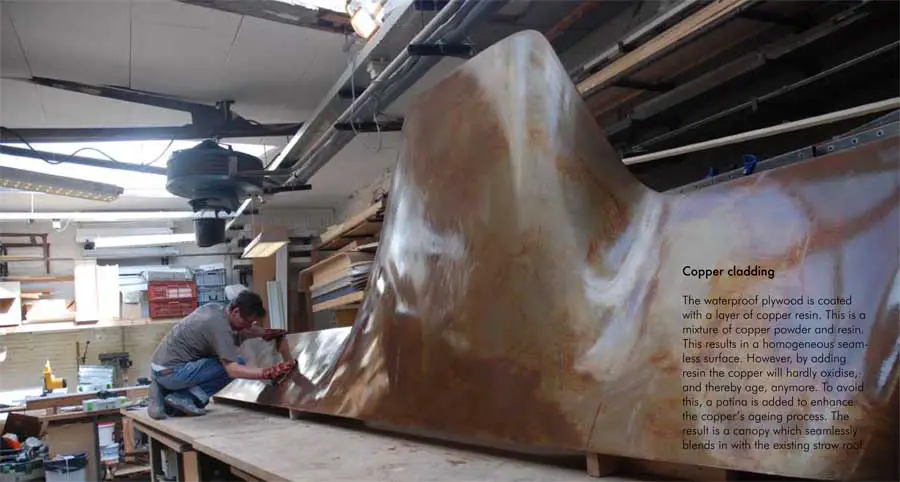

Copper cladding

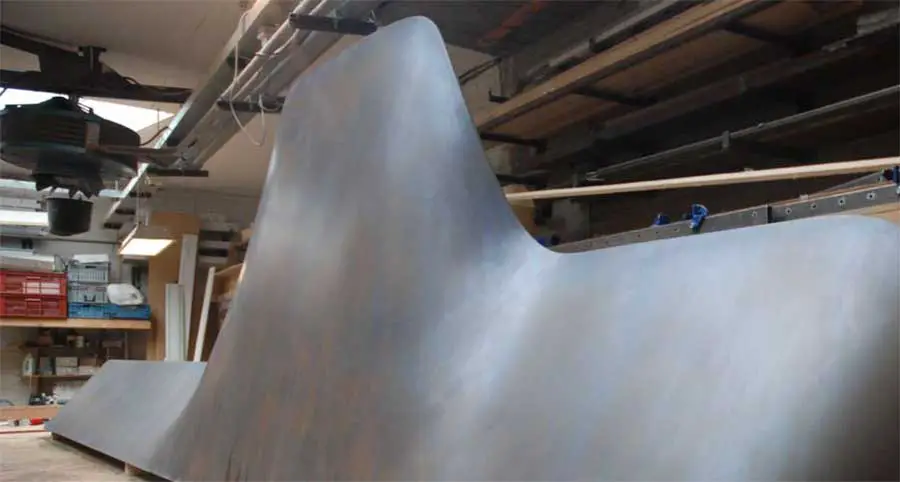

The waterproof plywood is coated with a layer of copper resin. This is a mixture of copper powder and resin. This results in a homogeneous seamless surface. However, by adding resin the copper will hardly oxidise, and thereby age, anymore. To avoid this, a patina is added to enhance the copper’s ageing process. The result is a canopy which seamlessly blends in with the existing straw roof.

Copper Canopy Copper Canopy Oss Copper Canopy Design

Copper Canopy – Building Information

Location: Oss, The Netherlands
Dimensions: 6,2m x 1,4m x 0,4m (LxBxH)
Weight: 109kg

Copper Canopy Oss images / information from The Form Foundation
