XU Tiantian / DnA_Design and Architecture, Beijing Architecture, Jinyun Quarries Berlin Exhibition, Germany Design Show

XU Tiantian / DnA_Design and Architecture, Beijing in Berlin

3 March 2022

Location of design: Jinyun County Bihui Quarry, Jinyun County, Zhejiang, China

Photos: Wang Ziling © DnA_Design and Architecture

Jinyun Quarries – The Quarry as Stage

From economic exploitation to ecological reuse

XU Tiantian / DnA_Design and Architecture, Beijing

Exhibition: 19 March – 5 May 2022

Opening: 18 March 2022, 6.30pm; Information will follow via newsletter
Venue: Aedes Architecture Forum, Christinenstr. 18–19, 10119 Berlin
Opening Hours: Tue–Fri 11am–6.30pm, Sun–Mon 1–5pm and Sat, 19 March 2022, 1–5pm

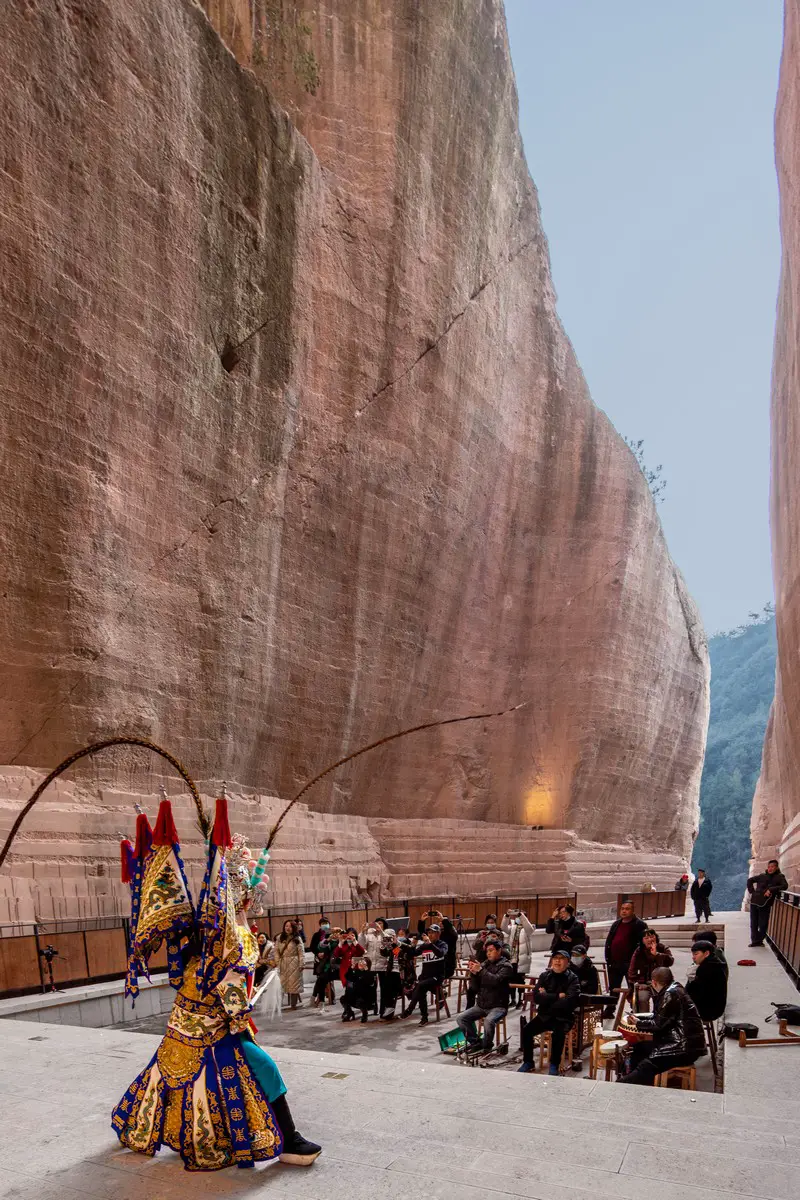

Performance at the Jinyun Quarries stage

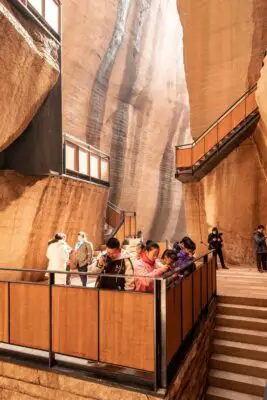

Jinyun Quarries stage in Zhejiang, China

XU Tiantian / DnA_Design and Architecture, Beijing at Aedes Architecture Forum

The mountainous landscape of Jinyun County in Zhejiang Province, China, has been shaped by the manual mining of natural stone. For the rugged and hard-to-access region, the Beijing architect Xu Tiantian and her team were asked to develop strategies for new uses for nine of the over 3000 small, abandoned quarries, which now provide a stage for cultural and social activities, and simultaneously strive for ecological improvements and create new economic perspectives for the rural population.

The pits, provided with new functions, have become part of a public infrastructure that puts historical aspects extending back over a thousand years as well as the everyday culture heritage in a new context. The exhibition, which reached us from Beijing by the most sustainable means of transport possible, namely by train, communicates the breath-taking sense of space in the stone quarries of Jinyun in a large-scale installation. Spacious, translucent models, photos, plans, and films visualize the complex structure of the spaces carved into the rock.

XU Tiantian / DnA_Design and Architecture, Beijing

In 2021, the Beijing architect Xu Tiantian and her firm DnA_Design and Architecture were awarded a commission to develop new utilization concepts for the old and today abandoned stone quarries in the northern part of Jinyun County in Zhejiang Province. Located in direct proximity to Songyang, where Xu Tiantian has already very successfully realized revitalization projects for the rural area, which have received close international attention, are over 3000 disused small stone quarries that, until recently, were still mined manually.

The nine stone quarries that have been worked on by Xu Tiantian and her team since then are located in a valley named Xiandu with an impressive natural landscape and bizarre volcanic rock formations that is already a tourist attraction today. To support the development of the region with the measures, the project strives for ecological improvements, while simultaneously creating social and cultural locations to be used by both the local population and visitors. The converted stone quarries that have been given a new use are part of a public infrastructure that puts historical aspects going back over a thousand years as well as the everyday cultural heritage in a new context.

XU Tiantian / DnA_Design and Architecture, Beijing

The Transformation of the Quarry Landscape of Jinyun
The landscape of steep mountains and narrow valleys in Jinyun County today was shaped by the small-scale exploitation of local stone quarries that were in operation for decades and thus led to considerable interventions in the natural landscape. With the Xiandu Scenic Area, the region already attracts many tourists today. The temple for the legendary Yellow Emperor (Huangdi), who has already been honoured for over 3000 years as the founder of the Chinese nation, has an impact far beyond the region.

According to the legend, he ascended the local Dinghu Mountain into the heavens on a dragon after achieving immortality. The temple, which was destroyed in the Ming dynasty (1368–1644), was reconstructed in 1994 and has regularly been used since then for commemoration ceremonies, and was admitted to the National List of Immaterial Cultural Heritage in 2011. Moreover, in natural and artificially created caves, there are 125 important stone calligraphies, the oldest of which comes from the Tang dynasty (617–907), which have been listed as national cultural heritage since 2001.

XU Tiantian / DnA_Design and Architecture, Beijing

Jinyun County is located in the southern centre of Zhejiang Province. Nearly 80 per cent of the region is covered by forest, thus making agricultural production on the rocky substrate difficult due to the scarcity of fertile soil. The inhabitants therefore relied on the hard profession of the stonemason, and until recently carved the material from the rock face manually. In the region, the massive stone blocks were used for the construction of houses, whose height was, however, limited by the heavy weight of the material. The stone quarries have now been abandoned for some years, are used in part for chicken farming and in part as fish ponds, or have fallen into disrepair.

Jinyun Quarry landscape in Zhejiang, China:

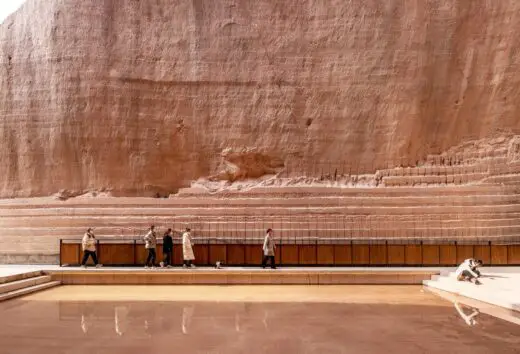

Jinyun Quarry Zhejiang, China landscape

Due to the on-going transformation of society and the socioeconomic challenges, as well as the need for new perspectives to counter the exodus from rural regions, the administration is seeking new possibilities for dealing with the remainders of the archaic mining industry on the one hand, and new sources of income for the population on the other. In addition, the stone quarries today gape like wounds in the natural landscape and urgently require ecological improvements.

XU Tiantian / DnA_Design and Architecture, Beijing

The Projects

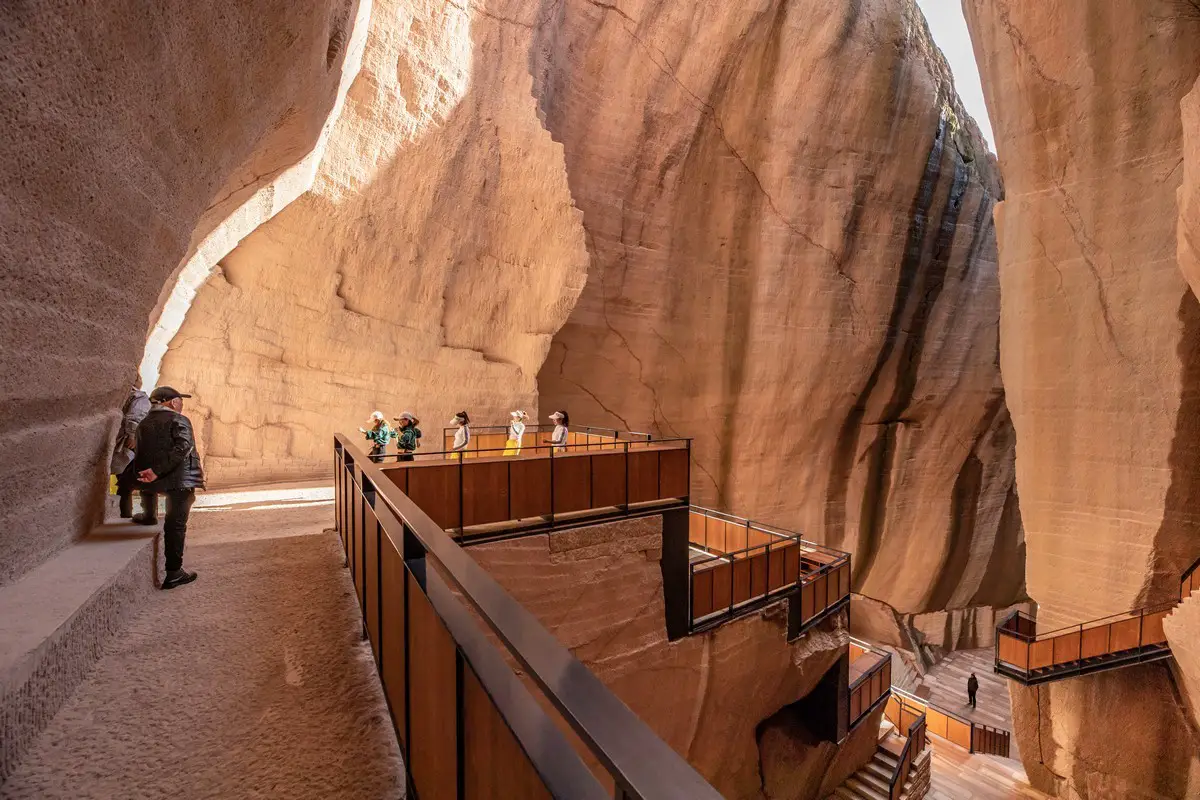

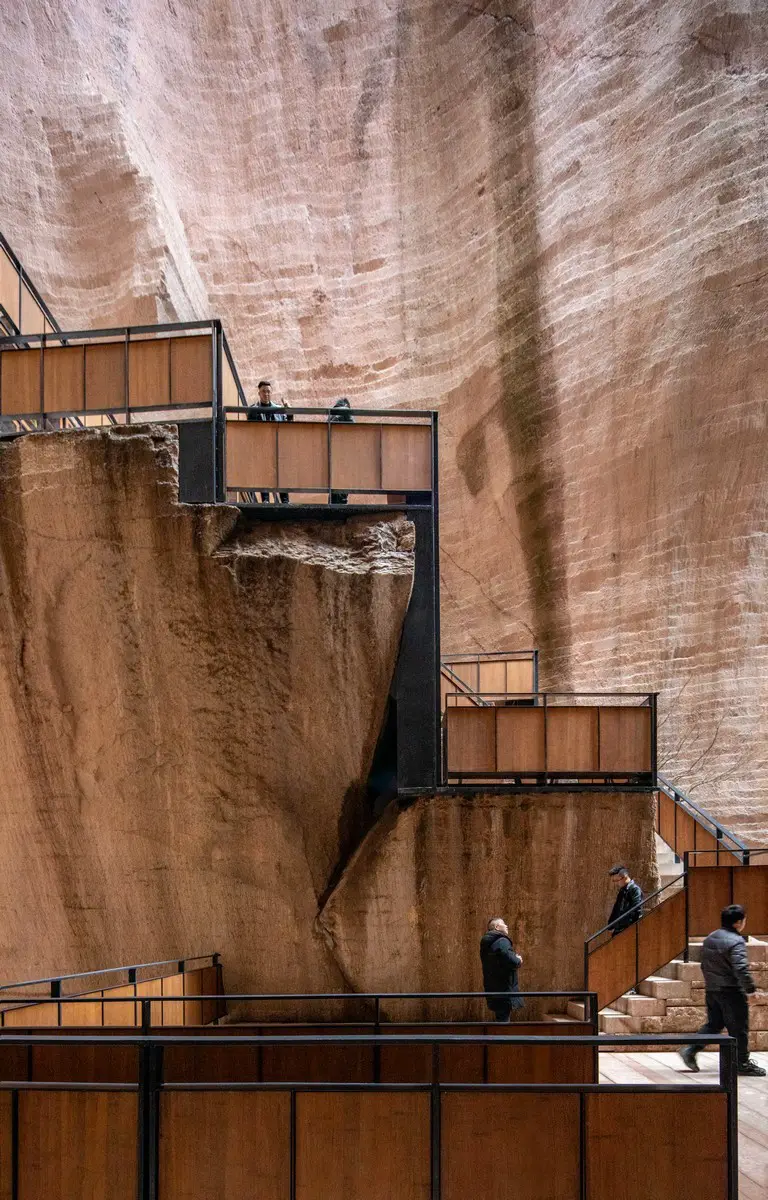

The exhibition presents all of the nine former stone quarries that have already been completed for new utilizations as well as those in planning. The individual locations are each characterized by very individual and random forms cut into the rock, and are connected by a footpath that is routed over stairways due to the differences in elevation. The stone quarries are situated within a radius of one kilometre and contribute as a pilot project to revitalizing the landscape and the region by means of the smallest-scale interventions possible. The simple, very careful interventions by the architect contrast with the ‘over-designing’ of rural areas, in the sense of kitschy romanticizing or ‘Disneyfication’, which has become common in many places in China.

XU Tiantian / DnA_Design and Architecture, Beijing

New Uses for the Quarries

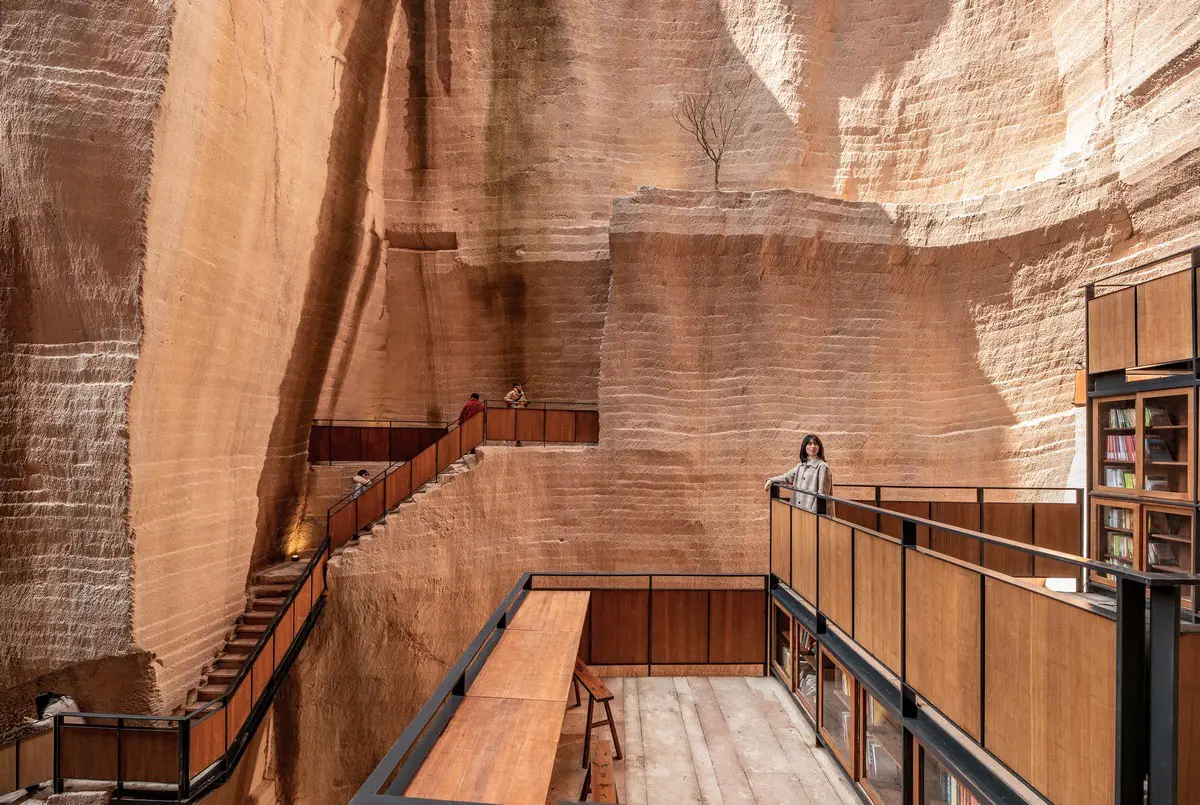

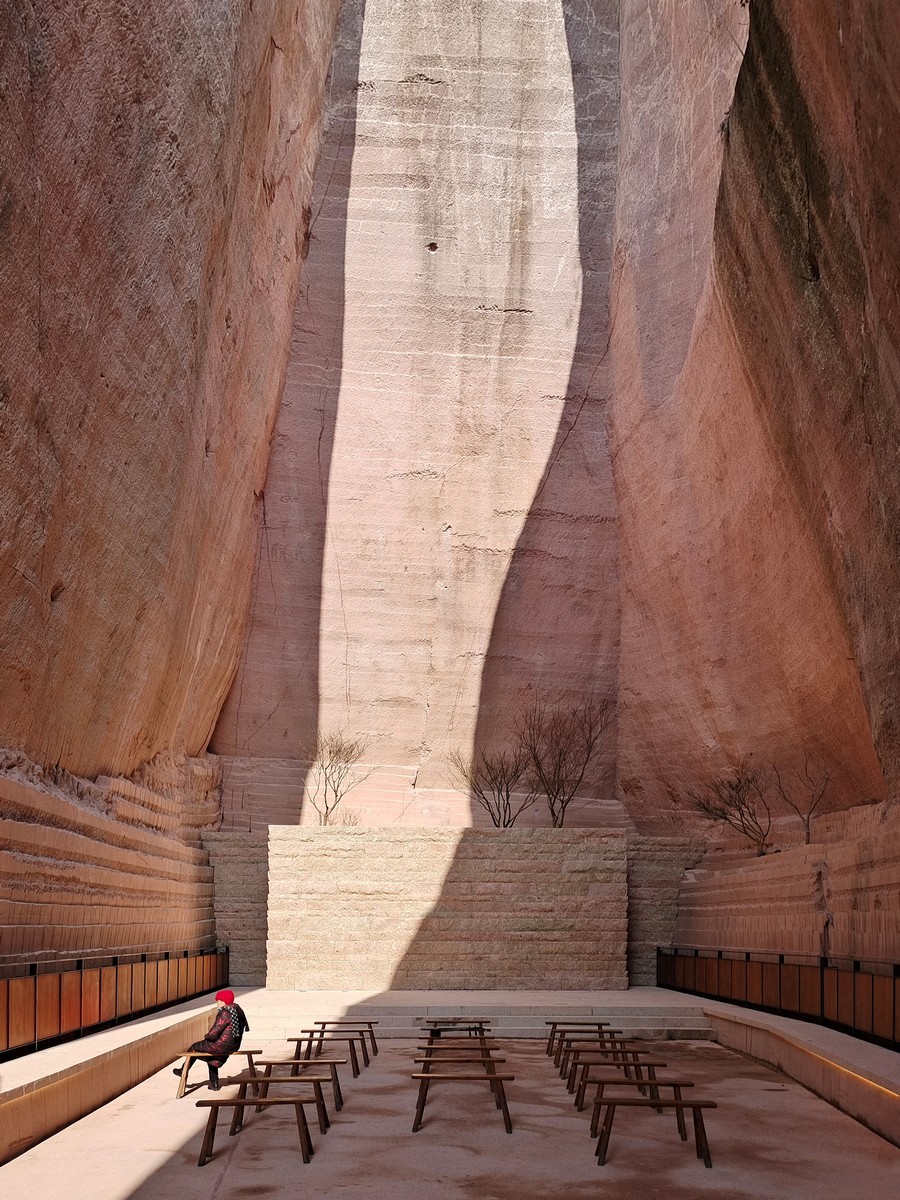

Some of the immense—often cathedral-like—spaces in the rock face, which were created by chance when the stone was quarried and are up to thirty-eight metres high, have good acoustics and are thus suitable for performances of traditional Wu opera or as spaces for presentations. At another station, former stonemasons demonstrate the quarrying of stone in live presentations. There are also huge stone chambers that are used as a teahouse, or platforms from which visitors can observe the sunset through a spectacular hole in the rock face.

XU Tiantian / DnA_Design and Architecture, Beijing

The nine stone quarries are connected with one another via a valley with a small village. An information centre with a stone quarry park with water surfaces, in which visitors will be given insights into history, flora, and fauna, is being planned there. Besides new locations for social and cultural infrastructure, possibilities for economic development, for instance, a restaurant for catering to guests and an education centre for processing natural stone are also being created.

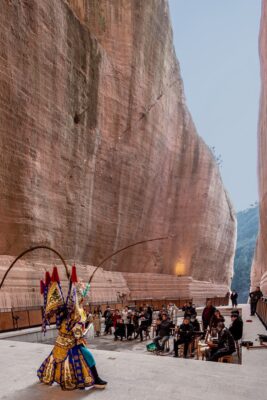

Performance at the Jinyun Quarry:
Jinyun Quarry stage in Zhejiang, China

With their interventions, the architects are transforming the relicts of a landscape shaped by a work culture of hard physical labour into a symbol of the economic and cultural transformation in the rural area, which also contributes to socioeconomic and ecological improvements. The spatial experience in the amorphous caverns, dramatic natural illumination, and acoustics offer an experience that is not possible in such a way in the normal day-to-day life of rural and urban populations. Embedded in the natural and cultural landscape of past centuries, a necessary measure is combined with a contemporary world of experience that brings together the different expectations and possibilities.

XU Tiantian / DnA_Design and Architecture, Beijing

The Exhibition
As in the project as a whole, which focuses on reconciliation with nature, a respectful approach was also taken when creating the exhibition. For example, the models produced in China came to Germany by train on the route of the Trans-Siberian Railway, and all the other components of the exhibition were produced in Berlin.

The large, extensive installation presents the unusual spatial feeling in the stone quarries of Jinyun scenographically and enables visitors to experience it. Spectacular, translucent models give an impression of the complex spatial structure of the spaces carved into the rock, accompanied by large-format photos, plans, and descriptions. Films communicate the historical situation when the stone quarries were still in operation on the one hand, and also how the population, the craftsmen, and the administration have accepted and assess the newly created infrastructures today on the other.

XU Tiantian / DnA_Design and Architecture, Beijing

The Architecture Studio
Xu Tiantian is the founder of the firm DnA_Design and Architecture in Beijing. She studied at Tsinghua University in Beijing (bachelor’s degree) and at the Harvard Graduate School of Design in Boston (master’s degree). The firm works in an interdisciplinary way and has been creating innovative strategies for developing rural areas for a number of years.

Jinyun County Bihui Quarry by XU Tiantian / DnA_Design and Architecture

She was recently a focus of debates about the revitalization of rural villages and landscapes in Songyang with her strategy of ‘architectural acupuncture’, which was presented in an exhibition conceived by the Aedes Architecture Forum in Berlin in 2018, and was then presented at the 16th Architecture Biennial in Venice as well as subsequently at the AzW in Vienna. The book THE SONGYANG STORY Architectural Acupuncture as Driver for Rural Revitalisation in China: Projects by Xu Tiantian, DnA_Beijing, edited by Hans-Jürgen Commerell and Kristin Feireiss, was published by Park Books in Zurich in 2020. In addition to many other awards, Xu Tiantian received the Moira Gemill Prize for Emerging Architecture in 2019.

Jinyun County Bihui Quarry in China landscape

Jinyun County Bihui Quarry – XU Tiantian / DnA_Design and Architecture – Further Information

Speaking at the opening
Hans-Jürgen Commerell Aedes, Berlin
Friederike Meyer Editor-in-Chief, Baunetz, Berlin
Dr. Eduard Kögel Urban Planner, Berlin
Xu Tiantian DnA_Design and Architecture, Beijing (video message)

Aedes cooperation partners: Zumtobel, Cemex, Camerich, Erwin Hymer Group

Generously supported by: Xiandu Scenic Area

Further information: www.aedes-arc.de

Jinyun County Bihui Quarry in China construction

Photos: Wang Ziling © DnA_Design and Architecture
