Edge of the City Housing in Rijeka

Edge of the City in Rijeka, Affordable Housing, Croatian Architecture, Design, Building, Images

Edge of the City Housing

Affordable Properties in Croatia – design by: Zoka Zola architecture + urban design

22 Nov 2014

Edge of the City Housing in Rijeka

Design: Zoka Zola architecture + urban design

Rijeka Affordable Housing

This project for affordable housing for the City of Rijeka was the result of an architectural competition. The city asked for an urban design solution to place 80 condominiums in 3 – 5 buildings each on its own newly formed lot. In addition, a playground, park areas, fire lanes, and 120 parking spaces were to be provided. The condominium sizes and each room areas were specified. City zoning and building codes were to be applied.

The topography of the site is like scrambled papers: 15’ over 15’ of dip in one direction, than 10’ over 20’ rise in another direction and so on. On the highest elevation there is a small circular wetland. The entire site used to be a habitat for a dense forest with varied species.

The project focuses on articulating the edge of the city – where human habitat meets the forest. The buildings are placed perpendicular to this edge, so that urban environment and forest have an opportunity to merge into a new kind of environment.

Edge of the City Housing in Rijeka

To preserve as much of the site qualities as possible, the buildings follow topographic contours at the same elevation as the two surrounding streets. The chosen topographical contours are then mathematically interpolated to three segment polylines that form a building shape with two “bends” and three variable lengths segments. These variable segments allow for flexible programming of different apartment sizes while the “bends” become vertical circulation spaces.

Edge Of The City

The ratio of floor area to perimeter is thus increased, allowing for well-lit apartments with through-views and three-sided views. Every condominium gets a view of the city and the forest, and most of them also have a view of the Adriatic Sea.

Edge Of The City

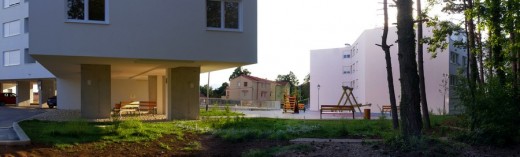

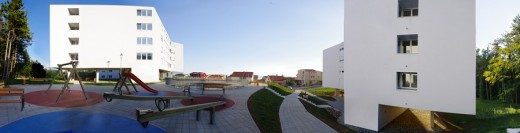

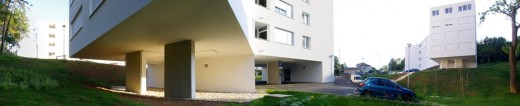

The buildings are lifted off the ground with empty ground levels, thus making the entire site and surroundings usable and perceivable. Also this way subterranean condominiums are avoided. The spaces between and underneath the buildings are varied and rich due to the interplay between site topography and building configurations. People use the entire site, regardless of where they live. They walk underneath and between the buildings and across the site; they meet along the many pathways, or under the buildings at the edge of the forest, or on the large play area in the center – the highest elevation point with the strongest connection to the broader surroundings.

Edge of the City Housing in Rijeka – Building Information

Total Site Area: 7.161,00 m2 (770,080 sq.ft. divided in 4 lots
Total Project Cost: 42.000.000,00 Kn (7,000,000.00 USD)
Retail cost of apartment: 8,310 kuna/ m2 160 USD/sq.ft.
Design: Zoka Zola, Dorothea Schulz, Vuki Backonja, Kate Casey, Fred Grier, Adi Kohn, Blake Smith, Agata Siemionov
Client: Vladimir Benac, APOS City of Rijeka
Local Architect: Projektura d.o.o.
Structural engineer: Andrej Markovic d.i.g., ovl. ing, Ultra Studio d.o.o.
Water engineer: Zdenka Krusic Katalinic, dip.ing.grad., Aqua Plan d.o.o.
Mechanical engineer: Boris Dragicevic, dipl.ing.stroj., rijekaprojekt energetika d.o.o.
Electrical engineer: Marjana Ivkovic dipl.ing.el., I.M.EL d.o.o.
Elevators: Lift Modus
General Contractor: Novotehna

Edge Of The City

Edge of the City Housing in Rijeka images / information from Zoka Zola architecture + urban design

Location:Rijeka, Croatia ‘
