Longfu Life Experience Center China, Puyang County Building, Henan Province Architecture News, Architect

Longfu Life Experience Center Design

27 Oct 2020

Longfu Life Experience Center Building

Design: LUO studio

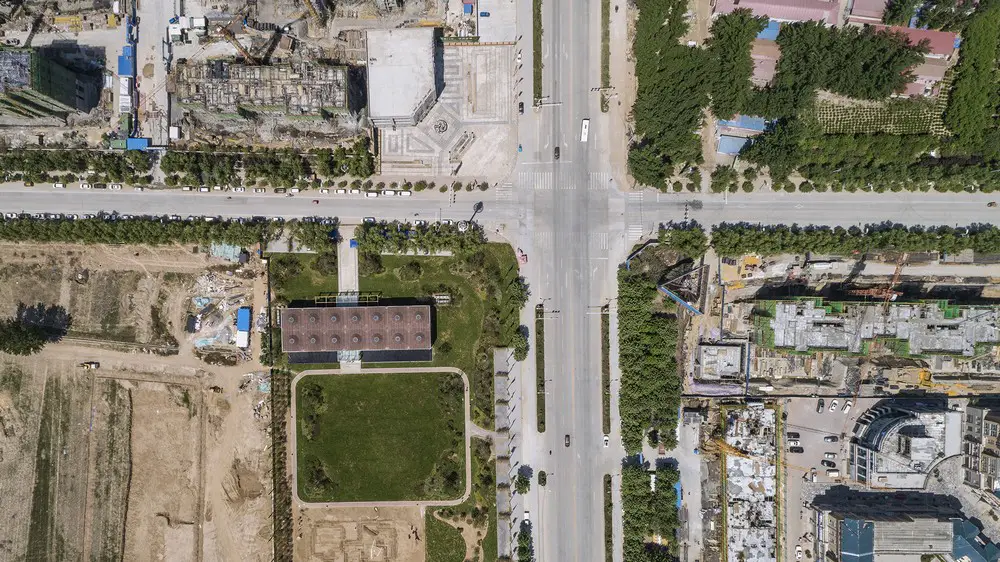

Location: Southwest of the intersection of Changqing Road and Fumin Road, Puyang County, Henan Province, China

Longfu Life Experience Center Building China

Photos by Jin Weiqi

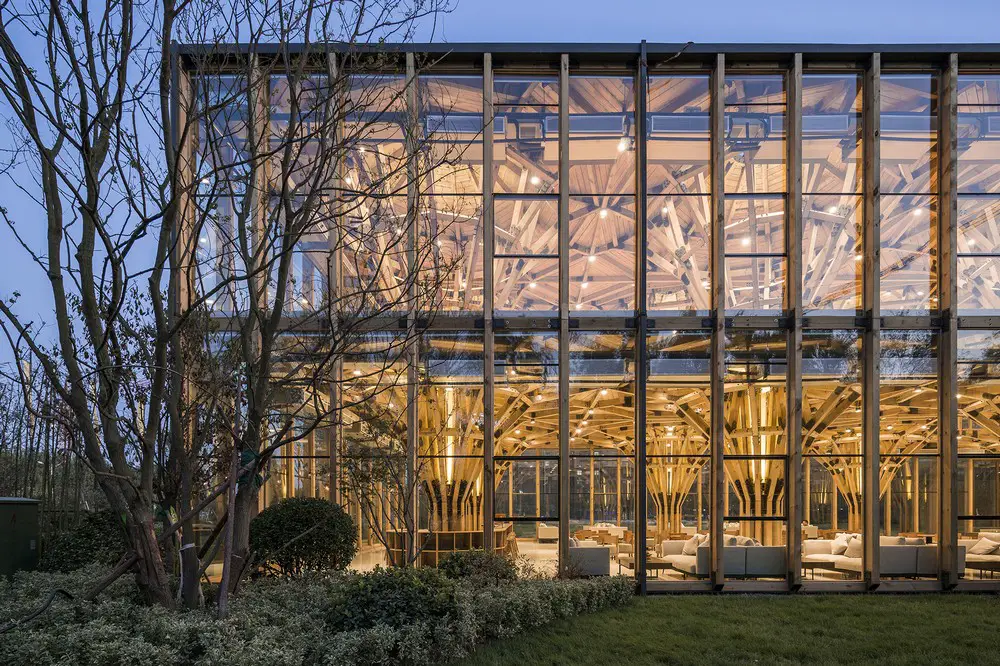

Longfu Life Experience Center — A Universally-used Space Created by General Timbers and Techniques

  1. Separation of function and space

Real estate sales center is a kind of temporary architecture that can only last several months or few years at most, which is usually dismantled after houses are sold out. Even if it can be preserved in few cases, functions are completely transformed. Interior decoration of real estate sales centers is generally complicated, causing obstacles and waste of resources in the process of functional repurposement.

Longfu Life Experience Center Building China

The building not only meets the temporary need of marketing but also has potential for a wide range of other possible usages. It’s more appropriate to say that we designed a space without functional constraints rather than just a sales center.

We turned all necessary service spaces featuring great spatial restrictions such as staircase and bathroom into basic modules in accordance with Ergonomics, and meanwhile tried our best to weaken the functional attribute of other remaining spaces. In this way, we separated function and space, so as to eliminate functional constraints of spaces.

Longfu Life Experience Center Building China

  1. Utilization of general timbers to maximize the space and make it extensible

The client is an estanciero who pursues high quality of real estate development instead of instant commercial profits. Based on the concept of attracting house buyers through creating a better lifestyle, he has been devoted to operating eco-farms as engaging in property development. A green lifestyle was exactly what he wanted to convey to target consumers through the sales center.

Timbers, the green and natural materials that suite the client’s corporation identity, are undoubtedly the most perfect materials for constructing the building.

Longfu Life Experience Center Building China

Cost-effective general timber materials that we could purchase were square logs in the length of 3m, 4m or 6m, with a 200mm side length of the cross-section. To build a large solid space and maximize its possible functions, several square timber pillars were combined together to form a “clustered column” instead of using a single wooden pillar as the supporting unit.

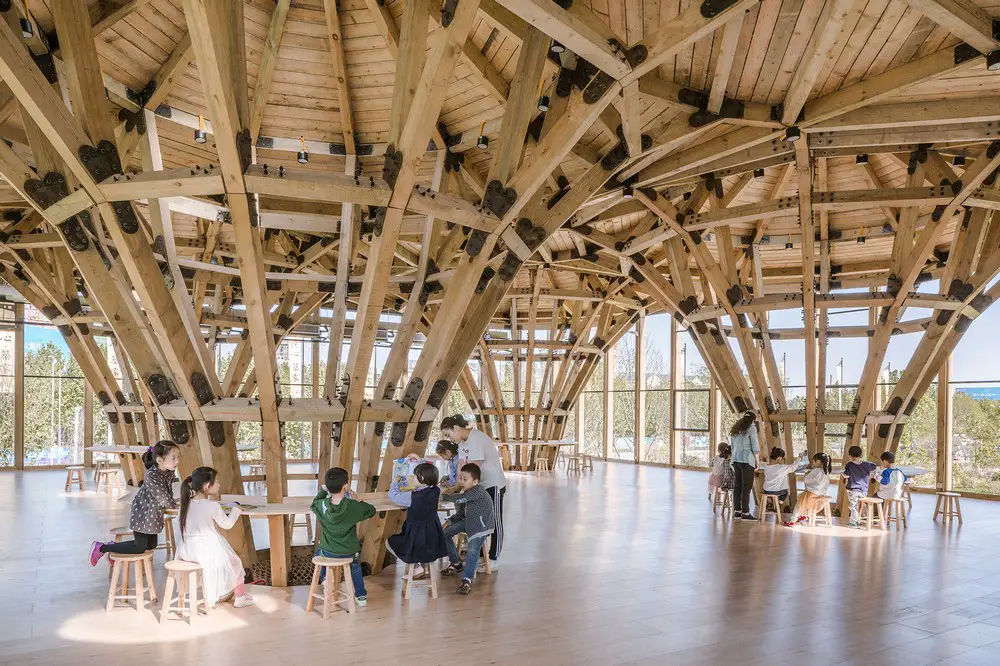

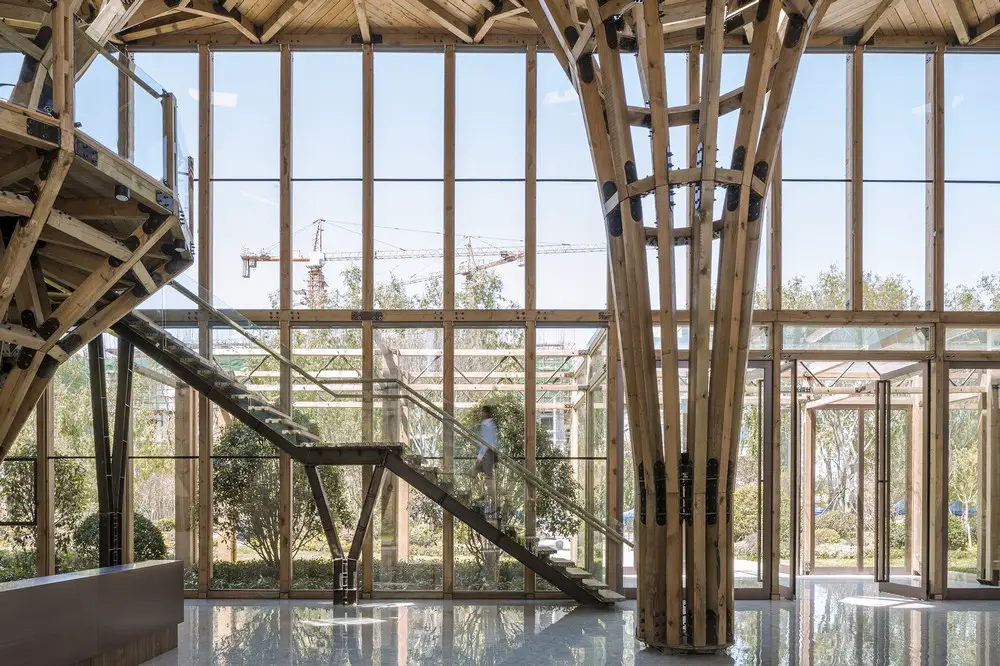

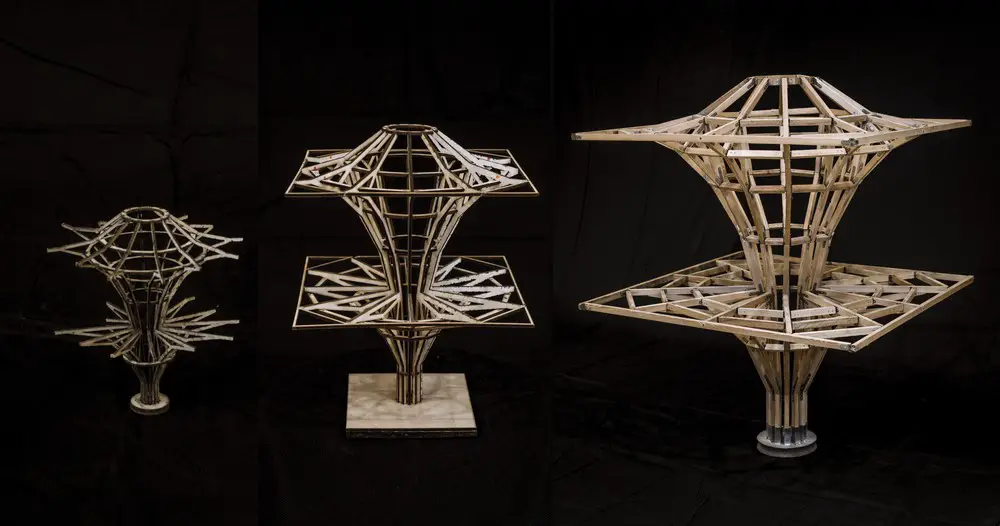

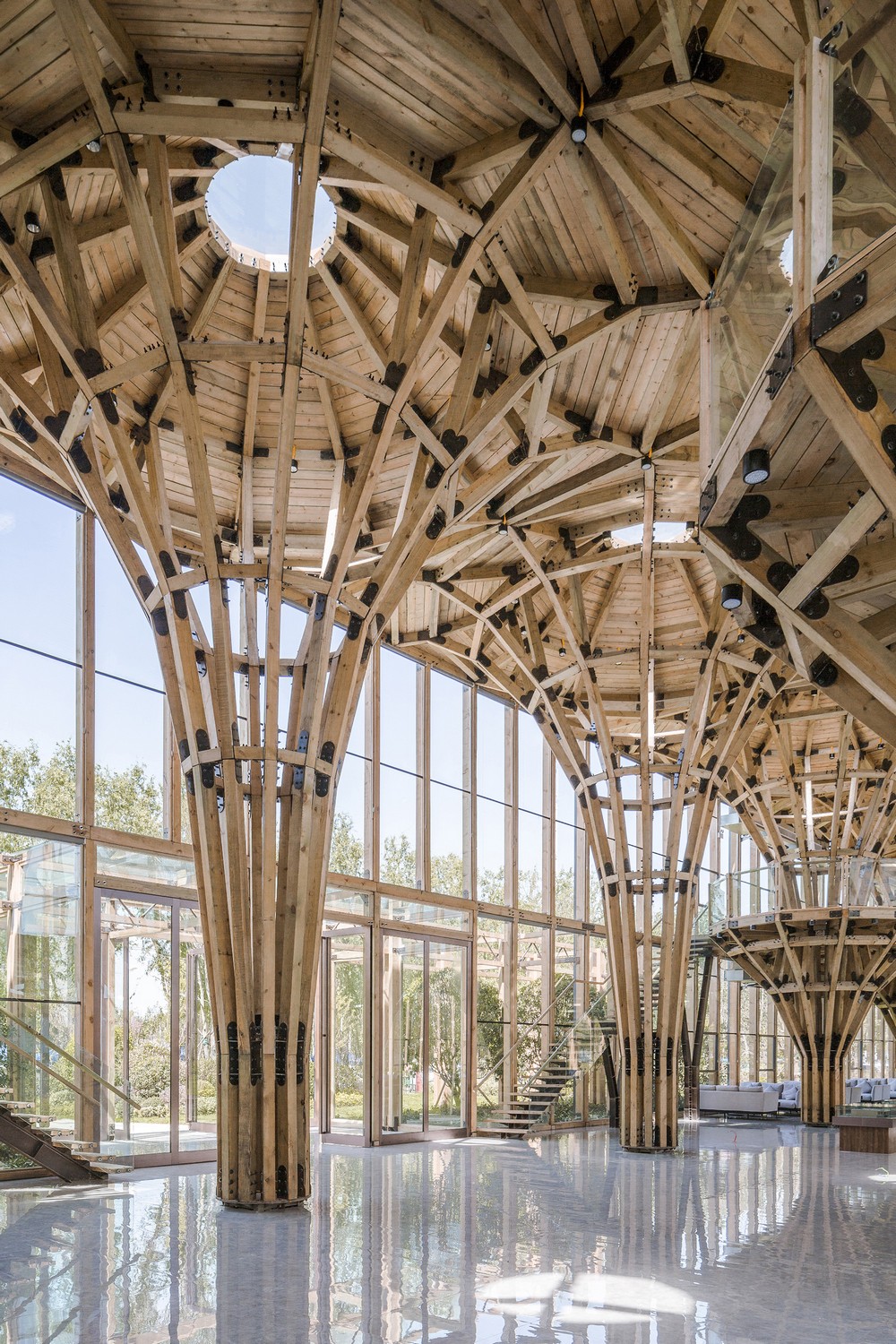

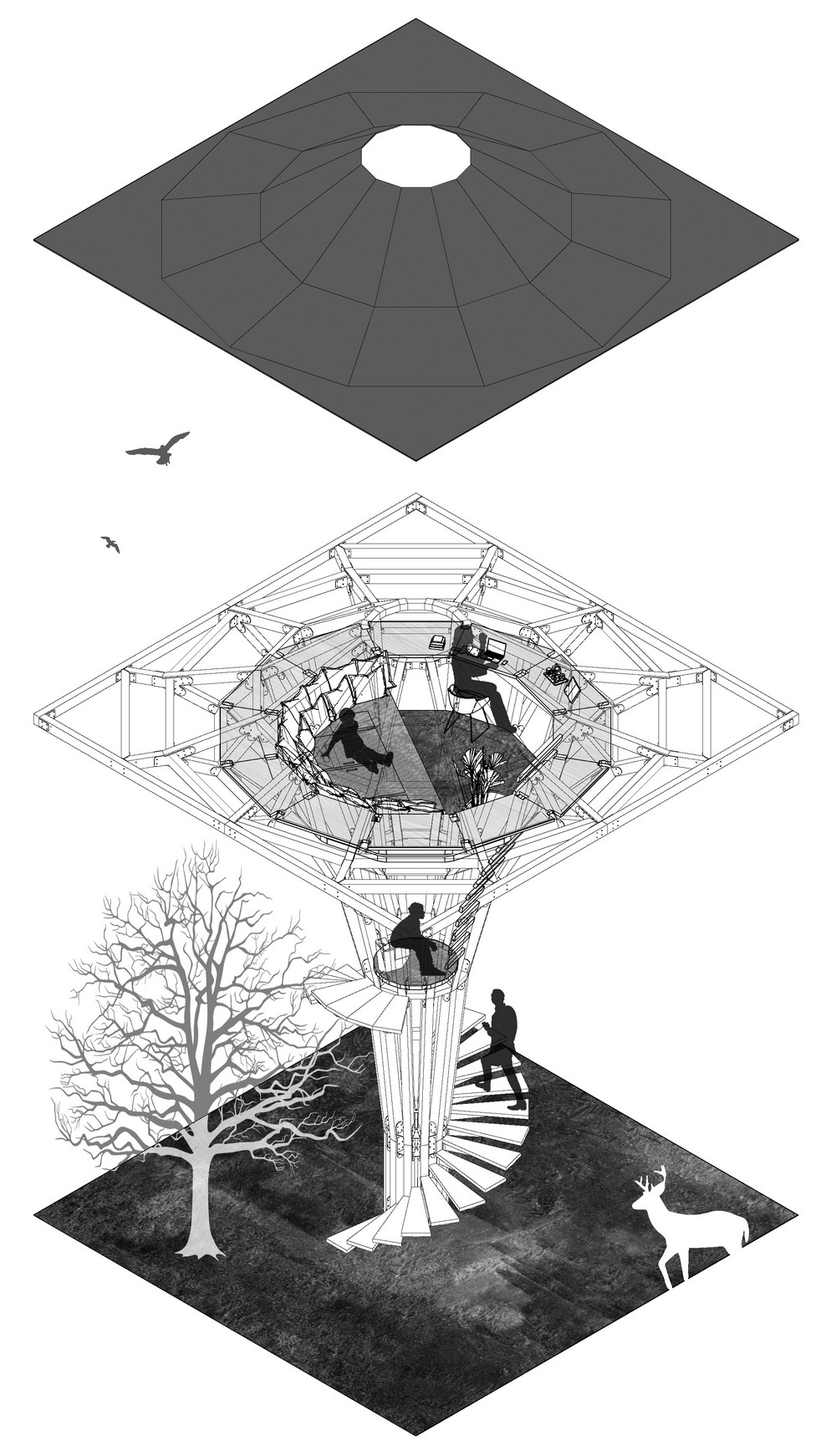

As forces acting on circle plane are even in different directions, horizontal units of the clustered column were designed in the shape of regular dodecagon, which are nearly round, with a diameter of 1m. The section size of timber pillars of the clustered column is 120mm*180mm. As for vertical units design, we applied the shape of trees. The clustered column was divided into five segments, each with the length of about 2m. These segments extend outward and upward to the ceiling, forming a cubic edge space with a height of 4.5m and a side length of 8m. With such clustered columns, we not only maximized the lower space but also the structural strength.

Longfu Life Experience Center Puyang County

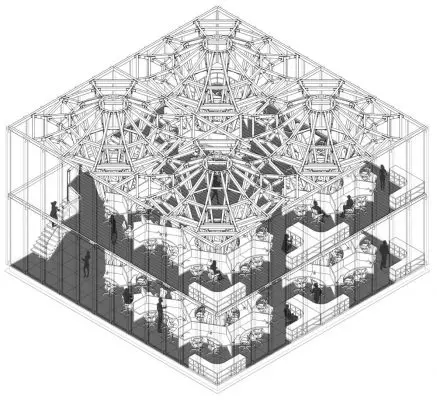

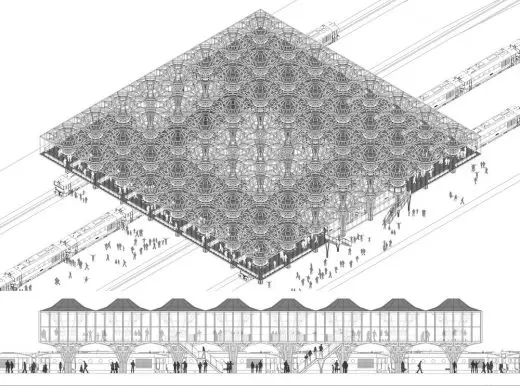

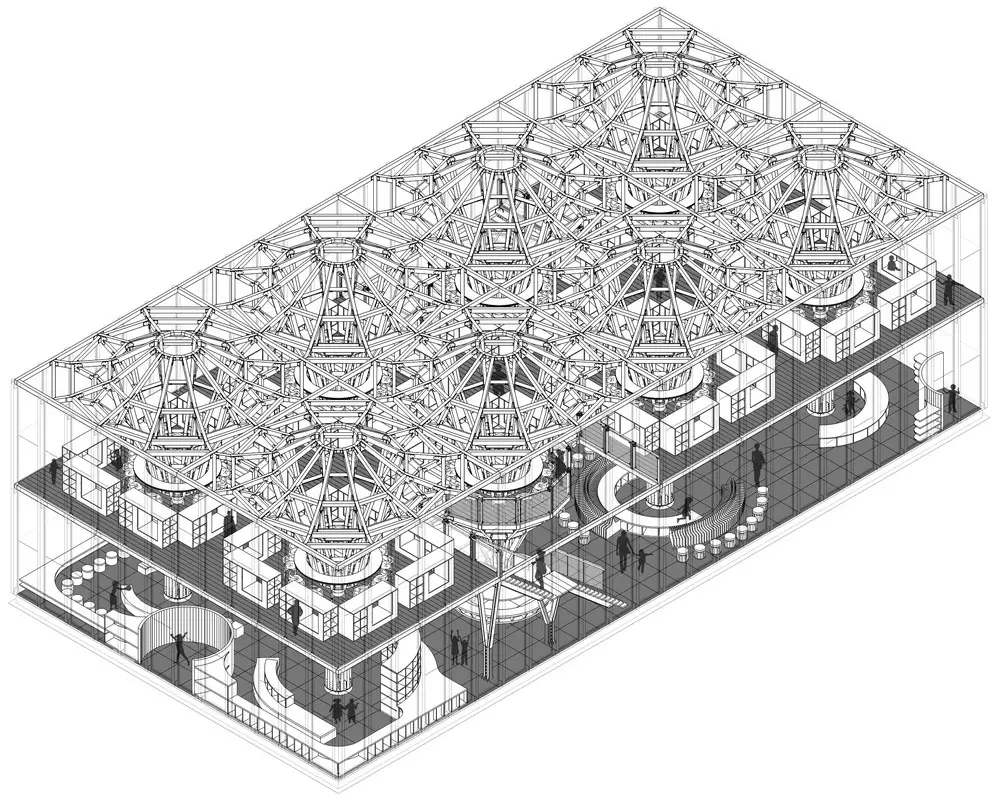

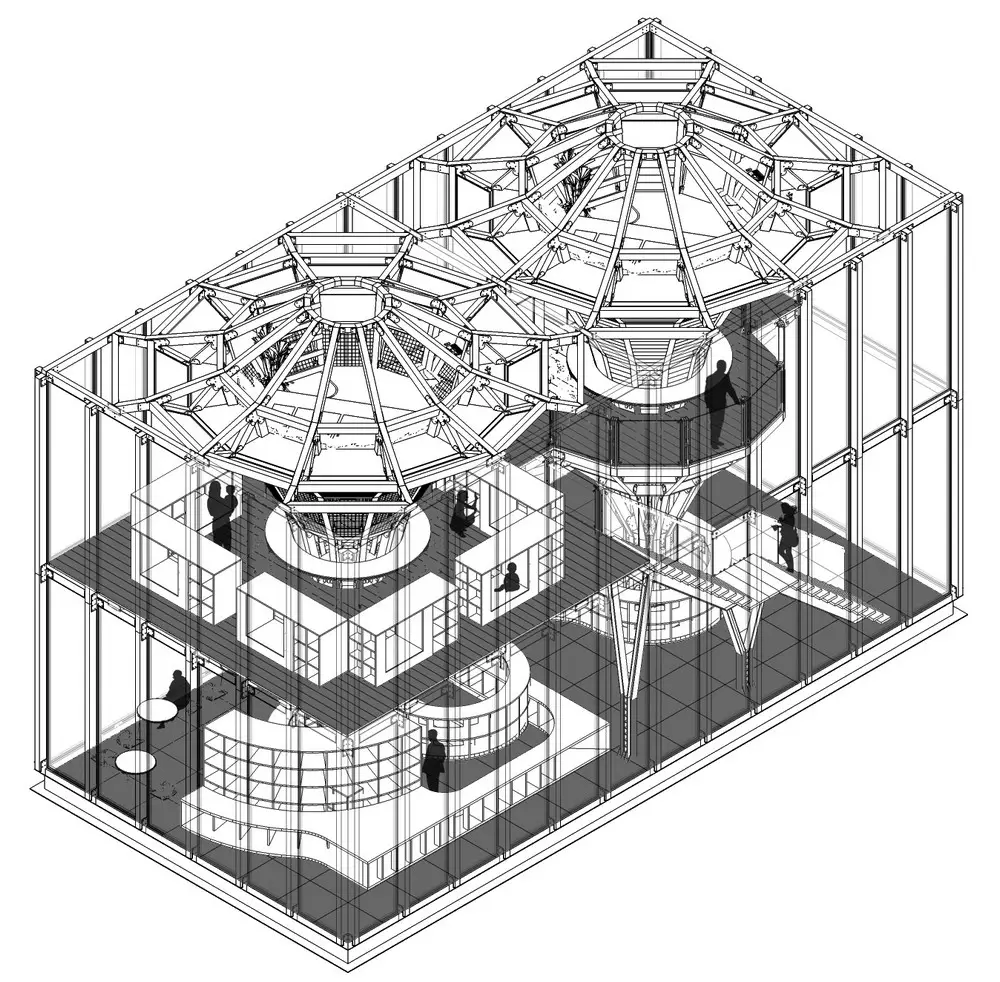

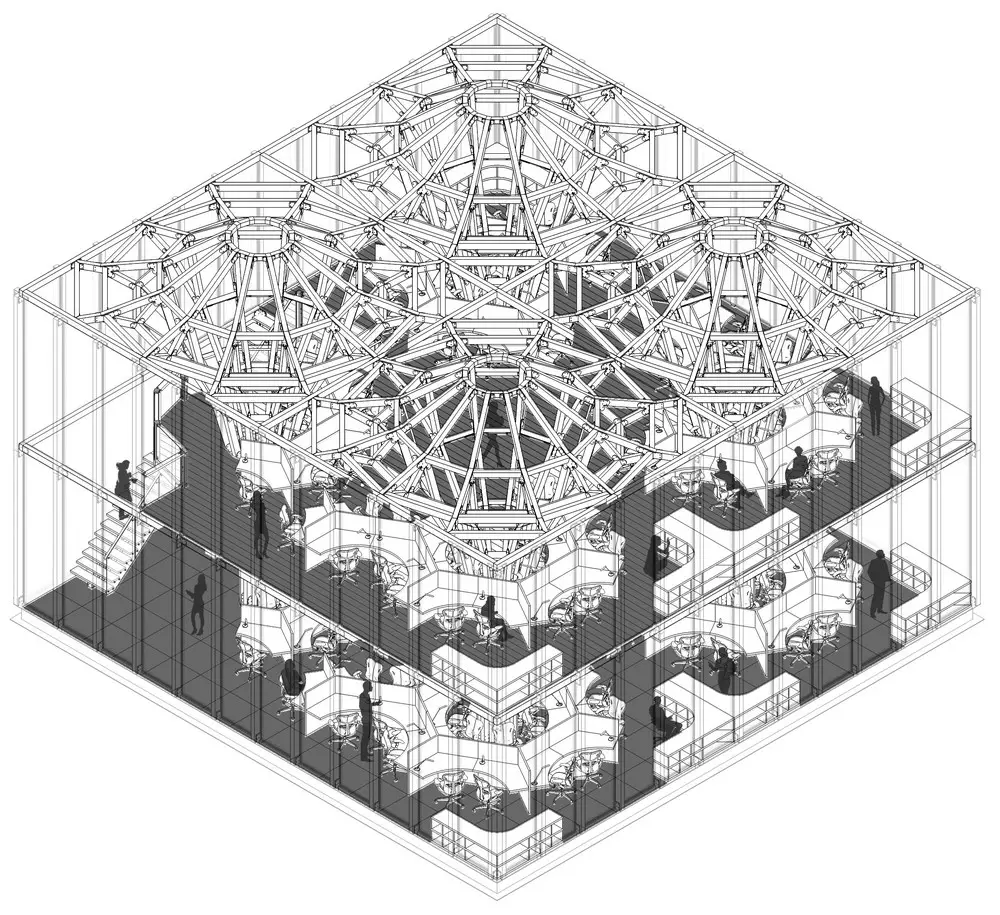

The bottom part of each “clustered column” is in the shape of regular polygon.  These “clustered columns” extend upward from the bottom and form a “square” outside edge. Each unit along the edge was horizontally and longitudinally interlined. Just like Lego bricks, each unit is independent or combined with others to create the desired space. The space is extensible. With “continuous arch” between each unit, the overall structure is very stable. And the more it stretches, the more stable the structure is.

  1. Rapid assembling via basic construction methods & reversibility

We were asked to complete design, construction, finishing and decoration of the architecture in less than two months and at the same time control the cost. Meanwhile, the architecture was required to be reusable that could be quickly constructed and dismounted. For us, it was a great challenge.

Longfu Life Experience Center Puyang building

We offered the following solutions. Firstly, trying best to control labor cost and improve efficiency. We adopted simple and basic construction methods as well as common material processing techniques, through which ordinary technical workers were capable of carrying out the construction work and materials could be processed in common factories, which ensured the building to be constructed in a short time. Secondly, ensuring the standardization and modularization of units.

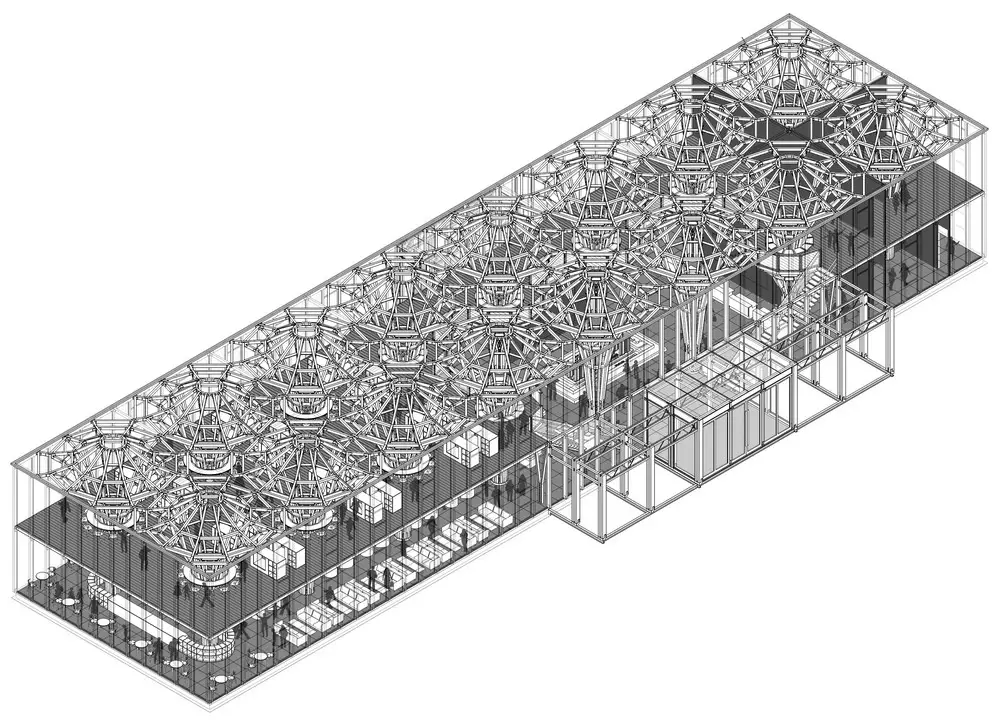

We divided the whole building into several primary units. And these primary units were further split into various standard components which were assembled based on a unified approach. The minimum unit could be formed only by three basic components, which was conductive to controlling the size and number of modular units. Besides, we established a set of standard and simple approaches for assembling, so as to accelerate the construction and installation process.

Longfu Life Experience Center Puyang County China

Thirdly, subdividing all types of work involved in the project as much as possible, processing materials in different factories, and arranging manufacturing workshops reasonably. In this way, all materials and components could be processed before or while the pre-order work on site was carried out. For example, while measuring and grooving work was carried out at the site, components of the steel structure, wooden columns and steal connection components were processed in different factories separately at the same time.

Longfu Life Experience Center Puyang County Building

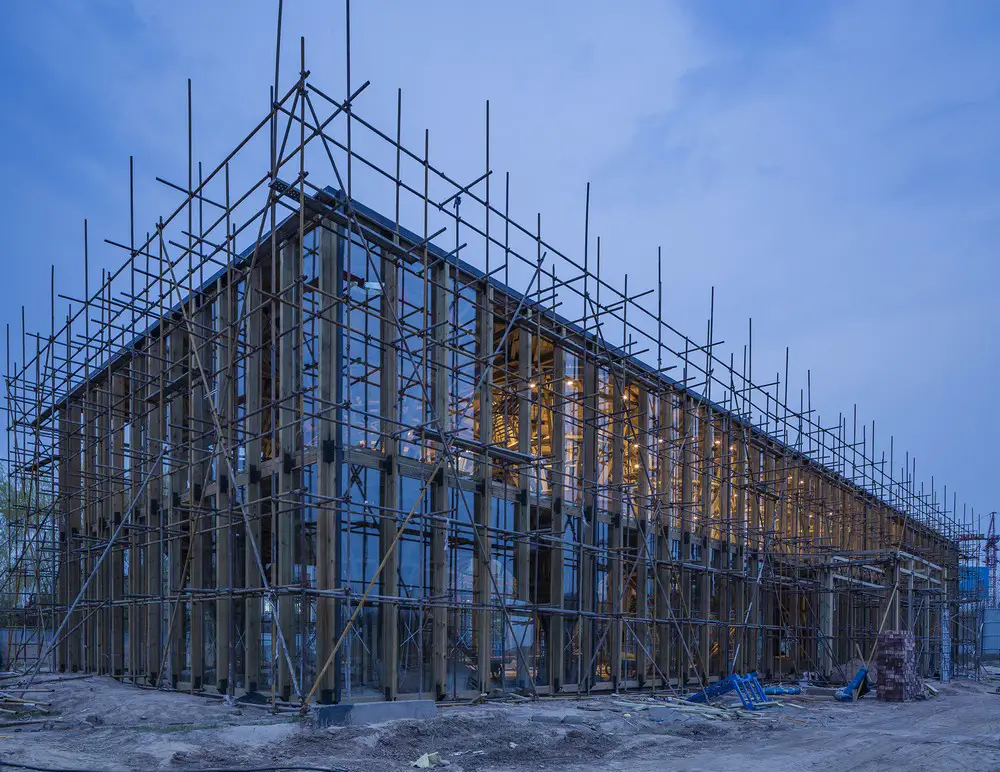

After back-filling was finished, wooden column units were assembled on the basis of the steel structure. All wooden column units were interlinked through bolting steel connection components. And all relevant work such as installation of indoor furniture, air conditioning and wiring systems was carried out in a coordinated way. Eventually, we completed construction and decoration of the building ahead of schedule.

Considering various practical factors, we laid tiles on the ground floor by using cement mortar. However, all other parts in the space were connected by bolts. All components can be completely dismounted, installed, moved and reused for other constructions, making the building thoroughly reversible.

LUO studio Founder – Luo Yujie:
Luo Yujie architect China

  1. Construction of a “smart” cavity

If the building is a person, all the equipment, electromechanics, pipelines of it are the respiratory systems, collaterals and blood vessels of the body. All these systems in the body are by no means isolated, but are highly integrated with the skeletons and muscles in a symbiotic state, resulting in a more effective and intensive space.

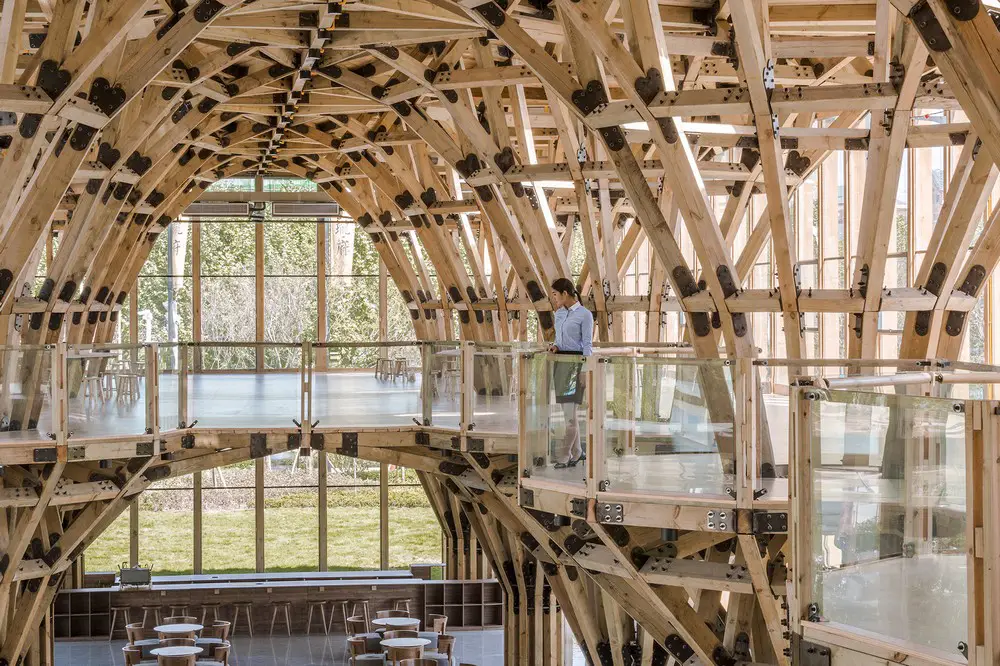

Other parts of the building were also designed in a way similar to the structure of body. Taking furniture as example, all the furniture “grows” on the structural column, with each table surrounding a single “clustered column”. All the furniture and guardrails stretch out of the core structure, and even weave a surface by extending outward. These necessary parts are concomitants of the main structure, providing support against it and making it more stable.

Longfu Life Experience Center Henan building interior

Equipment, electromechanics, pipelines, furniture and exterior were integrated into units of the structure to achieve the smallest occupancy, which facilitated separation of function and space and created a “smart” space resembling cavity of the human body.

  1. Universal space&universally-used space

Mies van der Rohe called the Crown Hall at the Illinois Institute of Technology in Chicago a “universal space”. The design permits the building to change its functions, so Mies declared it “the clearest structure we have done, the best to express our philosophy.”

Longfu Life Experience Center Henan Province

As designing and constructing the Longfu Life Experience Center, we chose to use standard timbers in China and utilized common processing and construction techniques, with a view to create a “universal space” that boasts infinite possible  usages rather than be limited to a certain specific function. The building is a “universal” space, but more importantly it is a “universally-used space”. The whole building or any part of it can be enlarged, cut, replaced or moved based on different needs. What’s more, it can also be completely dismounted and repurposed, and its materials can be reused for other constructions, hence achieving the objective that both the space and materials can be most universally used.

Longfu Life Experience Center Henan Province Building Longfu Life Experience Center Henan Province China

Longfu Life Experience Center – Building Information

Project information

Project name:

Longfu Life Experience Center — A Universally-used Space Created by General Timbers and Techniques

Design team:

Design studio: LUO studio (http://www.luostudio.cn/)

Chief designer: Luo Yujie

Participating designers: Wang Xiaotao, Wei Wenjing

Client (Design consultant): Lai Lijun

Construction company:Puyang JINGYI Architectural Decoration, Design and Engineering Co., Ltd.

Project Location:

Southwest of the intersection of Changqing Road and Fumin Road, Puyang County, Henan Province, China

Construction area: 1588 m2

Photographer: Jin Weiqi

Design date: January 15, 2018

Completion date:

April 10, 2018 (49 workdays in total for material processing and on-site construction)

Longfu Life Experience Center building design

Chinese text:







Longfu Life Experience Center building design




可以采购到高性价比的常规木材尺寸为:3m、4m、6m长,横截面200mm左右的方料。如何运用这些基准木料,去搭建一个大空间,获得更多元的空间适用可能?单根木柱为独立支撑单元是不太合适的,因为得不到一个无柱的大空间状态。以多根木柱组合形成“集束柱”是比较合适的选择。在自然应力里,圆形受力最均衡,根据单柱截面尺度、适宜高度、便捷施工空隙等因素,水平单元形态采用了近圆形的正12边形、直径1m、木截面120mm*180mm的集束组合柱。垂直方向采用 “树”的生长形态,分成五段每段2m左右,由内向上也向外慢慢挑出生长,最终形成高度4.5m、边长8m的方体边界空间,这样下部达到了使用的相对最大空间,整体又得相对最大结构强度。


Longfu Life Experience Center building design





Longfu Life Experience Center building design





Longfu Life Experience Center building design


密斯·凡·德·罗将芝加哥伊利诺伊理工学院克朗楼称为“普适空间”, 因为设计允许建筑改变功能,密斯称“它是创造的最清晰的建筑,完美地体现了普适的理念”。


Longfu Life Experience Center building design



设计团队:LUO studio │罗宇杰工作室(http://www.luostudio.cn/


参与设计人:王小涛 魏文景








Longfu Life Experience Center building design

LUO studio创始人,中央美院建筑学院建造课题教师,获得英国2019WAN AWARDS(世界建筑新闻网大奖)wood in architecture木建筑金奖、2019LEAF AWARDS欧洲杰出建筑师论坛大奖Best Achievement in Environmental Performance最佳环保类别大奖、入围2019AR新锐建筑师奖、入围美国A+ AWARDS建筑+技术奖、入围2018WA技术进步奖、入选2018年英国Dezeen中国年度十大建筑。


Luo Yujie Profile

Mr. Luo Yujie is the founder of LUO studio, who also teaches the course of Construction Basics in the School of Architecture at Central Academy of Fine Arts (CAFA). His exceptional works have been shortlisted and awarded by numerous design award competitions worldwide, including but not limited to:

WAN AWARDS 2019 — Wood in Architecture (Gold Winner)
ABB LEAF AWARDS 2019 — Best Achievement in Environmental Performance (Winner)
AR Emerging Architecture Awards 2019 — Shortlisted
A+ AWARDS 2019 — Concepts – Plus-Architecture +Technology (Finalist)
WAACA 2018 — WA Technological Innovation Award (Shortlisted)
Dezeen’s Top 10 Chinese Architecture projects of 2018

He is committed to creating more durable, friendly and quality spaces with creative thinking, a spirit of craftsmanship and the principle of caring for nature.

Longfu Life Experience Center images / information received 261020

Location: Puyang County, Henan, People’s Republic of China
