The Bow Calgary: Canadian Tower Building

The Bow Calgary, Tower Canada, Architect, Canadian Skyscraper Design, Project

The Bow, Tower : Calgary Architecture

EnCana and Cenovus Headquarters : Tall Building by Foster + Partners, Architects, UK

Emporis Skyscraper Award 2012 shortlisted – 17 Sep 2013

30 Jun 2013

The Bow Award

CTBUH Names The Bow in Calgary Best Tall Building in the Americas 2013
CTBUH Awards 2013
Highly distinctive towers in Canada, China, the UK and UAE have been named the best tall buildings in the world for 2013 by the Council on Tall Buildings and Urban Habitat (CTBUH). The four regional winners include The Bow in Calgary, Canada (Americas); CCTV Headquarters in Beijing, China (Asia & Australia); The Shard, London (Europe); Sowwah Square, Abu Dhabi, United Arab Emirates (Middle East & Africa).

7 Jun 2013

The Bow Calgary

EnCana and Cenovus Headquarters, Alberta, Canada

Design: Foster + Partners with Zeidler Partnership

This headquarters tower is the tallest building in Canada outside of Toronto. The architecture is like an inverted Swiss Re tower, the logic to the form is robust: the building faces south, curving towards the sun to take advantage of daylight and heat, maximising views o the Rocky Mountains. By turning the convex facade into the prevailing wind, the structural loading is minimised, reducing the amount of steel needed. Clever building.

Official opening of The Bow, Calgary’s tallest tower

Special events have been held in Calgary this week to mark the official opening of The Bow, a 237- metre-high headquarters tower – the city’s tallest building and Canada’s tallest tower outside Toronto.

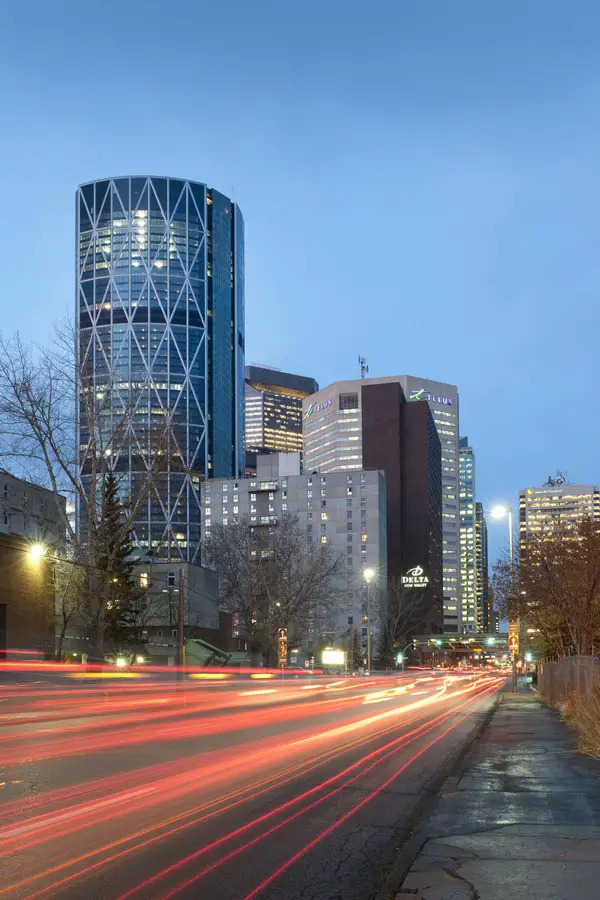

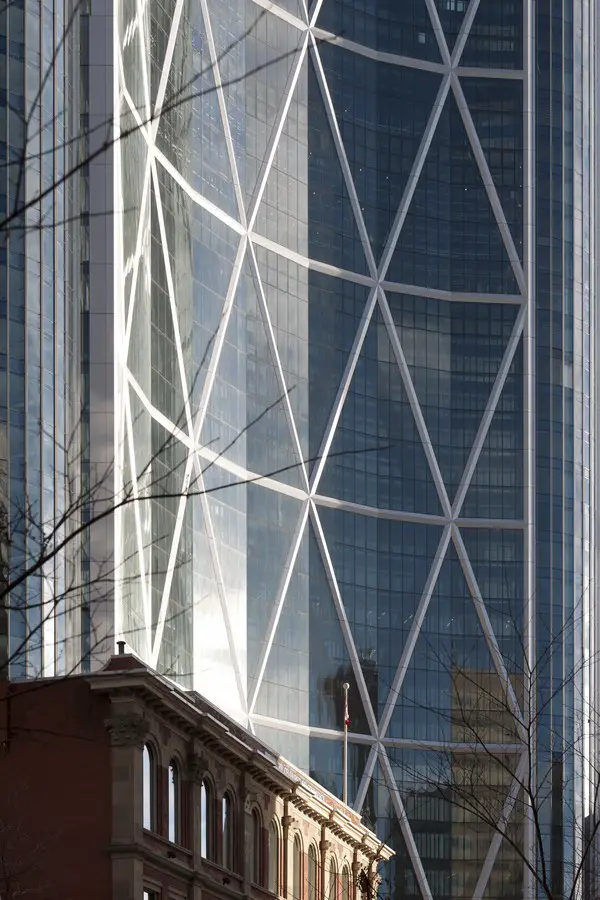

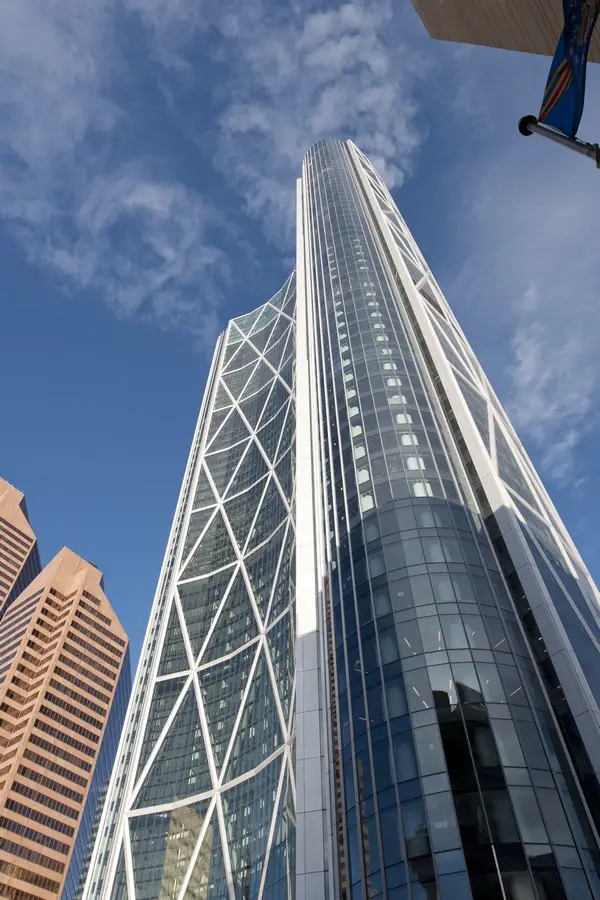

The Bow Calgary
image : Nigel Young_Foster + Partners

A bold new landmark on the skyline, the project is equally significant in urban, social and environmental terms: the public base of the tower is filled with shops, restaurants and cafes and extends into a generous landscaped plaza, while the office floors are punctuated by three six-storey sky gardens, which encourage natural ventilation and help to significantly reduce energy use.

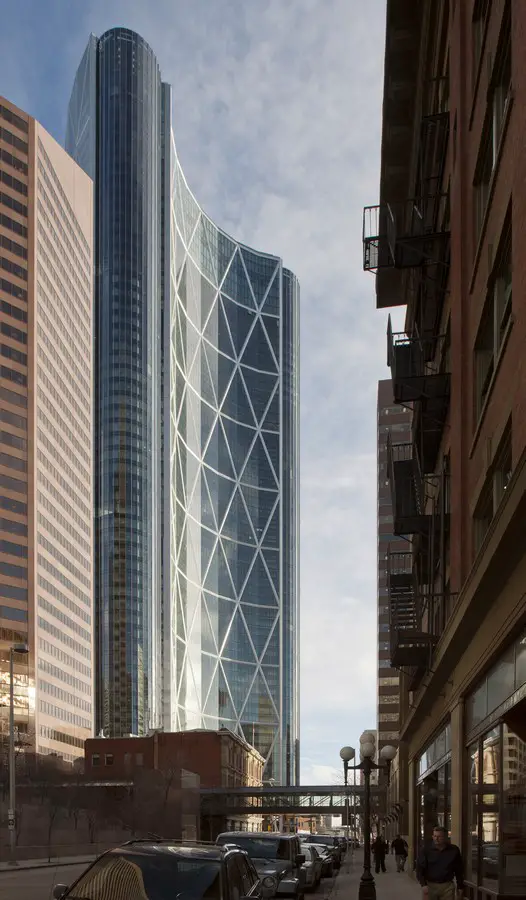

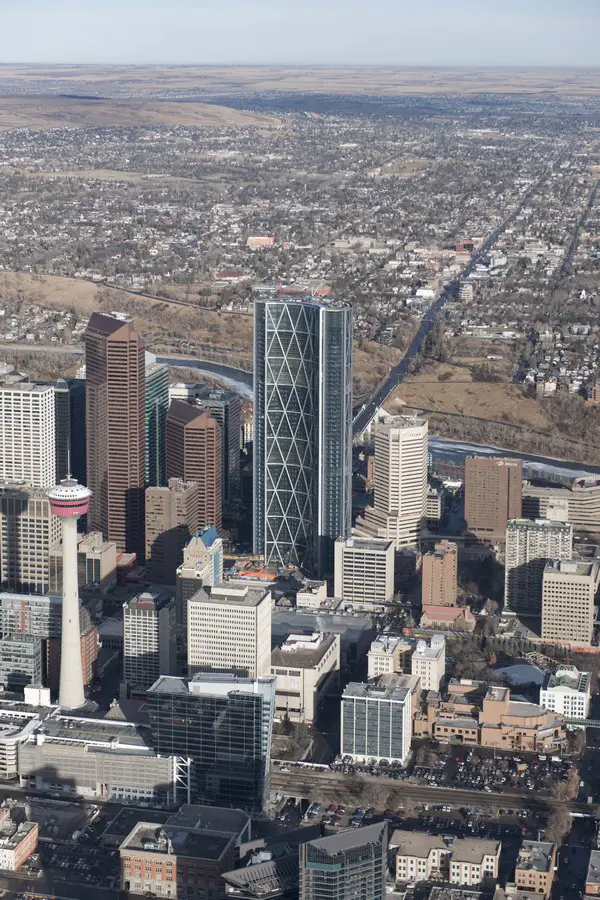

The Bow Calgary
image : Nigel Young_Foster + Partners

The Bow is the first major development on the east side of Centre Street, a major axis through downtown Calgary, and it provides a shared headquarters for Encana and Cenovus.

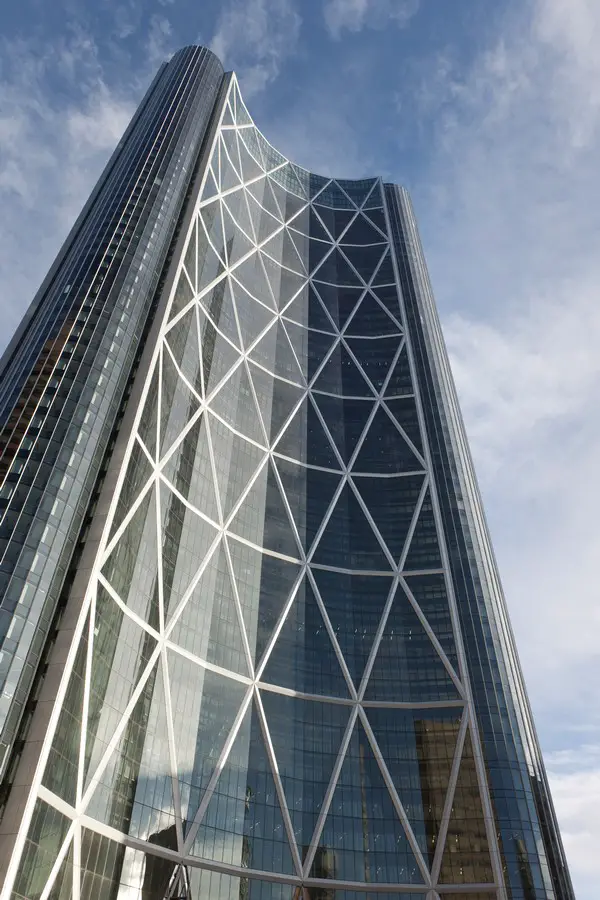

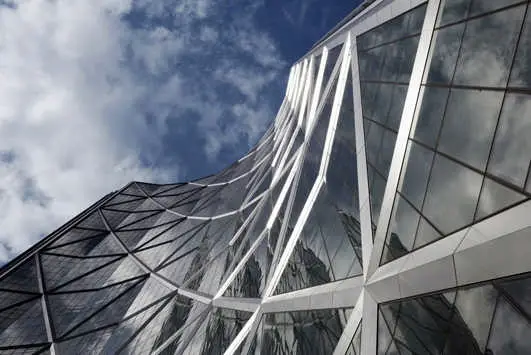

EnCana and Cenovus HQ building by Foster + Partners Architect The Bow Calgary EnCana and Cenovus Headquarters design by Foster + Partners Architect EnCana and Cenovus Headquarters building by Foster + Partners Architects The Bow Calgary
photos : Nigel Young_Foster + Partners

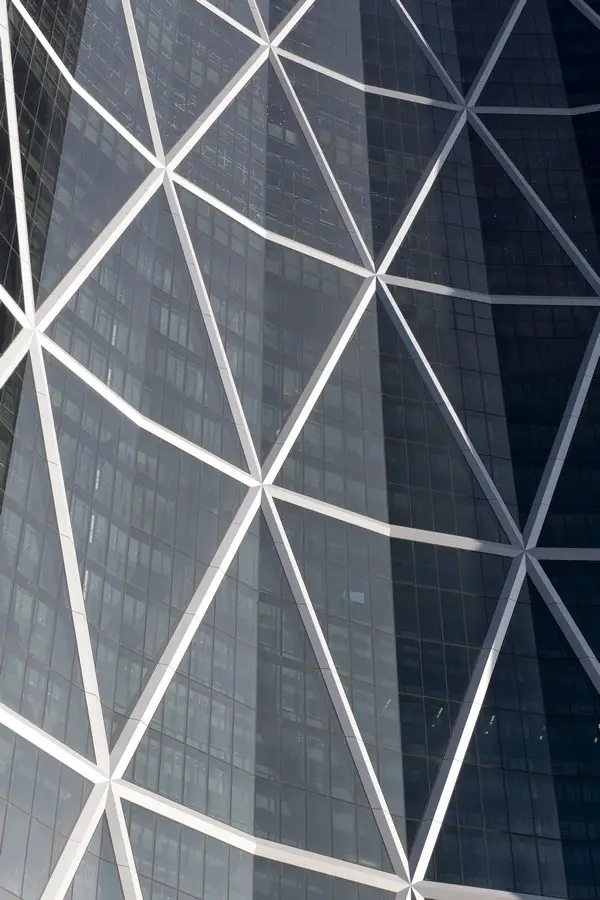

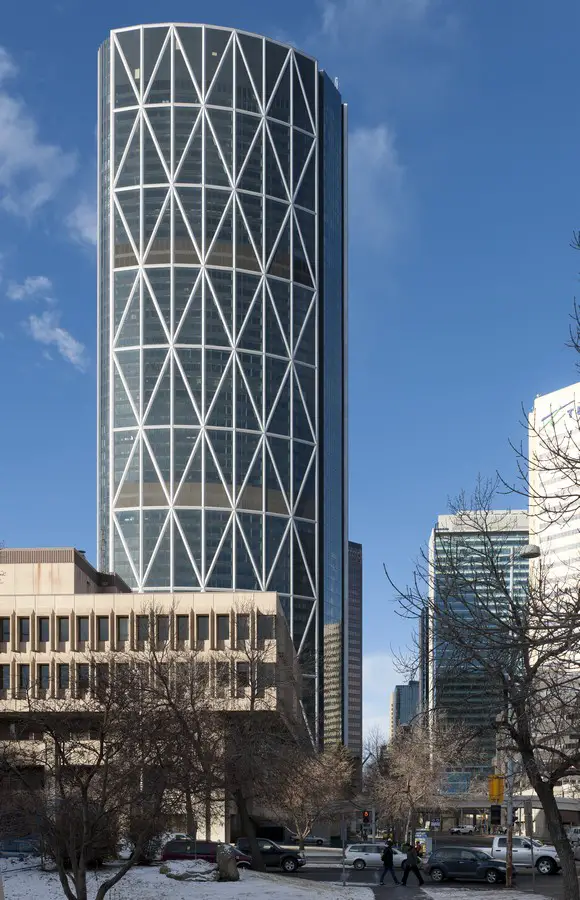

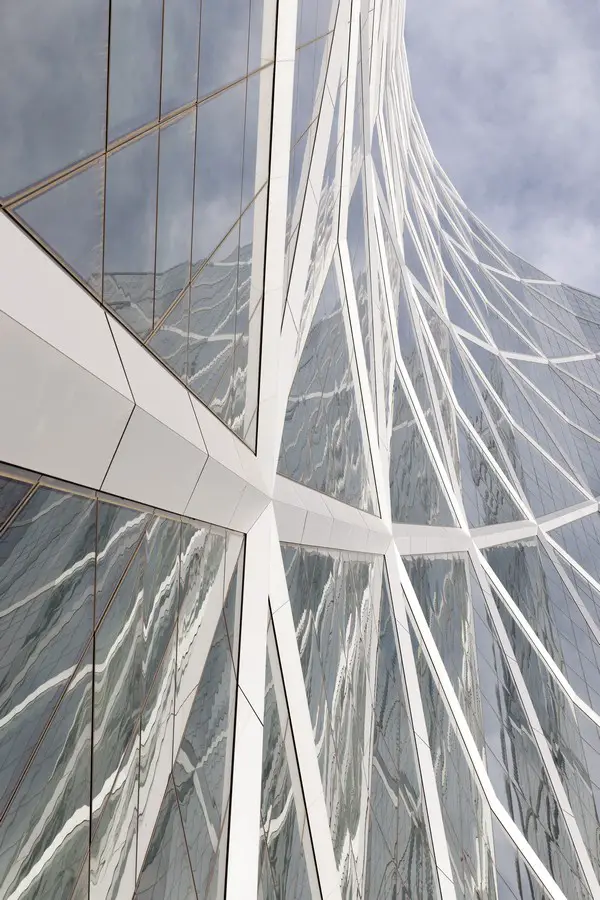

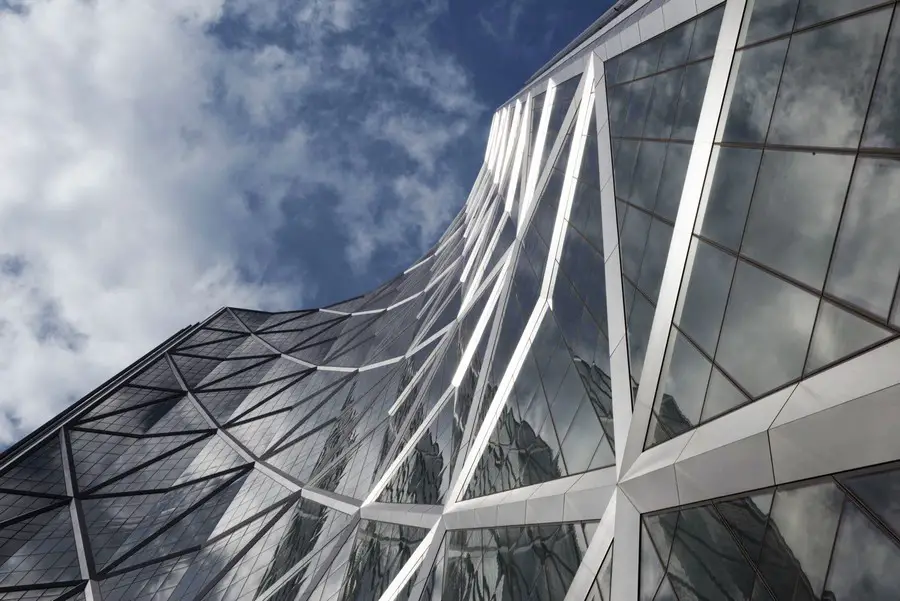

The building’s form was shaped by analysis of the climate and organisations. The tower faces south, curving towards the sun to take advantage of daylight and heat, while maximising the perimeter for cellular offices with views of the Rocky Mountains. By turning the convex facade into the prevailing wind, the structural loading is minimised, thus reducing the amount of steel required for the inherently efficient diagrid system. Each triangulated section of the structure spans six storeys, helping to visually break down the scale of the building.

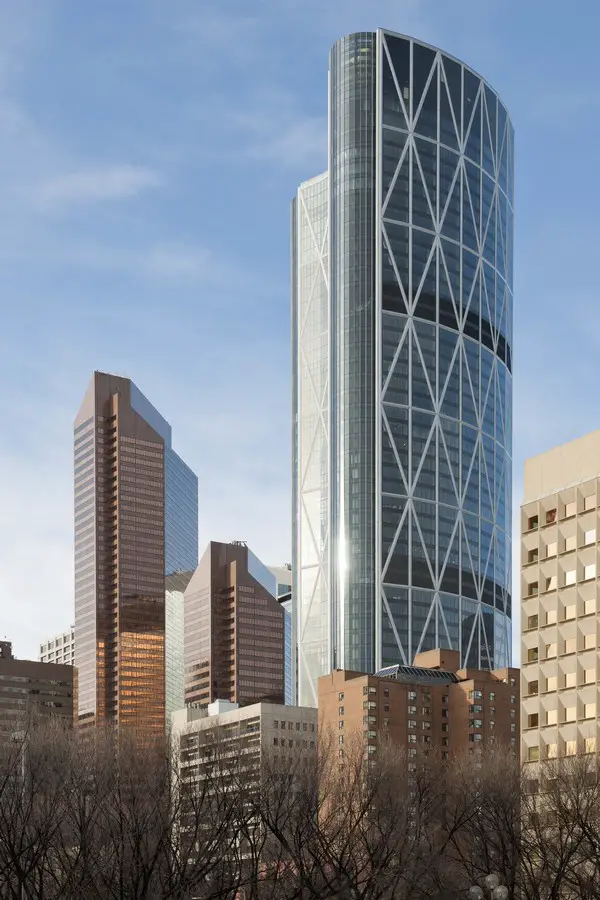

The Bow Calgary
image : Nigel Young_Foster + Partners

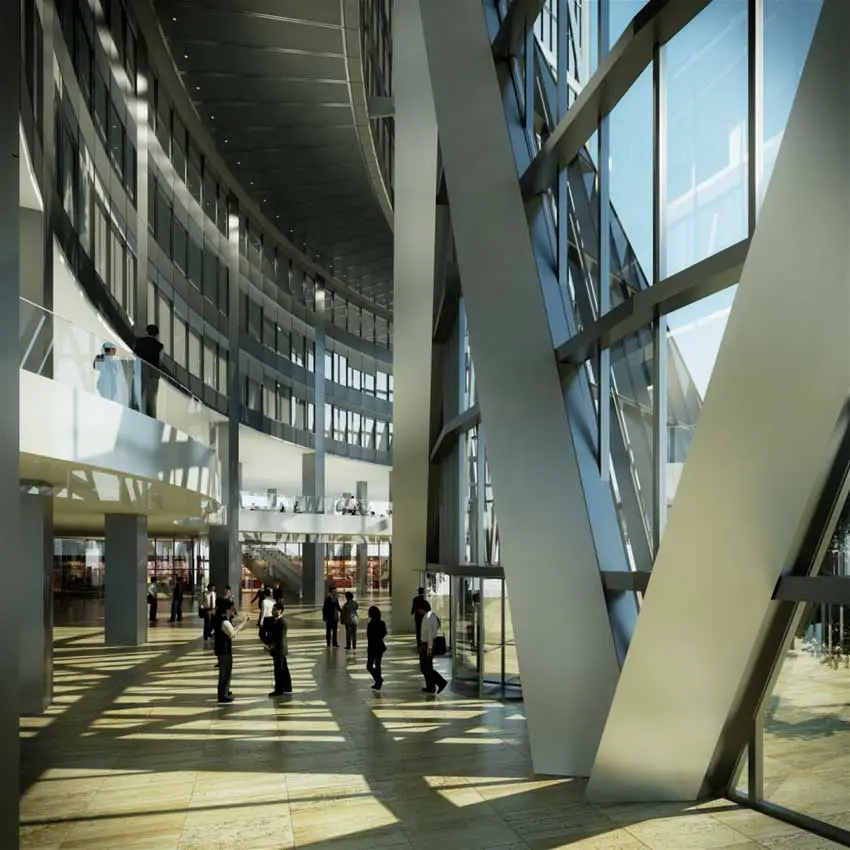

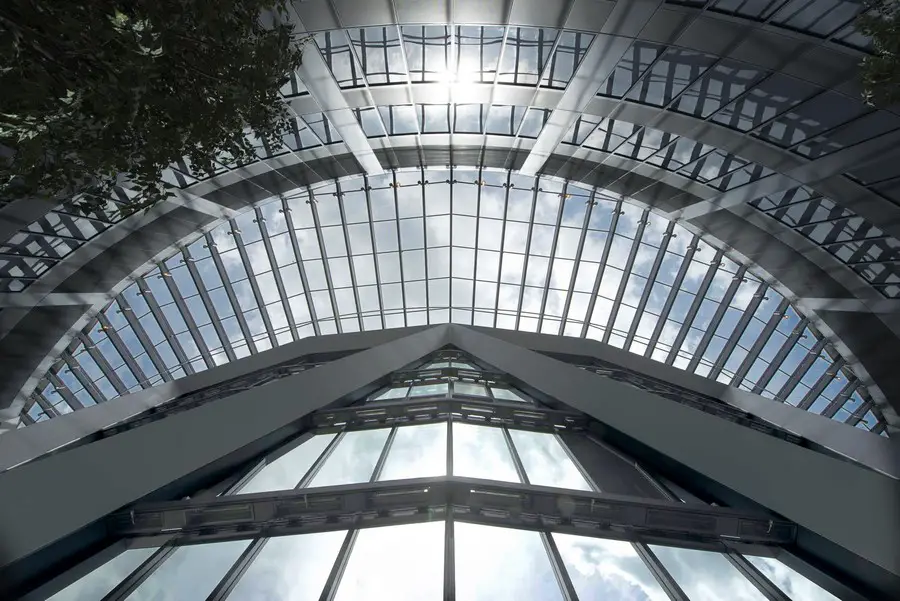

Where the building curves inwards, the glazed facade is pulled forward to create a series of atria that run the full height of the tower. These spaces act as climatic buffer zones, insulating the building and helping to significantly reduce energy consumption. As each floor plate has been sized to accommodate a whole business unit, there was a need to promote collaboration across the companies and bring a social dimension to the office spaces. Vertical access to the office floors is therefore directed through three spectacular sky gardens, which project into the atria at levels 24, 42 and 54 and incorporate mature trees, seating, meeting rooms, catering facilities and local lift cores. Staff facilities in these atria are complemented by an auditorium at the very top of the building.

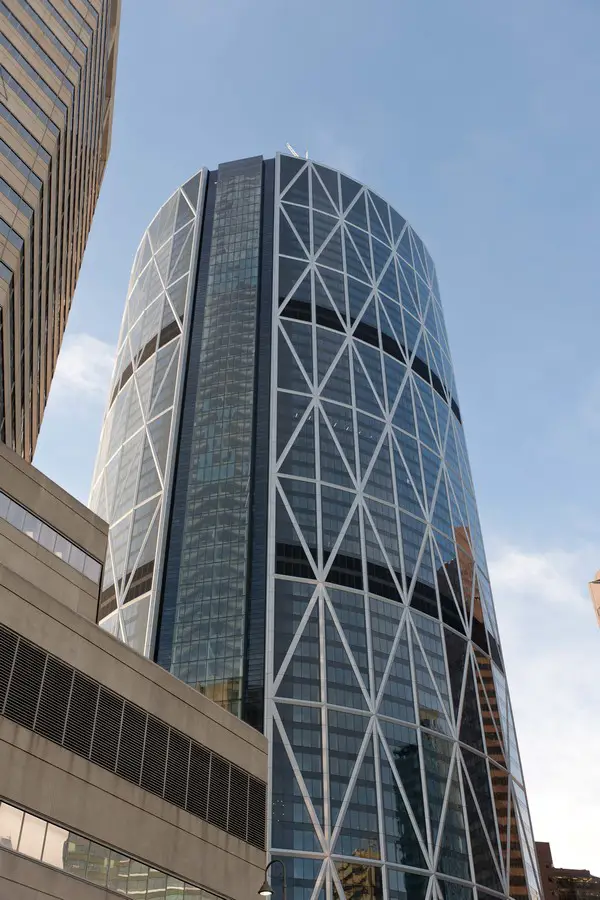

EnCana and Cenovus office building by Foster + Partners Architect
image : Nigel Young_Foster + Partners

The Bow also establishes lateral connections with surrounding buildings. The tower is fused at two points to Calgary’s system of enclosed walkways, which offers a retreat from the city’s harsh winters. The second floor is open to the public and integrates shops and cafes, and with the only public connection over Centre Street, the scheme completes a vital pedestrian link in the downtown network. Externally, the building’s arc defines a large landscaped public plaza, at the heart of which is a landmark sculpture by Spanish artist, Jaume Plensa.

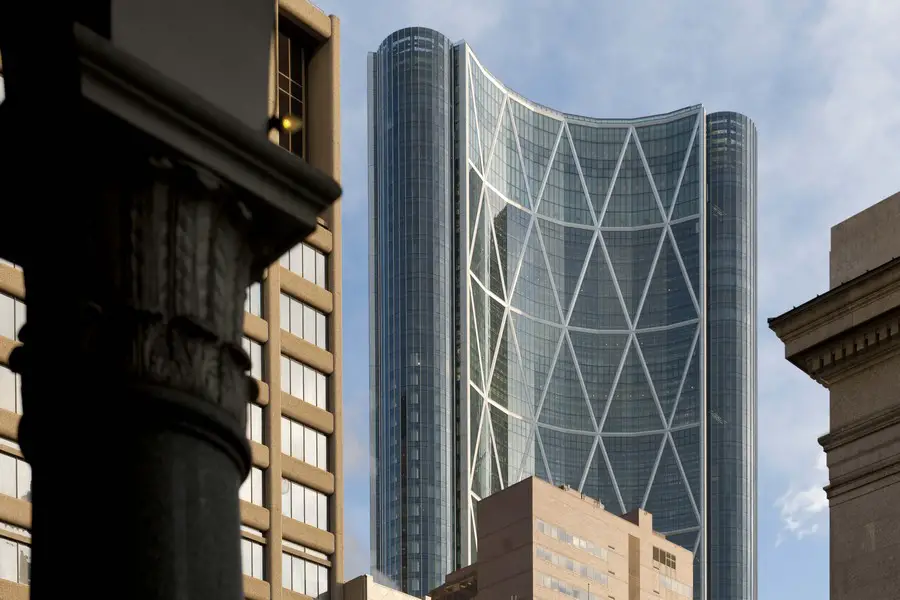

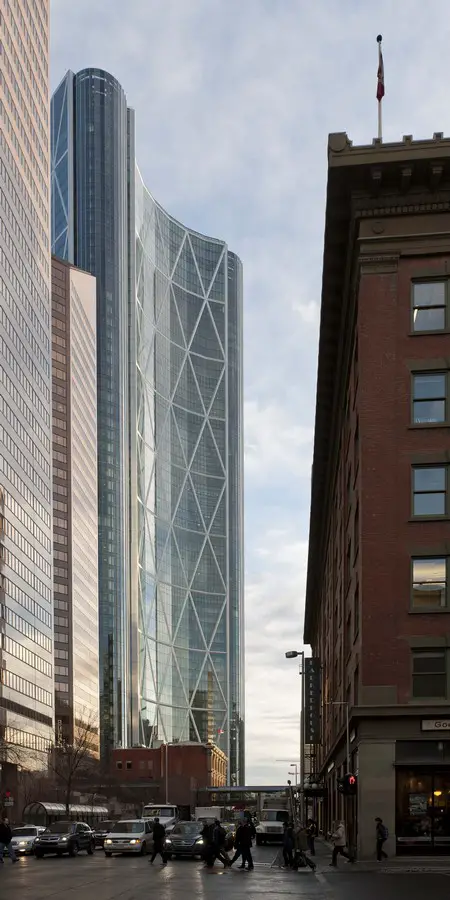

EnCana and Cenovus Headquarters building design by Foster + Partners Architect The Bow Calgary The Bow Calgary The Bow Calgary The Bow Calgary
photos : Nigel Young_Foster + Partners

Nigel Dancey, Senior Partner, Foster + Partners:
“The tower’s form was shaped by the unique Calgary climate – facing south, the building curves to define a series of spectacular light-filled six-storey atria, with mature sky gardens, cafes and meeting areas, which bring a vital social dimension to the office floors. This principle extends to the base of the tower, which is highly permeable, with a +15 enclosed bridge connection to downtown, an atrium of shops and cafes and a fantastic new plaza. Every aspect, from the raised floors to the diagrid structure, is designed to be highly efficient. The Bow is a bold new symbol for Calgary, and is testament to the strength of our team and excellent local relationships.”

The Bow Calgary The Bow Calgary The Bow Calgary The Bow Calgary
photos : Nigel Young_Foster + Partners

The Bow – Building Information

The Bow Tower
The Bow Calgary
photo : Nigel Young_Foster + Partners

The Bow Calgary images / information from Foster + Partners

The Bow Tower Calgary

Canada
2005-13
Design: Foster + Partners with Zeidler Partnership

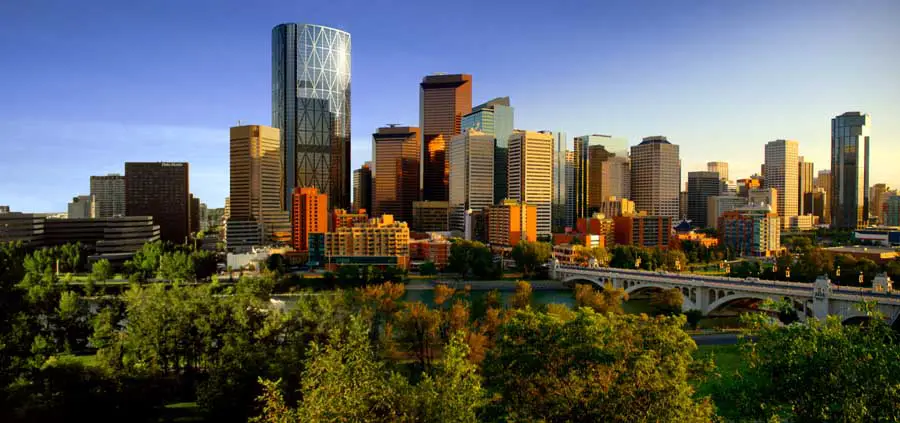

The Bow Calgary The Bow Tower Calgary The Bow Calgary Tower
image from architects

The new EnCana headquarters building, The Bow, will be the first significant mixed-use development east of Centre Street in downtown Calgary. Providing an environmentally sustainable headquarters for one of Canada’s leading corporations, the design will create a generous social space for Calgary, offering a new cultural, civic and shopping destination.

Co-architects: Zeidler Partnership

The Bow Calgary images / information from Foster + Partners

Foster + Partners Architects – The Bow architects

Location: Sixth Avenue, The Bow, Calgary, Canada
