National Assembly Reception Pavilion in Québec

Mar 5, 2020

National Assembly Reception Pavilion Québec City

Architects: Provencher_Roy

Location: Québec City, Canada

National Assembly Reception Pavilion Quebec City
photo © Stéphane Groleau

Unchanged for more than a century, the National Assembly of Québec inaugurated, last May, its new reception pavilion, designed by Provencher_Roy, a multidisciplinary firm integrating services in architecture, design, urban planning and landscaping, in consortium with GLCRM Architectes, as part of an initiative to modernize the institution’s infrastructures and facilitate access for the general public.

The project garnered a first merit award as early on as the conceptual phase in 2016, at the 49th edition of the Canadian Architect Awards of Excellence. Today, the fully realized project embodies a thorough understanding and mastery of heritage issues and shows great care and attention paid to an exceptional site.

National Assembly Reception Pavilion Quebec City
photo © Stéphane Groleau

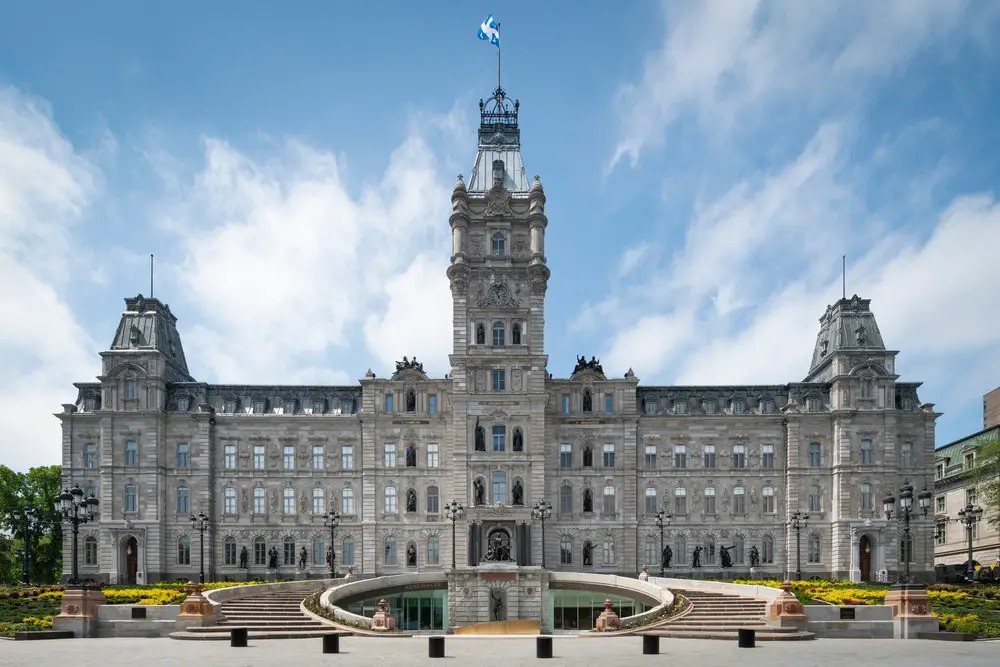

The intervention required special reflection because of the quality and the history of the place, which is absolutely exceptional in Québec. The facade of the Parliament Building, one of the rare facades in the world to depict such an iconographic narrative, constitutes the starting point of the architectural process, its classic French character and its symmetry permeating the entire project. The new pavilion is inserted on either side of the central axis that aligns the main entrance and the Parliament gardens, and is completely concealed when viewing the heritage building from the front.

National Assembly Reception Pavilion Quebec City National Assembly Reception Pavilion Quebec City
photos © Stéphane Groleau

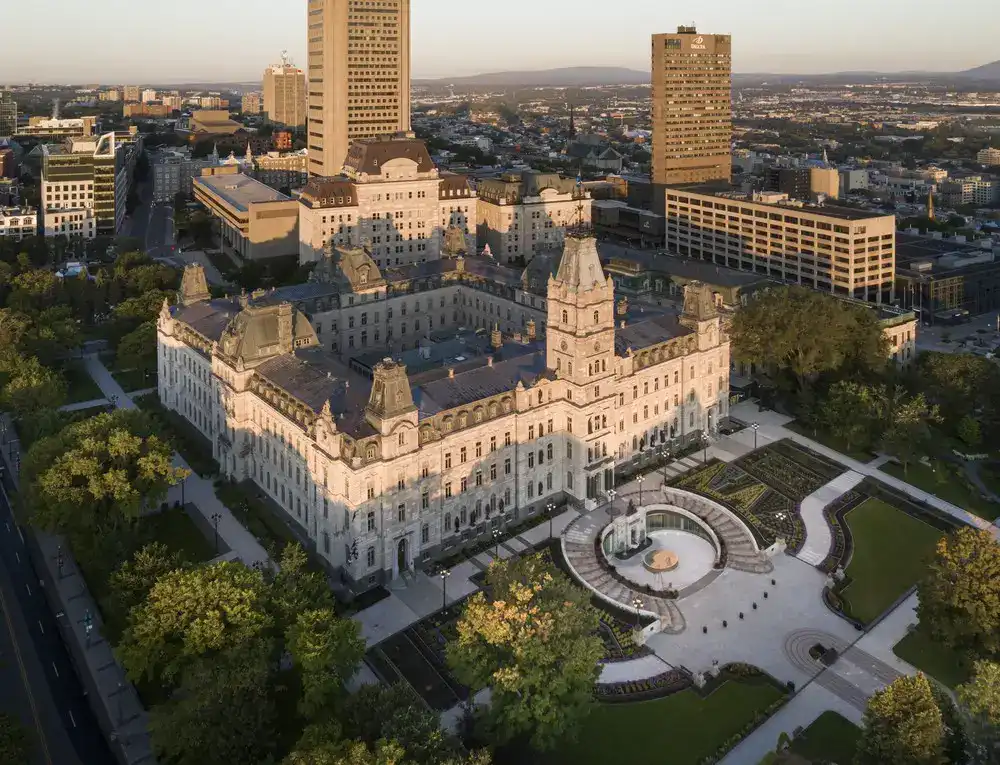

“Provencher_Roy opted for a sensitive and completely integrated intervention, by sliding the entire pavilion beneath the existing landscape and using the monumental staircase to establish a new entrance, to the pavilion itself and to the Parliament’s spaces,” explains Claude Provencher, architect and senior partner at Provencher_Roy, the firm he co-founded.

National Assembly Reception Pavilion Quebec

National Assembly Reception Pavilion Quebec
photos © Olivier Blouin

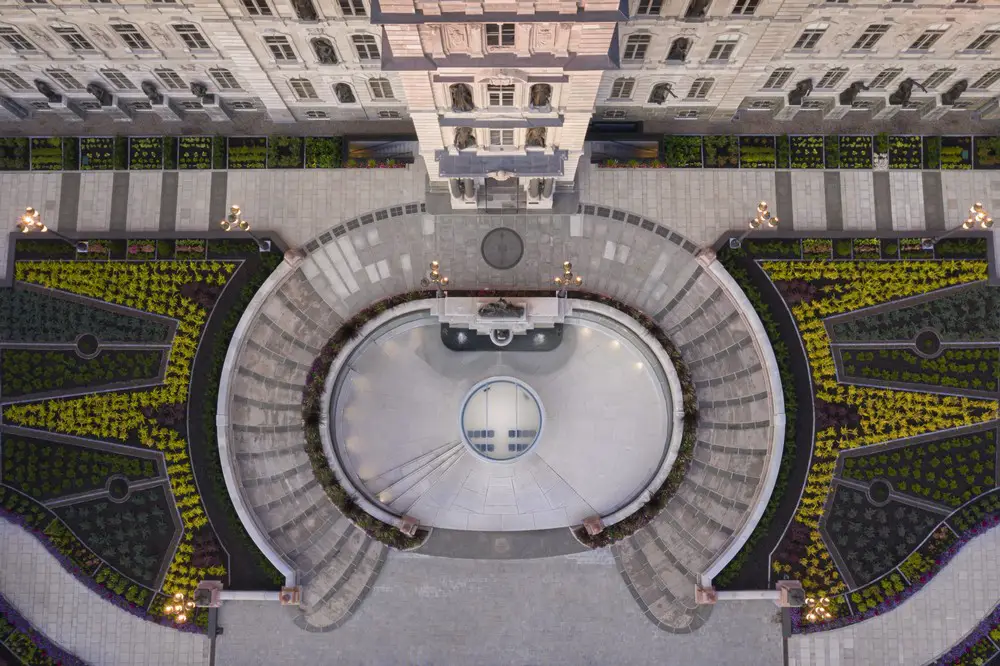

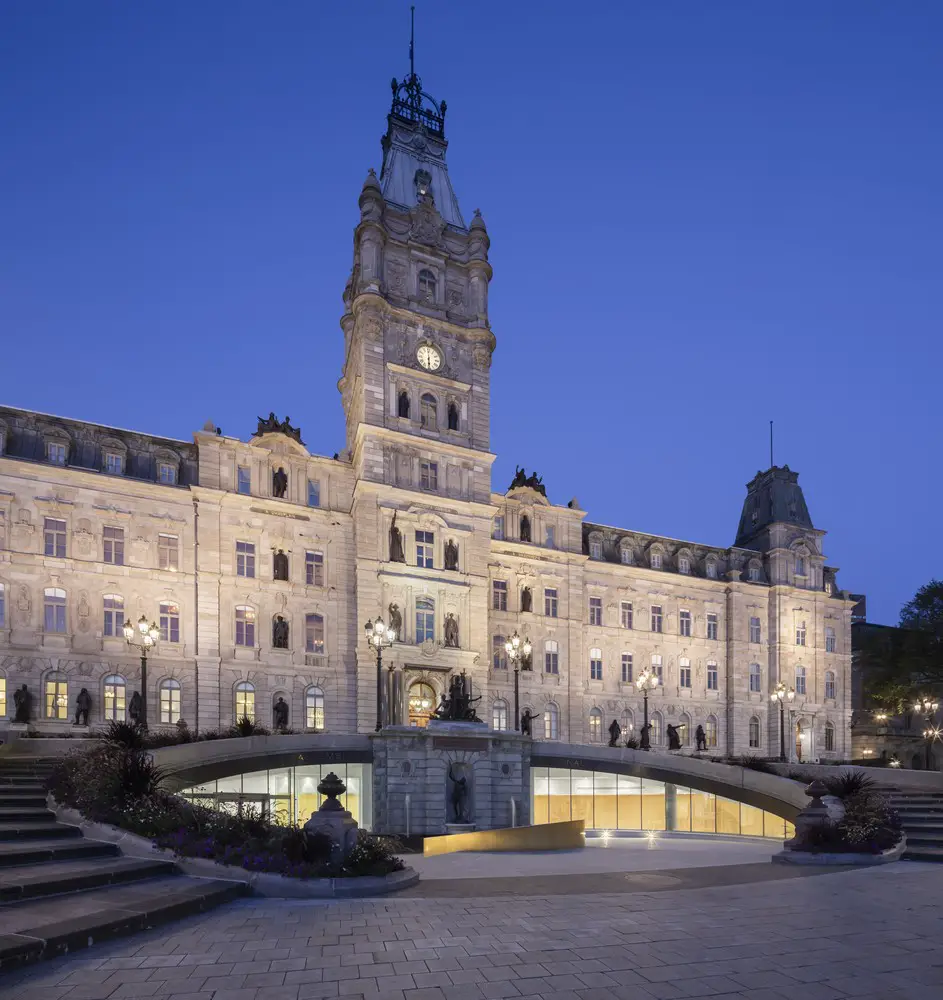

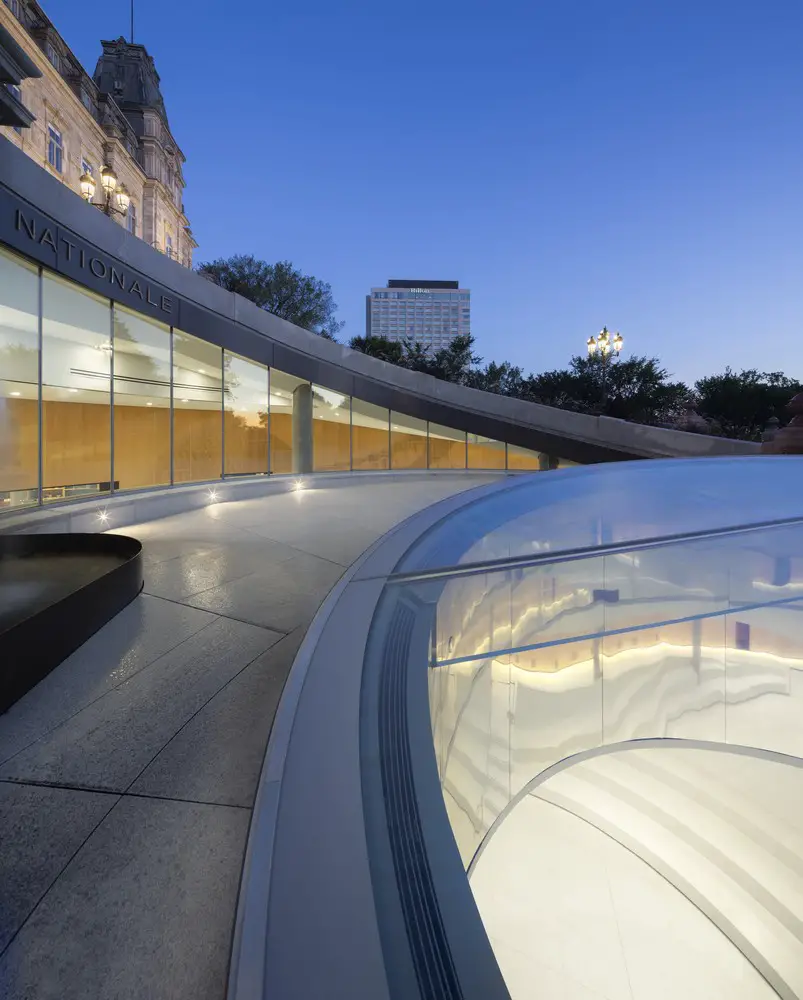

All masonry elements of the staircase were dismantled piece by piece, stored and later reassembled identically, and the National Assembly’s frontage was excavated down to the building’s foundations in order to install the new programs—a bold intervention made possible by the Assembly’s solid construction on bedrock, dating back to 1886. The historic facade of the Parliament Building remains visible along its full height and maintains direct links to the gardens. At its base, the deployment of glazing on either side of an oculus signals the intervention, more so at twilight. Visitors are thereby invited to get close to the facade as they enter the reception pavilion.

National Assembly Reception Pavilion Quebec
photo © Olivier Blouin

National Assembly Reception Pavilion Quebec
photo © Olivier Blouin

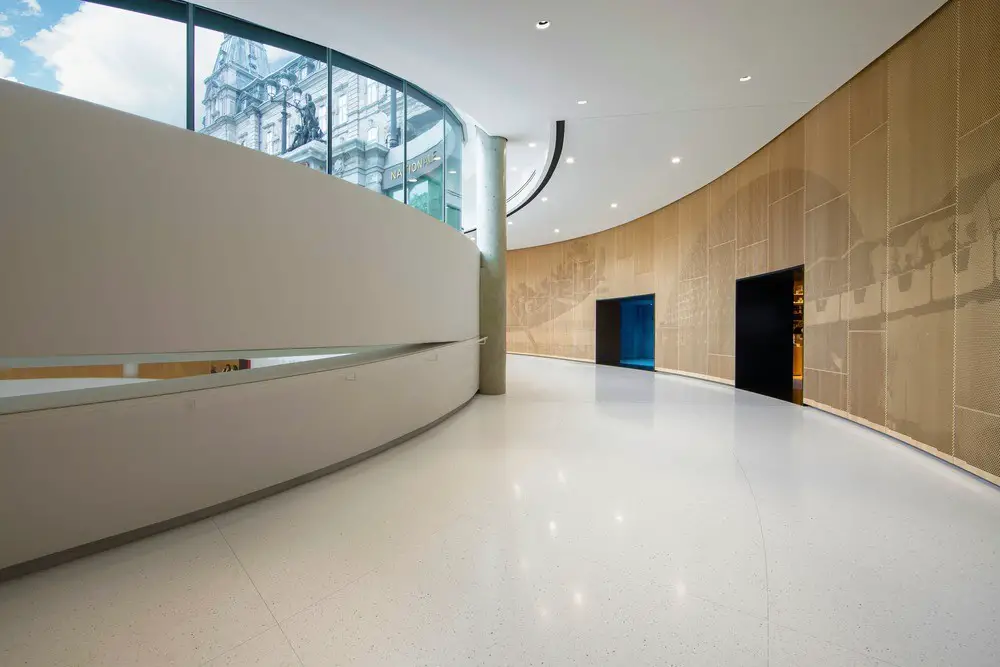

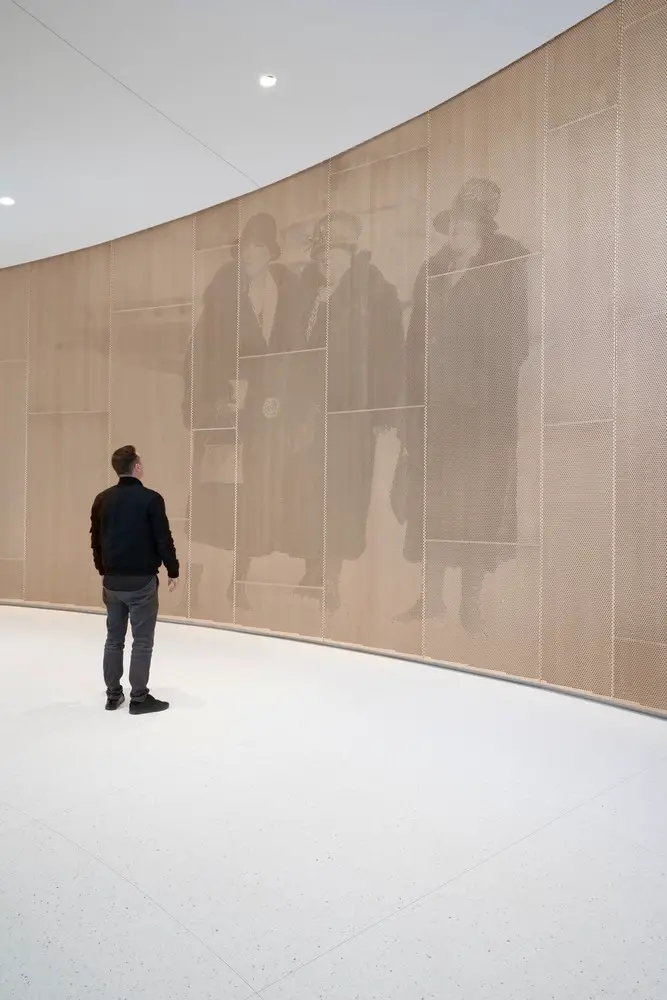

Built completely underground, the project is free of all formal constraints, thus shifting the emphasis to experiencing the space. The space is centered around a spiral ramp directly accessible from the entrance and forming a scenographic trail with Québec history as its narrative. A fresco depicts the milestones of the latter through a series of images that evoke notions of community and citizenship. These images are veritable sculptures whose presence is revealed by the illumination of panels that have perforations of varying depth. Moreover, the ramp as well as the peripheral panels play a technical role: the first serves as a structural fulcrum, while the panels conceal services and enable air circulation via the deeper perforations.

National Assembly Reception Pavilion Quebec City
photo © Stéphane Groleau

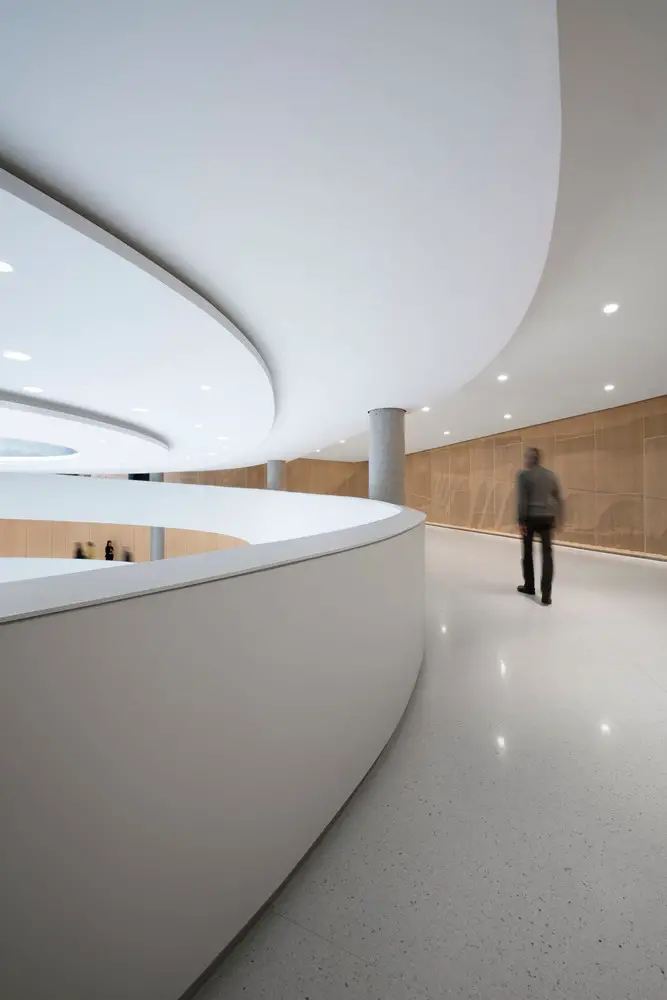

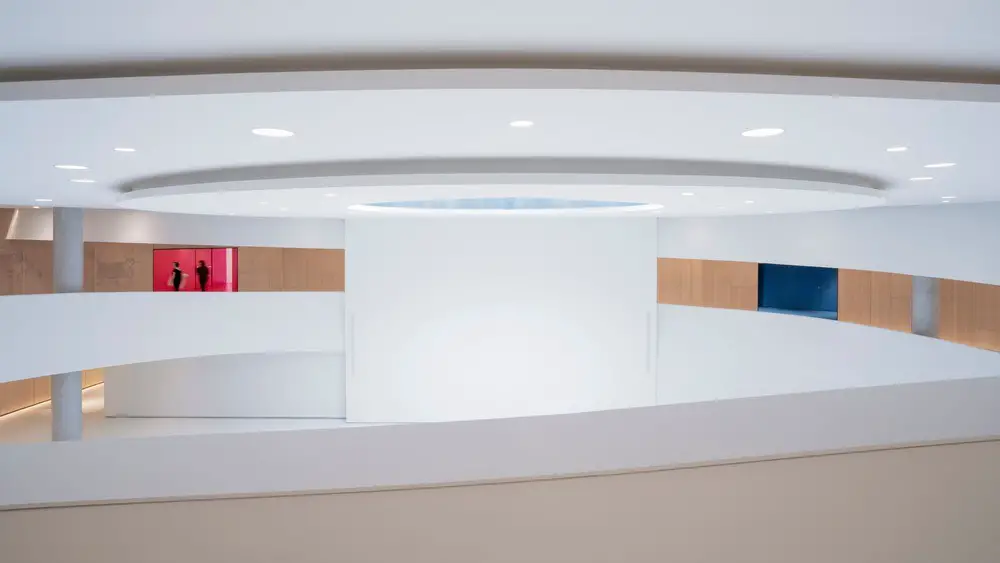

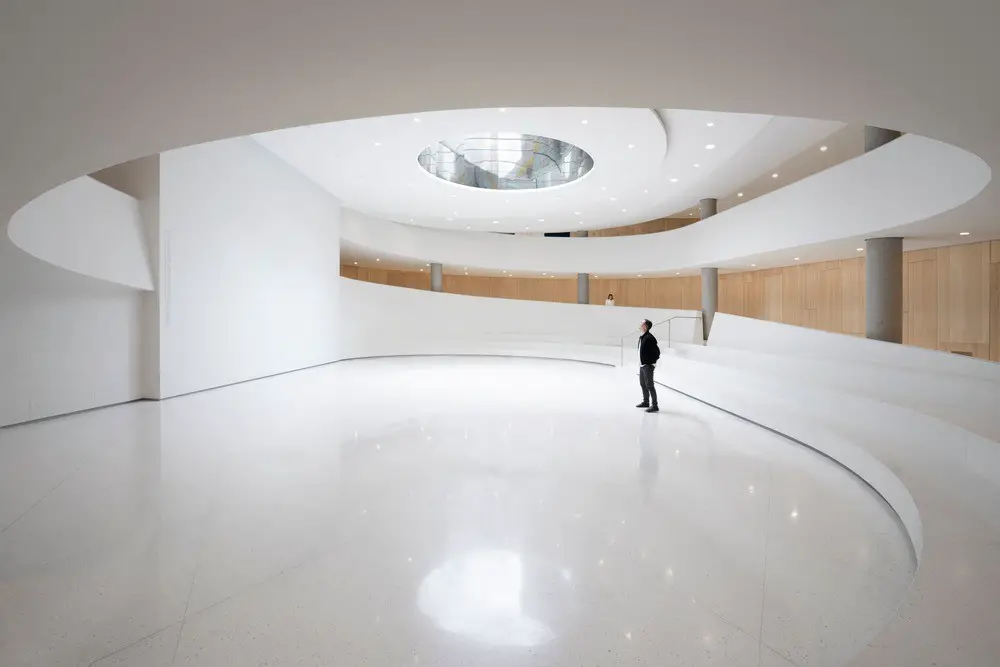

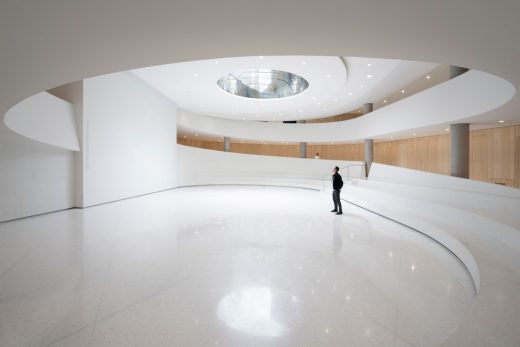

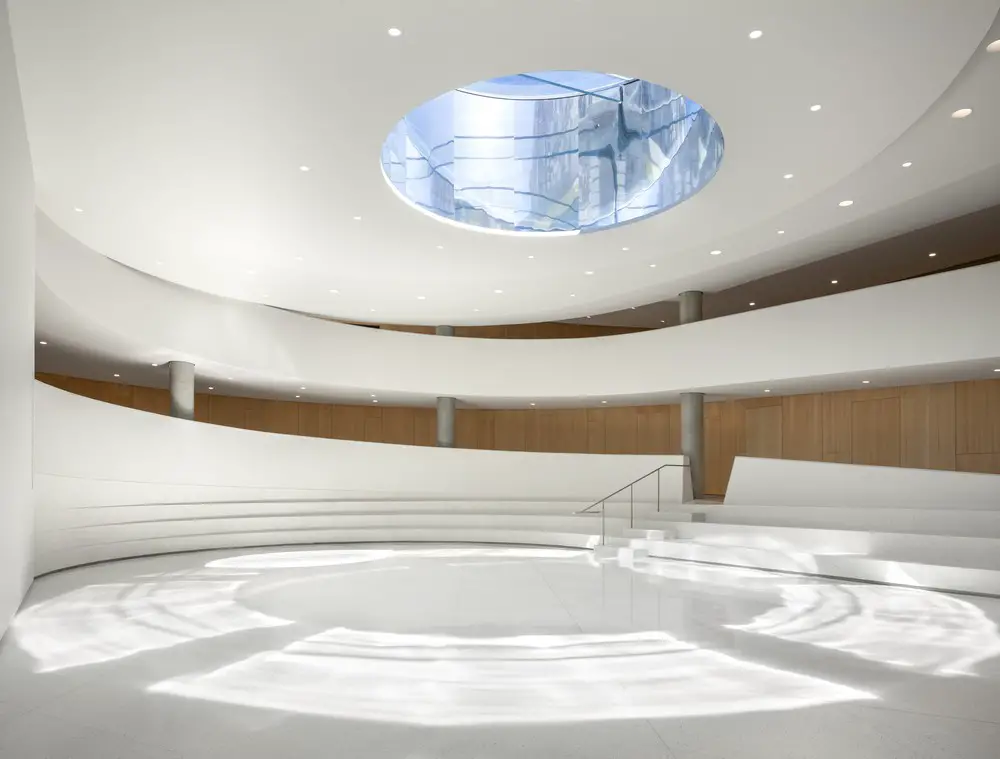

The ramp is the project’s centerpiece and a metaphor for direct, universal access to Québec’s contemporary democracy, expressed through a gentle slope that is usable by everyone, regardless of mobility level. Totalling 300 metres in length, the ramp delineates at its centre a circular space referred to as the “agora,” a place for gathering and for civic identity.

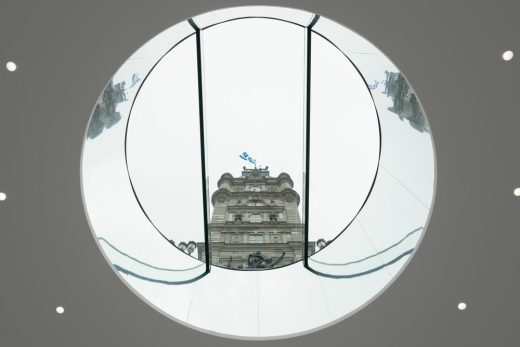

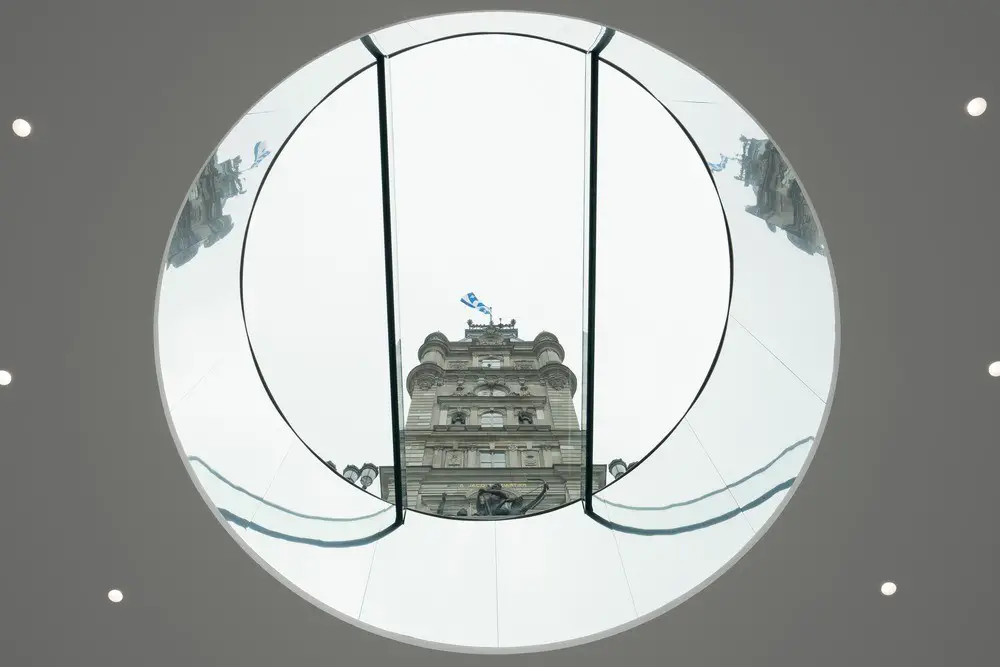

As a shape, the circle evokes notions of neutrality, unity and equality, all values espoused by this space that is open to all and whose insertion at the base of the Parliament Building is a metaphor for these values as the very foundation of democracy. Open on all sides, the agora fosters encounter and dialogue, with several levels of engagement according to one’s position within the space. The oculus overhead provides generous illumination while framing the central tower of the National Assembly.

National Assembly Reception Pavilion Quebec
photo © Olivier Blouin

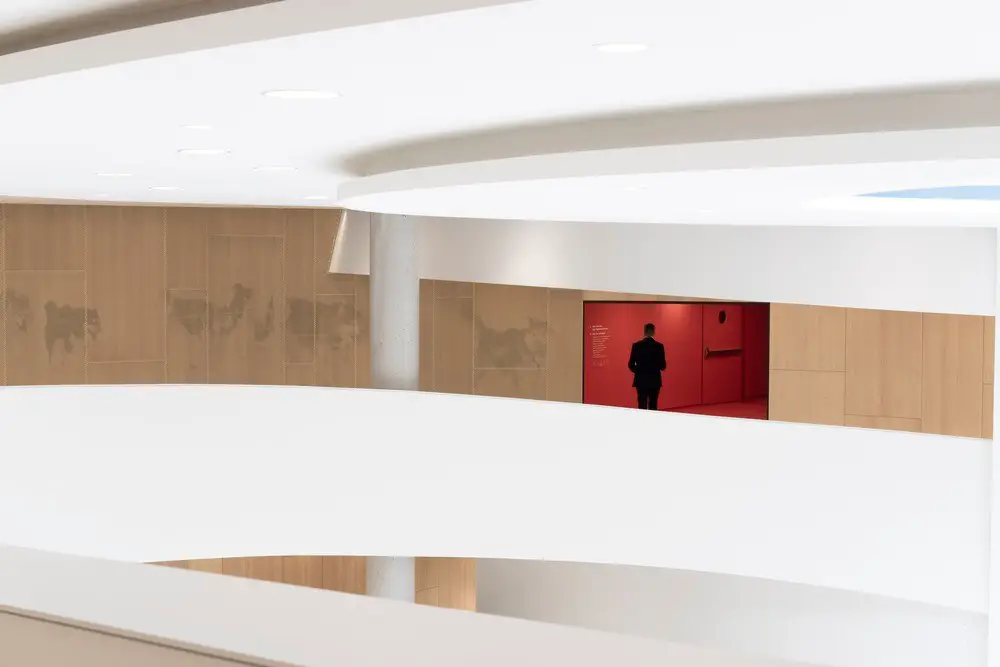

All the programs are organized around the ramp, which provides structure while guiding visitor circulation. Along the ramp, one finds spaces for reception, security and check-in, cloakrooms, multifunctional rooms and commission rooms, allowing the visitor to discover not only the evolution of our democracy, but also its functioning in real time, through windows and informative panels that offer an immersion into parliamentary debates.

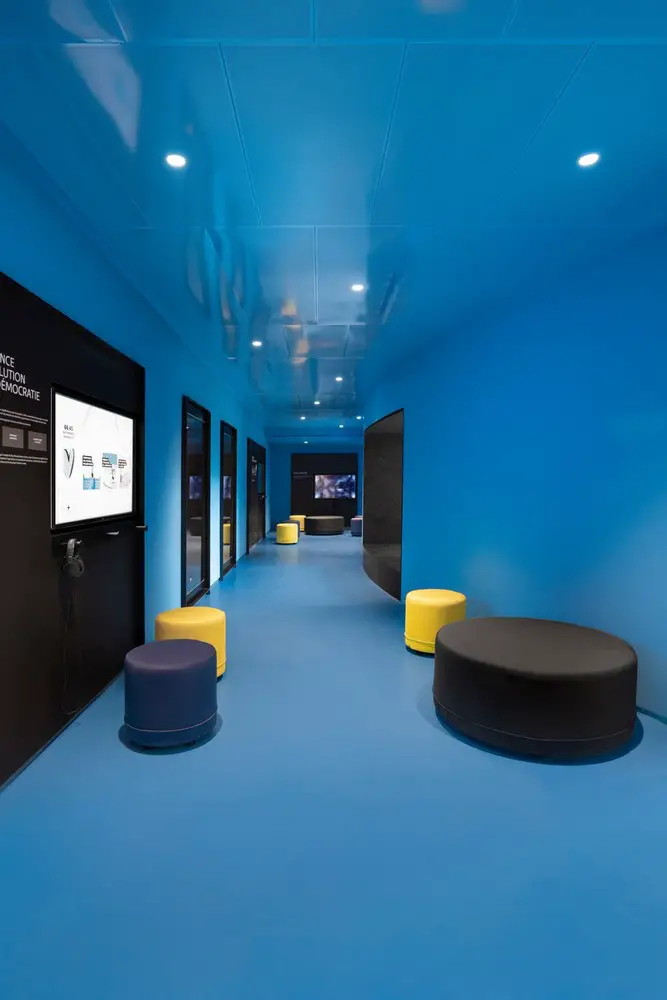

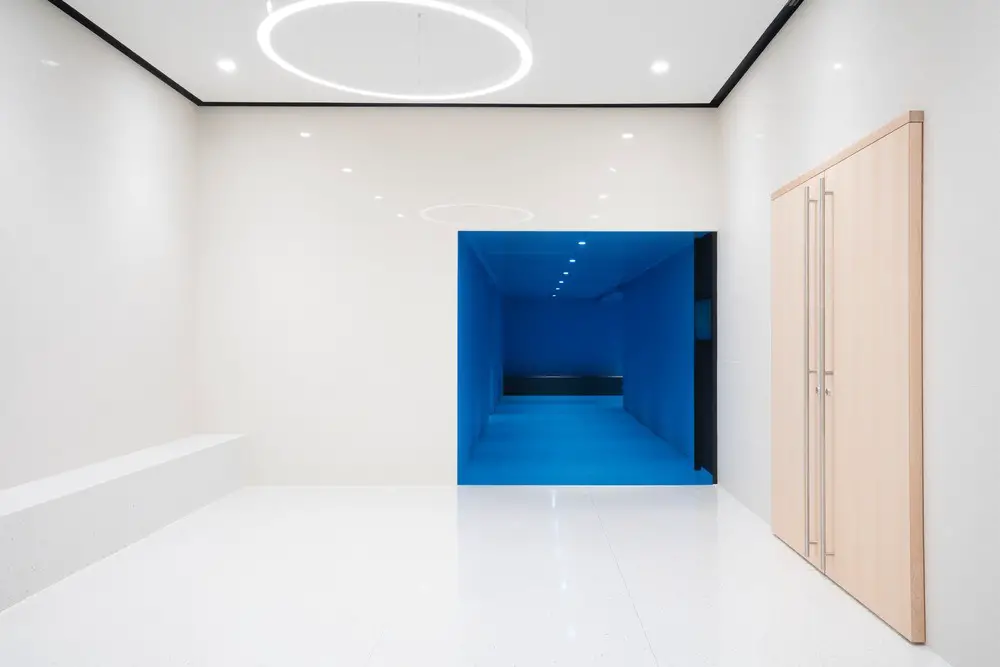

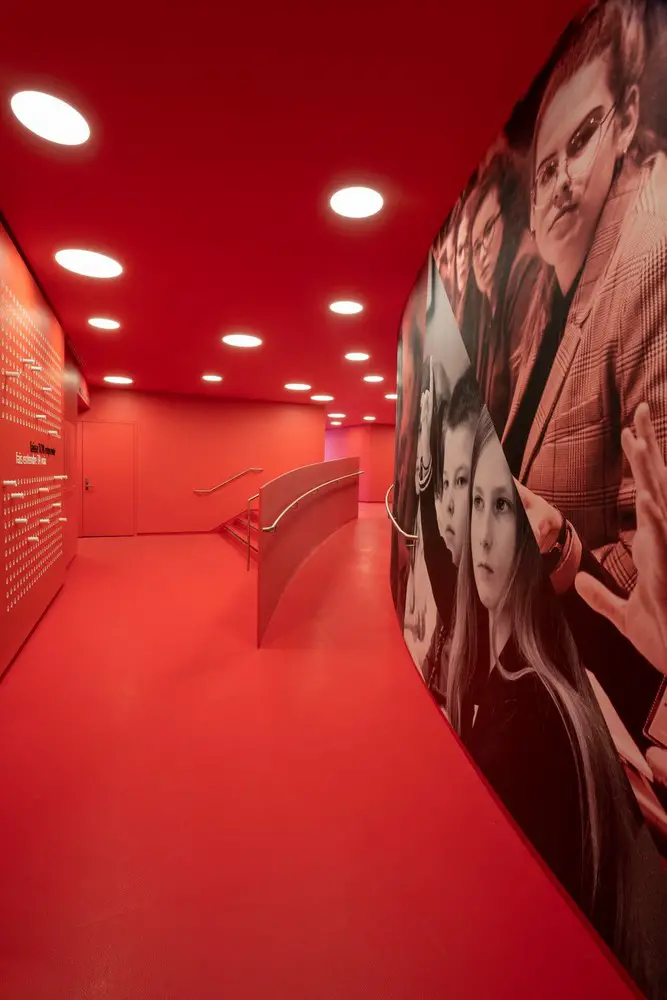

The interplay of the lighting and colour schemes imparts to the trail a museum-like quality, with tonal shifts from white to blue to red, a reference to the National Assembly’s Salon bleu and Salon rouge. A tunnel, housing Jonathan Villeneuve’s work Le Spectre des Lumière, leads to an elevator which provides access to the Parliament Building’s upper floors.

National Assembly Reception Pavilion Quebec
photo © Olivier Blouin

The insertion underground confers certain qualities to the project, including a development of programming elements that is free of constraints, as well as substantial savings in construction and maintenance costs (chiefly as a result of the diminished need for air conditioning in summertime and heating during the cold season). Further added value is found in the building’s energy profile, the absence of facade development translating into significant energy efficiency, as evidenced by the building’s LEED Silver certification. Nevertheless, the project’s initial concept constitutes its most sustainable gesture, namely the preservation of the existing structures and layouts in their entirety as a means of perpetuating history.

National Assembly Reception Pavilion Quebec National Assembly Reception Pavilion Quebec
photos © Olivier Blouin

National Assembly Reception Pavilion, Quebec – Building Information

Architect: Provencher_Roy

Location: Québec City, Canada
Year: 2019
Architects: Provencher_Roy + GLCRM Architectes
Project area: 5,100 m²
Contractor: Pomerleau
Electromechanics: CIMA+
Structure: WSP Canada Inc.
Security: CSP Consultants en Sécurité inc
Civil Engineering: WSP Canada inc.

National Assembly Reception Pavilion Quebec National Assembly Reception Pavilion Quebec
photos © Olivier Blouin

About Provencher_Roy
Recognized across Canada for the quality of its projects, Provencher_Roy is a multidisciplinary firm offering services in architecture, architectural planning, urban design and urban planning, landscape architecture, interior design, industrial design and sustainable development. Over the past 35 years, the firm has had a tremendous impact on Canadian cities, particularly Montreal, through a mix of contemporary projects and the rehabilitation of iconic buildings, recent examples being the Montreal Museum of Fine Arts and the Ritz-Carlton Hotel.

Operating in the institutional sector, but also in the fields of science, education and transportation, Provencher_Roy was a player in the construction of the new Champlain Bridge, the restoration of the Iberville International Maritime Terminal and the Alexandra Pier, and the construction of Îlot Balmoral, a signature building in Montreal’s Quartier des spectacles. Named Architectural Firm of the Year in 2015 by the Royal Architecture Institute of Canada (RAIC), Provencher_Roy has garnered numerous awards for its achievements.

About GLCRM Architectes
Founded in Quebec City in 1974, GLCRM Architectes has worked on projects across Canada as well as in Europe. Its team consists of seasoned experts in architecture and general construction. For more than 40 years, the firm has been providing traditional services in design and monitoring[NB1] with a multidisciplinary approach that brings together specialists in architecture, interior design, land use planning, sustainable development and computer modeling. Driven by a desire to satisfy client needs and to provide excellence, the team has won several awards and distinctions from public bodies as well as numerous mentions in a variety of specialized publications.

National Assembly Reception Pavilion Quebec
photo © Olivier Blouin

Photography: Olivier Blouin / Stéphane Groleau
